A&E / Dometic Patio 9100 Series - Power Parts Diagram · 8951002 Standard

Awning · 19 assemblies · 19 diagram sheets · 287 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the A&E / Dometic Patio 9100 Series - Power RV awning: 19 assemblies (8951002 Standard, 8951001 Basement, 8956003 Reduced/pwr Channel, 917 Vinyl/metal Ws, 8952012 Standard and more) and 287 manufacturer part numbers. 7 parts are marked as superseded — the description gives the replacement number to order instead.

Awning arms carry the model label on the inside of the arm or on the bottom bracket; the roller tube end cap often has the length. Measure fabric length eye-to-eye before ordering a replacement.

8951002 Standard

Components

4 items

1. #KIT,WIRE COVER MFR # 3310453125B
2. #KIT,HARDWARE (LH &/OR RH) MFR # 3310457209B
3. #KIT,HARNESS MFR # 3310454057
4. #Awning Enclosure Fastener; For Use With 9100 Series Power And Manual Awning Hardware; Screw In Fasteners MFR # 3310458074 Superseded: see description

8951001 Basement

Components

4 items

1. #KIT,HARDWARE (LH &/OR RH) MFR # 3310456102B
2. #KIT,WIRE COVER MFR # 3310453042B
3. #KIT,HARNESS MFR # 3310454057
4. #Awning Enclosure Fastener; For Use With 9100 Series Power And Manual Awning Hardware; Screw In Fasteners MFR # 3310458074 Superseded: see description

8956003 Reduced/pwr Channel

Components

34 items

1. #Awning Enclosure Fastener; For Use With 9100 Series Power And Manual Awning Hardware; Screw In Fasteners MFR # 3310458074 Superseded: see description
2. #TIE-DOWN STRAPS & ANCHORS RV; KIT,PULL STRAP 90.50" MFR # 3311862019
3. #PWR CHANNEL HDWE REDUCED, LH, BLACK MFR # 3312487645U
4. #PWR CHANNEL HDWE REDUCED, LH, CHAMPAGNE MFR # 3312487645R
5. #PWR CHANNEL HDWE REDUCED, LH, SILVER MFR # 3312487645P
6. #PWR CHANNEL HDWE REDUCED, RH, CHAMPAGNE MFR # 3312487637R
7. #PWR CHANNEL HDWE REDUCED, RH, BLACK MFR # 3312487637U
8. #PWR CHANNEL HDWE REDUCED, RH, SILVER MFR # 3312487637P
9. #PWR CHANNEL HDWE REDUCED, RH, POLAR WHITE MFR # 3312487637B
10. #PWR CHANNEL HDWE REDUCED, LH, POLAR WHITE MFR # 3312487645B
11. #WIRE COVER ASM, REDUCED, SILVER MFR # 3312492622P
12. #WIRE COVER ASM, REDUCED, CHAMPAGNE MFR # 3312492622R
13. #WIRE COVER ASM, REDUCED, BLACK MFR # 3312492622U
14. #WIRE COVER ASM, REDUCED, POLAR WHITE MFR # 3312492622B
15. #Awning Bushing; 9100 Power Awnings; For Dometic 9100 Series Power Patio Awnings MFR # 3311753000
16. #APPLIANCE COMPONENTS RV; Pin Kit MFR # 3311754000
17. #TOOLS & FASTENERS RV; KIT,SCREW HEX HD 6-20X.44 10PK MFR # 3311579002
18. #Awning Rivet; Oscar Rivet; 3/16 Inch x 1 Inch; Pack Of 10 MFR # 3311579016
19. #TOOLS & FASTENERS RV; KIT,SCREW HX.25- 20X.75 10PK SS MFR # 3311579071
20. #TOOLS & FASTENERS RV; KIT,SCREW 14- 10X1.50 HHW 10PK MFR # 3311579030
21. #Washer; Replacement For Dometic Awning Arms; MFR # 3311579000
22. #Awning Arm Mounting Hardware; For A&E Patio Awnings; With Knob MFR # 3312509007
23. #COVER SVC KIT,FRONT CHANNEL POLAR WHT MFR # 3312821006B
24. #AWNING-ACCESSORIES RV; COVER SVC KIT,FRONT CHANN MFR # 3312821006U
25. #COVER SVC KIT,FRONT CHANNEL SILVER MFR # 3312821006P
26. #COVER SVC KIT,FRONT CHANNEL CHAMPAGNE MFR # 3312821006R
27. #BRACKET SVC, TOP BLACK MFR # 3310452039U
28. #BRACKET SVC, TOP SILVER MFR # 3310452036P
29. #BRACKET SVC, TOP CHAMPAGNE MFR # 3310452036R
30. #BRACKET SVC, TOP POLAR WHT MFR # 3310452036B
31. #ARM ASM SVC KIT, ADJ PITCH STANDARD CHAMPAGNE MFR # 3312508017R
32. #ARM ASM SVC KIT, ADJ PITCH STANDARD BLACK MFR # 3312508017U
33. #ARM ASM SVC KIT, ADJ PITCH STANDARD SILVER MFR # 3312508017P
34. #AWNING-REPAIR PARTS RV; Arm Asm Svc Kit MFR # 3312508017B

917 Vinyl/metal Ws

Components

62 items

1. #DRIVE ASSEMBLY, RH, BLACK MFR # 3310423137U
2. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423.209R
3. #DRIVE ASSEMBLY, RH, POLAR WHITE MFR # 3310423137B
4. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423137P
5. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423137R
6. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423.209P
7. #TORSION ASM, LH PWR SILVER MFR # 3310420017P
8. #APPLIANCE COMPONENTS RV; Torsion Asm Lh MFR # 310420017B
9. #Awning Spring Assembly; For Use With Dometic 9100 Series Power Awnings 10 Foot To 21 Foot Length; Left Hand; Champagne Casting MFR # 310420017R Superseded: see description
10. #TORSION ASM LH SVC PWR AWN-BLK MFR # 3310420017
11. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 12' MFR # 3108346012
12. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 17 Foot Length MFR # 3108346017
13. #Awning Roller; Aluminum; 18 Foot Length MFR # 3108346018
14. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 20 Foot Length MFR # 3108346020 Superseded: see description
15. #TUBE,ROLLER 14' SATIN MFR # 3108346014
16. #AWNING-ACCESSORIES RV; TUBEROLLER BOXED ALUM 13 MFR # 3108346013
17. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 10' MFR # 3108346010
18. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 15 Foot Length MFR # 3108346015
19. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 21 Foot Length MFR # 3108346021 Superseded: see description
20. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 16 Foot Length MFR # 3108346016
21. #Awning Roller; For Use With Patio Awning; Standard 3-Slot Roller Bar; 3-1/2 Inch Diameter; 19 Foot Length MFR # 3108346019 Superseded: see description
22. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 11' MFR # 3108346011
23. #CALL FOR PART # & PRICING MFR # FABRIC
24. #COVER, ROLLER 15' SILVER MFR # 830316C015P
25. #COVER ASM,REPL RLR SILVER 20' MFR # 830316C020P
26. #COVER, ROLLER 12' SILVER MFR # 830316C012P
27. #COVER, ROLLER 19' CHAMPAGNE MFR # 830316C019R
28. #Dometic 11' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C011B
29. #COVER, ROLLER 12' CHAMPAGNE MFR # 830316C012R
30. #Dometic 15' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C015B
31. #Dometic 16' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C016B
32. #Dometic 19' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C019U
33. #Dometic 20' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C020U
34. #Dometic 16' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C016U
35. #COVER, ROLLER 20' CHAMPAGNE MFR # 830316C020R
36. #SLAT, TOP 15' CHAMPAGNE MFR # 3311641015R
37. #SLAT, TOP 16' SILVER MFR # 3311641016P
38. #SLAT, TOP 15' SILVER MFR # 3311641015P
39. #SLAT, TOP 17' SILVER MFR # 3311641017P
40. #SLAT, TOP 10' SILVER MFR # 3311641010P
41. #SLAT, TOP 13' BLACK MFR # 3311641013U
42. #SLAT, TOP 17' POLAR WHITE MFR # 3311641017B
43. #SLAT, TOP 14' CHAMPAGNE MFR # 3311641014R
44. #SLAT, TOP 17' CHAMPAGNE MFR # 3311641017R
45. #SLAT, TOP 19' POLAR WHITE MFR # 3311641019B
46. #SLAT, TOP 10' POLAR WHITE MFR # 3311641010B
47. #SLAT, TOP 10' BLACK MFR # 3311641010U
48. #SLAT, ROLLER COVER 15' CHAMPAGNE MFR # 3311646015R
49. #SLAT, ROLLER COVER 19' POLAR WHITE MFR # 3311646019B
50. #SLAT, ROLLER COVER 14' SILVER MFR # 3311646014P
51. #SLAT, ROLLER COVER 15' SILVER MFR # 3311646015P
52. #SLAT, ROLLER COVER 13' CHAMPAGNE MFR # 3311646013R
53. #SLAT, ROLLER COVER 12' POLAR WHITE MFR # 3311646012B
54. #SLAT, ROLLER COVER 11' BLACK MFR # 3311646011U
55. #SLAT, ROLLER COVER 19' BLACK MFR # 3311646019U
56. #SLAT, ROLLER COVER 14' CHAMPAGNE MFR # 3311646014R
57. #SLAT, ROLLER COVER 16' POLAR WHITE MFR # 3311646016B
58. #SLAT, ROLLER COVER 18' POLAR WHITE MFR # 3311646018B
59. #SLAT, ROLLER COVER 10' BLACK MFR # 3311646010U
60. #TOOLS & FASTENERS RV; KIT,SCREW TRUSS 7-16X.63 10PK MFR # 3311579021
61. #SCREW SVC KIT M8X1.25 8MM 10PK MFR # 3312636000
62. #SCREW SVC KIT M8X1.25 12M 10 PK MFR # 3312637000

8952012 Standard

Components

32 items

1. #HARDWARE KIT, STANDARD RH CHAMPAGNE MFR # 3312487105R
2. #HARDWARE KIT, STANDARD RH SILVER MFR # 3312487105P
3. #HARDWARE KIT, STANDARD RH POLAR WHT MFR # 3312487105B
4. #HARDWARE KIT, STANDARD RH BLACK MFR # 3312487105U
5. #HARDWARE KIT, STANDARD LH POLAR WHT MFR # 3312487121B
6. #HARDWARE KIT, STANDARD LH SATIN MFR # 3312487121P
7. #HARDWARE KIT, STANDARD LH CHAMPAGNE MFR # 3312487121R
8. #HARDWARE KIT, STANDARD LH BLACK MFR # 3312487121U
9. #TIE-DOWN STRAPS & ANCHORS RV; KIT,PULL STRAP 90.50" MFR # 3311862019
10. #Awning Enclosure Fastener; For Use With 9100 Series Power And Manual Awning Hardware; Screw In Fasteners MFR # 3310458074 Superseded: see description
11. #COVER SVC KIT,FRONT CHANNEL POLAR WHT MFR # 3312821006B
12. #AWNING-ACCESSORIES RV; COVER SVC KIT,FRONT CHANN MFR # 3312821006U
13. #COVER SVC KIT,FRONT CHANNEL CHAMPAGNE MFR # 3312821006R
14. #COVER KIT, WIRE ASM STANDARD CHAMPAGNE MFR # 3312492105R
15. #COVER KIT, WIRE ASM STANDARD BLACK MFR # 3312492105U
16. #COVER KIT, WIRE ASM STANDARD SILVER MFR # 3312492105P
17. #COVER KIT, WIRE ASM STANDARD POLAR WHT MFR # 3312492105B
18. #BRACKET SVC, TOP SILVER MFR # 3310452036P
19. #AWNING-REPAIR PARTS RV; Bracket Svc Top MFR # 3310452036U
20. #BRACKET SVC, TOP POLAR WHT MFR # 3310452036B
21. #BRACKET SVC, TOP CHAMPAGNE MFR # 3310452036R
22. #APPLIANCE COMPONENTS RV; Pin Kit MFR # 3311754000
23. #Awning Bushing; 9100 Power Awnings; For Dometic 9100 Series Power Patio Awnings MFR # 3311753000
24. #TOOLS & FASTENERS RV; KIT,SCREW HEX HD 6-20X.44 10PK MFR # 3311579002
25. #SCREW KIT,HEX CP.25-20X.75 10PK MFR # 3311579029
26. #TOOLS & FASTENERS RV; KIT,SCREW 14- 10X1.50 HHW 10PK MFR # 3311579030
27. #Washer; Replacement For Dometic Awning Arms; MFR # 3311579000
28. #Awning Rivet; Oscar Rivet; 3/16 Inch x 1 Inch; Pack Of 10 MFR # 3311579016
29. #ARM ASM SVC KIT, ADJ PITCH STANDARD SILVER MFR # 3312508017P
30. #ARM ASM SVC KIT, ADJ PITCH STANDARD CHAMPAGNE MFR # 3312508017R
31. #ARM ASM SVC KIT, ADJ PITCH STANDARD BLACK MFR # 3312508017U
32. #AWNING-REPAIR PARTS RV; Arm Asm Svc Kit MFR # 3312508017B

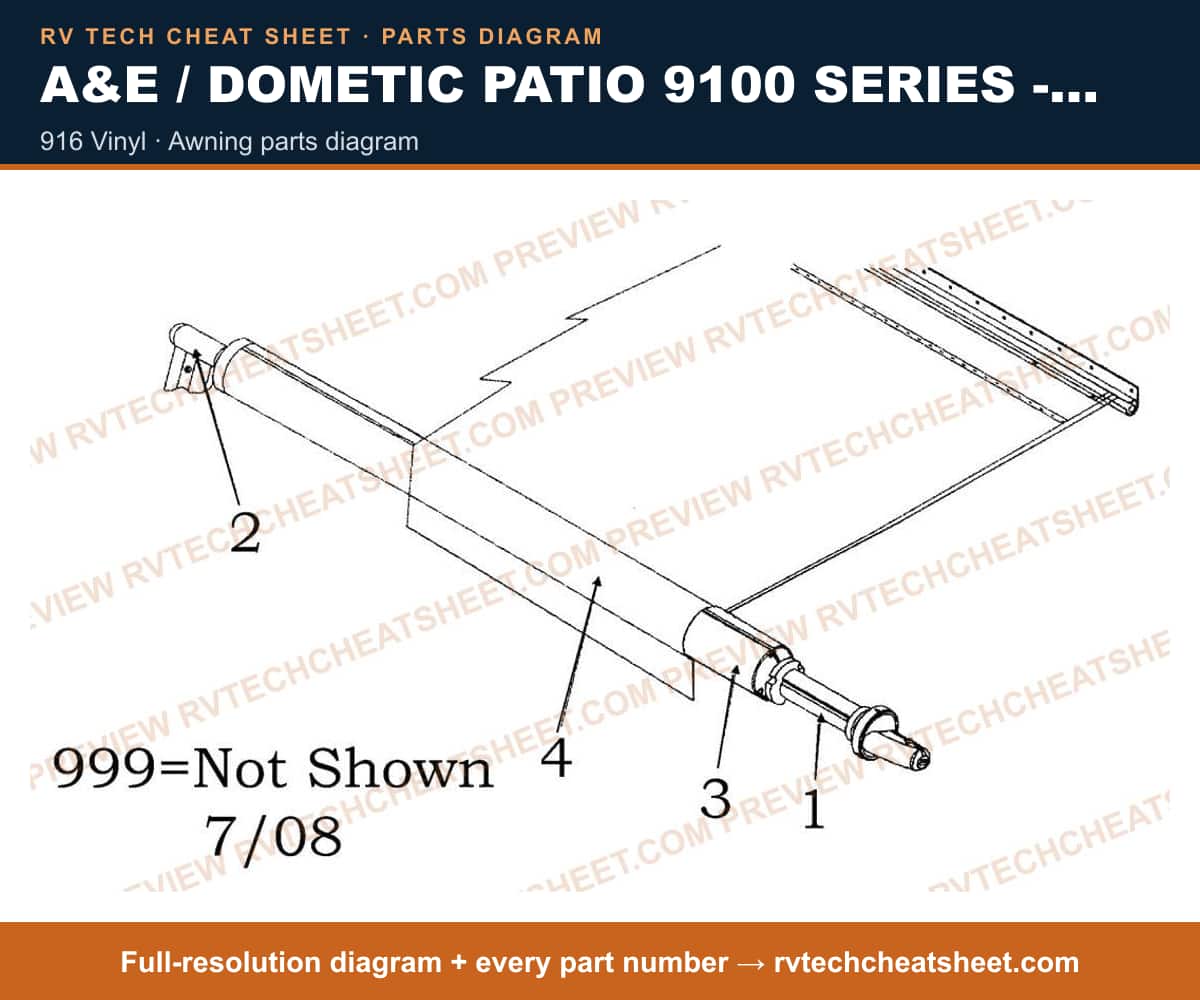

916 Vinyl

Components

35 items

1. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423137R
2. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423.209R
3. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423137P
4. #DRIVE ASSEMBLY RH *USE 3310423137B MFR # 3310423029B Superseded: see description
5. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423.209P
6. #DRIVE ASSEMBLY, RH, BLACK MFR # 3310423137U
7. #DRIVE ASSEMBLY, RH, POLAR WHITE MFR # 3310423137B
8. #TORSION ASM LH SVC PWR AWN-BLK MFR # 3310420017
9. #Awning Spring Assembly; For Use With Dometic 9100 Series Power Awnings 10 Foot To 21 Foot Length; Left Hand; Champagne Casting MFR # 310420017R Superseded: see description
10. #APPLIANCE COMPONENTS RV; Torsion Asm Lh MFR # 310420017B
11. #TORSION ASM, LH PWR SILVER MFR # 3310420017P
12. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 21 Foot Length MFR # 3108346021 Superseded: see description
13. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 16 Foot Length MFR # 3108346016
14. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 10' MFR # 3108346010
15. #Awning Roller; Aluminum; 18 Foot Length MFR # 3108346018
16. #TUBE,ROLLER 14' SATIN MFR # 3108346014
17. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 11' MFR # 3108346011
18. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 15 Foot Length MFR # 3108346015
19. #AWNING-ACCESSORIES RV; TUBEROLLER BOXED ALUM 13 MFR # 3108346013
20. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 12' MFR # 3108346012
21. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 20 Foot Length MFR # 3108346020 Superseded: see description
22. #Awning Roller; For Use With Patio Awning; Standard 3-Slot Roller Bar; 3-1/2 Inch Diameter; 19 Foot Length MFR # 3108346019 Superseded: see description
23. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 17 Foot Length MFR # 3108346017
24. #FABRIC 13' MFR # R3310524XX413
25. #FABRIC 19' MFR # R3310524XX419
26. #FABRIC 14' MFR # R3310524XX414
27. #FABRIC 10' MFR # R3310524XX410
28. #FABRIC 20' MFR # R3310524XX420
29. #FABRIC 15' MFR # R3310524XX415
30. #FABRIC 16' MFR # R3310524XX416
31. #FABRIC 12' MFR # R3310524XX412
32. #FABRIC 21' MFR # R3310524XX421
33. #FABRIC 18' MFR # R3310524XX418
34. #FABRIC 11' MFR # R3310524XX411
35. #FABRIC 17' MFR # R3310524XX417

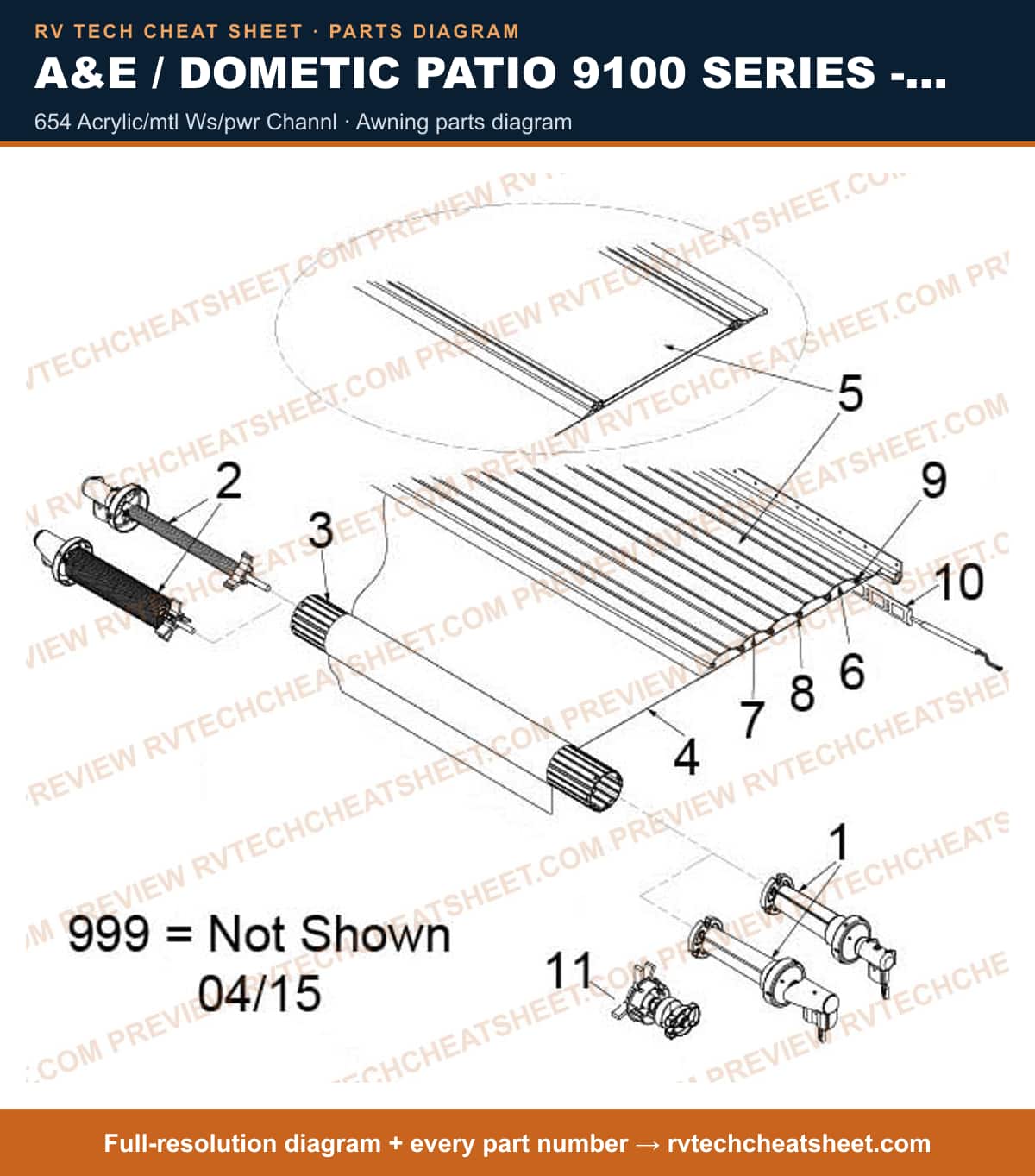

654 Acrylic/mtl Ws/pwr Channl

Components

60 items

1. #POWER CHANNEL DRIVE ASM, BLACK MFR # 3310423300U
2. #POWER CHANNEL DRIVE ASM, SILVER MFR # 3310423300P
3. #POWER CHANNEL DRIVE ASM, POLAR WHITE MFR # 3310423300B
4. #POWER CHANNEL DRIVE ASM, CHAMPAGNE MFR # 3310423300R
5. #TORSION ASM,LH PWR POLAR WHITE MFR # 3310420025B
6. #TORSION ASM, LH PWR CHAMPAGNE MFR # 3310420025R
7. #TORSION ASM, LH PWR BLACK MFR # 3310420025U
8. #TORSION ASM, LH PWR SILVER MFR # 3310420025P
9. #POWER CHANNEL ROLLER TUBE 21' MFR # 3316659021
10. #POWER CHANNEL ROLLER TUBE 9' MFR # 3316659009
11. #POWER CHANNEL ROLLER TUBE 12' MFR # 3316659012
12. #POWER CHANNEL ROLLER TUBE 8' MFR # 3316659008
13. #POWER CHANNEL ROLLER TUBE 11' MFR # 3316659011
14. #POWER CHANNEL ROLLER TUBE 16' MFR # 3316659016
15. #POWER CHANNEL ROLLER TUBE 10' MFR # 3316659010
16. #POWER CHANNEL ROLLER TUBE 13' MFR # 3316659013
17. #POWER CHANNEL ROLLER TUBE 17' MFR # 3316659017
18. #AWNING-REPAIR PARTS RV; KIT,SRV PCHAN R/T NOM 19'0" MFR # 3316659019
19. #POWER CHANNEL ROLLER TUBE 18' MFR # 3316659018
20. #POWER CHANNEL ROLLER TUBE 15' MFR # 3316659015
21. #CALL FOR PART # & PRICING MFR # FABRIC
22. #Dometic 20' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C020B
23. #COVER, ROLLER 18' CHAMPAGNE MFR # 830316C018R
24. #Dometic 20' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C020U
25. #COVER, ROLLER 18' SILVER MFR # 830316C018P
26. #COVER, ROLLER 15' SILVER MFR # 830316C015P
27. #Dometic 15' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C015B
28. #Dometic 18' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C018B
29. #COVER, ROLLER 17' CHAMPAGNE MFR # 830316C017R
30. #Dometic 11' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C011B
31. #COVER, ROLLER 17' SILVER MFR # 830316C017P
32. #Dometic 15' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C015U
33. #Dometic 16' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C016U
34. #SLAT, TOP 19' POLAR WHITE MFR # 3311641019B
35. #SLAT, TOP 10' SILVER MFR # 3311641010P
36. #SLAT, TOP 17' POLAR WHITE MFR # 3311641017B
37. #SLAT, TOP 10' BLACK MFR # 3311641010U
38. #SLAT, TOP 15' CHAMPAGNE MFR # 3311641015R
39. #SLAT, TOP 16' SILVER MFR # 3311641016P
40. #SLAT, TOP 21' POLAR WHITE MFR # 3311641021B
41. #SLAT, TOP 21' CHAMPAGNE MFR # 3311641021R
42. #SLAT, TOP 15' SILVER MFR # 3311641015P
43. #SLAT, TOP 11' POLAR WHITE MFR # 3311641011B
44. #SLAT, TOP 14' CHAMPAGNE MFR # 3311641014R
45. #SLAT, TOP 10' POLAR WHITE MFR # 3311641010B
46. #SLAT, ROLLER COVER 14' BLACK MFR # 3311646014U
47. #SLAT, ROLLER COVER 19' BLACK MFR # 3311646019U
48. #SLAT, ROLLER COVER 21' POLAR WHITE MFR # 3311646021B
49. #SLAT, ROLLER COVER 21' SILVER MFR # 3311646021P
50. #SLAT, ROLLER COVER 10' CHAMPAGNE MFR # 3311646010R
51. #SLAT, ROLLER COVER 15' SILVER MFR # 3311646015P
52. #SLAT, ROLLER COVER 12' POLAR WHITE MFR # 3311646012B
53. #SLAT, ROLLER COVER 15' CHAMPAGNE MFR # 3311646015R
54. #SLAT, ROLLER COVER 14' CHAMPAGNE MFR # 3311646014R
55. #SLAT, ROLLER COVER 10' BLACK MFR # 3311646010U
56. #SLAT, ROLLER COVER 14' SILVER MFR # 3311646014P
57. #SLAT, ROLLER COVER 17' CHAMPAGNE MFR # 3311646017R
58. #TOOLS & FASTENERS RV; KIT,SCREW TRUSS 7-16X.63 10PK MFR # 3311579021
59. #SCREW SVC KIT M8X1.25 12M 10 PK MFR # 3312637000
60. #SCREW SVC KIT M8X1.25 8MM 10PK MFR # 3312636000

601 Vinyl/power Channel

Components

21 items

1. #POWER CHANNEL DRIVE ASM, SILVER MFR # 3310423300P
2. #POWER CHANNEL DRIVE ASM, POLAR WHITE MFR # 3310423300B
3. #POWER CHANNEL DRIVE ASM, BLACK MFR # 3310423300U
4. #POWER CHANNEL DRIVE ASM, CHAMPAGNE MFR # 3310423300R
5. #TORSION ASM,LH PWR POLAR WHITE MFR # 3310420025B
6. #TORSION ASM, LH PWR CHAMPAGNE MFR # 3310420025R
7. #TORSION ASM, LH PWR SILVER MFR # 3310420025P
8. #TORSION ASM, LH PWR BLACK MFR # 3310420025U
9. #POWER CHANNEL ROLLER TUBE 17' MFR # 3316659017
10. #POWER CHANNEL ROLLER TUBE 10' MFR # 3316659010
11. #POWER CHANNEL ROLLER TUBE 11' MFR # 3316659011
12. #POWER CHANNEL ROLLER TUBE 21' MFR # 3316659021
13. #POWER CHANNEL ROLLER TUBE 18' MFR # 3316659018
14. #POWER CHANNEL ROLLER TUBE 13' MFR # 3316659013
15. #POWER CHANNEL ROLLER TUBE 9' MFR # 3316659009
16. #POWER CHANNEL ROLLER TUBE 20' MFR # 3316659020
17. #POWER CHANNEL ROLLER TUBE 14' MFR # 3316659014
18. #POWER CHANNEL ROLLER TUBE 16' MFR # 3316659016
19. #POWER CHANNEL ROLLER TUBE 8' MFR # 3316659008
20. #POWER CHANNEL ROLLER TUBE 15' MFR # 3316659015
21. #CALL FOR PART # & PRICING MFR # FABRIC

8952001 Basement

Components

32 items

1. #HARDWARE KIT, BASEMENT RH SILVER MFR # 3312487014P
2. #HARDWARE KIT, BASEMENT RH BLACK MFR # 3312487014U
3. #HARDWARE KIT, BASEMENT RH POLAR WHT MFR # 3312487014B
4. #HARDWARE KIT, BASEMENT RH CHAMPAGNE MFR # 3312487014R
5. #HARDWARE KIT, BASEMENT LH CHAMPAGNE MFR # 3312487030R
6. #HARDWARE KIT, BASEMENT LH POLAR WHT MFR # 3312487030B
7. #HARDWARE KIT, BASEMENT LH SILVER MFR # 3312487030P
8. #HARDWARE KIT, BASEMENT LH BLACK MFR # 3312487030U
9. #TIE-DOWN STRAPS & ANCHORS RV; KIT,PULL STRAP 90.50" MFR # 3311862019
10. #Awning Enclosure Fastener; For Use With 9100 Series Power And Manual Awning Hardware; Screw In Fasteners MFR # 3310458074 Superseded: see description
11. #COVER SVC KIT,FRONT CHANNEL POLAR WHT MFR # 3312821006B
12. #COVER SVC KIT,FRONT CHANNEL CHAMPAGNE MFR # 3312821006R
13. #AWNING-ACCESSORIES RV; COVER SVC KIT,FRONT CHANN MFR # 3312821006U
14. #COVER KIT, WIRE ASM BASEMENT POLAR WHT MFR # 3312492014B
15. #COVER KIT, WIRE ASM BASEMENT BLACK MFR # 3312492014U
16. #COVER KIT, WIRE ASM BASEMENT SILVER MFR # 3312492014P
17. #COVER KIT, WIRE ASM BASEMENT CHAMPAGNE MFR # 3312492014R
18. #BRACKET SVC, TOP SILVER MFR # 3310452036P
19. #AWNING-REPAIR PARTS RV; Bracket Svc Top MFR # 3310452036U
20. #BRACKET SVC, TOP POLAR WHT MFR # 3310452036B
21. #BRACKET SVC, TOP CHAMPAGNE MFR # 3310452036R
22. #APPLIANCE COMPONENTS RV; Pin Kit MFR # 3311754000
23. #Awning Bushing; 9100 Power Awnings; For Dometic 9100 Series Power Patio Awnings MFR # 3311753000
24. #TOOLS & FASTENERS RV; KIT,SCREW HEX HD 6-20X.44 10PK MFR # 3311579002
25. #SCREW KIT,HEX CP.25-20X.75 10PK MFR # 3311579029
26. #TOOLS & FASTENERS RV; KIT,SCREW 14- 10X1.50 HHW 10PK MFR # 3311579030
27. #Washer; Replacement For Dometic Awning Arms; MFR # 3311579000
28. #Awning Rivet; Oscar Rivet; 3/16 Inch x 1 Inch; Pack Of 10 MFR # 3311579016
29. #ARM ASM SVC KIT, ADJ PITCH BASEMENT CHAMPAGNE MFR # 3312508009R
30. #ARM ASM SVC KIT, ADJ PITCH BASEMENT SILVER MFR # 3312508009P
31. #ARM ASM SVC KIT, ADJ PITCH BASEMENT POLAR WHT MFR # 3312508009B
32. #ARM ASM SVC KIT, ADJ PITCH BASEMENT BLACK MFR # 3312508009U

651 Vinyl/metal Ws/pwr Channel

Components

63 items

1. #POWER CHANNEL DRIVE ASM, SILVER MFR # 3310423300P
2. #POWER CHANNEL DRIVE ASM, BLACK MFR # 3310423300U
3. #POWER CHANNEL DRIVE ASM, POLAR WHITE MFR # 3310423300B
4. #POWER CHANNEL DRIVE ASM, CHAMPAGNE MFR # 3310423300R
5. #TORSION ASM, LH PWR BLACK MFR # 3310420025U
6. #TORSION ASM, LH PWR CHAMPAGNE MFR # 3310420025R
7. #TORSION ASM,LH PWR POLAR WHITE MFR # 3310420025B
8. #TORSION ASM, LH PWR SILVER MFR # 3310420025P
9. #POWER CHANNEL ROLLER TUBE 21' MFR # 3316659021
10. #POWER CHANNEL ROLLER TUBE 12' MFR # 3316659012
11. #POWER CHANNEL ROLLER TUBE 15' MFR # 3316659015
12. #POWER CHANNEL ROLLER TUBE 9' MFR # 3316659009
13. #POWER CHANNEL ROLLER TUBE 14' MFR # 3316659014
14. #POWER CHANNEL ROLLER TUBE 17' MFR # 3316659017
15. #POWER CHANNEL ROLLER TUBE 10' MFR # 3316659010
16. #AWNING-REPAIR PARTS RV; KIT,SRV PCHAN R/T NOM 19'0" MFR # 3316659019
17. #POWER CHANNEL ROLLER TUBE 16' MFR # 3316659016
18. #POWER CHANNEL ROLLER TUBE 11' MFR # 3316659011
19. #POWER CHANNEL ROLLER TUBE 13' MFR # 3316659013
20. #POWER CHANNEL ROLLER TUBE 18' MFR # 3316659018
21. #CALL FOR PART # & PRICING MFR # FABRIC
22. #COVER, ROLLER 13' SILVER MFR # 830316C013P
23. #COVER, ROLLER 11' CHAMPAGNE MFR # 830316C011R
24. #COVER ASM,REPL RLR BLACK 10' MFR # 830316C010U
25. #COVER, ROLLER 13' CHAMPAGNE MFR # 830316C013R
26. #COVER, ROLLER 10' SILVER MFR # 830316C010P
27. #Dometic 20' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C020U
28. #Dometic 11' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C011B
29. #COVER, ROLLER 11' SILVER MFR # 830316C011P
30. #COVER ASM,REPL RLR POLAR 13' MFR # 830316C013B
31. #Dometic 17' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C017B
32. #Dometic 15' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C015U
33. #Dometic 18' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C018U
34. #SLAT, TOP 16' SILVER MFR # 3311641016P
35. #SLAT, TOP 10' SILVER MFR # 3311641010P
36. #SLAT, TOP 17' CHAMPAGNE MFR # 3311641017R
37. #SLAT, TOP 10' CHAMPAGNE MFR # 3311641010R
38. #SLAT, TOP 11' SILVER MFR # 3311641011P
39. #SLAT, TOP 14' BLACK MFR # 3311641014U
40. #SLAT, TOP 11' CHAMPAGNE MFR # 3311641011R
41. #SLAT, TOP 14' CHAMPAGNE MFR # 3311641014R
42. #SLAT, TOP 17' SILVER MFR # 3311641017P
43. #SLAT, TOP 14' POLAR WHITE MFR # 3311641014B
44. #SLAT, TOP 17' POLAR WHITE MFR # 3311641017B
45. #SLAT, TOP 15' CHAMPAGNE MFR # 3311641015R
46. #SLAT, ROLLER COVER 16' SILVER MFR # 3311646016P
47. #SLAT, ROLLER COVER 20' BLACK MFR # 3311646020U
48. #SLAT, ROLLER COVER 15' CHAMPAGNE MFR # 3311646015R
49. #SLAT, ROLLER COVER 14' CHAMPAGNE MFR # 3311646014R
50. #SLAT, ROLLER COVER 10' BLACK MFR # 3311646010U
51. #SLAT, ROLLER COVER 17' POLAR WHITE MFR # 3311646017B
52. #SLAT, ROLLER COVER 16' POLAR WHITE MFR # 3311646016B
53. #SLAT, ROLLER COVER 14' SILVER MFR # 3311646014P
54. #SLAT, ROLLER COVER 16' CHAMPAGNE MFR # 3311646016R
55. #SLAT, ROLLER COVER 15' SILVER MFR # 3311646015P
56. #SLAT, ROLLER COVER 17' SILVER MFR # 3311646017P
57. #SLAT, ROLLER COVER 19' BLACK MFR # 3311646019U
58. #TOOLS & FASTENERS RV; KIT,SCREW TRUSS 7-16X.63 10PK MFR # 3311579021
59. #SCREW SVC KIT M8X1.25 12M 10 PK MFR # 3312637000
60. #SCREW SVC KIT M8X1.25 8MM 10PK MFR # 3312636000
61. #AWNING-ACCESSORIES RV; AWNING LED LIGHT KIT 21' COOL WHT MFR # 3315701403
62. #AWNING-ACCESSORIES RV; AWNING LIGHT TRACK ONLY 8-21' MFR # 3315701419
63. #Awning Light; Replacement LED Awning Rail Strip For Models Ending In UL; 5 Meter Length Trim To Fit; Cool White LED; 12 Volt DC; Not To Be Added To New Awnings MFR # 3315283006

8956001 Basement/power Channel

Components

34 items

1. #Awning Enclosure Fastener; For Use With 9100 Series Power And Manual Awning Hardware; Screw In Fasteners MFR # 3310458074 Superseded: see description
2. #TIE-DOWN STRAPS & ANCHORS RV; KIT,PULL STRAP 90.50" MFR # 3311862019
3. #PWR CHANNEL HDWE BASEMENT, LH, POLAR WHITE MFR # 3312487630B
4. #PWR CHANNEL HDWE BASEMENT, RH, BLACK MFR # 3312487614U
5. #PWR CHANNEL HDWE BASEMENT, RH, SILVER MFR # 3312487614P
6. #PWR CHANNEL HDWE BASEMENT, RH, POLAR WHITE MFR # 3312487614B
7. #PWR CHANNEL HDWE BASEMENT, LH, CHAMPAGNE MFR # 3312487630R
8. #PWR CHANNEL HDWE BASEMENT, LH, SILVER MFR # 3312487630P
9. #PWR CHANNEL HDWE BASEMENT, LH, BLACK MFR # 3312487630U
10. #PWR CHANNEL HDWE BASEMENT, RH, CHAMPAGNE MFR # 3312487614R
11. #WIRE COVER ASM, BASEMENT, BLACK MFR # 3312492614U
12. #WIRE COVER ASM, BASEMENT, POLAR WHITE MFR # 3312492614B
13. #WIRE COVER ASM, BASEMENT, CHAMPAGNE MFR # 3312492614R
14. #WIRE COVER ASM, BASEMENT, SILVER MFR # 3312492614P
15. #Awning Bushing; 9100 Power Awnings; For Dometic 9100 Series Power Patio Awnings MFR # 3311753000
16. #APPLIANCE COMPONENTS RV; Pin Kit MFR # 3311754000
17. #TOOLS & FASTENERS RV; KIT,SCREW HEX HD 6-20X.44 10PK MFR # 3311579002
18. #Awning Rivet; Oscar Rivet; 3/16 Inch x 1 Inch; Pack Of 10 MFR # 3311579016
19. #TOOLS & FASTENERS RV; KIT,SCREW HX.25- 20X.75 10PK SS MFR # 3311579071
20. #TOOLS & FASTENERS RV; KIT,SCREW 14- 10X1.50 HHW 10PK MFR # 3311579030
21. #Washer; Replacement For Dometic Awning Arms; MFR # 3311579000
22. #Awning Arm Mounting Hardware; For A&E Patio Awnings; With Knob MFR # 3312509007
23. #COVER SVC KIT,FRONT CHANNEL CHAMPAGNE MFR # 3312821006R
24. #AWNING-ACCESSORIES RV; COVER SVC KIT,FRONT CHANN MFR # 3312821006U
25. #COVER SVC KIT,FRONT CHANNEL SILVER MFR # 3312821006P
26. #COVER SVC KIT,FRONT CHANNEL POLAR WHT MFR # 3312821006B
27. #BRACKET SVC, TOP CHAMPAGNE MFR # 3310452036R
28. #BRACKET SVC, TOP POLAR WHT MFR # 3310452036B
29. #BRACKET SVC, TOP BLACK MFR # 3310452039U
30. #BRACKET SVC, TOP SILVER MFR # 3310452036P
31. #ARM ASM SVC KIT, ADJ PITCH BASEMENT BLACK MFR # 3312508009U
32. #ARM ASM SVC KIT, ADJ PITCH BASEMENT POLAR WHT MFR # 3312508009B
33. #ARM ASM SVC KIT, ADJ PITCH BASEMENT CHAMPAGNE MFR # 3312508009R
34. #ARM ASM SVC KIT, ADJ PITCH BASEMENT SILVER MFR # 3312508009P

917 Vinyl/metal Ws/led

Components

65 items

1. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423.209P
2. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423137R
3. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423137P
4. #DRIVE ASSEMBLY, RH, BLACK MFR # 3310423137U
5. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423.209R
6. #DRIVE ASSEMBLY, RH, POLAR WHITE MFR # 3310423137B
7. #APPLIANCE COMPONENTS RV; Torsion Asm Lh MFR # 310420017B
8. #TORSION ASM, LH PWR SILVER MFR # 3310420017P
9. #TORSION ASM LH SVC PWR AWN-BLK MFR # 3310420017
10. #Awning Spring Assembly; For Use With Dometic 9100 Series Power Awnings 10 Foot To 21 Foot Length; Left Hand; Champagne Casting MFR # 310420017R Superseded: see description
11. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 20 Foot Length MFR # 3108346020 Superseded: see description
12. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 11' MFR # 3108346011
13. #Awning Roller; For Use With Patio Awning; Standard 3-Slot Roller Bar; 3-1/2 Inch Diameter; 19 Foot Length MFR # 3108346019 Superseded: see description
14. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 12' MFR # 3108346012
15. #Awning Roller; Aluminum; 18 Foot Length MFR # 3108346018
16. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 10' MFR # 3108346010
17. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 16 Foot Length MFR # 3108346016
18. #TUBE,ROLLER 14' SATIN MFR # 3108346014
19. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 17 Foot Length MFR # 3108346017
20. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 21 Foot Length MFR # 3108346021 Superseded: see description
21. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 15 Foot Length MFR # 3108346015
22. #AWNING-ACCESSORIES RV; TUBEROLLER BOXED ALUM 13 MFR # 3108346013
23. #CALL FOR PART # & PRICING MFR # FABRIC
24. #Dometic 16' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C016U
25. #Dometic 15' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C015B
26. #Dometic 18' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C018U
27. #COVER, ROLLER 20' CHAMPAGNE MFR # 830316C020R
28. #Dometic 12' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C012B
29. #Dometic 21' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C021U
30. #COVER ASM,REPL RLR POLAR 10' MFR # 830316C010B
31. #COVER, ROLLER 15' SILVER MFR # 830316C015P
32. #COVER, ROLLER 10' CHAMPAGNE MFR # 830316C010R
33. #Dometic 11' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C011B
34. #Dometic 20' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C020U
35. #COVER ASM,REPL RLR SILVER 20' MFR # 830316C020P
36. #SLAT, TOP 19' POLAR WHITE MFR # 3311641019B
37. #SLAT, TOP 13' POLAR WHITE MFR # 3311641013B
38. #SLAT, TOP 12' CHAMPAGNE MFR # 3311641012R
39. #SLAT, TOP 13' CHAMPAGNE MFR # 3311641013R
40. #SLAT, TOP 15' BLACK MFR # 3311641015U
41. #SLAT, TOP 13' SILVER MFR # 3311641013P
42. #SLAT, TOP 12' POLAR WHITE MFR # 3311641012B
43. #SLAT, TOP 12' SILVER MFR # 3311641012P
44. #SLAT, TOP 16' POLAR WHITE MFR # 3311641016B
45. #SLAT, TOP 10' CHAMPAGNE MFR # 3311641010R
46. #SLAT, TOP 15' POLAR WHITE MFR # 3311641015B
47. #SLAT, TOP 11' SILVER MFR # 3311641011P
48. #SLAT, ROLLER COVER 18' BLACK MFR # 3311646018U
49. #SLAT, ROLLER COVER 17' BLACK MFR # 3311646017U
50. #SLAT, ROLLER COVER 15' CHAMPAGNE MFR # 3311646015R
51. #SLAT, ROLLER COVER 10' CHAMPAGNE MFR # 3311646010R
52. #SLAT, ROLLER COVER 14' CHAMPAGNE MFR # 3311646014R
53. #SLAT, ROLLER COVER 14' SILVER MFR # 3311646014P
54. #SLAT, ROLLER COVER 19' BLACK MFR # 3311646019U
55. #SLAT, ROLLER COVER 15' SILVER MFR # 3311646015P
56. #SLAT, ROLLER COVER 17' CHAMPAGNE MFR # 3311646017R
57. #SLAT, ROLLER COVER 21' POLAR WHITE MFR # 3311646021B
58. #SLAT, ROLLER COVER 10' BLACK MFR # 3311646010U
59. #SLAT, ROLLER COVER 14' BLACK MFR # 3311646014U
60. #TOOLS & FASTENERS RV; KIT,SCREW TRUSS 7-16X.63 10PK MFR # 3311579021
61. #SCREW SVC KIT M8X1.25 12M 10 PK MFR # 3312637000
62. #SCREW SVC KIT M8X1.25 8MM 10PK MFR # 3312636000
63. #Awning Light; Replacement LED Awning Rail Strip For Models Ending In UL; 5 Meter Length Trim To Fit; Cool White LED; 12 Volt DC; Not To Be Added To New Awnings MFR # 3315283006
64. #AWNING-ACCESSORIES RV; AWNING LIGHT TRACK ONLY 8-21' MFR # 3315701419
65. #AWNING-ACCESSORIES RV; AWNING LED LIGHT KIT 21' COOL WHT MFR # 3315701403

915 Vinyl/led

Components

38 items

1. #DRIVE ASSEMBLY RH *USE 3310423137B MFR # 3310423029B Superseded: see description
2. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423137P
3. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423.209R
4. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423137R
5. #DRIVE ASSEMBLY, RH, BLACK MFR # 3310423137U
6. #DRIVE ASSEMBLY, RH, POLAR WHITE MFR # 3310423137B
7. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423.209P
8. #TORSION ASM LH SVC PWR AWN-BLK MFR # 3310420017
9. #TORSION ASM, LH PWR SILVER MFR # 3310420017P
10. #APPLIANCE COMPONENTS RV; Torsion Asm Lh MFR # 310420017B
11. #Awning Spring Assembly; For Use With Dometic 9100 Series Power Awnings 10 Foot To 21 Foot Length; Left Hand; Champagne Casting MFR # 310420017R Superseded: see description
12. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 11' MFR # 3108346011
13. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 16 Foot Length MFR # 3108346016
14. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 12' MFR # 3108346012
15. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 17 Foot Length MFR # 3108346017
16. #AWNING-ACCESSORIES RV; TUBEROLLER BOXED ALUM 13 MFR # 3108346013
17. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 15 Foot Length MFR # 3108346015
18. #Awning Roller; For Use With Patio Awning; Standard 3-Slot Roller Bar; 3-1/2 Inch Diameter; 19 Foot Length MFR # 3108346019 Superseded: see description
19. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 21 Foot Length MFR # 3108346021 Superseded: see description
20. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 20 Foot Length MFR # 3108346020 Superseded: see description
21. #Awning Roller; Aluminum; 18 Foot Length MFR # 3108346018
22. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 10' MFR # 3108346010
23. #TUBE,ROLLER 14' SATIN MFR # 3108346014
24. #FABRIC 12' MFR # R3310524XX412
25. #FABRIC 19' MFR # R3310524XX419
26. #FABRIC 15' MFR # R3310524XX415
27. #FABRIC 14' MFR # R3310524XX414
28. #FABRIC 16' MFR # R3310524XX416
29. #FABRIC 17' MFR # R3310524XX417
30. #FABRIC 21' MFR # R3310524XX421
31. #FABRIC 18' MFR # R3310524XX418
32. #FABRIC 13' MFR # R3310524XX413
33. #FABRIC 10' MFR # R3310524XX410
34. #FABRIC 20' MFR # R3310524XX420
35. #FABRIC 11' MFR # R3310524XX411
36. #AWNING-ACCESSORIES RV; AWNING LED LIGHT KIT 21' COOL WHT MFR # 3315701403
37. #AWNING-ACCESSORIES RV; AWNING LIGHT TRACK ONLY 8-21' MFR # 3315701419
38. #Awning Light; Replacement LED Awning Rail Strip For Models Ending In UL; 5 Meter Length Trim To Fit; Cool White LED; 12 Volt DC; Not To Be Added To New Awnings MFR # 3315283006

916 Vinyl/led

Components

38 items

1. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423137P
2. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423.209R
3. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423137R
4. #DRIVE ASSEMBLY, RH, BLACK MFR # 3310423137U
5. #DRIVE ASSEMBLY RH *USE 3310423137B MFR # 3310423029B Superseded: see description
6. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423.209P
7. #DRIVE ASSEMBLY, RH, POLAR WHITE MFR # 3310423137B
8. #TORSION ASM LH SVC PWR AWN-BLK MFR # 3310420017
9. #APPLIANCE COMPONENTS RV; Torsion Asm Lh MFR # 310420017B
10. #Awning Spring Assembly; For Use With Dometic 9100 Series Power Awnings 10 Foot To 21 Foot Length; Left Hand; Champagne Casting MFR # 310420017R Superseded: see description
11. #TORSION ASM, LH PWR SILVER MFR # 3310420017P
12. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 17 Foot Length MFR # 3108346017
13. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 10' MFR # 3108346010
14. #Awning Roller; Aluminum; 18 Foot Length MFR # 3108346018
15. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 15 Foot Length MFR # 3108346015
16. #Awning Roller; For Use With Patio Awning; Standard 3-Slot Roller Bar; 3-1/2 Inch Diameter; 19 Foot Length MFR # 3108346019 Superseded: see description
17. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 12' MFR # 3108346012
18. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 21 Foot Length MFR # 3108346021 Superseded: see description
19. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 16 Foot Length MFR # 3108346016
20. #TUBE,ROLLER 14' SATIN MFR # 3108346014
21. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 11' MFR # 3108346011
22. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 20 Foot Length MFR # 3108346020 Superseded: see description
23. #AWNING-ACCESSORIES RV; TUBEROLLER BOXED ALUM 13 MFR # 3108346013
24. #FABRIC 18' MFR # R3310524XX418
25. #FABRIC 11' MFR # R3310524XX411
26. #FABRIC 13' MFR # R3310524XX413
27. #FABRIC 21' MFR # R3310524XX421
28. #FABRIC 17' MFR # R3310524XX417
29. #FABRIC 16' MFR # R3310524XX416
30. #FABRIC 10' MFR # R3310524XX410
31. #FABRIC 15' MFR # R3310524XX415
32. #FABRIC 19' MFR # R3310524XX419
33. #FABRIC 12' MFR # R3310524XX412
34. #FABRIC 14' MFR # R3310524XX414
35. #FABRIC 20' MFR # R3310524XX420
36. #AWNING-ACCESSORIES RV; AWNING LED LIGHT KIT 21' COOL WHT MFR # 3315701403
37. #AWNING-ACCESSORIES RV; AWNING LIGHT TRACK ONLY 8-21' MFR # 3315701419
38. #Awning Light; Replacement LED Awning Rail Strip For Models Ending In UL; 5 Meter Length Trim To Fit; Cool White LED; 12 Volt DC; Not To Be Added To New Awnings MFR # 3315283006

8952002 Standard

Components

32 items

1. #HARDWARE KIT, STANDARD RH POLAR WHT MFR # 3312487006B
2. #HARDWARE KIT, STANDARD RH SILVER MFR # 3312487006P
3. #HARDWARE KIT, STANDARD RH CHAMPAGNE MFR # 3312487006R
4. #HARDWARE KIT,LH STD PW MFR # DMT3312487022B
5. #HARDWARE KIT,STANDARD LH BLACK MFR # 3312487022U
6. #HARDWARE KIT, STANDARD LH CHAMPAGNE MFR # 3312487022R
7. #HARDWARE KIT, STANDARD LH SILVER MFR # 3312487022P
8. #HARDWARE KIT,STANDARD LH BLACK MFR # D7E312487022U
9. #TIE-DOWN STRAPS & ANCHORS RV; KIT,PULL STRAP 90.50" MFR # 3311862019
10. #Awning Enclosure Fastener; For Use With 9100 Series Power And Manual Awning Hardware; Screw In Fasteners MFR # 3310458074 Superseded: see description
11. #AWNING-ACCESSORIES RV; COVER SVC KIT,FRONT CHANN MFR # 3312821006U
12. #COVER SVC KIT,FRONT CHANNEL POLAR WHT MFR # 3312821006B
13. #COVER SVC KIT,FRONT CHANNEL CHAMPAGNE MFR # 3312821006R
14. #COVER KIT, WIRE ASM STANDARD CHAMPAGNE MFR # 3312492006R
15. #COVER KIT, WIRE ASM STANDARD POLAR WHT MFR # 3312492006B
16. #AWNING-REPAIR PARTS RV; COVER KIT,WIRE ASM STD BL MFR # 3312492006U
17. #COVER KIT, WIRE ASM STANDARD SILVER MFR # 3312492006P
18. #BRACKET SVC, TOP POLAR WHT MFR # 3310452036B
19. #BRACKET SVC, TOP SILVER MFR # 3310452036P
20. #AWNING-REPAIR PARTS RV; Bracket Svc Top MFR # 3310452036U
21. #BRACKET SVC, TOP CHAMPAGNE MFR # 3310452036R
22. #APPLIANCE COMPONENTS RV; Pin Kit MFR # 3311754000
23. #Awning Bushing; 9100 Power Awnings; For Dometic 9100 Series Power Patio Awnings MFR # 3311753000
24. #TOOLS & FASTENERS RV; KIT,SCREW HEX HD 6-20X.44 10PK MFR # 3311579002
25. #SCREW KIT,HEX CP.25-20X.75 10PK MFR # 3311579029
26. #TOOLS & FASTENERS RV; KIT,SCREW 14- 10X1.50 HHW 10PK MFR # 3311579030
27. #Washer; Replacement For Dometic Awning Arms; MFR # 3311579000
28. #Awning Rivet; Oscar Rivet; 3/16 Inch x 1 Inch; Pack Of 10 MFR # 3311579016
29. #ARM ASM SVC KIT, ADJ PITCH STANDARD BLACK MFR # 3312508017U
30. #ARM ASM SVC KIT, ADJ PITCH STANDARD SILVER MFR # 3312508017P
31. #AWNING-REPAIR PARTS RV; Arm Asm Svc Kit MFR # 3312508017B
32. #ARM ASM SVC KIT, ADJ PITCH STANDARD CHAMPAGNE MFR # 3312508017R

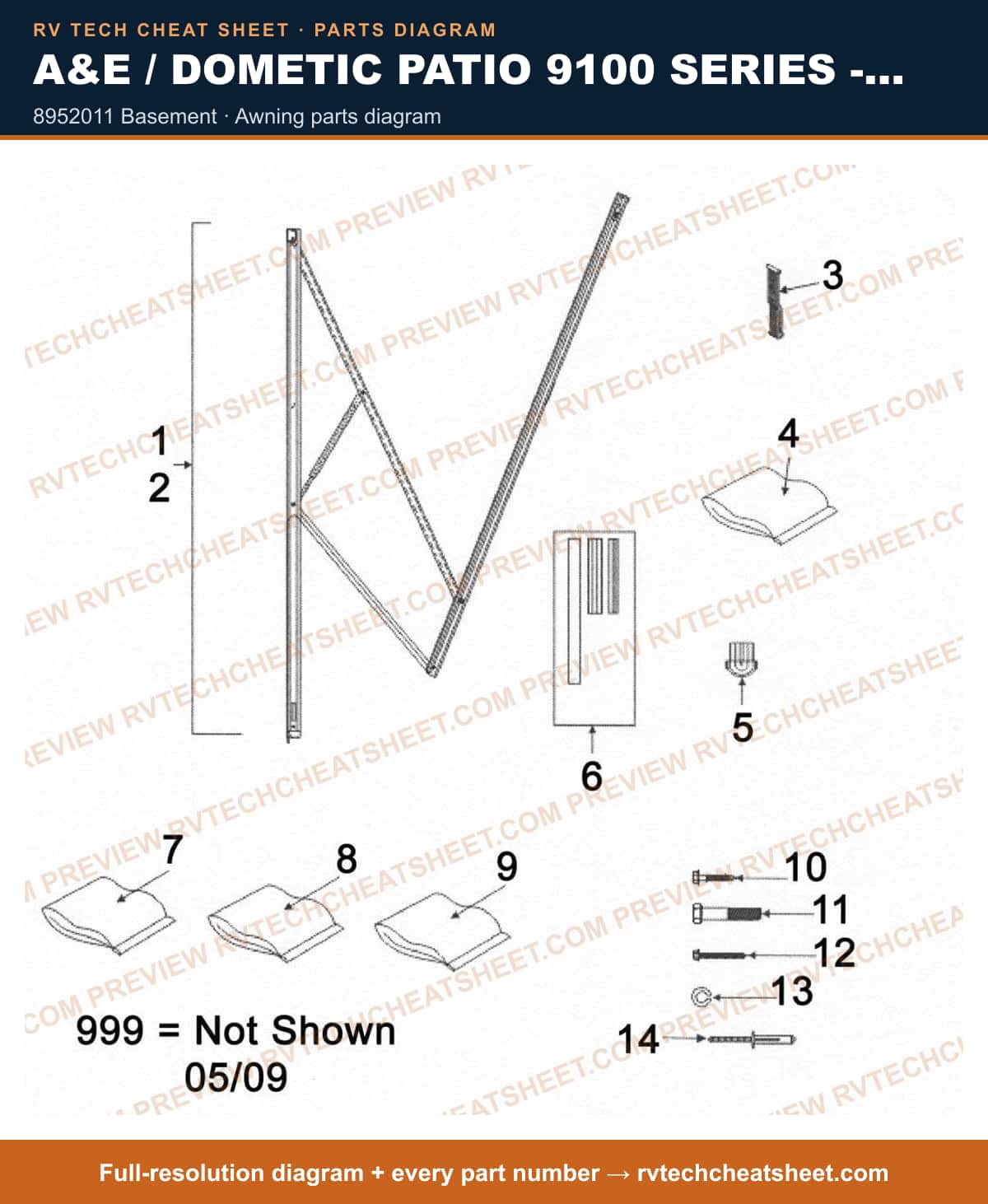

8952011 Basement

Components

32 items

1. #HARDWARE KIT, BASEMENT RH BLACK MFR # 3312487113U
2. #HARDWARE KIT, BASEMENT RH SILVER MFR # 3312487113P
3. #HARDWARE KIT, BASEMENT RH CHAMPAGNE MFR # 3312487113R
4. #HARDWARE KIT, BASEMENT RH POLAR WHT MFR # 3312487113B
5. #HARDWARE KIT, BASEMENT LH CHAMPAGNE MFR # 3312487139R
6. #HARDWARE KIT, BASEMENT LH BLACK MFR # 3312487139U
7. #HARDWARE KIT, BASEMENT LH POLAR WHT MFR # 3312487139B
8. #HARDWARE KIT, BASEMENT LH SILVER MFR # 3312487139P
9. #TIE-DOWN STRAPS & ANCHORS RV; KIT,PULL STRAP 90.50" MFR # 3311862019
10. #Awning Enclosure Fastener; For Use With 9100 Series Power And Manual Awning Hardware; Screw In Fasteners MFR # 3310458074 Superseded: see description
11. #COVER SVC KIT,FRONT CHANNEL POLAR WHT MFR # 3312821006B
12. #AWNING-ACCESSORIES RV; COVER SVC KIT,FRONT CHANN MFR # 3312821006U
13. #COVER SVC KIT,FRONT CHANNEL CHAMPAGNE MFR # 3312821006R
14. #COVER KIT, WIRE ASM BASEMENT SILVER MFR # 3312492113P
15. #COVER KIT, WIRE ASM BASEMENT POLAR WHT MFR # 3312492113B
16. #COVER KIT, WIRE ASM BASEMENT CHAMPAGNE MFR # 3312492113R
17. #COVER KIT, WIRE ASM BASEMENT BLACK MFR # 3312492113U
18. #AWNING-REPAIR PARTS RV; Bracket Svc Top MFR # 3310452036U
19. #BRACKET SVC, TOP CHAMPAGNE MFR # 3310452036R
20. #BRACKET SVC, TOP POLAR WHT MFR # 3310452036B
21. #BRACKET SVC, TOP SILVER MFR # 3310452036P
22. #APPLIANCE COMPONENTS RV; Pin Kit MFR # 3311754000
23. #Awning Bushing; 9100 Power Awnings; For Dometic 9100 Series Power Patio Awnings MFR # 3311753000
24. #TOOLS & FASTENERS RV; KIT,SCREW HEX HD 6-20X.44 10PK MFR # 3311579002
25. #SCREW KIT,HEX CP.25-20X.75 10PK MFR # 3311579029
26. #TOOLS & FASTENERS RV; KIT,SCREW 14- 10X1.50 HHW 10PK MFR # 3311579030
27. #Washer; Replacement For Dometic Awning Arms; MFR # 3311579000
28. #Awning Rivet; Oscar Rivet; 3/16 Inch x 1 Inch; Pack Of 10 MFR # 3311579016
29. #ARM ASM SVC KIT, ADJ PITCH BASEMENT BLACK MFR # 3312508009U
30. #ARM ASM SVC KIT, ADJ PITCH BASEMENT POLAR WHT MFR # 3312508009B
31. #ARM ASM SVC KIT, ADJ PITCH BASEMENT CHAMPAGNE MFR # 3312508009R
32. #ARM ASM SVC KIT, ADJ PITCH BASEMENT SILVER MFR # 3312508009P

915 Vinyl

Components

36 items

1. #DRIVE ASSEMBLY, RH, BLACK MFR # 3310423137U
2. #DRIVE ASSEMBLY, RH, POLAR WHITE MFR # 3310423137B
3. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423137P
4. #DRIVE ASSEMBLY RH *USE 3310423137B MFR # 3310423029B Superseded: see description
5. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423137R
6. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423.209R
7. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423.209P
8. #TORSION ASM, LH PWR SILVER MFR # 3310420017P
9. #Awning Spring Assembly; For Use With Dometic 9100 Series Power Awnings 10 Foot To 21 Foot Length; Left Hand; Champagne Casting MFR # 310420017R Superseded: see description
10. #TORSION ASM LH SVC PWR AWN-BLK MFR # 3310420017
11. #TORSION ASM,LH PWR POLAR WHITE MFR # 3310420017B
12. #TORSION ASM,LH PWR POLAR WHITE MFR # D7E310420017B
13. #AWNING-ACCESSORIES RV; TUBEROLLER BOXED ALUM 13 MFR # 3108346013
14. #Awning Roller; For Use With Patio Awning; Standard 3-Slot Roller Bar; 3-1/2 Inch Diameter; 19 Foot Length MFR # 3108346019 Superseded: see description
15. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 20 Foot Length MFR # 3108346020 Superseded: see description
16. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 17 Foot Length MFR # 3108346017
17. #TUBE,ROLLER 14' SATIN MFR # 3108346014
18. #Awning Roller; Aluminum; 18 Foot Length MFR # 3108346018
19. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 21 Foot Length MFR # 3108346021 Superseded: see description
20. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 15 Foot Length MFR # 3108346015
21. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 12' MFR # 3108346012
22. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 10' MFR # 3108346010
23. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 16 Foot Length MFR # 3108346016
24. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 11' MFR # 3108346011
25. #FABRIC 16' MFR # R3310524XX416
26. #FABRIC 21' MFR # R3310524XX421
27. #FABRIC 10' MFR # R3310524XX410
28. #FABRIC 17' MFR # R3310524XX417
29. #FABRIC 18' MFR # R3310524XX418
30. #FABRIC 15' MFR # R3310524XX415
31. #FABRIC 19' MFR # R3310524XX419
32. #FABRIC 13' MFR # R3310524XX413
33. #FABRIC 12' MFR # R3310524XX412
34. #FABRIC 20' MFR # R3310524XX420
35. #FABRIC 11' MFR # R3310524XX411
36. #FABRIC 14' MFR # R3310524XX414

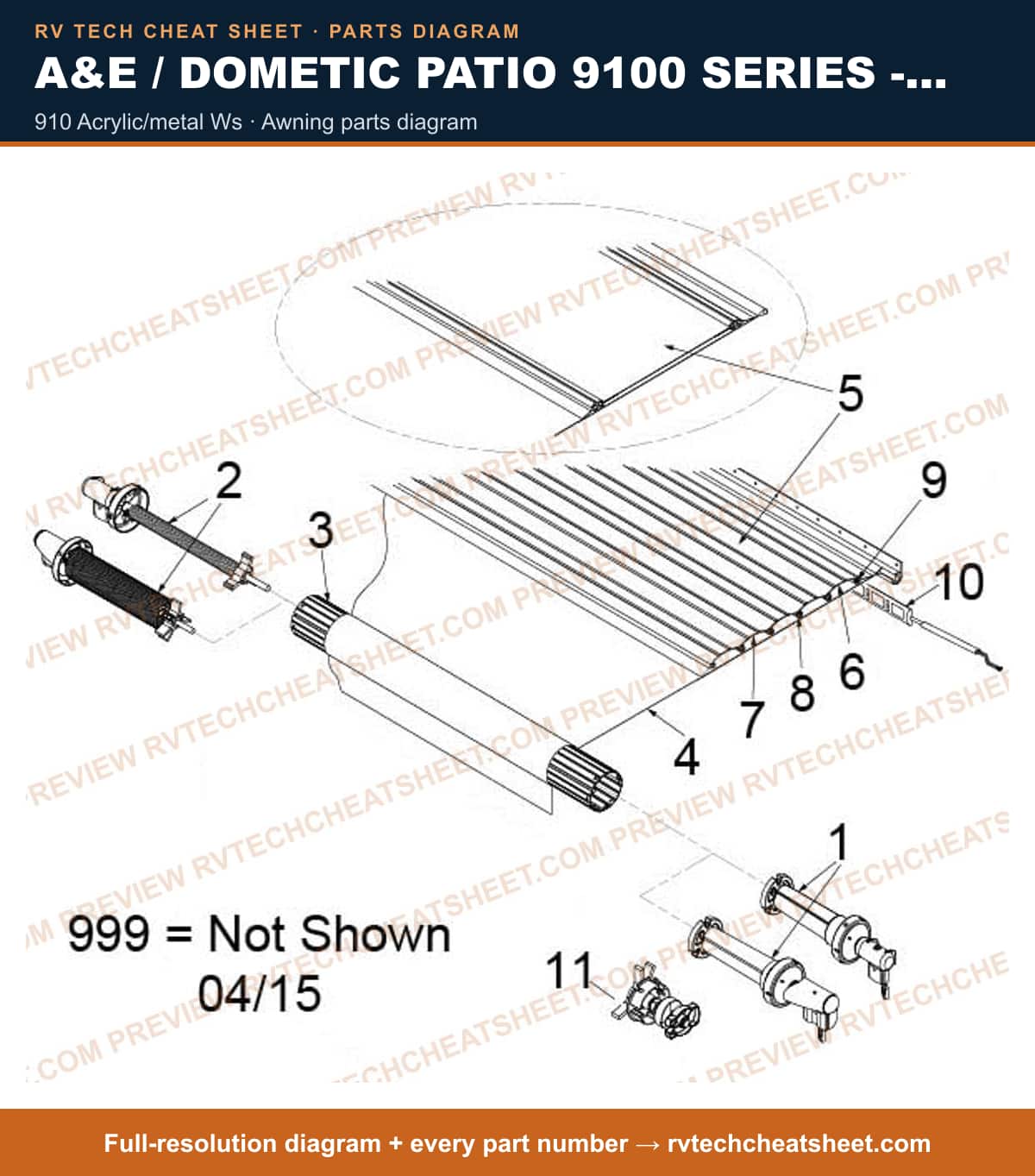

910 Acrylic/metal Ws

Components

63 items

1. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423137P
2. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423.209R
3. #DRIVE ASSEMBLY, RH, BLACK MFR # 3310423137U
4. #Awning Drive Head; 9100 Power Awnings; For Use With Dometic Awnings; Powered Drive Head; Without Ground Support MFR # 3310423137 Superseded: see description
5. #DRIVE ASSEMBLY, RH, CHAMPAGNE MFR # 3310423137R
6. #DRIVE ASSEMBLY, RH, SILVER MFR # 3310423.209P
7. #APPLIANCE COMPONENTS RV; Torsion Asm Lh MFR # 310420017B
8. #Awning Spring Assembly; For Use With Dometic 9100 Series Power Awnings 10 Foot To 21 Foot Length; Left Hand; Champagne Casting MFR # 310420017R Superseded: see description
9. #TORSION ASM, LH PWR SILVER MFR # 3310420017P
10. #AWNING-ACCESSORIES RV; TORSION ASM,LH SVC PWR AWN-SLV MFR # 310420017P
11. #TORSION ASM LH SVC PWR AWN-BLK MFR # 3310420017
12. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 21 Foot Length MFR # 3108346021 Superseded: see description
13. #Awning Roller; For Use With Patio Awning; Standard 3-Slot Roller Bar; 3-1/2 Inch Diameter; 19 Foot Length MFR # 3108346019 Superseded: see description
14. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 17 Foot Length MFR # 3108346017
15. #TUBE,ROLLER 14' SATIN MFR # 3108346014
16. #AWNING-ACCESSORIES RV; TUBEROLLER BOXED ALUM 13 MFR # 3108346013
17. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 11' MFR # 3108346011
18. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 15 Foot Length MFR # 3108346015
19. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 12' MFR # 3108346012
20. #Awning Roller; Aluminum; 18 Foot Length MFR # 3108346018
21. #AWNING-REPAIR PARTS RV; TUBE,ROLLER BOXED ALUM 10' MFR # 3108346010
22. #Awning Roller; For Patio Awnings; Standard 3- Slot Roller Bar; 16 Foot Length MFR # 3108346016
23. #Awning Roller; For Use With Patio Awning; Aluminum Tube; 20 Foot Length MFR # 3108346020 Superseded: see description
24. #CALL FOR PART # & PRICING MFR # FABRIC
25. #Dometic 16' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C016B
26. #COVER, ROLLER 19' CHAMPAGNE MFR # 830316C019R
27. #Dometic 20' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C020B
28. #COVER, ROLLER 12' CHAMPAGNE MFR # 830316C012R
29. #Dometic 18' Replacement Awning 5-Slat Metal WeatherShield, Polar White MFR # 830316C018B
30. #COVER, ROLLER 17' SILVER MFR # 830316C017P
31. #Dometic 15' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C015U
32. #COVER, ROLLER 18' SILVER MFR # 830316C018P
33. #Dometic 13' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C013U
34. #Dometic 19' Replacement Awning 5-Slat Metal WeatherShield, Black MFR # 830316C019U
35. #COVER, ROLLER 17' CHAMPAGNE MFR # 830316C017R
36. #COVER, ROLLER 18' CHAMPAGNE MFR # 830316C018R
37. #SLAT, TOP 19' SILVER MFR # 3311641019P
38. #SLAT, TOP 15' POLAR WHITE MFR # 3311641015B
39. #SLAT, TOP 18' POLAR WHITE MFR # 3311641018B
40. #SLAT, TOP 18' SILVER MFR # 3311641018P
41. #SLAT, TOP 16' POLAR WHITE MFR # 3311641016B
42. #SLAT, TOP 15' BLACK MFR # 3311641015U
43. #SLAT, TOP 20' SILVER MFR # 3311641020P
44. #SLAT, TOP 21' SILVER MFR # 3311641021P
45. #SLAT, TOP 12' SILVER MFR # 3311641012P
46. #SLAT, TOP 17' BLACK MFR # 3311641017U
47. #SLAT, TOP 20' POLAR WHITE MFR # 3311641020B
48. #SLAT, TOP 13' CHAMPAGNE MFR # 3311641013R
49. #SLAT, ROLLER COVER 18' SILVER MFR # 3311646018P
50. #SLAT, ROLLER COVER 20' POLAR WHITE MFR # 3311646020B
51. #SLAT, ROLLER COVER 18' CHAMPAGNE MFR # 3311646018R
52. #SLAT, ROLLER COVER 13' POLAR WHITE MFR # 3311646013B
53. #SLAT, ROLLER COVER 13' SILVER MFR # 3311646013P
54. #SLAT, ROLLER COVER 20' CHAMPAGNE MFR # 3311646020R
55. #SLAT, ROLLER COVER 17' SILVER MFR # 3311646017P
56. #SLAT, ROLLER COVER 20' BLACK MFR # 3311646020U
57. #SLAT, ROLLER COVER 13' CHAMPAGNE MFR # 3311646013R
58. #SLAT, ROLLER COVER 11' SILVER MFR # 3311646011P
59. #SLAT, ROLLER COVER 11' CHAMPAGNE MFR # 3311646011R
60. #SLAT, ROLLER COVER 15' BLACK MFR # 3311646015U
61. #TOOLS & FASTENERS RV; KIT,SCREW TRUSS 7-16X.63 10PK MFR # 3311579021
62. #SCREW SVC KIT M8X1.25 12M 10 PK MFR # 3312637000
63. #SCREW SVC KIT M8X1.25 8MM 10PK MFR # 3312636000

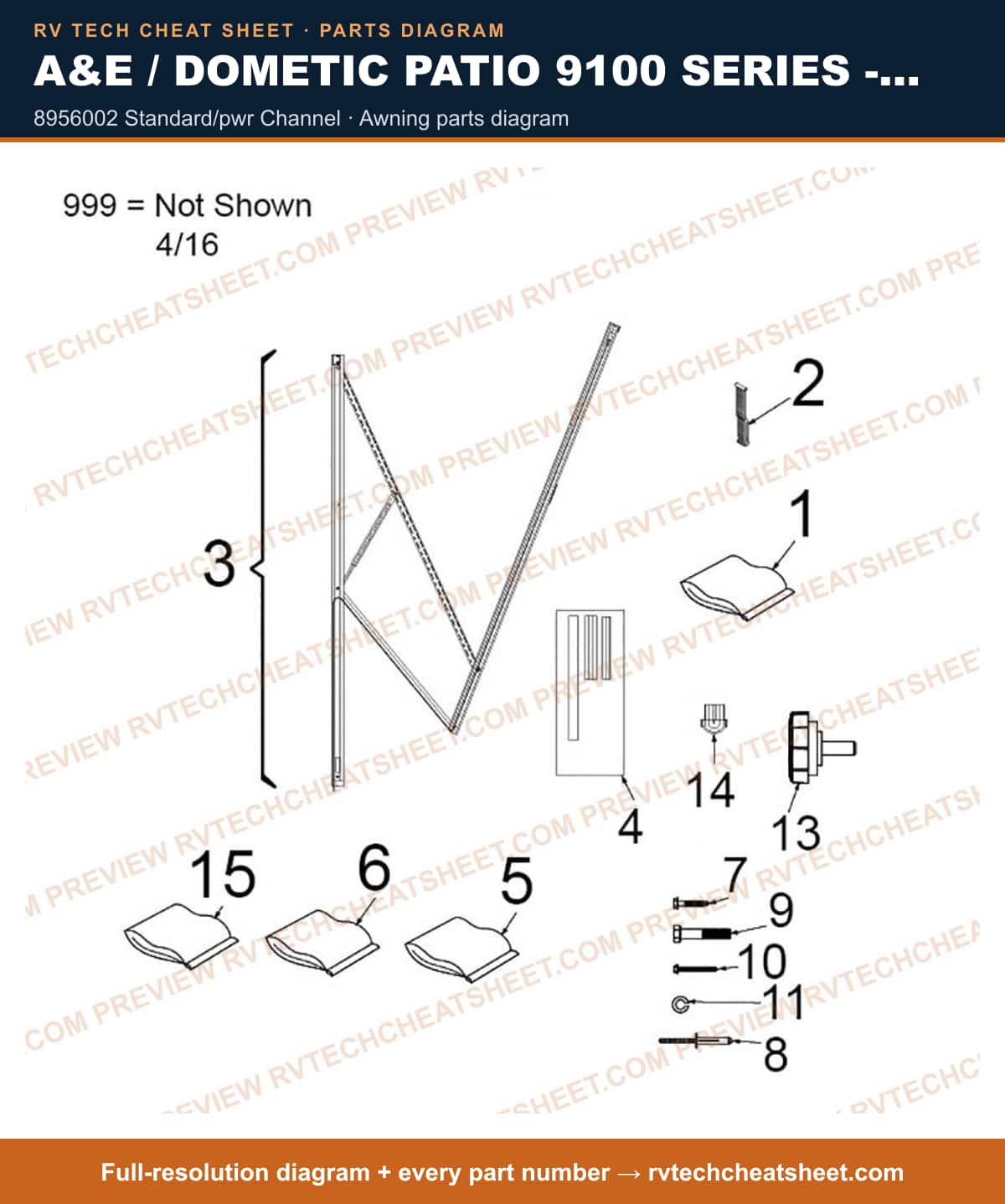

8956002 Standard/pwr Channel

Components

34 items

1. #Awning Enclosure Fastener; For Use With 9100 Series Power And Manual Awning Hardware; Screw In Fasteners MFR # 3310458074 Superseded: see description
2. #TIE-DOWN STRAPS & ANCHORS RV; KIT,PULL STRAP 90.50" MFR # 3311862019
3. #PWR CHANNEL HDWE STANDARD, LH, BLACK MFR # 3312487622U
4. #PWR CHANNEL HDWE STANDARD, RH, SILVER MFR # 3312487606P
5. #PWR CHANNEL HDWE STANDARD, LH, POLAR WHITE MFR # 3312487622B
6. #PWR CHANNEL HDWE STANDARD, RH, CHAMPAGNE MFR # 3312487606R
7. #PWR CHANNEL HDWE STANDARD, RH, POLAR WHITE MFR # 3312487606B
8. #PWR CHANNEL HDWE STANDARD, RH, BLACK MFR # 3312487606U
9. #PWR CHANNEL HDWE STANDARD, LH, SILVER MFR # 3312487622P
10. #PWR CHANNEL HDWE STANDARD, LH, CHAMPAGNE MFR # 3312487622R
11. #WIRE COVER ASM, STANDARD, BLACK MFR # 3312492606U
12. #WIRE COVER ASM, STANDARD, SILVER MFR # 3312492606P
13. #WIRE COVER ASM, STANDARD, POLAR WHITE MFR # 3312492606B
14. #WIRE COVER ASM, STANDARD, CHAMPAGNE MFR # 3312492606R
15. #Awning Bushing; 9100 Power Awnings; For Dometic 9100 Series Power Patio Awnings MFR # 3311753000
16. #APPLIANCE COMPONENTS RV; Pin Kit MFR # 3311754000
17. #TOOLS & FASTENERS RV; KIT,SCREW HEX HD 6-20X.44 10PK MFR # 3311579002
18. #Awning Rivet; Oscar Rivet; 3/16 Inch x 1 Inch; Pack Of 10 MFR # 3311579016
19. #TOOLS & FASTENERS RV; KIT,SCREW HX.25- 20X.75 10PK SS MFR # 3311579071
20. #TOOLS & FASTENERS RV; KIT,SCREW 14- 10X1.50 HHW 10PK MFR # 3311579030
21. #Washer; Replacement For Dometic Awning Arms; MFR # 3311579000
22. #Awning Arm Mounting Hardware; For A&E Patio Awnings; With Knob MFR # 3312509007
23. #AWNING-ACCESSORIES RV; COVER SVC KIT,FRONT CHANN MFR # 3312821006U
24. #COVER SVC KIT,FRONT CHANNEL POLAR WHT MFR # 3312821006B
25. #COVER SVC KIT,FRONT CHANNEL SILVER MFR # 3312821006P
26. #COVER SVC KIT,FRONT CHANNEL CHAMPAGNE MFR # 3312821006R
27. #BRACKET SVC, TOP CHAMPAGNE MFR # 3310452036R
28. #BRACKET SVC, TOP POLAR WHT MFR # 3310452036B
29. #BRACKET SVC, TOP BLACK MFR # 3310452039U
30. #BRACKET SVC, TOP SILVER MFR # 3310452036P
31. #ARM ASM SVC KIT, ADJ PITCH STANDARD BLACK MFR # 3312508017U
32. #ARM ASM SVC KIT, ADJ PITCH STANDARD CHAMPAGNE MFR # 3312508017R
33. #AWNING-REPAIR PARTS RV; Arm Asm Svc Kit MFR # 3312508017B
34. #ARM ASM SVC KIT, ADJ PITCH STANDARD SILVER MFR # 3312508017P
