A&E / Dometic Patio 9200 Series - Power Parts Diagram

Awning · 1 diagram sheet · 4 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the A&E / Dometic Patio 9200 Series - Power RV awning: 4 manufacturer part numbers.

Awning arms carry the model label on the inside of the arm or on the bottom bracket; the roller tube end cap often has the length. Measure fabric length eye-to-eye before ordering a replacement.

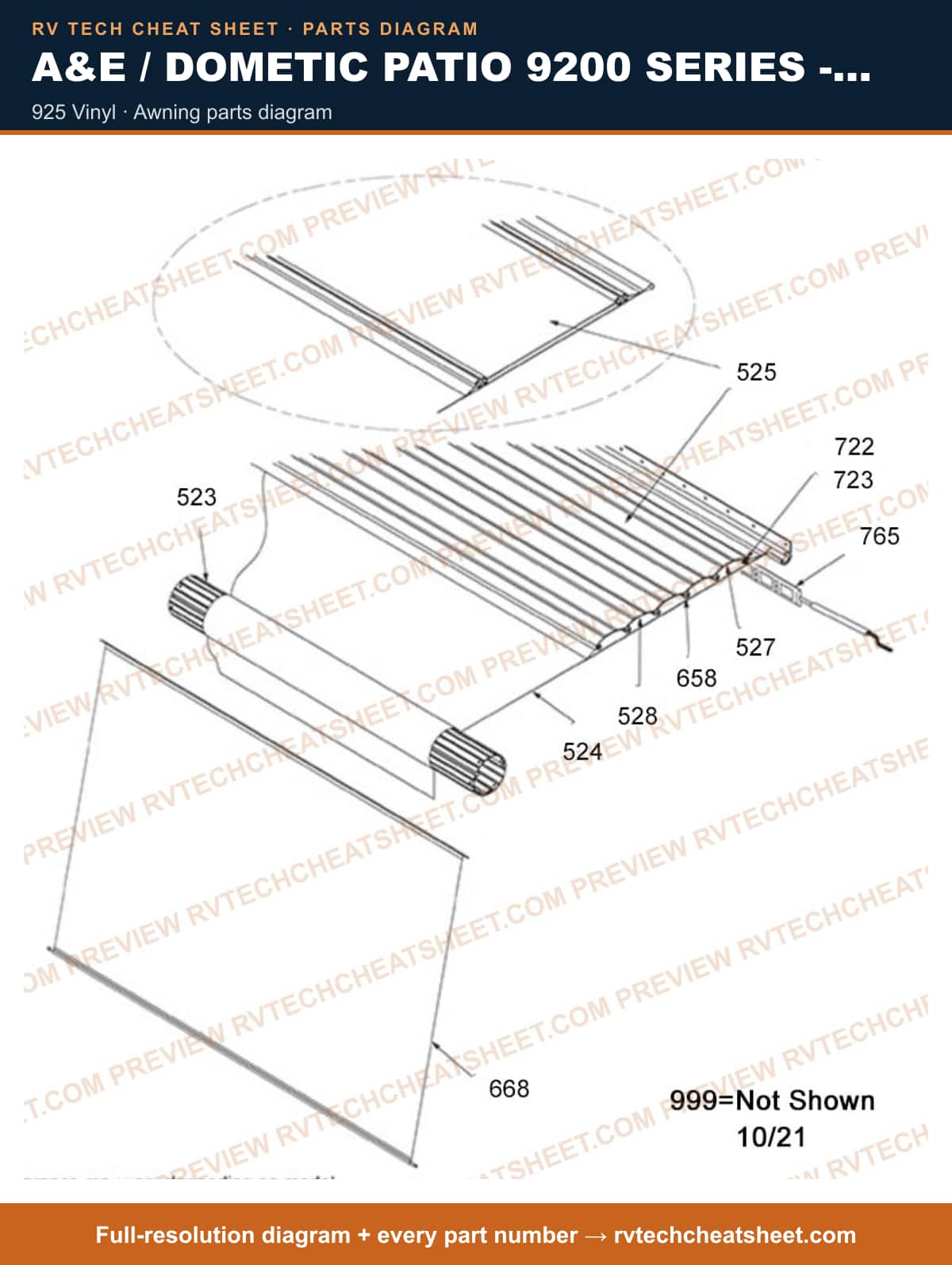

925 Vinyl

Components

4 items

1. #Dometic Patio Awning 15' Replacement Aluminum Roller Tube MFR # 3108346.015
2. #Dometic Onyx 15' (actual length 14' 3.38") Double-Sided Vinyl Replacement Awning Fabric, Black Vinyl WeatherShield MFR # R3310524NR.315L
3. #NOT AVAILABLE AS INDIVIDUAL PART. MFR # ******
4. #Awning Light; Replacement LED Awning Rail Strip For Models Ending In UL; 5 Meter Length Trim To Fit; Cool White LED; 12 Volt DC; Not To Be Added To New Awnings MFR # 3315283006
