A&E / Dometic Patio 9500 Case Awning Parts Diagram · 202 Series Power Awning

Awning · 2 assemblies · 2 diagram sheets · 85 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the A&E / Dometic Patio 9500 Case Awning RV awning: 2 assemblies (202 Series Power Awning, 200 Series Manual Awning) and 85 manufacturer part numbers.

Awning arms carry the model label on the inside of the arm or on the bottom bracket; the roller tube end cap often has the length. Measure fabric length eye-to-eye before ordering a replacement.

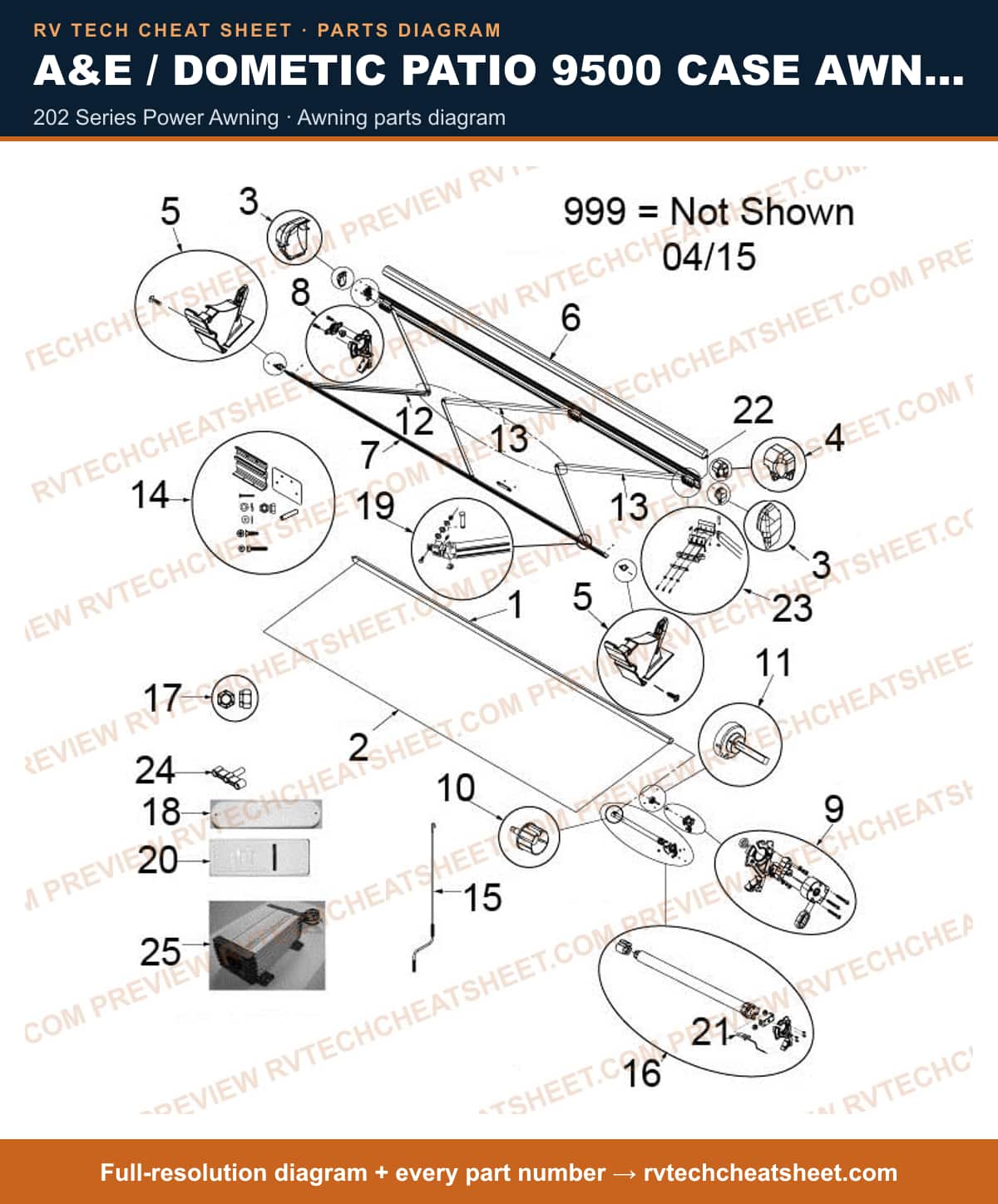

202 Series Power Awning

Components

65 items

1. #TUBE KIT, 8' POWER MFR # 3314021001P
2. #TUBE KIT, 16' MFR # 3314021050P
3. #TUBE KIT, 12' MFR # 3314021027P
4. #TUBE KIT, 13' MFR # 3314021035P
5. #TUBE KIT, 15' MFR # 3314021043P
6. #TUBE KIT, 10'' MFR # 3314021019P
7. #CALL FOR PART # & PRICING MFR # FABRIC
8. #OUTER COVER KIT, LH, BLACK MFR # 3312800000U
9. #OUTER COVER KIT, LH, SILVER MFR # 3312800000P
10. #OUTER COVER KIT, LC RH, POLAR WHITE MFR # 3312801008B
11. #OUTER COVER KIT, LC RH, BLACK MFR # 3312801008U
12. #OUTER COVER KIT, LC RH, SILVER MFR # 3312801008P
13. #OUTER COVER KIT, LH, POLAR WHITE MFR # 3312800000B
14. #OBSOLETE PARTS MFR # **
15. #LEADRAIL CAPS KIT, POLAR WHITE MFR # 33114221000B
16. #LEADRAIL CAPS KIT, BLACK MFR # 33114221000U
17. #LEADRAIL CAPS KIT, SILVER MFR # 33114221000P
18. #COVER ASM KIT, 15', BLACK MFR # 3310774015U
19. #COVER, TOP MFR # 3310774016B
20. #COVER ASM KIT, 8' SILVER MFR # 3310774108P
21. #COVER ASM KIT, 8' BLACK MFR # 3310774108U
22. #COVER ASM KIT, 12', SILVER MFR # 3310774012P
23. #COVER, TOP MFR # 3310774012B
24. #COVER ASM KIT, 10', SILVER MFR # 3310774110P
25. #COVER ASM KIT, 10', BLACK MFR # 3310774110U
26. #COVER, TOP MFR # 3310774013B
27. #COVER ASM KIT, 16', BLACK MFR # 3310774016U
28. #COVER ASM KIT, 10', POLAR WHITE MFR # 3310774110B
29. #COVER ASM KIT, 16', SILVER MFR # 3310774016P
30. #LEAD RAIL ASM KIT, 8' BLACK MFR # 3314023108U
31. #LEAD RAIL ASM KIT, 10' POLAR WHITE MFR # 3314023110B
32. #LEAD RAIL ASM KIT, 12' SILVER MFR # 3314023112P
33. #LEAD RAIL ASM KIT, 12' BLACK MFR # 3314023112U
34. #LEAD RAIL ASM KIT, 12' POLAR WHITE MFR # 3314023112B
35. #LEAD RAIL ASM KIT, 16' SILVER MFR # 3310423116P
36. #LEAD RAIL ASM KIT, 13' BLACK MFR # 3310423113U
37. #LEAD RAIL ASM KIT, 13' POLAR WHITE MFR # 3310423113B
38. #LEAD RAIL ASM KIT, 15' BLACK MFR # 3310423115U
39. #LEAD RAIL ASM KIT, 13' SILVER MFR # 3310423113P
40. #LEAD RAIL ASM KIT, 15' POLAR WHITE MFR # 3310423115B
41. #LEAD RAIL ASM KIT, 10' SILVER MFR # 3314023110P
42. #BUSHING ASM KIT MFR # 3314011000P
43. #IDLER KIT MFR # 3314012000
44. #ARM ASM KIT, 2.5M, LH, 12-16' MFR # 3314481015P
45. #ARM ASM KIT, 1.75M, LH, 8' MFR # 3314481056P
46. #ARM ASM KIT, 2.25M, LH, 10' MFR # 3314481031P
47. #ARM ASM KIT, 2.25M, RH, 10' MFR # 3314481023P
48. #ARM ASM KIT, 1.75M, RH, 8' MFR # 3314481049P
49. #ARM ASM KIT, 2.5M, RH, 12-16' MFR # 3314481007P
50. #MOUNTING BRACKET SVC KIT, 13' MFR # 3314480013
51. #Dometic RM2652 RM2662 Refrigerator Igniter Electrode MFR # 3314480016
52. #Awning Mounting Kit; 9500 ™; Fits 15 Foot Length 9500 Series Patio Awning; With Mounting Hardware MFR # 3314480015
53. #AWNING-ACCESSORIES RV; KIT, MOUNTING BRKT 12' 9500 MFR # 3314480012
54. #MOUNTING BRACKET SVC KIT, 8' MFR # 3314480008
55. #AWNING-ACCESSORIES RV; KIT, MOUNTING BRKT 10' 9500 MFR # 3314480010
56. #MOTOR ASM KIT, 120V MFR # 3314013008P
57. #APPLIANCE COMPONENTS RV; KIT,NUT,LOCK W/INST 1/4" 10PK MFR # 3311579056
58. #APPLIANCE COMPONENTS RV; KIT, WIND SENSOR DA20 MFR # 3314017000
59. #WRIST ASM KIT, LH MFR # 3314478011P
60. #WRIST ASM KIT, RH MFR # 3314478003P
61. #Awning Remote Control; Replacement For Dometic 9500E Case Awning MFR # 3314015000
62. #REFRIGERATOR BODY MFR # *
63. #BOLT KIT, ROUND HEAD, SQ NECK M6X1 MFR # 3314029000
64. #VINYL LIQUID PATCH KIT MFR # 3314216000
65. #LOCK NUT KIT W/INSERT M6X1 MFR # 3314030000

200 Series Manual Awning

Components

63 items

1. #TUBE KIT, 16' MFR # 3314021050P
2. #TUBE KIT, 13' MFR # 3314021035P
3. #TUBE KIT, 10'' MFR # 3314021019P
4. #TUBE KIT, 8' MANUAL MFR # 3314021068P
5. #TUBE KIT, 15' MFR # 3314021043P
6. #TUBE KIT, 12' MFR # 3314021027P
7. #CALL FOR PART # & PRICING MFR # FABRIC
8. #OUTER COVER KIT, LH, SILVER MFR # 3312800000P
9. #OUTER COVER KIT, LH, POLAR WHITE MFR # 3312800000B
10. #OUTER COVER KIT, LH, BLACK MFR # 3312800000U
11. #OUTER COVER KIT, MANUAL, RH, POLAR WHITE MFR # 3310770015P
12. #CAP, RH CASE MFR # 3310770015B
13. #OUTER COVER KIT, MANUAL, RH, BLACK MFR # 3310770015U
14. #LEADRAIL CAPS KIT, BLACK MFR # 33114221000U
15. #LEADRAIL CAPS KIT, POLAR WHITE MFR # 33114221000B
16. #LEADRAIL CAPS KIT, SILVER MFR # 33114221000P
17. #COVER ASM KIT, 16', SILVER MFR # 3310774016P
18. #COVER ASM KIT, 13', SILVER MFR # 3310774013P
19. #COVER ASM KIT, 10', BLACK MFR # 3310774110U
20. #COVER ASM KIT, 10', POLAR WHITE MFR # 3310774110B
21. #COVER ASM KIT, 12', SILVER MFR # 3310774012P
22. #COVER ASM KIT, MANUAL, 8', BLACK MFR # 3310774122U
23. #COVER ASM KIT, 16', BLACK MFR # 3310774016U
24. #COVER ASM KIT, MANUAL, 8', SILVER MFR # 3310774122P
25. #COVER, TOP MFR # 3310774012B
26. #COVER ASM KIT, 10', SILVER MFR # 3310774110P
27. #COVER, TOP MFR # 3310774015B
28. #COVER ASM KIT, MANUAL, 8', POLAR WHITE MFR # 3310774122B
29. #LEAD RAIL ASM KIT, 15' SILVER MFR # 3310423115P
30. #LEAD RAIL ASM KIT, 10' BLACK MFR # 3314023110U
31. #LEAD RAIL ASM KIT, 13' POLAR WHITE MFR # 3310423113B
32. #LEAD RAIL ASM KIT, 13' BLACK MFR # 3310423113U
33. #LEAD RAIL ASM KIT, 12' POLAR WHITE MFR # 3314023112B
34. #LEAD RAIL ASM KIT, 8' SILVER MFR # 3314023127P
35. #LEAD RAIL ASM KIT, 15' POLAR WHITE MFR # 3310423115B
36. #LEAD RAIL ASM KIT, 13' SILVER MFR # 3310423113P
37. #LEAD RAIL ASM KIT, 12' BLACK MFR # 3314023112U
38. #LEAD RAIL ASM KIT, 16' BLACK MFR # 3310423116U
39. #LEAD RAIL ASM KIT, 8' POLAR WHITE MFR # 3314023127B
40. #LEAD RAIL ASM KIT, 16' POLAR WHITE MFR # 3310423116B
41. #CRANK ASM KIT MFR # 3314026100P
42. #IDLER KIT MFR # 3314012000
43. #CRANK ASM CAP, SILVER MFR # 3311187000P
44. #SQUARE DRIVE ASM KIT, RH MFR # 3314027000P
45. #ARM ASM KIT, 2.25M, LH, 10' MFR # 3314481031P
46. #ARM ASM KIT, 2.5M, LH, 12-16' MFR # 3314481015P
47. #ARM ASM KIT, 1.75M, LH, 8' MFR # 3314481056P
48. #ARM ASM KIT, 2.25M, RH, 10' MFR # 3314481023P
49. #ARM ASM KIT, 2.5M, RH, 12-16' MFR # 3314481007P
50. #ARM ASM KIT, 1.75M, RH, 8' MFR # 3314481049P
51. #AWNING-ACCESSORIES RV; KIT, MOUNTING BRKT 12' 9500 MFR # 3314480012
52. #Dometic RM2652 RM2662 Refrigerator Igniter Electrode MFR # 3314480016
53. #MOUNTING BRACKET SVC KIT, 8' MFR # 3314480023
54. #Awning Mounting Kit; 9500 ™; Fits 15 Foot Length 9500 Series Patio Awning; With Mounting Hardware MFR # 3314480015
55. #AWNING-ACCESSORIES RV; KIT, MOUNTING BRKT 10' 9500 MFR # 3314480010
56. #MOUNTING BRACKET SVC KIT, 13' MFR # 3314480013
57. #Awning Crank Handle; Replacement For Dometic/ A&E 976 Series Oasis Door Awning/ 200 Series 9500 Case Awning/ 920 Series Horizon II Awning MFR # 3310783000
58. #APPLIANCE COMPONENTS RV; KIT,NUT,LOCK W/INST 1/4" 10PK MFR # 3311579056
59. #WRIST ASM KIT, LH MFR # 3314478011P
60. #WRIST ASM KIT, RH MFR # 3314478003P
61. #VINYL LIQUID PATCH KIT MFR # 3314216000
62. #LOCK NUT KIT W/INSERT M6X1 MFR # 3314030000
63. #BOLT KIT, ROUND HEAD, SQ NECK M6X1 MFR # 3314029000
