Carefree Patio Compass Parts Diagram

Awning · 1 diagram sheet · 29 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagram for the Carefree Patio Compass RV awning: 29 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.

Awning arms carry the model label on the inside of the arm or on the bottom bracket; the roller tube end cap often has the length. Measure fabric length eye-to-eye before ordering a replacement.

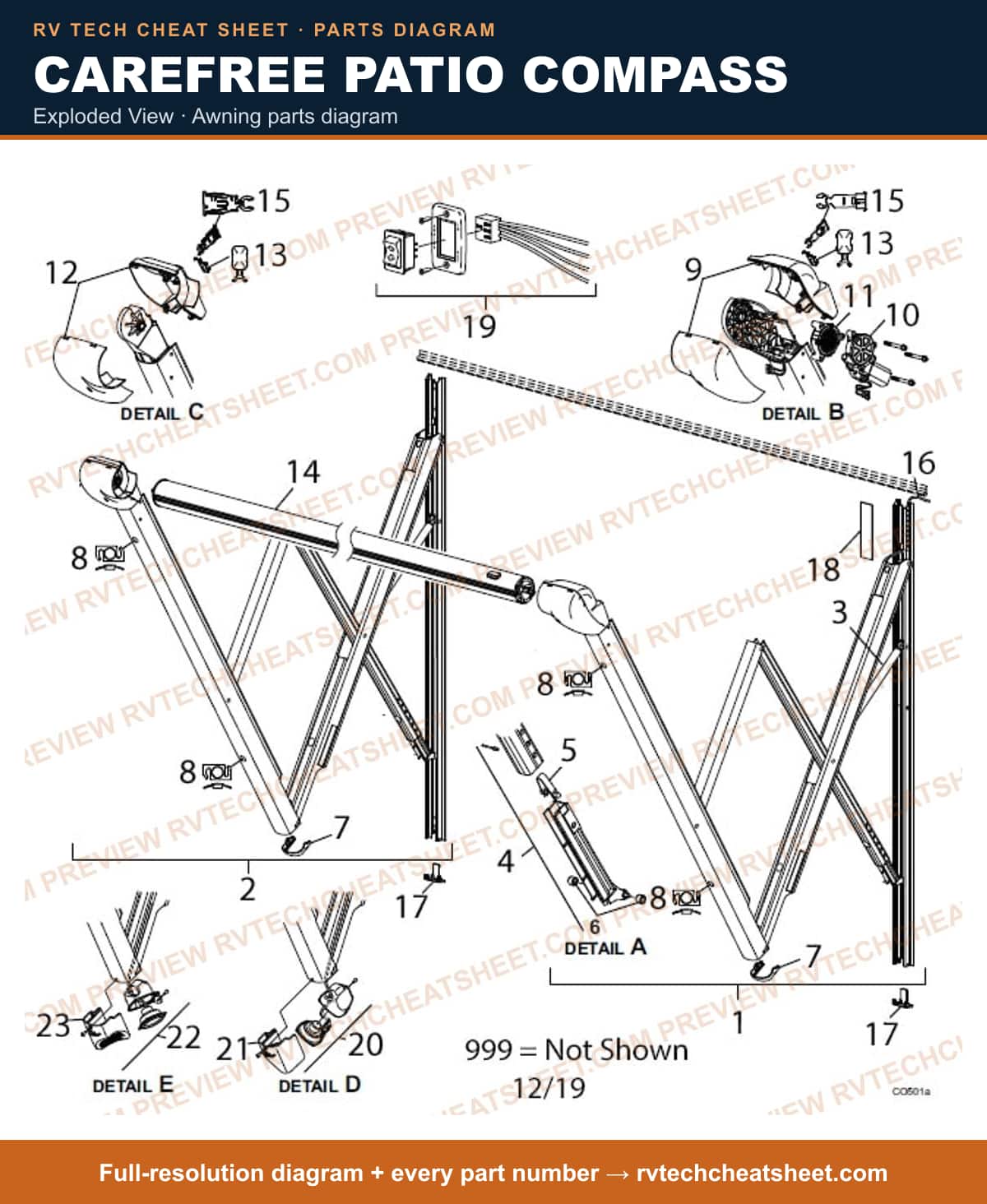

Exploded View

Components

29 items

1. #AWNINGS-PRESIDENTS CLUB; COMPASS,SPKR,1/2 FRNT,ADJ,BLK MFR # R001986BLK
2. #COMPASS 1/2 FRONT ADJ BLK MFR # R001988BLK
3. #AWNINGS-PRESIDENTS CLUB; COMPASS,SPKR,1/2 BACK,ADJ,BLK MFR # R001987BLK
4. #COMPASS 1/2 BACK ADJ BLK MFR # R001989BLK
5. #KIT GAS SHOCK LONGITUDE MFR # R001826
6. #AWNING-REPAIR PARTS RV; KIT,PITCH ADJ,CMPSS,RMP,CLR MFR # R001972-101
7. #AWNINGS-PRESIDENTS CLUB; KIT,PITCH ADJ,CMPSS,RMP,BLK MFR # R001972-102
8. #AWNING-REPAIR PARTS RV; SNAP BUTTON, MFR # R001945
9. #AWNINGS-PRESIDENTS CLUB; BOTTOM CAP, COMPASS BLK MFR # R001971006
10. #AWNING-REPAIR PARTS RV; KIT,HOLE PLUG,ALTITUDE,BLK MFR # R001930006
11. #CVR KIT MTR ALT/CMPS WHT MFR # R001931005
12. #COVER KIT MOTOR ALT BLK MFR # R001931006
13. #MOTOR LONGITUDE MFR # R001832
14. #GEAR BOX LONGITUDE MFR # R001833
15. #AWNINGS-PRESIDENTS CLUB; CVR,KIT,MTR,ALT/CMPS,WHT MFR # R001932005
16. #COVER KIT IDLER ALT BLK MFR # R001932006
17. #AWNING-REPAIR PARTS RV; KIT,CLIP HOLE CVR CAP,WHI MFR # R001835005
18. #AWNING-REPAIR PARTS RV; KIT,CLIP HOLE CVR CAP,BLA MFR # R001835006
19. #ROLLER TUBE ASSEMBLY; WITH LED; WHERE xxx= LENGTH IN INCHES MFR # R001842-xxx
20. #ROLLER TUBE ASSEMBLY; NO LED; WHERE xxx= LENGTH IN INCHES MFR # R001841-xxx
21. #KIT RETAINING CLIPS MFR # R001836
22. #Awning Cap; Lower Arm Wire Cover; For Use With Carefree Altitude/ Compass Awnings; Black; Pack Of 2 MFR # 017719006 Superseded: see description
23. #WIRE CVR LONGITUDE MFR # R041331006
24. #KIT SWITCH ASSY 4 PIN MFR # R019487003
25. #AWNING-REPAIR PARTS RV; COMPASS SPEAKER, MOTOR SIDE MFR # R001984
26. #AWNING-REPAIR PARTS RV; COMPASS SPEAKER CASE MOTOR MFR # R041596-001
27. #AWNING-REPAIR PARTS RV; COMPASS SPEAKER, IDLE SIDE MFR # R001985
28. #AWNING-REPAIR PARTS RV; COMPASS SPEAKER CASE IDLE MFR # R041596-002
29. #KIT ROLLER REPLACEMENT LO MFR # R001840
