Awning · 9 assemblies · 9 diagram sheets · 144 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Lippert Solera Patio RV awning: 9 assemblies (Power › Hardware › 12V Exploded View, Edge › Exploded View, Power › Roller Assembly › 12V Electrical, Power › Hardware › 12V Electrical, Power › Roller Assembly › 12V Led Upgrade Exploded View and more) and 144 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.
Awning arms carry the model label on the inside of the arm or on the bottom bracket; the roller tube end cap often has the length. Measure fabric length eye-to-eye before ordering a replacement.

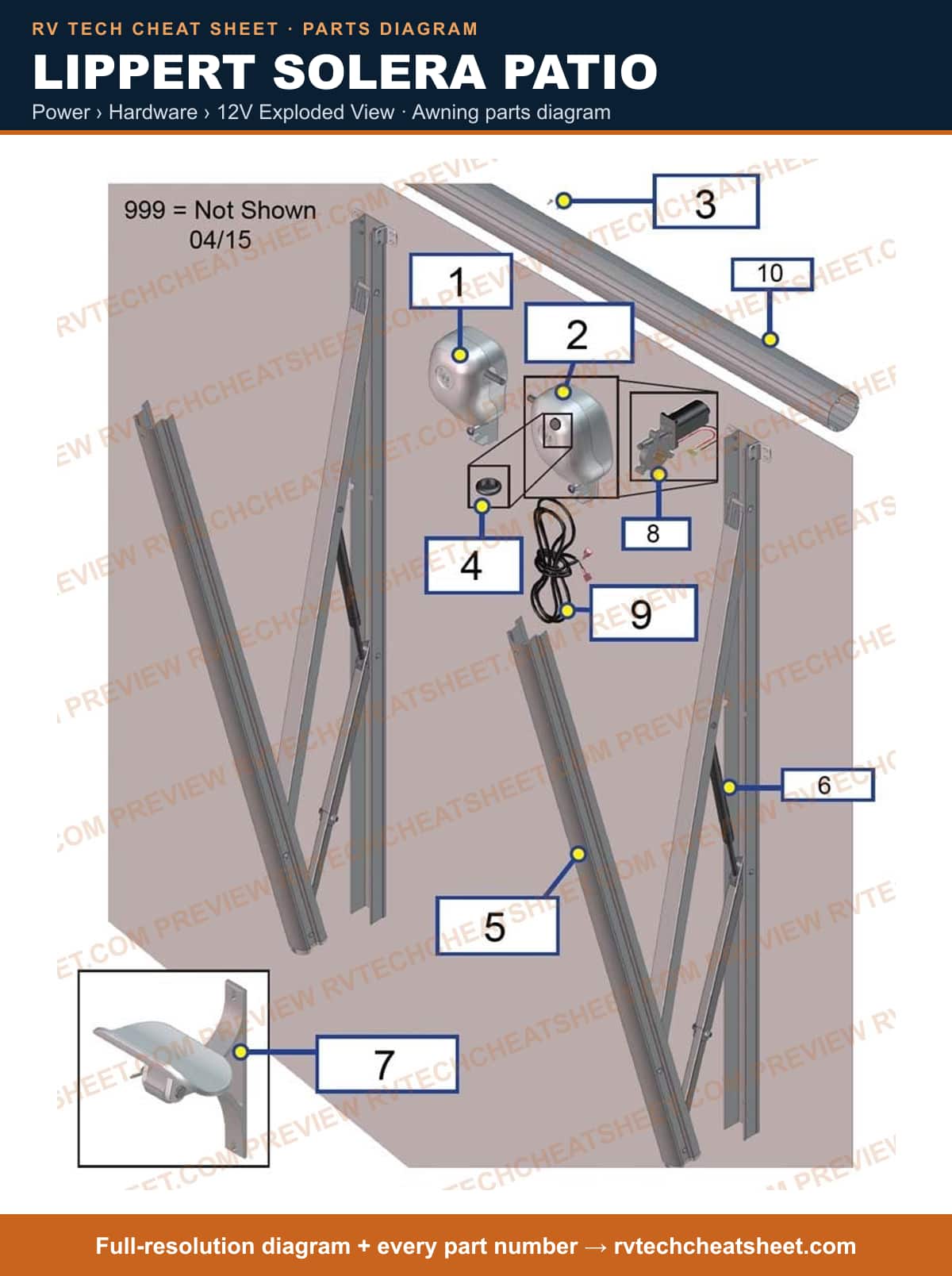

Power › Hardware › 12V Exploded View
Lippert Solera Patio power › hardware › 12v exploded view — exploded parts diagram Full-resolution diagram + every part number →
Components 54 items # COVER IDLER SIDE FRNT BLK MFR # 289566 # Awning Idler Cover; Solera; For Solera Power or Manual Awnings With Plain Head; Back Cover; White MFR # 289564 # COVER IDLER SIDE BACK BLK MFR # 289567 # Awning Idler Cover; Solera; For Solera Power or Manual Awnings With Plain Head; Front Cover; White MFR # 289563 # Awning Idler; Solera; For Manual Crank Style Or Power Awnings With Plain Head; Black MFR # 273479 # Awning Idler; Solera; For Manual Crank Style Or Power Awnings With Plain Head; White MFR # 266147 # SPRING SIDE FRNT BLK MFR # 289560 # Awning Drive Head; Solera; For Power Awnings With Plain Head; Black MFR # 273478 # Awning Drive Head Cover; Solera; For Solera Power or Manual Awnings With Plain Head; Back Cover; White MFR # 289558 # SPRING SIDE BACK BLACK MFR # 289561 # SPRING SIDE FRONT WHITE MFR # 289557 # Awning Drive Head; Solera; For Power Awnings With Plain Head; White MFR # 266146 # TOOLS & FASTENERS RV; SCREW - #8 - 32 X 1/2 PNH ZNWC SQD MFR # 299630 # Awning Drive Head Grommet; Solera; For Solera Power Awnings To Plug Manual Override Opening When Not In Use; 3/4 Inch Inside Diameter x 1 Inch Outside Diameter; Black; Also Use New Number 2020219217 MFR # 275071 Superseded: see description # SUPPORT ARM ASM, SHORT STD FIXED PITCH, WHITE MFR # 362132 # Awning Arm; Solera; For Power or Manual Patio Awnings; 66-1/8 Inch Length From Awning Rail Down; Pitched; Black; Half Set MFR # 266169 # If you need to replace your RV awning's support arm, look no further than Solera®. The Solera awning support arms by Lippert™ will help get your RV's awning back in working condition in no time. Equipped with gas struts for easy operation and friction joints that help prevent water and debris from pooling in the center of your awning, this replacement support arm is a must-have and can be used on both power and manual awning assemblies. MFR # 281152 # Awning Arm; Solera; For Power or Manual Patio Awnings; 66-1/8 Inch Length From Awning Rail Down; Pitched; White; Half Set MFR # 260294 # If you need to replace your RV awning's support arm, look no further than Solera®. The Solera awning support arms by Lippert™ will help get your RV's awning back in working condition in no time. Equipped with gas struts for easy operation and friction joints that help prevent water and debris from pooling in the center of your awning, this replacement support arm is a must-have and can be used on both power and manual awning assemblies. MFR # 281154 # Awning Arm; Solera; For Patio Awnings; 61-1/2 Inch Length From Awning Rail Down; Manual; Short; Black; Half Set MFR # 295743 # SUPPORT ARM ASM, SHORT STD FIXED PITCH, BLACK MFR # 362133 # Awning Arm; Solera; For Patio Awnings; 61-1/2 Inch Length From Awning Rail Down; Manual; Short; White; Half Set MFR # 295742 # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This replacement gas strut for Solera power and manual awnings can replace old, worn or broken equipment. Easy to install and operate, this hardware will let you get back to operating your Solera manual awning as usual. MFR # 260282 # SCREW #14-10 X 1-1/4", ARMS TO COACH MFR # 348108 # WASHER-1/2 FLW DCRMET ST MFR # 431583 # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This replacement gas strut for Solera power and manual awnings can replace old, worn or broken equipment. Easy to install and operate, this hardware will let you get back to operating your Solera manual awning as usual. MFR # 280343 # Awning Service Kit; Solera; For Solera 12 Volt/ 18 Volt/ Hybrid Awning; Retaining Washer; 0.5 Inch Inside Diameter (ID) x 0.625 Outside Diameter (OD); Round and Flat; Zinc; Single MFR # 282484 # Give your awning the support it needs while traveling with a Solera awning roller cradle support from Lippert. Mandatory for awnings measuring 22' in length, this cradle support adds stability to your Solera RV awning while you're traveling in or towing your RV. Compatible with both manual and power awnings this is an easy way to secure your awning when in travel position. The cradle support automatically accepts and releases the roller assembly as it extends or retracts. Plus, it can be used with smaller awnings for enhanced security on the open road. MFR # 289373 # Give your awning the support it needs while traveling with a Solera awning roller cradle support from Lippert. Mandatory for awnings measuring 22' in length, this cradle support adds stability to your Solera RV awning while you're traveling in or towing your RV. Compatible with both manual and power awnings this is an easy way to secure your awning when in travel position. The cradle support automatically accepts and releases the roller assembly as it extends or retracts. Plus, it can be used with smaller awnings for enhanced security on the open road. MFR # 289374 # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This 12-Volt DC, 75-RPM motor with dual connectors can replace old, worn or broken equipment. Easy to install and operate, this replacement motor will let you extend and retract your awning with just the push of a button. Compatible with short, flat and ptiched power awning set ups made before July 15, 2015, this is an easy way to repair your Solera awning, hassle-free. Plus, in the event of a power failure, this motor lets you extend and retract your awning with a power drill. MFR # 266149 # SCREW 1/4-20 X 1/4 IHWN 2N SLF ST (MOTOR TO MNT) MFR # 266132 # POWER FEED WIRES MFR # 273007 # Awning Roller; Solera; Replacement For White Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 16 Foot Length; Gray Tube MFR # 338512357 # Awning Roller; Solera; Replacement For Black Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 16 Foot Length; Black Tube MFR # 260560357 # Awning Roller; Solera; Replacement For Black Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 15 Foot Length; Black Tube MFR # 260560333 # Awning Roller; Solera; Replacement For Black Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 12 Foot Length; Black Tube MFR # 260560261 # Awning Roller; Solera; Replacement For Black Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 18 Foot Length; Black Tube MFR # 260560405 # Awning Roller; Solera; Replacement For White Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 21 Foot Length; Gray Tube MFR # 338512477 # Awning Roller; Solera; Replacement For Black Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 21 Foot Length; Black Tube MFR # 260560477 # Awning Roller; Solera; Replacement For White Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 15 Foot Length; Gray Tube MFR # 338512333 # Awning Roller; Solera; Replacement For White Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 18 Foot Length; Gray Tube MFR # 338512405 # Awning Roller; Solera; Replacement For White Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 12 Foot Length; Gray Tube MFR # 338512261 # END CAP FOR POWER HEADS, BLACK MFR # 2661302 # TOOLS & FASTENERS RV; SCREW - # 6 X 1/2 PH PNH TRS ZN MFR # 266156 # NUT, STAINLESS STEEL, NYLON LOCK #10-32 MFR # 384906 # COTTER HAIRPIN MFR # 298760 # SWITCH KIT 12GA WIRE HARNESS, WHITE MFR # 293659 # WIRE COVER, 22" NARROW, BLACK MFR # 2750701888 # SWITCH KIT 12GA WIRE HARNESS, BLACK MFR # 293658 # SCREW, STAINLESS STEEL #10-32 X 2-1/2" MFR # 384905 # SWITCH ONLY, WHITE MFR # 280564 # SCREW, STEEL #8-18 X 1/2" MFR # 320695 # END CAP FOR POWER HEADS, WHITE MFR # 2661301 # AWNING-REPAIR PARTS RV; AWNING HARDWARE MFR # 286576

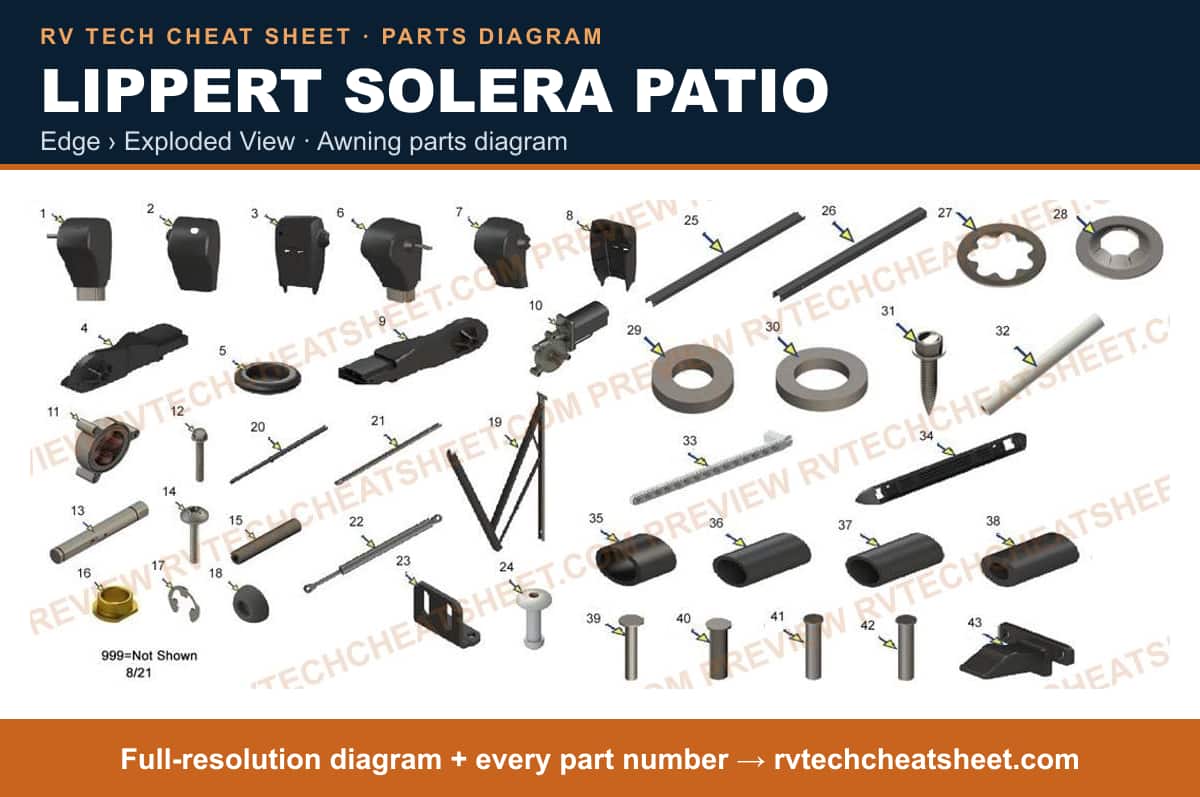

Edge › Exploded View
Lippert Solera Patio edge › exploded view — exploded parts diagram Full-resolution diagram + every part number →
Components 54 items # EDGE AWNING DRIVE HEAD ASSEMBLY W/ GEAR PACK AND OVERRIDE (BLACK) MFR # 805310 # COVER MOTOR SIDE FRONT EDGE - BLACK MFR # 771407 # DRIVE HEAD FRONT COVER WHITE MFR # 771409 # DRIVE HEAD BACK COVER (WHITE) MFR # 771410 # COVER MOTOR SIDE BACK EDGE - BLACK MFR # 771408 # AWNING-ACCESSORIES RV; MOTOR MOUNT FOR EDGE AWNING MFR # 771384 # Awning Drive Head Grommet; Solera; For Solera Power Awnings To Plug Manual Override Opening When Not In Use; 3/4 Inch Inside Diameter x 1 Inch Outside Diameter; Black; Also Use New Number 2020219217 MFR # 275071 Superseded: see description # EDGE AWNING IDLER HEAD ASSEMBLY (BLACK) MFR # 805311 # EDGE AWNING IDLER HEAD ASSEMBLY (WHITE) MFR # 805313 # IDLER HEAD FRONT COVER (BLACK) MFR # 771412 # IDLER SIDE FRONT COVER WHITE MFR # 771414 # COVER IDLER SIDE BACK EDGE IN BLACK MFR # 771413 # IDLER SIDE BACK COVER WHITE MFR # 771415 # IDLER SIDE MOUNT (BLACK) MFR # 771385 # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This 12-Volt DC, 75-RPM motor with dual connectors can replace old, worn or broken equipment. Easy to install and operate, this replacement motor will let you extend and retract your awning with just the push of a button. Compatible with short, flat and ptiched power awning set ups made before July 15, 2015, this is an easy way to repair your Solera awning, hassle-free. Plus, in the event of a power failure, this motor lets you extend and retract your awning with a power drill. MFR # 266149 # REPLACEMENT AWNING MOTOR WITH MANUAL OVERRIDE AND 2-WAY CONNECTION MFR # 723566 # AWNING-ACCESSORIES RV; GEAR PACK - AWNING DRIVE HEAD MFR # 418203 # HEX SCREW, 1/4" - 14 X 2" MFR # 773638 # ROD MFR # 771389 # TOOLS & FASTENERS RV; SCREW - # 6 X 1/2 PH PNH TRS ZN MFR # 266156 # SPRING PIN, 1/8" X 3/4" MFR # 327445 # TOOLS & FASTENERS RV; BUSHING; .822 OD X .503 ID OIL-IM B MFR # 266143 # EXTERIOR HARDWARE RV; RETAINER - 1/2" E-CLIP MFR # 266137 # Enhance the functionality of your RV by installing the Lippert standard replacement rubber bumper on entry and cargo doors. Crafted from durable plastic, this bumper provides enduring performance, offering reliable protection for your doors. With easy installation and compatibility across all Lippert standard RV entry and cargo doors, you can efficiently upgrade your RV's features. This simple and effective solution ensures not only convenience but also long-lasting durability for optimal door protection. MFR # 201478 # EDGE AWNING SLIDE PITCH DRIVE ARM ASSEMBLY WITH SERENITY LIGHT (BLACK) MFR # 806626 # EDGE AWNING SLIDE PITCH IDLER ARM ASSEMBLY WITH SERENITY LIGHT (BLACK) MFR # 806629 # EDGE AWNING SLIDE PITCH IDLER ARM ASSEMBLY WITH SERENITY LIGHT (WHITE) MFR # 806628 # EDGE AWNING SLIDE PITCH ARM ASSEMBLY WITHOUT SERENITY LIGHT (WHITE) MFR # 806622 # EDGE AWNING SLIDE PITCH DRIVE ARM ASSEMBLY WITH SERENITY LIGHT (WHITE) MFR # 806625 # EDGE AWNING SLIDE PITCH ARM ASSEMBLY WITHOUT SERENITY LIGHT (BLACK) MFR # 806623 # EDGE PITCH ASSEMBLY MFR # 773929 # EDGE AWNING WALL MOUNT, 58" MFR # 773641 # STRUT GAS 18 IN EXTND 158 LBS 700 MFR # 346882 # BRACKET, 1.50" X 1.39" X .85" MFR # 346888 # RIVET, ALUM 3/16 X 1.300, KLAMP-TITE BAPKTR-06-12 MFR # 237315 # EDGE AWNING INNER DRIVE ARM, 46 3/16" MFR # 773642 # EDGE AWNING OUTER LEVER ARM (DRIVE) - 7" MFR # 793009 # EDGE AWNING OUTER LEVER ARM (IDLER) - 7" MFR # 793010 # WASHER-1/2 FLW DCRMET ST MFR # 431583 # RETAINING RING .250 EXTERNAL PUSH-O MFR # 800827 # WASHER, 3/8" MFR # 800273 # TOOLS & FASTENERS RV; SCREW - 14-10 X 1 1/4 IHWH GEOMET H MFR # 701388 # VINYL TUBE MFR # 805935 # LED SERENITY LIGHT, 7" MFR # 760287 # AWNING-ACCESSORIES RV; BEZEL SERENITY LIGHT 7" MFR # 730559 # SPACER .386" X .600" X .375" MFR # 801135 # SPACER .386" X .600" X .813" MFR # 801136 # SPACER .266" X .386" X .375" MFR # 801137 # SPACER .266" X .500" X .813" MFR # 801138 # PIN, .250" X 2.47" MFR # 800824 # PIN, .370" X 2.15" MFR # 800825 # PIN, .370" X 2.97" MFR # 800826 # PIN, .370" X .875" MFR # 807864 # EDGE AWNING CENTER SUPPORT MFR # 805597
Power › Roller Assembly › 12V Electrical
Lippert Solera Patio power › roller assembly › 12v electrical — exploded parts diagram Full-resolution diagram + every part number →
Components 27 items # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This 12-Volt DC, 75-RPM motor with dual connectors can replace old, worn or broken equipment. Easy to install and operate, this replacement motor will let you extend and retract your awning with just the push of a button. Compatible with short, flat and ptiched power awning set ups made before July 15, 2015, this is an easy way to repair your Solera awning, hassle-free. Plus, in the event of a power failure, this motor lets you extend and retract your awning with a power drill. MFR # 266149 # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This 12-Volt DC, 75-RPM motor with a single two-way black connector can replace old, worn or broken equipment. Easy to install and operate, this replacement motor will let you extend and retract your awning with just the push of a button. Compatible with short, flat and pitched power awning set ups made after July 15, 2015, this is an easy way to repair your Solera awning, hassle-free. Plus, in the event of a power failure, this motor lets you extend and retract your awning with a power drill. MFR # 373566 # SCREW 1/4-20 X 1/4 IHWN 2N SLF ST (MOTOR TO MNT) MFR # 266132 # Need to get your Solera awning back to full operation? The Solera awning replacement switch kit by Lippert™ helps you easily fix your power awning. This easy-to-install kit save you time and money making major repairs and prevents you from a total awning replacement. In no time, you'll be back to extending and retracting your Solera awning with just the push of a button. MFR # 285500 # SWITCH PLATE ONLY, BLACK MFR # 280567 # SWITCH ONLY, BLACK MFR # 280566 # Are you repairing your Solera power awning switch assembly? If you've recently purchased or are looking to purchase a power awning replacement switch for your Solera awning, you'll need this Solera power awning harness before replacing your switch. Made for easy installation, this wiring harness requires zero assembly and is compatible with all Solera power awning switch kits. MFR # 280570 # SWITCH PLATE ONLY, WHITE MFR # 280565 # SWITCH ONLY, WHITE MFR # 280564 # Need to get your Solera awning back to full operation? The Solera awning replacement switch kit by Lippert™ helps you easily fix your power awning. This easy-to-install kit save you time and money making major repairs and prevents you from a total awning replacement. In no time, you'll be back to extending and retracting your Solera awning with just the push of a button. MFR # 285499 # Are you repairing your Solera power awning switch assembly? If you've recently purchased or are looking to purchase a power awning replacement switch for your Solera awning, you'll need this Solera bezel spacer before replacing your switch. Made from heavy-duty, durable plastic materials, this spacer requires zero assembly and is easy to install with your replacement switch kit. MFR # 285079 # Are you repairing your Solera power awning switch assembly? If you've recently purchased or are looking to purchase a power awning replacement switch for your Solera awning, you'll need this Solera bezel spacer before replacing your switch. Made from heavy-duty, durable plastic materials, this spacer requires zero assembly and is easy to install with your replacement switch kit. MFR # 285077 # AWNING-REPAIR PARTS RV; POWER FEED , 2-WAY, AWNING MFR # 373008 # POWER FEED WIRES MFR # 273007 # POWER FEED,2-WAY TOP WIRE AWNING 144 INCH MFR # 423175 # WIRE COVER, 21" WIDE, BLACK MFR # 2661391872 # WIRE COVER, 26.75" WIDE, BLACK MFR # 2661391964 # WIRE COVER, 26.75" WIDE, WHITE MFR # 266139429 # WIRE COVER-AWNING-30'-BLK NARROW MFR # 2661382017 # WIRE COVER, 9.75" NARROW, WHITE MFR # 275070157 # WIRE COVER, 22" NARROW, WHITE MFR # 275070353 # AWNING-ACCESSORIES RV; WIRE COVER - AWNING - 30 IN - WHITE MFR # 266138481 # WIRE COVER, 21" WIDE, WHITE MFR # 266139337 # SWITCH KIT 12GA WIRE HARNESS, WHITE MFR # 293659 # SWITCH KIT 12GA WIRE HARNESS, BLACK MFR # 293658 # WIRE COVER, 9.75" NARROW, BLACK MFR # 2750701692 # WIRE COVER, 22" NARROW, BLACK MFR # 2750701888

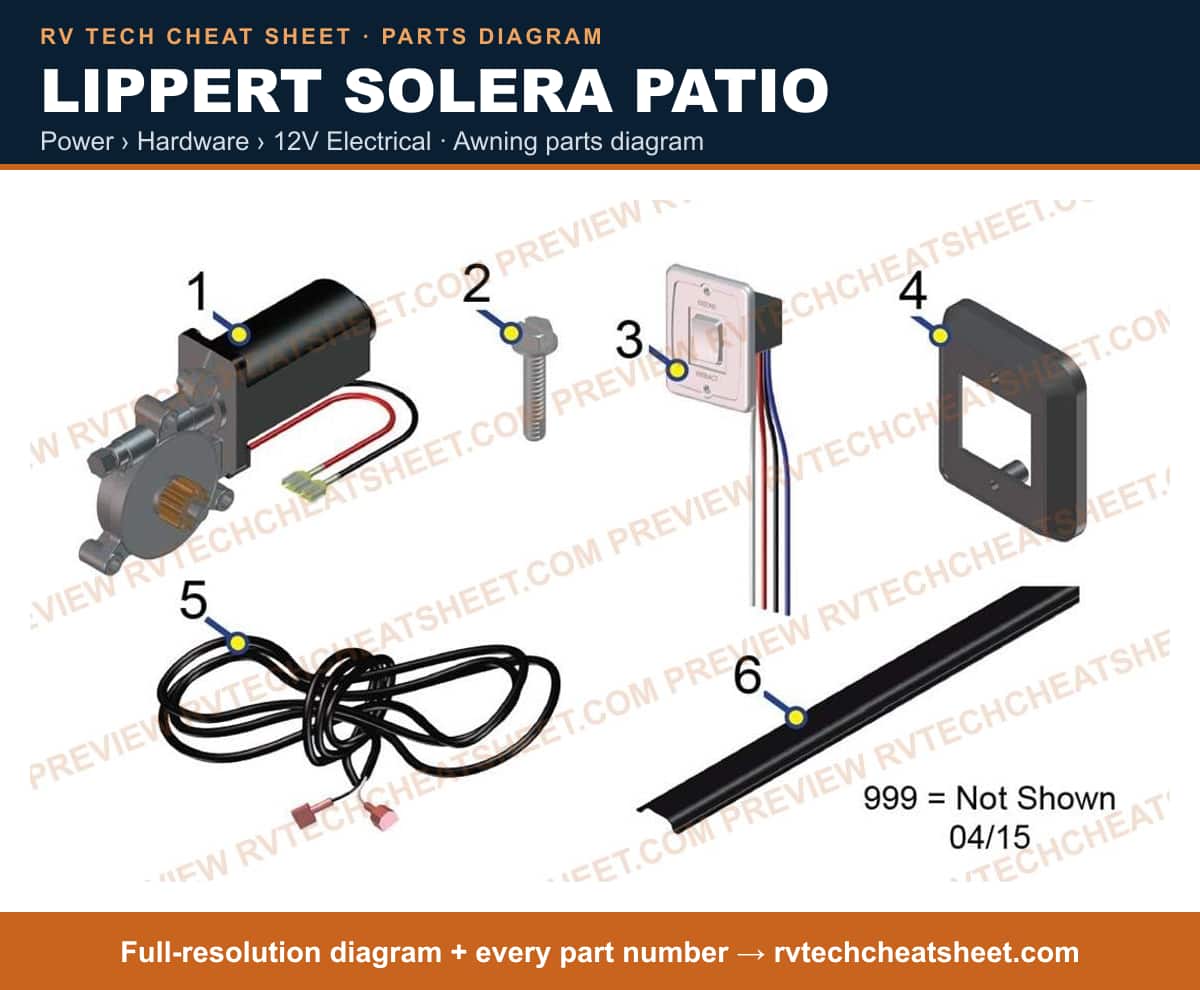

Power › Hardware › 12V Electrical
Lippert Solera Patio power › hardware › 12v electrical — exploded parts diagram Full-resolution diagram + every part number →
Components 26 items # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This 12-Volt DC, 75-RPM motor with dual connectors can replace old, worn or broken equipment. Easy to install and operate, this replacement motor will let you extend and retract your awning with just the push of a button. Compatible with short, flat and ptiched power awning set ups made before July 15, 2015, this is an easy way to repair your Solera awning, hassle-free. Plus, in the event of a power failure, this motor lets you extend and retract your awning with a power drill. MFR # 266149 # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This 12-Volt DC, 75-RPM motor with a single two-way black connector can replace old, worn or broken equipment. Easy to install and operate, this replacement motor will let you extend and retract your awning with just the push of a button. Compatible with short, flat and pitched power awning set ups made after July 15, 2015, this is an easy way to repair your Solera awning, hassle-free. Plus, in the event of a power failure, this motor lets you extend and retract your awning with a power drill. MFR # 373566 # SCREW 1/4-20 X 1/4 IHWN 2N SLF ST (MOTOR TO MNT) MFR # 266132 # SWITCH ONLY, WHITE MFR # 280564 # SWITCH PLATE ONLY, WHITE MFR # 280565 # Need to get your Solera awning back to full operation? The Solera awning replacement switch kit by Lippert™ helps you easily fix your power awning. This easy-to-install kit save you time and money making major repairs and prevents you from a total awning replacement. In no time, you'll be back to extending and retracting your Solera awning with just the push of a button. MFR # 285499 # SWITCH ONLY, BLACK MFR # 280566 # SWITCH PLATE ONLY, BLACK MFR # 280567 # Are you repairing your Solera power awning switch assembly? If you've recently purchased or are looking to purchase a power awning replacement switch for your Solera awning, you'll need this Solera power awning harness before replacing your switch. Made for easy installation, this wiring harness requires zero assembly and is compatible with all Solera power awning switch kits. MFR # 280570 # Need to get your Solera awning back to full operation? The Solera awning replacement switch kit by Lippert™ helps you easily fix your power awning. This easy-to-install kit save you time and money making major repairs and prevents you from a total awning replacement. In no time, you'll be back to extending and retracting your Solera awning with just the push of a button. MFR # 285500 # Are you repairing your Solera power awning switch assembly? If you've recently purchased or are looking to purchase a power awning replacement switch for your Solera awning, you'll need this Solera bezel spacer before replacing your switch. Made from heavy-duty, durable plastic materials, this spacer requires zero assembly and is easy to install with your replacement switch kit. MFR # 285077 # Are you repairing your Solera power awning switch assembly? If you've recently purchased or are looking to purchase a power awning replacement switch for your Solera awning, you'll need this Solera bezel spacer before replacing your switch. Made from heavy-duty, durable plastic materials, this spacer requires zero assembly and is easy to install with your replacement switch kit. MFR # 285079 # POWER FEED WIRES MFR # 273007 # AWNING-REPAIR PARTS RV; POWER FEED , 2-WAY, AWNING MFR # 373008 # WIRE COVER-AWNING-30'-BLK NARROW MFR # 2661382017 # WIRE COVER, 9.75" NARROW, BLACK MFR # 2750701692 # WIRE COVER, 22" NARROW, BLACK MFR # 2750701888 # WIRE COVER, 21" WIDE, WHITE MFR # 266139337 # WIRE COVER, 26.75" WIDE, BLACK MFR # 2661391964 # WIRE COVER, 21" WIDE, BLACK MFR # 2661391872 # WIRE COVER, 9.75" NARROW, WHITE MFR # 275070157 # WIRE COVER, 26.75" WIDE, WHITE MFR # 266139429 # AWNING-ACCESSORIES RV; WIRE COVER - AWNING - 30 IN - WHITE MFR # 266138481 # WIRE COVER, 22" NARROW, WHITE MFR # 275070353 # SWITCH KIT 12GA WIRE HARNESS, WHITE MFR # 293659 # SWITCH KIT 12GA WIRE HARNESS, BLACK MFR # 293658

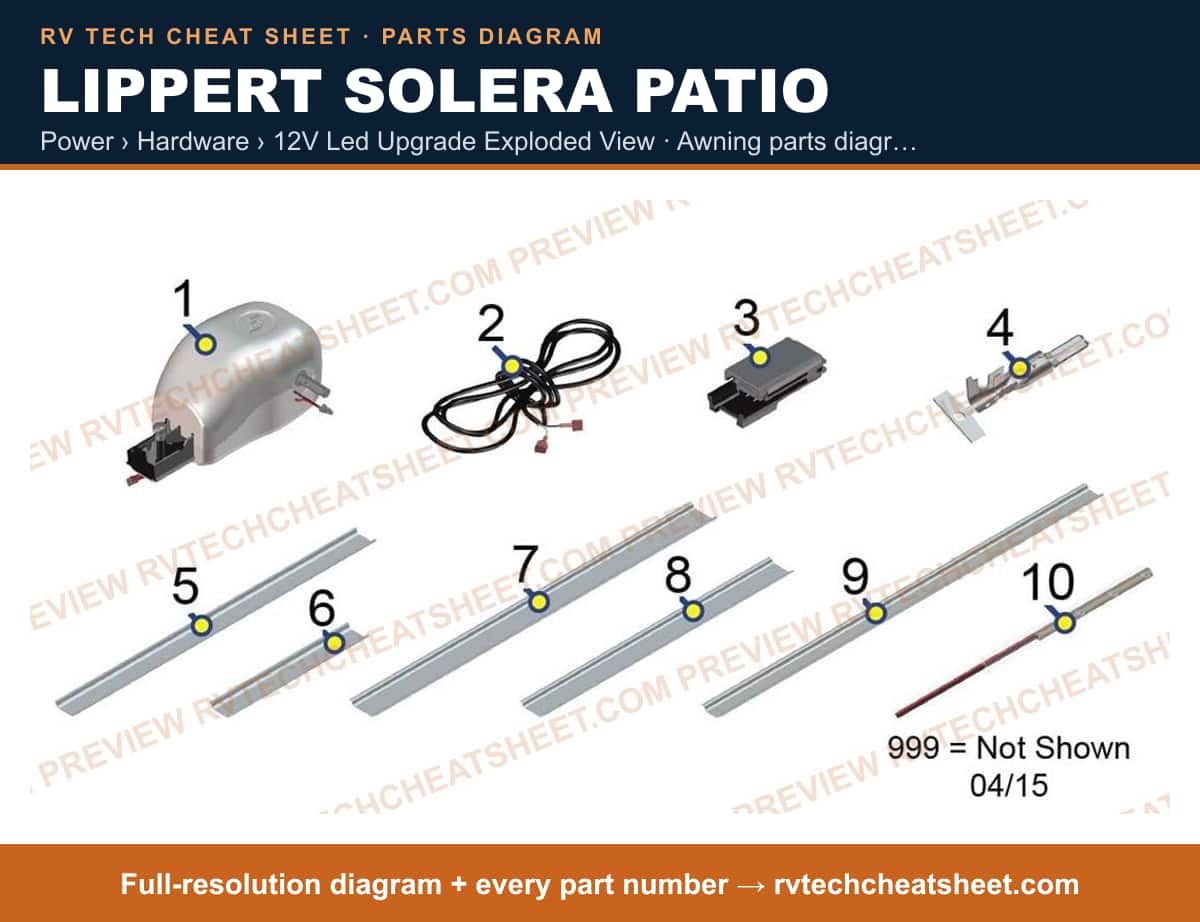

Power › Roller Assembly › 12V Led Upgrade Exploded View
Lippert Solera Patio power › roller assembly › 12v led upgrade exploded view — exploded parts diagram Full-resolution diagram + every part number →
Components 21 items # AWNING-ACCESSORIES RV; LED TUBE AWNING IDLER HEAD ASSY WHT MFR # 334789 # LED IDLER HEAD BLACK MFR # 334785 # POWER FEED WIRES MFR # 273007 # WATERPROOF CONNECTOR MFR # 317243 # SILVER WATERPROOF CONNECTOR PIN MFR # 317241 # WIRE COVER, 22" NARROW, WHITE MFR # 275070353 # WIRE COVER, 22" NARROW, BLACK MFR # 2750701888 # WIRE COVER, 9.75" NARROW, BLACK MFR # 2750701692 # WIRE COVER, 9.75" NARROW, WHITE MFR # 275070157 # WIRE COVER, 26.75" WIDE, WHITE MFR # 266139429 # WIRE COVER, 26.75" WIDE, BLACK MFR # 2661391964 # WIRE COVER, 21" WIDE, BLACK MFR # 2661391872 # WIRE COVER, 21" WIDE, WHITE MFR # 266139337 # AWNING-ACCESSORIES RV; WIRE COVER - AWNING - 30 IN - WHITE MFR # 266138481 # WIRE COVER-AWNING-30'-BLK NARROW MFR # 2661382017 # Awning Light; Solera; LED Light Kit Slides Into The Track By The Coach Side Wall Under The Awning; 13 Foot Length; Soft Blue White; 12 Volt MFR # 329395 / 423327 # AWNING-ACCESSORIES RV; LIGHT,AWNING LED TUBE,14' MFR # 329396 # LED STRIP FOR ROP-058-147714 MFR # 329399 # AWNING LED TUBE 24' (FOR 22-23' AWNINGS) MFR # 329536 # SOLERA AWNING LIGHT MFR # 329575 # 329398 / 423330 MFR # 329398 / 423330
Power › Hardware › 12V Led Upgrade Exploded View
Lippert Solera Patio power › hardware › 12v led upgrade exploded view — exploded parts diagram Full-resolution diagram + every part number →
Components 21 items # AWNING-ACCESSORIES RV; LED TUBE AWNING IDLER HEAD ASSY WHT MFR # 334789 # LED IDLER HEAD BLACK MFR # 334785 # POWER FEED WIRES MFR # 273007 # WATERPROOF CONNECTOR MFR # 317243 # SILVER WATERPROOF CONNECTOR PIN MFR # 317241 # WIRE COVER, 22" NARROW, WHITE MFR # 275070353 # WIRE COVER, 22" NARROW, BLACK MFR # 2750701888 # WIRE COVER, 9.75" NARROW, WHITE MFR # 275070157 # WIRE COVER, 9.75" NARROW, BLACK MFR # 2750701692 # WIRE COVER, 26.75" WIDE, WHITE MFR # 266139429 # WIRE COVER, 26.75" WIDE, BLACK MFR # 2661391964 # WIRE COVER, 21" WIDE, WHITE MFR # 266139337 # WIRE COVER, 21" WIDE, BLACK MFR # 2661391872 # AWNING-ACCESSORIES RV; WIRE COVER - AWNING - 30 IN - WHITE MFR # 266138481 # WIRE COVER-AWNING-30'-BLK NARROW MFR # 2661382017 # LED STRIP FOR ROP-058-147714 MFR # 329399 # AWNING-ACCESSORIES RV; LIGHT,AWNING LED TUBE,14' MFR # 329396 # AWNING LED TUBE 24' (FOR 22-23' AWNINGS) MFR # 329536 # Awning Light; Solera; LED Light Kit Slides Into The Track By The Coach Side Wall Under The Awning; 13 Foot Length; Soft Blue White; 12 Volt MFR # 329395 # SOLERA AWNING LIGHT MFR # 329575 # Awning Light; Solera; LED Light Kit Slides Into The Track By The Coach Side Wall Under The Awning; 17 Foot Length; Soft Blue White; 12 Volt; With Connector MFR # 329398
Power › Hardware › 18V Tall, Infinite Pitch
Lippert Solera Patio power › hardware › 18v tall, infinite pitch — exploded parts diagram Full-resolution diagram + every part number →
Components 2 items # An industry first, the Solera 4000 Series universal awning hardware kit by Lippert features a unique, rechargeable battery that fits right inside your Solera power awning arm, and it comes with everything you need to connect to your RV’s motor wire. This is the perfect awning for DIY RV owners who don’t want to spend the time and money it takes to wire a power awning into their RV. Operating on an 18V rechargeable battery, this power awning can run 22-25 times before needing to be recharged, giving you plenty of use before you need to plug your battery in. Better yet, the Solera 4000 Series awning extends and retracts faster than other power awnings on the market today. Now, you can spend more time doing the things you love, like roasting another mallow at the campfire! MFR # 434729 Superseded: see description # An industry first, the Solera 4000 Series universal awning hardware kit by Lippert features a unique, rechargeable battery that fits right inside your Solera power awning arm, and it comes with everything you need to connect to your RV’s motor wire. This is the perfect awning for DIY RV owners who don’t want to spend the time and money it takes to wire a power awning into their RV. Operating on an 18V rechargeable battery, this power awning can run 22-25 times before needing to be recharged, giving you plenty of use before you need to plug your battery in. Better yet, the Solera 4000 Series awning extends and retracts faster than other power awnings on the market today. Now, you can spend more time doing the things you love, like roasting another mallow at the campfire! MFR # 434730 Superseded: see description
Power › Hardware › 12V Short, Adjustable Pitch
Lippert Solera Patio power › hardware › 12v short, adjustable pitch — exploded parts diagram Full-resolution diagram + every part number →
Components 2 items # Awning Arm; Solera; For Patio Awnings; 60-1/2 Inch Arm Size; Electric; 12 Volt; 2 Position Pitch; Black; Full Set MFR # 434721 # Awning Arm; Solera; For Patio Awnings; 60-1/2 Inch Arm Size; Electric; 12 Volt; 2 Position Pitch; White; Full Set MFR # 434722
Power › Roller Assembly › 12V Exploded View
Lippert Solera Patio power › roller assembly › 12v exploded view — exploded parts diagram Full-resolution diagram + every part number →
Components 55 items # Awning Idler; Solera; For Manual Crank Style Or Power Awnings With Plain Head; White MFR # 266147 # COVER IDLER SIDE FRNT BLK MFR # 289566 # Awning Idler Cover; Solera; For Solera Power or Manual Awnings With Plain Head; Back Cover; White MFR # 289564 # COVER IDLER SIDE BACK BLK MFR # 289567 # Awning Idler; Solera; For Manual Crank Style Or Power Awnings With Plain Head; Black MFR # 273479 # Awning Idler Cover; Solera; For Solera Power or Manual Awnings With Plain Head; Front Cover; White MFR # 289563 # SPRING SIDE FRNT BLK MFR # 289560 # Awning Drive Head Cover; Solera; For Solera Power or Manual Awnings With Plain Head; Back Cover; White MFR # 289558 # Awning Drive Head; Solera; For Power Awnings With Plain Head; Black MFR # 273478 # SPRING SIDE BACK BLACK MFR # 289561 # Awning Drive Head; Solera; For Power Awnings With Plain Head; White MFR # 266146 # SPRING SIDE FRONT WHITE MFR # 289557 # TOOLS & FASTENERS RV; SCREW - #8 - 32 X 1/2 PNH ZNWC SQD MFR # 299630 # Awning Drive Head Grommet; Solera; For Solera Power Awnings To Plug Manual Override Opening When Not In Use; 3/4 Inch Inside Diameter x 1 Inch Outside Diameter; Black; Also Use New Number 2020219217 MFR # 275071 Superseded: see description # Awning Arm; Solera; For Power or Manual Patio Awnings; 66-1/8 Inch Length From Awning Rail Down; Pitched; White; Half Set MFR # 260294 # Awning Arm; Solera; For Power or Manual Patio Awnings; 66-1/8 Inch Length From Awning Rail Down; Pitched; Black; Half Set MFR # 266169 # Awning Arm; Solera; For Patio Awnings; 61-1/2 Inch Length From Awning Rail Down; Manual; Short; Black; Half Set MFR # 295743 # If you need to replace your RV awning's support arm, look no further than Solera®. The Solera awning support arms by Lippert™ will help get your RV's awning back in working condition in no time. Equipped with gas struts for easy operation and friction joints that help prevent water and debris from pooling in the center of your awning, this replacement support arm is a must-have and can be used on both power and manual awning assemblies. MFR # 281152 # If you need to replace your RV awning's support arm, look no further than Solera®. The Solera awning support arms by Lippert™ will help get your RV's awning back in working condition in no time. Equipped with gas struts for easy operation and friction joints that help prevent water and debris from pooling in the center of your awning, this replacement support arm is a must-have and can be used on both power and manual awning assemblies. MFR # 281154 # Awning Arm; Solera; For Patio Awnings; 61-1/2 Inch Length From Awning Rail Down; Manual; Short; White; Half Set MFR # 295742 # SUPPORT ARM ASM, SHORT STD FIXED PITCH, WHITE MFR # 362132 # SUPPORT ARM ASM, SHORT STD FIXED PITCH, BLACK MFR # 362133 # 282484/431583 MFR # 282484/431583 # SCREW #14-10 X 1-1/4", ARMS TO COACH MFR # 348108 # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This replacement gas strut for Solera power and manual awnings can replace old, worn or broken equipment. Easy to install and operate, this hardware will let you get back to operating your Solera manual awning as usual. MFR # 260282 # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This replacement gas strut for Solera power and manual awnings can replace old, worn or broken equipment. Easy to install and operate, this hardware will let you get back to operating your Solera manual awning as usual. MFR # 280343 # Give your awning the support it needs while traveling with a Solera awning roller cradle support from Lippert. Mandatory for awnings measuring 22' in length, this cradle support adds stability to your Solera RV awning while you're traveling in or towing your RV. Compatible with both manual and power awnings this is an easy way to secure your awning when in travel position. The cradle support automatically accepts and releases the roller assembly as it extends or retracts. Plus, it can be used with smaller awnings for enhanced security on the open road. MFR # 289374 # Give your awning the support it needs while traveling with a Solera awning roller cradle support from Lippert. Mandatory for awnings measuring 22' in length, this cradle support adds stability to your Solera RV awning while you're traveling in or towing your RV. Compatible with both manual and power awnings this is an easy way to secure your awning when in travel position. The cradle support automatically accepts and releases the roller assembly as it extends or retracts. Plus, it can be used with smaller awnings for enhanced security on the open road. MFR # 289373 # SCREW 1/4-20 X 1/4 IHWN 2N SLF ST (MOTOR TO MNT) MFR # 266132 # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This 12-Volt DC, 75-RPM motor with a single two-way black connector can replace old, worn or broken equipment. Easy to install and operate, this replacement motor will let you extend and retract your awning with just the push of a button. Compatible with short, flat and pitched power awning set ups made after July 15, 2015, this is an easy way to repair your Solera awning, hassle-free. Plus, in the event of a power failure, this motor lets you extend and retract your awning with a power drill. MFR # 373566 # When it comes to replacement parts for your Solera® awning assembly, look no further than Lippert. We have exact-match Solera replacement parts, so you don't have to search high and low for the correct equipment. This 12-Volt DC, 75-RPM motor with dual connectors can replace old, worn or broken equipment. Easy to install and operate, this replacement motor will let you extend and retract your awning with just the push of a button. Compatible with short, flat and ptiched power awning set ups made before July 15, 2015, this is an easy way to repair your Solera awning, hassle-free. Plus, in the event of a power failure, this motor lets you extend and retract your awning with a power drill. MFR # 266149 # POWER FEED WIRES MFR # 273007 # AWNING-REPAIR PARTS RV; POWER FEED , 2-WAY, AWNING MFR # 373008 # Awning Roller; Solera; Replacement For White Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 12 Foot Length; Gray Tube MFR # 338512261 # Awning Roller; Solera; Replacement For White Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 18 Foot Length; Gray Tube MFR # 338512405 # Awning Roller; Solera; Replacement For Black Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 21 Foot Length; Black Tube MFR # 260560477 # Awning Roller; Solera; Replacement For Black Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 15 Foot Length; Black Tube MFR # 260560333 # Awning Roller; Solera; Replacement For White Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 16 Foot Length; Gray Tube MFR # 338512357 # Awning Roller; Solera; Replacement For Black Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 18 Foot Length; Black Tube MFR # 260560405 # Awning Roller; Solera; Replacement For White Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 21 Foot Length; Gray Tube MFR # 338512477 # Awning Roller; Solera; Replacement For Black Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 16 Foot Length; Black Tube MFR # 260560357 # Awning Roller; Solera; Replacement For Black Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 12 Foot Length; Black Tube MFR # 260560261 # Awning Roller; Solera; Replacement For White Patio Awnings; Roller Bar Only; 3-1/2 Inch Diameter; 15 Foot Length; Gray Tube MFR # 338512333 # SWITCH PLATE ONLY, BLACK MFR # 280567 # WIRE COVER, 21" WIDE, BLACK MFR # 2661391872 # Are you repairing your Solera power awning switch assembly? If you've recently purchased or are looking to purchase a power awning replacement switch for your Solera awning, you'll need this Solera bezel spacer before replacing your switch. Made from heavy-duty, durable plastic materials, this spacer requires zero assembly and is easy to install with your replacement switch kit. MFR # 285077 # TOOLS & FASTENERS RV; NUT - 5/16 - 18 NYLOCK ZN ST MFR # 118043 # Are you repairing your Solera power awning switch assembly? If you've recently purchased or are looking to purchase a power awning replacement switch for your Solera awning, you'll need this Solera bezel spacer before replacing your switch. Made from heavy-duty, durable plastic materials, this spacer requires zero assembly and is easy to install with your replacement switch kit. MFR # 285079 # Screw; Hex Fasten; Replacement For Solera Slide Out Awning; #6 x 1/2 Inch; 20 Threads Per Inch; Hex; Zinc; Single MFR # 281079 # Are you repairing your Solera power awning switch assembly? If you've recently purchased or are looking to purchase a power awning replacement switch for your Solera awning, you'll need this Solera power awning harness before replacing your switch. Made for easy installation, this wiring harness requires zero assembly and is compatible with all Solera power awning switch kits. MFR # 280570 # SCREW 8 X 1-1/4" PNH ZN CD AB ST HBK MFR # 429284 # SWITCH PLATE ONLY, WHITE MFR # 280565 # WIRE COVER, 26.75" WIDE, BLACK MFR # 2661391964 # SWITCH ONLY, BLACK MFR # 280566 # RIVET, ALUM 3/16 X 1.300, KLAMP-TITE BAPKTR-06-12 MFR # 237315
