Diagrams › Kwikee by Lippert › Electric Steps Double Step Kwikee by Lippert Electric Steps Double Step Parts Diagram · Platinum SERIES-9010000220 › Exploded View
Entry Step · 13 assemblies · 39 diagram sheets · 122 parts · by Andrew Strick, mobile RV technician
OEM exploded parts diagrams for the Kwikee by Lippert Electric Steps Double Step RV entry step: 13 assemblies (Platinum SERIES-9010000220 › Exploded View, 40 Series Hi Torque › Replacement Step, 32 Series › Exploded View, Revolution Series › Parts List, 27 Series › Replacement Step and more) and 122 manufacturer part numbers. 31 parts are marked as superseded — the description gives the replacement number to order instead.
Kwikee/Lippert step model and serial numbers are on a label on the step frame or the control unit. Motor, gearbox and linkage parts change with the series (25, 27, 32 …), so identify the series before ordering.
Platinum SERIES-9010000220 › Exploded View
Kwikee by Lippert Electric Steps Double Step platinum series-9010000220 › exploded view — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step platinum series-9010000220 › exploded view — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →

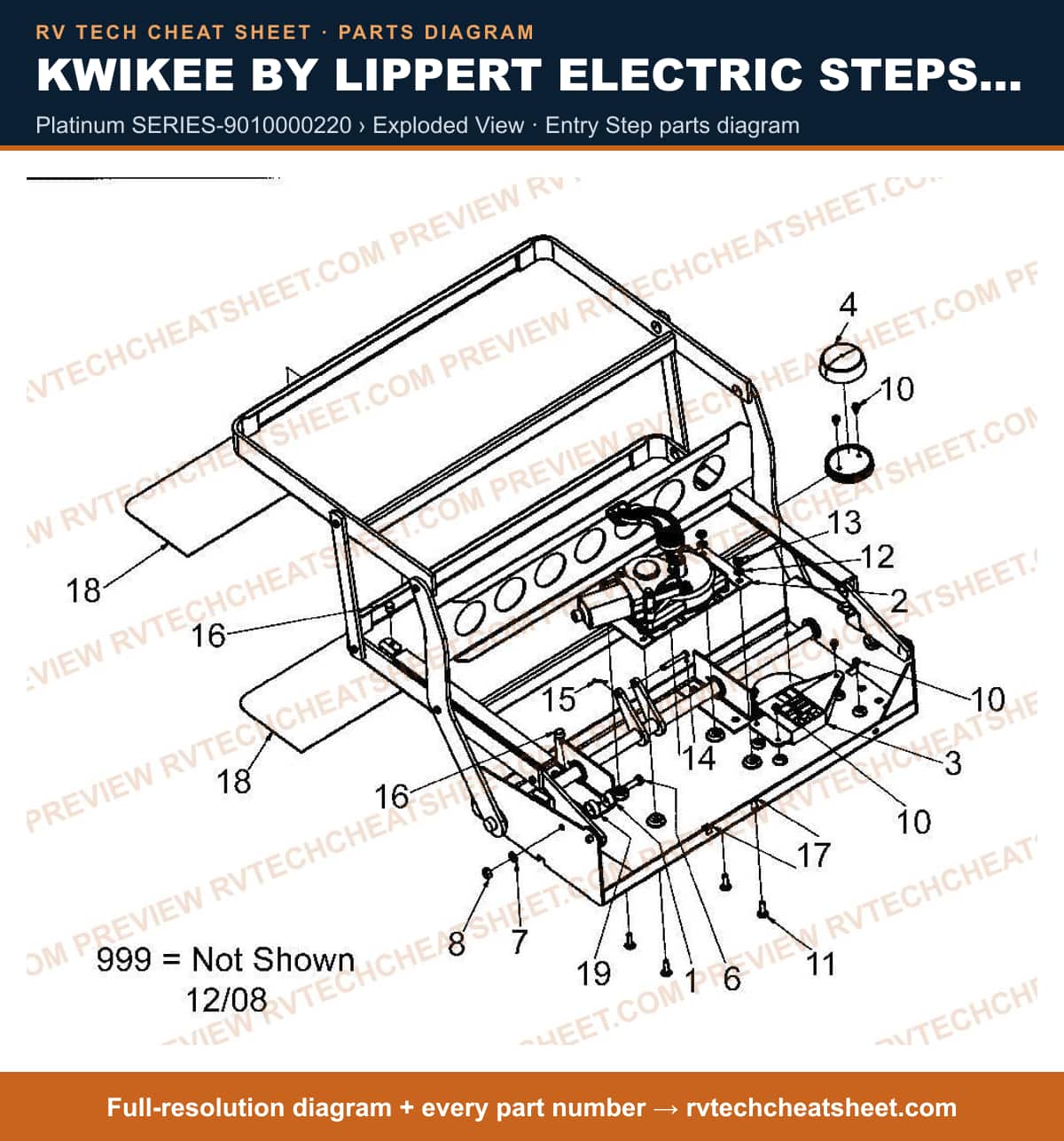

Kwikee by Lippert Electric Steps Double Step platinum series-9010000220 › exploded view — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 21 items # FRAME WELD RIVET 9" RISE DOUBLE MFR # 1010000824 # Entry Step Motor/ Gearbox Upgrade; Use To Upgrade Electric Double Step Part Number 9010000220; With Motor/ Gearbox MFR # 1101422 Superseded: see description # Entry Step Control Module; Use With Camper Entry Steps; With Plug MFR # 1510000140 Superseded: see description # LIGHT UNDER STEP W/TERM MFR # 3410000 # BOLT 5/16"-18 X 1 HH GR5 MFR # 1203430 # WASHER 5/16 SPLIT LOCK MFR # 1209730 # NUT 5/16-18 HEX MFR # 1205900 # SCREW #8 X 3/8"HWH SELF TAP MFR # 1201000 # BOLT 1/4-20 X 3/4 CARRIAGE MFR # 1203030 # WASHER 1/4 SPLIT LOCK MFR # 1209420 # NUT 1/4-20 HEX MFR # 1205600 # CLEVIS PIN 1/4"DIA X 1 3/4" LENGTH MFR # 1213200 # PIN, COTTER 5/64 X 1 MFR # 1213500 # BUMPER,BLACK RUBBER PULL TAB MFR # 1602000 # CLIP WIRE MFR # 1814100 # TREAD,NON SKID 6X21 BLK REFLECTV MFR # 1915260 # SLEEVE, SILENCER 3/4 ID X .100 TH. MFR # 3010001439 # STEPS & STEP RUGS RV; Kwikee Cam Stop MFR # 1102200 # Entry Step Wiring Harness; Use With Kwikee 32 Series Double Step And Platinum Series Steps MFR # 1809925 Superseded: see description # WASHER #8 EXT TOOTH MFR # 1208600 # Entry Step Switch; Use With Kwikee Single Series Steps; Magnetic Door Switch; Normally Open MFR # 905325000 Superseded: see description
40 Series Hi Torque › Replacement Step
Kwikee by Lippert Electric Steps Double Step 40 series hi torque › replacement step — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 40 series hi torque › replacement step — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 40 series hi torque › replacement step — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 5 items # Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3726891 # Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3726892 # Entry Step; Double Series; 2 Electric Folding Steps; 24 Inch Width x 10 Inch Depth; With 8 Inch Rise; Up To 750 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; 6-1/2 Inch Collapsed Height; Without Step Control MFR # 904000906 # STEP,40 SER DBL USE 904000906 24" TRD W/MOTOR & SWITCH KIT MFR # 904000016 Superseded: see description # STEP,DOUBLE USE 904009025 40 SERIES 24" TREAD MFR # 4008025 Superseded: see description
32 Series › Exploded View
Kwikee by Lippert Electric Steps Double Step 32 series › exploded view — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →

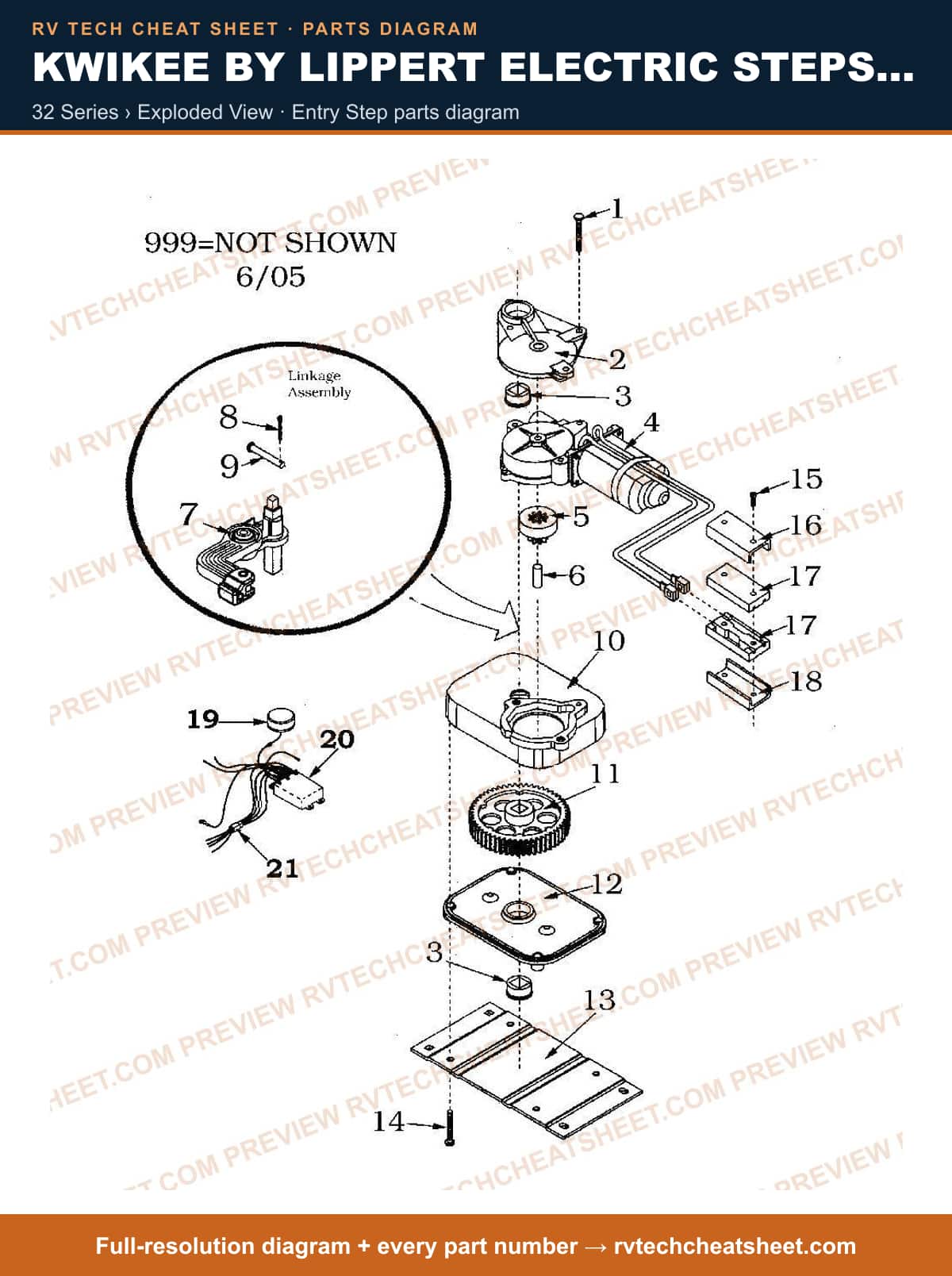

Kwikee by Lippert Electric Steps Double Step 32 series › exploded view — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 32 series › exploded view — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 50 items # PARTS KIT F/PERMANENT MAGNET MOTOR MFR # 909530000 # Entry Step Gear; Replacement Pinion Gear For Kwikee Entry Steps; With Shaft MFR # 9529 # BRACKET KIT,MOTOR BEARING MFR # 9536 # BEARING USE 5208K MFR # 9045 Superseded: see description # MISC. PARTS KIT USE 909530000 MFR # 5208K Superseded: see description # Entry Step Motor/ Gearbox Upgrade; Replacement Part For Series Steps 22/ 23/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40; With Step Motor/ Pin And Clevis Kit/ A Linkage Gear Box MFR # 909770000 # Entry Step Control Module; For Use With 22/ 23/ 26/ 28/ 30/ 31/ 32/ 33/ 34/ 35/ 36/ 37/ 38/ 39/ 40/ MFR # 909510000 Superseded: see description # Get your steps back to work with an exact-match replacement motor from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This motor assembly is just like your original motor. In no time, your steps will be operating like usual at the campsite. MFR # 379147 # CONVERSION KIT USE 909770000 W/DELCO MOTOR MFR # 9582 Superseded: see description # CONVERSION KIT USE 909770000 MFR # 9572 Superseded: see description # Entry Step Motor/ Gearbox Upgrade; Replacement Part For Series Steps 22/ 23/ 28A/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40; With Motor And Screws MFR # 1101428 # Get your steps back to work with an exact-match 9510 replacement control unit from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This control unit assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 379146 # CONVERSION KIT USE 909770000 MFR # 9577 Superseded: see description # MOTOR,USED W/ORNG OR WHT CNTRLS MFR # 9520 # CONVERSION KIT USE 909770000 MFR # 9580 Superseded: see description # CONTROL UNIT BLUE MFR # 8310K # Looking to upgrade or replace the motor unit on your Kwikee RV steps? Lippert® supplies a motor upgrade kit that lets you enhance or repair your step assembly with total ease. This kit is designed for triple or quad Kwikee step assemblies and comes with all equipment needed for a swift, easy installation so you can get back to enjoying the benefits of your electric RV steps. MFR # 379145 # TRAILER JACKS; Gear & Shaft MFR # 9528 # STEPS & STEP RUGS RV; Gear Adapter MFR # 9556 # ADAPTOR GEAR SHAFT USE 909530000 MFR # 9557 Superseded: see description # Entry Step Gear; Replacement Part For Series Steps 22/ 23/ 28A/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40; With Gear/ A Linkage Curved MFR # 1101425 # Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 379649 # Entry Step Linkage Arm; Replacement Parts For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps; With Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Linkage Assembly A/ Cotter Pin/ Clevis Pin MFR # 909534000 # Kwikee® Gear Box Linkage with “A" by Lippert® is specifically designed for certain electric steps in the Kwikee® series. MFR # 379160 # Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 9534 # PIN,COTTER USE 5205K MFR # 9018K Superseded: see description # Get your steps back to work with an exact-match cotter and clevis pin assembly from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This replacement pin kit is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 379178 # Entry Step Linkage Arm Clevis Pin; Fits Kwikee Entry Steps With A Linkage Arm That Attaches To The Step Frame; Not For Use With The 25 Series Steps; With Split Pin And Clevis MFR # 905205000 Superseded: see description # Entry Step Linkage Arm Clevis Pin; Entry Step Hardware; Fits Kwikee Entry Steps With A Linkage Arm That Attaches To The Step Frame; Not For Use With The 25 Series Steps; With Split Pin And Clevis MFR # 5205K Superseded: see description # PIN,COTTER USE 5205K MFR # 9017 Superseded: see description # STEPS & STEP RUGS RV; GEAR KIT MFR # 909525000 # GEAR CASE ASM MFR # 9524 # GEAR CASE MFR # 9527 # AIR COMMAND SINGLE ECU; MFR # 9535 # LEADWIRE KIT MFR # 9537 # Entry Step Rug; Self Adhesive; 21 Inch Width; Yellow; Glow In The Dark; Replacement MFR # 909342000 # The perfect companion for any Kwikee® RV step, the Kwikee Glow-in-the-Dark tread strip will have your RV's steps glowing with more safety and convenience. Designed with a luminating, phosphorous glow-in-the-dark strip, a reflective strip and non-slip treading -- this easy-to-install tread strip makes your RV's stairs easier to see at night and it enhances the treading on your steps. This is a simple way to help make your campsite safer for everybody -- plus, the kids will love your glow-in-the-dark steps! MFR # 379600 # Get your steps back to work with an exact-match replacement control unit from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This control unit assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 379606 # CONTROL UNIT USE 9508003 MFR # 9508000 Superseded: see description # Looking to upgrade or replace the motor unit on your Kwikee RV steps? Lippert supplies a motor upgrade kit that lets you enhance or repair your step assembly with total ease. This kit is designed for single and double Kwikee step assemblies and comes with all equipment needed for a swift, easy installation so you can get back to enjoying the benefits of your electric RV steps. MFR # 781005 # Entry Step Control Module; Replacement Control Unit For Pre IMGL 9510 Control Steps; With 5323 And 5327 Switches MFR # 909506003 # MOTOR MFR # 9590 # Get your steps back to work with an exact-match 4-way plug with Packard connector from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This replacement plug is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 369243 # Entry Step Wiring Harness; Use With Kwikee 32 Series Double Step And Platinum Series Steps MFR # 9306000 Superseded: see description # Entry Step Wiring Harness; Use With Kwikee 32 Series Double Step And Platinum Series Steps MFR # 1809925 Superseded: see description # Entry Step Wiring Harness; Use To Connect The KwikTest Diagnostic Tool To Step Control Module; 4 Way Plug; With Packard Connector Pigtail MFR # 909306000 Superseded: see description # NO GENERIC NAME; Plug 4 Wayw/Packard Conne MFR # 9336 # & 39 SERIES STEPS THE PART # FOR THE HARNESS THAT PLUGS INTO THIS MOTOR IS 180993...,, MFR # 38 # Entry Step Frame; Replacement Frame For 32 Series Double Step; Black; Heavy Gauge Steel MFR # 908032000 # 12V EXTENSION CORD MFR # 9331
Revolution Series › Parts List
Kwikee by Lippert Electric Steps Double Step revolution series › parts list — parts list sheet 1 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step revolution series › parts list — parts list sheet 2 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step revolution series › parts list — parts list sheet 3 of 3 Full-resolution diagram + every part number →
Components 2 items # Get your steps back to work with an exact-match replacement step control module from Lippert™. When it comes to fixing your Kwikee® Revolution Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This control module assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 363980 # Get your steps back to work with an exact-match replacement motor from Lippert™. When it comes to fixing your Kwikee® Revolution Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This motor assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 380073
27 Series › Replacement Step

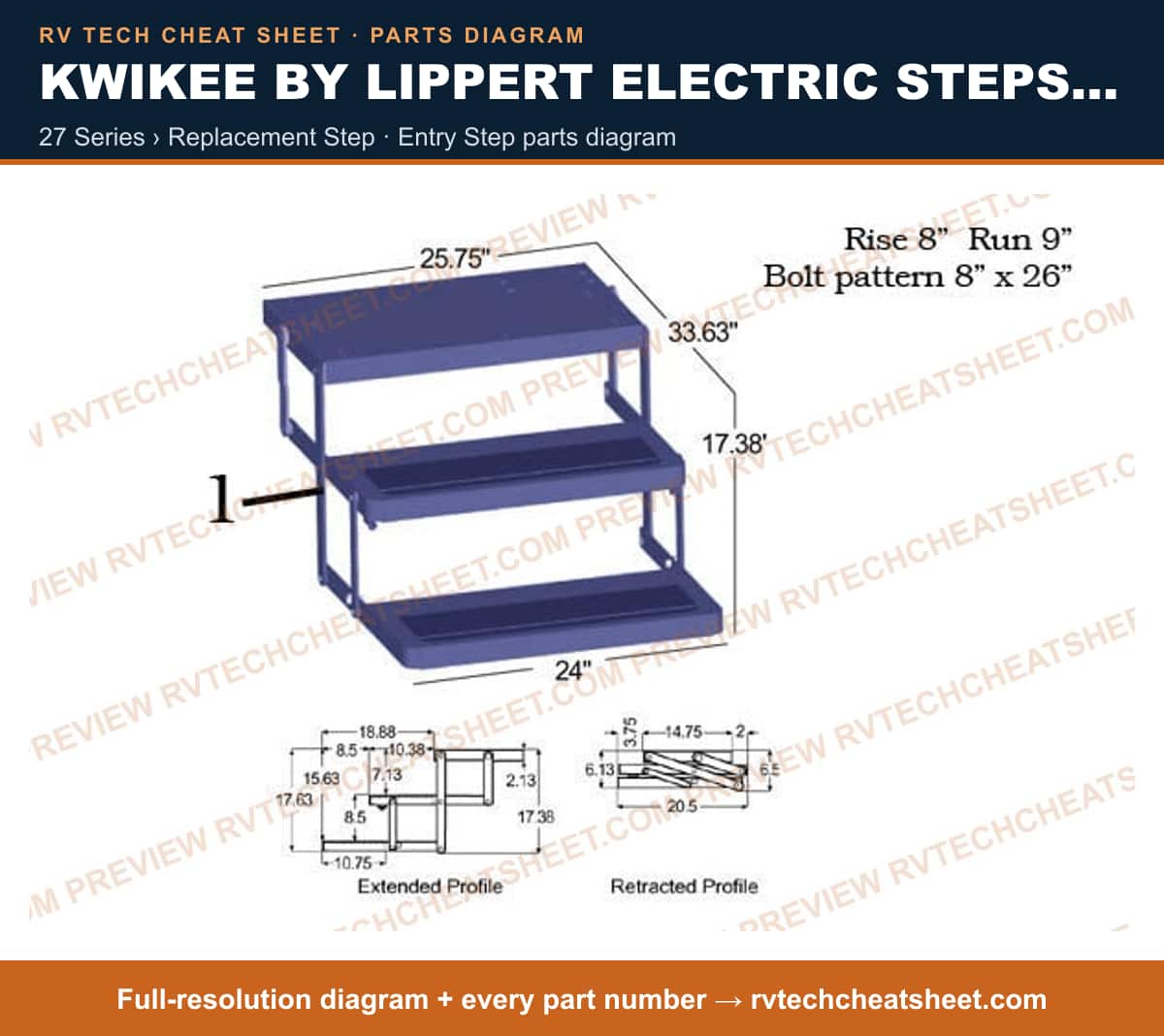

Kwikee by Lippert Electric Steps Double Step 27 series › replacement step — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 27 series › replacement step — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 27 series › replacement step — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 9 items # STEP,DOUBLE USE 904009025 40 SERIES 24" TREAD MFR # 4008025 Superseded: see description # SERIES 40 STEP FRAME ONLY MFR # 8040K # STEP,DOUBLE USE 4008025 40 SERIES MFR # 4006025 Superseded: see description # Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3726892 # BULLETPROOF STEP ATTACHMENT MFR # STEP # STEP,40 SER DBL USE 904000906 24" TRD W/MOTOR & SWITCH KIT MFR # 904000016 Superseded: see description # Entry Step; Double Series; 2 Electric Folding Steps; 24 Inch Width x 10 Inch Depth; With 8 Inch Rise; Up To 750 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; 6-1/2 Inch Collapsed Height; With Step Control MFR # 904009025 # Entry Step; Series 27; Double Electric Folding Step; 30 Inch Tread Width x 9 Inch Depth; With 7 Inch Rise; Up To 300 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; Without Lighting; With Switch And Wiring Harness MFR # 375632 # Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3726891
22 Series › Exploded View

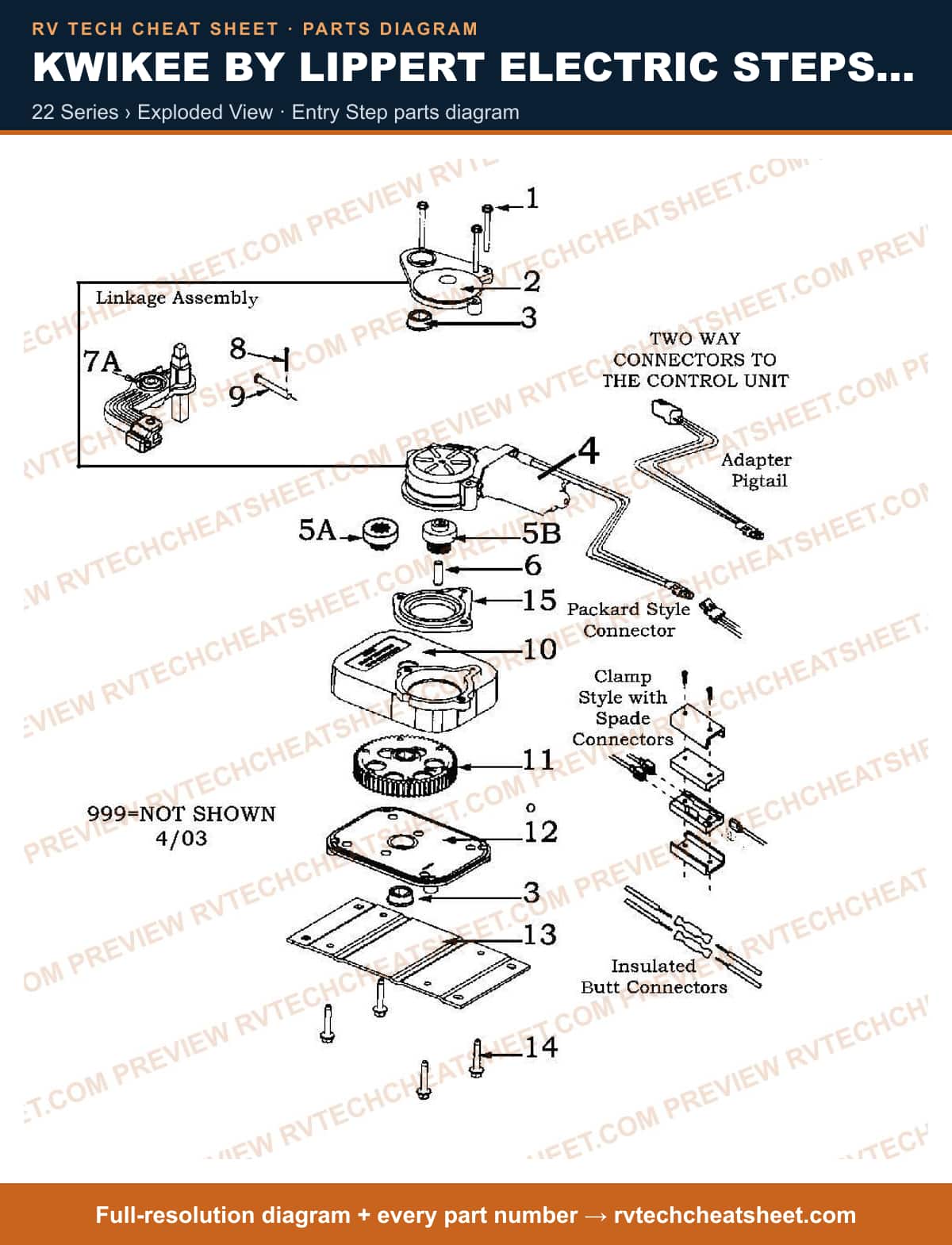

Kwikee by Lippert Electric Steps Double Step 22 series › exploded view — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 22 series › exploded view — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 22 series › exploded view — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 34 items # PARTS KIT F/PERMANENT MAGNET MOTOR MFR # 909530000 # Entry Step Gear; Replacement Pinion Gear For Kwikee Entry Steps; With Shaft MFR # 9529 # BRACKET KIT,MOTOR BEARING MFR # 9536 # Entry Step Motor/ Gearbox Upgrade; Replacement Part For Series Steps 22/ 23/ 28A/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40; With Motor And Screws MFR # 1101428 # Get your steps back to work with an exact-match replacement motor from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This motor assembly is just like your original motor. In no time, your steps will be operating like usual at the campsite. MFR # 379147 # Get your steps back to work with an exact-match replacement motor from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This motor assembly is just like your original motor. In no time, your steps will be operating like usual at the campsite. MFR # 379608 # Entry Step Control Module; For Use With 22/ 23/ 26/ 28/ 30/ 31/ 32/ 33/ 34/ 35/ 36/ 37/ 38/ 39/ 40/ MFR # 909510000 Superseded: see description # Looking to upgrade or replace the motor unit on your Kwikee RV steps? Lippert supplies a motor upgrade kit that lets you enhance or repair your step assembly with total ease. This kit is designed for single and double Kwikee step assemblies and comes with all equipment needed for a swift, easy installation so you can get back to enjoying the benefits of your electric RV steps. MFR # 781005 # Looking to upgrade or replace the motor unit on your Kwikee RV steps? Lippert® supplies a motor upgrade kit that lets you enhance or repair your step assembly with total ease. This kit is designed for triple or quad Kwikee step assemblies and comes with all equipment needed for a swift, easy installation so you can get back to enjoying the benefits of your electric RV steps. MFR # 379145 # Get your steps back to work with an exact-match 9510 replacement control unit from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This control unit assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 379146 # GEAR, ADAPTER ***USE 44-8127*** MFR # 9559 Superseded: see description # Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 9534 # Entry Step Gear; Replacement Part For Series Steps 22/ 23/ 28A/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40; With Gear/ A Linkage Curved MFR # 1101425 # Entry Step Linkage Arm; Replacement Parts For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps; With Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Linkage Assembly A/ Cotter Pin/ Clevis Pin MFR # 909534000 # Kwikee® Gear Box Linkage with “B" by Lippert® is specifically designed for certain electric steps in the Kwikee® series. MFR # 379161 # Entry Step Linkage Arm; Kwikee ®; For 28/ 31/ 33/ 37/ 39 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Straight; 2-9/16 Inch Drive Link Shaft; With Linkage Assembly B/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909533000 MFR # 9533 # Kwikee® Gear Box Linkage with “A" by Lippert® is specifically designed for certain electric steps in the Kwikee® series. MFR # 379160 # Entry Step Linkage Arm; Kwikee ®; For 28/ 31/ 33/ 37/ 39 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Straight; 2- 9/16 Inch Drive Link Shaft; With Linkage Assembly B/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909533000 MFR # 379648 # Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 379649 # Entry Step Linkage Arm; Replacement Parts For 28/ 31/ 33/ 37/ 39 Series Steps; With Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Linkage Assembly B/ Cotter Pin/ Clevis Pin MFR # 909533000 # Get your steps back to work with an exact-match cotter and clevis pin assembly from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This replacement pin kit is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 379178 # Entry Step Linkage Arm Clevis Pin; Fits Kwikee Entry Steps With A Linkage Arm That Attaches To The Step Frame; Not For Use With The 25 Series Steps; With Split Pin And Clevis MFR # 905205000 Superseded: see description # GEAR KIT,MAIN USE 9525 FOR AM MOTOR MFR # 9541 Superseded: see description # GEAR CASE MFR # 9527 # AIR COMMAND SINGLE ECU; MFR # 9535 # & 39 SERIES STEPS THE PART # FOR THE HARNESS THAT PLUGS INTO THIS MOTOR IS 180993...,, MFR # 38 # SERIES 22 STEP FRAME ONLY MFR # 8022 # Entry Step Control Module; Replacement Control Unit For Pre IMGL 9510 Control Steps; With 5323 And 5327 Switches MFR # 909506003 # The perfect companion for any Kwikee® RV step, the Kwikee Glow-in-the-Dark tread strip will have your RV's steps glowing with more safety and convenience. Designed with a luminating, phosphorous glow-in-the-dark strip, a reflective strip and non-slip treading -- this easy-to-install tread strip makes your RV's stairs easier to see at night and it enhances the treading on your steps. This is a simple way to help make your campsite safer for everybody -- plus, the kids will love your glow-in-the-dark steps! MFR # 379600 # Get your steps back to work with an exact-match replacement control unit from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This control unit assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 379606 # CONVERSION KIT USE 909770000 MFR # 9572 Superseded: see description # CONTROL UNIT BLUE MFR # 8310K # Entry Step Rug; Self Adhesive; 21 Inch Width; Yellow; Glow In The Dark; Replacement MFR # 909342000 # CONVERSION KIT USE 909770000 MFR # 9577 Superseded: see description
22 Series › Replacement Step

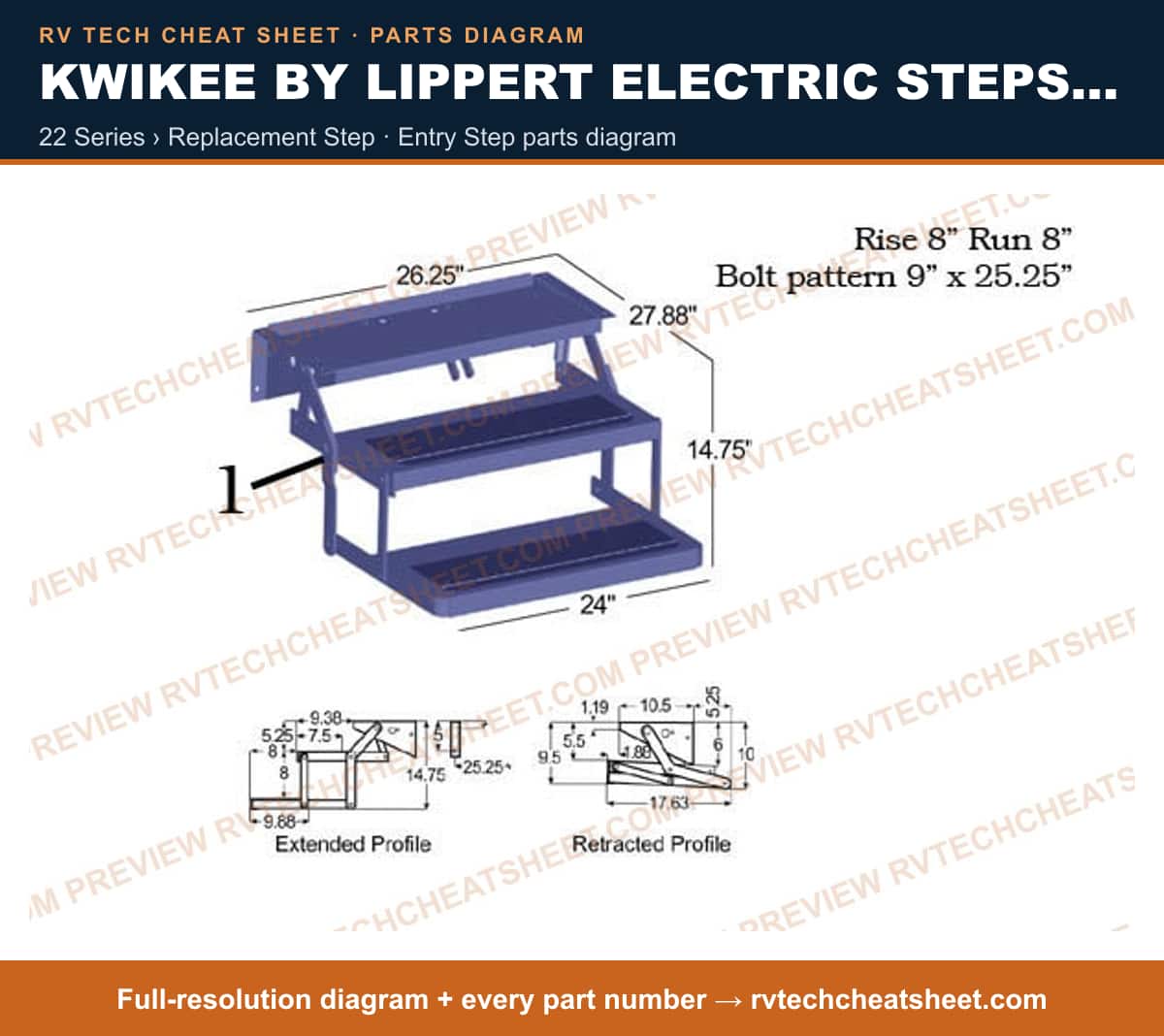

Kwikee by Lippert Electric Steps Double Step 22 series › replacement step — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 22 series › replacement step — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 22 series › replacement step — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 4 items # SERIES 22 W/MOTOR & SWITCH MFR # 2200PM16 # SERIES 22 STEP FRAME ONLY MFR # 8022 # STEP, DOUBLE USE 44-8002 22 SERIES MFR # 2206025 Superseded: see description # Entry Step; 2 Electric Folding Steps: 24 Inch Width x 8 Inch Depth; With 8 Inch Rise; Permanent Mount; With Motor/ Control Unit/ Switch Kit MFR # 902209025
34 Series › Exploded View
Kwikee by Lippert Electric Steps Double Step 34 series › exploded view — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 34 series › exploded view — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 34 series › exploded view — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 41 items # PARTS KIT F/PERMANENT MAGNET MOTOR MFR # 909530000 # Entry Step Gear; Replacement Pinion Gear For Kwikee Entry Steps; With Shaft MFR # 9529 # BRACKET KIT,MOTOR BEARING MFR # 9536 # MISC. PARTS KIT USE 909530000 MFR # 5208K Superseded: see description # BEARING USE 5208K MFR # 9045 Superseded: see description # MOTOR KIT USE 909770000 HIGH TORQUE MFR # 9521 Superseded: see description # CONVERSION KIT USE 909770000 W/DELCO MOTOR MFR # 9582 Superseded: see description # Get your steps back to work with an exact-match replacement motor from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This motor assembly is just like your original motor. In no time, your steps will be operating like usual at the campsite. MFR # 379147 # Looking to upgrade or replace the motor unit on your Kwikee RV steps? Lippert® supplies a motor upgrade kit that lets you enhance or repair your step assembly with total ease. This kit is designed for triple or quad Kwikee step assemblies and comes with all equipment needed for a swift, easy installation so you can get back to enjoying the benefits of your electric RV steps. MFR # 379145 # Looking to upgrade or replace the motor unit on your Kwikee RV steps? Lippert supplies a motor upgrade kit that lets you enhance or repair your step assembly with total ease. This kit is designed for single and double Kwikee step assemblies and comes with all equipment needed for a swift, easy installation so you can get back to enjoying the benefits of your electric RV steps. MFR # 781005 # Entry Step Motor/ Gearbox Upgrade; Replacement Part For Series Steps 22/ 23/ 28A/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40; With Motor And Screws MFR # 1101428 # CONVERSION KIT USE 909770000 MFR # 9580 Superseded: see description # TRAILER JACKS; Gear & Shaft MFR # 9528 # STEPS & STEP RUGS RV; Gear Adapter MFR # 9556 # ADAPTOR GEAR SHAFT USE 909530000 MFR # 9557 Superseded: see description # Kwikee® Gear Box Linkage with “A" by Lippert® is specifically designed for certain electric steps in the Kwikee® series. MFR # 379160 # Entry Step Linkage Arm; Replacement Parts For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps; With Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Linkage Assembly A/ Cotter Pin/ Clevis Pin MFR # 909534000 # Entry Step Gear; Replacement Part For Series Steps 22/ 23/ 28A/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40; With Gear/ A Linkage Curved MFR # 1101425 # Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 379649 # Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 9534 # Entry Step Linkage Arm Clevis Pin; Fits Kwikee Entry Steps With A Linkage Arm That Attaches To The Step Frame; Not For Use With The 25 Series Steps; With Split Pin And Clevis MFR # 905205000 Superseded: see description # Get your steps back to work with an exact-match cotter and clevis pin assembly from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This replacement pin kit is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 379178 # PIN,COTTER USE 5205K MFR # 9018K Superseded: see description # PIN,COTTER USE 5205K MFR # 9017 Superseded: see description # GEAR CASE ASM MFR # 9524 # STEPS & STEP RUGS RV; GEAR KIT MFR # 909525000 # GEAR CASE MFR # 9527 # AIR COMMAND SINGLE ECU; MFR # 9535 # LEADWIRE KIT MFR # 9537 # The perfect companion for any Kwikee® RV step, the Kwikee Glow-in-the-Dark tread strip will have your RV's steps glowing with more safety and convenience. Designed with a luminating, phosphorous glow-in-the-dark strip, a reflective strip and non-slip treading -- this easy-to-install tread strip makes your RV's stairs easier to see at night and it enhances the treading on your steps. This is a simple way to help make your campsite safer for everybody -- plus, the kids will love your glow-in-the-dark steps! MFR # 379600 # Entry Step Rug; Self Adhesive; 21 Inch Width; Yellow; Glow In The Dark; Replacement MFR # 909342000 # Get your steps back to work with an exact-match 9510 replacement control unit from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This control unit assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 379146 # Entry Step Control Module; For Use With 22/ 23/ 26/ 28/ 30/ 31/ 32/ 33/ 34/ 35/ 36/ 37/ 38/ 39/ 40/ MFR # 909510000 Superseded: see description # MOTOR MFR # 9590 # EXTERIOR HARDWARE RV; CONTROL UNIT USE 90977000 MFR # 9508003 Superseded: see description # CONTROL UNIT USE 9508003 MFR # 9508000 Superseded: see description # NO GENERIC NAME; Plug 4 Wayw/Packard Conne MFR # 9336 # Entry Step Wiring Harness; Use To Connect The KwikTest Diagnostic Tool To Step Control Module; 4 Way Plug; With Packard Connector Pigtail MFR # 909306000 Superseded: see description # Get your steps back to work with an exact-match 4-way plug with Packard connector from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This replacement plug is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 369243 # SERIES 23 STEP FRAME ONLY ***USE 48-4562 OR 44-1666** MFR # 8023 Superseded: see description # 12V EXTENSION CORD MFR # 9331
42 Series › Replacement Step
Kwikee by Lippert Electric Steps Double Step 42 series › replacement step — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 42 series › replacement step — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →

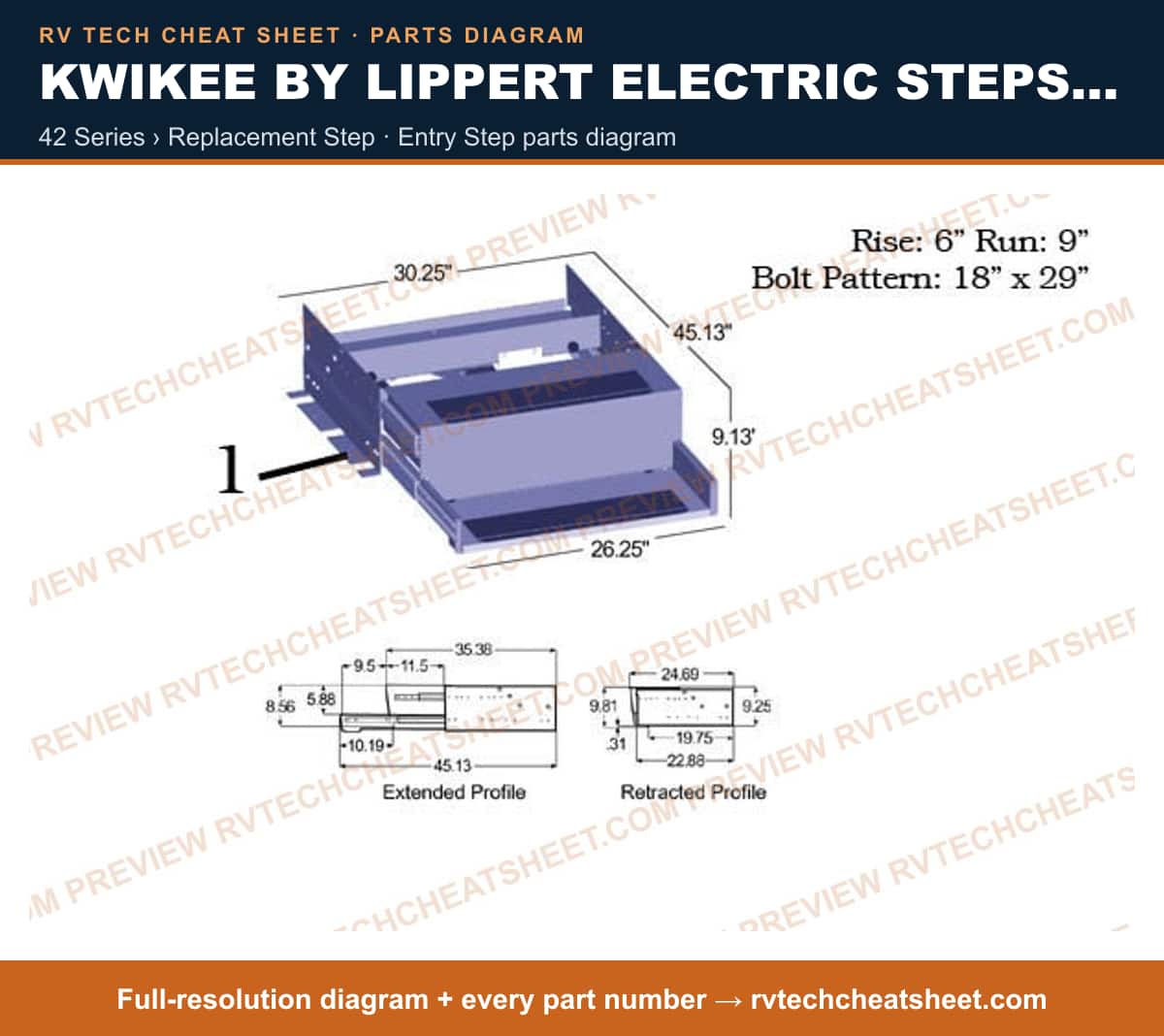

Kwikee by Lippert Electric Steps Double Step 42 series › replacement step — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 4 items # STEP,DOUBLE 42 USE 904209000 MFR # 4207000 Superseded: see description # FRAME ONLY,42 SERIES STEP MFR # 8042 # Entry Step; 2 Electric Folding Steps; 26-1/4 Inch Width x 9 Inch Depth; With 6 Inch Rise; Permanent Mount; Rounded Edge Steps; Black MFR # 904239000 # Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 372779
32 Series › Replacement Step
Kwikee by Lippert Electric Steps Double Step 32 series › replacement step — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 32 series › replacement step — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 32 series › replacement step — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 11 items # Entry Step; 2 Electric Folding Steps; 24 Inch Width x 9 Inch Depth; With 7 Inch Rise; Up To 750 Pound Weight Capacity; Permanent Mount; Square Edge Steps; Powder Coated/ Heavy Gauge Steel; 7.88 Inch Collapsed Height; Not Illuminated; With Step Control MFR # 903209000 # STEP,DOUBLE USE 903209025 32 SERIES MFR # 3206025 Superseded: see description # Entry Step; Double Series; 2 Electric Folding Steps; 24 Inch Width x 9 Inch Depth; With 7 Inch Rise; Up To 750 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; 7.88 Inch Collapsed Height; With Step Control MFR # 903209025 # Entry Step; 2 Electric Folding Steps; 24 Inch Width x 9 Inch Depth; With 7 Inch Rise; Up To 750 Pound Weight Capacity; Permanent Mount; Square Edge Steps; Powder Coated/ Heavy Gauge Steel; 7.88 Inch Collapsed Height; Not Illuminated MFR # 903200900 # Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 372261 # Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3722616 # Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3722617 # Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3722615 # STEP,DOUBLE 32 SERIES W/ MOTOR & SWITCH MFR # 903200016 # Looking for a way to upgrade your RV steps? Kwikee Electric RV Steps by Lippert will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3722618 # Entry Step; Double Series; 2 Electric Folding Steps; 24 Inch Width x 9 Inch Depth; With 7 Inch Rise; Up To 750 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; 7.88 Inch Collapsed Height; Without Step Control MFR # 903200906
34 Series › Replacement Step

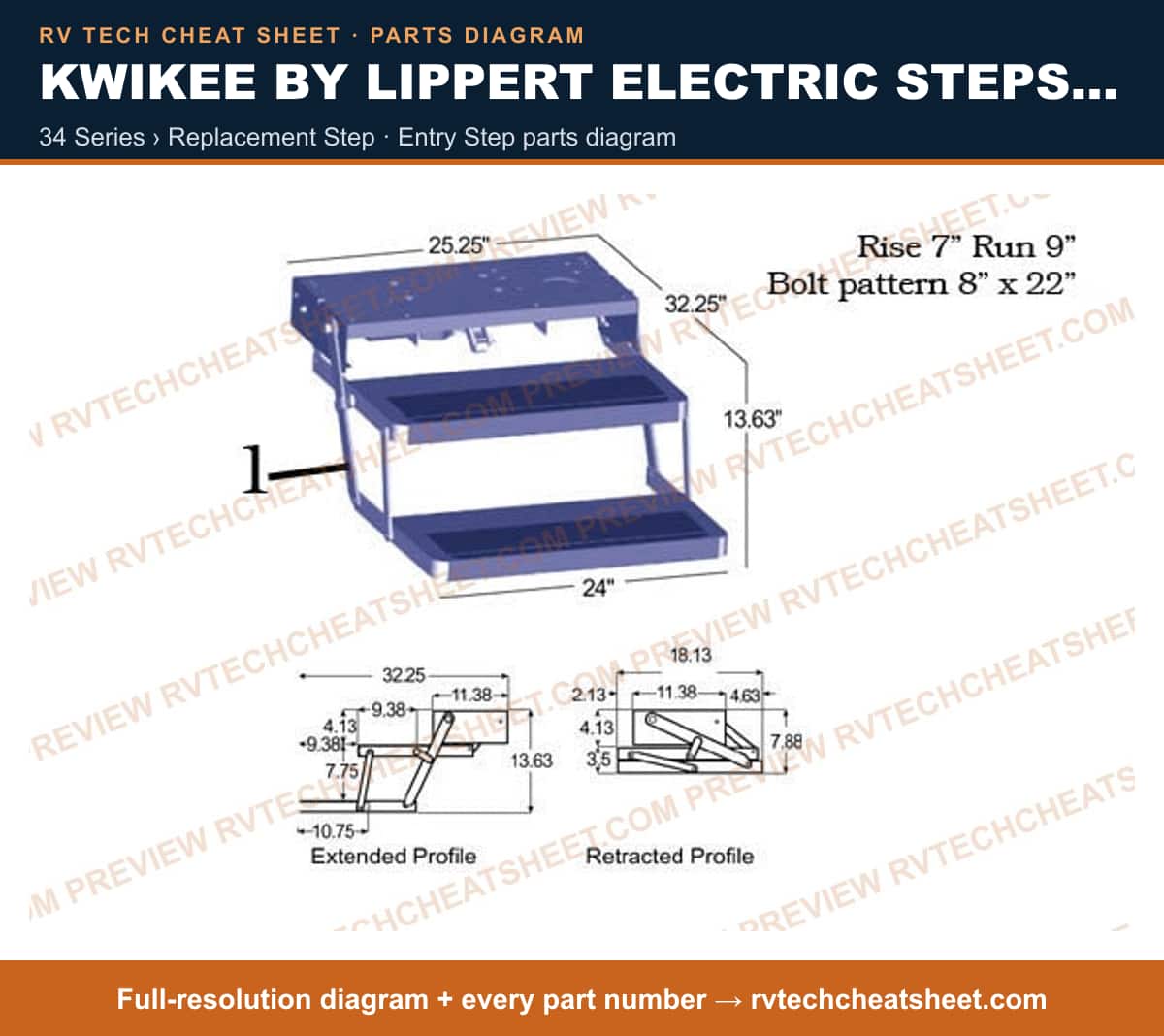

Kwikee by Lippert Electric Steps Double Step 34 series › replacement step — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 34 series › replacement step — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step 34 series › replacement step — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 7 items # STEP,DOUBLE USE 903409025 34 SERIES MFR # 3408025 Superseded: see description # Looking for a way to upgrade your RV steps? Kwikee electric RV steps by Lippert will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates, making it easy to go in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3722864 # Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3722862 # STEP,DOUBLE 34 SERIES W/O CONTROL MFR # 3400016 # STEP,DOUBLE 34 SER.USE3408025 MFR # 3406025 # Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3722863 # Entry Step; Double Series; 2 Electric Folding Steps; 30 Inch Width x 9 Inch Depth; With 7 Inch Rise; Up To 750 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; 7.88 Inch Collapsed Height; Without Step Control MFR # 903400906
Revolution Series › Replacement Step

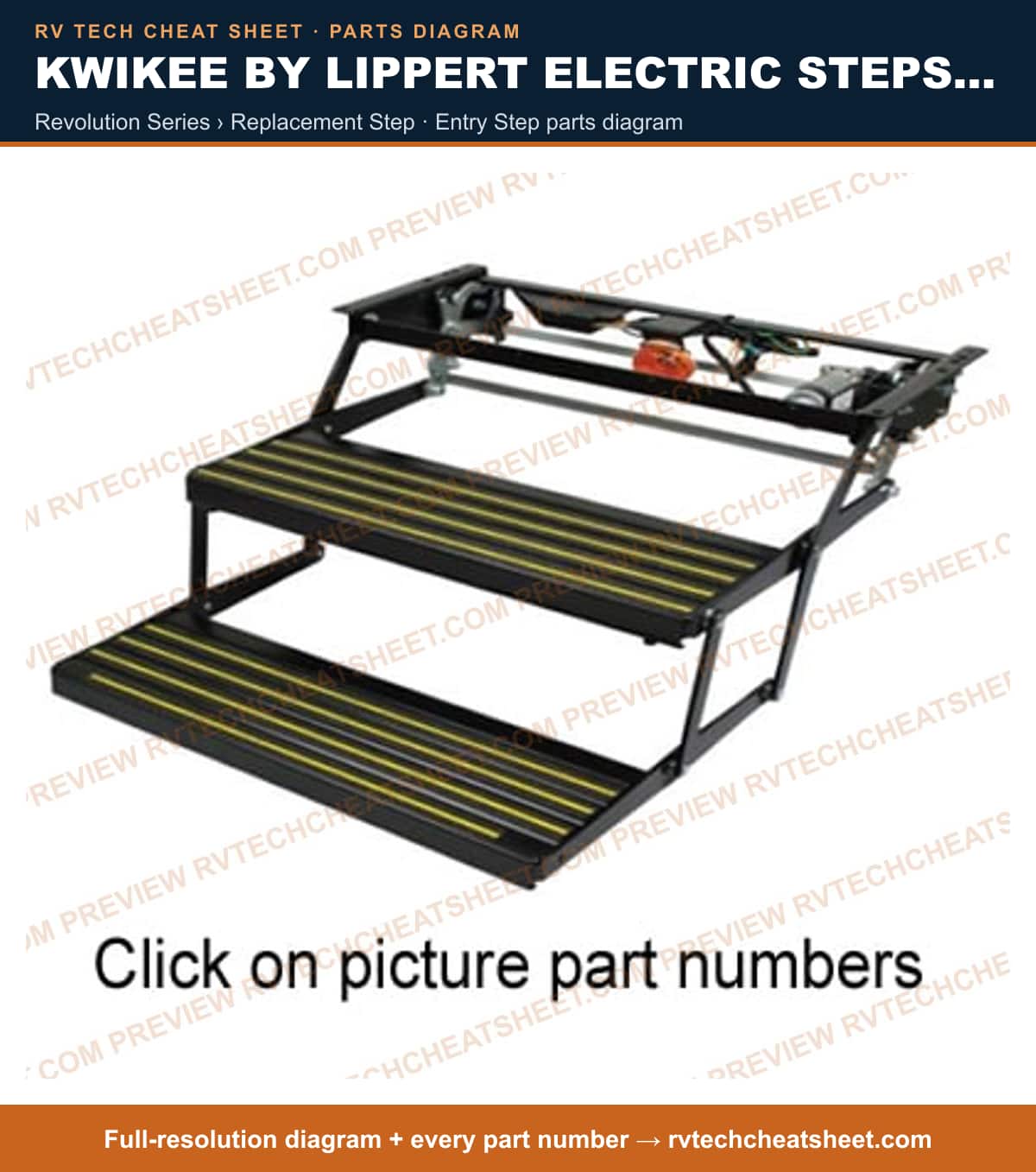

Kwikee by Lippert Electric Steps Double Step revolution series › replacement step — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step revolution series › replacement step — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step revolution series › replacement step — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 2 items # Entry Step; Revolution Series; 2 Electric Folding Steps; Permanent Mount; Square Edge Step; Steel MFR # 9010000879 # Looking for a way to upgrade your RV steps? Kwikee® Revolution Single Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Revolution step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3725791
Platinum SERIES-9010000220 › Replacement Step
Kwikee by Lippert Electric Steps Double Step platinum series-9010000220 › replacement step — exploded parts diagram 1 of 3 Full-resolution diagram + every part number →

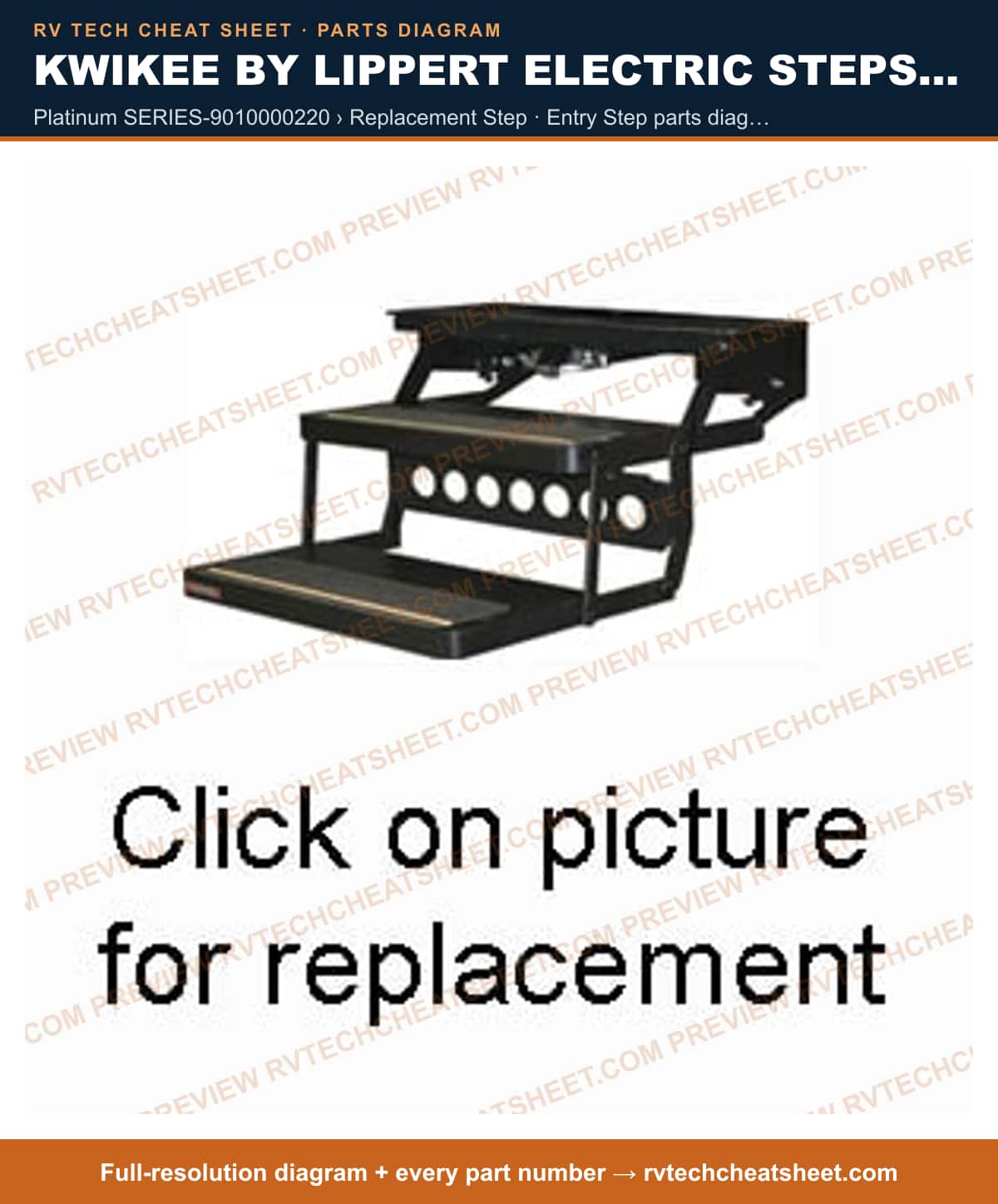

Kwikee by Lippert Electric Steps Double Step platinum series-9010000220 › replacement step — exploded parts diagram 2 of 3 Full-resolution diagram + every part number →
Kwikee by Lippert Electric Steps Double Step platinum series-9010000220 › replacement step — exploded parts diagram 3 of 3 Full-resolution diagram + every part number →
Components 2 items # Looking for a way to upgrade your RV steps? Kwikee® Platinum Series Electric RV Steps by Lippert will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 372558 # Entry Step; Platinum Series; 2 Electric Folding Steps; 11 Inch Depth; With 9 Inch Rise; Up To 750 Pound Weight Capacity; Permanent Mount; Powder Coated/ Black; Not Illuminated; With Step Control MFR # 9010000220
