Kwikee by Lippert Electric Steps Triple Step Parts Diagram · 44 Series › Replacement Step

Entry Step · 8 assemblies · 24 diagram sheets · 87 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Kwikee by Lippert Electric Steps Triple Step RV entry step: 8 assemblies (44 Series › Replacement Step, 24 Series › Replacement Step, 23 Series › Exploded View, 25 Series › Replacement Step, 44 Series › Dimensional Drawing and more) and 87 manufacturer part numbers. 24 parts are marked as superseded — the description gives the replacement number to order instead.

Kwikee/Lippert step model and serial numbers are on a label on the step frame or the control unit. Motor, gearbox and linkage parts change with the series (25, 27, 32 …), so identify the series before ordering.

44 Series › Replacement Step

Components

3 items

1. #Entry Step Motor/ Gearbox Upgrade; Use To Upgrade/ Motor Conversion Kit For 44 Series Steps MFR # 909778000 Superseded: see description
2. #STEP,TRIPLE 44 SERIES MFR # 4400016
3. #STEP,44 SERIES TRIPLE 9" RISER W/HIGH TORQUE MOTOR & CONTROL MFR # 904408025

24 Series › Replacement Step

Components

5 items

1. #STEP,TRIPLE 24 SERIES W/CONTROL - USE 902409000 MFR # 2400016 Superseded: see description
2. #Entry Step; Series 24; Triple Electric Folding Step; 30 Inch Tread Width x 9 Inch Depth; With 8 Inch Rise; Up To 300 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; 9.42 Inch Collapsed Height; With Step Control; 8 Inch x 26 Inch Bolt Pattern; Kwikee 902409000 MFR # 902409000
3. #STEP,TRIPLE 24 SERIES W/CONTROL -USE 902409000 MFR # 2408025 Superseded: see description
4. #FRAME, 24 SERIES TRIPLE STEP MFR # 908024000
5. #Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 375821

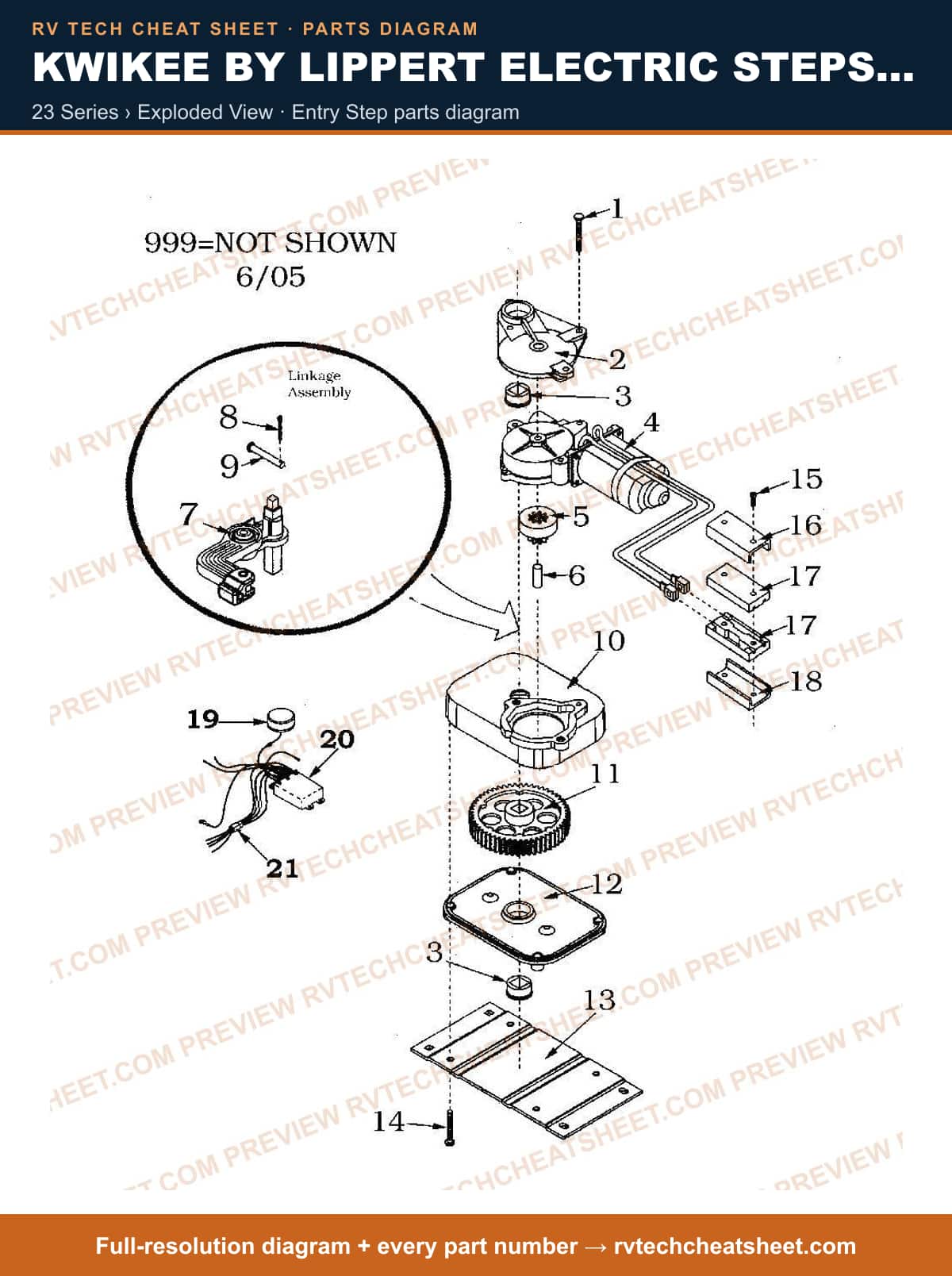

23 Series › Exploded View

Components

42 items

1. #PARTS KIT F/PERMANENT MAGNET MOTOR MFR # 909530000
2. #Entry Step Gear; Replacement Pinion Gear For Kwikee Entry Steps; With Shaft MFR # 9529
3. #BRACKET KIT,MOTOR BEARING MFR # 9536
4. #BEARING USE 5208K MFR # 9045 Superseded: see description
5. #MISC. PARTS KIT USE 909530000 MFR # 5208K Superseded: see description
6. #MOTOR KIT USE 909770000 HIGH TORQUE MFR # 9521 Superseded: see description
7. #CONVERSION KIT USE 909770000 MFR # 9580 Superseded: see description
8. #Looking to upgrade or replace the motor unit on your Kwikee RV steps? Lippert supplies a motor upgrade kit that lets you enhance or repair your step assembly with total ease. This kit is designed for single and double Kwikee step assemblies and comes with all equipment needed for a swift, easy installation so you can get back to enjoying the benefits of your electric RV steps. MFR # 781005
9. #Entry Step Control Module; For Use With 22/ 23/ 26/ 28/ 30/ 31/ 32/ 33/ 34/ 35/ 36/ 37/ 38/ 39/ 40/ MFR # 909510000 Superseded: see description
10. #Entry Step Motor/ Gearbox Upgrade; Replacement Part For Series Steps 22/ 23/ 28A/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40; With Motor And Screws MFR # 1101428
11. #Get your steps back to work with an exact-match 9510 replacement control unit from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This control unit assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 379146
12. #Looking to upgrade or replace the motor unit on your Kwikee RV steps? Lippert® supplies a motor upgrade kit that lets you enhance or repair your step assembly with total ease. This kit is designed for triple or quad Kwikee step assemblies and comes with all equipment needed for a swift, easy installation so you can get back to enjoying the benefits of your electric RV steps. MFR # 379145
13. #CONVERSION KIT USE 909770000 W/DELCO MOTOR MFR # 9582 Superseded: see description
14. #Get your steps back to work with an exact-match replacement motor from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This motor assembly is just like your original motor. In no time, your steps will be operating like usual at the campsite. MFR # 379147
15. #STEPS & STEP RUGS RV; Gear Adapter MFR # 9556
16. #TRAILER JACKS; Gear & Shaft MFR # 9528
17. #ADAPTOR GEAR SHAFT USE 909530000 MFR # 9557 Superseded: see description
18. #Entry Step Linkage Arm; Replacement Parts For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps; With Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Linkage Assembly A/ Cotter Pin/ Clevis Pin MFR # 909534000
19. #Kwikee® Gear Box Linkage with “A" by Lippert® is specifically designed for certain electric steps in the Kwikee® series. MFR # 379160
20. #Entry Step Gear; Replacement Part For Series Steps 22/ 23/ 28A/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40; With Gear/ A Linkage Curved MFR # 1101425
21. #Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 379649
22. #Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 9534
23. #Entry Step Linkage Arm Clevis Pin; Fits Kwikee Entry Steps With A Linkage Arm That Attaches To The Step Frame; Not For Use With The 25 Series Steps; With Split Pin And Clevis MFR # 905205000 Superseded: see description
24. #Entry Step Linkage Arm Clevis Pin; Entry Step Hardware; Fits Kwikee Entry Steps With A Linkage Arm That Attaches To The Step Frame; Not For Use With The 25 Series Steps; With Split Pin And Clevis MFR # 5205K Superseded: see description
25. #Get your steps back to work with an exact-match cotter and clevis pin assembly from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This replacement pin kit is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 379178
26. #PIN,COTTER USE 5205K MFR # 9018K Superseded: see description
27. #PIN,COTTER USE 5205K MFR # 9017 Superseded: see description
28. #GEAR CASE ASM MFR # 9524
29. #STEPS & STEP RUGS RV; GEAR KIT MFR # 909525000
30. #GEAR CASE MFR # 9527
31. #AIR COMMAND SINGLE ECU; MFR # 9535
32. #LEADWIRE KIT MFR # 9537
33. #Entry Step Rug; Self Adhesive; 21 Inch Width; Yellow; Glow In The Dark; Replacement MFR # 909342000
34. #The perfect companion for any Kwikee® RV step, the Kwikee Glow-in-the-Dark tread strip will have your RV's steps glowing with more safety and convenience. Designed with a luminating, phosphorous glow-in-the-dark strip, a reflective strip and non-slip treading -- this easy-to-install tread strip makes your RV's stairs easier to see at night and it enhances the treading on your steps. This is a simple way to help make your campsite safer for everybody -- plus, the kids will love your glow-in-the-dark steps! MFR # 379600
35. #MOTOR MFR # 9590
36. #CONTROL UNIT USE 9508003 MFR # 9508000 Superseded: see description
37. #EXTERIOR HARDWARE RV; CONTROL UNIT USE 90977000 MFR # 9508003 Superseded: see description
38. #Get your steps back to work with an exact-match 4-way plug with Packard connector from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This replacement plug is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 369243
39. #NO GENERIC NAME; Plug 4 Wayw/Packard Conne MFR # 9336
40. #Entry Step Wiring Harness; Use To Connect The KwikTest Diagnostic Tool To Step Control Module; 4 Way Plug; With Packard Connector Pigtail MFR # 909306000 Superseded: see description
41. #SERIES 23 STEP FRAME ONLY ***USE 48-4562 OR 44-1666** MFR # 8023 Superseded: see description
42. #12V EXTENSION CORD MFR # 9331

25 Series › Replacement Step

Components

11 items

1. #Entry Step; 3 Electric Folding Steps; 24 Inch Width; Up To 750 Pound Weight Capacity; Permanent Mount; Square Edge Steps; Powder Coated/ Heavy Gauge Steel; Not Illuminated; With Step Control; Without Manual Option MFR # 3658372
2. #Looking for a way to upgrade your RV steps? Kwikee electric RV steps by Lippert will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates, making it easy to go in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3658374
3. #STEP,TRIPLE 25 SERIES W/O CONTROL UNIT MFR # 2500016
4. #Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 369552
5. #Entry Step; 3 Electric Folding Steps; 24 Inch Width; Up To 750 Pound Weight Capacity; Permanent Mount; Square Edge Steps; Powder Coated/ Heavy Gauge Steel; Not Illuminated; With Step Control; Without Manual Option MFR # 902509100
6. #Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 365837
7. #Entry Step; 3 Electric Folding Steps; 24 Inch Width; Up To 750 Pound Weight Capacity; Permanent Mount; Square Edge Steps; Powder Coated/ Heavy Gauge Steel; Not Illuminated; With Step Control MFR # 902509025
8. #Entry Step; Triple Series; 3 Electric Folding Steps; 24 Inch Width x 8 Inch Depth; With 7 Inch Rise; Up To 750 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; 9.60 Inch Collapsed Height; With Step Control MFR # 902509007
9. #Entry Step; Triple Series; 3 Electric Folding Steps; 24 Inch Width x 9 Inch Depth; With 8 Inch Rise; Up To 750 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; 9.42 Inch Collapsed Height; With Step Control MFR # 902509000
10. #Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3658373
11. #STEP,TRIPLE 25 SERIES USE 902509000 MFR # 2508025 Superseded: see description

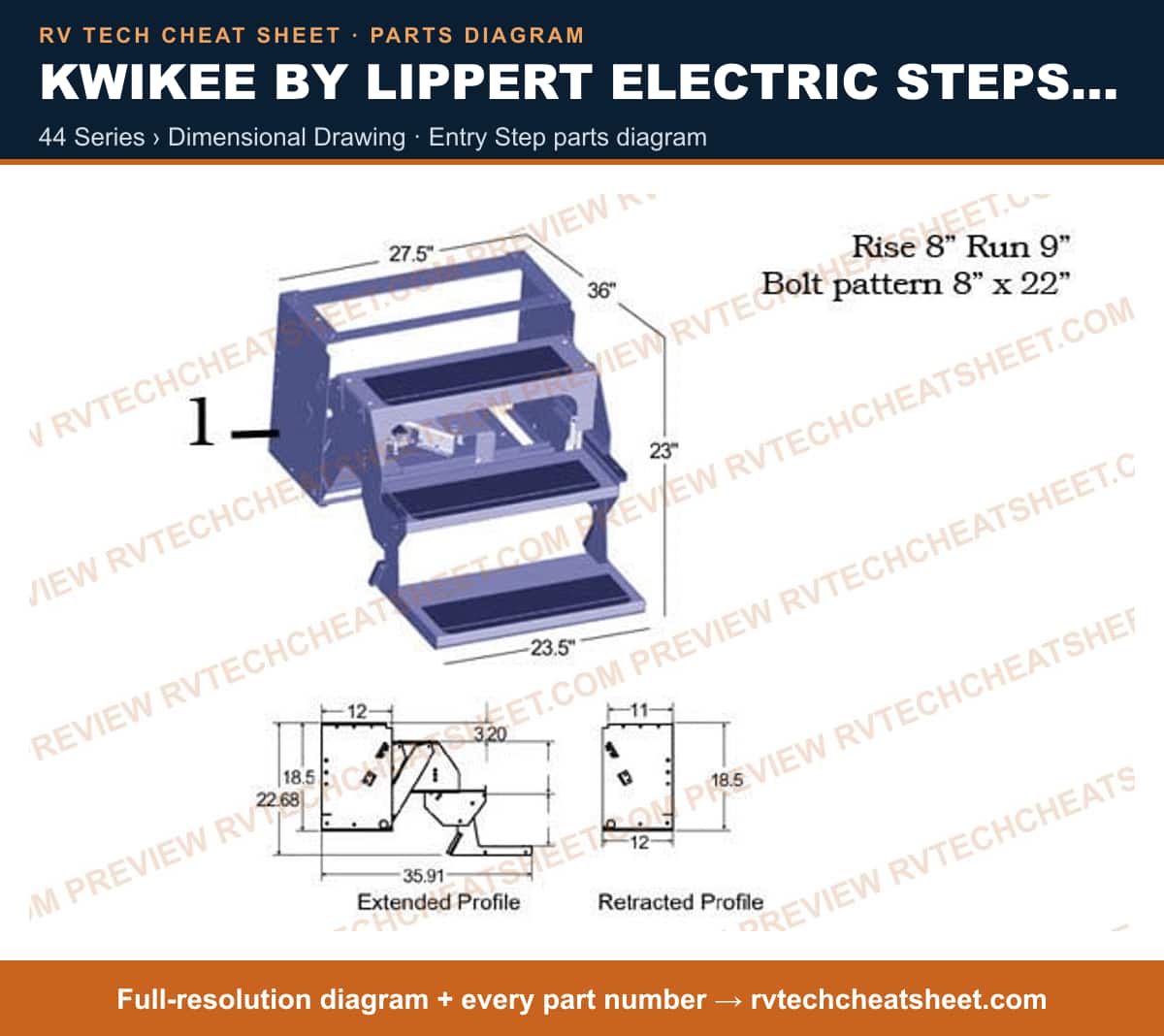

44 Series › Dimensional Drawing

Components

1 item

1. #Entry Step Motor/ Gearbox Upgrade; Use To Upgrade/ Motor Conversion Kit For 44 Series Steps MFR # 909778000 Superseded: see description

23 Series › Replacement Step

Components

9 items

1. #Entry Step; Series 23; Triple Electric Folding Step; 24 Inch Tread Width x 8 Inch Depth; With 8 Inch Rise; Up To 750 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; 12.30 Inch Collapsed Height; Without Step Control; 9 Inch x MFR # 369404
2. #STEP, TRIPLE ***USE 44-1666*** MFR # 2308025 Superseded: see description
3. #STEPS & STEP RUGS RV; KWIKEE TRIPLE STEP MANUAL MFR # 900130000
4. #SERIES 23 STEP FRAME ONLY ***USE 48-4562 OR 44-1666** MFR # 8023 Superseded: see description
5. #STEP,TRIPLE 23 SERIES W/O CONTROL UNIT MFR # 2300016
6. #Looking for a way to upgrade your RV steps? Kwikee® Electric RV Steps by Lippert® will automatically extend and retract when your RV's entryway door opens and closes — making it easier for you and your guests to get in and out of your camper. Known by RV owners for over 40 years, Kwikee steps are loved for their durable build and reliable operation. Made right here in America, these steps are constructed from heavy-gauge steel, waterproof, sealed wiring connections, solid steel drive rods and stainless-steel bushings and a black, powder-coated finish. The Kwikee step assembly also comes with a hidden light that illuminates to make it easy going in and out of your RV in the dark. It also has added safety features like automatic retraction when an obstacle is sensed near your stairs and anti-slip grips on each step for increased traction. MFR # 3694042
7. #Entry Step; Triple Series; 3 Electric Folding Steps; 24 Inch Width x 8 Inch Depth; With 8 Inch Rise; Up To 750 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; 12.30 Inch Collapsed Height; With Step Control MFR # 902309025
8. #STEP,24" TRIPLE MANUAL 7" RISER MFR # 900131
9. #Entry Step; Triple Series; 3 Electric Folding Steps; 24 Inch Width x 8 Inch Depth; With 8 Inch Rise; Up To 750 Pound Weight Capacity; Powder Coated/ Heavy Gauge Steel; 12.30 Inch Collapsed Height; Without Step Control MFR # 902300906

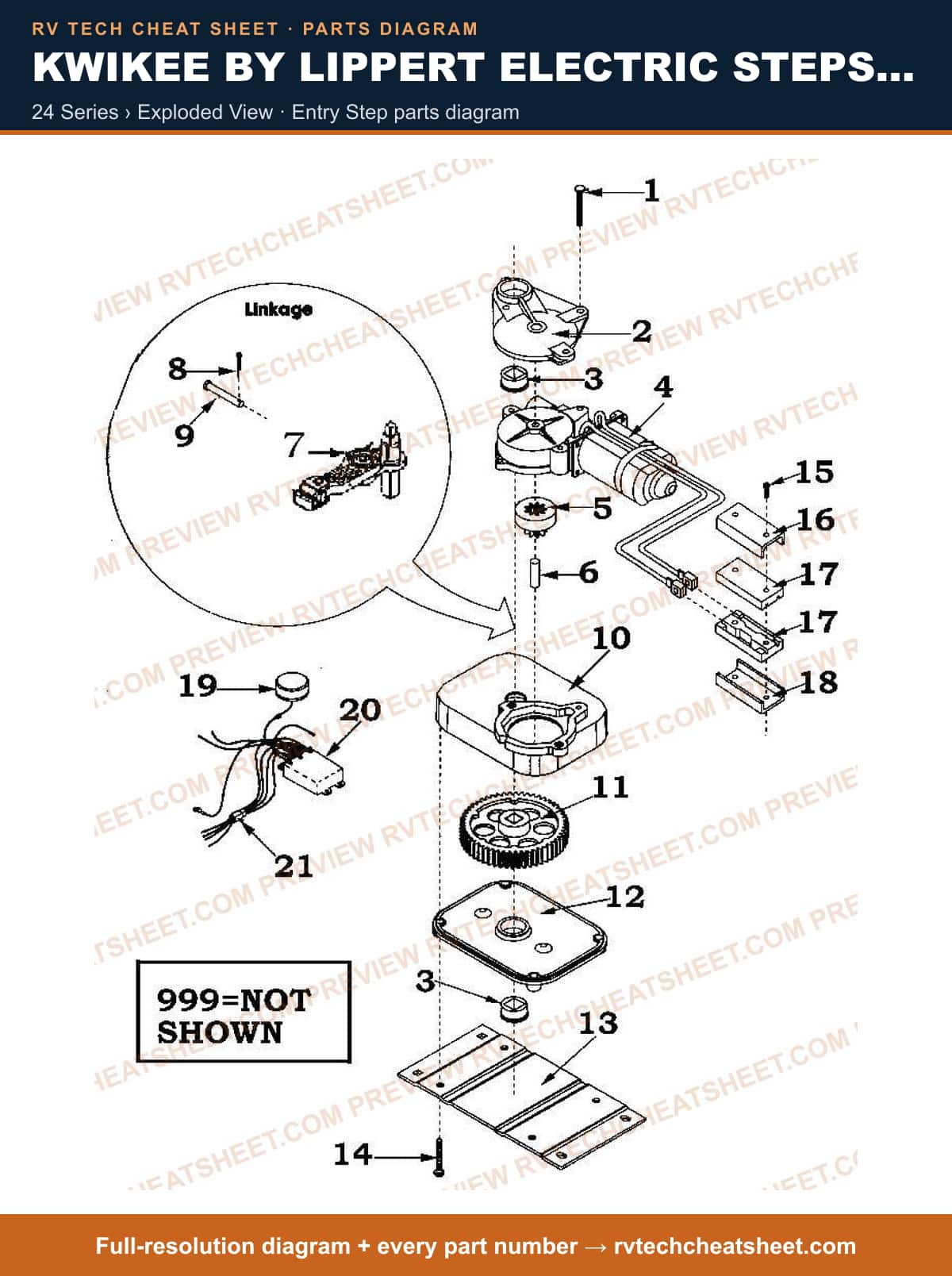

24 Series › Exploded View

Components

41 items

1. #Entry Step Gear; Replacement Pinion Gear For Kwikee Entry Steps; With Shaft MFR # 9529
2. #PARTS KIT F/PERMANENT MAGNET MOTOR MFR # 909530000
3. #BRACKET KIT,MOTOR BEARING MFR # 9536
4. #MISC. PARTS KIT USE 909530000 MFR # 5208K Superseded: see description
5. #BEARING USE 5208K MFR # 9045 Superseded: see description
6. #Entry Step Motor/ Gearbox Upgrade; Replacement Part For Series Steps 24 And 25; With Motor Table MFR # 3392152
7. #Entry Step Motor/ Gearbox Upgrade; Use To Upgrade/ Motor Conversion Kit For 25 Series Steps; With 9510 Step Control MFR # 909776000 Superseded: see description
8. #Get your steps back to work with an exact-match replacement motor from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This motor assembly is just like your original motor. In no time, your steps will be operating like usual at the campsite. MFR # 379608
9. #Entry Step Motor; Use With Kwikee 25 Series Steps; With Sealed Wire Connectors MFR # 1820124 Superseded: see description
10. #Get your steps back to work with an exact-match replacement motor from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This motor assembly is just like your original motor. In no time, your steps will be operating like usual at the campsite. MFR # 369506
11. #TRAILER JACKS; Gear & Shaft MFR # 9528
12. #STEPS & STEP RUGS RV; Gear Adapter MFR # 9556
13. #ADAPTOR GEAR SHAFT USE 909530000 MFR # 9557 Superseded: see description
14. #Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 379649
15. #Entry Step Linkage Arm; Replacement Parts For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps; With Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Linkage Assembly A/ Cotter Pin/ Clevis Pin MFR # 909534000
16. #Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 9534
17. #Kwikee® Gear Box Linkage with “A" by Lippert® is specifically designed for certain electric steps in the Kwikee® series. MFR # 379160
18. #Entry Step Gear; Replacement Part For Series Steps 22/ 23/ 28A/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40; With Gear/ A Linkage Curved MFR # 1101425
19. #Entry Step Linkage Arm Clevis Pin; Fits Kwikee Entry Steps With A Linkage Arm That Attaches To The Step Frame; Not For Use With The 25 Series Steps; With Split Pin And Clevis MFR # 905205000 Superseded: see description
20. #PIN,COTTER USE 5205K MFR # 9018K Superseded: see description
21. #Get your steps back to work with an exact-match cotter and clevis pin assembly from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This replacement pin kit is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 379178
22. #PIN,COTTER USE 5205K MFR # 9017 Superseded: see description
23. #STEPS & STEP RUGS RV; GEAR KIT MFR # 909525000
24. #GEAR CASE ASM MFR # 9524
25. #GEAR CASE MFR # 9527
26. #AIR COMMAND SINGLE ECU; MFR # 9535
27. #LEADWIRE KIT MFR # 9537
28. #Entry Step Rug; Self Adhesive; 21 Inch Width; Yellow; Glow In The Dark; Replacement MFR # 909342000
29. #The perfect companion for any Kwikee® RV step, the Kwikee Glow-in-the-Dark tread strip will have your RV's steps glowing with more safety and convenience. Designed with a luminating, phosphorous glow-in-the-dark strip, a reflective strip and non-slip treading -- this easy-to-install tread strip makes your RV's stairs easier to see at night and it enhances the treading on your steps. This is a simple way to help make your campsite safer for everybody -- plus, the kids will love your glow-in-the-dark steps! MFR # 379600
30. #Entry Step Control Module; For Use With 22/ 23/ 26/ 28/ 30/ 31/ 32/ 33/ 34/ 35/ 36/ 37/ 38/ 39/ 40/ MFR # 909510000 Superseded: see description
31. #Get your steps back to work with an exact-match replacement control unit from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This control unit assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 379606
32. #Entry Step Control Module; Replacement Control Unit For Pre IMGL 9510 Control Steps; With 5323 And 5327 Switches MFR # 909506003
33. #Get your steps back to work with an exact-match 9510 replacement control unit from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This control unit assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 379146
34. #CONTROL UNIT USE 9506003 W/LAST OUT FEATURE MFR # 9506000 Superseded: see description
35. #NO GENERIC NAME; Plug 4 Wayw/Packard Conne MFR # 9336
36. #STEP,MANUAL SINGLE 24" MFR # 900100
37. #Entry Step Switch; Replacement Power Switch For RV Electric Sliding Steps; Plunger Door Switch; Normally Open; Black MFR # 905328000
38. #Get your steps back to work with an exact-match pleated plunger door switch from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This replacement switch assembly is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 379407
39. #STEP,24" DOUBLE TREAD MANUAL W/7"RISERS MFR # 900121
40. #12V EXTENSION CORD MFR # 9331
41. #STEP,24" DOUBLE TREAD MANUAL W/9"RISERS MFR # 900120

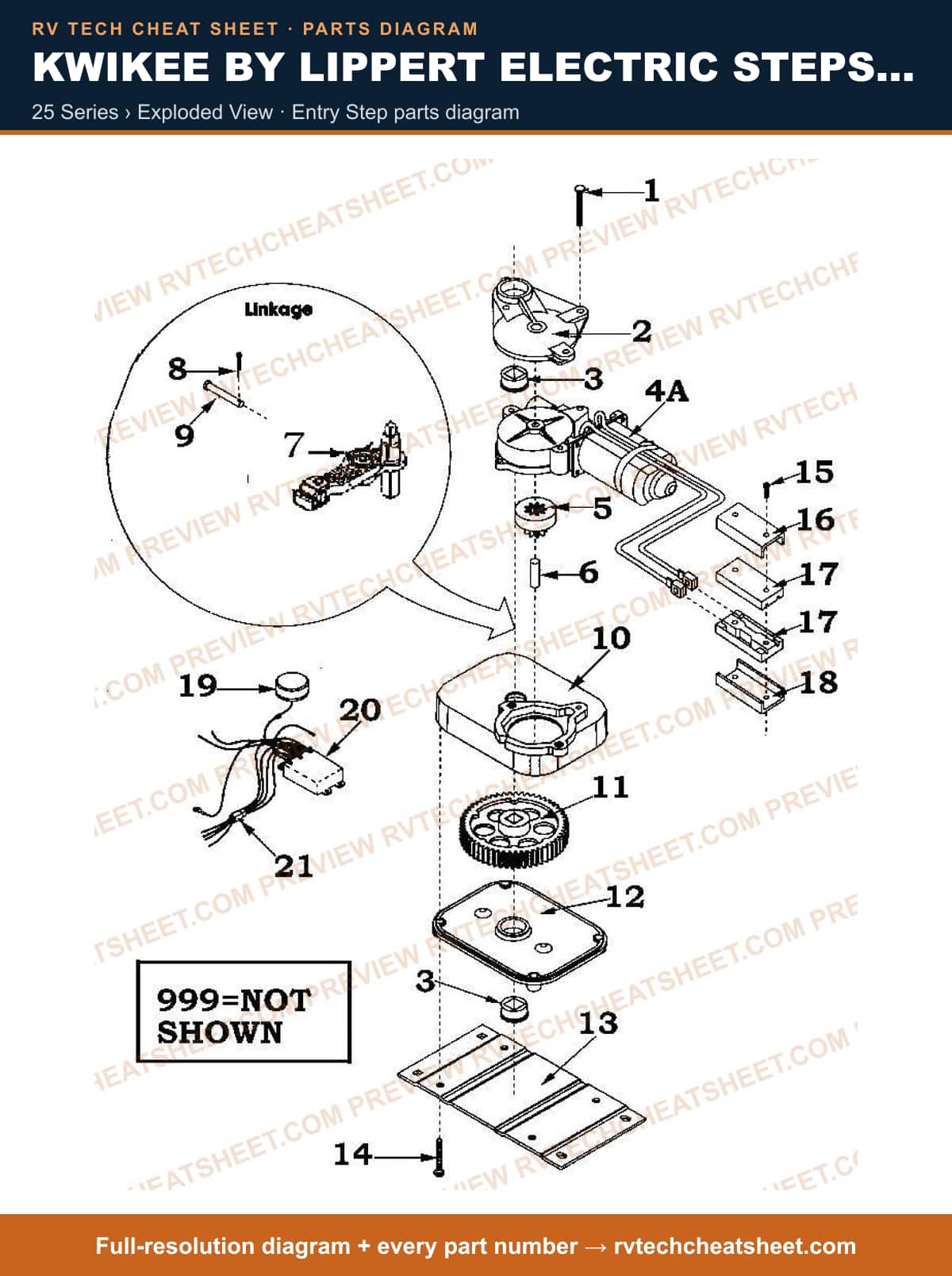

25 Series › Exploded View

Components

46 items

1. #PARTS KIT F/PERMANENT MAGNET MOTOR MFR # 909530000
2. #Entry Step Gear; Replacement Pinion Gear For Kwikee Entry Steps; With Shaft MFR # 9529
3. #BRACKET KIT,MOTOR BEARING MFR # 9536
4. #BEARING USE 5208K MFR # 9045 Superseded: see description
5. #MISC. PARTS KIT USE 909530000 MFR # 5208K Superseded: see description
6. #Get your steps back to work with an exact-match replacement motor from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This motor assembly is just like your original motor. In no time, your steps will be operating like usual at the campsite. MFR # 379608
7. #Entry Step Motor; Use With Kwikee 25 Series Steps; With Sealed Wire Connectors MFR # 1820124 Superseded: see description
8. #MOTOR,USED W/ORNG OR WHT CNTRLS MFR # 9520
9. #Get your steps back to work with an exact-match replacement motor from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This motor assembly is just like your original motor. In no time, your steps will be operating like usual at the campsite. MFR # 369506
10. #Get your steps back to work with an exact-match table motor from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This table motor and cable assembly is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 369529
11. #Upgrade your Kwikee steps with a motor upgrade kit from Lippert™. When it comes to enhancing your Kwikee® Electric RV Steps, Lippert makes it easy. This motor upgrade kit is made specifically for Kwikee 25 series steps built before 2006, and will update your original motor for a more efficient, reliable system at your campsite. MFR # 379804
12. #STEPS & STEP RUGS RV; Gear Adapter MFR # 9556
13. #TRAILER JACKS; Gear & Shaft MFR # 9528
14. #ADAPTOR GEAR SHAFT USE 909530000 MFR # 9557 Superseded: see description
15. #Entry Step Linkage Arm; Replacement Parts For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps; With Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Linkage Assembly A/ Cotter Pin/ Clevis Pin MFR # 909534000
16. #Entry Step Motor/ Gearbox Upgrade; Use To Upgrade/ Motor Conversion Kit For 25 Series Steps; With 9510 Step Control MFR # 909776000 Superseded: see description
17. #Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 9534
18. #Kwikee® Gear Box Linkage with “A" by Lippert® is specifically designed for certain electric steps in the Kwikee® series. MFR # 379160
19. #Entry Step Gear; Replacement Part For Series Steps 22/ 23/ 28A/ 30/ 32/ 33/ 34/ 35/ 36/ 38/ 40; With Gear/ A Linkage Curved MFR # 1101425
20. #Entry Step Linkage Arm; Kwikee ®; For 22/ 30/ 32/ 34/ 35/ 36/ 38 Series Steps Prior To The Integrated Motor Gear Linkage (IMGL) Upgrade; Curved; With Linkage Assembly A/ Self Tapping Hexagonal Washer Headed Screw/ Bearing/ Cotter Pin/ Clevis Pin; Kwikee 909534000 MFR # 379649
21. #PIN,COTTER USE 5205K MFR # 9018K Superseded: see description
22. #Entry Step Linkage Arm Clevis Pin; Fits Kwikee Entry Steps With A Linkage Arm That Attaches To The Step Frame; Not For Use With The 25 Series Steps; With Split Pin And Clevis MFR # 905205000 Superseded: see description
23. #Entry Step Linkage Arm Clevis Pin; Entry Step Hardware; Fits Kwikee Entry Steps With A Linkage Arm That Attaches To The Step Frame; Not For Use With The 25 Series Steps; With Split Pin And Clevis MFR # 5205K Superseded: see description
24. #Get your steps back to work with an exact-match cotter and clevis pin assembly from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This replacement pin kit is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 379178
25. #PIN,COTTER USE 5205K MFR # 9017 Superseded: see description
26. #STEPS & STEP RUGS RV; GEAR KIT MFR # 909525000
27. #GEAR CASE ASM MFR # 9524
28. #GEAR CASE MFR # 9527
29. #AIR COMMAND SINGLE ECU; MFR # 9535
30. #LEADWIRE KIT MFR # 9537
31. #Entry Step Rug; Self Adhesive; 21 Inch Width; Yellow; Glow In The Dark; Replacement MFR # 909342000
32. #The perfect companion for any Kwikee® RV step, the Kwikee Glow-in-the-Dark tread strip will have your RV's steps glowing with more safety and convenience. Designed with a luminating, phosphorous glow-in-the-dark strip, a reflective strip and non-slip treading -- this easy-to-install tread strip makes your RV's stairs easier to see at night and it enhances the treading on your steps. This is a simple way to help make your campsite safer for everybody -- plus, the kids will love your glow-in-the-dark steps! MFR # 379600
33. #CONTROL UNIT USE 9506003 W/LAST OUT FEATURE MFR # 9506000 Superseded: see description
34. #Get your steps back to work with an exact-match 9510 replacement control unit from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This control unit assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 379146
35. #Entry Step Control Module; Replacement Control Unit For Pre IMGL 9510 Control Steps; With 5323 And 5327 Switches MFR # 909506003
36. #CONTROL UNIT USE 9506003 MFR # 95060047 Superseded: see description
37. #Get your steps back to work with an exact-match replacement control unit from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This control unit assembly is just like your original unit. In no time, your steps will be operating like usual at the campsite. MFR # 379606
38. #Entry Step Control Module; For Use With 22/ 23/ 26/ 28/ 30/ 31/ 32/ 33/ 34/ 35/ 36/ 37/ 38/ 39/ 40/ MFR # 909510000 Superseded: see description
39. #Entry Step Control Module; Replaces Old Style Control Module For 9616/ 9515/ 9514/ 9513/ 9517/ 9613; With 5323/ 5327 Switch Kits MFR # 9506003
40. #Get your steps back to work with an exact-match 4-way plug with Packard connector from Lippert™. When it comes to fixing your Kwikee® Electric RV Steps, Lippert keeps you from looking high and low for parts that work with your equipment. This replacement plug is just like your original part. In no time, your steps will be operating like usual at the campsite. MFR # 369243
41. #Entry Step Wiring Harness; Use To Connect The KwikTest Diagnostic Tool To Step Control Module; 4 Way Plug; With Packard Connector Pigtail MFR # 909306000 Superseded: see description
42. #NO GENERIC NAME; Plug 4 Wayw/Packard Conne MFR # 9336
43. #STEP,24" DOUBLE TREAD MANUAL W/9"RISERS MFR # 900120
44. #12V EXTENSION CORD MFR # 9331
45. #STEP,24" DOUBLE TREAD MANUAL W/7"RISERS MFR # 900121
46. #STEP,MANUAL SINGLE 24" MFR # 900100
