Suburban N Series N30M Parts Diagram · Exploded View › Blower Assembly

Furnace · 4 assemblies · 4 diagram sheets · 90 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban N Series N30M RV furnace: 4 assemblies (Exploded View › Blower Assembly, Exploded View › Cabinet Assembly, Exploded View › Burner Assembly, Exploded View › Combustion Chamber) and 90 manufacturer part numbers. 22 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

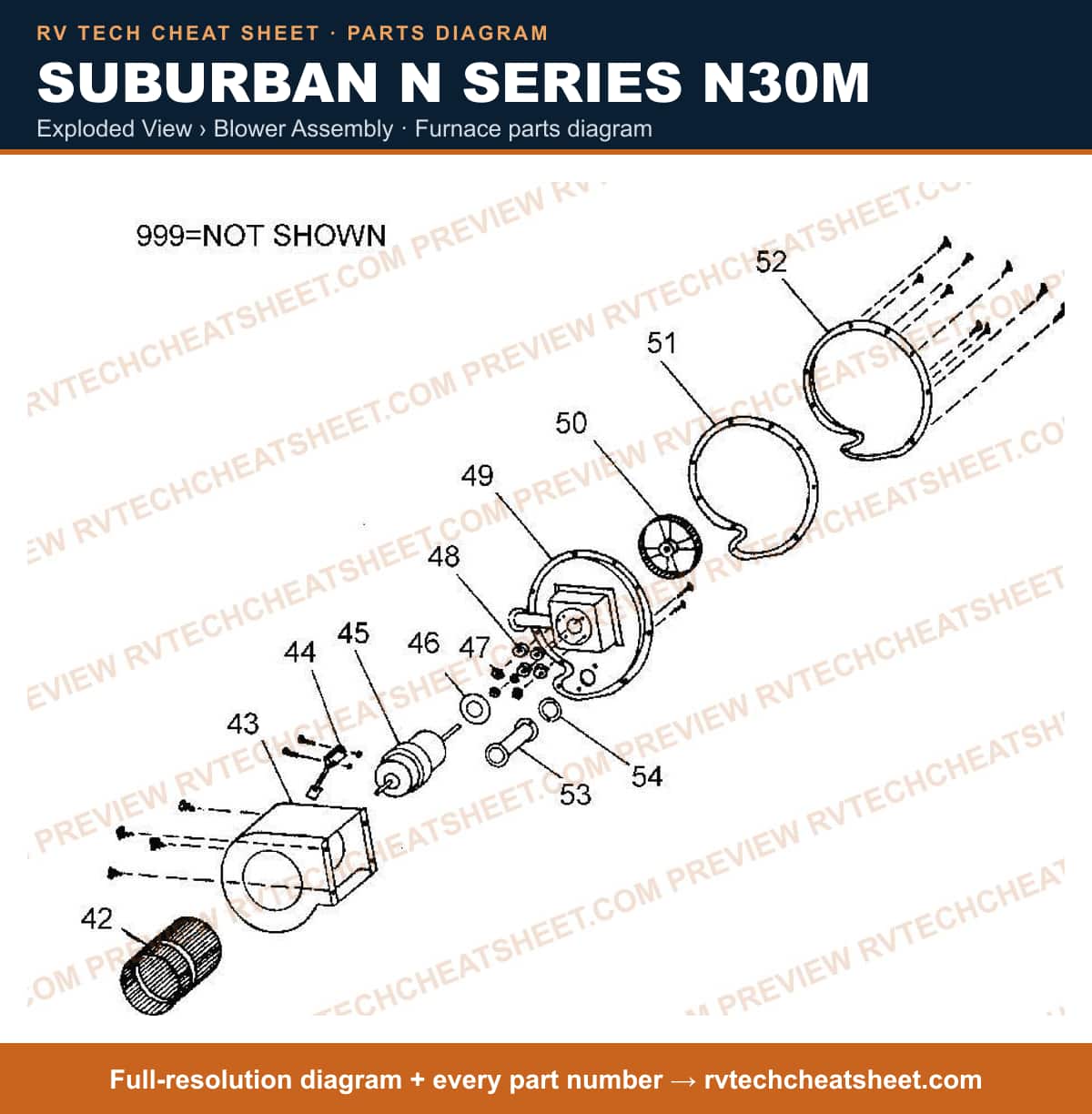

Exploded View › Blower Assembly

Components

21 items

1. #Furnace Blower Wheel; For Suburban Furnace NT-30SP/ NT-34SP MFR # 350113
2. #WHEEL,ROOM AIR USE 350113 MFR # 350076 Superseded: see description
3. #HOUSING, ROOM AIR MFR # 390178
4. #Furnace Low Air Flow Switch; For Suburban Furnace NT-40 MFR # 233355
5. #Furnace Low Air Flow Switch; For Suburban Furnace Models NT-30/ NT-34/ NT-30M/ NT-34M/ NT-30S/ NT-34S/ NT-30SP/ NT-34SP/ NT-25/ NT-30/ NT-35/ NT-35K/ P-30S/ SF-20/ SF-25/ SF-30/ SF-35/ SF-20F/ SF-25F/ SF-30F/ SF-35F MFR # 230509MC
6. #Furnace Low Air Flow Switch; For Suburban Furnace NT-30/ NT-34/ NT-30M/ NT-34M/ NT-30S/ NT-34S/ NT-30SP/ NT-34SP/ NT-25/ NT-30/ NT-35/ NT-35K/ P-30S/ SF-20/ SF-25/ SF-30/ SF-35/ SF-20F/ SF-25F/ SF-30F/ SF-35F; Also Use New Number 233356 MFR # 230509 Superseded: see description
7. #Furnace Low Air Flow Switch; For Suburban Furnace NT-40; Also Use New Number 233355 MFR # 232279 Superseded: see description
8. #Furnace Low Air Flow Switch; For Suburban Furnace NT-30/ NT-34/ NT-30M/ NT-34M/ NT-30S/ NT-34S/ NT-30SP/ NT-34SP/ NT-25/ NT-30/ NT-35/ NT-35K/ P-30S/ SF-20/ SF-25/ SF-30/ SF-35/ SF-20F/ SF-25F/ SF-30F/ SF-35F; Also Use New Number 525024 MFR # 233356 Superseded: see description
9. #MOTOR ASM USE 520908 MFR # 232302 Superseded: see description
10. #Furnace Motor; For Suburban Furnace P30S MFR # 520908
11. #MOTOR USE 232302 MFR # 230524 Superseded: see description
12. #Furnace Gasket; Furnace Blower Motor Gasket; Fits Suburban Furnace N-30M/ P-30S MFR # 70399
13. #NUT, #8-32 MFR # 120748
14. #Furnace Motor Mounting Grommet; For Use With Suburban P30S/ N30M Model Furnaces; Blower Assembly MFR # 70241S Superseded: see description
15. #APPLIANCE COMPONENTS RV; Hsg Comb Air MFR # 390183
16. #WHEEL COMB AIR - obsolete MFR # 350077
17. #Furnace Gasket; Furnace Combustion Air Housing Gasket; Fits Suburban Furnace NT-24/ NT-30/ NT-34H/ NT-HA/ NT-34S/ NT-30SP/ NT-34HS/ NT-30MA/ NT-34L/ NT-34MM/ P-30S/ P-40S/ NT-42S/ NT-42ST MFR # 70386
18. #CHAMBER,COMBUSTION MFR # 390173
19. #TUBE,CROSSOVER USE 50751 MFR # 50439 Superseded: see description
20. #Furnace Gasket; Furnace Crossover Tube Gasket; Fits Suburban Furnace NT-24M/ NT-30M/ NT-30SP/ NT-34SP/ NT-40 MFR # 70385
21. #GASKET SET N30M MFR # 520035

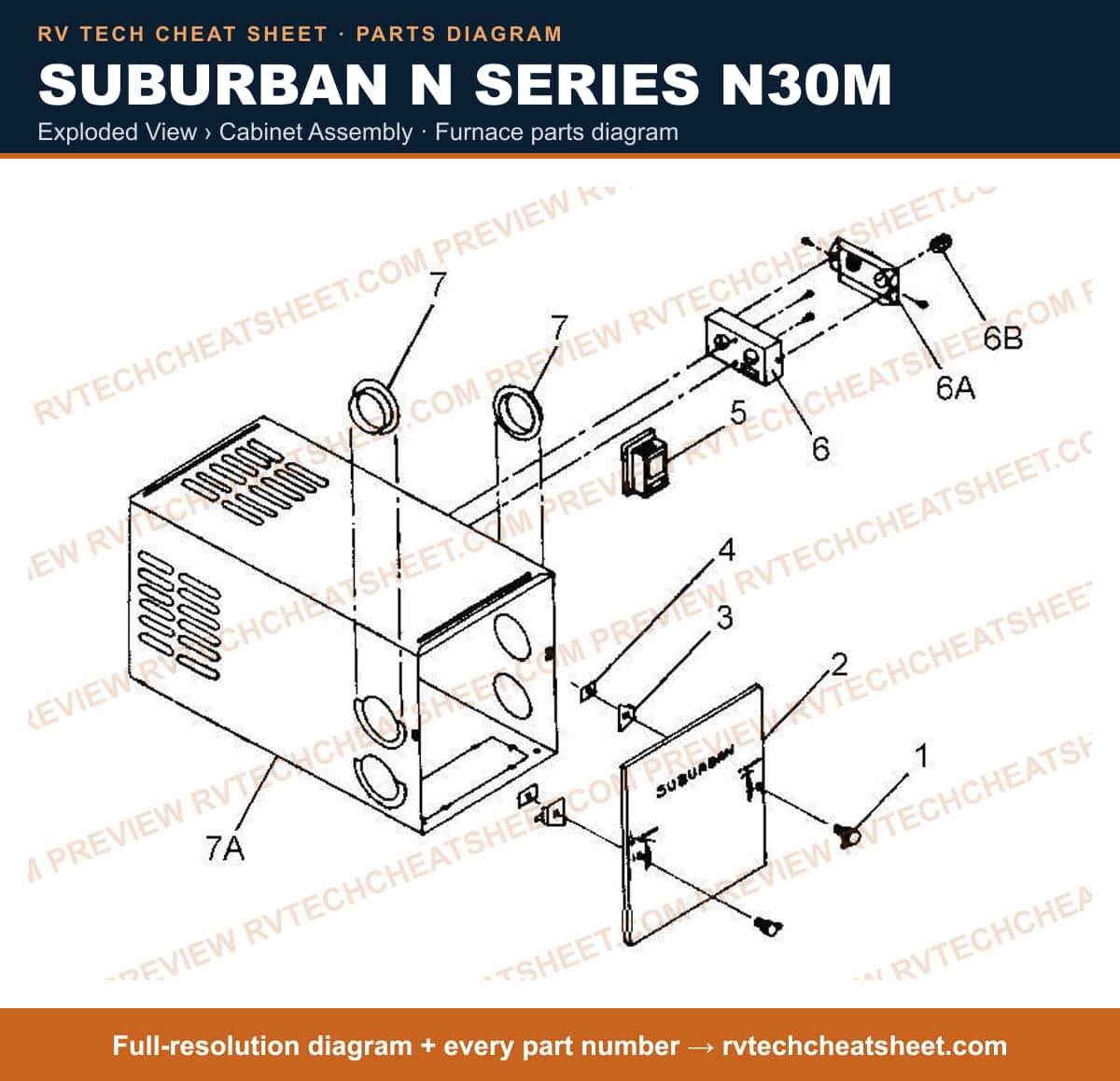

Exploded View › Cabinet Assembly

Components

14 items

1. #KNOB MFR # 140149
2. #DOOR, CABINET MFR # 100861
3. #LATCH,CABINET FRONT NT24 M MFR # 62230
4. #NUT,TINNERMAN 1/4 X 1/4 MFR # 121395
5. #T-STAT MFR # 160825
6. #T-STAT USE 160825 MFR # 160651 Superseded: see description
7. #APPLIANCE COMPONENTS RV; BUSHING SNAP MFR # 231827
8. #APPLIANCE COMPONENTS RV; COV JCT BOX MFR # 90204
9. #JUNCTION BOX MFR # 90205S
10. #APPLIANCE COMPONENTS RV; Bushing Snap 7/8" MFR # 230218
11. #Furnace Cabinet; Replacement Cabinet For Suburban Furnace N30M/ NT-20T/ NT-24MA/ NT-24MP/ NT-24MPD/ NT-24S/ NT-24SP/ NT-34MA/ NT-30MP/ NT-30MPD/ NT-30S/ NT-30SP/ NT-34L/ NT-34LD/ NT-34S/ NT-34SP MFR # 101874
12. #CABINET ASM USE 100962 MFR # 100859 Superseded: see description
13. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
14. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296

Exploded View › Burner Assembly

Components

18 items

1. #APPLIANCE COMPONENTS RV; Elbow 90 Deg MFR # 170082
2. #COVER PLATE, GAS INLET MFR # 62143
3. #GAS INLET PIPE ASSEMBLY MFR # 170494
4. #Furnace Gas Valve;;For Suburban Furnace P-30S/ N-30M; 24 Volt AC MFR # 161131MC
5. #Furnace Gas Valve;;For Suburban Furnace P-30S/ N-30M; 24 Volt AC MFR # 161131
6. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
7. #MANIFOLD ASM MFR # 170567
8. #Furnace Gasket; Furnace Manifold Gasket; Fits Suburban Furnace NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30S/ P-40/ P-40B MFR # 70408
9. #Furnace Burner Orifice; For Suburban Furnace NT-30M/ NT-30S/ NT-30SP/ SF-30/ SF-30F/ P-30S/ NT-30K MFR # 180214
10. #PIN,AIR SHUTTER KNURLED MFR # 120764
11. #SPRING MFR # 150026
12. #Washer; For Suburban Stove/ Furnace NT-30M/ NT-24M/ NT-24MA/ NT-30H/ NT-30M/ NT-34H/ NT-34L/ NT-34LD/ SDN2BK/ SDN2H/ SDN2SS/ SDN2WH/ SDN3BK/ SDN3SS/ SDN3WH MFR # 120759
13. #SHUTTER,AIR BURNER MFR # 10582
14. #POWER CONTROL MODULE MFR # 10609
15. #BURNER ONLY USE 10609 MFR # 10581 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Screw 10-24X1/2 Whiz Lock MFR # 121459
17. #ROD,AIR ADJUSTMENT MFR # 140146
18. #PIN,ROLL STEEL MFR # 121250

Exploded View › Combustion Chamber

Components

37 items

1. #COVER,AIR ADJ HOLE MFR # 290119
2. #ELECTRODE USE 230590 MFR # 230480 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Electrode MFR # 230590
4. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
5. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
6. #DOOR,BURNER ACCESS MFR # 30473
7. #Furnace Access Door Sight Glass; Replacement For Suburban Furnace NT-Series/ P-45M/ P-45S MFR # 310026
8. #APPLIANCE COMPONENTS RV; Cover Plate MFR # 290120
9. #GASKET,BURNER USE 71076 MFR # 70398 Superseded: see description
10. #CHAMBER,COMBUSTION W/RA DIATION SHIELD MFR # 20786
11. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
12. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
13. #SWITCH,LIMIT MFR # 232578
14. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
15. #PLATE AND COVER ASSEMBLY (SLIDE OUT FEATURE) MFR # 90214
16. #PANEL FASTENER MFR # 121427
17. #INSULATOR,BOARD USE 70540 MFR # 70437 Superseded: see description
18. #INSUL MOD BOARD MFR # 70540
19. #MODULE BOARD USE 47-1968 FITS 6 MODELS MFR # 230608 Superseded: see description
20. #UIB 24 VOLT PARK MODEL MFR # UIB24VAC
21. #Ignition Control Circuit Board; For Suburban Furnace P-30S/ P-40S/ N-30M; 24 Volt AC MFR # 520947
22. #Ignition Control Circuit Board; For Hydro-Flame/ Suburban Furnaces And Replaces 24 VAC Park Model Fan Control Boards; Fuse Protected; Two Power Indicator LED MFR # 24VACFANCONTRLBRD
23. #APPLIANCE COMPONENTS RV; Relay MFR # 230135
24. #WATER FLANGE WHIT PLASTC MFR # 62135
25. #SWITCH,FAN USE 230575 MFR # 230348 Superseded: see description
26. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
27. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
28. #APPLIANCE COMPONENTS RV; Transformer MFR # 232165
29. #TRANSFORMER USE 232165 MFR # 230574 Superseded: see description
30. #Screw; For Suburban Furnace Exhaust Vent; 8 X 3-1/4; Set Of 2 MFR # 121711
31. #SCREW,8 X 3 1/4 USE 121711 MFR # 121256 Superseded: see description
32. #KIT VENT CAP MFR # 520730
33. #CAP,VENT USE 520730 MFR # 260093 Superseded: see description
34. #RADIATION SHIELD ASSEMBLY MFR # 110357
35. #Furnace Gasket; Furnace Bottom Duct Adapter Gasket; Fits Suburban Furnace NT-24/ NT-30/ NT-34S/ NT-24/ NT-30SP/ NT-25/ NT-30/ NT-35K/ NT-24/ NT-30/ NT-34HS/ P-30S MFR # 62164
36. #VALVE,SHUTOFF MFR # 160740
37. #APPLIANCE COMPONENTS RV; Gskt Cov Air Adj MFR # 70389
