Suburban N Series N32FC Parts Diagram · Exploded View › Combustion Chamber

Furnace · 3 assemblies · 3 diagram sheets · 53 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban N Series N32FC RV furnace: 3 assemblies (Exploded View › Combustion Chamber, Exploded View › Burner Assembly, Exploded View › Blower Assembly) and 53 manufacturer part numbers. 11 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

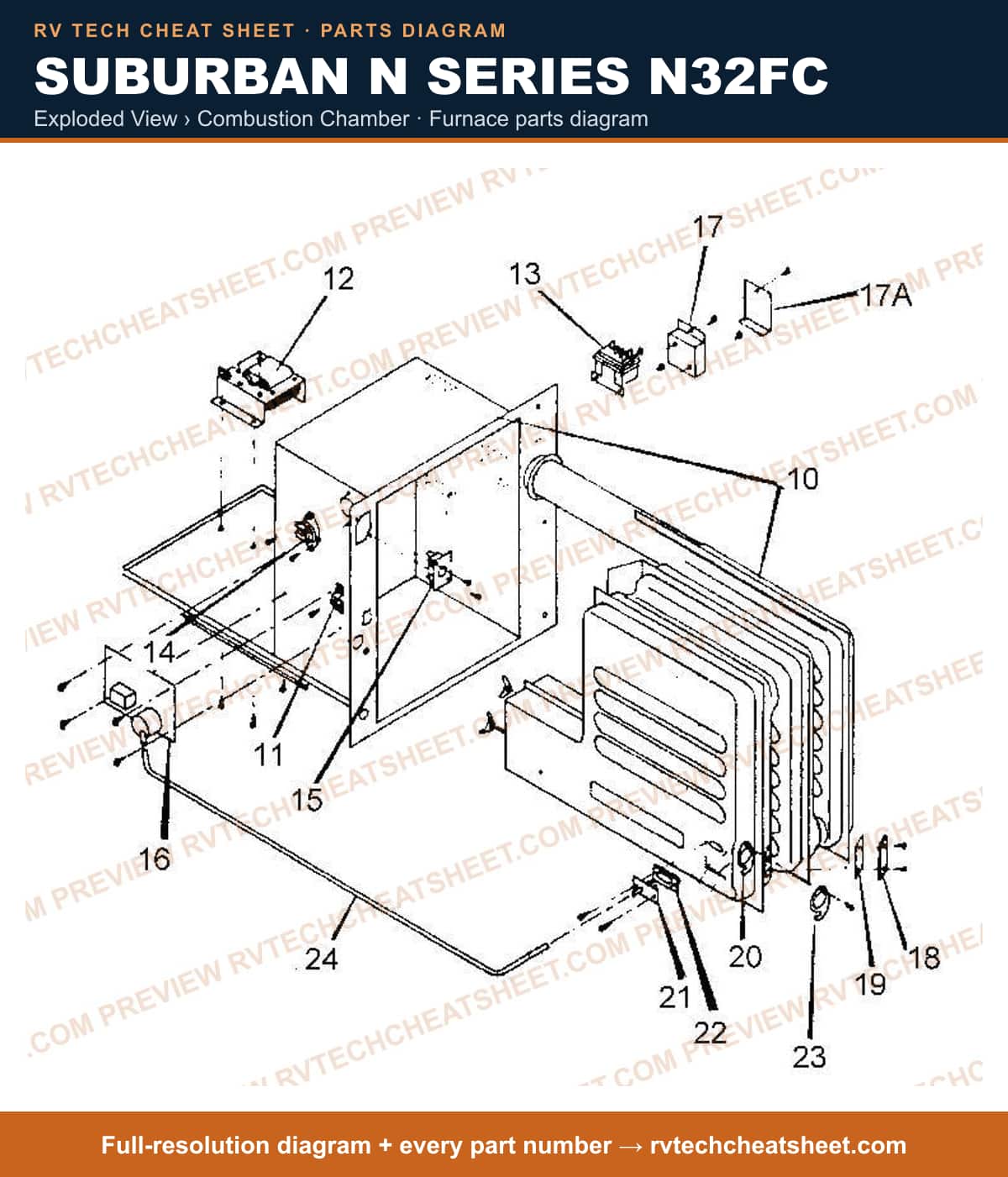

Exploded View › Combustion Chamber

Components

27 items

1. #COMBUSTION CHAMBER MFR # 110311
2. #SPACER, BRIDE - 14B MFR # 120732
3. #APPLIANCE COMPONENTS RV; Transformer MFR # 232165
4. #APPLIANCE COMPONENTS RV; Relay MFR # 230135
5. #SWITCH,FAN MFR # 230454
6. #SWITCH,LIMIT MFR # 232578
7. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
8. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
9. #SWITCH,LIMIT USE 230496 210 DEGREE MFR # 230389 Superseded: see description
10. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
11. #UIB 24 VOLT PARK MODEL MFR # UIB24VAC
12. #Ignition Control Circuit Board; For Suburban Furnace P-30S/ P-40S/ N-30M; 24 Volt AC MFR # 520947
13. #Ignition Control Circuit Board; For Hydro-Flame/ Suburban Furnaces And Replaces 24 VAC Park Model Fan Control Boards; Fuse Protected; Two Power Indicator LED MFR # 24VACFANCONTRLBRD
14. #MODULE BOARD USE 47-1968 FITS 6 MODELS MFR # 230608 Superseded: see description
15. #COVER, JUNCTION BOX MFR # 90157
16. #N/A JUNCTION BOX MFR # 90158
17. #COVER,HOLE AIR SHUTTER ADJU STMENT MFR # 260061
18. #TS-50: 50 AMP TRANSFER SWITCH MFR # 70278
19. #APPLIANCE COMPONENTS RV; Gskt Cov Obs Hole N /L/A MFR # 70367
20. #APPLIANCE COMPONENTS RV; Electrode MFR # 230590
21. #ELECTRODE USE 230590 MFR # 230480 Superseded: see description
22. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
23. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Hole Cover MFR # 290117
25. #WIRE,HIGH VOLTAGE USE 231713 MFR # 318060002 Superseded: see description
26. #APPLIANCE COMPONENTS RV; Wire Electrode - N.L.A. MFR # 231713
27. #WIRE,ELECTRODE USE 318060002 MFR # 230491 Superseded: see description

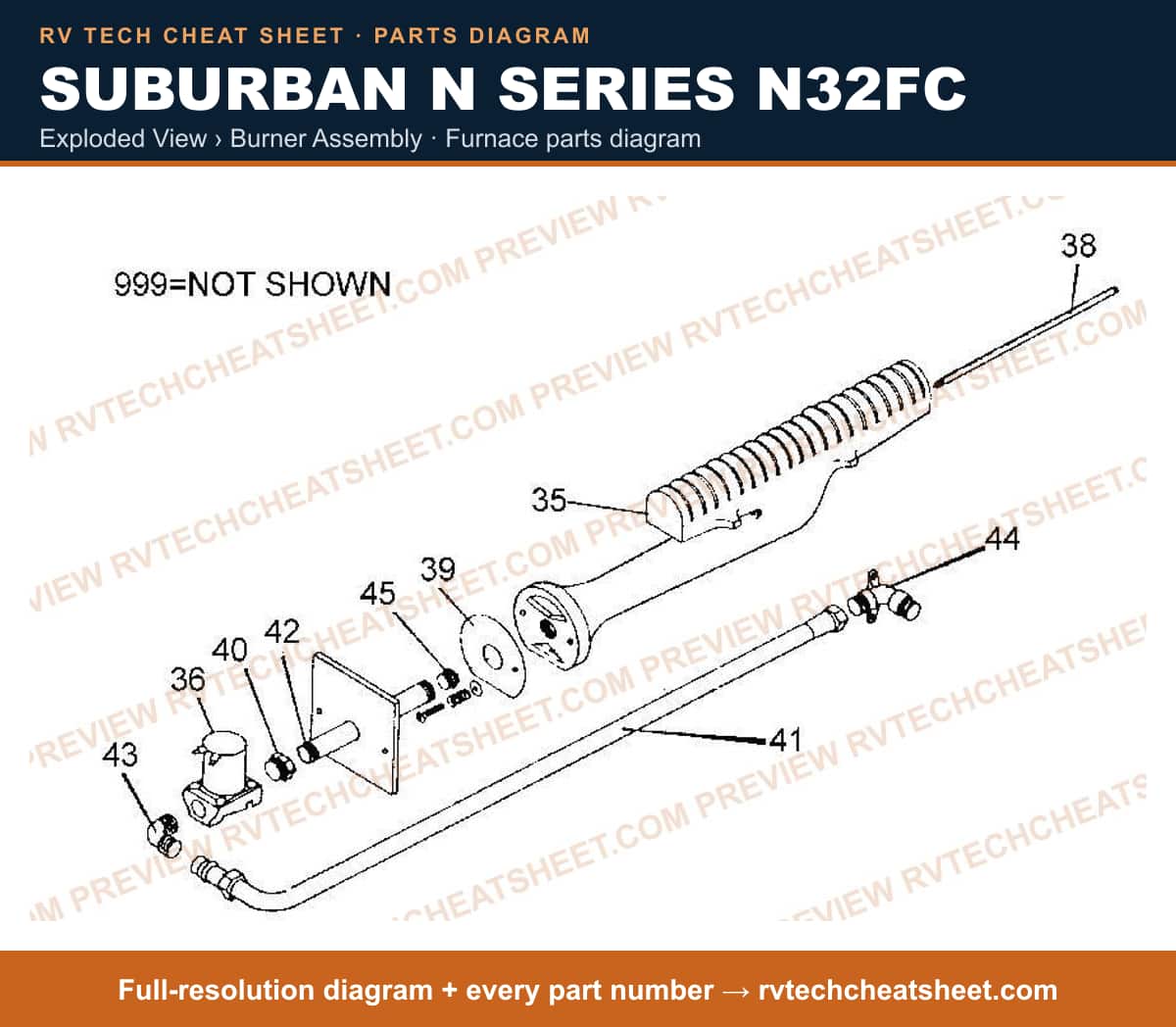

Exploded View › Burner Assembly

Components

16 items

1. #BURNER, MAIN MFR # 10563S
2. #APPLIANCE COMPONENTS RV; Valve MFR # 160888
3. #VALVE,GAS SINGLE SOLENOID MFR # 160742
4. #VALVE,GAS USE 161082 FOR LP GAS MFR # 160822 Superseded: see description
5. #BURNER ASM MFR # 140091
6. #BURNER ASM W/AIR SHUTTER ROD MFR # 10519
7. #3/8 Inch x 1/4 Inch HEX BUSHING MFR # 170280
8. #INLET TUBING MFR # 170488
9. #MANIFOLD PIPE ASSEMBLY MFR # B170478
10. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
11. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
12. #ELBOW MFR # 170519
13. #ELBOW USE 170519 MFR # 170408 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Orifice Main Burner #53 MFR # 180193
15. #Furnace Vacuum Cup; For Suburban NT-Series Furnace; Rubber MFR # 290079
16. #VALVE, SHUT OFF MFR # 160712

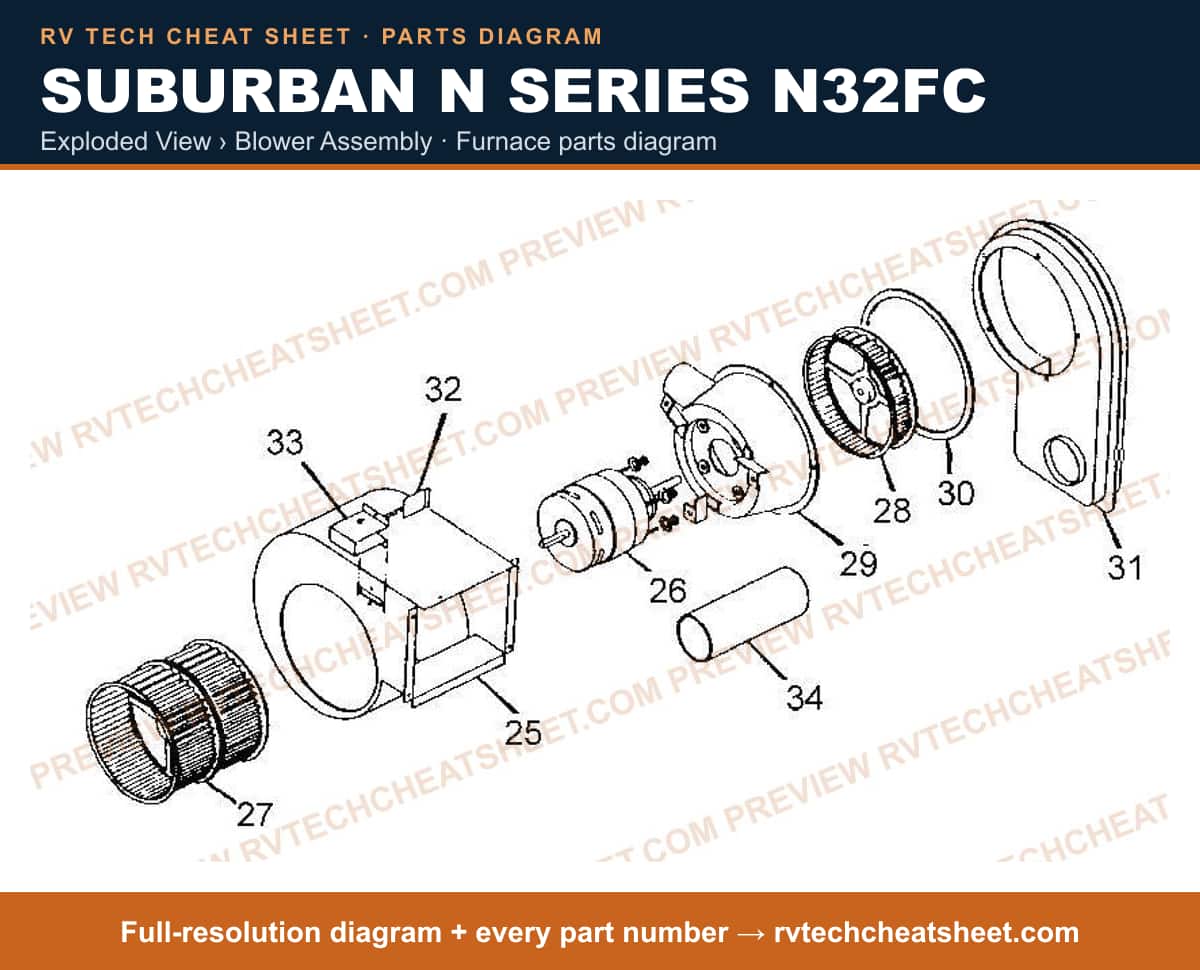

Exploded View › Blower Assembly

Components

10 items

1. #HOUSING, BLOWER MFR # 390099
2. #25 EACH WINDSHIELD WASHER TABS MFR # 230371
3. #WHEEL,BLOWER LARGE MFR # 350068
4. #APPLIANCE COMPONENTS RV; Wheel Blower Small 6-1/4 MFR # 350069
5. #COMBUSTION AIR BLOWER COVER MFR # 390137
6. #GASKET,MOTOR COVER MFR # 70301
7. #HOUSING, BLOWER MFR # 390101
8. #APPLIANCE COMPONENTS RV; Micro Switch MFR # 230443
9. #MICROSWITCH COVER NT32 C MFR # 61659
10. #APPLIANCE COMPONENTS RV; Rubber Connector Tube MFR # 70331
