Suburban Nt Series NT12C Parts Diagram · Exploded View › Burner Assembly

Furnace · 3 assemblies · 6 diagram sheets · 60 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT12C RV furnace: 3 assemblies (Exploded View › Burner Assembly, Exploded View › Cabinet Assembly, Exploded View › Combustion Chamber) and 60 manufacturer part numbers. 8 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

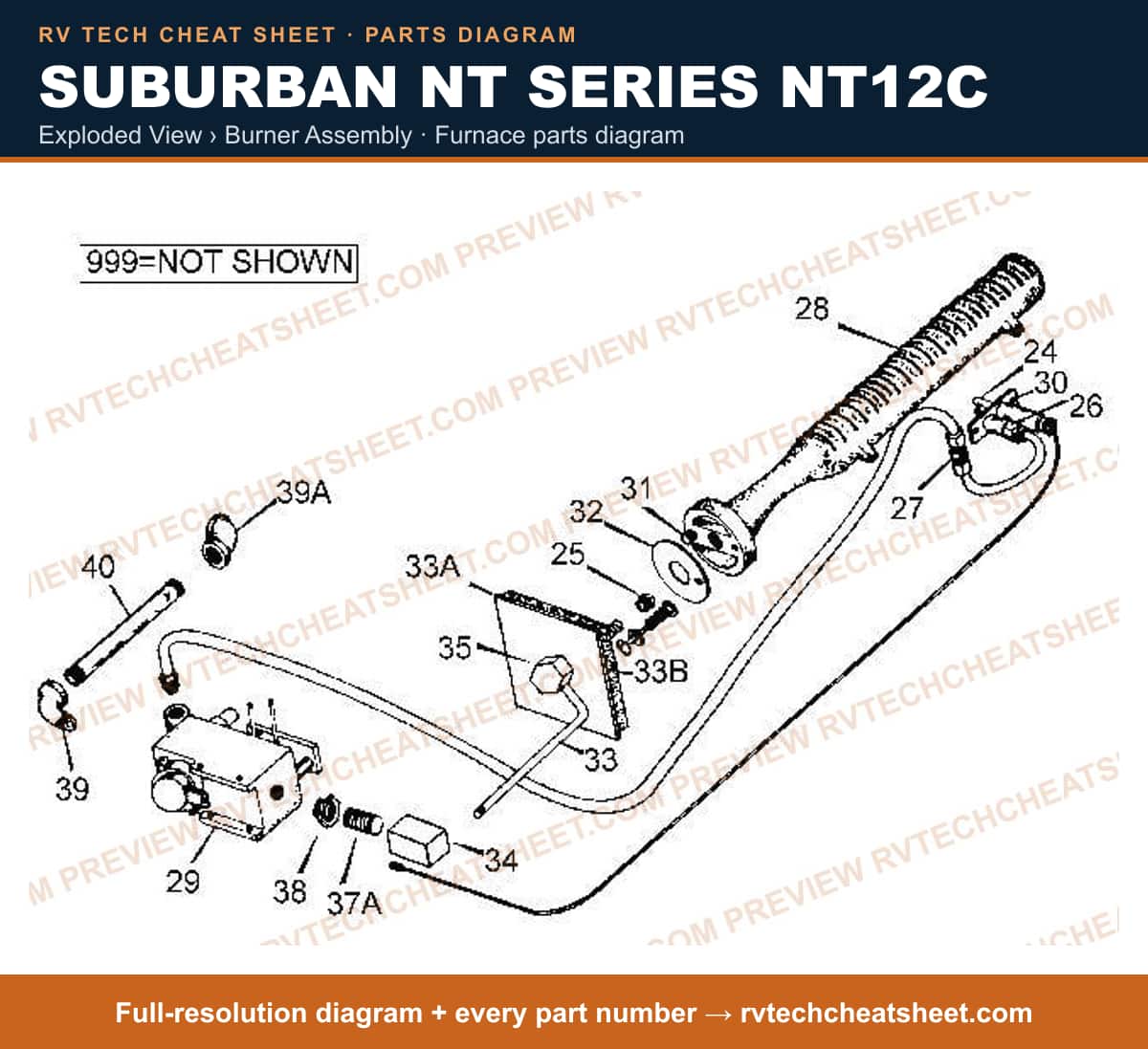

Exploded View › Burner Assembly

Components

25 items

1. #Thermocouple; Use With Gas Water Heaters And Furnaces; Probe Sensor; 30 Inch Length; Copper MFR # 1153 Superseded: see description
2. #T-COUPLE,30" USE 160876 MFR # 160527 Superseded: see description
3. #Thermocouple; Use On Water Heater Models GVR65N/ GVR65BN/ GVR50N/ GVR50BN/ GVR35N/ GVR65P/ GVR65BP/ GVR50P/ GVR50BP/ GVR35P/ GVR65-5/ GVR50-5GVR35-5GVR65-5S/ GVR50-5S/ GVR35-5S/ GVC65N/ GVC65P/ GVC50N/ GVC50P/ GVC35N/ GVC35P/ GVC65-5/ GVC50-5/ GVC35-5 MFR # 160876 Superseded: see description
4. #Universal Thermocouple; 30 Inches Long; Includes Thermocouple/ Positioning Adapters; MFR # H06E404
5. #APPLIANCE COMPONENTS RV; Orifice Main Burner #62 MFR # 180106
6. #APPLIANCE COMPONENTS RV; Pilot Orifice MFR # 160659
7. #Furnace Pilot Regulator; For Suburban Furnaces MFR # 160556
8. #MOUNTING BRACKETMEDIUM1220 AMP MFR # 10532
9. #VALVE KIT NT12C BASO TROL #G92SGD-1 MFR # 520428
10. #VALVE USE 520428 MFR # 160657 Superseded: see description
11. #PILOT BURNER MFR # 160618
12. #BURNER ASM MFR # 140091
13. #303 MARINE TOUCHLESS SEALANT 1 GAL MFR # 30399
14. #PIPE,MANIFOLD MFR # 170550
15. #WINCH HANDLE #6307 MFR # 70304
16. #ELBOW, SQUARE (1/8 NPT) MFR # 170549
17. #APPLIANCE COMPONENTS RV; Holder Orifice MFR # 170543
18. #APPLIANCE COMPONENTS RV; Close Nipple MFR # 170546
19. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
20. #APPLIANCE COMPONENTS RV; St Ell MFR # 170012
21. #APPLIANCE COMPONENTS RV; Elbow 90 Deg MFR # 170082
22. #NIPPLE, PIPE (3/8" x 4 1/4" BLACK IRON) MFR # 170353
23. #VALVE,SHUT OFF MFR # 160683
24. #ROD, RESET BUTTON MFR # 140114
25. #APPLIANCE COMPONENTS RV; Knob Blk Pilot Reset MFR # 140093

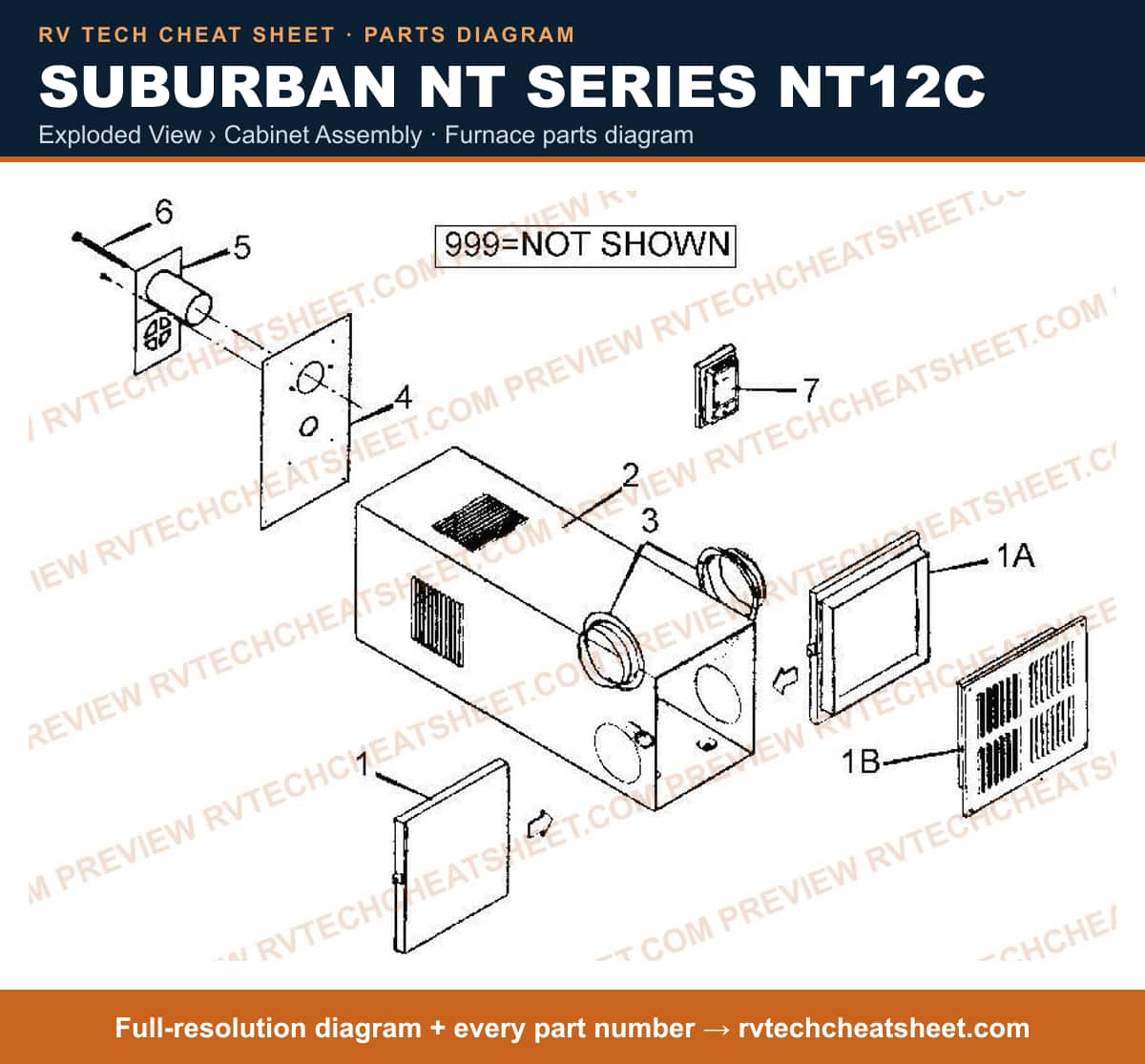

Exploded View › Cabinet Assembly

Components

12 items

1. #MOKI ASCENT MFR # 100662
2. #GRILLE,FRONT USE 30400 MFR # 30402 Superseded: see description
3. #CABINET,FRONT OUTER MFR # 100608
4. #SIDE MOUNT BOLT-LONG STUD MFR # 30400
5. #CABINET,OUTER ASM MFR # 100735
6. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
7. #BACK,CABINET MFR # 100604
8. #CAP,VENT USE 260095 MFR # 50463 Superseded: see description
9. #CAP & TUBE ASSY F/ VENT NT16C MFR # 260095
10. #N/A SCREW #10 X 1 3/4" MFR # 121383
11. #T-STAT MFR # 160616
12. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733

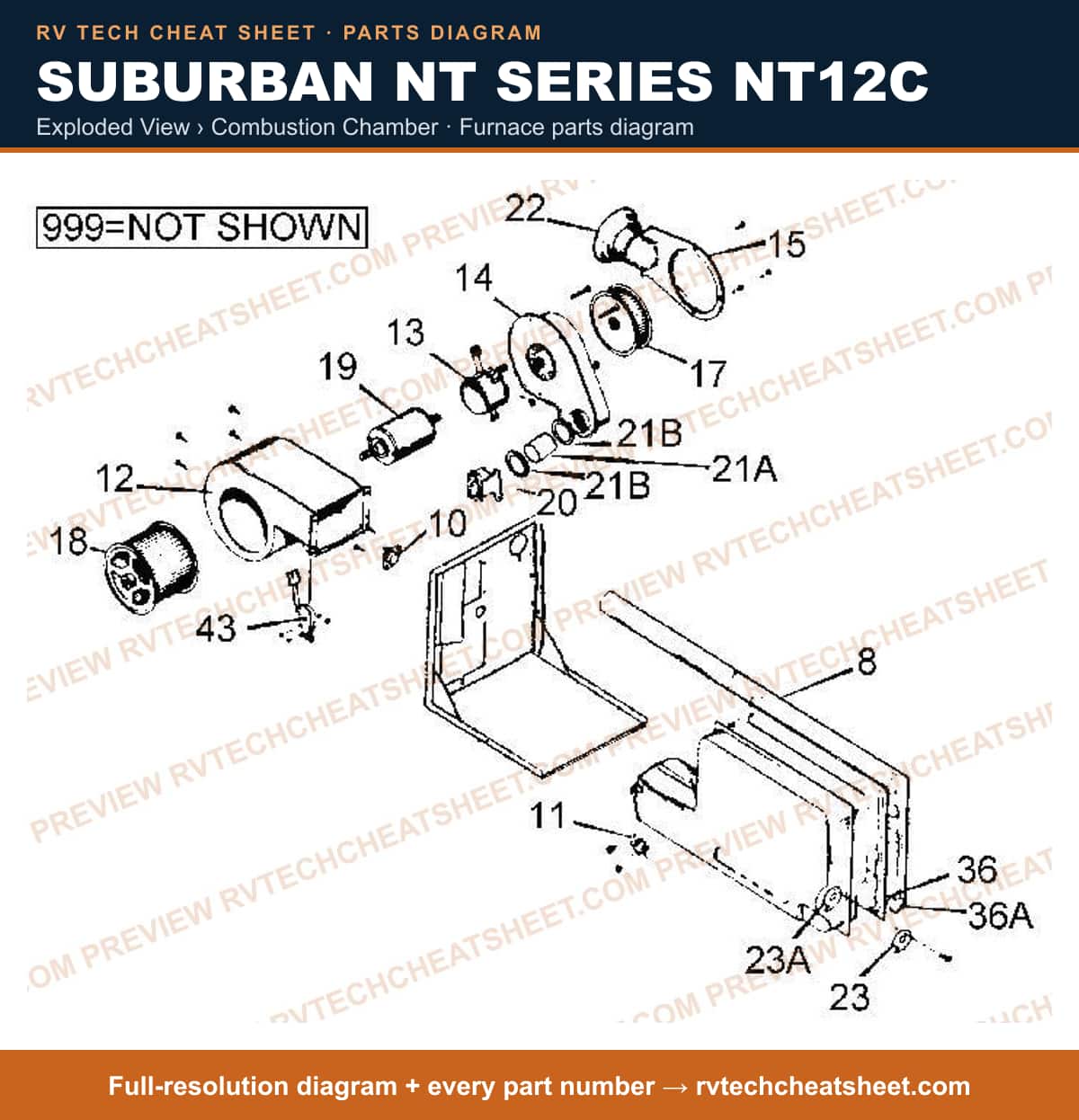

Exploded View › Combustion Chamber

Components

24 items

1. #CHAMBER,COMBUSTION NT12 C MFR # 110337
2. #SWITCH,LIMIT MFR # 230303
3. #APPLIANCE COMPONENTS RV; Fan Switch MFR # 230316
4. #HOUSING,BLOWER MFR # 390081
5. #MOUNT,MOTOR USE 92622 NT12C/16C MFR # 61873 Superseded: see description
6. #10-INCH 4-OHM MARINE SUBWOOFER MFR # 92622
7. #N/A HOUSING,COMBUSTION AIR BLOWER MFR # 390209
8. #SCOOP,AIR INTAKE ASSM NT12 /16 MFR # 62046
9. #WHEEL,COMBUSTION MFR # 350063
10. #WHEEL,BLOWER NT12/12F MFR # 350067
11. #APPLIANCE COMPONENTS RV; Motor MFR # 230306
12. #THERMOSTAT RELAY MFR # 230423
13. #TUBE FOR GASKET USE 70412 MFR # 70290 Superseded: see description
14. #GASKET,CROSSOVER TUBE MFR # 70412
15. #TUBE,CROSSOVER MFR # 50475
16. #CUP INTAKE AIR MFR # 290107
17. #APPLIANCE COMPONENTS RV;;Gskt Cov Obs Hole N /L/A MFR # S6U70367
18. #APPLIANCE COMPONENTS RV; Hole Cover MFR # 290117
19. #ROD, RESET BUTTON MFR # 140114
20. #APPLIANCE COMPONENTS RV;;Knob Blk Pilot Reset MFR # S6U140093
21. #SWITCH,SAIL NT12F/NT12C MFR # 230447
22. #BLOWER ASSY, COMPLETE MFR # 520027
23. #AC/DC CONVERTER PACKAGE (NDP-24) MFR # 520011S
24. #BRACKET, CROSSOVER TUBE MFR # 62218
