Suburban Nt Series NT16C Parts Diagram · Exploded View › Cabinet & Vent Assy & T-stat

Furnace · 4 assemblies · 4 diagram sheets · 69 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT16C RV furnace: 4 assemblies (Exploded View › Cabinet & Vent Assy & T-stat, Replacement Furnace, Exploded View › Burner Assembly, Exploded View › Combustion Chamber-blower Asm) and 69 manufacturer part numbers. 11 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

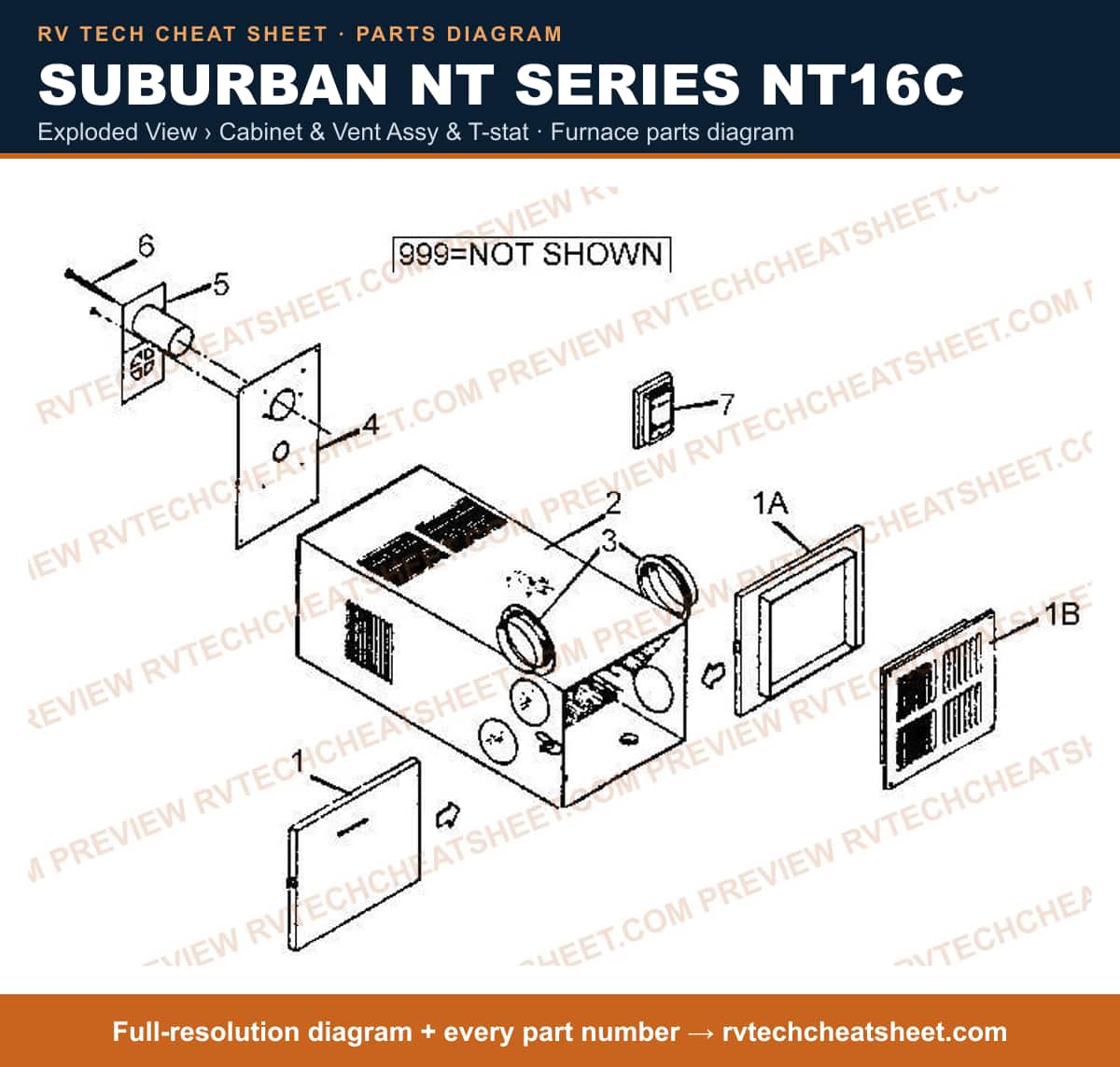

Exploded View › Cabinet & Vent Assy & T-stat

Components

14 items

1. #FLANGE, ADAPTOR, D.D. GRILLE MFR # 100666
2. #SIDE MOUNT BOLT-LONG STUD MFR # 30400
3. #GRILLE,FRONT USE 30400 MFR # 30402 Superseded: see description
4. #RESISTOR MFR # 100739
5. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
6. #BACK,CABINET MFR # 100595
7. #CAP & TUBE ASSY F/ VENT NT16C MFR # 260095
8. #CAP,VENT USE 260095 MFR # 50463 Superseded: see description
9. #N/A SCREW #10 X 1 3/4" MFR # 121383
10. #T-STAT USE 100502 MFR # 66M010000 Superseded: see description
11. #Water Heater Gas Valve; For Uni-Line 110 Series; 1/2 Inch Inlet x 1/2 Inch Outlet; 50 To 90 Degrees MFR # 100502
12. #T-STAT USE 100502 *N* MFR # 160850 Superseded: see description
13. #T-STAT MFR # 160616
14. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733

Replacement Furnace

Components

4 items

1. #TRIGGER JEEP JK A-PILLAR REMOTE MOU MFR # 2009
2. #Furnace; NT-SQ Series; LP Gas; 16,000 BTU; Side/ Top And Bottom Duct Discharge; 2.8 Amp Draw; 9-3/8 Inch Width x 9-1/2 Inch Height x 22-1/2 Inch Depth; 25.5 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly MFR # 2444A
3. #Furnace;;LP; 16000 BTU; 2.8 Amp Draw; 9-3/8 Inch Height x 9-3/8 Inch Width x 21-1/8 Inch Depth; 22 MFR # SBB2017APW
4. #LP GAS; 16000 BTU; DIRECT DISCHARGE; 2.8 AMP DRAW MFR # 79-1814

Exploded View › Burner Assembly

Components

25 items

1. #SUPPORT, VALVE ASSY MFR # 61870
2. #Thermocouple; Use On Water Heater Models GVR65N/ GVR65BN/ GVR50N/ GVR50BN/ GVR35N/ GVR65P/ GVR65BP/ GVR50P/ GVR50BP/ GVR35P/ GVR65-5/ GVR50-5GVR35-5GVR65-5S/ GVR50-5S/ GVR35-5S/ GVC65N/ GVC65P/ GVC50N/ GVC50P/ GVC35N/ GVC35P/ GVC65-5/ GVC50-5/ GVC35-5 MFR # 160876 Superseded: see description
3. #T-COUPLE,30" USE 160876 MFR # 160527 Superseded: see description
4. #Universal Thermocouple; 30 Inches Long; Includes Thermocouple/ Positioning Adapters; MFR # H06E404
5. #Thermocouple; Use With Gas Water Heaters And Furnaces; Probe Sensor; 30 Inch Length; Copper MFR # 1153 Superseded: see description
6. #ORIFICE,#57 11/32-32 MFR # 180194
7. #APPLIANCE COMPONENTS RV; Pilot Orifice MFR # 160659
8. #Furnace Pilot Regulator; For Suburban Furnaces MFR # 160556
9. #MOUNTING BRACKETMEDIUM1220 AMP MFR # 10532
10. #VALVE KIT NT12C BASO TROL #G92SGD-1 MFR # 520428
11. #VALVE USE 520428 MFR # 160657 Superseded: see description
12. #PILOT BURNER MFR # 160618
13. #BURNER ASM MFR # 140091
14. #BURNER ASM W/AIR SHUTTER ROD MFR # 10519
15. #WINCH HANDLE #6307 MFR # 70304
16. #303 MARINE TOUCHLESS SEALANT 1 GAL MFR # 30399
17. #PIPE,MANIFOLD MFR # 170550
18. #ELBOW, SQUARE (1/8 NPT) MFR # 170549
19. #APPLIANCE COMPONENTS RV; Holder Orifice MFR # 170543
20. #NIPPLE PIPE MFR # 170541
21. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
22. #APPLIANCE COMPONENTS RV; Elbow 90 Deg MFR # 170082
23. #APPLIANCE COMPONENTS RV; St Ell MFR # 170012
24. #NIPPLE, PIPE (3/8" x 4 1/4" BLACK IRON) MFR # 170353
25. #VALVE,SHUT OFF MFR # 160683

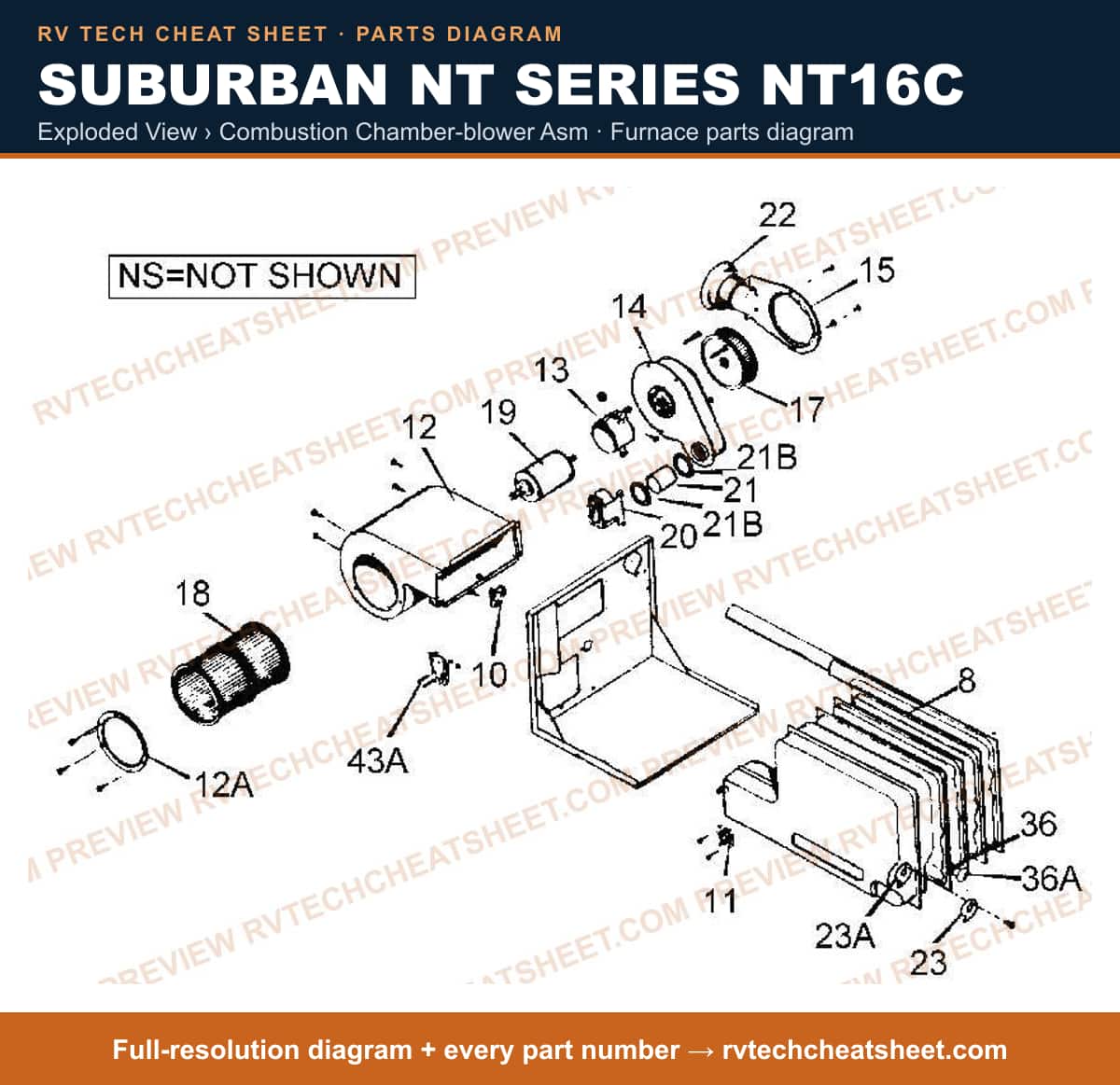

Exploded View › Combustion Chamber-blower Asm

Components

26 items

1. #CHAMBER,COMBUSTION NT16 F MFR # 110338
2. #SWITCH,LIMIT MFR # 230303
3. #APPLIANCE COMPONENTS RV; Fan Switch MFR # 230316
4. #HOUSING BLOWER ASSY MFR # 390070
5. #RING,BLOWER INLET NT16 C MFR # 390078
6. #MOUNT,MOTOR USE 92622 NT12C/16C MFR # 61873 Superseded: see description
7. #10-INCH 4-OHM MARINE SUBWOOFER MFR # 92622
8. #N/A HOUSING,COMBUSTION AIR BLOWER MFR # 390209
9. #SCOOP,AIR INTAKE ASSM NT12 /16 MFR # 62046
10. #WHEEL,COMBUSTION MFR # 350063
11. #N/A WHEEL,BLOWER MFR # 350066
12. #MOTOR USE 45-7262 MFR # 520388 Superseded: see description
13. #MOTOR F/SELECT SUBURBAN NT16/17 FURNACES, INSTAMATIC MFR # 230291
14. #THERMOSTAT RELAY MFR # 230423
15. ##1004 BULB 13 LED SW 12V MFR # 50474
16. #GASKET,CROSSOVER TUBE MFR # 70412
17. #TUBE FOR GASKET USE 70412 MFR # 70290 Superseded: see description
18. #CUP INTAKE AIR MFR # 290107
19. #APPLIANCE COMPONENTS RV; Hole Cover MFR # 290117
20. #APPLIANCE COMPONENTS RV;;Gskt Cov Obs Hole N /L/A MFR # S6U70367
21. #ROD, RESET BUTTON MFR # 140114
22. #APPLIANCE COMPONENTS RV;;Knob Blk Pilot Reset MFR # S6U140093
23. #APPLIANCE COMPONENTS RV; Sail Sw - Nla MFR # 230448
24. #AC/DC CONVERTER PACKAGE (NDP-24) MFR # 520011S
25. #BRACKET, CROSSOVER TUBE MFR # 62222
26. #BLOWER ASSY, COMPLETE MFR # 520028
