Suburban Nt Series NT16L Parts Diagram · Exploded View › Burner Assembly

Furnace · 4 assemblies · 4 diagram sheets · 103 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT16L RV furnace: 4 assemblies (Exploded View › Burner Assembly, Exploded View › Cabinet Assembly, Exploded View › Combustion Chamber, Replacement Furnace) and 103 manufacturer part numbers. 15 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Exploded View › Burner Assembly

Components

32 items

1. #Igniter Electrode;;For Suburban Furnace NT-12/ NT-16/ NT-12L/ NT-16L/ NT12LE/ NT16LE/ NT12S/ NT16S/ MFR # SBB230615
2. #APPLIANCE COMPONENTS RV;;Screw 8-32 X 3/8 Hex Hd MFR # S6U121407
3. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
4. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
5. #5 WIRE FLAT VEHICLE END MFR # 30485
6. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
7. #Furnace Access Door Sight Glass; Replacement For Suburban Furnace NT-Series/ P-45M/ P-45S MFR # 310026
8. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
9. #APPLIANCE COMPONENTS RV; Cover Plate MFR # 290120
10. #REPLMT METAL SOCKET MFR # 10595
11. #Furnace Burner Orifice; For Suburban NT16S/ NT16SE/ NT16SQ/ NT16SEQ Series Furnace; #56 MFR # 180224
12. #MANIFOLD, GAS INLET MFR # 170779
13. #FITTING MFR # 170527
14. #Furnace Gasket; Furnace Manifold Gasket; Fits Suburban Furnace NT-12S/ NT-16S/ NT-16SE/ NT-16SQ/ NT-20S/ NT-20SE/ NT-20SQ MFR # 70449
15. #MANIFOLD ASSY W/ORIFICE (NT-16L) MFR # 170801
16. #VALVE,GAS MFR # 160911
17. #VALVE, GAS USE 161123 MFR # 161078 Superseded: see description
18. #VALVE,GAS USE 161078 MFR # 160832 Superseded: see description
19. #VALVE, FENWAL MFR # 160803
20. #SUBURBAN VALVE MFR # 161123
21. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
22. #VALVE KIT USE 160911 & 170545 MFR # 520423 Superseded: see description
23. #VALVE,GAS USE 520423 W/MANIFOLD MFR # 160781 Superseded: see description
24. #COUPLING MFR # 170522
25. #VALVE, MANUAL SHUT OFF MFR # 160782
26. #ROD, SHUT-OFF VALVE MFR # 140153
27. #KNOB, SHUT-OFF VALVE MFR # 140151
28. #COTTER PIN MFR # 121352
29. #WIRE, IGNITION USE 318060002 MFR # 230350 Superseded: see description
30. #WIRE,HIGH VOLTAGE USE 231713 MFR # 318060002 Superseded: see description
31. #APPLIANCE COMPONENTS RV; Wire Electrode - N.L.A. MFR # 231713
32. #MANIFOLD ASM. COMPLETE W/VALVE NT-16L MFR # 170639

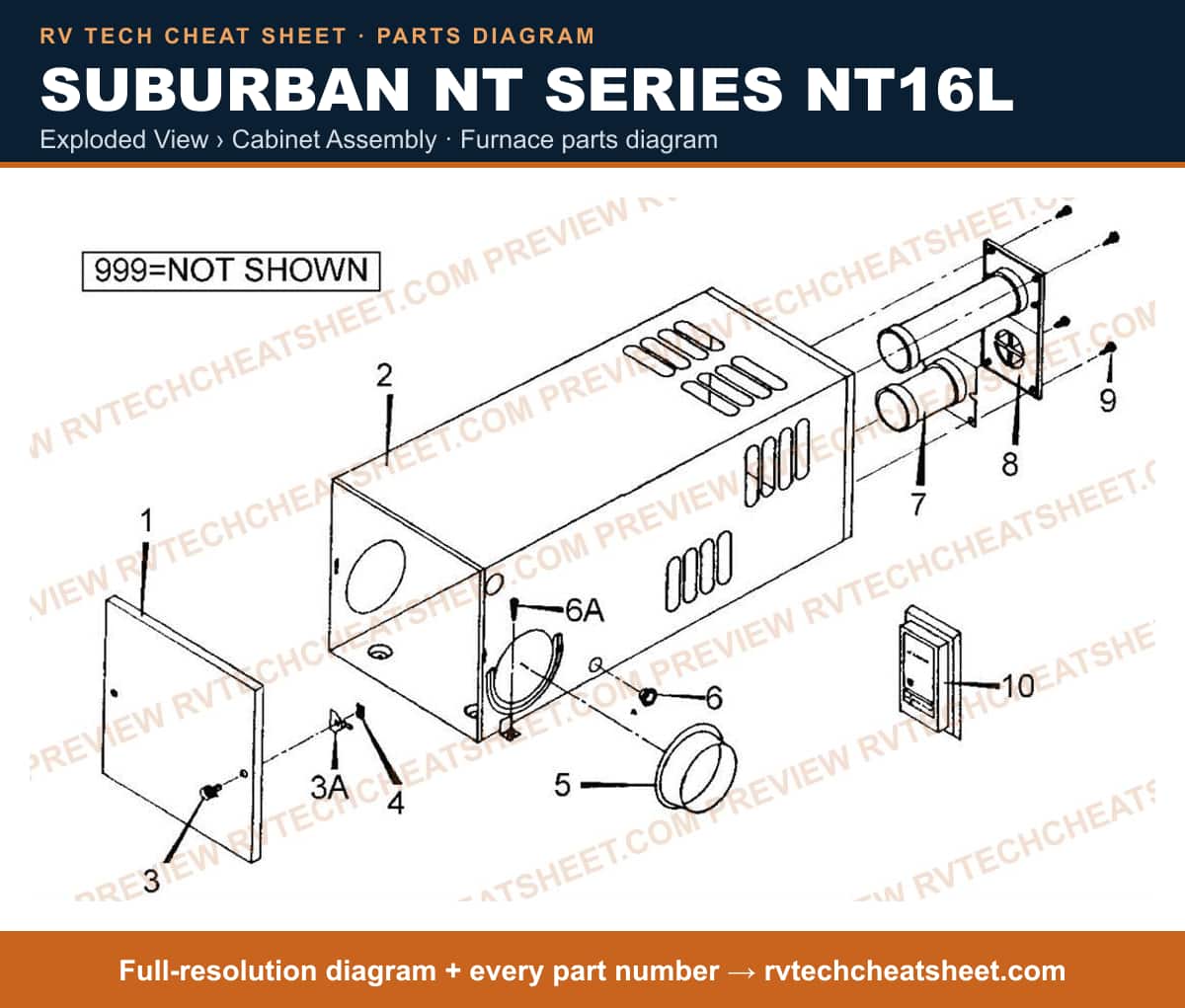

Exploded View › Cabinet Assembly

Components

25 items

1. #FRONT, CABINET MFR # 100889
2. #CABINET ASSY MFR # 100890
3. #KNOB MFR # 140149
4. #LATCH,CABINET FRONT NT24 M MFR # 62230
5. #NUT,TINNERMAN 1/4 X 1/4 MFR # 121395
6. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
7. #APPLIANCE COMPONENTS RV; Screw 10 X 3/4 Ph Ph MFR # 121224
8. #APPLIANCE COMPONENTS RV; BUSHING UNIV MFR # 70486
9. #NR616319BWH WHITE BASE MFR # 50603
10. #TUBE INTAKE MFR # 052162
11. #NR61633030 MOUNTING MFR # 50605
12. ##T5-12 TUBE 30 LED SW MFR # 50708
13. #APPLIANCE COMPONENTS RV; Tube Exh Int MFR # 50454
14. #Furnace Vent; For Suburban Furnace NT-12S/ NT-12SE/ NT-16S/ NT-16SE/ NT-20S/ NT-20SE; Exhaust Vent Cap; With Vent Extension Tube MFR # 260098
15. #Screw; For Suburban Furnace Exhaust Vent; 8 X 3-1/4; Set Of 2 MFR # 121711
16. #VENT CAP/RANGE SHIELD MFR # 260572
17. #Wall Thermostat; Single Stage; Snap-Action; Low Voltage; Heat Only; 24 Volt; White MFR # 01C20102S1
18. #Wall Thermostat; Single Stage; For Heat/ Cool Control; Mechanical Readout; 12 Volt; Without Fan Speed Control; Without Fan On Mode MFR # 100402
19. #Wall Thermostat; Heat Only; Mechanical; 1 Stage; White; MFR # 1C20101
20. #T-STAT,WALL USE 100402 MFR # 60A140003 Superseded: see description
21. #Wall Thermostat; Single Stage; For Heat And Cool Control; Programmable; Digital Display; 24 Volt; Battery Powered MFR # 1F87R875
22. #T-STAT USE 100402 MFR # 160814 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Thermostat 3 Day Program MFR # 1F80R850
24. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 050733
25. #CABINET FRONT ASM. (INCL. 1, 3, 3A, 4) MFR # 100926

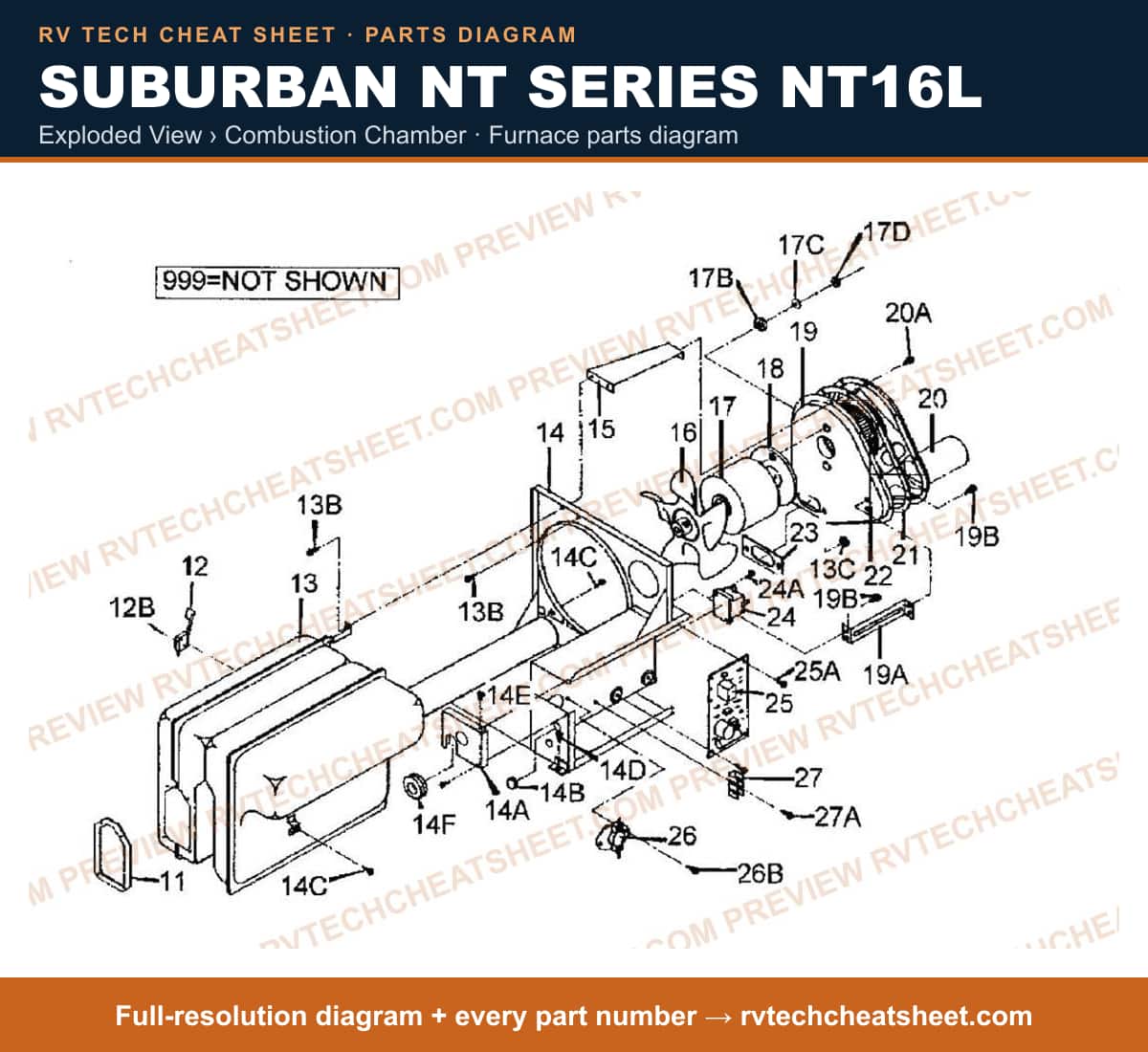

Exploded View › Combustion Chamber

Components

46 items

1. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
2. #GASKET,BURNER USE 71076 MFR # 70398 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Sail Sw MFR # 230638
4. #SCREW MFR # 121451
5. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
6. #CHAMBER MFR # 20839
7. #ELBOW 90 DEGREE 1" MFR # 70466
8. #RADIATION SHIELD BACKWALL ASSY MFR # 110373
9. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
10. #GROMMET MFR # 90432
11. #COVER, CONTROL BOX MFR # 110372
12. #APPLIANCE COMPONENTS RV; BRKT HSG COMB AIR MTG MFR # 62290
13. #Furnace Room Air Impeller; For Suburban Furnace NT-12S/ NT-16S/ NT-20S/ NT-12SE/ NT-16SE/ NT-20SE MFR # 350083
14. #APPLIANCE COMPONENTS RV; Washer Flat 7/32Idx1/2Od MFR # 120684
15. #Furnace Motor Mounting Grommet; Replacement For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; Rubber MFR # 530089
16. #MOTOR USE 232878 MFR # 230634 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Motor MFR # 232878
18. #APPLIANCE COMPONENTS RV; Nut 10-32 Hex Lock MFR # 120716
19. #Furnace Gasket; Furnace Motor Gasket; Fits Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE MFR # 70448
20. #Furnace Combustion Air Housing; Replacement For Suburban NT12/ NT16/ NT20 Series Furnaces MFR # 390223
21. #APPLIANCE COMPONENTS RV; BRKT COMB AIR HSG MFR # 62392
22. #Furnace Combustion Air Housing Cover; For Suburban Furnace NT-12/ NT-16/ NT-20 Series MFR # 390222BK
23. #BOX,COMBUSTION AIR USE 390222BK MFR # 390222 Superseded: see description
24. #Furnace Gasket; Furnace Combustion Air Box Gasket; Fits Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE MFR # 70446
25. #Furnace Combustion Wheel; For Suburban Furnace NT-12S/ NT-12SE/ NT-16S/ NT-16SE/ NT-20S/ NT-20SE MFR # 350082
26. #APPLIANCE COMPONENTS RV; Gskt Burner Tunnel MFR # 70450
27. #APPLIANCE COMPONENTS RV; Screw 6 X 5/8 Ph Ph MFR # 121357
28. #Furnace Time Delay Relay; For Suburban Furnace NT-12S/ NT-16S/ NT-20S/ NT-12SE/ NT-16SE/ NT-20SE/ NT-25/ NT-30/ NT-35/ SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40 (NT24/30/34 S And SP Only Above Serial Number 1600851); 12 Volt MFR # 521069
29. #APPLIANCE COMPONENTS RV; Relay MFR # 230625
30. #Furnace Wiring Harness; For Suburban Furnace DD17DSI/ NT-Series MFR # 232161
31. #UNIVERSAL IGN BRD LARGE MFR # UIBL
32. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
33. #UIB WITH FAN CONTROL MFR # FAN50PLUS
34. #COVER FOR UIB S MFR # SMALLCOVER
35. #BOARD,MODULE USE 520741 (05152435103) MFR # 230587 Superseded: see description
36. #UNIVERSAL IGN BRD SMALL MFR # UIBS
37. #Ignition Control Circuit Board Cover; Replacement For Dinosaurs Universal Igniter Boards; Large; White; Fire Retardant ABS Plastic MFR # LCVR
38. #UIB S WITH POST TOP MFR # UIBSPOST
39. #UIB L WITH POST TOP MFR # UIBLPOST
40. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
41. #LIMIT SW MFR # 233484
42. #Furnace Limit Switch; For Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S MFR # 230621
43. #SCREW #6 x 1/4 (2 REQ.) MFR # 120714
44. #GATEKING-F150 (04-14) MFR # 230714
45. #PLUG BUTTON MFR # 70438
46. #Nut; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; Fits Furnace Combustion Air Housing; Locking; #10-24 Thread Size MFR # 120717

Replacement Furnace

Components

3 items

1. #Furnace; NT-SQ Series; LP Gas; 16,000 BTU; Side/ Top And Bottom Duct Discharge; 2.8 Amp Draw; 9-3/8 Inch Width x 9-1/2 Inch Height x 22-1/2 Inch Depth; 25.5 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly MFR # 2444A
2. #HEATERS & FURNACES RV; Nt-16Sq 16 000 Suburban H MFR # NT16SN
3. #Furnace; LP Gas; 16000 BTU; 2.8 Amp Draw; 9-3/8 Inch Height x 9-3/8 Inch Width x 21-1/8 Inch Depth; 22 Pounds; Energy Saving Electronic Ignition MFR # NT16SEN
