Suburban Nt Series NT16MEP Parts Diagram · Exploded View › Combustion Chamber-blower Asm

Furnace · 4 assemblies · 4 diagram sheets · 49 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT16MEP RV furnace: 4 assemblies (Exploded View › Combustion Chamber-blower Asm, Exploded View › Cabinet Assembly, Exploded View › Burner Assembly, Replacement) and 49 manufacturer part numbers. 12 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Exploded View › Combustion Chamber-blower Asm

Components

2 items

1. #USE 79-1806 MFR # NT12SN Superseded: see description
2. #USE 79-1814 MFR # NT12SEN Superseded: see description

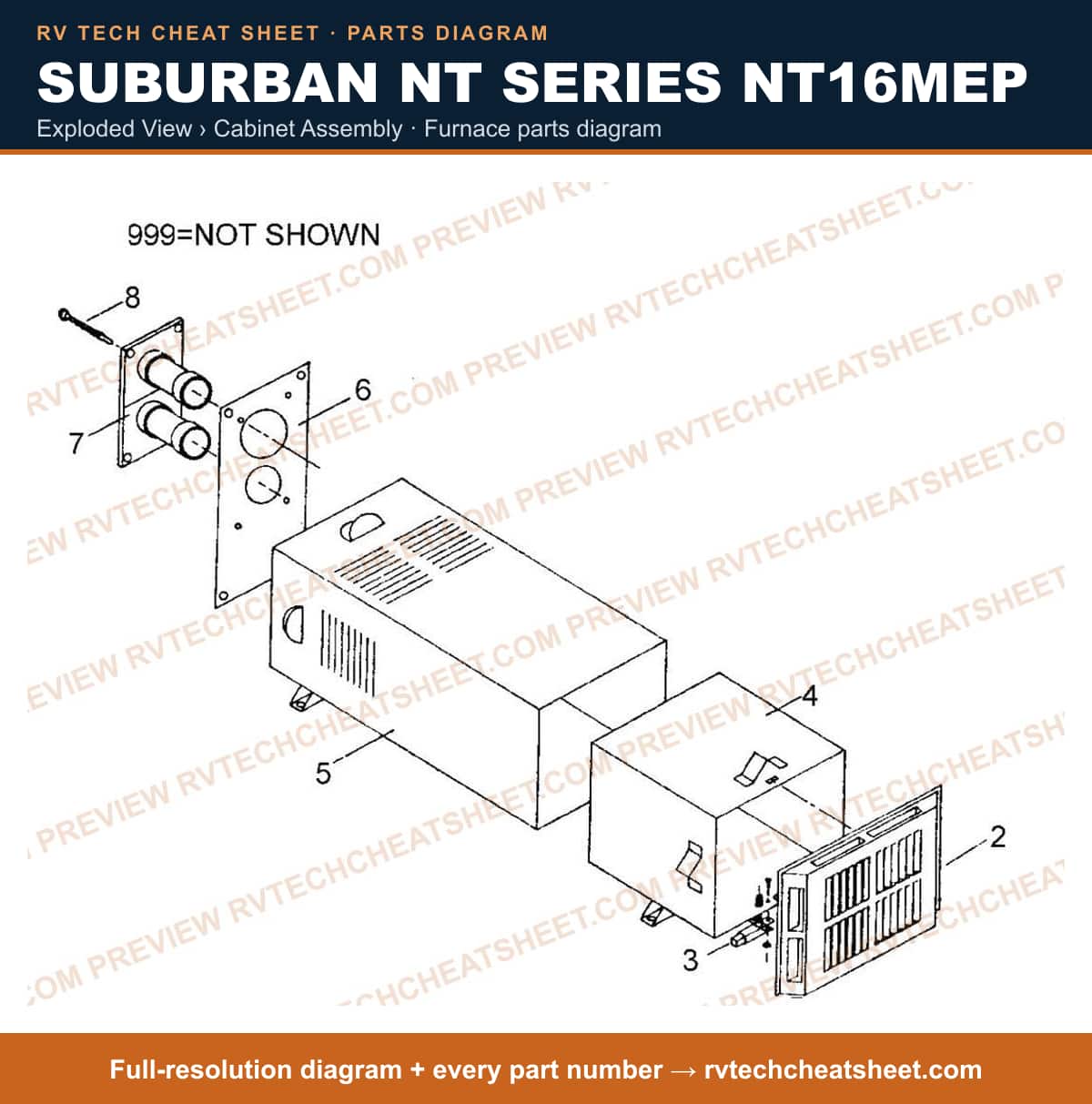

Exploded View › Cabinet Assembly

Components

13 items

1. #IGNITER,PIEZO MEC MFR # 230573
2. #EXTENSION FRONT DISCHARGE ASSY MFR # 100869
3. #CABINET ASSY MFR # 100865
4. #APPLIANCE COMPONENTS RV; TEMPLATE VENT CAP MFR # 100852
5. #CAP,VENT USE 260126 NT16F MFR # 260097 Superseded: see description
6. #VENT CAP USE 260541 MFR # 260126 Superseded: see description
7. #Furnace Vent; For Suburban Furnace NT-Series MFR # 260541
8. #SCREW #8 X 1 3/4" MFR # 120725
9. #T-STAT USE 100502 MFR # 66M010000 Superseded: see description
10. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
11. #T-STAT USE 100502 *N* MFR # 160850 Superseded: see description
12. #Water Heater Gas Valve; For Uni-Line 110 Series; 1/2 Inch Inlet x 1/2 Inch Outlet; 50 To 90 Degrees MFR # 100502
13. #T-STAT MFR # 160616

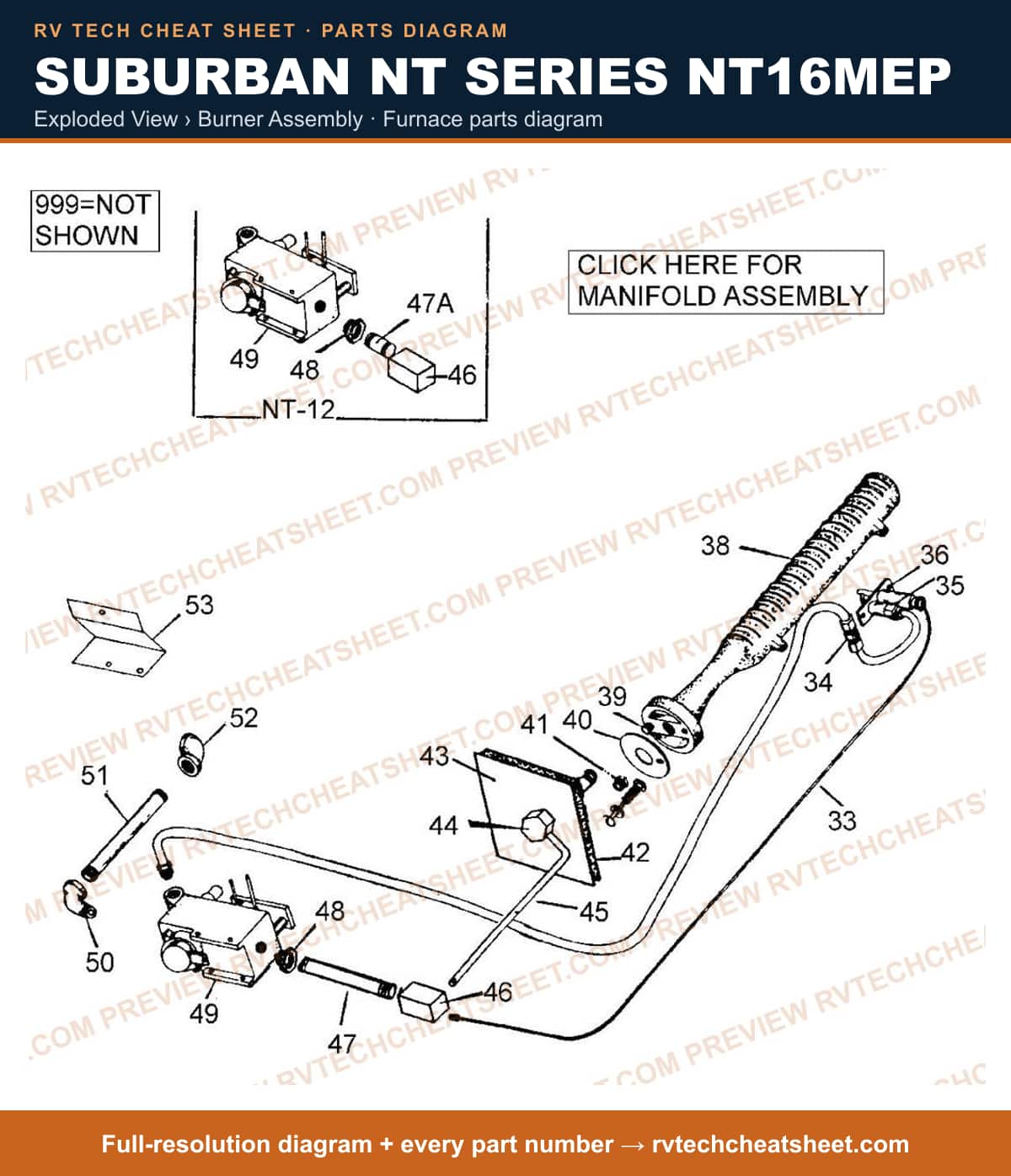

Exploded View › Burner Assembly

Components

31 items

1. #Universal Thermocouple; 30 Inches Long; Includes Thermocouple/ Positioning Adapters; MFR # H06E404
2. #Thermocouple; Use On Water Heater Models GVR65N/ GVR65BN/ GVR50N/ GVR50BN/ GVR35N/ GVR65P/ GVR65BP/ GVR50P/ GVR50BP/ GVR35P/ GVR65-5/ GVR50-5GVR35-5GVR65-5S/ GVR50-5S/ GVR35-5S/ GVC65N/ GVC65P/ GVC50N/ GVC50P/ GVC35N/ GVC35P/ GVC65-5/ GVC50-5/ GVC35-5 MFR # 160876 Superseded: see description
3. #Thermocouple; Use With Gas Water Heaters And Furnaces; Probe Sensor; 30 Inch Length; Copper MFR # 1153 Superseded: see description
4. #T-COUPLE,30" USE 160876 MFR # 160527 Superseded: see description
5. #Furnace Pilot Regulator; For Suburban Furnaces MFR # 160556
6. #APPLIANCE COMPONENTS RV; Pilot Orifice MFR # 160659
7. #PILOT BURNER MFR # 160618
8. #MOUNTING BRACKETMEDIUM1220 AMP MFR # 10532
9. #BURNER ASM W/AIR SHUTTER ROD MFR # 10519
10. #BURNER ASM MFR # 140091
11. #ORIFICE,#57 11/32-32 MFR # 180194
12. #WINCH HANDLE #6307 MFR # 70304
13. #303 MARINE TOUCHLESS SEALANT 1 GAL MFR # 30399
14. #APPLIANCE COMPONENTS RV; Holder Orifice MFR # 170543
15. #PIPE,MANIFOLD MFR # 170550
16. #ELBOW, SQUARE (1/8 NPT) MFR # 170549
17. #APPLIANCE COMPONENTS RV;;Close Nipple MFR # S6U170546
18. #NIPPLE PIPE MFR # 170541
19. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
20. #VALVE KIT NT12C BASO TROL #G92SGD-1 MFR # 520428
21. #VALVE USE 520428 MFR # 160657 Superseded: see description
22. #NIPPLE 3/8 X 1- 1/2" MFR # 170466
23. #NIPPLE, PIPE (3/8" x 4 1/4" BLACK IRON) MFR # 170353
24. #APPLIANCE COMPONENTS RV; Elbow 90 Deg MFR # 170082
25. #SUPPORT, VALVE ASSY MFR # 61870
26. #APPLIANCE COMPONENTS RV; Knob Blk Pilot Reset MFR # 140093
27. #ROD, RESET BUTTON MFR # 140114
28. #VALVE,SHUT OFF MFR # 160683
29. #COMPLETE MANIFOLD ASSEMBLY MFR # 170551
30. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
31. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description

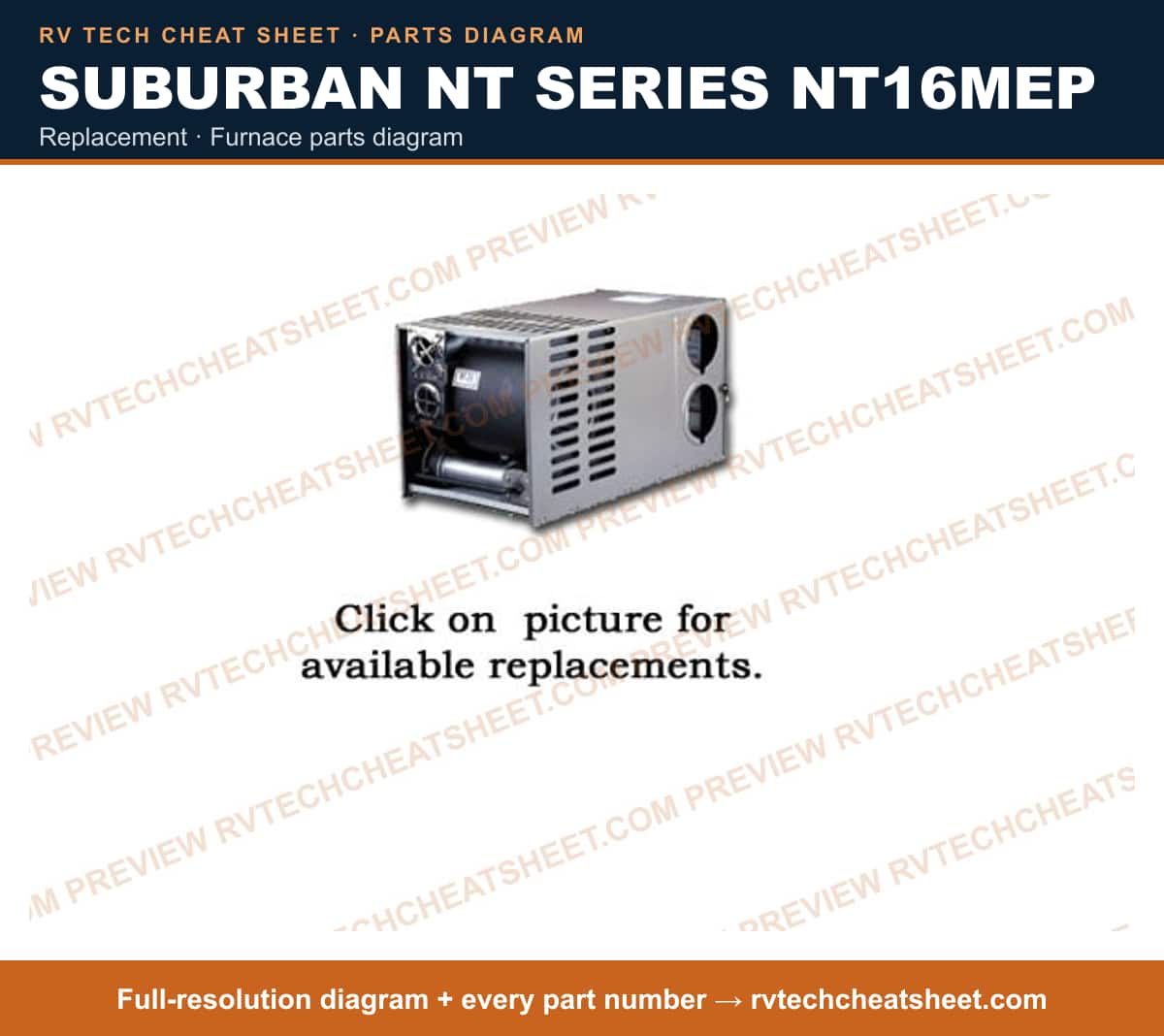

Replacement

Components

3 items

1. #Furnace; NT-SQ Series; LP Gas; 16,000 BTU; Side/ Top And Bottom Duct Discharge; 2.8 Amp Draw; 9-3/8 Inch Width x 9-1/2 Inch Height x 22-1/2 Inch Depth; 25.5 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly MFR # 2444A
2. #Furnace; LP Gas; 16000 BTU; 2.8 Amp Draw; 9-3/8 Inch Height x 9-3/8 Inch Width x 21-1/8 Inch Depth; 22 Pounds; Energy Saving Electronic Ignition MFR # NT16SEN
3. #HEATERS & FURNACES RV; Nt-16Sq 16 000 Suburban H MFR # NT16SN
