Suburban Nt Series NT17C Parts Diagram · Exploded View › Cabinet Assembly

Furnace · 5 assemblies · 5 diagram sheets · 61 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT17C RV furnace: 5 assemblies (Exploded View › Cabinet Assembly, Exploded View › Burner Assembly, Exploded View › Combustion Chamber Assembly, Exploded View › Blower Assembly, Replacement) and 61 manufacturer part numbers. 12 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Exploded View › Cabinet Assembly

Components

18 items

1. #SIDE MOUNT BOLT-LONG STUD MFR # 30400
2. #FRONT, OUTER CABINET MFR # 100580
3. #GRILLE,FRONT USE 30400 MFR # 30402 Superseded: see description
4. #FLANGE, ADAPTOR, D.D. GRILLE MFR # 100669
5. #CABINET OUTER ASSY (ALT REP FOR X100740) MFR # 100575
6. #BACK, CABINET (ALT REP FOR X061814) MFR # 100576
7. #VENT CAP USE 260541 MFR # 260126 Superseded: see description
8. #CAP VENT MFR # 260087
9. #Furnace Vent; For Suburban Furnace NT-Series MFR # 260541
10. #ADAPTER FOR VENT CAP MFR # 62123
11. #LINER, CABINET MFR # 110224
12. #LINER, BOTTOM MFR # 110239
13. #T-STAT USE 100502 *N* MFR # 160850 Superseded: see description
14. #T-STAT USE 100502 MFR # 66M010000 Superseded: see description
15. #T-STAT MFR # 160616
16. #Water Heater Gas Valve; For Uni-Line 110 Series; 1/2 Inch Inlet x 1/2 Inch Outlet; 50 To 90 Degrees MFR # 100502
17. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
18. #32646 BUG BUST BI-LING 32OZ MFR # 50558

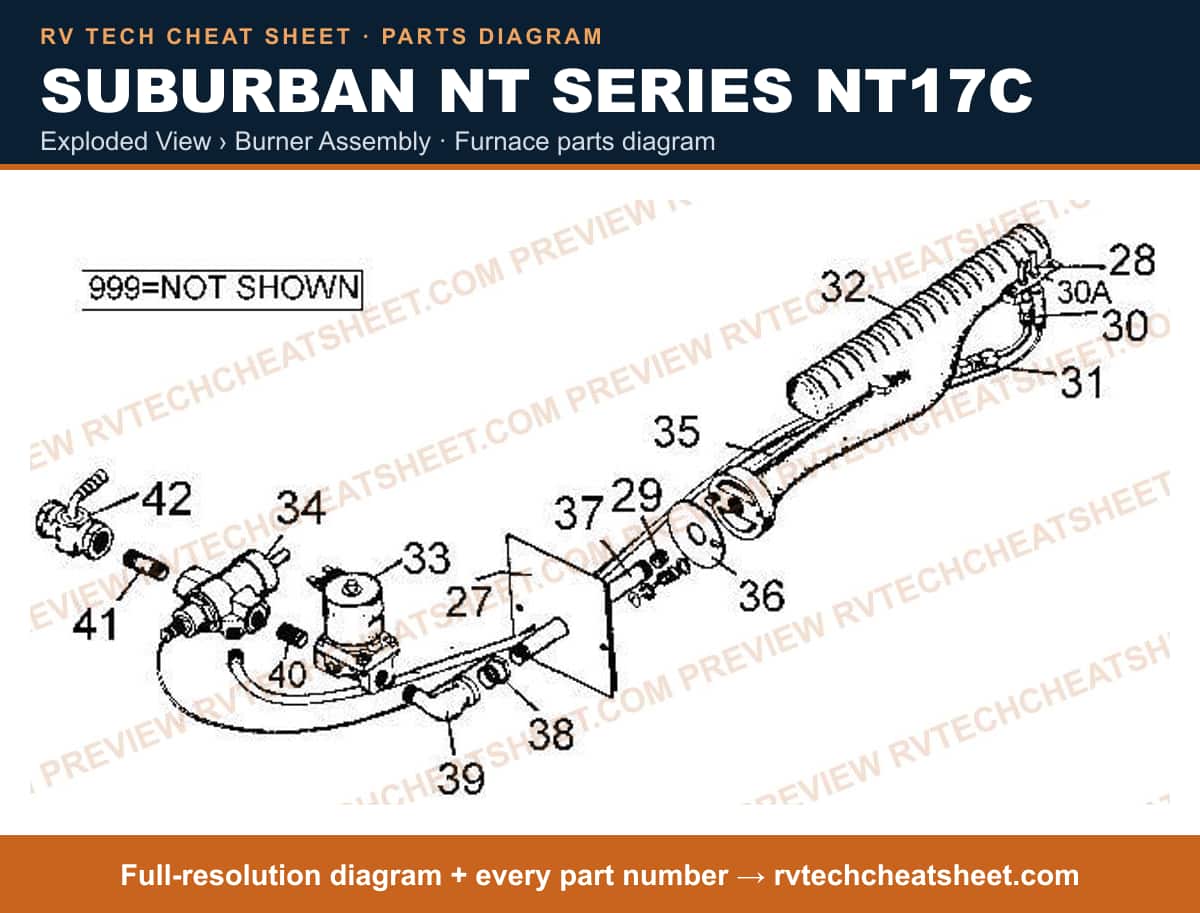

Exploded View › Burner Assembly

Components

20 items

1. #DOOR,COMBUSTION MFR # 30396
2. #Thermocouple; Use With Gas Water Heaters And Furnaces; Probe Sensor; 30 Inch Length; Copper MFR # 1153 Superseded: see description
3. #Thermocouple; Use On Water Heater Models GVR65N/ GVR65BN/ GVR50N/ GVR50BN/ GVR35N/ GVR65P/ GVR65BP/ GVR50P/ GVR50BP/ GVR35P/ GVR65-5/ GVR50-5GVR35-5GVR65-5S/ GVR50-5S/ GVR35-5S/ GVC65N/ GVC65P/ GVC50N/ GVC50P/ GVC35N/ GVC35P/ GVC65-5/ GVC50-5/ GVC35-5 MFR # 160876 Superseded: see description
4. #Universal Thermocouple; 30 Inches Long; Includes Thermocouple/ Positioning Adapters; MFR # H06E404
5. #T-COUPLE,30" USE 160876 MFR # 160527 Superseded: see description
6. #ORIFICE MFR # 180113
7. #APPLIANCE COMPONENTS RV; Pilot Orifice MFR # 160659
8. #BURNER, PILOT MFR # 160535
9. #Furnace Pilot Regulator; For Suburban Furnaces MFR # 160556
10. #BURNER NT17C MFR # 10531
11. #VALVE USE 520402 MFR # 160650 Superseded: see description
12. #VALVE MFR # 160654
13. #BURNER ASM W/AIR SHUTTER ROD MFR # 10519
14. #BURNER ASM MFR # 140091
15. #PIPE, MANIFOLD 1/4 X4 1/2 " MFR # 170339
16. #3/8 Inch x 1/4 Inch HEX BUSHING MFR # 170280
17. #APPLIANCE COMPONENTS RV; St Ell MFR # 170012
18. #APPLIANCE COMPONENTS RV; NIPPLE 3/8 NPT X 1 MFR # 170278
19. #NIPPLE 3/8 X 1 1/2 MFR # 170281
20. #VALVE,SHUT OFF MFR # 160683

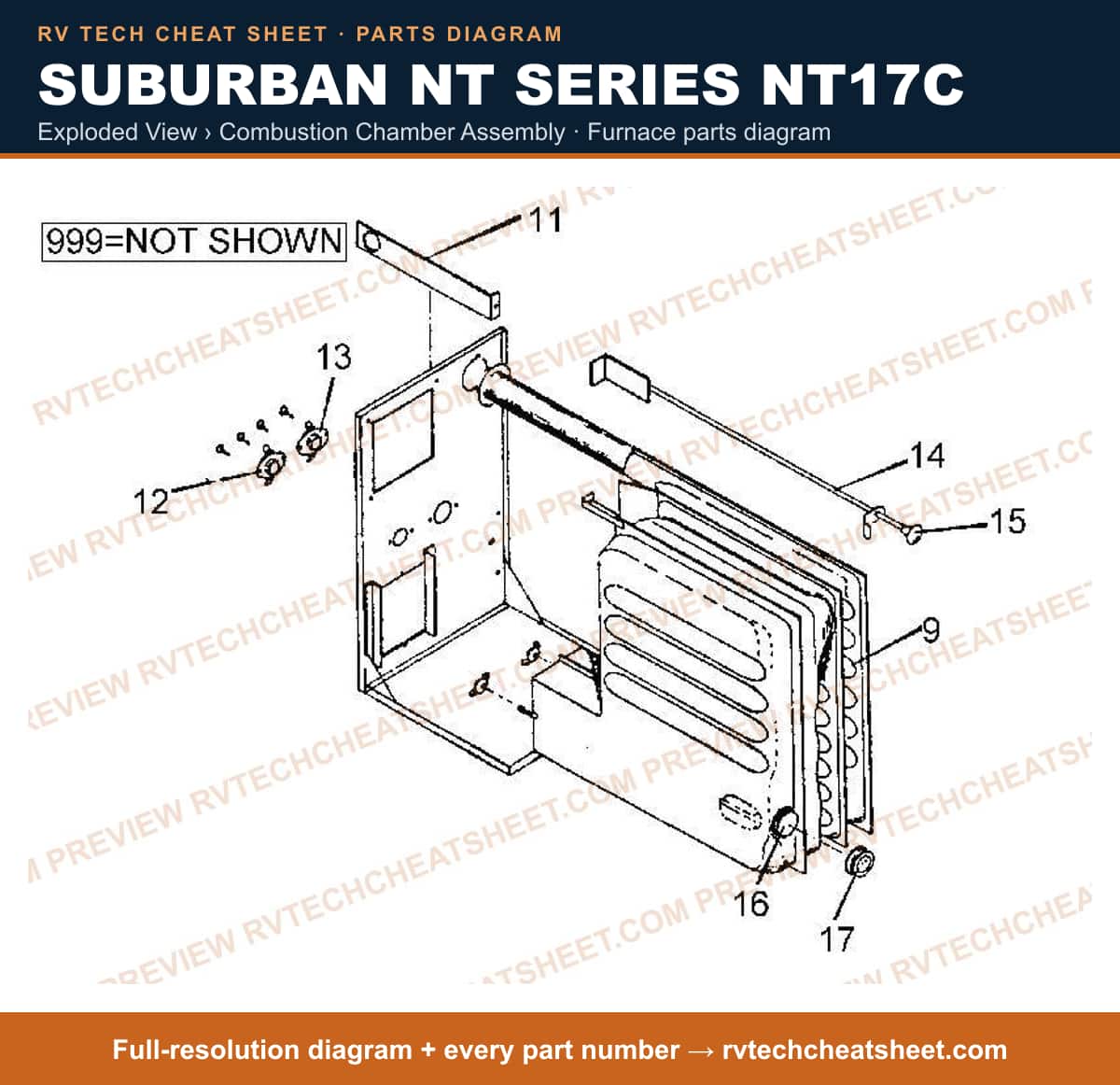

Exploded View › Combustion Chamber Assembly

Components

6 items

1. #IF AT FIRST YOU DON'T SUCCEED SHOOT AGAIN HITCH COVER MFR # 61815
2. #APPLIANCE COMPONENTS RV; Switch Limit MFR # 160584
3. #SWITCH,FAN MFR # 230292
4. #ROD, RESET BUTTON MFR # 140110
5. #APPLIANCE COMPONENTS RV; Knob Blk Pilot Reset MFR # 140093
6. #CAP,LIGHTER MFR # 290110

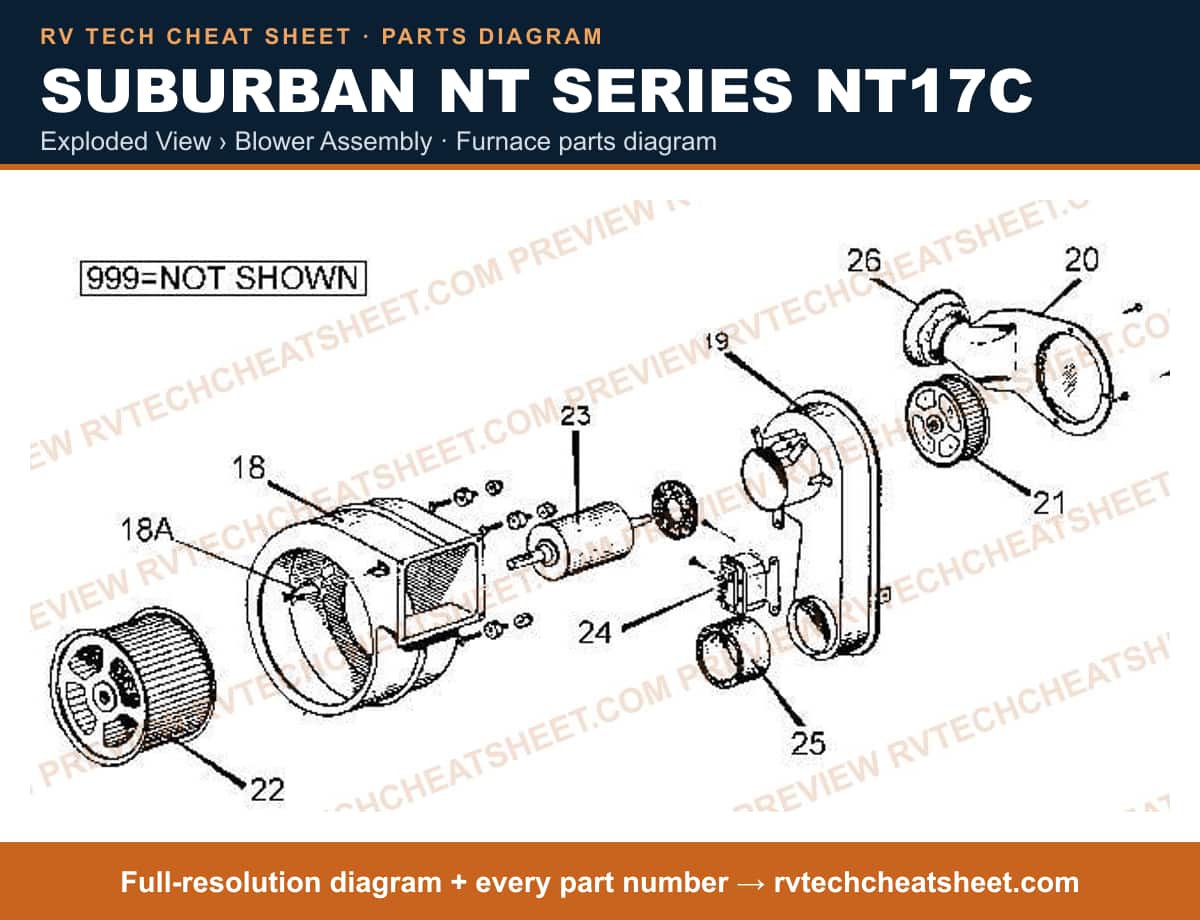

Exploded View › Blower Assembly

Components

14 items

1. #HOUSING, BLOWER ASSY MFR # 390064
2. #SWITCH,SAIL MFR # 230444
3. #HOUSING, COMBUSTION AIR BLOWER MFR # 390062
4. #SCOOP,AIR INTAKE MFR # 61789
5. #N/A WHEEL,COMBUSTION AIR BLOWER MFR # 340063
6. #WHEEL, CIRCULATING BLOWER MFR # 340064
7. #MOTOR F/SELECT SUBURBAN NT16/17 FURNACES, INSTAMATIC MFR # 230291
8. #MOTOR USE 45-7262 MFR # 520388 Superseded: see description
9. #THERMOSTAT RELAY MFR # 230423
10. #4X4 RIDE RITE F250/350 05 MFR # 2400
11. #TUBE,CROSSOVER USE 50A 1 3/4" X 2 1/2" MFR # 50588 Superseded: see description
12. #TUBE,CROSSOVER USE 2400 2.5 X 1.75 MFR # 50A Superseded: see description
13. #CUP INTAKE AIR MFR # 290107
14. #CUP,VACUUM USE 290107 MFR # 290104 Superseded: see description

Replacement

Components

3 items

1. #HEATERS & FURNACES RV; Nt-16Sq 16 000 Suburban H MFR # NT16SN
2. #Furnace; NT-SQ Series; LP Gas; 16,000 BTU; Side/ Top And Bottom Duct Discharge; 2.8 Amp Draw; 9-3/8 Inch Width x 9-1/2 Inch Height x 22-1/2 Inch Depth; 25.5 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly MFR # 2444A
3. #Furnace; LP Gas; 16000 BTU; 2.8 Amp Draw; 9-3/8 Inch Height x 9-3/8 Inch Width x 21-1/8 Inch Depth; 22 Pounds; Energy Saving Electronic Ignition MFR # NT16SEN
