Suburban Nt Series NT20LE Parts Diagram · Exploded View › Cabinet Assembly

Furnace · 4 assemblies · 4 diagram sheets · 88 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT20LE RV furnace: 4 assemblies (Exploded View › Cabinet Assembly, Exploded View › Combustion Chamber-blower Asm, Exploded View › Burner Assembly, Replacement Furnace) and 88 manufacturer part numbers. 16 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

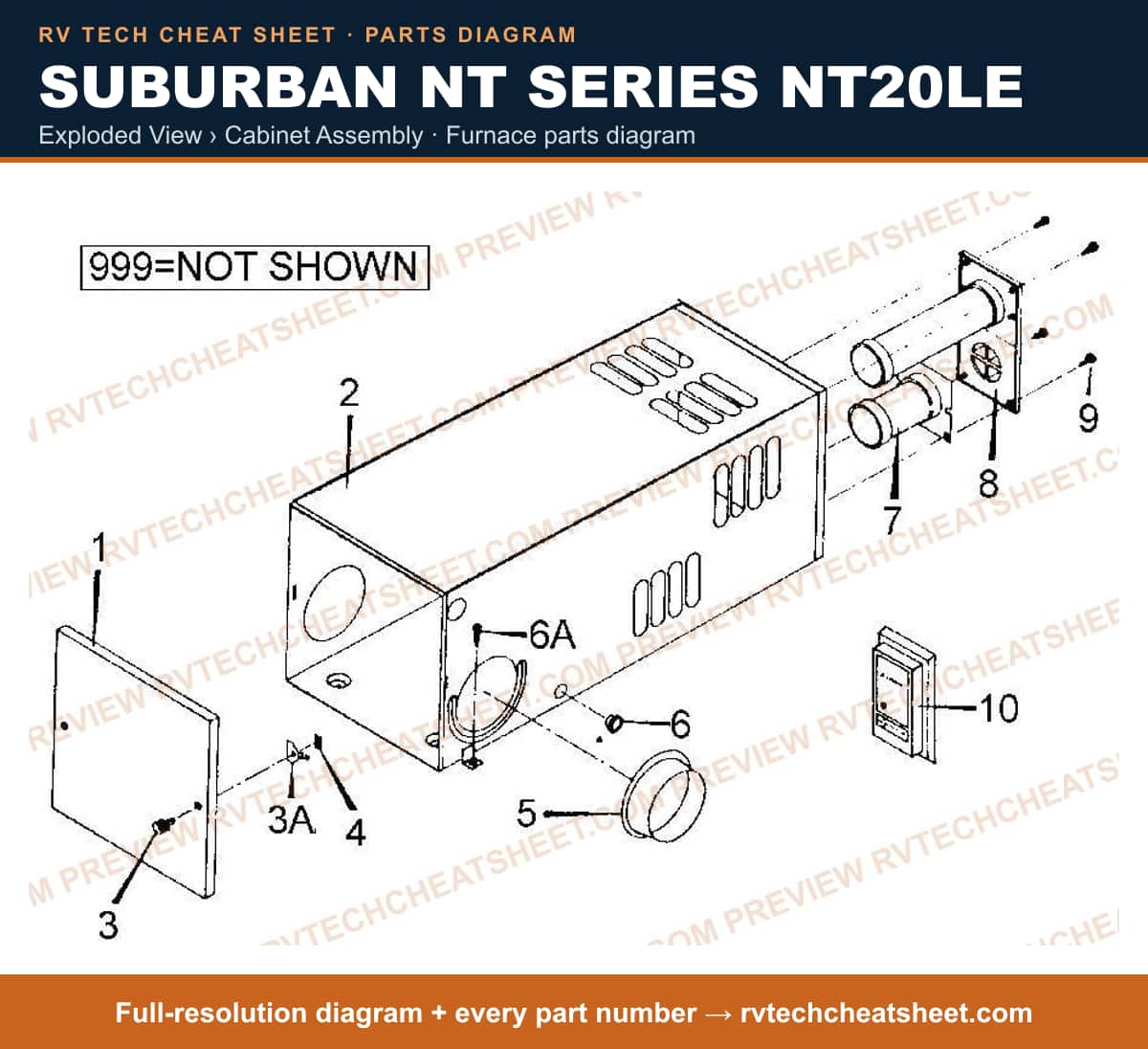

Exploded View › Cabinet Assembly

Components

17 items

1. #FRONT,CABINET MFR # 30490
2. #CABINET ASSEMBLY MFR # 100885
3. #NUT, #8-32 HEX LOCK (4 REQUIRED) MFR # 121402
4. #DOOR STRIKE MFR # 150065
5. #LATCH DOOR -NLA MFR # 150064
6. #APPLIANCE COMPONENTS RV; BUSHING UNIV MFR # 70486
7. #APPLIANCE COMPONENTS RV; Screw 10 X 3/4 Ph Ph MFR # 121224
8. #NR616319BWH WHITE BASE MFR # 50603
9. #NR61633030 MOUNTING MFR # 50605
10. #APPLIANCE COMPONENTS RV; Tube Exh Int MFR # 50454
11. #VENT CAP/RANGE SHIELD MFR # 260572
12. #Furnace Vent; For Suburban Furnace NT-12S/ NT-12SE/ NT-16S/ NT-16SE/ NT-20S/ NT-20SE; Exhaust Vent Cap; With Vent Extension Tube MFR # 260098
13. #Screw; For Suburban Furnace Exhaust Vent; 8 X 3-1/4; Set Of 2 MFR # 121711
14. #THERMOSTAT MFR # 160819
15. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
16. #32646 BUG BUST BI-LING 32OZ MFR # 50558
17. #CABINET COMPLETE ASSEMBLY (NOT SHOWN) MFR # 100927

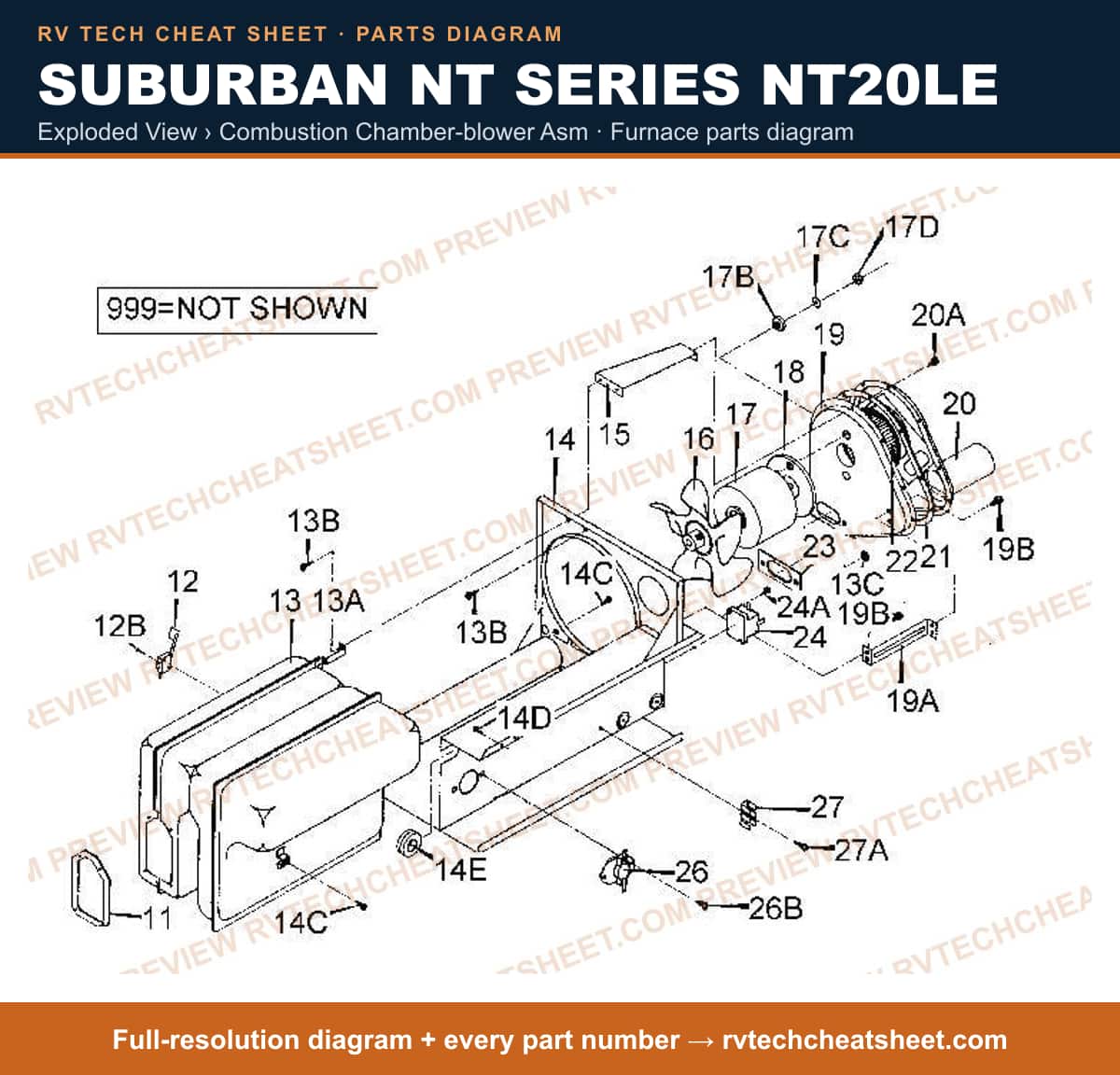

Exploded View › Combustion Chamber-blower Asm

Components

48 items

1. #GASKET,BURNER USE 71076 MFR # 70398 Superseded: see description
2. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
3. #APPLIANCE COMPONENTS RV; Sail Switch MFR # 230933
4. #APPLIANCE COMPONENTS RV; Switch Sail MFR # 230619
5. #Furnace Low Air Flow Switch; For Suburban Furnace NT-12S/ NT-12SE/ NT-16S/ NT-16SE/ NT-20S/ NT-20SE; Also Use New Number 525028 MFR # 233352 Superseded: see description
6. #SCREW MFR # 121451
7. #Furnace Low Air Flow Switch; For Suburban Furnace NT-12S/ NT-12SE/ NT-16S/ NT-16SE/ NT-20S/ NT-20SE; Also Use New Number 233352 MFR # 233100 Superseded: see description
8. #CHAMBER/SHIELD MFR # 20833
9. #Nut; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; Fits Furnace Combustion Air Housing; Locking; #10-24 Thread Size MFR # 120717
10. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
11. #CHAMBER MFR # 20839
12. #RADIATION SHIELD BACKWALL ASSEMBLY MFR # 110366
13. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
14. #APPLIANCE COMPONENTS RV; GROMMET MFR # 70243
15. #APPLIANCE COMPONENTS RV; BRKT HSG COMB AIR MTG MFR # 62290
16. #Furnace Room Air Impeller; For Suburban Furnace NT-12S/ NT-16S/ NT-20S/ NT-12SE/ NT-16SE/ NT-20SE MFR # 350083
17. #APPLIANCE COMPONENTS RV; Washer Flat 7/32Idx1/2Od MFR # 120684
18. #Furnace Motor Mounting Grommet; Replacement For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; Rubber MFR # 530089
19. #MOTOR USE 232877 MFR # 230616 Superseded: see description
20. #Furnace Motor; For Suburban Furnace NT-12S/ NT-12SE/ NT12-LE/ NT-16LE/ NT-16SE (Below Serial Number 000303844) MFR # 520949
21. #APPLIANCE COMPONENTS RV; Nut 10-32 Hex Lock MFR # 120716
22. #APPLIANCE COMPONENTS RV; Motor MFR # 232877
23. #Furnace Gasket; Furnace Motor Gasket; Fits Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE MFR # 70448
24. #Furnace Combustion Air Housing; Replacement For Suburban NT12/ NT16/ NT20 Series Furnaces MFR # 390223
25. #APPLIANCE COMPONENTS RV; BRKT COMB AIR HSG MFR # 62392
26. #BOX,COMBUSTION AIR USE 390222BK MFR # 390222 Superseded: see description
27. #Furnace Combustion Air Housing Cover; For Suburban Furnace NT-12/ NT-16/ NT-20 Series MFR # 390222BK
28. #Furnace Gasket; Furnace Combustion Air Box Gasket; Fits Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE MFR # 70446
29. #Furnace Combustion Wheel; For Suburban Furnace NT-12S/ NT-12SE/ NT-16S/ NT-16SE/ NT-20S/ NT-20SE MFR # 350082
30. #APPLIANCE COMPONENTS RV; Gskt Burner Tunnel MFR # 70450
31. #Furnace Time Delay Relay; For Suburban Furnace NT-12S/ NT-16S/ NT-20S/ NT-12SE/ NT-16SE/ NT-20SE/ NT-25/ NT-30/ NT-35/ SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40 (NT24/30/34 S And SP Only Above Serial Number 1600851); 12 Volt MFR # 521069
32. #APPLIANCE COMPONENTS RV; Screw 6 X 5/8 Ph Ph MFR # 121357
33. #APPLIANCE COMPONENTS RV; Relay MFR # 230625
34. #Furnace Limit Switch; For Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S MFR # 230621
35. #LIMIT SW MFR # 233484
36. #SCREW #6 x 1/4 (2 REQ.) MFR # 120714
37. #GATEKING-F150 (04-14) MFR # 230714
38. #COVER FOR UIB S MFR # SMALLCOVER
39. #Furnace Time Delay Relay; Replacement For Older Furnaces That Use A Standard 12 Volt DC Igniter Board; Micro Controlled; 12 Volt DC; 1-1/2 Inch x 1-1/2 Inch; 4 Second Delay; 2 Minute Cool Down Period At The End Of The Heat Cycle; Also Use New Number 12VDCTDR MFR # 48000D Superseded: see description
40. #UIB L WITH POST TOP MFR # UIBLPOST
41. #BOARD,MODULE USE 520741 (05152435103) MFR # 230587 Superseded: see description
42. #Furnace Time Delay Relay; Use With Suburban Furnace Models NT-24-S/ NT-24-SP/ NT-30-S/ NT-30-SP/ NT-34-S/ NT-40/ P-30-S/ P-40-S; 24 Volt MFR # 231202MC Superseded: see description
43. #IGNITOR BOARDS AND ACCESS MFR # 12VDCTDR
44. #Ignition Control Circuit Board Cover; Replacement For Dinosaurs Universal Igniter Boards; Large; White; Fire Retardant ABS Plastic MFR # LCVR
45. #SCREW, #8 X 3/4 MFR # 121296
46. #UIB S WITH POST TOP MFR # UIBSPOST
47. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
48. #UIB WITH FAN CONTROL MFR # FAN50PLUS

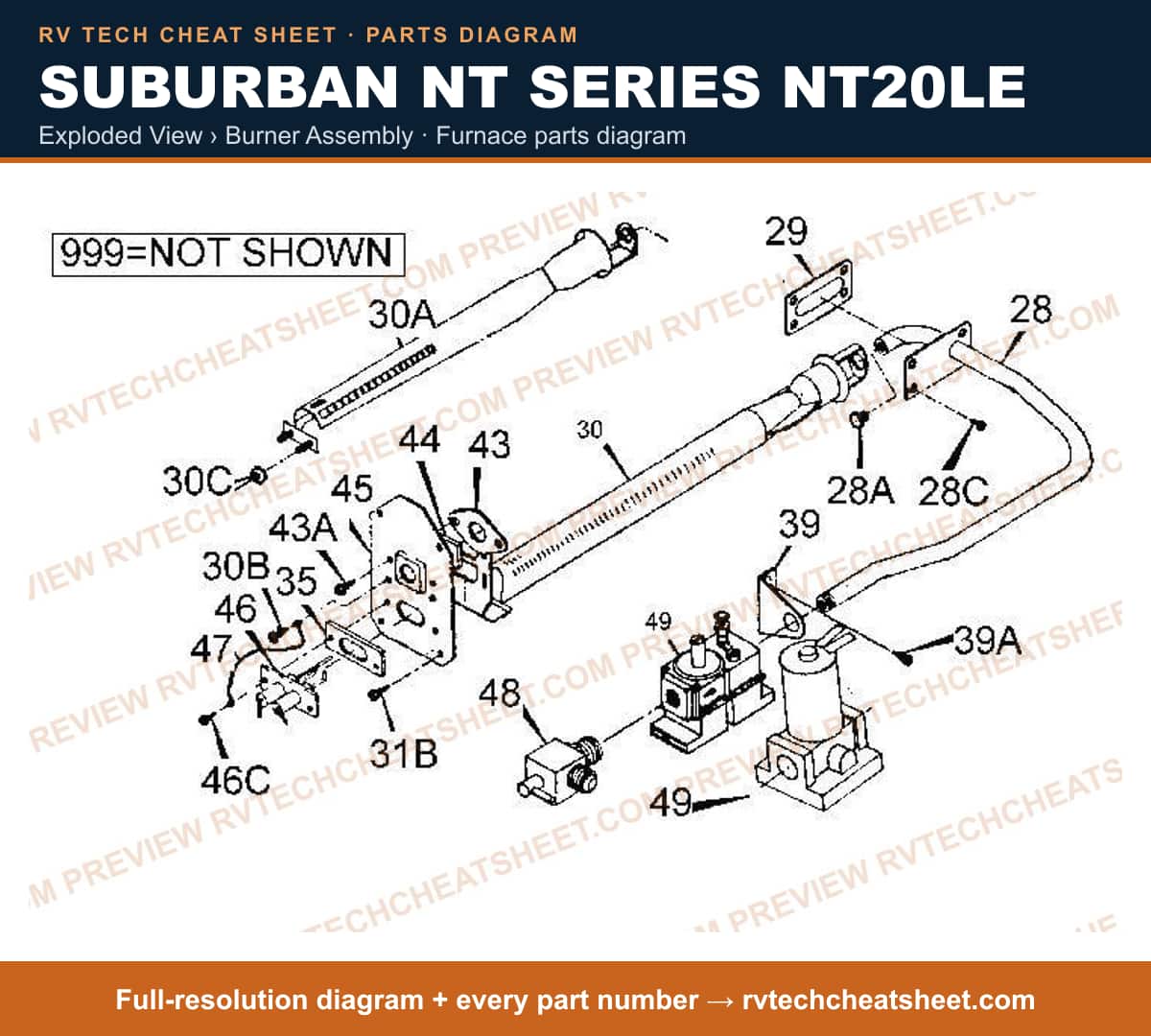

Exploded View › Burner Assembly

Components

25 items

1. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
2. #APPLIANCE COMPONENTS RV; Orifice #60 MFR # 180225
3. #MANIFOLD W/ORIFICE MFR # 170616
4. #Furnace Gasket; Furnace Manifold Gasket; Fits Suburban Furnace NT-12S/ NT-16S/ NT-16SE/ NT-16SQ/ NT-20S/ NT-20SE/ NT-20SQ MFR # 070449
5. #REPLMT METAL SOCKET MFR # 10595
6. #BURNER ASSEMBLY USE 10978S MFR # 10614 Superseded: see description
7. #Nut; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; Fits Furnace Combustion Air Housing; Locking; #10-24 Thread Size MFR # 120717
8. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
9. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
10. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
11. #BRAKET, MANIFOLD MFR # 62288
12. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
13. #APPLIANCE COMPONENTS RV; Cover Plate MFR # 290120
14. #Furnace Access Door Sight Glass; Replacement For Suburban Furnace NT-Series/ P-45M/ P-45S MFR # 310026
15. #5 WIRE FLAT VEHICLE END MFR # 30485
16. #APPLIANCE COMPONENTS RV; Screw 8-32 X 3/8 Hex Hd MFR # 121407
17. #STRAP, GROUND MFR # 230173
18. #VALVE,SHUTOFF MFR # 160740
19. #VALVE, FENWAL MFR # 160803
20. #SUBURBAN VALVE MFR # 161123
21. #VALVE, GAS USE 161123 MFR # 161078 Superseded: see description
22. #VALVE,GAS USE 161078 MFR # 160832 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Wire Electrode - N.L.A. MFR # 231713
24. #WIRE, IGNITION USE 318060002 MFR # 230350 Superseded: see description
25. #WIRE,HIGH VOLTAGE USE 231713 MFR # 318060002 Superseded: see description

Replacement Furnace

Components

2 items

1. #HEATERS & FURNACES RV; Nt-20Sq 19 000 Suburban H MFR # NT20SN
2. #HEATERS & FURNACES RV; Nt-20Seq 19 000 Suburban MFR # NT20SEN
