Suburban Nt Series NT22C Parts Diagram · Exploded View › Combustion Chamber

Furnace · 5 assemblies · 5 diagram sheets · 111 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT22C RV furnace: 5 assemblies (Exploded View › Combustion Chamber, Exploded View › Burner Assembly, Replacement Furnace, Exploded View › Blower Assembly, Exploded View › Cabinet Assembly) and 111 manufacturer part numbers. 21 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

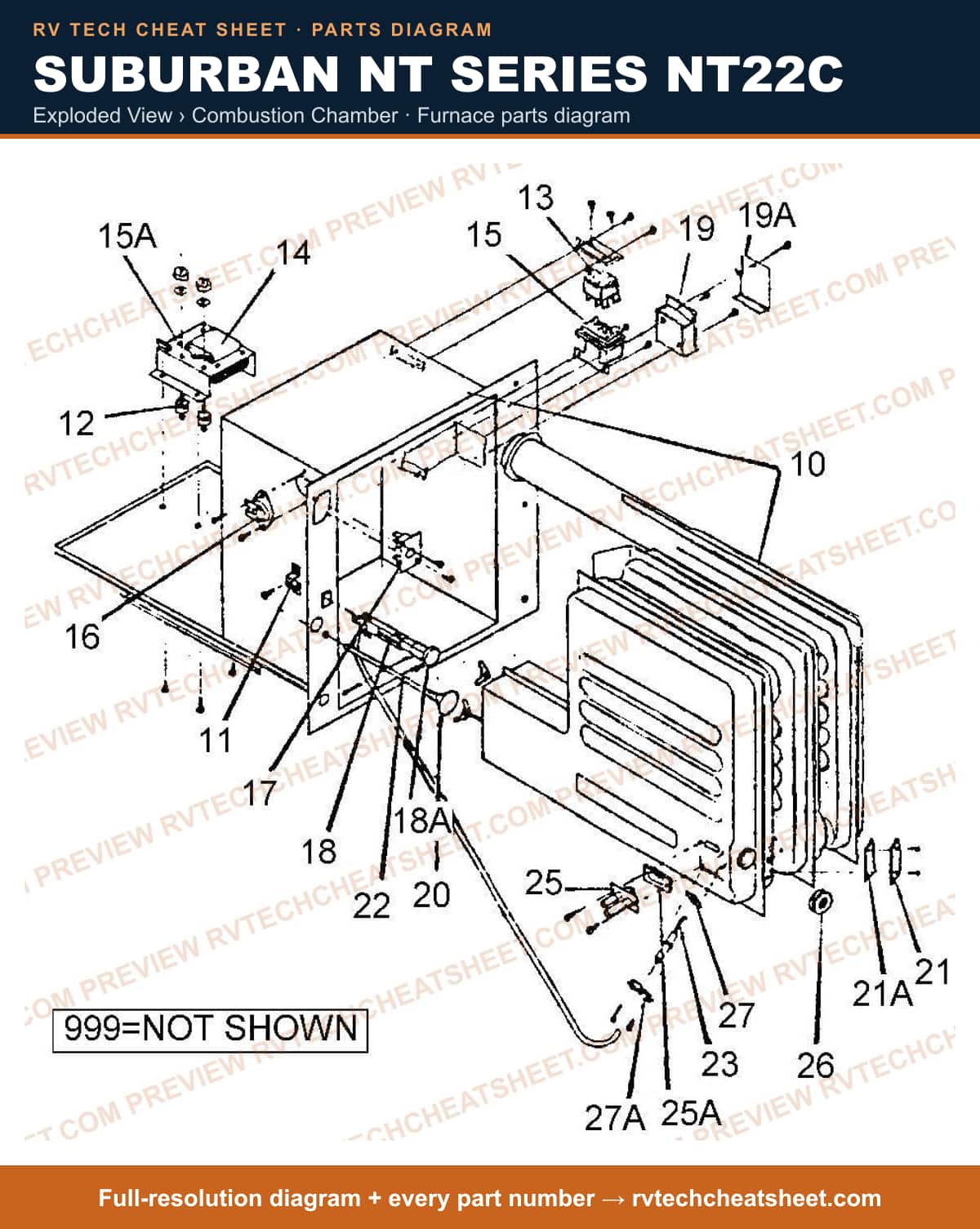

Exploded View › Combustion Chamber

Components

45 items

1. #WASHER - 1IN HOSE FILTER, 3/CARD, LLC MFR # 20183
2. #CHAMBER,COMBUSTION MFR # 20184
3. #CHAMBER,COMBUSTION MFR # 110251
4. #CHAMBER,HEAT NT22 C MFR # 110249
5. #13/16'TRI-LUG WINDOW KNOB MFR # 20185
6. #CHAMBER,COMBUSTION MDL# NT22A MFR # 110248
7. #SPACER, BRIDE - 14B MFR # 120732
8. #DIODE USE 230297 MFR # 230288 Superseded: see description
9. #DIODE RECTIFIER MFR # 230297
10. #APPLIANCE COMPONENTS RV; Ac/Dc Switching Relay MFR # 230255
11. #CONVERTER,9 AMP USE 6712N W/O CHARGER MFR # 6509X Superseded: see description
12. #Power Converter; DLS Series; Converts 108 To 132 Volt AC To 13.6 Volt DC; 200 Continuous Watts; 15 Amps Continuous Output; 80 Percent Efficiency; With Short Circuit/ Reverse Polarity/ Over Load/ Thermal Protection; 9.7 Inch Length x 6.7 Inch Width x 3.4 Inch Height; With 36 Inch Length Power Cord; Compatible With IOTA IQ4 Charge Controller MFR # DLS15
13. #TRANSFORMER BE 8192 OR BE 8912 MFR # 230323
14. #CONVERTER/CHARGER USE DLS15 MFR # PC15 Superseded: see description
15. #THERMOSTAT RELAY MFR # 230423
16. #DIODE & TRANSFORMER PKG MFR # 230312
17. #SWITCH,FAN USE 230575 MFR # 230348 Superseded: see description
18. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
19. #SWITCH,FAN 11T-13 MFR # 230128
20. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
21. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
22. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
23. #SWITCH,LIMIT MFR # 232578
24. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
25. #SWITCH,LIMIT 195 DEGREE MFR # 230228
26. #IGNITER,PIEZO USE 230521 MFR # 230325 Superseded: see description
27. #APPLIANCE COMPONENTS RV; Igniter Piezo W/ Wire * MFR # 520577
28. #EXTENSION KNOB MFR # 140137
29. #IGNITER, PIEZO USE 520577 MFR # 230521 Superseded: see description
30. #COVER, JUNCTION BOX MFR # 90157
31. #N/A JUNCTION BOX MFR # 90158
32. #APPLIANCE COMPONENTS RV; Knob Blk Pilot Reset MFR # 140093
33. #TS-50: 50 AMP TRANSFER SWITCH MFR # 70278
34. #COVER,HOLE AIR SHUTTER ADJU STMENT MFR # 260061
35. #ROD,RESET MFR # 140131
36. #IGNITER,PIEZO MFR # 140103
37. #ELECTRODE MFR # 230349
38. #BURNER, PILOT MFR # 160535
39. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
40. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
41. #CAP,LIGHTER MFR # 290110
42. #APPLIANCE COMPONENTS RV; Hole Cover MFR # 290117
43. #RETAINER,ELECTRODE MFR # 61697
44. #GASKET,ELECTRODE MFR # 70276
45. #APPLIANCE COMPONENTS RV; Gskt Cov Obs Hole N /L/A MFR # 70367

Exploded View › Burner Assembly

Components

32 items

1. #APPLIANCE COMPONENTS RV; Knob Blk Pilot Reset MFR # 140093
2. #IGNITER,PIEZO MFR # 140103
3. #ROD,RESET MFR # 140131
4. #T-COUPLE,30" USE 160876 MFR # 160527 Superseded: see description
5. #Thermocouple;;Use With Gas Water Heaters And Furnaces; Probe Sensor; 30 Inch Length; Copper MFR # WHTH06E404 Superseded: see description
6. #Thermocouple; Replacement For White Rodger Thermocouple Part Number H06E-30; Probe Sensor MFR # W6FHO6E30
7. #APPLIANCE COMPONENTS RV; RS UNIVERSAL THERMOCOUPLE KIT MFR # MNT160876MC
8. #BURNER, PILOT MFR # 160535
9. #BURNER,MAIN NT20 MFR # 10523
10. #BURNER MFR # 10509
11. #BURNER, MAIN MFR # 10563
12. #VALVE,BASO MFR # 160705
13. #APPLIANCE COMPONENTS RV; Valve Safety Pilot Ts11- MFR # 160540
14. #VALVE, SHUT OFF MFR # 160712
15. #VALVE USE 520402 MFR # 160650 Superseded: see description
16. #BURNER ASM W/AIR SHUTTER ROD MFR # 10519
17. #BURNER ASM MFR # 140091
18. #APPLIANCE COMPONENTS RV; Pilot Orifice MFR # 160659
19. #Furnace Pilot Regulator; For Suburban Furnaces MFR # 160556
20. #PIPE, MANIFOLD 1/4 X4 1/2 " MFR # 170339
21. #BOATGUARD 21'-23' 102' CUDDY CABIN MFR # 70207
22. #PIPE,MANIFOLD MFR # 170409
23. #ELBOW BRASS 90 DEGREE MFR # 170392
24. #3/8 Inch x 1/4 Inch HEX BUSHING MFR # 170280
25. #TUBE GAS INLET MFR # 170419
26. #APPLIANCE COMPONENTS RV; St Ell MFR # 170012
27. #TUBE,PILOT MFR # 170415
28. #NIPPLE 3/8 X 1 1/2 MFR # 170281
29. #ELBOW, UNION WITH 1 1/2 Inch NIPPLE MFR # 170292
30. #TUBING MFR # 170411
31. #ELBOW MFR # 170519
32. #ELBOW USE 170519 MFR # 170408 Superseded: see description

Replacement Furnace

Components

2 items

1. #USE 79-1809 NT-30SP FURNACE MFR # NT24SPN Superseded: see description
2. #Furnace Core; NT Series; LP Gas; Model Number NT-30SP; 30,000 BTU; Side/ Top And Bottom Duct Discharge; 5.5 Amp Draw; 12 Inch Width x 12-1/2 Inch Height x 23 Inch Depth; 25 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly MFR # NT30SPN

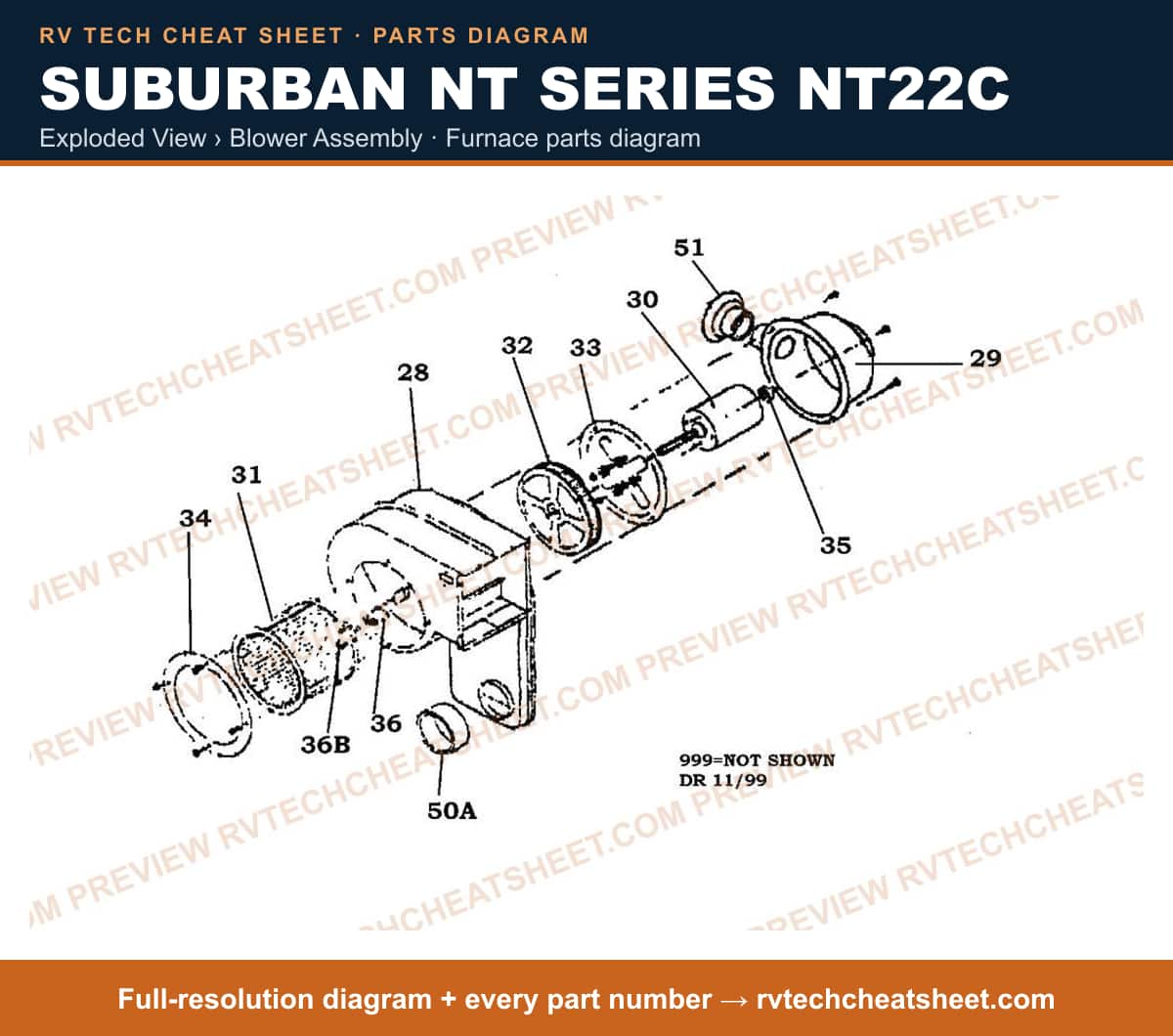

Exploded View › Blower Assembly

Components

12 items

1. #BLOWER MOTOR FITS SELECT SUBRB NT20/22/32 FURNACES MFR # PE2416Q
2. #BLOWER KIT,WHEEL MFR # 520399
3. #PLATE,DIVIDER MFR # 390045
4. #RING,INLET BLOWER MFR # 390027
5. #BUSHING,BLOWER MOTOR MFR # 70289
6. #SWITCH,SAIL NT12F/NT12C MFR # 230447
7. #SWITCH,SAIL USE 230447 MFR # 230449 Superseded: see description
8. #MICROSWITCH COVER NT32 C MFR # 61659
9. #4X4 RIDE RITE F250/350 05 MFR # 2400
10. #TUBE,CROSSOVER USE 2400 2.5 X 1.75 MFR # 50A Superseded: see description
11. #TUBE,CROSSOVER USE 50A 1 3/4" X 2 1/2" MFR # 50588 Superseded: see description
12. #Furnace Vacuum Cup; For Suburban NT-Series Furnace; Rubber MFR # 290079

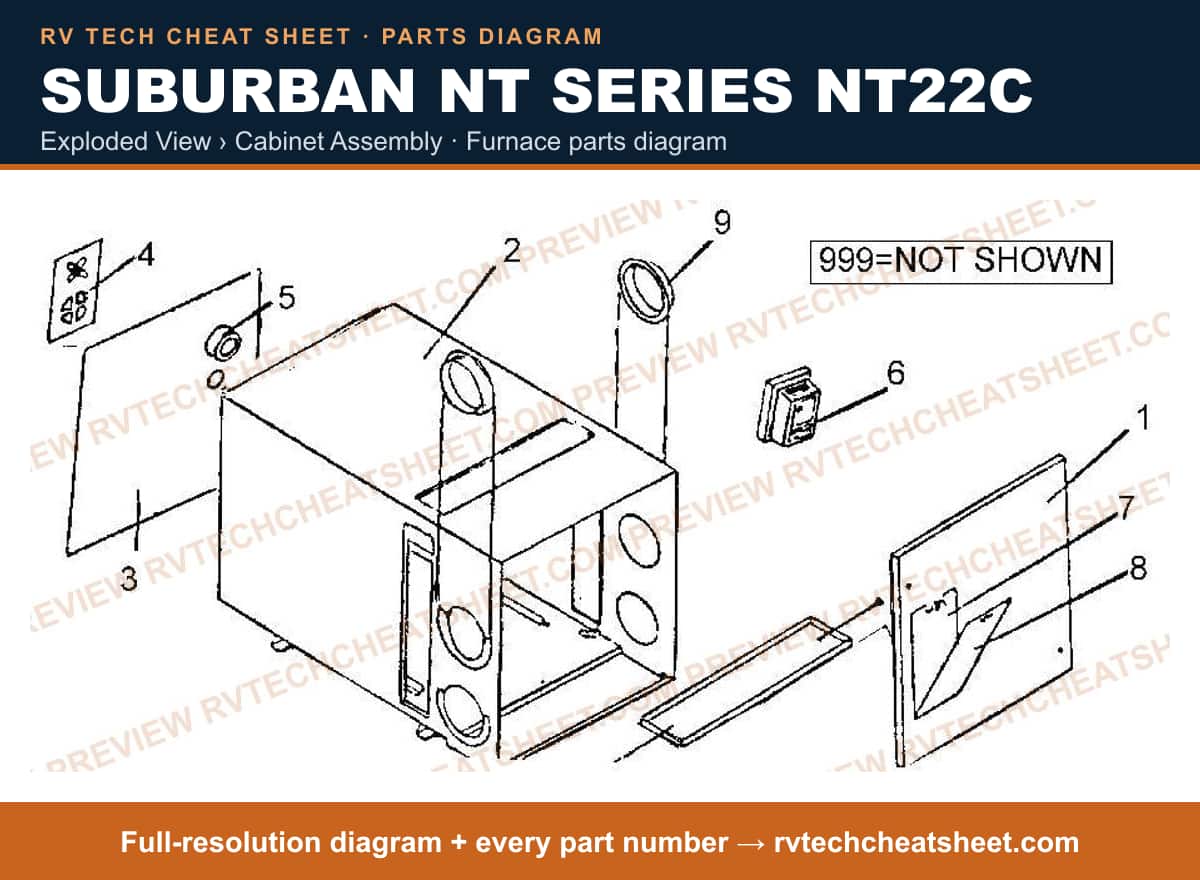

Exploded View › Cabinet Assembly

Components

24 items

1. #CABINET ASSEMBLY MFR # 100746
2. #FRONT, MAIN CABINET ASSEMBLY (NT-20AE) MFR # 100200
3. #CABINET FRONT MFR # 100742
4. #PANEL, FRONT MFR # 100574
5. #FRONT, MAIN CABINET ASSEMBLY (NT-22A,30A) MFR # 100543
6. #CABINET ASM,OUTER MFR # 100171S
7. #CABINET, OUTER ASSEMBLY (NT-22C,CD) MFR # 100185
8. #CABINET, OUTER ASSEMBLY (A MODELS) MFR # 100548
9. #CABINET ASM,OUTER MFR # 100733
10. #BACK, CABINET (NT-20E) MFR # 100583
11. #CABINET, BACK MFR # 100585
12. #Furnace Vent; For Suburban Furnace NT-Series MFR # 260541
13. #VENT CAP USE 260541 MFR # 260126 Superseded: see description
14. #CAP,VENT USE 260126 MFR # 260090 Superseded: see description
15. #ADAPTER FOR VENT CAP MFR # 62123
16. #Water Heater Gas Valve; For Uni-Line 110 Series; 1/2 Inch Inlet x 1/2 Inch Outlet; 50 To 90 Degrees MFR # 100502
17. #T-STAT USE 100502 *N* MFR # 160850 Superseded: see description
18. #T-STAT USE 100502 MFR # 66M010000 Superseded: see description
19. #N/A DOOR LATCH (SPRING TYPE) MFR # 150033
20. #DOOR, MAIN CABINET FRONT (NT-22A,30A) MFR # 30377
21. #DOOR,MAIN CABINET MFR # 30430
22. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
23. #32646 BUG BUST BI-LING 32OZ MFR # 50558
24. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
