Suburban Nt Series NT22CD Parts Diagram · Exploded View › Cabinet Assembly

Furnace · 5 assemblies · 5 diagram sheets · 62 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT22CD RV furnace: 5 assemblies (Exploded View › Cabinet Assembly, Exploded View › Burner Assembly, Exploded View › Combustion Chamber, Replacement Furnace, Exploded View › Blower Assembly) and 62 manufacturer part numbers. 13 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

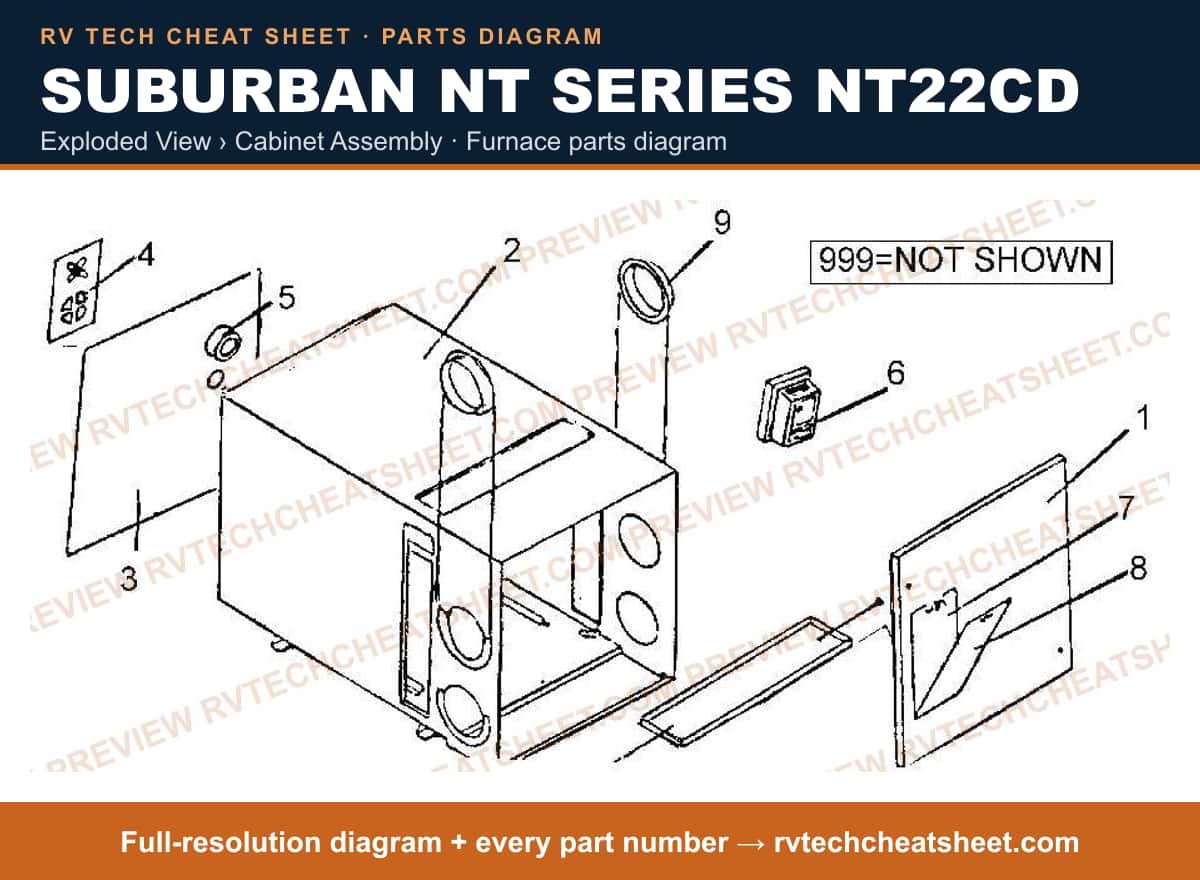

Exploded View › Cabinet Assembly

Components

15 items

1. #CABINET FRONT MFR # 100742
2. #CABINET ASM,OUTER MFR # 100733
3. #CABINET, BACK MFR # 100585
4. #VENT CAP USE 260541 MFR # 260126 Superseded: see description
5. #CAP,VENT USE 260126 MFR # 260090 Superseded: see description
6. #Furnace Vent; For Suburban Furnace NT-Series MFR # 260541
7. #T-STAT USE 100502 MFR # 66M010000 Superseded: see description
8. #T-STAT USE 100502 *N* MFR # 160850 Superseded: see description
9. #Water Heater Gas Valve; For Uni-Line 110 Series; 1/2 Inch Inlet x 1/2 Inch Outlet; 50 To 90 Degrees MFR # 100502
10. #N/A DOOR LATCH (SPRING TYPE) MFR # 150033
11. #DOOR,MAIN CABINET MFR # 30430
12. #DOOR, MAIN CABINET FRONT (NT-22A,30A) MFR # 30377
13. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
14. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
15. #32646 BUG BUST BI-LING 32OZ MFR # 50558

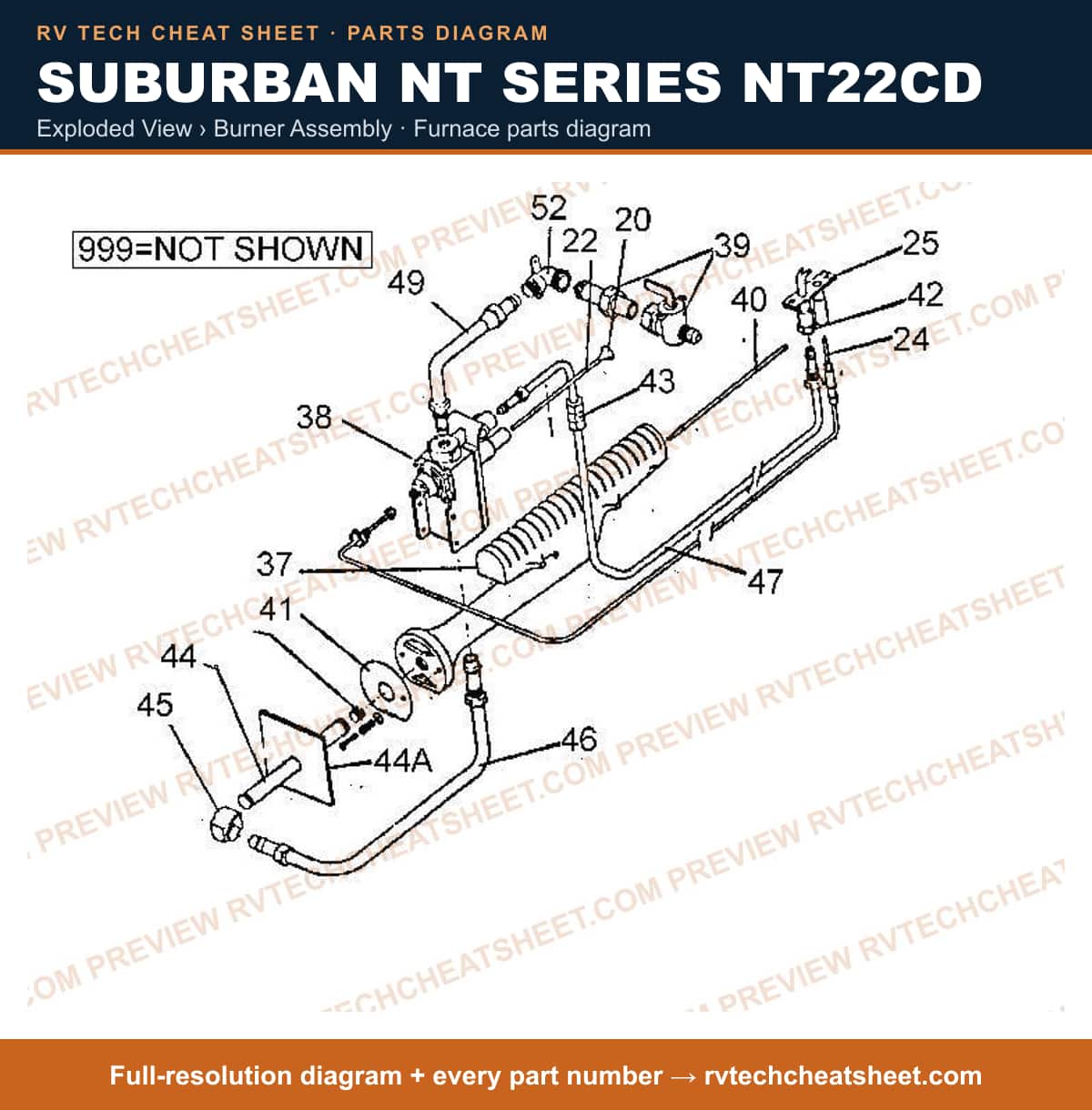

Exploded View › Burner Assembly

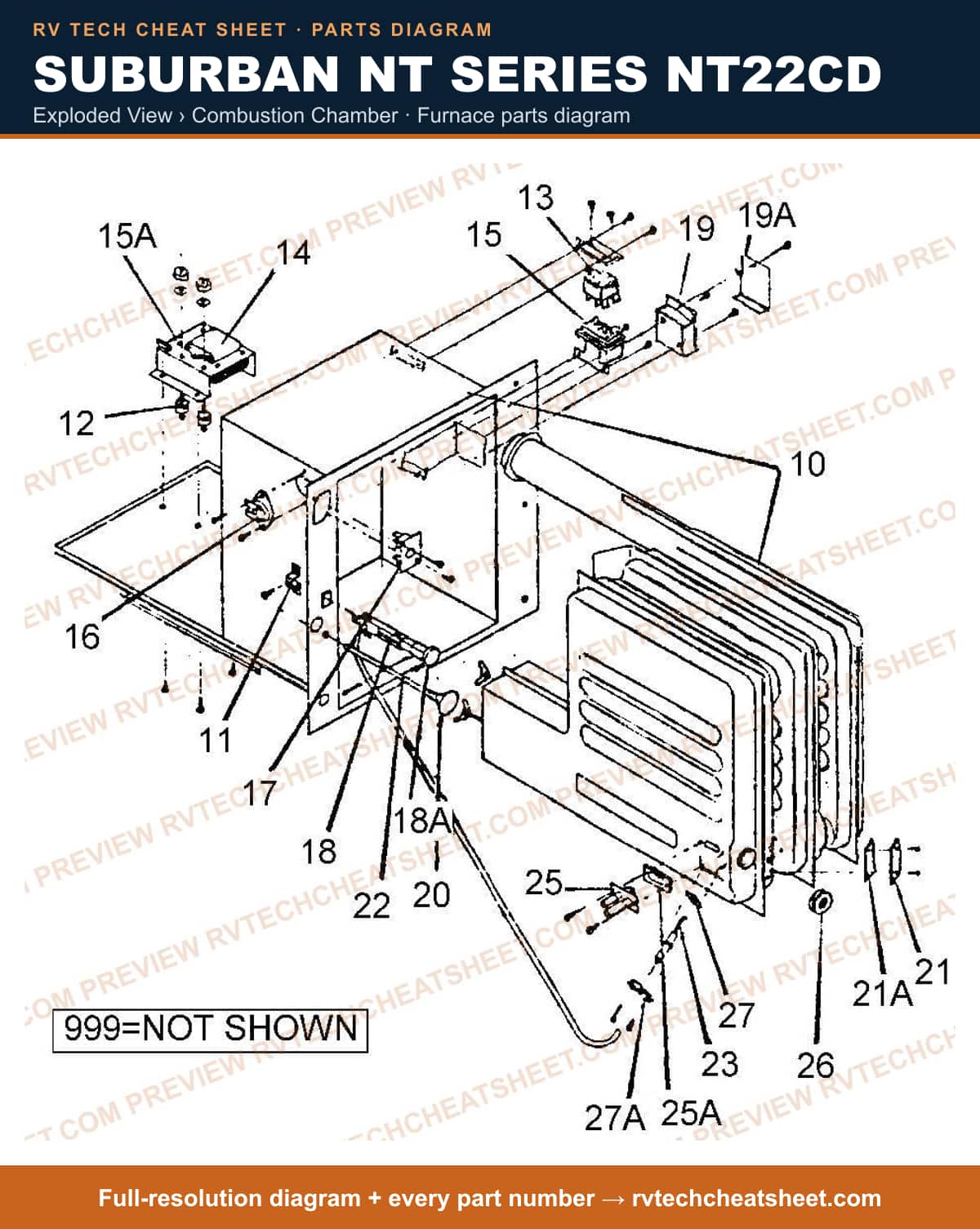

Exploded View › Combustion Chamber

Components

28 items

1. #WASHER - 1IN HOSE FILTER, 3/CARD, LLC MFR # 20183
2. #CHAMBER,COMBUSTION MDL# NT22A MFR # 110248
3. #APPLIANCE COMPONENTS RV; Ac/Dc Switching Relay MFR # 230255
4. #Power Converter; DLS Series; Converts 108 To 132 Volt AC To 13.6 Volt DC; 200 Continuous Watts; 15 Amps Continuous Output; 80 Percent Efficiency; With Short Circuit/ Reverse Polarity/ Over Load/ Thermal Protection; 9.7 Inch Length x 6.7 Inch Width x 3.4 Inch Height; With 36 Inch Length Power Cord; Compatible With IOTA IQ4 Charge Controller MFR # DLS15
5. #THERMOSTAT RELAY MFR # 230423
6. #DIODE & TRANSFORMER PKG MFR # 230312
7. #SWITCH,FAN USE 230575 MFR # 230348 Superseded: see description
8. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
9. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
10. #SWITCH,FAN 11T-13 MFR # 230128
11. #IGNITER,PIEZO USE 230521 MFR # 230325 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Igniter Piezo W/ Wire * MFR # 520577
13. #EXTENSION KNOB MFR # 140137
14. #N/A JUNCTION BOX MFR # 90158
15. #COVER, JUNCTION BOX MFR # 90157
16. #APPLIANCE COMPONENTS RV; Knob Blk Pilot Reset MFR # 140093
17. #TS-50: 50 AMP TRANSFER SWITCH MFR # 70278
18. #COVER,HOLE AIR SHUTTER ADJU STMENT MFR # 260061
19. #ROD,RESET MFR # 140131
20. #ELECTRODE MFR # 230349
21. #BURNER, PILOT MFR # 160535
22. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
23. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
24. #CAP,LIGHTER MFR # 290110
25. #RETAINER,ELECTRODE MFR # 61697
26. #GASKET,ELECTRODE MFR # 70276
27. #APPLIANCE COMPONENTS RV; Gskt Cov Obs Hole N /L/A MFR # 70367
28. #32646 BUG BUST BI-LING 32OZ MFR # 50558

Replacement Furnace

Components

2 items

1. #HEATERS & FURNACES RV; Nt-20Seq 19 000 Suburban MFR # NT20SEN
2. #HEATERS & FURNACES RV; Nt-20Sq 19 000 Suburban H MFR # NT20SN

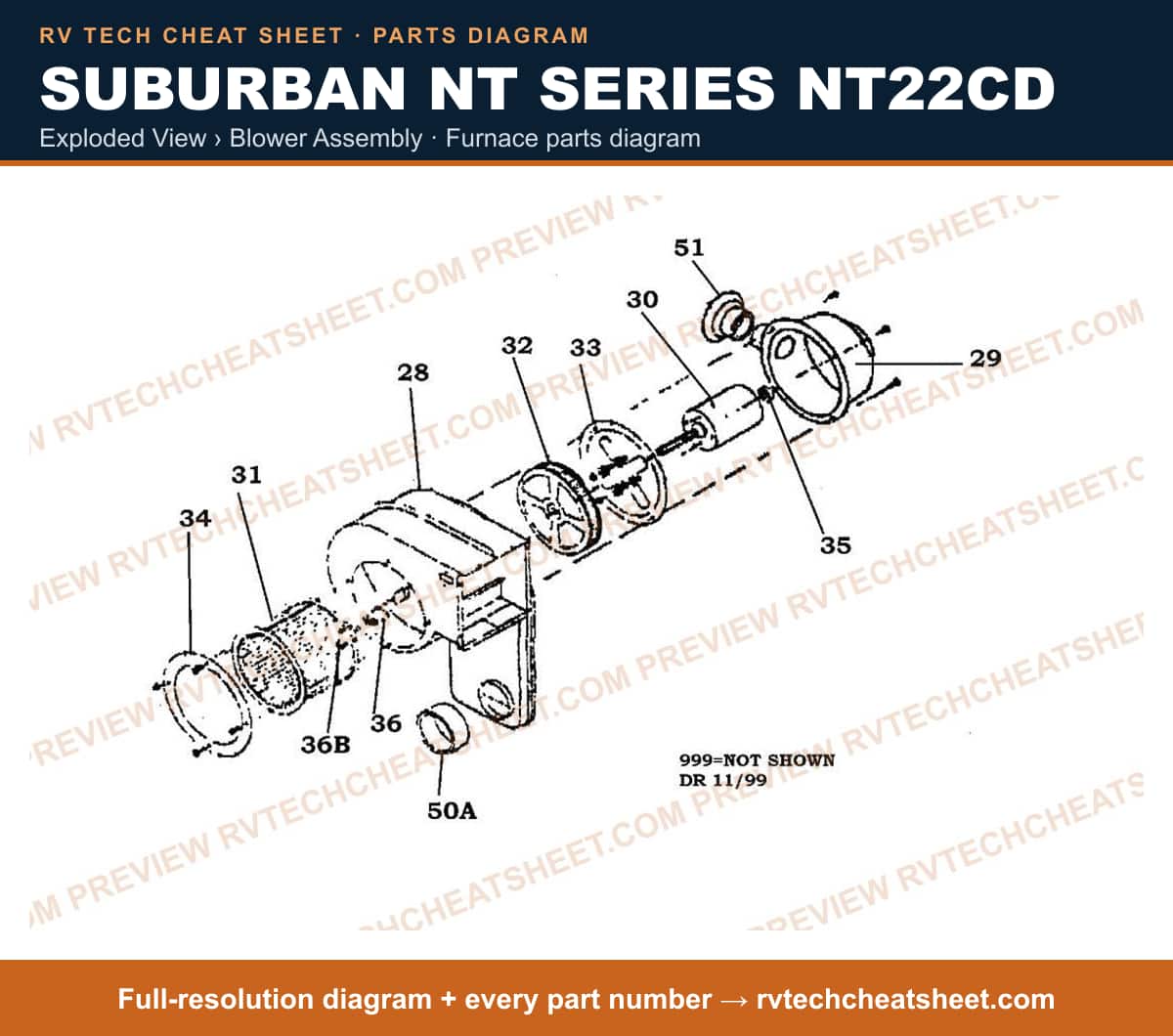

Exploded View › Blower Assembly

Components

18 items

1. #HOUSING,BLOWER MFR # 390054
2. #COVER, MOTOR AIR INTAKE (NT-22E) MFR # 390047
3. #MOTOR,BOSCH USE PE2416Q MFR # 230260 Superseded: see description
4. #BLOWER MOTOR FITS SELECT SUBRB NT20/22/32 FURNACES MFR # PE2416Q
5. #WHEEL,BLOWER MFR # 350037
6. #WHEEL,BLOWER,SMALL MFR # 350036
7. #PLATE,DIVIDER MFR # 390045
8. #RING,INLET BLOWER MFR # 390027
9. #BUSHING,BLOWER MOTOR MFR # 70289
10. #MICROSWITCH COVER NT32 C MFR # 61659
11. #SWITCH USE 230449 MICRO & PADDLE MFR # 230006 Superseded: see description
12. #SWITCH,SAIL USE 230447 MFR # 230449 Superseded: see description
13. #SWITCH,SAIL NT12F/NT12C MFR # 230447
14. #TUBE,CROSSOVER USE 50A 1 3/4" X 2 1/2" MFR # 50588 Superseded: see description
15. #TUBE,CROSSOVER USE 2400 2.5 X 1.75 MFR # 50A Superseded: see description
16. #BOATGUARD 19'-21 102' 'VHULL RUNABO MFR # 70206
17. #4X4 RIDE RITE F250/350 05 MFR # 2400
18. #Furnace Vacuum Cup; For Suburban NT-Series Furnace; Rubber MFR # 290079
