Suburban Nt Series NT22CDE Parts Diagram · Replacement Furnace

Furnace · 4 assemblies · 4 diagram sheets · 42 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT22CDE RV furnace: 4 assemblies (Replacement Furnace, Exploded View › Blower Assembly, Exploded View › Combustion Chamber, Exploded View › Burner Assembly) and 42 manufacturer part numbers. 11 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Replacement Furnace

Components

1 item

1. #USE 79-1809 NT-30SP FURNACE MFR # NT24SPN Superseded: see description

Exploded View › Blower Assembly

Components

18 items

1. #HOUSING,BLOWER MFR # 390054
2. #COVER, MOTOR AIR INTAKE (NT-22E) MFR # 390047
3. #MOTOR,BOSCH USE PE2416Q MFR # 230260 Superseded: see description
4. #BLOWER MOTOR FITS SELECT SUBRB NT20/22/32 FURNACES MFR # PE2416Q
5. #WHEEL,BLOWER MFR # 350037
6. #WHEEL,BLOWER,SMALL MFR # 350036
7. #PLATE,DIVIDER MFR # 390045
8. #RING,INLET BLOWER MFR # 390027
9. #BUSHING,BLOWER MOTOR MFR # 70289
10. #SWITCH,SAIL NT12F/NT12C MFR # 230447
11. #SWITCH USE 230449 MICRO & PADDLE MFR # 230006 Superseded: see description
12. #MICROSWITCH COVER NT32 C MFR # 61659
13. #SWITCH,SAIL USE 230447 MFR # 230449 Superseded: see description
14. #4X4 RIDE RITE F250/350 05 MFR # 2400
15. #TUBE,CROSSOVER USE 50A 1 3/4" X 2 1/2" MFR # 50588 Superseded: see description
16. #BOATGUARD 19'-21 102' 'VHULL RUNABO MFR # 70206
17. #TUBE,CROSSOVER USE 2400 2.5 X 1.75 MFR # 50A Superseded: see description
18. #Furnace Vacuum Cup; For Suburban NT-Series Furnace; Rubber MFR # 290079

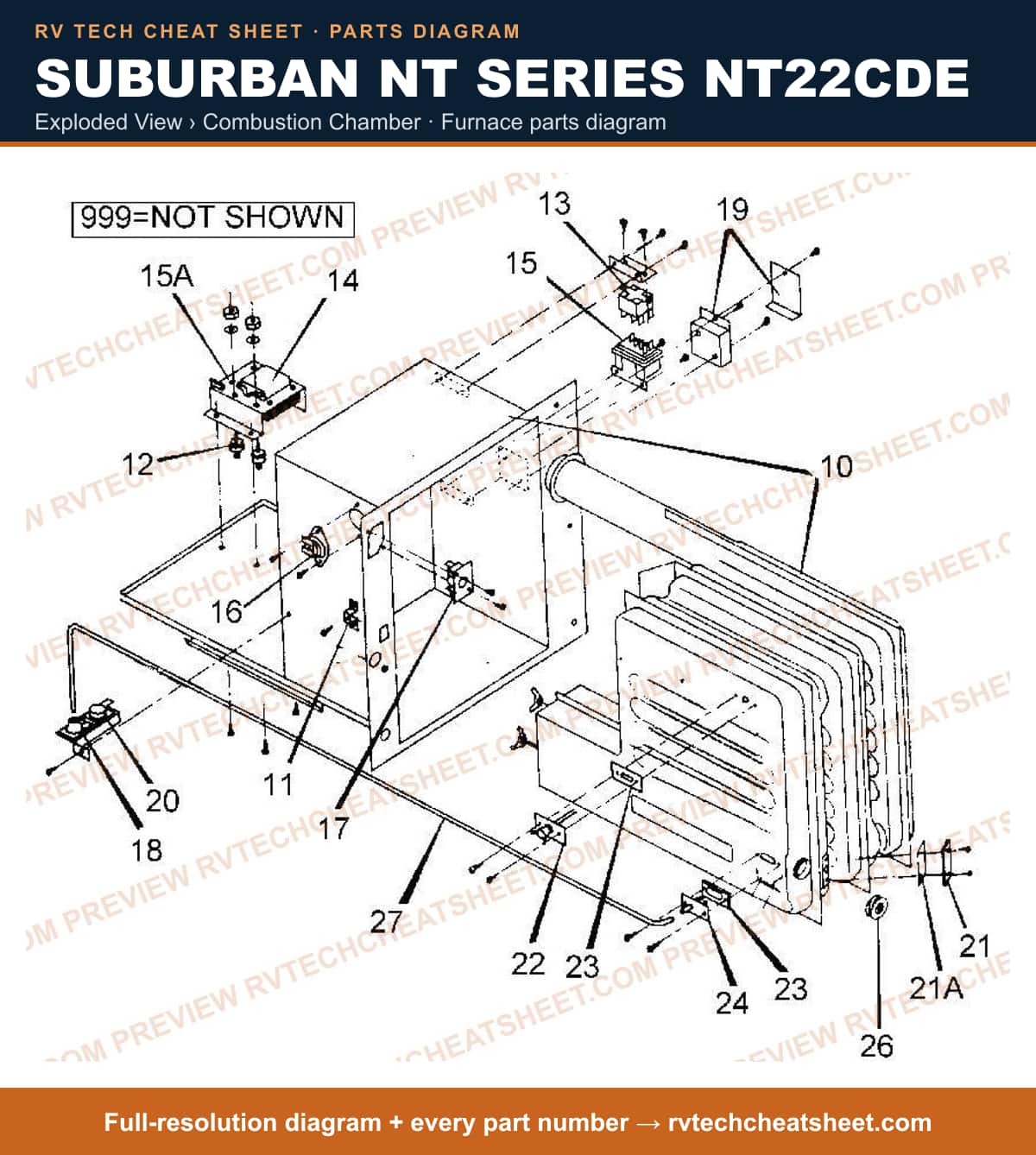

Exploded View › Combustion Chamber

Components

3 items

1. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
2. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
3. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496

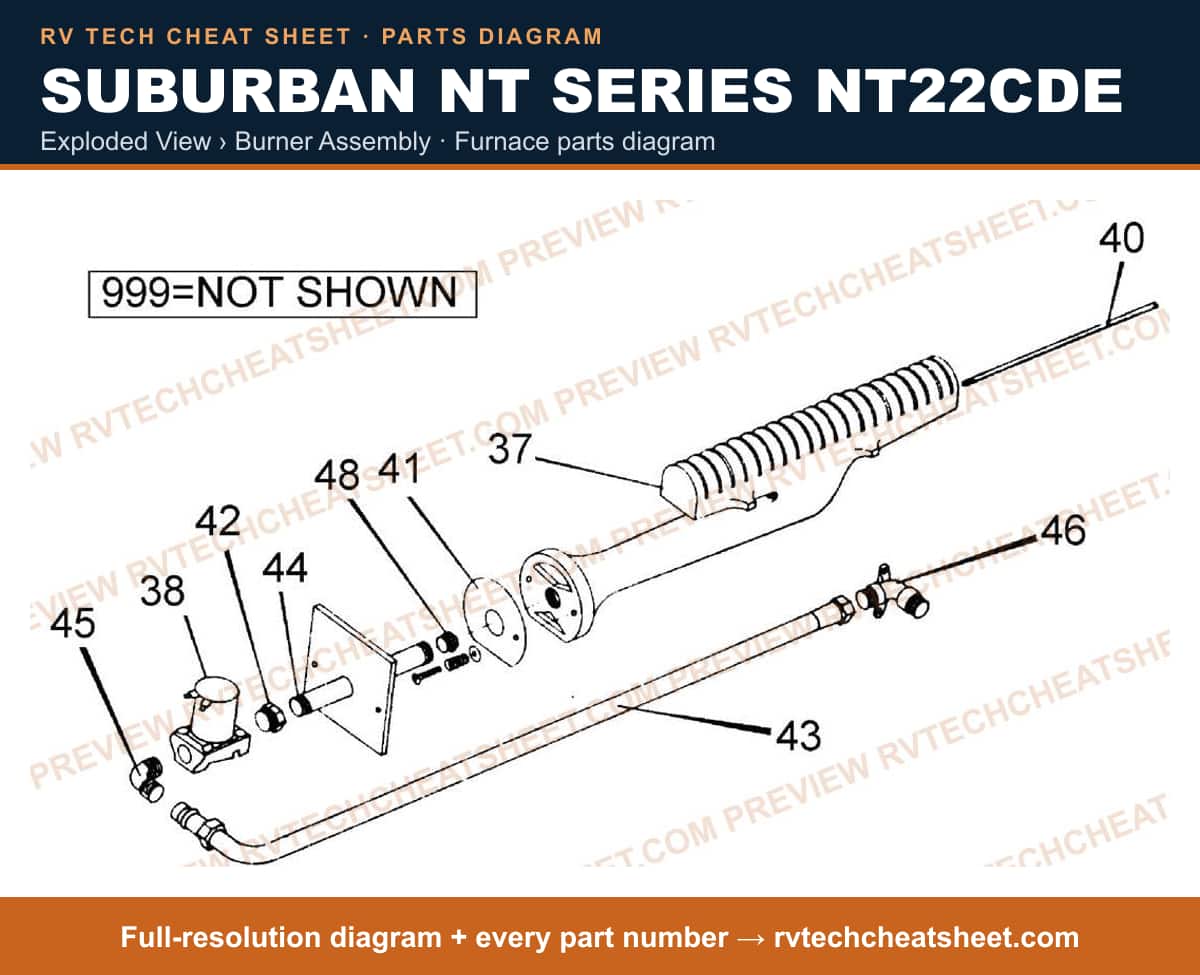

Exploded View › Burner Assembly

Components

20 items

1. #BURNER MFR # 10509
2. #VALVE KIT USE 160911 & 170545 MFR # 520423 Superseded: see description
3. #VALVE,GAS MFR # 160911
4. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
5. #VALVE USE 520423 MFR # 160734 Superseded: see description
6. #BURNER ASM MFR # 140091
7. #BURNER MFR # 10366
8. #3/8 Inch x 1/4 Inch HEX BUSHING MFR # 170280
9. #APPLIANCE COMPONENTS RV; Screw 10-24X1/2 Whiz Lock MFR # 121459
10. #INLET TUBING MFR # 170476
11. #PIPE,MANIFOLD MFR # 170478
12. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
13. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
14. #ELBOW MFR # 170519
15. #ELBOW USE 170519 MFR # 170408 Superseded: see description
16. #Furnace Gasket; Furnace Manifold Gasket; Fits Suburban Furnace NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30S/ P-40/ P-40B MFR # 70408
17. #APPLIANCE COMPONENTS RV; Suburban Orifice MFR # 180188
18. #PARTS PACKAGE MFR # 210919
19. #VALVE, SHUT OFF MFR # 160712
20. #GASKET KIT *PIECE OUT KIT* MFR # 520232
