Suburban Nt Series NT22CE Parts Diagram · Exploded View › Blower Assembly

Furnace · 5 assemblies · 5 diagram sheets · 75 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT22CE RV furnace: 5 assemblies (Exploded View › Blower Assembly, Exploded View › Burner Assembly, Replacement Furnace, Exploded View › Cabinet & Vent Assembly, Exploded View › Combustion Chamber) and 75 manufacturer part numbers. 16 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

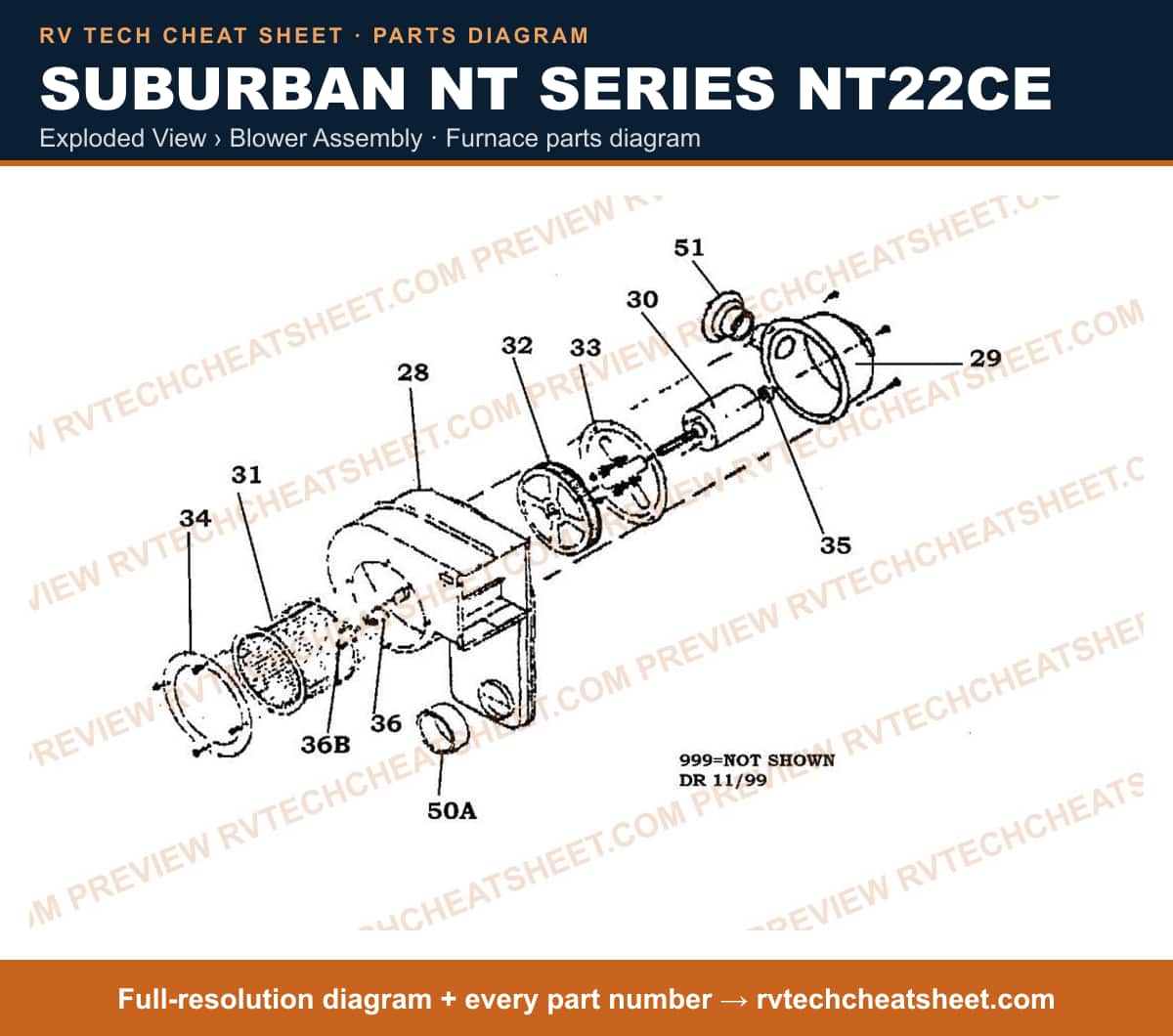

Exploded View › Blower Assembly

Components

11 items

1. #BLOWER KIT,WHEEL MFR # 520399
2. #PLATE,DIVIDER MFR # 390045
3. #RING,INLET BLOWER MFR # 390027
4. #BUSHING,BLOWER MOTOR MFR # 70289
5. #MICROSWITCH COVER NT32 C MFR # 61659
6. #SWITCH,SAIL USE 230447 MFR # 230449 Superseded: see description
7. #SWITCH,SAIL NT12F/NT12C MFR # 230447
8. #TUBE,CROSSOVER USE 2400 2.5 X 1.75 MFR # 50A Superseded: see description
9. #TUBE,CROSSOVER USE 50A 1 3/4" X 2 1/2" MFR # 50588 Superseded: see description
10. #4X4 RIDE RITE F250/350 05 MFR # 2400
11. #Furnace Vacuum Cup; For Suburban NT-Series Furnace; Rubber MFR # 290079

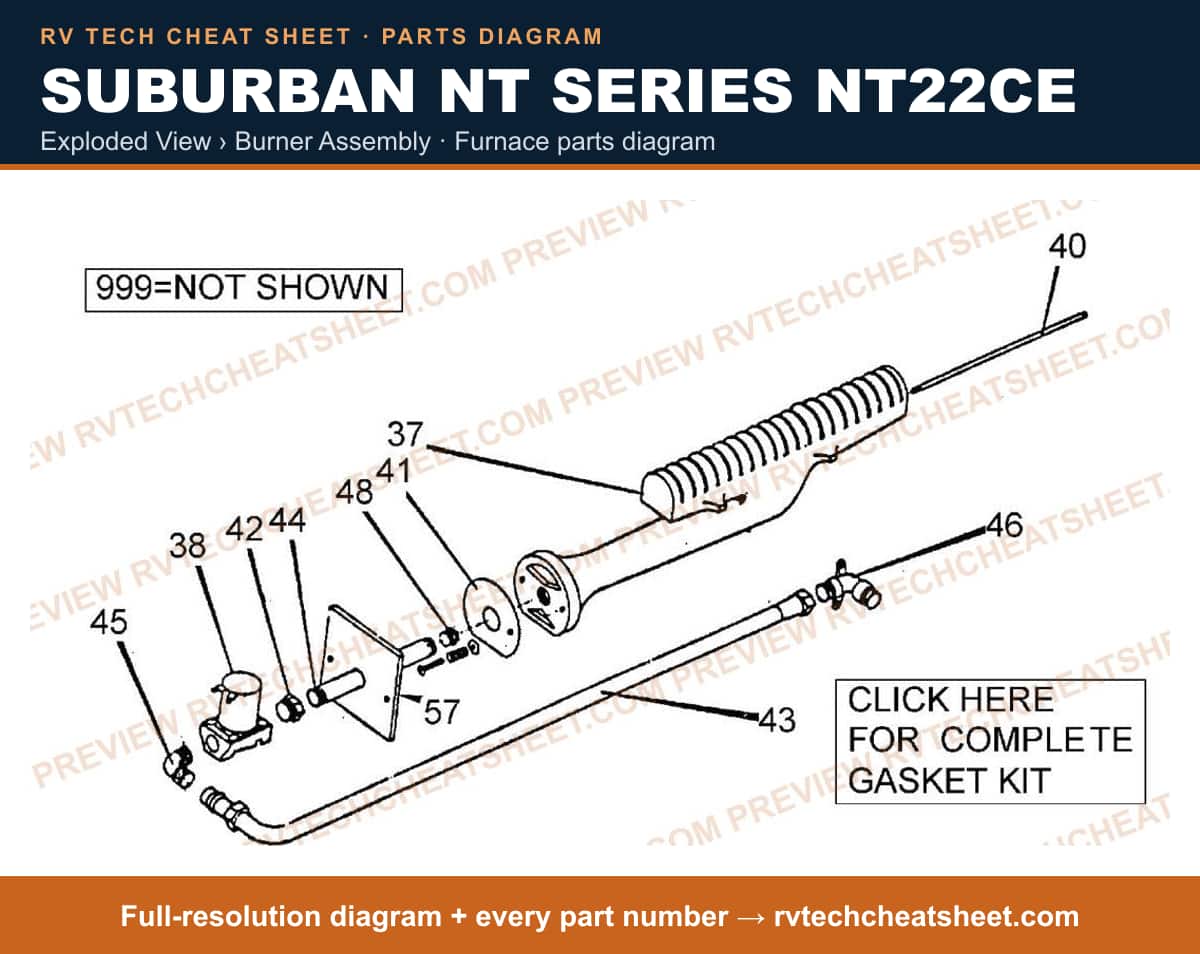

Exploded View › Burner Assembly

Components

22 items

1. #BURNER MFR # 10509
2. #BURNER, MAIN MFR # 10563
3. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
4. #VALVE KIT USE 160911 & 170545 MFR # 520423 Superseded: see description
5. #VALVE USE 520423 MFR # 160762 Superseded: see description
6. #VALVE,GAS MFR # 160911
7. #BURNER ASM W/AIR SHUTTER ROD MFR # 10519
8. #BURNER ASM MFR # 140091
9. #3/8 Inch x 1/4 Inch HEX BUSHING MFR # 170280
10. #INLET TUBING MFR # 170476
11. #PIPE,MANIFOLD MFR # 170478
12. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
13. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
14. #ELBOW USE 170519 MFR # 170408 Superseded: see description
15. #ELBOW MFR # 170519
16. #APPLIANCE COMPONENTS RV; Orifice Main Burner #53 MFR # 180193
17. #APPLIANCE COMPONENTS RV; Suburban Orifice MFR # 180188
18. #BULL DOG CATCH MFR # 70305
19. #COMPLETE GASKET KIT MFR # X520239
20. #VALVE, SHUT OFF MFR # 160712
21. #PARTS PACK MFR # 210922S
22. #GASKET,MOTOR COVER MFR # 70301

Replacement Furnace

Components

1 item

1. #USE 79-1809 NT-30SP FURNACE MFR # NT24SPN Superseded: see description

Exploded View › Cabinet & Vent Assembly

Components

17 items

1. #CABINET FRONT MFR # 100742
2. #CABINET ASSEMBLY MFR # 100746
3. #CABINET ASM,OUTER MFR # 100733
4. #CABINET, OUTER ASSEMBLY (A MODELS) MFR # 100548
5. #CABINET, BACK MFR # 100585
6. #CAP,VENT USE 260126 MFR # 260090 Superseded: see description
7. #Furnace Vent; For Suburban Furnace NT-Series MFR # 260541
8. #VENT CAP USE 260541 MFR # 260126 Superseded: see description
9. #CAP,VENT USE 260126 NT16F MFR # 260097 Superseded: see description
10. #T-STAT USE 100502 MFR # 66M010000 Superseded: see description
11. #Water Heater Gas Valve; For Uni-Line 110 Series; 1/2 Inch Inlet x 1/2 Inch Outlet; 50 To 90 Degrees MFR # 100502
12. #T-STAT USE 100502 *N* MFR # 160850 Superseded: see description
13. #N/A DOOR LATCH (SPRING TYPE) MFR # 150033
14. #DOOR,MAIN CABINET MFR # 30430
15. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
16. #32646 BUG BUST BI-LING 32OZ MFR # 50558
17. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733

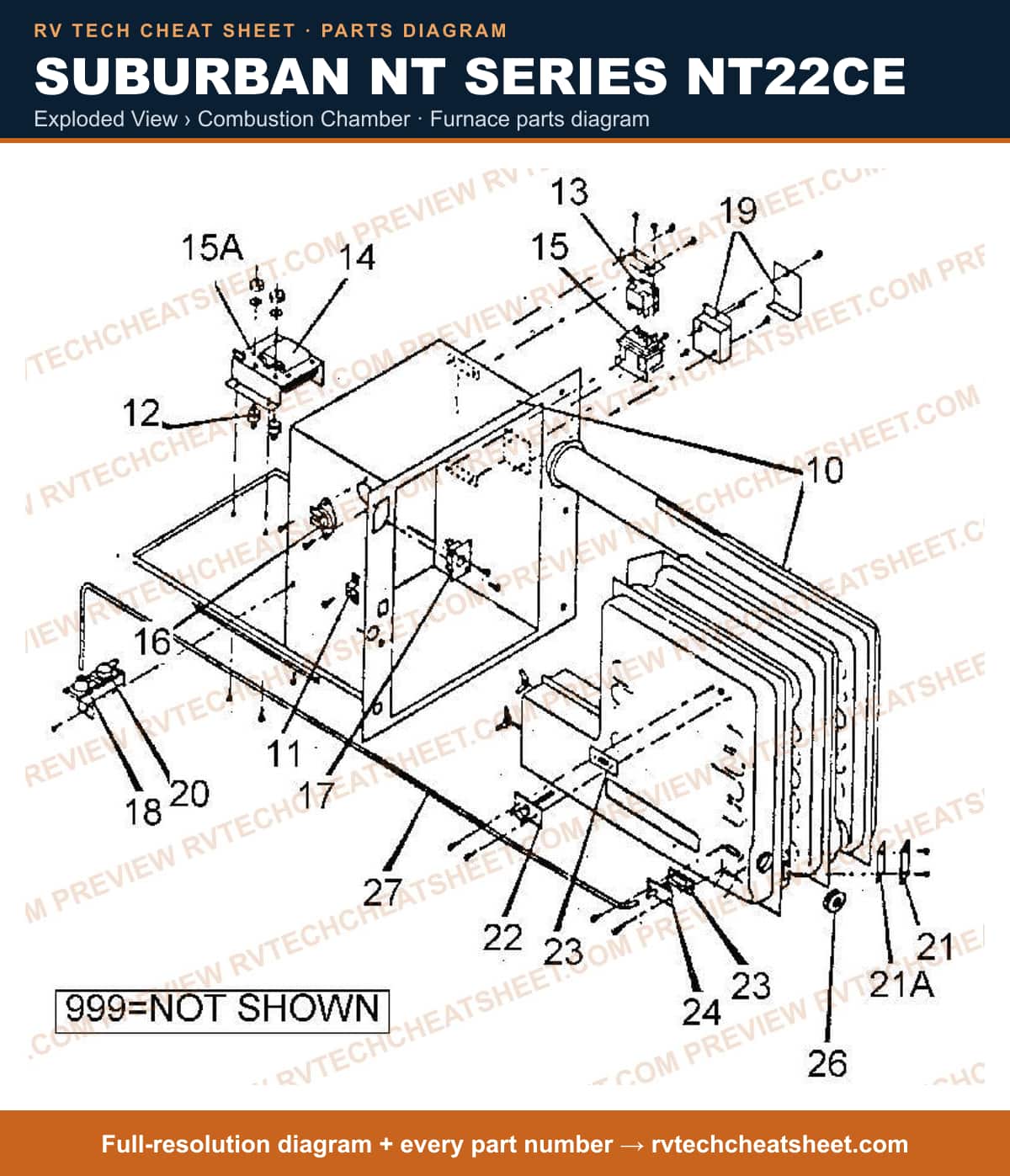

Exploded View › Combustion Chamber

Components

24 items

1. #COMBUSTION CHAMBER (22C MODELS) MFR # 110303
2. #SPACER, BRIDE - 14B MFR # 120732
3. #DIODE RECTIFIER MFR # 230297
4. #RELAY, AC/DC SWITCHING MFR # 230255S
5. #TRANSFORMER BE 8912 MFR # 230323S
6. #DIODE & TRANSFORMER PKG MFR # 230312
7. #THERMOSTAT RELAY MFR # 230423
8. #SWITCH,FAN 11T-13 MFR # 230128
9. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
10. #SWITCH,LIMIT MFR # 232578
11. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
12. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
13. #CONVERSION KIT MFR # 520156
14. #N/A JUNCTION BOX MFR # 90158
15. #DELAY SW MFR # 230469
16. #COVER,HOLE AIR SHUTTER ADJU STMENT MFR # 260061
17. #GASKET, AIR SHUTTER COVER MFR # 70278S
18. #ELECTRODE USE 230590 MFR # 230480 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Electrode MFR # 230590
20. #CAP,LIGHTER MFR # 290110
21. #ELECTRODE WIRE MFR # 230350S
22. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
23. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
24. #UIB WITH FAN CONTROL MFR # FAN50PLUS
