Suburban Nt Series NT22CS Parts Diagram · Exploded View › Blower Assembly

Furnace · 6 assemblies · 6 diagram sheets · 91 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT22CS RV furnace: 6 assemblies (Exploded View › Blower Assembly, Replacement Furnace, Exploded View › Burner - W-alpha Valve, Exploded View › Cabinet Assembly, Exploded View › Burner - W-basotrol Valve and more) and 91 manufacturer part numbers. 19 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

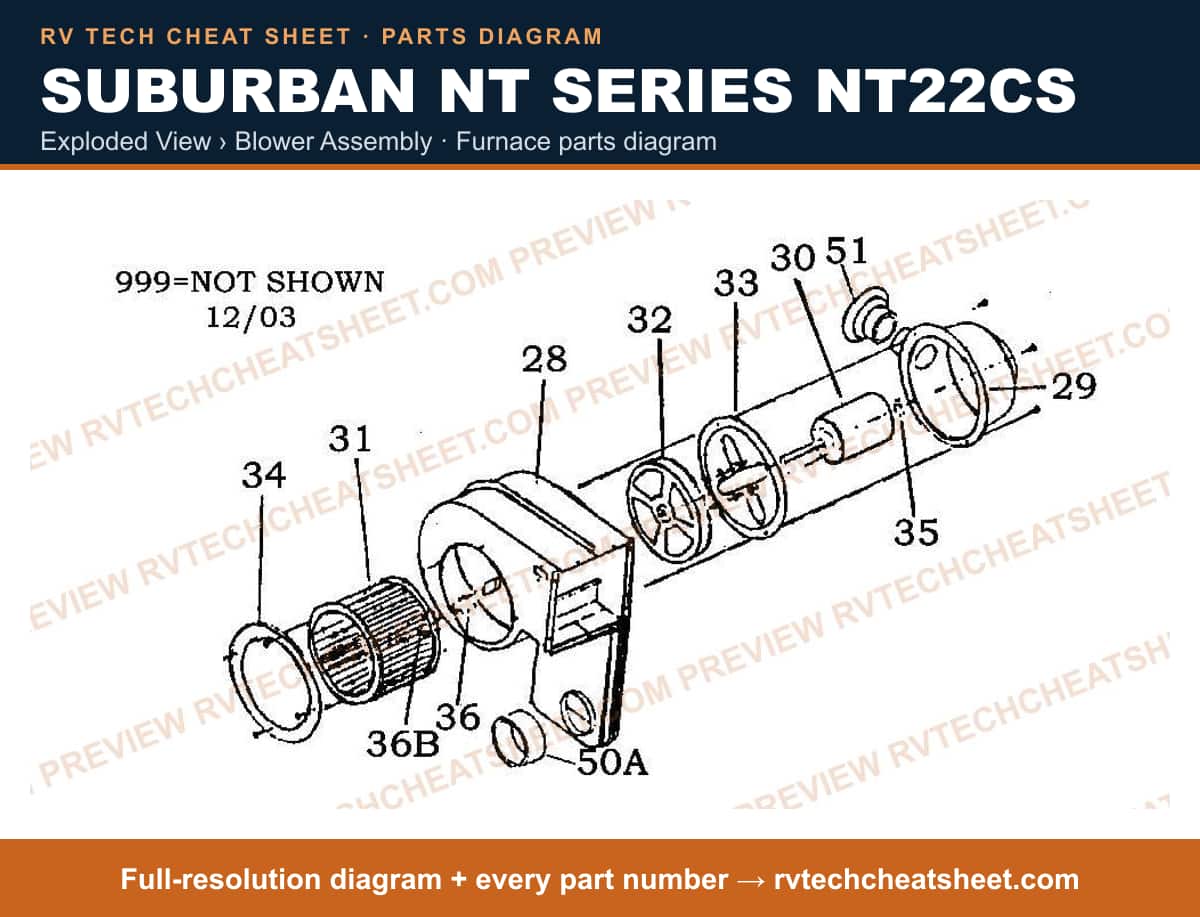

Exploded View › Blower Assembly

Components

14 items

1. #HOUSING, BLOWER MFR # 390099
2. #COVER, MOTOT AIR INTAKE (NT-22 & 30 ALT. REP) MFR # 390144
3. #WHEEL,BLOWER MFR # 350037
4. #WHEEL,BLOWER,SMALL MFR # 350036
5. #PLATE,DIVIDER MFR # 390045
6. #RING,INLET BLOWER MFR # 390027
7. #BUSHING,BLOWER MOTOR MFR # 70289
8. #SWITCH,SAIL USE 230447 MFR # 230449 Superseded: see description
9. #MICROSWITCH COVER NT32 C MFR # 61659
10. #SWITCH,SAIL NT12F/NT12C MFR # 230447
11. #4X4 RIDE RITE F250/350 05 MFR # 2400
12. #TUBE,CROSSOVER USE 2400 2.5 X 1.75 MFR # 50A Superseded: see description
13. #TUBE,CROSSOVER USE 50A 1 3/4" X 2 1/2" MFR # 50588 Superseded: see description
14. #Furnace Vacuum Cup; For Suburban NT-Series Furnace; Rubber MFR # 290079

Replacement Furnace

Components

1 item

1. #USE 79-1809 NT-30SP FURNACE MFR # NT24SPN Superseded: see description

Exploded View › Burner - W-alpha Valve

Components

27 items

1. #Thermocouple; Use With Gas Water Heaters And Furnaces; Probe Sensor; 30 Inch Length; Copper MFR # 1153 Superseded: see description
2. #Thermocouple; Use On Water Heater Models GVR65N/ GVR65BN/ GVR50N/ GVR50BN/ GVR35N/ GVR65P/ GVR65BP/ GVR50P/ GVR50BP/ GVR35P/ GVR65-5/ GVR50-5GVR35-5GVR65-5S/ GVR50-5S/ GVR35-5S/ GVC65N/ GVC65P/ GVC50N/ GVC50P/ GVC35N/ GVC35P/ GVC65-5/ GVC50-5/ GVC35-5 MFR # 160876 Superseded: see description
3. #T-COUPLE,30" USE 160876 MFR # 160527 Superseded: see description
4. #Universal Thermocouple; 30 Inches Long; Includes Thermocouple/ Positioning Adapters; MFR # H06E404
5. #BURNER, PILOT MFR # 160535
6. #BURNER MFR # 10509
7. #VALVE USE 520402 MFR # 160650 Superseded: see description
8. #VALVE, SHUT OFF MFR # 160712
9. #BURNER ASM MFR # 140091
10. #APPLIANCE COMPONENTS RV; Pilot Orifice MFR # 160659
11. #Furnace Pilot Regulator; For Suburban Furnaces MFR # 160556
12. #PIPE,MANIFOLD MFR # 170409
13. #3/8 Inch x 1/4 Inch HEX BUSHING MFR # 170280
14. #ELBOW BRASS 90 DEGREE MFR # 170392
15. #TUBE GAS INLET MFR # 170419
16. #APPLIANCE COMPONENTS RV; St Ell MFR # 170012
17. #TUBE,PILOT MFR # 170415
18. #NIPPLE 3/8 X 1 1/2 MFR # 170281
19. #APPLIANCE COMPONENTS RV; Suburban Orifice MFR # 180188
20. #APPLIANCE COMPONENTS RV; Orifice Main Burner #53 MFR # 180193
21. #ELBOW, UNION WITH 1 1/2 Inch NIPPLE MFR # 170292
22. #TUBING MFR # 170411
23. #BOATGUARD 21'-23' 102' CUDDY CABIN MFR # 70207
24. #BULL DOG CATCH MFR # 70305
25. #GASKET,EXHAUST USE 70487 MFR # 70217 Superseded: see description
26. #GASKET KIT MFR # 520227
27. #GASKET,ROPE EXHAUST (200) MFR # 70487

Exploded View › Cabinet Assembly

Components

12 items

1. #PANEL, FRONT MFR # 100574
2. #CABINET OUTER ASSEMBLY CDS MFR # 100568
3. #CABINET, BACK MFR # 100585
4. #Furnace Vent; For Suburban Furnace NT-Series MFR # 260541
5. #CAP,VENT USE 260126 MFR # 260090 Superseded: see description
6. #VENT CAP USE 260541 MFR # 260126 Superseded: see description
7. #ADAPTER FOR VENT CAP MFR # 62123
8. #Water Heater Gas Valve; For Uni-Line 110 Series; 1/2 Inch Inlet x 1/2 Inch Outlet; 50 To 90 Degrees MFR # 100502
9. #T-STAT USE 100502 *N* MFR # 160850 Superseded: see description
10. #N/A DOOR LATCH (SPRING TYPE) MFR # 150033
11. #DOOR,MAIN CABINET MFR # 30430
12. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296

Exploded View › Burner - W-basotrol Valve

Components

30 items

1. #APPLIANCE COMPONENTS RV; Knob Blk Pilot Reset MFR # 140093
2. #ROD,RESET MFR # 140131
3. #IGNITER,PIEZO MFR # 140103
4. #Thermocouple; Use On Water Heater Models GVR65N/ GVR65BN/ GVR50N/ GVR50BN/ GVR35N/ GVR65P/ GVR65BP/ GVR50P/ GVR50BP/ GVR35P/ GVR65-5/ GVR50-5GVR35-5GVR65-5S/ GVR50-5S/ GVR35-5S/ GVC65N/ GVC65P/ GVC50N/ GVC50P/ GVC35N/ GVC35P/ GVC65-5/ GVC50-5/ GVC35-5 MFR # 160876 Superseded: see description
5. #T-COUPLE,30" USE 160876 MFR # 160527 Superseded: see description
6. #Universal Thermocouple; 30 Inches Long; Includes Thermocouple/ Positioning Adapters; MFR # H06E404
7. #Thermocouple; Use With Gas Water Heaters And Furnaces; Probe Sensor; 30 Inch Length; Copper MFR # 1153 Superseded: see description
8. #BURNER, PILOT MFR # 160535
9. #BURNER MFR # 10509
10. #APPLIANCE COMPONENTS RV; Valve Safety Pilot Ts11- MFR # 160540
11. #VALVE,BASO MFR # 160705
12. #BURNER ASM MFR # 140091
13. #APPLIANCE COMPONENTS RV; Pilot Orifice MFR # 160659
14. #Furnace Pilot Regulator; For Suburban Furnaces MFR # 160556
15. #PIPE,MANIFOLD MFR # 170409
16. #BULL DOG CATCH MFR # 70305
17. #PIPE, MANIFOLD 1/4 X4 1/2 " MFR # 170339
18. #BOATGUARD 21'-23' 102' CUDDY CABIN MFR # 70207
19. #ELBOW BRASS 90 DEGREE MFR # 170392
20. #3/8 Inch x 1/4 Inch HEX BUSHING MFR # 170280
21. #APPLIANCE COMPONENTS RV; St Ell MFR # 170012
22. #TUBE GAS INLET MFR # 170419
23. #TUBE,PILOT MFR # 170415
24. #NIPPLE 3/8 X 1 1/2 MFR # 170281
25. #APPLIANCE COMPONENTS RV; Suburban Orifice MFR # 180188
26. #PIPE, BLACK IRON (NT-22 & 30 C,CD) MFR # 170341
27. #TUBING MFR # 170411
28. #ELBOW, UNION WITH 1 1/2 Inch NIPPLE MFR # 170292
29. #ELBOW MFR # 170519
30. #ELBOW USE 170519 MFR # 170408 Superseded: see description

Exploded View › Combustion Chamber

Components

34 items

1. #CHAMBER,HEAT NT22 C MFR # 110249
2. #SPACER, BRIDE - 14B MFR # 120732
3. #DIODE RECTIFIER MFR # 230297
4. #APPLIANCE COMPONENTS RV; Ac/Dc Switching Relay MFR # 230255
5. #TRANSFORMER BE 8192 OR BE 8912 MFR # 230323
6. #DIODE & TRANSFORMER PKG MFR # 230312
7. #THERMOSTAT RELAY MFR # 230423
8. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
9. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
10. #SWITCH,FAN USE 230575 MFR # 230348 Superseded: see description
11. #SWITCH,FAN 11T-13 MFR # 230128
12. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
13. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
14. #APPLIANCE COMPONENTS RV; Igniter Piezo W/ Wire * MFR # 520577
15. #IGNITER, PIEZO USE 520577 MFR # 230521 Superseded: see description
16. #EXTENSION KNOB MFR # 140137
17. #IGNITER,PIEZO USE 230521 MFR # 230325 Superseded: see description
18. #COVER, JUNCTION BOX MFR # 90157
19. #N/A JUNCTION BOX MFR # 90158
20. #APPLIANCE COMPONENTS RV; Knob Blk Pilot Reset MFR # 140093
21. #TS-50: 50 AMP TRANSFER SWITCH MFR # 70278
22. #COVER,HOLE AIR SHUTTER ADJU STMENT MFR # 260061
23. #ELECTRODE MFR # 230349
24. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
25. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
26. #BURNER, PILOT MFR # 160535
27. #CAP,LIGHTER MFR # 290110
28. #GASKET,ELECTRODE MFR # 70276
29. #RETAINER,ELECTRODE MFR # 61697
30. #Thermocouple; Use With Gas Water Heaters And Furnaces; Probe Sensor; 30 Inch Length; Copper MFR # 1153 Superseded: see description
31. #DIODE USE 230297 MFR # 230288 Superseded: see description
32. #T-COUPLE,30" USE 160876 MFR # 160527 Superseded: see description
33. #Thermocouple; Use On Water Heater Models GVR65N/ GVR65BN/ GVR50N/ GVR50BN/ GVR35N/ GVR65P/ GVR65BP/ GVR50P/ GVR50BP/ GVR35P/ GVR65-5/ GVR50-5GVR35-5GVR65-5S/ GVR50-5S/ GVR35-5S/ GVC65N/ GVC65P/ GVC50N/ GVC50P/ GVC35N/ GVC35P/ GVC65-5/ GVC50-5/ GVC35-5 MFR # 160876 Superseded: see description
34. #Universal Thermocouple; 30 Inches Long; Includes Thermocouple/ Positioning Adapters; MFR # H06E404
