Suburban Nt Series NT24HA Parts Diagram · Exploded View › Blower Assembly

Furnace · 5 assemblies · 5 diagram sheets · 112 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT24HA RV furnace: 5 assemblies (Exploded View › Blower Assembly, Exploded View › Combustion Chamber, Exploded View › Burner Assembly, Replacement Furnace, Exploded View › Cabinet Assembly) and 112 manufacturer part numbers. 17 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

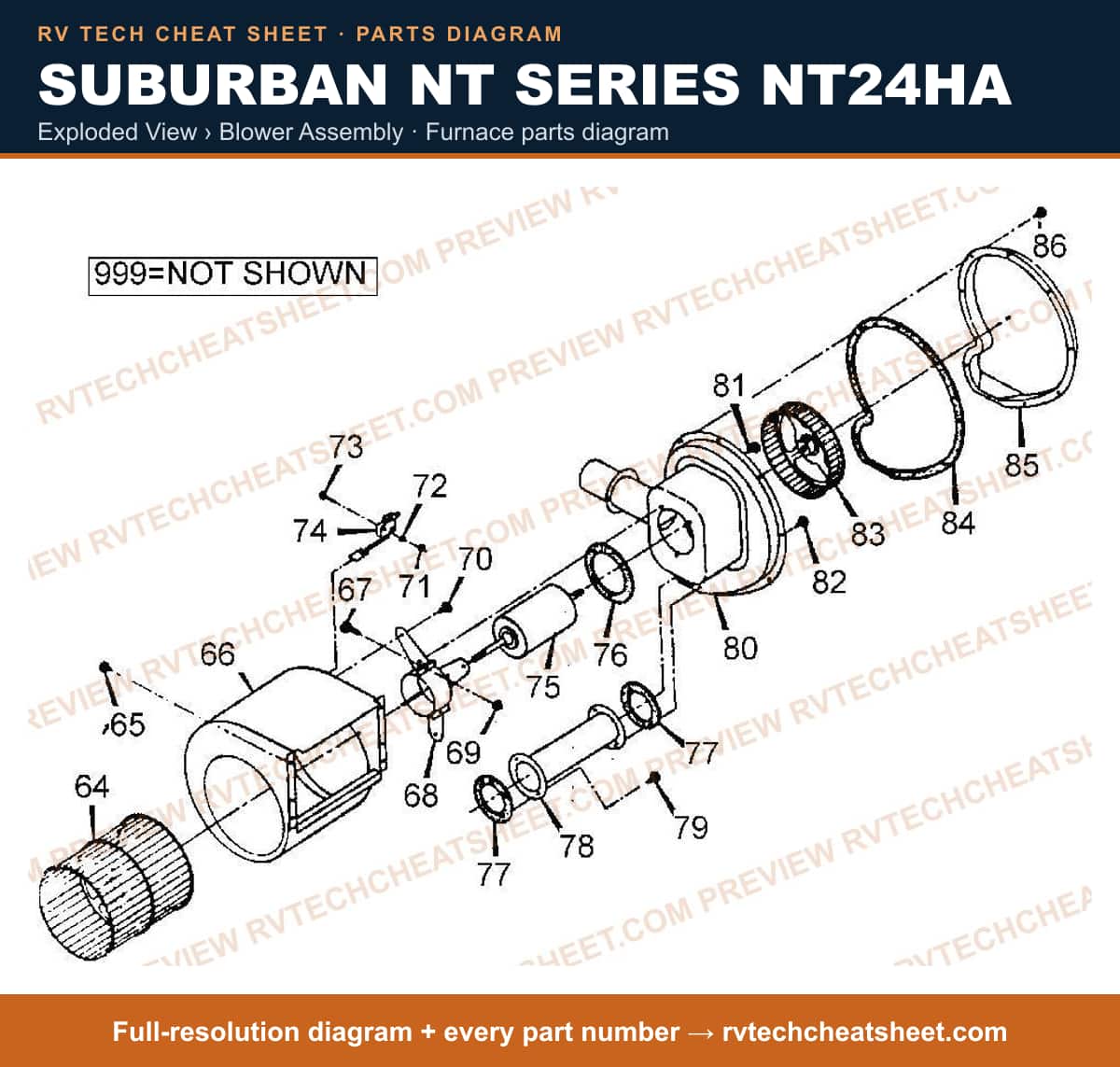

Exploded View › Blower Assembly

Components

25 items

1. #Furnace Blower Wheel; For Suburban Furnace NT-30SP/ NT-34SP MFR # 350113
2. #WHEEL,ROOM AIR USE 350113 MFR # 350076 Superseded: see description
3. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
4. #HOUSING, ROOM AIR BLOWER ASSEMBLY MFR # 390269
5. #Screw; Use With Suburban Furnace Model NT40; Phillips Head; 10-24 x 1/2 MFR # 121227 Superseded: see description
6. #Furnace Motor Bracket; For Suburban NT-40 MFR # 62138
7. #Nut; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; Fits Furnace Combustion Air Housing; Locking; #10-24 Thread Size MFR # 120717
8. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
9. #NUT HEX 2-56 MFR # 120672
10. #APPLIANCE COMPONENTS RV; Washer Lock #2 MFR # 121364
11. #Screw; Use With Suburban Furnace Part Numbers NT-16SE/ NT-20SE; # 2; 56 Inch x 5/8 Inch; Hex Head MFR # 121247 Superseded: see description
12. #Furnace Low Air Flow Switch; For Suburban Furnace NT-24M/ NT-24S/ NT-24SP MFR # 230510
13. #Furnace Motor; For Suburban Furnace Models NT-30M/ NT-30S/ NT-30SP; Also Use New Number 521137MC MFR # 231207MC Superseded: see description
14. #Furnace Motor; For Suburban Furnace NT-30M/ NT-30S/ NT-30SP MFR # 231207
15. #MOTOR, BLOWER (507) MFR # PE2707Q
16. #KIT MOTOR/MTG BRKTS MFR # 521137
17. #Furnace Gasket; Motor Mount Gasket; Fits Suburban Furnace NT-40 MFR # 70384
18. #Furnace Gasket; Furnace Crossover Tube Gasket; Fits Suburban Furnace NT-24M/ NT-30M/ NT-30SP/ NT-34SP/ NT-40 MFR # 70385
19. #TUBE,CROSSOVER USE 50751 MFR # 50439 Superseded: see description
20. #COMBUSTION AIR HOUSING ASSY (LEFT SIDE) MFR # 390231
21. #APPLIANCE COMPONENTS RV; Screw #10-16 X 1/2 MFR # 121436
22. #WHEEL COMB AIR - obsolete MFR # 350077
23. #Furnace Gasket; Furnace Combustion Air Housing Gasket; Fits Suburban Furnace NT-24/ NT-30/ NT-34H/ NT-HA/ NT-34S/ NT-30SP/ NT-34HS/ NT-30MA/ NT-34L/ NT-34MM/ P-30S/ P-40S/ NT-42S/ NT-42ST MFR # 70386
24. #CHAMBER,COMBUSTION MFR # 390173
25. #GASKET KIT *PIECE OUT KIT* MFR # 520195

Exploded View › Combustion Chamber

Components

42 items

1. #CHAMBER,HEAT N T30HA MFR # 20838
2. #BAFFLE, EXHAUST TUBE MFR # 40293
3. #SCREW, #6 - 32 X 1/2 SELF TAP (4 REQUIRED) MFR # 121562
4. #CAP LUG #1-3/8 RED INSULATOR CAP F/ CIR BD MFR # 70549
5. #UIB L WITH POST TOP MFR # UIBLPOST
6. #BOARD,MODULE USE 520741 (05152435103) MFR # 230587 Superseded: see description
7. #UNIVERSAL IGN BRD SMALL MFR # UIBS
8. #COVER FOR UIB S MFR # SMALLCOVER
9. #Ignition Control Circuit Board Cover; Replacement For Dinosaurs Universal Igniter Boards; Large; White; Fire Retardant ABS Plastic MFR # LCVR
10. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
11. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
12. #UNIVERSAL IGN BRD LARGE MFR # UIBL
13. #UIB S WITH POST TOP MFR # UIBSPOST
14. #UIB WITH FAN CONTROL MFR # FAN50PLUS
15. #Furnace Wiring Harness; For Suburban Furnace DD17DSI/ NT-Series MFR # 232161
16. #BAFFLE, BURNER TUNNEL MFR # 40294
17. #GASKET,ROPE EXHAUST (200) MFR # 70487
18. #GASKET,EXH/INTAKE USE 70487 MFR # 70537 Superseded: see description
19. #COMPARTMENT, CONTROLS ASSEMBLY MFR # 110395
20. #GASKET, MODULE BOARD ACCESS PLATE MFR # 70479
21. #PLATE, MODULE BOARD ACCESS MFR # 62317
22. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
23. #VENT CAP MFR # 260100
24. #BACK, DECORATIVE 24 20H, HA ALSO ORDER 260100 MFR # 100893
25. #SCREW, #10 X 3/4 STAINLESS STEEL (4 REQUIRED) MFR # 121425
26. #GASKET,BACK MFR # 70477
27. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
28. #APPLIANCE COMPONENTS RV; Bushing Snap 1/2" MFR # 70270
29. #APPLIANCE COMPONENTS RV; Bushing Snap MFR # 70472
30. #TINNERMAN (4 REQUIRED) MFR # 121488
31. #Furnace Gasket; Furnace Manifold Gasket; Fits Suburban Furnace NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30S/ P-40/ P-40B MFR # 70408
32. #AUX. FUEL TANK 40GAL MFR # 70387
33. #APPLIANCE COMPONENTS RV; Screw #10-16 X 1/2 MFR # 121436
34. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
35. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
36. #THERMOSTAT RELAY MFR # 230423
37. #WATER FLANGE WHIT PLASTC MFR # 62135
38. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
39. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
40. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
41. #SWITCH,LIMIT MFR # 232578
42. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362

Exploded View › Burner Assembly

Components

33 items

1. #SCREW, BURNER MOUNTING #10 - 24 X 3/8 (2 REQ.) MFR # 121460
2. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
3. #APPLIANCE COMPONENTS RV; Screw 8-32 X 3/8 Hex Hd MFR # 121407
4. #BUY AT LOCAL HARDWARE STORE MFR # 230552
5. #COVER,AIR ADJUSTMENT METAL MFR # 290121
6. #APPLIANCE COMPONENTS RV; Electrode MFR # 230590
7. #ELECTRODE USE 230590 MFR # 230480 Superseded: see description
8. #GASKET,AIR ADJUSTMENT MFR # 70397
9. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
10. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
11. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
12. #DOOR,COMBUSTION CHAMBER MFR # 30451
13. #Furnace Access Door Sight Glass; Replacement For Suburban Furnace NT-Series/ P-45M/ P-45S MFR # 310026
14. #APPLIANCE COMPONENTS RV; Cover Plate MFR # 290120
15. #GASKET,BURNER USE 71076 MFR # 70398 Superseded: see description
16. #BURNER ONLY USE 10609 MFR # 10581 Superseded: see description
17. #POWER CONTROL MODULE MFR # 10609
18. #SHUTTER,AIR BURNER MFR # 10582
19. #APPLIANCE COMPONENTS RV; Washer Flat 7/32Idx1/2Od MFR # 120684
20. #SPRING MFR # 150026
21. #PIN,AIR SHUTTER KNURLED MFR # 120764
22. #VALVE,SHUTOFF MFR # 160740
23. #VALVE KIT USE 160911 & 170545 MFR # 520423 Superseded: see description
24. #VALVE,GAS USE 520423 W/MANIFOLD MFR # 160781 Superseded: see description
25. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
26. #VALVE,GAS MFR # 160911
27. #MANIFOLD ASSEMBLY MFR # 170690
28. #Furnace Burner Orifice; Number 54 Orifice; For Suburban Furnace NT-20T/ NT-23M/ NT-24BW/ NT-24HA/ NT-24HS/ NT-24M/ NT-24MD/ NT-24MP/ NT-24MPD/ NT-24S/ NT-24SP/ NT-25K/ NT-30BW/ NT-30H/ NT-30HA/ NT-30HS/ NT-30MA/ NT-30MD/ NT-34H/ NT-34HS/ NT-34L/ NT-34MM/ NT-34MMD/ NT-34S/ NT-45M/ NT-45S/ P-45M/ P-45S MFR # 180215
29. #Furnace Burner Orifice; For Suburban Furnace NT-30M/ NT-30S/ NT-30SP/ SF-30/ SF-30F/ P-30S/ NT-30K MFR # 180214
30. #ROD,AIR ADJUSTMENT MFR # 140146
31. #PIN,ROLL STEEL MFR # 121250
32. #ELBOW, 90° 1/8 NPT X 1/8 NPT MFR # 170544
33. #APPLIANCE COMPONENTS RV; Close Nipple MFR # 170546

Replacement Furnace

Exploded View › Cabinet Assembly

Components

17 items

1. #CABINET ASSEMBLY MFR # 100952
2. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
3. #Wall Thermostat; Single Stage; For Heat Control; Mechanical Readout; White Case MFR # 161154
4. #Wall Thermostat; Single Stage; Snap-Action; Low Voltage; Heat Only; 24 Volt; White MFR # 01C20102S1
5. #Wall Thermostat; Single Stage; For Heat/ Cool Control; Mechanical Readout; 12 Volt; Without Fan Speed Control; Without Fan On Mode MFR # 100402
6. #T-STAT USE 161154 MFR # 160813 Superseded: see description
7. #Wall Thermostat; Single Stage; For Heat And Cool Control; Programmable; Digital Display; 24 Volt; Battery Powered MFR # 1F87R875
8. #Wall Thermostat; Heat; Not Programmable; Mechanical Readout; Black MFR # 161210
9. #APPLIANCE COMPONENTS RV; Thermostat 3 Day Program MFR # 1F80R850
10. #Wall Thermostat; Heat Only; Mechanical; 1 Stage; White; MFR # 1C20101
11. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
12. #CABINET DOOR STRUT METAL MFR # 70545
13. #CABINET DOOR ASSEMBLY INCLUDES: MFR # 100949
14. #APPLIANCE COMPONENTS RV; Screw 10 X 3/4 Ph Ph MFR # 121224
15. #Stove Mounting Bracket; For Suburban Range; Angled; Single MFR # 122060
16. #APPLIANCE COMPONENTS RV; Sububan Tinnerman Fastene MFR # 121662
17. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
