Suburban Nt Series NT24M W-essex Valve Parts Diagram · Replacement Furnace

Furnace · 4 assemblies · 4 diagram sheets · 80 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT24M W-essex Valve RV furnace: 4 assemblies (Replacement Furnace, Exploded View › Burner Assembly, Exploded View › Combustion Chamber, Exploded View › Blower Assembly) and 80 manufacturer part numbers. 19 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Replacement Furnace

Components

2 items

1. #Furnace Core; NT Series; LP Gas; Model Number NT-30SP; 30,000 BTU; Side/ Top And Bottom Duct Discharge; 5.5 Amp Draw; 12 Inch Width x 12-1/2 Inch Height x 23 Inch Depth; 25 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly MFR # NT30SPN
2. #USE 79-1809 NT-30SP FURNACE MFR # NT24SPN Superseded: see description

Exploded View › Burner Assembly

Components

15 items

1. #APPLIANCE COMPONENTS RV; Elbow 90 Deg MFR # 170082
2. #GAS INLET PIPE ASSEMBLY MFR # 170494
3. #VALVE,GAS USE 160911 MFR # 160739 Superseded: see description
4. #VALVE,GAS MFR # 160911
5. #APPLIANCE COMPONENTS RV; Fitting MFR # 170375
6. #MANIFOLD ASM USE 170537 MFR # 170514 Superseded: see description
7. #MANIFOLD ASM MFR # 170537
8. #AUX. FUEL TANK 40GAL MFR # 70387
9. #Furnace Gasket; Furnace Manifold Gasket; Fits Suburban Furnace NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30S/ P-40/ P-40B MFR # 70408
10. #Furnace Burner Orifice; For Suburban Furnace NT-30M/ NT-30S/ NT-30SP/ SF-30/ SF-30F/ P-30S/ NT-30K MFR # 180214
11. #Furnace Burner Orifice; Number 54 Orifice; For Suburban Furnace NT-20T/ NT-23M/ NT-24BW/ NT-24HA/ NT-24HS/ NT-24M/ NT-24MD/ NT-24MP/ NT-24MPD/ NT-24S/ NT-24SP/ NT-25K/ NT-30BW/ NT-30H/ NT-30HA/ NT-30HS/ NT-30MA/ NT-30MD/ NT-34H/ NT-34HS/ NT-34L/ NT-34MM/ NT-34MMD/ NT-34S/ NT-45M/ NT-45S/ P-45M/ P-45S MFR # 180215
12. #SHUTTER,AIR BURNER MFR # 10582
13. #BURNER ONLY USE 10609 MFR # 10581 Superseded: see description
14. #POWER CONTROL MODULE MFR # 10609
15. #ROD,AIR ADJUSTMENT MFR # 140146

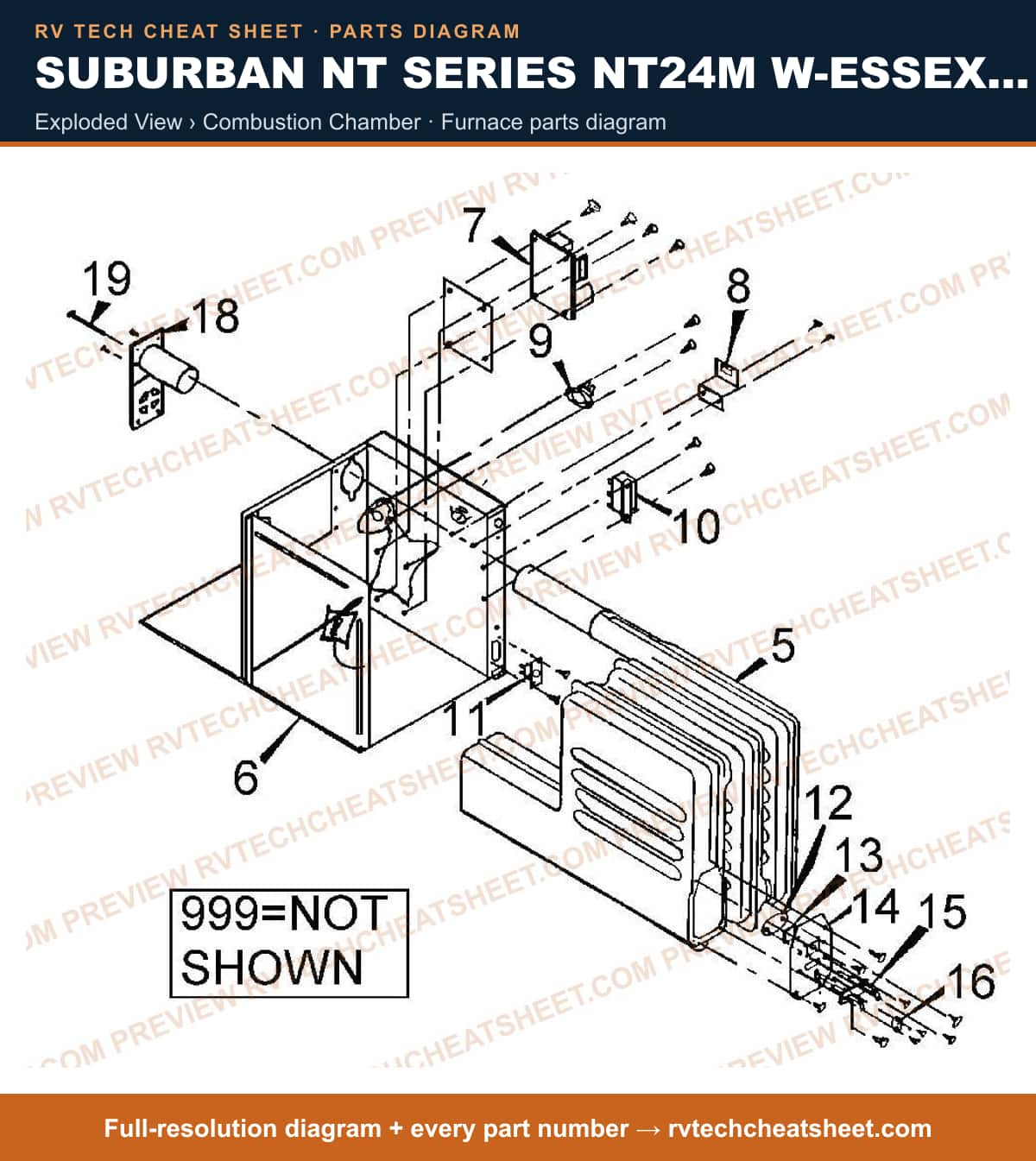

Exploded View › Combustion Chamber

Components

40 items

1. #Fold-Out Bunk Clamp, Zinc MFR # 20785
2. #CHAMBER,COMBUSTION W/RA DIATION SHIELD MFR # 20786
3. #RADIATION SHIELD ASSEMBLY MFR # 110319
4. #Furnace Wiring Harness; For Suburban Furnace DD17DSI/ NT-Series MFR # 232161
5. #BOARD,MODULE USE 520741 (05152435103) MFR # 230587 Superseded: see description
6. #COVER FOR UIB S MFR # SMALLCOVER
7. #UNIVERSAL IGN BRD LARGE MFR # UIBL
8. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
9. #UIB WITH FAN CONTROL MFR # FAN50PLUS
10. #UNIVERSAL IGN BRD SMALL MFR # UIBS
11. #Ignition Control Circuit Board Cover; Replacement For Dinosaurs Universal Igniter Boards; Large; White; Fire Retardant ABS Plastic MFR # LCVR
12. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
13. #UIB L WITH POST TOP MFR # UIBLPOST
14. #UIB S WITH POST TOP MFR # UIBSPOST
15. #WATER FLANGE WHIT PLASTC MFR # 62135
16. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
17. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
18. #THERMOSTAT RELAY MFR # 230423
19. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
20. #SWITCH,LIMIT MFR # 232578
21. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
22. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
23. #APPLIANCE COMPONENTS RV; Cover Plate MFR # 290120
24. #Furnace Access Door Sight Glass; Replacement For Suburban Furnace NT-Series/ P-45M/ P-45S MFR # 310026
25. #DOOR,COMBUSTION CHAMBER MFR # 30451
26. #APPLIANCE COMPONENTS RV; Electrode MFR # 230590
27. #ELECTRODE USE 230590 MFR # 230480 Superseded: see description
28. #COVER,AIR ADJ HOLE MFR # 290119
29. #USE 520730 CAP,VENT ASSM NT24M MFR # 50462 Superseded: see description
30. #KIT VENT CAP MFR # 520730
31. #Screw; For Suburban Furnace Exhaust Vent; 8 X 3-1/4; Set Of 2 MFR # 121711
32. #SCREW USE 121711 SHEET METAL #10 X 3 PHILLIPS MFR # 121249 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Gskt Cov Air Adj MFR # 70389
34. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
35. #WIRE,HIGH VOLTAGE USE 231713 MFR # 318060002 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Wire Electrode - N.L.A. MFR # 231713
37. #GASKET,BURNER USE 71076 MFR # 70398 Superseded: see description
38. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
39. #WIRE,ELECTRODE USE 318060002 MFR # 230491 Superseded: see description
40. #SECUREITSNAPIT LOCK MFR # 70388

Exploded View › Blower Assembly

Components

23 items

1. #WHEEL,ROOM AIR USE 350113 MFR # 350076 Superseded: see description
2. #Furnace Blower Wheel; For Suburban Furnace NT-30SP/ NT-34SP MFR # 350113
3. #HOUSING, ROOM AIR MFR # 390178
4. #Furnace Low Air Flow Switch; For Suburban Furnace NT-24M/ NT-24S/ NT-24SP MFR # 230510
5. #Furnace Motor Bracket; For Suburban NT-40 MFR # 62138
6. #Furnace Motor; For Suburban Furnace NT-30M/ NT-30S/ NT-30SP MFR # 231207
7. #KIT MOTOR/MTG BRKTS MFR # 521137
8. #Furnace Motor; For Suburban Furnace Models NT-24 M/ NT-24S/ NT-24SP MFR # 231206MC
9. #Furnace Motor; For Suburban Furnace Models NT-30M/ NT-30S/ NT-30SP; Also Use New Number 521137MC MFR # 231207MC Superseded: see description
10. #MOTOR,BOSCH USE 231207 MFR # 230339 Superseded: see description
11. #MOTOR, BLOWER (507) MFR # PE2707Q
12. #Furnace Motor; For Suburban Furnace NT-24 M/ NT-24S/ NT-24SP MFR # 231206
13. #Furnace Gasket; Motor Mount Gasket; Fits Suburban Furnace NT-40 MFR # 70384
14. #TUBE,CROSSOVER USE 50751 MFR # 50439 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Suburban Comb Air Housing MFR # 390179
16. #WHEEL COMB AIR - obsolete MFR # 350077
17. #Furnace Gasket; Furnace Combustion Air Housing Gasket; Fits Suburban Furnace NT-24/ NT-30/ NT-34H/ NT-HA/ NT-34S/ NT-30SP/ NT-34HS/ NT-30MA/ NT-34L/ NT-34MM/ P-30S/ P-40S/ NT-42S/ NT-42ST MFR # 70386
18. #CHAMBER,COMBUSTION MFR # 390173
19. #VALVE,SHUTOFF MFR # 160740
20. #APPLIANCE COMPONENTS RV; Ac/Dc Switching Relay MFR # 230255
21. #Furnace Gasket; Furnace Crossover Tube Gasket; Fits Suburban Furnace NT-24M/ NT-30M/ NT-30SP/ NT-34SP/ NT-40 MFR # 70385
22. #DIODE RECTIFIER MFR # 230297
23. #TRANSFORMER BE 8192 OR BE 8912 MFR # 230323
