Suburban Nt Series NT24M W-harper Wyman Valve Parts Diagram · Exploded View › Burner Assembly

Furnace · 4 assemblies · 4 diagram sheets · 81 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT24M W-harper Wyman Valve RV furnace: 4 assemblies (Exploded View › Burner Assembly, Exploded View › Blower Assembly, Replacement Furnace, Exploded View › Combustion Chamber) and 81 manufacturer part numbers. 18 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Exploded View › Burner Assembly

Components

19 items

1. #APPLIANCE COMPONENTS RV; Elbow 90 Deg MFR # 170082
2. #COVER PLATE, GAS INLET MFR # 62143
3. #GAS INLET PIPE ASSEMBLY MFR # 170566
4. #VALVE KIT USE 160911 & 170545 MFR # 520423 Superseded: see description
5. #VALVE USE 520423 MFR # 160762 Superseded: see description
6. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
7. #VALVE,GAS MFR # 160911
8. #MANIFOLD ASM MFR # 170567
9. #Furnace Gasket; Furnace Manifold Gasket; Fits Suburban Furnace NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30S/ P-40/ P-40B MFR # 70408
10. #Furnace Burner Orifice; Number 54 Orifice; For Suburban Furnace NT-20T/ NT-23M/ NT-24BW/ NT-24HA/ NT-24HS/ NT-24M/ NT-24MD/ NT-24MP/ NT-24MPD/ NT-24S/ NT-24SP/ NT-25K/ NT-30BW/ NT-30H/ NT-30HA/ NT-30HS/ NT-30MA/ NT-30MD/ NT-34H/ NT-34HS/ NT-34L/ NT-34MM/ NT-34MMD/ NT-34S/ NT-45M/ NT-45S/ P-45M/ P-45S MFR # 180215
11. #PIN,AIR SHUTTER KNURLED MFR # 120764
12. #SPRING MFR # 150026
13. #Washer; For Suburban Stove/ Furnace NT-30M/ NT-24M/ NT-24MA/ NT-30H/ NT-30M/ NT-34H/ NT-34L/ NT-34LD/ SDN2BK/ SDN2H/ SDN2SS/ SDN2WH/ SDN3BK/ SDN3SS/ SDN3WH MFR # 120759
14. #SHUTTER,AIR BURNER MFR # 10582
15. #POWER CONTROL MODULE MFR # 10609
16. #BURNER ONLY USE 10609 MFR # 10581 Superseded: see description
17. #SCREW,#10 24 X 3/8 MFR # 121226
18. #ROD,AIR ADJUSTMENT MFR # 140146
19. #PIN,ROLL STEEL MFR # 121250

Exploded View › Blower Assembly

Components

20 items

1. #Furnace Blower Wheel; For Suburban Furnace NT-30SP/ NT-34SP MFR # 350113
2. #WHEEL,ROOM AIR USE 350113 MFR # 350076 Superseded: see description
3. #HOUSING, ROOM AIR MFR # 390178
4. #Furnace Low Air Flow Switch; For Suburban Furnace NT-24M/ NT-24S/ NT-24SP MFR # 230510
5. #Furnace Motor Bracket; For Suburban NT-40 MFR # 62138
6. #TUBE,CROSSOVER USE 50751 MFR # 50439 Superseded: see description
7. #MOTOR USE 231206 PE2616Q MFR # 231379 Superseded: see description
8. #Furnace Motor; For Suburban Furnace NT-24 M/ NT-24S/ NT-24SP MFR # 231206
9. #Furnace Motor; For Suburban Furnace Models NT-24 M/ NT-24S/ NT-24SP MFR # 231206MC
10. #Furnace Gasket; Motor Mount Gasket; Fits Suburban Furnace NT-40 MFR # 70384
11. #APPLIANCE COMPONENTS RV; Suburban Comb Air Housing MFR # 390179
12. #WHEEL COMB AIR - obsolete MFR # 350077
13. #Furnace Gasket; Furnace Combustion Air Housing Gasket; Fits Suburban Furnace NT-24/ NT-30/ NT-34H/ NT-HA/ NT-34S/ NT-30SP/ NT-34HS/ NT-30MA/ NT-34L/ NT-34MM/ P-30S/ P-40S/ NT-42S/ NT-42ST MFR # 70386
14. #CHAMBER,COMBUSTION MFR # 390173
15. #APPLIANCE COMPONENTS RV; Ac/Dc Switching Relay MFR # 230255
16. #GASKET KIT *PIECE OUT KIT* MFR # 520195
17. #DIODE RECTIFIER MFR # 230297
18. #Furnace Gasket; Furnace Crossover Tube Gasket; Fits Suburban Furnace NT-24M/ NT-30M/ NT-30SP/ NT-34SP/ NT-40 MFR # 70385
19. #TRANSFORMER BE 8192 OR BE 8912 MFR # 230323
20. #VALVE,SHUTOFF MFR # 160740

Replacement Furnace

Components

1 item

1. #USE 79-1809 NT-30SP FURNACE MFR # NT24SPN Superseded: see description

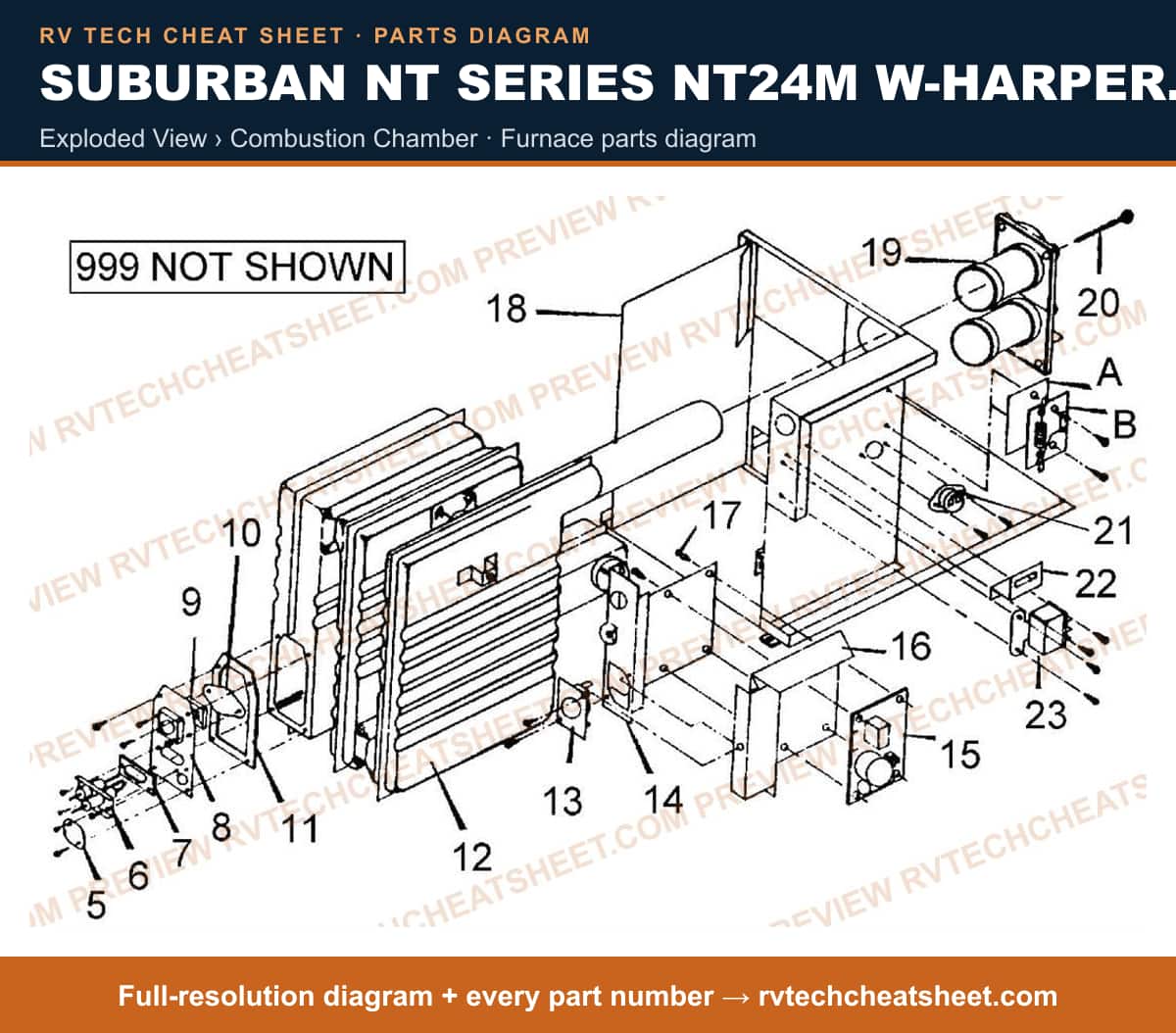

Exploded View › Combustion Chamber

Components

41 items

1. #INSULATOR, ARRESTOR ASSEMBLY MFR # 70441
2. #ARRESTOR KIT,MOTOR MFR # 230597
3. #COVER,AIR ADJ HOLE MFR # 290119
4. #APPLIANCE COMPONENTS RV; Electrode MFR # 230590
5. #ELECTRODE ASM USE 230590 MFR # 230495 Superseded: see description
6. #ELECTRODE USE 230590 MFR # 230480 Superseded: see description
7. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
8. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
9. #DOOR,COMBUSTION CHAMBER MFR # 30451
10. #Furnace Access Door Sight Glass; Replacement For Suburban Furnace NT-Series/ P-45M/ P-45S MFR # 310026
11. #APPLIANCE COMPONENTS RV; Cover Plate MFR # 290120
12. #GASKET,BURNER USE 71076 MFR # 70398 Superseded: see description
13. #CHAMBER,COMBUSTION W/RA DIATION SHIELD MFR # 20786
14. #SWITCH,LIMIT MFR # 232578
15. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
16. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 67657 Superseded: see description
17. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
18. #PLATE AND COVER ASSEMBLY (SLIDE OUT FEATURE) MFR # 90214
19. #UNIVERSAL IGN BRD LARGE MFR # UIBL
20. #COVER FOR UIB S MFR # SMALLCOVER
21. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
22. #BOARD,MODULE USE 520741 (05152435103) MFR # 230587 Superseded: see description
23. #UIB L WITH POST TOP MFR # UIBLPOST
24. #Ignition Control Circuit Board Cover; Replacement For Dinosaurs Universal Igniter Boards; Large; White; Fire Retardant ABS Plastic MFR # LCVR
25. #UNIVERSAL IGN BRD SMALL MFR # UIBS
26. #UIB S WITH POST TOP MFR # UIBSPOST
27. #Furnace Wiring Harness; For Suburban Furnace DD17DSI/ NT-Series MFR # 232161
28. #UIB WITH FAN CONTROL MFR # FAN50PLUS
29. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
30. #INSUL MOD BOARD MFR # 70540
31. #INSULATOR,BOARD USE 70540 MFR # 70437 Superseded: see description
32. #PANEL FASTENER MFR # 121427
33. #N/A SHIELD,RADATION MFR # 110353S
34. #KIT VENT CAP MFR # 520730
35. #CAP,VENT USE 520730 MFR # 260093 Superseded: see description
36. #SCREW USE 121711 SHEET METAL #10 X 3 PHILLIPS MFR # 121249 Superseded: see description
37. #Screw; For Suburban Furnace Exhaust Vent; 8 X 3-1/4; Set Of 2 MFR # 121711
38. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
39. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
40. #WATER FLANGE WHIT PLASTC MFR # 62135
41. #THERMOSTAT RELAY MFR # 230423
