Suburban Nt Series NT24MA Parts Diagram · Exploded View › Blower Assembly

Furnace · 5 assemblies · 5 diagram sheets · 98 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT24MA RV furnace: 5 assemblies (Exploded View › Blower Assembly, Exploded View › Burner Assembly, Replacement Furnace, Exploded View › Combustion Chamber, Exploded View › Cabinet Assembly) and 98 manufacturer part numbers. 23 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Exploded View › Blower Assembly

Components

26 items

1. #Furnace Blower Wheel; For Suburban Furnace NT-30SP/ NT-34SP MFR # 350113
2. #WHEEL,ROOM AIR USE 350113 MFR # 350076 Superseded: see description
3. #HOUSING, ROOM AIR MFR # 390178
4. #Furnace Low Air Flow Switch; For Suburban Furnace NT-30/ NT-34/ NT-30M/ NT-34M/ NT-30S/ NT-34S/ NT-30SP/ NT-34SP/ NT-25/ NT-30/ NT-35/ NT-35K/ P-30S/ SF-20/ SF-25/ SF-30/ SF-35/ SF-20F/ SF-25F/ SF-30F/ SF-35F; Also Use New Number 233356 MFR # 230509 Superseded: see description
5. #Furnace Low Air Flow Switch; For Suburban Furnace Models NT-30/ NT-34/ NT-30M/ NT-34M/ NT-30S/ NT-34S/ NT-30SP/ NT-34SP/ NT-25/ NT-30/ NT-35/ NT-35K/ P-30S/ SF-20/ SF-25/ SF-30/ SF-35/ SF-20F/ SF-25F/ SF-30F/ SF-35F MFR # 230509MC
6. #Furnace Low Air Flow Switch; For Suburban Furnace NT-24M/ NT-24S/ NT-24SP MFR # 230510
7. #Furnace Low Air Flow Switch; For Suburban Furnace NT-30/ NT-34/ NT-30M/ NT-34M/ NT-30S/ NT-34S/ NT-30SP/ NT-34SP/ NT-25/ NT-30/ NT-35/ NT-35K/ P-30S/ SF-20/ SF-25/ SF-30/ SF-35/ SF-20F/ SF-25F/ SF-30F/ SF-35F; Also Use New Number 525024 MFR # 233356 Superseded: see description
8. #Furnace Low Air Flow Switch; For Suburban Furnace NT-40 MFR # 233355
9. #Furnace Low Air Flow Switch; For Suburban Furnace NT-40; Also Use New Number 233355 MFR # 232279 Superseded: see description
10. #Furnace Motor Bracket; For Suburban NT-40 MFR # 62138
11. #Furnace Motor; For Suburban Furnace Models NT-34M/ NT-34S/ NT-34SP/ NT-40S/ NT-42S/ NT-42T; Also Use New Number 521138MC MFR # 231208MC Superseded: see description
12. #Furnace Motor; For Suburban Furnace NT-34M/ NT-34S/ NT-34SP/ NT-40S/ NT-42S/ NT-42T MFR # 231208
13. #KIT MOTOR/MTG BRKTS MFR # 521138
14. #MOTOR, BLOWER (169) 231208 MFR # PE2787Q
15. #Furnace Gasket; Motor Mount Gasket; Fits Suburban Furnace NT-40 MFR # 70384
16. #TUBE,CROSSOVER USE 50751 MFR # 50439 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Suburban Comb Air Housing MFR # 390179
18. #WHEEL COMB AIR - obsolete MFR # 350077
19. #Furnace Gasket; Furnace Combustion Air Housing Gasket; Fits Suburban Furnace NT-24/ NT-30/ NT-34H/ NT-HA/ NT-34S/ NT-30SP/ NT-34HS/ NT-30MA/ NT-34L/ NT-34MM/ P-30S/ P-40S/ NT-42S/ NT-42ST MFR # 70386
20. #CHAMBER,COMBUSTION MFR # 390173
21. #VALVE,SHUTOFF MFR # 160740
22. #DIODE RECTIFIER MFR # 230297
23. #APPLIANCE COMPONENTS RV; Ac/Dc Switching Relay MFR # 230255
24. #GASKET KIT *PIECE OUT KIT* MFR # 520195
25. #Furnace Gasket; Furnace Crossover Tube Gasket; Fits Suburban Furnace NT-24M/ NT-30M/ NT-30SP/ NT-34SP/ NT-40 MFR # 70385
26. #TRANSFORMER BE 8192 OR BE 8912 MFR # 230323

Exploded View › Burner Assembly

Components

15 items

1. #APPLIANCE COMPONENTS RV; Elbow 90 Deg MFR # 170082
2. #GAS INLET PIPE ASSEMBLY MFR # 170494
3. #VALVE,GAS USE 160911 MFR # 160739 Superseded: see description
4. #VALVE,GAS MFR # 160911
5. #APPLIANCE COMPONENTS RV; Fitting MFR # 170375
6. #MANIFOLD ASM MFR # 170537
7. #MANIFOLD ASM USE 170537 MFR # 170514 Superseded: see description
8. #AUX. FUEL TANK 40GAL MFR # 70387
9. #Furnace Gasket; Furnace Manifold Gasket; Fits Suburban Furnace NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30S/ P-40/ P-40B MFR # 70408
10. #Furnace Burner Orifice; For Suburban Furnace NT-30M/ NT-30S/ NT-30SP/ SF-30/ SF-30F/ P-30S/ NT-30K MFR # 180214
11. #Furnace Burner Orifice; Number 54 Orifice; For Suburban Furnace NT-20T/ NT-23M/ NT-24BW/ NT-24HA/ NT-24HS/ NT-24M/ NT-24MD/ NT-24MP/ NT-24MPD/ NT-24S/ NT-24SP/ NT-25K/ NT-30BW/ NT-30H/ NT-30HA/ NT-30HS/ NT-30MA/ NT-30MD/ NT-34H/ NT-34HS/ NT-34L/ NT-34MM/ NT-34MMD/ NT-34S/ NT-45M/ NT-45S/ P-45M/ P-45S MFR # 180215
12. #SHUTTER,AIR BURNER MFR # 10582
13. #POWER CONTROL MODULE MFR # 10609
14. #BURNER ONLY USE 10609 MFR # 10581 Superseded: see description
15. #ROD,AIR ADJUSTMENT MFR # 140146

Replacement Furnace

Components

1 item

1. #USE 79-1809 NT-30SP FURNACE MFR # NT24SPN Superseded: see description

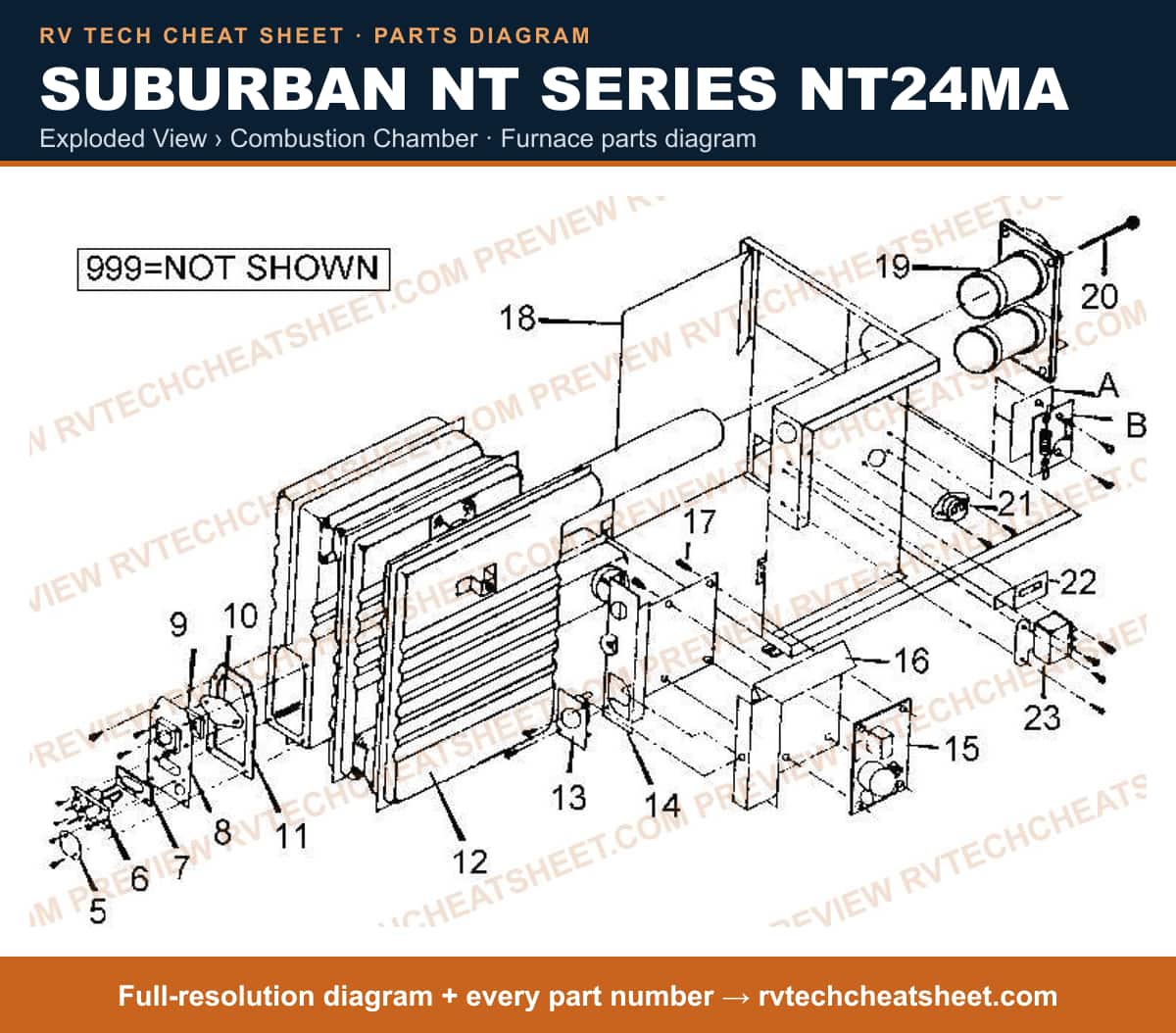

Exploded View › Combustion Chamber

Components

41 items

1. #COVER,AIR ADJ HOLE MFR # 290119
2. #APPLIANCE COMPONENTS RV; Electrode MFR # 230590
3. #ELECTRODE USE 230590 MFR # 230480 Superseded: see description
4. #ELECTRODE ASM USE 230590 MFR # 230495 Superseded: see description
5. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
6. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
7. #DOOR,COMBUSTION CHAMBER MFR # 30451
8. #Furnace Access Door Sight Glass; Replacement For Suburban Furnace NT-Series/ P-45M/ P-45S MFR # 310026
9. #APPLIANCE COMPONENTS RV; Cover Plate MFR # 290120
10. #GASKET,BURNER USE 71076 MFR # 70398 Superseded: see description
11. #CHAMBER,COMBUSTION W/RA DIATION SHIELD MFR # 20786
12. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
13. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
14. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
15. #SWITCH,LIMIT MFR # 232578
16. #PLATE AND COVER ASSEMBLY (SLIDE OUT FEATURE) MFR # 90214
17. #Ignition Control Circuit Board Cover; Replacement For Dinosaurs Universal Igniter Boards; Large; White; Fire Retardant ABS Plastic MFR # LCVR
18. #BOARD,MODULE USE 520741 (05152435103) MFR # 230587 Superseded: see description
19. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
20. #UIB S WITH POST TOP MFR # UIBSPOST
21. #UIB L WITH POST TOP MFR # UIBLPOST
22. #COVER FOR UIB S MFR # SMALLCOVER
23. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
24. #UIB WITH FAN CONTROL MFR # FAN50PLUS
25. #UNIVERSAL IGN BRD LARGE MFR # UIBL
26. #UNIVERSAL IGN BRD SMALL MFR # UIBS
27. #Furnace Wiring Harness; For Suburban Furnace DD17DSI/ NT-Series MFR # 232161
28. #INSUL MOD BOARD MFR # 70540
29. #INSULATOR,BOARD USE 70540 MFR # 70437 Superseded: see description
30. #PANEL FASTENER MFR # 121427
31. #RADIANT SHIELD ASSEMBLY MFR # X110353
32. #CAP,VENT USE 520730 MFR # 260093 Superseded: see description
33. #KIT VENT CAP MFR # 520730
34. #SCREW USE 121711 SHEET METAL #10 X 3 PHILLIPS MFR # 121249 Superseded: see description
35. #Screw; For Suburban Furnace Exhaust Vent; 8 X 3-1/4; Set Of 2 MFR # 121711
36. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
37. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
38. #WATER FLANGE WHIT PLASTC MFR # 62135
39. #THERMOSTAT RELAY MFR # 230423
40. #INSULATOR, ARRESTOR ASSEMBLY MFR # 70441
41. #ARRESTOR KIT,MOTOR MFR # 230597

Exploded View › Cabinet Assembly

Components

15 items

1. #LATCH,CABINET FRONT NT24 M MFR # 62230
2. #KNOB MFR # 140149
3. #NUT,TINNERMAN 1/4 X 1/4 MFR # 121395
4. #DOOR, CABINET MFR # 100861
5. #Furnace Cabinet; Replacement Cabinet For Suburban Furnace N30M/ NT-20T/ NT-24MA/ NT-24MP/ NT-24MPD/ NT-24S/ NT-24SP/ NT-34MA/ NT-30MP/ NT-30MPD/ NT-30S/ NT-30SP/ NT-34L/ NT-34LD/ NT-34S/ NT-34SP MFR # 101874
6. #CABINET ASSEMBLY (NT30MA) MFR # 100880
7. #CABINET ASM USE 100962 MFR # 100859 Superseded: see description
8. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
9. #Wall Thermostat; Single Stage; For Heat/ Cool Control; Mechanical Readout; 12 Volt; Without Fan Speed Control; Without Fan On Mode MFR # 100402
10. #Wall Thermostat; Heat Only; Mechanical; 1 Stage; White; MFR # 1C20101
11. #Wall Thermostat; Single Stage; Snap-Action; Low Voltage; Heat Only; 24 Volt; White MFR # 01C20102S1
12. #APPLIANCE COMPONENTS RV; Thermostat 3 Day Program MFR # 1F80R850
13. #T-STAT USE 100402 MODEL NT30M MFR # 160737 Superseded: see description
14. #Wall Thermostat; Single Stage; For Heat And Cool Control; Programmable; Digital Display; 24 Volt; Battery Powered MFR # 1F87R875
15. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
