Suburban Nt Series NT24MPD Parts Diagram · Exploded View › Combustion Chamber

Furnace · 4 assemblies · 4 diagram sheets · 61 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT24MPD RV furnace: 4 assemblies (Exploded View › Combustion Chamber, Exploded View › Cabinet Assembly, Exploded View › Blower Assembly, Replacement Furnace) and 61 manufacturer part numbers. 15 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Exploded View › Combustion Chamber

Components

31 items

1. #Fold-Out Bunk Clamp, Zinc MFR # 20785
2. #CHAMBER,COMBUSTION W/RA DIATION SHIELD MFR # 20786
3. #RADIATION SHIELD ASSEMBLY MFR # 110319
4. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
5. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
6. #SWITCH,LIMIT MFR # 232578
7. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
8. #SCREW USE 121711 SHEET METAL #10 X 3 PHILLIPS MFR # 121249 Superseded: see description
9. #Screw; For Suburban Furnace Exhaust Vent; 8 X 3-1/4; Set Of 2 MFR # 121711
10. #CAP,VENT USE 520730 MFR # 260093 Superseded: see description
11. #KIT VENT CAP MFR # 520730
12. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
13. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
14. #WATER FLANGE WHIT PLASTC MFR # 62135
15. #MOUNTING BRACKET, PIEZO MFR # 62181
16. #APPLIANCE COMPONENTS RV; Igniter Piezo W/ Wire * MFR # 520577
17. #IGNITER, PIEZO USE 520577 MFR # 230521 Superseded: see description
18. #THERMOSTAT RELAY MFR # 230423
19. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
20. #GASKET,BURNER USE 71076 MFR # 70398 Superseded: see description
21. #DOOR,BURNER ACCESS MFR # 30453
22. #APPLIANCE COMPONENTS RV; Gskt Cov Obs Hole N /L/A MFR # 70367
23. #APPLIANCE COMPONENTS RV; Hole Cover MFR # 290117
24. #GASKET,ELECTRODE MFR # 70276
25. #ELECTRODE ASSY MFR # 230522
26. #RETAINER,ELECTRODE MFR # 61697
27. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
28. #PILOT BURNER MFR # 160618
29. #COVER,AIR ADJUSTMENT METAL MFR # 290121
30. #GASKET,AIR ADJUSTMENT MFR # 70397
31. #APPLIANCE COMPONENTS RV; Pilot Orifice MFR # 160659

Exploded View › Cabinet Assembly

Components

12 items

1. #DOOR, CABINET MFR # 100861
2. #KNOB MFR # 140149
3. #LATCH,CABINET FRONT NT24 M MFR # 62230
4. #NUT,TINNERMAN 1/4 X 1/4 MFR # 121395
5. #Furnace Cabinet; Replacement Cabinet For Suburban Furnace N30M/ NT-20T/ NT-24MA/ NT-24MP/ NT-24MPD/ NT-24S/ NT-24SP/ NT-34MA/ NT-30MP/ NT-30MPD/ NT-30S/ NT-30SP/ NT-34L/ NT-34LD/ NT-34S/ NT-34SP MFR # 101874
6. #CABINET ASM USE 100962 MFR # 100859 Superseded: see description
7. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
8. #T-STAT USE 100502 *N* MFR # 160850 Superseded: see description
9. #T-STAT MFR # 160616
10. #Water Heater Gas Valve; For Uni-Line 110 Series; 1/2 Inch Inlet x 1/2 Inch Outlet; 50 To 90 Degrees MFR # 100502
11. #T-STAT USE 100502 MFR # 66M010000 Superseded: see description
12. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733

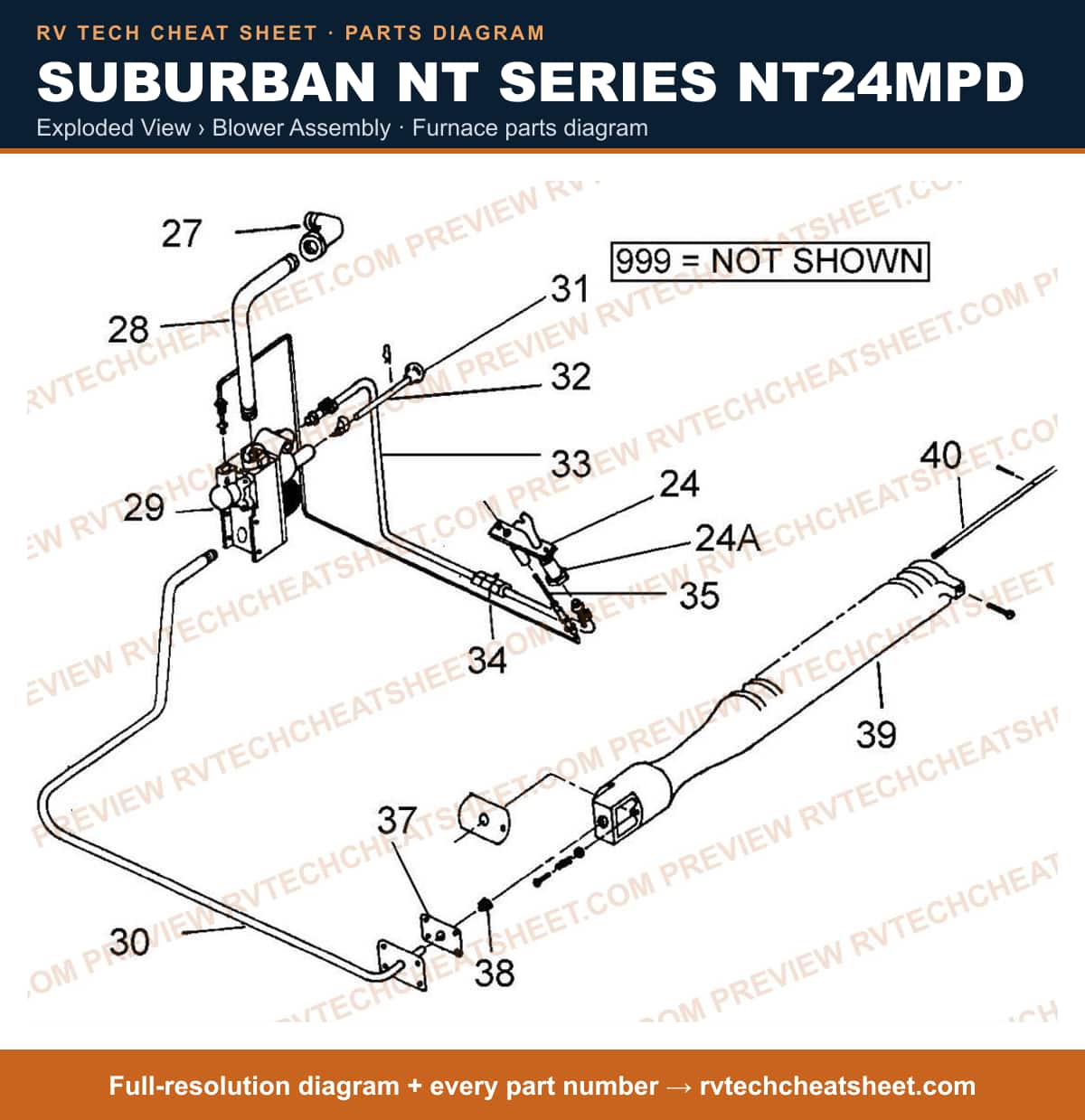

Exploded View › Blower Assembly

Components

19 items

1. #APPLIANCE COMPONENTS RV; Pilot Orifice MFR # 160659
2. #PILOT BURNER MFR # 160618
3. #FITTING MFR # 170527
4. #PIPE,GAS INLET MFR # 170528
5. #VALVE,BASOTROL MFR # 160745
6. #MANIFOLD PIPE ASSEMBLY (1/8 STD BLACK PIPE) MFR # 170538
7. #APPLIANCE COMPONENTS RV; Knob Blk Pilot Reset MFR # 140093
8. #ROD, PILOT RESET MFR # 140147
9. #TUBING, PILOT W/FITTING MFR # 170526
10. #Furnace Pilot Regulator; For Suburban Furnaces MFR # 160556
11. #Universal Thermocouple; 30 Inches Long; Includes Thermocouple/ Positioning Adapters; MFR # H06E404
12. #T-COUPLE 88D 24" USE 160876 MFR # 160528 Superseded: see description
13. #Thermocouple; Use With Gas Water Heaters And Furnaces; Probe Sensor; 30 Inch Length; Copper MFR # 1153 Superseded: see description
14. #Thermocouple; Use On Water Heater Models GVR65N/ GVR65BN/ GVR50N/ GVR50BN/ GVR35N/ GVR65P/ GVR65BP/ GVR50P/ GVR50BP/ GVR35P/ GVR65-5/ GVR50-5GVR35-5GVR65-5S/ GVR50-5S/ GVR35-5S/ GVC65N/ GVC65P/ GVC50N/ GVC50P/ GVC35N/ GVC35P/ GVC65-5/ GVC50-5/ GVC35-5 MFR # 160876 Superseded: see description
15. #SHUTTER,AIR BURNER MFR # 10582
16. #Furnace Burner Orifice; Number 54 Orifice; For Suburban Furnace NT-20T/ NT-23M/ NT-24BW/ NT-24HA/ NT-24HS/ NT-24M/ NT-24MD/ NT-24MP/ NT-24MPD/ NT-24S/ NT-24SP/ NT-25K/ NT-30BW/ NT-30H/ NT-30HA/ NT-30HS/ NT-30MA/ NT-30MD/ NT-34H/ NT-34HS/ NT-34L/ NT-34MM/ NT-34MMD/ NT-34S/ NT-45M/ NT-45S/ P-45M/ P-45S MFR # 180215
17. #BURNER ONLY USE 10609 MFR # 10581 Superseded: see description
18. #POWER CONTROL MODULE MFR # 10609
19. #ROD,AIR ADJUSTMENT MFR # 140146

Replacement Furnace

Components

1 item

1. #USE 79-1809 NT-30SP FURNACE MFR # NT24SPN Superseded: see description
