Suburban Nt Series NT24NPD Parts Diagram · Replacement Furnace
Furnace · 2 assemblies · 2 diagram sheets · 16 parts · by Andrew Strick, mobile RV technician

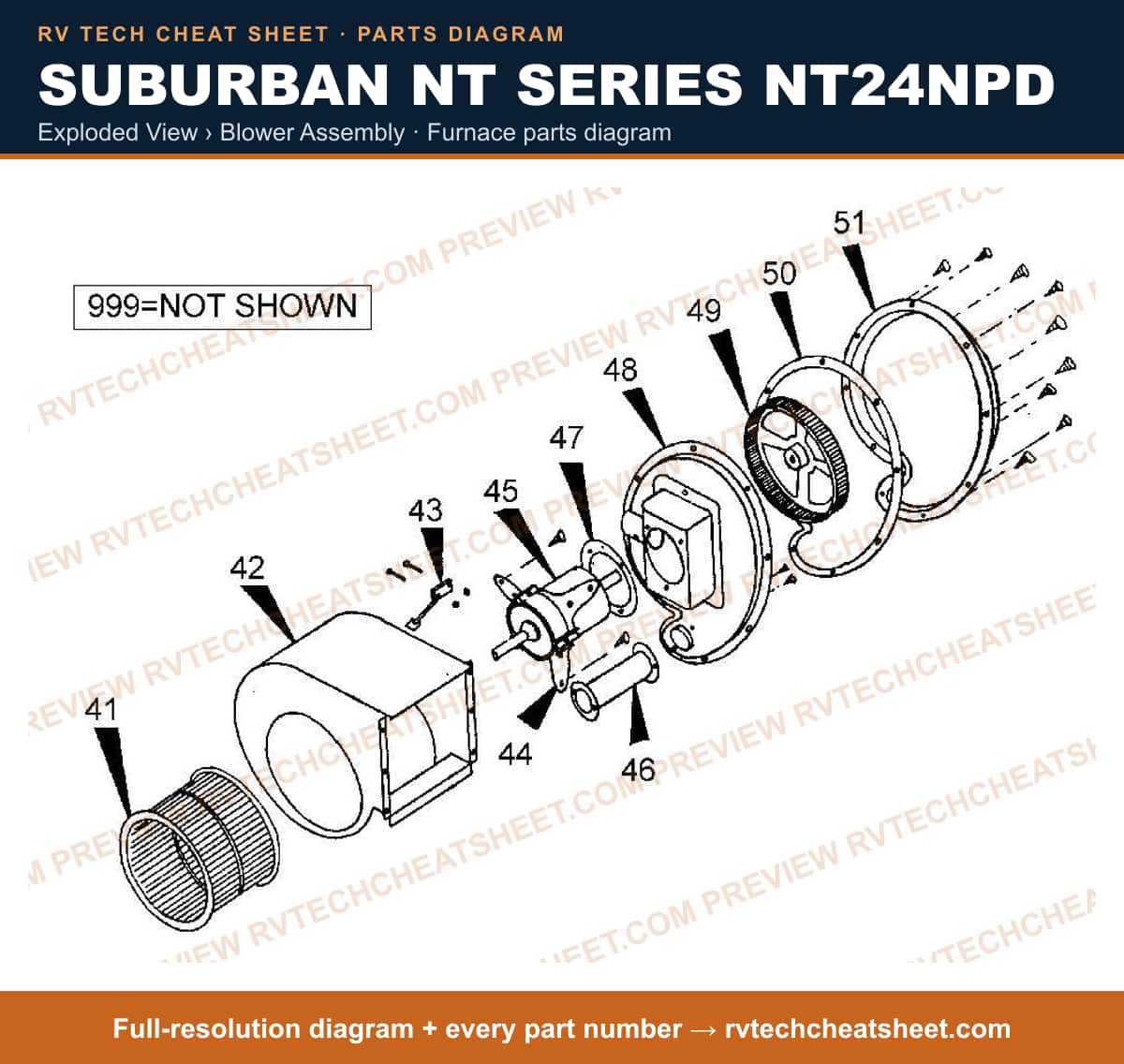

OEM exploded parts diagrams for the Suburban Nt Series NT24NPD RV furnace: 2 assemblies (Replacement Furnace, Exploded View › Blower Assembly) and 16 manufacturer part numbers. 4 parts are marked as superseded — the description gives the replacement number to order instead.
The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.
