Suburban Nt Series NT24SP Parts Diagram · Exploded View › Cabinet Assembly

Furnace · 5 assemblies · 10 diagram sheets · 119 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT24SP RV furnace: 5 assemblies (Exploded View › Cabinet Assembly, Replacement, Exploded View › Burner Assembly, Exploded View › Blower Assembly, Exploded View › Combustion Chamber) and 119 manufacturer part numbers. 26 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Exploded View › Cabinet Assembly

Components

24 items

1. #Furnace Cabinet; Replacement Cabinet For Suburban Furnace N30M/ NT-20T/ NT-24MA/ NT-24MP/ NT-24MPD/ NT-24S/ NT-24SP/ NT-34MA/ NT-30MP/ NT-30MPD/ NT-30S/ NT-30SP/ NT-34L/ NT-34LD/ NT-34S/ NT-34SP MFR # 101874
2. #Stove Mounting Bracket; For Suburban Range; Angled; Single MFR # 122060
3. #APPLIANCE COMPONENTS RV; Sububan Tinnerman Fastene MFR # 121662
4. #Furnace Gasket; Furnace Bottom Duct Adapter Gasket; Fits Suburban Furnace NT-24/ NT-30/ NT-34S/ NT-24/ NT-30SP/ NT-25/ NT-30/ NT-35K/ NT-24/ NT-30/ NT-34HS/ P-30S MFR # 62164
5. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
6. #FRONT,CABINET GRAY ***SEE NOTES FOR USE #'S MFR # 100808 Superseded: see description
7. #CAB FRONT MFR # 101875
8. #APPLIANCE COMPONENTS RV; Screw 10 X 3/4 Ph Ph MFR # 121224
9. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715
10. #Wall Thermostat; Heat Only; Mechanical; 1 Stage; White; MFR # 1C20101
11. #Wall Thermostat; Single Stage; For Heat Control; Mechanical Readout; White Case MFR # 161154
12. #APPLIANCE COMPONENTS RV; Thermostat 3 Day Program MFR # 1F80R850
13. #Wall Thermostat; Single Stage; For Heat/ Cool Control; Mechanical Readout; 12 Volt; Without Fan Speed Control; Without Fan On Mode MFR # 100402
14. #Wall Thermostat; Single Stage; Snap-Action; Low Voltage; Heat Only; 24 Volt; White MFR # 01C20102S1
15. #Wall Thermostat; Single Stage; For Heat And Cool Control; Programmable; Digital Display; 24 Volt; Battery Powered MFR # 1F87R875
16. #T-STAT USE 161154 MFR # 160849 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520501S
18. #APPLIANCE COMPONENTS RV; Extension Kit Tube 2 1/4- MFR # 520498
19. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520499
20. #APPLIANCE COMPONENTS RV; Extension Tube MFR # 520500
21. #Furnace Vent Adapter; Replacement For Suburban Furnace NT-20T/ NT24S/ NT24SP/ NT-30M/ NT-30S/ NT-30SP/ NT-34S/ NT-34SP/ P-30S MFR # 260089
22. #EXTENSION KIT,TUBE 2 1/4"-3 1/8" MFR # 520930
23. #Furnace Gasket; Bottom Duct Gasket; Fits Suburban Furnace NT-24SP/ NT-30SP/ NT-40 MFR # 520009
24. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733

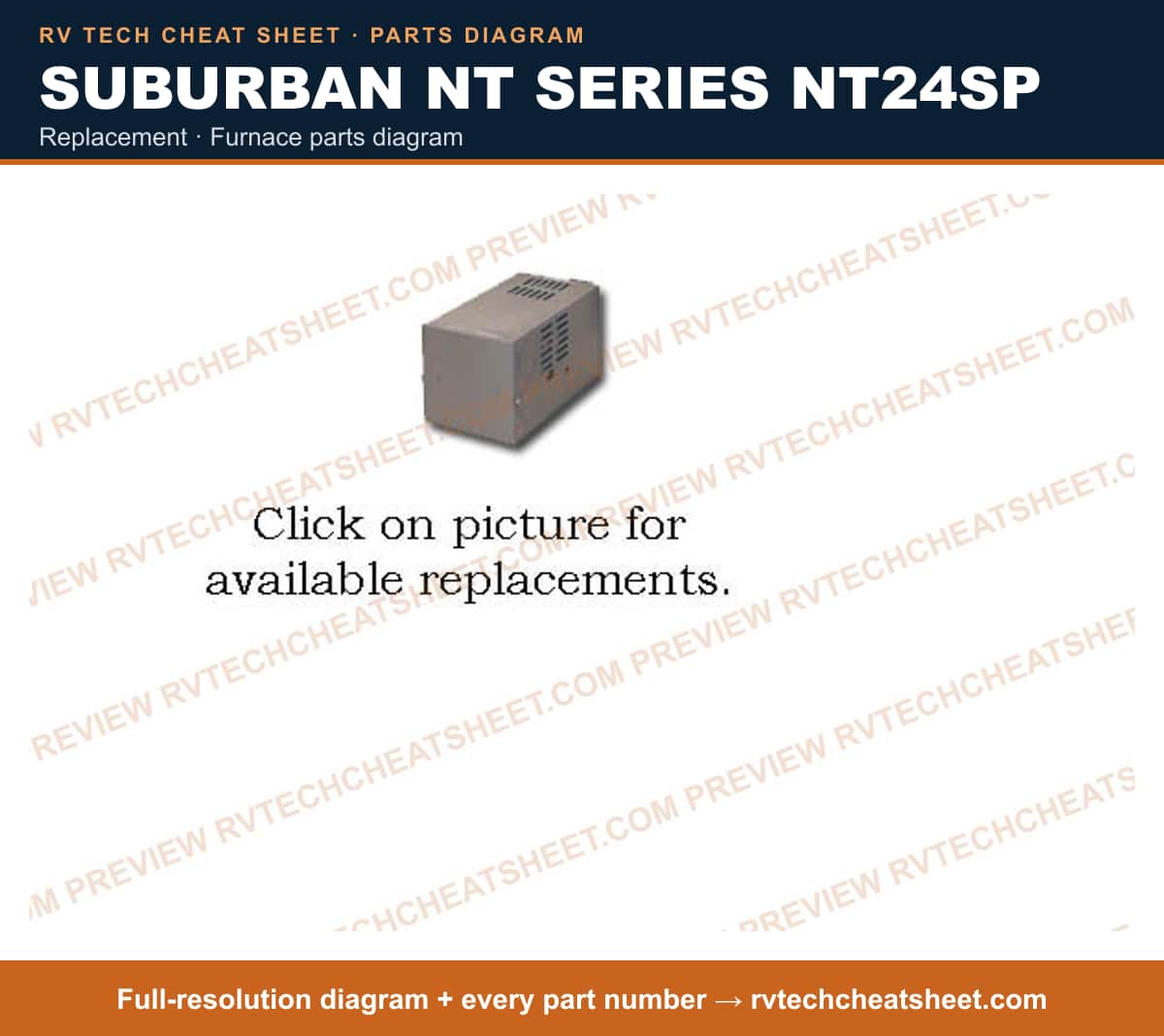

Replacement

Components

2 items

1. #USE 79-1809 NT-30SP FURNACE MFR # NT24SPN Superseded: see description
2. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520501S

Exploded View › Burner Assembly

Components

17 items

1. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
2. #REFRIGERATOR BODY MFR # *
3. #BURNER,STAINLESS USE 10701 MFR # 10619 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Suburban Burner Assy MFR # 10701
5. #Furnace Burner Orifice; Number 54 Orifice; For Suburban Furnace NT-20T/ NT-23M/ NT-24BW/ NT-24HA/ NT-24HS/ NT-24M/ NT-24MD/ NT-24MP/ NT-24MPD/ NT-24S/ NT-24SP/ NT-25K/ NT-30BW/ NT-30H/ NT-30HA/ NT-30HS/ NT-30MA/ NT-30MD/ NT-34H/ NT-34HS/ NT-34L/ NT-34MM/ NT-34MMD/ NT-34S/ NT-45M/ NT-45S/ P-45M/ P-45S MFR # 180215
6. #Furnace Gasket; Furnace Manifold Gasket; Fits Suburban Furnace NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30S/ P-40/ P-40B MFR # 70408
7. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
8. #MANIFOLD ASM ***USE 73-0833*** MFR # 170757 Superseded: see description
9. #VALVE, GAS USE 161123 MFR # 161078 Superseded: see description
10. #SUBURBAN VALVE MFR # 161123
11. #VALVE,GAS USE 161078 MFR # 160832 Superseded: see description
12. #PIPE,GAS INLET - Obsolete MFR # 170858S
13. #Furnace Gasket; Furnace Gas Inlet Tube Gasket; Fits Suburban Furnace NT-45S MFR # 70432
14. #APPLIANCE COMPONENTS RV; Elbow 90 Deg MFR # 170082
15. #Furnace Gasket; Furnace Disk Cover Gasket; Fits Suburban Furnace NT-20T/ NT-23M/ NT-24M/ NT-24MD/ NT-24S/ NT-24SP/ NT-30M/ NT-30MD/ NT-30S/ NT-30SP/ NT-34MM/ NT-34MMD/ NT-34S/ NT-34SP/ P-30S/ P-45S/ NT-45SE MFR # 70534
16. #APPLIANCE COMPONENTS RV; Disc Cov Gas Inlet MFR # 62408
17. #VALVE,SHUTOFF MFR # 160740

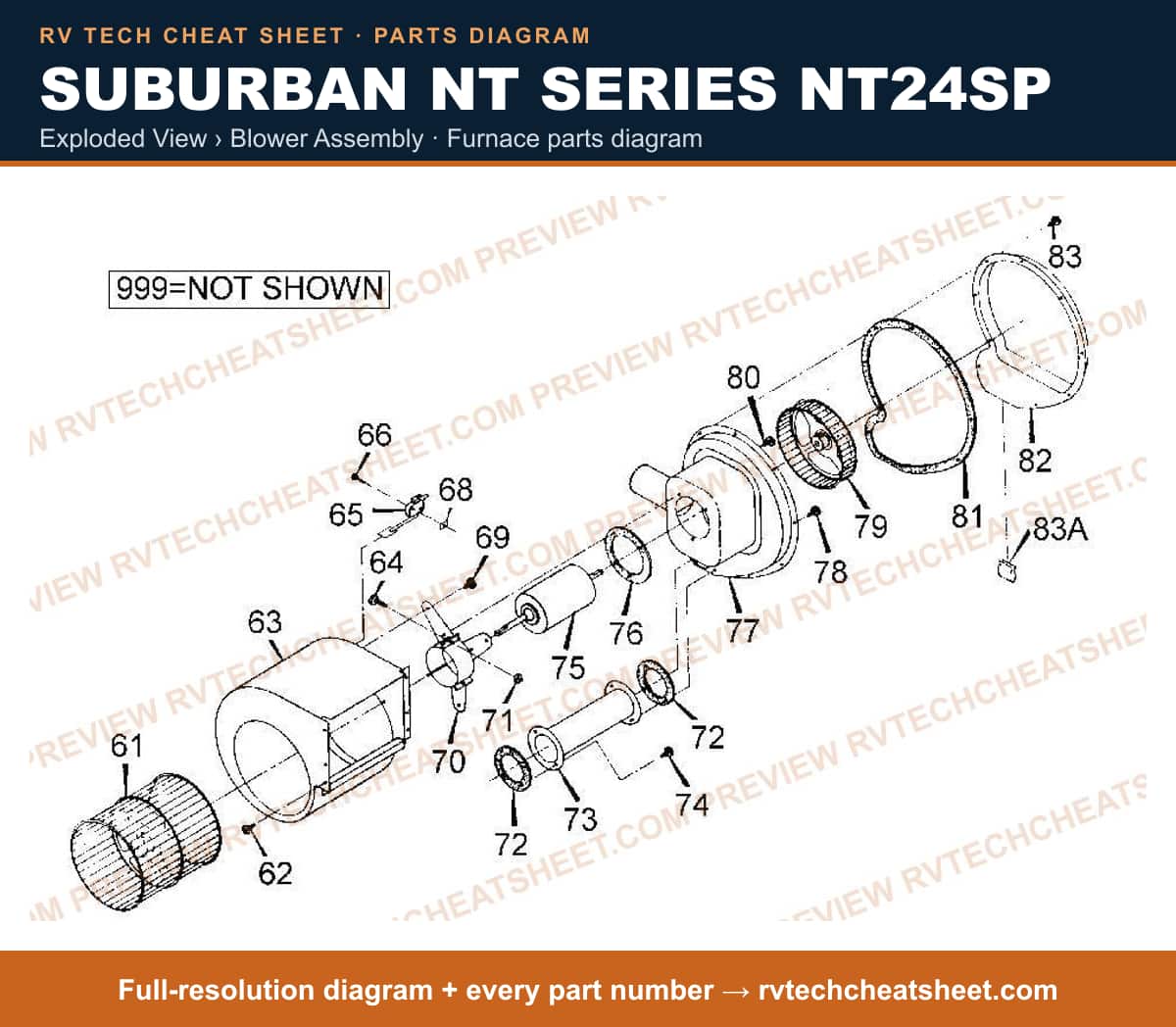

Exploded View › Blower Assembly

Components

23 items

1. #Furnace Blower Wheel; For Suburban Furnace NT-30SP/ NT-34SP MFR # 350113
2. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
3. #Furnace Blower Housing; Furnace Blower Wheel Housing; For Suburban Furnace NT30SP/ NT34SP MFR # 390283
4. #Screw; Use With Suburban Furnace Model NT40; Phillips Head; 10-24 x 1/2 MFR # 121227 Superseded: see description
5. #Furnace Low Air Flow Switch; For Suburban Furnace NT-24M/ NT-24S/ NT-24SP MFR # 230510
6. #Screw; Use With Suburban Furnace Part Numbers NT-16SE/ NT-20SE; # 2; 56 Inch x 5/8 Inch; Hex Head MFR # 121247 Superseded: see description
7. #NUT HEX 2-56 MFR # 120672
8. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
9. #Furnace Motor Bracket; For Suburban NT-40 MFR # 62138
10. #Nut; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; Fits Furnace Combustion Air Housing; Locking; #10-24 Thread Size MFR # 120717
11. #Furnace Gasket; Furnace Crossover Tube Gasket; Fits Suburban Furnace NT-24M/ NT-30M/ NT-30SP/ NT-34SP/ NT-40 MFR # 70385
12. #Furnace Motor; For Suburban Furnace NT-24 M/ NT-24S/ NT-24SP MFR # 231206
13. #Furnace Motor; For Suburban Furnace Models NT-24 M/ NT-24S/ NT-24SP MFR # 231206MC
14. #Furnace Gasket; Motor Mount Gasket; Fits Suburban Furnace NT-40 MFR # 70384
15. #APPLIANCE COMPONENTS RV; Suburban Comb Air Housing MFR # 390179
16. #APPLIANCE COMPONENTS RV; Screw #10-16 X 1/2 MFR # 121436
17. #Furnace Combustion Wheel; For Use With Suburban Furnace NT24BW/ NT24SP/ NT30BW/ NT30SP/ NT34BW/ NT34SP/ NT40/ P30S; With Clamp MFR # 350110 Superseded: see description
18. #Furnace Gasket; Furnace Combustion Air Housing Gasket; Fits Suburban Furnace NT-24/ NT-30/ NT-34H/ NT-HA/ NT-34S/ NT-30SP/ NT-34HS/ NT-30MA/ NT-34L/ NT-34MM/ P-30S/ P-40S/ NT-42S/ NT-42ST MFR # 70386
19. #Furnace Combustion Air Housing Cover; For Suburban Furnace NT30SP/ NT34SP/ NT40 MFR # 390424
20. #HOUSING,AIR USE 390424 MFR # 390240 Superseded: see description
21. #Furnace Combustion Air Housing Cover Mounting Clip; For Suburban Furnace NT24BW/ NT30SP/ NT24SP/ NT34SP/ NT40/ NT42T/ NT34BW/ NT30BW/ P30S/ P40/ P40S MFR # 121712
22. #GASKET KIT *PIECE OUT KIT* MFR # 520195
23. #APPLIANCE COMPONENTS RV; Washer Lock #2 MFR # 121364

Exploded View › Combustion Chamber

Components

60 items

1. #APPLIANCE COMPONENTS RV; Screw 8-32 X 3/8 Hex Hd MFR # 121407
2. #WIRE,HIGH VOLTAGE USE 231713 MFR # 318060002 Superseded: see description
3. #Furnace Wiring Harness; Use With All Suburban Model NT And P Series Electrode Furnaces; 22 Inch Length MFR # 231261 Superseded: see description
4. #Igniter Electrode; For Suburban Furnace NT-24/ NT-30/ NT-34/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP (Above Serial Number 920500001); Without Gasket; Also Use New Number 525029 MFR # 231933 Superseded: see description
5. #SERVICE KIT ELECTRODE MFR # 525029
6. #APPLIANCE COMPONENTS RV; Ignitor Wire MFR # 230949
7. #APPLIANCE COMPONENTS RV; Wire Electrode - N.L.A. MFR # 231713
8. #ELECTRODE REPLACES 231933MC MFR # 525029MC
9. #Nut; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; Fits Furnace Combustion Air Housing; Locking; #10-24 Thread Size MFR # 120717
10. #Furnace Access Door; For Suburban Furnace NT40; Burner Access Panel Assembly MFR # 30764
11. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
12. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
13. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
14. #GASKET,BURNER USE 71076 MFR # 70398 Superseded: see description
15. #CHAMBER,COMBUSTION & SHIELD ASSM MFR # 20922
16. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
17. #SWITCH,LIMIT USE 231626 MFR # 232579 Superseded: see description
18. #Furnace Low Air Flow Switch; For Suburban Furnace NT-24SP MFR # 231626
19. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
20. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
21. #GATEKING-F150 (04-14) MFR # 230714
22. #Screw; For Suburban Furnace NT-24SP/ NT-30SP/ NT-34SP; 6 x 1/4 Inch MFR # 121244
23. #APPLIANCE COMPONENTS RV; BRKT PWR SPLY MFR # 63248
24. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
25. #UIB L WITH POST TOP MFR # UIBLPOST
26. #BOARD,MODULE USE 520741 MFR # 231741 Superseded: see description
27. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
28. #UNIVERSAL IGN BRD LARGE MFR # UIBL
29. #Ignition Control Circuit Board Cover; Replacement For Dinosaurs Universal Igniter Boards; Large; White; Fire Retardant ABS Plastic MFR # LCVR
30. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
31. #COVER FOR UIB S MFR # SMALLCOVER
32. #UIB S WITH POST TOP MFR # UIBSPOST
33. #UNIVERSAL IGN BRD SMALL MFR # UIBS
34. #UIB WITH FAN CONTROL MFR # FAN50PLUS
35. #APPLIANCE COMPONENTS RV; Screw 6 X 5/8 Ph Ph MFR # 121357
36. #SUBURBAN FAN CONTROL WIRE MFR # 520839
37. #ignition Control Circuit Board; Replacement For Suburban Furnace SF-Series (After Serial Number 003805481); 12 Volt DC MFR # 520820
38. #BURNER, LARGE W/AIR SHUTTER USE 520564 MFR # 3000003 Superseded: see description
39. #Furnace Wiring Harness; For Suburban Furnace DD17DSI/ NT-Series MFR # 232161
40. #BOARD,MODULE MFR # 231427
41. #Water Heater Burner; Large; For Suburban Water Heater SSRV6/ SSRV6M/ ESSRV6/ SSRV8/ SSRV8M/ ESSRV8/ SSRV10/ SSRV10M/ ESSWRV10/ 10ARVM/ E10ARV; With Target/ Burner Support Bracket/ Shutter/ Screw/ Nut/ Pilot Bracket/ Pilot Burner/ Thermocouple/ Tube/ Tube Fitting MFR # 520564
42. #APPLIANCE COMPONENTS RV; Panel Mod Board MFR # 90301
43. #IGNITOR BOARDS AND ACCESS MFR # 12VDCTDR
44. #Furnace Time Delay Relay; Replacement For Older Furnaces That Use A Standard 12 Volt DC Igniter Board; Micro Controlled; 12 Volt DC; 1-1/2 Inch x 1-1/2 Inch; 4 Second Delay; 2 Minute Cool Down Period At The End Of The Heat Cycle; Also Use New Number 12VDCTDR MFR # 48000D Superseded: see description
45. #Furnace Time Delay Relay; For Suburban Furnace NT-12S/ NT-16S/ NT-20S/ NT-12SE/ NT-16SE/ NT-20SE/ NT-25/ NT-30/ NT-35/ SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40 (NT24/30/34 S And SP Only Above Serial Number 1600851); 12 Volt MFR # 521069
46. #Furnace Time Delay Relay; Use With Suburban Furnace Models NT-24-S/ NT-24-SP/ NT-30-S/ NT-30-SP/ NT-34-S/ NT-40/ P-30-S/ P-40-S; 24 Volt MFR # 231202MC Superseded: see description
47. #APPLIANCE COMPONENTS RV; Relay Switch MFR # 231202
48. #APPLIANCE COMPONENTS RV; Screw 6X3/8 Ph Rh Black MFR # 121502
49. #***USE 79-8142*** MFR # 260164 Superseded: see description
50. #VENT CAP USE 79-8143 MFR # 260542 Superseded: see description
51. #Furnace Intake Tube; For Suburban Furnace NT12S/ NT-16S/ NT-20S/ NT-16SQ/ NT-20SQ/ NT-30SP/ NT-34SP; 3 Inch Length; With Gasket MFR # 50906
52. #Furnace Intake Tube; For Suburban Furnace NT12S/ NT-16S/ NT-20S/ NT-16SQ/ NT-20SQ/ NT-30SP/ NT-34SP; 3 Inch Length MFR # 052159
53. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
54. #Screw; For Suburban Furnace Exhaust Vent; 8 X 3-1/4; Set Of 2 MFR # 121711
55. #APPLIANCE COMPONENTS RV; Bushing Snap 7/8" MFR # 230218
56. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
57. #APPLIANCE COMPONENTS RV; BUSHING SNAP MFR # 231827
58. #Furnace Gasket; For Suburban Furnace NT 24/ NT 30/ NT 34/ NT 24SP/ NT 30SP/ NT 34SP/ NT 40/ P30S/ P40 MFR # 520797
59. #Furnace Vent; For Suburban Furnace NT-30 SP/ NT-24SP/ NT-34SP; Exhaust Vent; With Vent Cap MFR # 260573
60. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
