Suburban Nt Series NT30SP Parts Diagram · Exploded View › Blower Assembly

Furnace · 5 assemblies · 10 diagram sheets · 124 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT30SP RV furnace: 5 assemblies (Exploded View › Blower Assembly, Replacement, Exploded View › Cabinet Assembly, Exploded View › Burner Assembly, Exploded View › Combustion Chamber) and 124 manufacturer part numbers. 29 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

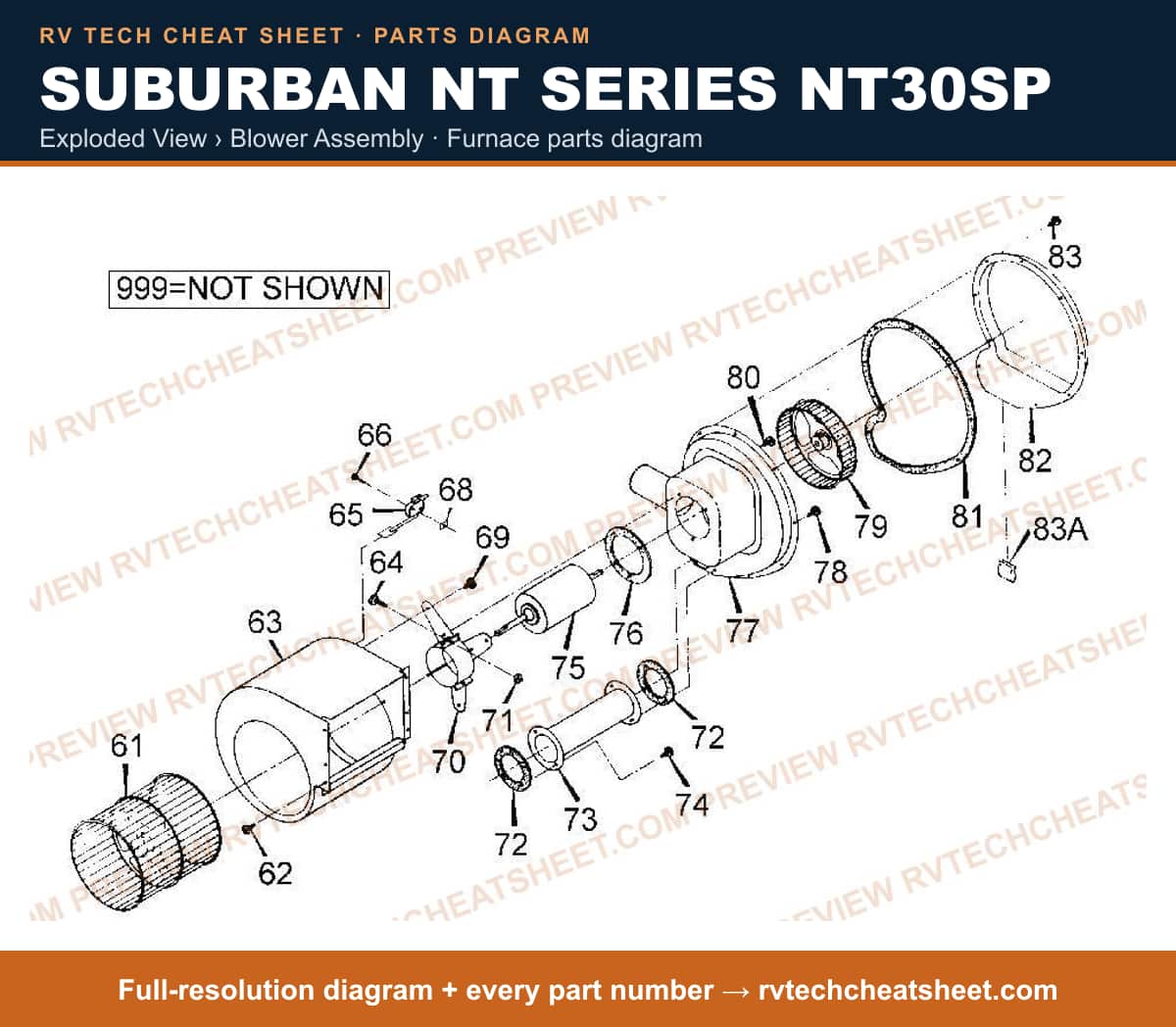

Exploded View › Blower Assembly

Components

28 items

1. #Furnace Blower Wheel; For Suburban Furnace NT-30SP/ NT-34SP MFR # 350113
2. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
3. #Furnace Blower Housing; Furnace Blower Wheel Housing; For Suburban Furnace NT30SP/ NT34SP MFR # 390283
4. #Screw; Use With Suburban Furnace Model NT40; Phillips Head; 10-24 x 1/2 MFR # 121227 Superseded: see description
5. #Furnace Low Air Flow Switch; For Suburban Furnace NT-40 MFR # 233355
6. #Furnace Low Air Flow Switch; For Suburban Furnace NT-40; Also Use New Number 233355 MFR # 232279 Superseded: see description
7. #Furnace Low Air Flow Switch; For Suburban Furnace Models NT-30/ NT-34/ NT-30M/ NT-34M/ NT-30S/ NT-34S/ NT-30SP/ NT-34SP/ NT-25/ NT-30/ NT-35/ NT-35K/ P-30S/ SF-20/ SF-25/ SF-30/ SF-35/ SF-20F/ SF-25F/ SF-30F/ SF-35F MFR # 230509MC
8. #Furnace Low Air Flow Switch; For Suburban Furnace NT-30/ NT-34/ NT-30M/ NT-34M/ NT-30S/ NT-34S/ NT-30SP/ NT-34SP/ NT-25/ NT-30/ NT-35/ NT-35K/ P-30S/ SF-20/ SF-25/ SF-30/ SF-35/ SF-20F/ SF-25F/ SF-30F/ SF-35F; Also Use New Number 525024 MFR # 233356 Superseded: see description
9. #Furnace Low Air Flow Switch; For Suburban Furnace NT-30/ NT-34/ NT-30M/ NT-34M/ NT-30S/ NT-34S/ NT-30SP/ NT-34SP/ NT-25/ NT-30/ NT-35/ NT-35K/ P-30S/ SF-20/ SF-25/ SF-30/ SF-35/ SF-20F/ SF-25F/ SF-30F/ SF-35F; Also Use New Number 233356 MFR # 230509 Superseded: see description
10. #Screw; Use With Suburban Furnace Part Numbers NT-16SE/ NT-20SE; # 2; 56 Inch x 5/8 Inch; Hex Head MFR # 121247 Superseded: see description
11. #NUT HEX 2-56 MFR # 120672
12. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
13. #Furnace Motor Bracket; For Suburban NT-40 MFR # 62138
14. #Nut; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; Fits Furnace Combustion Air Housing; Locking; #10-24 Thread Size MFR # 120717
15. #Furnace Gasket; Furnace Crossover Tube Gasket; Fits Suburban Furnace NT-24M/ NT-30M/ NT-30SP/ NT-34SP/ NT-40 MFR # 70385
16. #KIT MOTOR/MTG BRKTS MFR # 521137
17. #Furnace Motor; For Suburban Furnace NT-30M/ NT-30S/ NT-30SP MFR # 231207
18. #Furnace Motor; For Suburban Furnace Models NT-30M/ NT-30S/ NT-30SP; Also Use New Number 521137MC MFR # 231207MC Superseded: see description
19. #Furnace Gasket; Motor Mount Gasket; Fits Suburban Furnace NT-40 MFR # 70384
20. #APPLIANCE COMPONENTS RV; Suburban Comb Air Housing MFR # 390179
21. #APPLIANCE COMPONENTS RV; Screw #10-16 X 1/2 MFR # 121436
22. #Furnace Combustion Wheel; For Use With Suburban Furnace NT24BW/ NT24SP/ NT30BW/ NT30SP/ NT34BW/ NT34SP/ NT40/ P30S; With Clamp MFR # 350110 Superseded: see description
23. #Furnace Gasket; Furnace Combustion Air Housing Gasket; Fits Suburban Furnace NT-24/ NT-30/ NT-34H/ NT-HA/ NT-34S/ NT-30SP/ NT-34HS/ NT-30MA/ NT-34L/ NT-34MM/ P-30S/ P-40S/ NT-42S/ NT-42ST MFR # 70386
24. #Furnace Combustion Air Housing Cover; For Suburban Furnace NT30SP/ NT34SP/ NT40 MFR # 390424
25. #HOUSING,AIR USE 390424 MFR # 390240 Superseded: see description
26. #Furnace Combustion Air Housing Cover Mounting Clip; For Suburban Furnace NT24BW/ NT30SP/ NT24SP/ NT34SP/ NT40/ NT42T/ NT34BW/ NT30BW/ P30S/ P40/ P40S MFR # 121712
27. #APPLIANCE COMPONENTS RV; Washer Lock #2 MFR # 121364
28. #GASKET KIT *PIECE OUT KIT* MFR # 520195

Replacement

Components

5 items

1. #APPLIANCE COMPONENTS RV; Kit Duct Bot MFR # 520753
2. #Furnace Core; NT Series; LP Gas; Model Number NT-30SP; 30,000 BTU; Side/ Top And Bottom Duct Discharge; 5.5 Amp Draw; 12 Inch Width x 12-1/2 Inch Height x 23 Inch Depth; 25 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly MFR # 2453A
3. #RP-30 FURNACE CORE N MFR # 2613A
4. #Furnace Core; Furnace; LP Gas; Model Number NT-16SQ; 30,000 BTU; Side/ Top And Bottom Duct Discharge; 5.5 Amp Draw; 12 Inch Width x 12-1/2 Inch Height x 23 Inch Depth; 25 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly; Also Use New Number 2453A Or 2613A MFR # 2060 Superseded: see description
5. #Furnace; NT Series; LP Gas; Model Number NT-30SP; 30,000 BTU; Side/ Top And Bottom Duct Discharge; 4.5 Amp Draw; 12 Inch Width x 12-1/2 Inch Height x 23 Inch Depth; 36 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly; Pack Of 6 MFR # 2453F

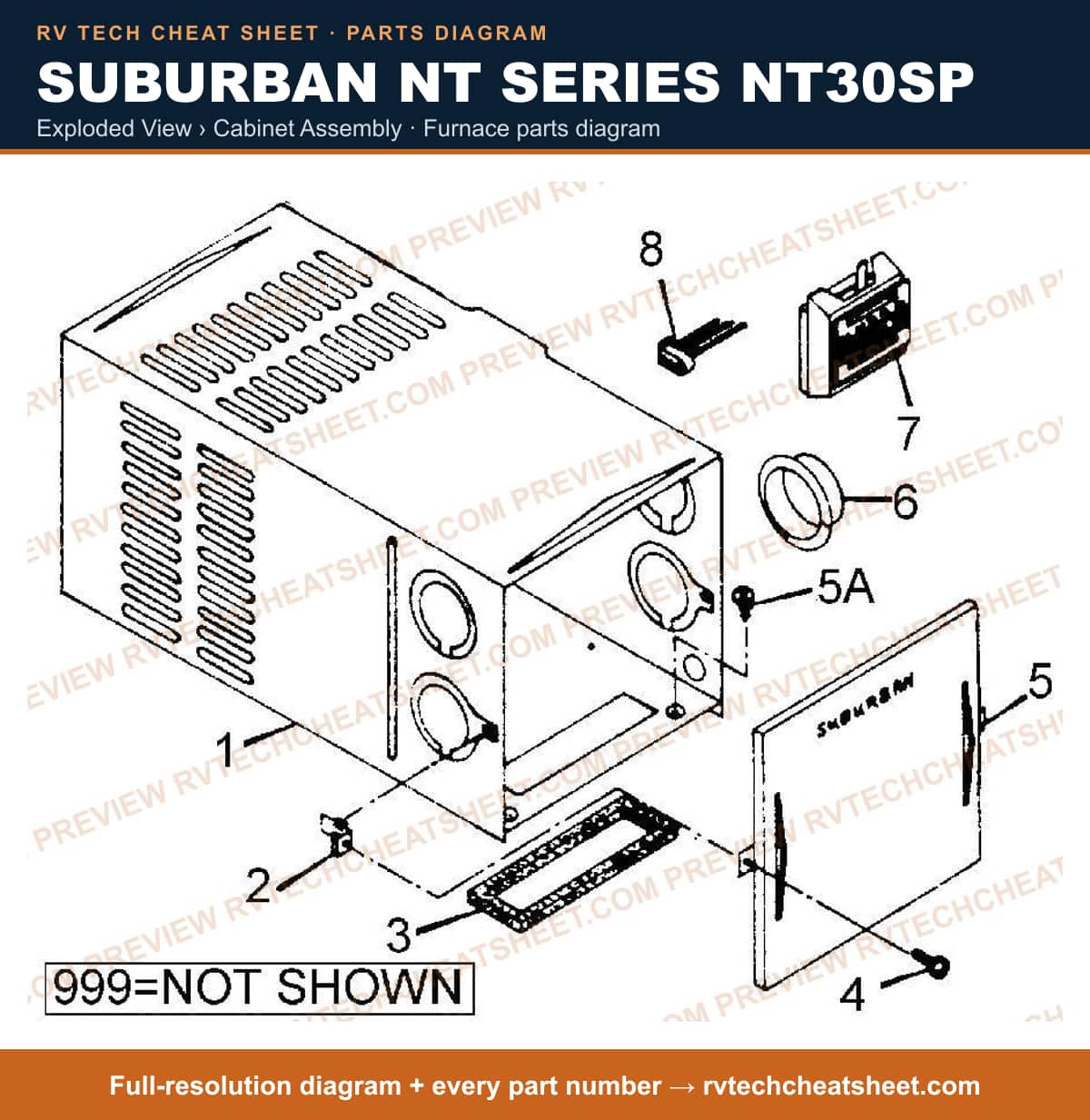

Exploded View › Cabinet Assembly

Components

24 items

1. #Furnace Cabinet; Replacement Cabinet For Suburban Furnace N30M/ NT-20T/ NT-24MA/ NT-24MP/ NT-24MPD/ NT-24S/ NT-24SP/ NT-34MA/ NT-30MP/ NT-30MPD/ NT-30S/ NT-30SP/ NT-34L/ NT-34LD/ NT-34S/ NT-34SP MFR # 101874
2. #Stove Mounting Bracket; For Suburban Range; Angled; Single MFR # 122060
3. #APPLIANCE COMPONENTS RV; Sububan Tinnerman Fastene MFR # 121662
4. #Furnace Gasket; Bottom Duct Gasket; Fits Suburban Furnace NT-24SP/ NT-30SP/ NT-40 MFR # 520009
5. #Furnace Gasket; Furnace Bottom Duct Adapter Gasket; Fits Suburban Furnace NT-24/ NT-30/ NT-34S/ NT-24/ NT-30SP/ NT-25/ NT-30/ NT-35K/ NT-24/ NT-30/ NT-34HS/ P-30S MFR # 62164
6. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
7. #APPLIANCE COMPONENTS RV; Screw 10 X 3/4 Ph Ph MFR # 121224
8. #Furnace Adapter Plate; For Suburban Furnace NT-30SP MFR # 101871DG
9. #FRONT,CABINET GRAY ***SEE NOTES FOR USE #'S MFR # 100808 Superseded: see description
10. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715
11. #Wall Thermostat; Single Stage; For Heat/ Cool Control; Mechanical Readout; 12 Volt; Without Fan Speed Control; Without Fan On Mode MFR # 100402
12. #T-STAT USE 161154 MFR # 160849 Superseded: see description
13. #Wall Thermostat; Heat Only; Mechanical; 1 Stage; White; MFR # 1C20101
14. #Wall Thermostat; Single Stage; For Heat And Cool Control; Programmable; Digital Display; 24 Volt; Battery Powered MFR # 1F87R875
15. #APPLIANCE COMPONENTS RV; Thermostat 3 Day Program MFR # 1F80R850
16. #Wall Thermostat; Single Stage; For Heat Control; Mechanical Readout; White Case MFR # 161154
17. #Wall Thermostat; Single Stage; Snap-Action; Low Voltage; Heat Only; 24 Volt; White MFR # 01C20102S1
18. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
19. #EXTENSION KIT,TUBE 2 1/4"-3 1/8" MFR # 520930
20. #Furnace Vent Adapter; Replacement For Suburban Furnace NT-20T/ NT24S/ NT24SP/ NT-30M/ NT-30S/ NT-30SP/ NT-34S/ NT-34SP/ P-30S MFR # 260089
21. #APPLIANCE COMPONENTS RV; Extension Tube MFR # 520500
22. #APPLIANCE COMPONENTS RV; Extension Kit Tube 2 1/4- MFR # 520498
23. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520501S
24. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520499

Exploded View › Burner Assembly

Components

17 items

1. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
2. #NO PART # GIVEN BY VENDOR MFR # NPG
3. #APPLIANCE COMPONENTS RV; Suburban Burner Assy MFR # 10701
4. #BURNER,STAINLESS USE 10701 MFR # 10619 Superseded: see description
5. #Furnace Burner Orifice; For Suburban Furnace NT-30M/ NT-30S/ NT-30SP/ SF-30/ SF-30F/ P-30S/ NT-30K MFR # 180214
6. #Furnace Gasket; Furnace Manifold Gasket; Fits Suburban Furnace NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30S/ P-40/ P-40B MFR # 70408
7. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
8. #MANIFOLD ASM ***USE 73-0833*** MFR # 170757 Superseded: see description
9. #VALVE,GAS USE 161078 MFR # 160832 Superseded: see description
10. #SUBURBAN VALVE MFR # 161123
11. #VALVE, GAS USE 161123 MFR # 161078 Superseded: see description
12. #PIPE,GAS INLET - Obsolete MFR # 170858S
13. #Furnace Gasket; Furnace Gas Inlet Tube Gasket; Fits Suburban Furnace NT-45S MFR # 70432
14. #APPLIANCE COMPONENTS RV; Elbow 90 Deg MFR # 170082
15. #Furnace Gasket; Furnace Disk Cover Gasket; Fits Suburban Furnace NT-20T/ NT-23M/ NT-24M/ NT-24MD/ NT-24S/ NT-24SP/ NT-30M/ NT-30MD/ NT-30S/ NT-30SP/ NT-34MM/ NT-34MMD/ NT-34S/ NT-34SP/ P-30S/ P-45S/ NT-45SE MFR # 70534
16. #APPLIANCE COMPONENTS RV; Disc Cov Gas Inlet MFR # 62408
17. #VALVE,SHUTOFF MFR # 160740

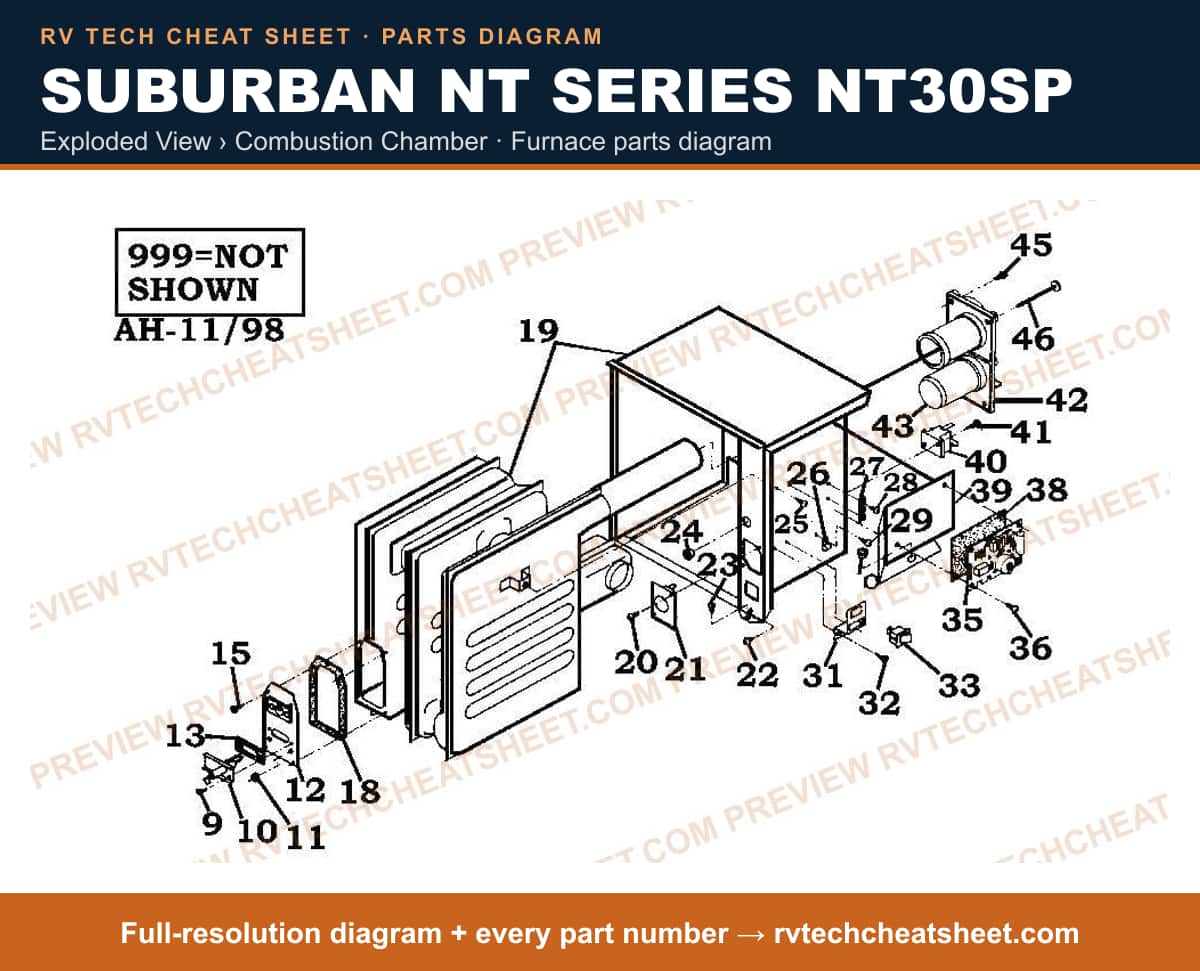

Exploded View › Combustion Chamber

Components

56 items

1. #APPLIANCE COMPONENTS RV; Screw 8-32 X 3/8 Hex Hd MFR # 121407
2. #SERVICE KIT ELECTRODE MFR # 525029
3. #Igniter Electrode; For Suburban Furnace NT-24/ NT-30/ NT-34/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP (Above Serial Number 920500001); Without Gasket; Also Use New Number 525029 MFR # 231933 Superseded: see description
4. #ELECTRODE REPLACES 231933MC MFR # 525029MC
5. #Nut; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; Fits Furnace Combustion Air Housing; Locking; #10-24 Thread Size MFR # 120717
6. #Furnace Access Door; For Suburban Furnace NT40; Burner Access Panel Assembly MFR # 30764
7. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
8. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
9. #Screw; For Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE; 10 x 1/2; Serrated Head; Single MFR # 121388
10. #GASKET,BURNER USE 71076 MFR # 70398 Superseded: see description
11. #CHAMBER,COMBUSTION & SHIELD ASSM MFR # 20922
12. #Screw; For Suburban Furnace NT-Series; Fits Suburban Furnace Combustion Chamber; #10 x 3/8 Inch MFR # 121252
13. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
14. #SWITCH,LIMIT MFR # 232578
15. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
16. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
17. #GATEKING-F150 (04-14) MFR # 230714
18. #Screw; For Suburban Furnace NT-24SP/ NT-30SP/ NT-34SP; 6 x 1/4 Inch MFR # 121244
19. #APPLIANCE COMPONENTS RV; BRKT PWR SPLY MFR # 63248
20. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
21. #UIB WITH FAN CONTROL MFR # FAN50PLUS
22. #UNIVERSAL IGN BRD SMALL MFR # UIBS
23. #UIB S WITH POST TOP MFR # UIBSPOST
24. #BOARD,MODULE USE 520741 MFR # 231741 Superseded: see description
25. #Furnace Wiring Harness; For Suburban Furnace DD17DSI/ NT-Series MFR # 232161
26. #UNIVERSAL IGN BRD LARGE MFR # UIBL
27. #COVER FOR UIB S MFR # SMALLCOVER
28. #Ignition Control Circuit Board Cover; Replacement For Dinosaurs Universal Igniter Boards; Large; White; Fire Retardant ABS Plastic MFR # LCVR
29. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
30. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
31. #UIB L WITH POST TOP MFR # UIBLPOST
32. #APPLIANCE COMPONENTS RV; Screw 6 X 5/8 Ph Ph MFR # 121357
33. #BOARD,MODULE MFR # 231427
34. #Ignition Control Circuit Board - Fits Suburban Water Heaters MFR # 520820MC
35. #APPLIANCE COMPONENTS RV; Insul Mod Board MFR # 70807
36. #APPLIANCE COMPONENTS RV; Panel Mod Board MFR # 90301
37. #Furnace Time Delay Relay; Use With Suburban Furnace Models NT-24-S/ NT-24-SP/ NT-30-S/ NT-30-SP/ NT-34-S/ NT-40/ P-30-S/ P-40-S; 24 Volt MFR # 231202MC Superseded: see description
38. #APPLIANCE COMPONENTS RV; Relay Switch MFR # 231202
39. #IGNITOR BOARDS AND ACCESS MFR # 12VDCTDR
40. #Furnace Time Delay Relay; Replacement For Older Furnaces That Use A Standard 12 Volt DC Igniter Board; Micro Controlled; 12 Volt DC; 1-1/2 Inch x 1-1/2 Inch; 4 Second Delay; 2 Minute Cool Down Period At The End Of The Heat Cycle; Also Use New Number 12VDCTDR MFR # 48000D Superseded: see description
41. #Furnace Time Delay Relay; For Suburban Furnace NT-12S/ NT-16S/ NT-20S/ NT-12SE/ NT-16SE/ NT-20SE/ NT-25/ NT-30/ NT-35/ SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40 (NT24/30/34 S And SP Only Above Serial Number 1600851); 12 Volt MFR # 521069
42. #APPLIANCE COMPONENTS RV; Screw 6X3/8 Ph Rh Black MFR # 121502
43. #***USE 79-8142*** MFR # 260164 Superseded: see description
44. #VENT CAP USE 79-8143 MFR # 260542 Superseded: see description
45. #Furnace Intake Tube; For Suburban Furnace NT12S/ NT-16S/ NT-20S/ NT-16SQ/ NT-20SQ/ NT-30SP/ NT-34SP; 3 Inch Length; With Gasket MFR # 50906
46. #Furnace Intake Tube; For Suburban Furnace NT12S/ NT-16S/ NT-20S/ NT-16SQ/ NT-20SQ/ NT-30SP/ NT-34SP; 3 Inch Length MFR # 052159
47. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
48. #Screw; For Suburban Furnace Exhaust Vent; 8 X 3-1/4; Set Of 2 MFR # 121711
49. #APPLIANCE COMPONENTS RV; Ignitor Wire MFR # 230949
50. #Furnace Vent; For Suburban Furnace NT-30 SP/ NT-24SP/ NT-34SP; Exhaust Vent; With Vent Cap MFR # 260573
51. #Furnace Wiring Harness; Use With All Suburban Model NT And P Series Electrode Furnaces; 22 Inch Length MFR # 231261 Superseded: see description
52. #WIRE,HIGH VOLTAGE USE 231713 MFR # 318060002 Superseded: see description
53. #APPLIANCE COMPONENTS RV; Bushing Snap 7/8" MFR # 230218
54. #APPLIANCE COMPONENTS RV; BUSHING SNAP MFR # 231827
55. #Furnace Gasket; For Suburban Furnace NT 24/ NT 30/ NT 34/ NT 24SP/ NT 30SP/ NT 34SP/ NT 40/ P30S/ P40 MFR # 520797
56. #APPLIANCE COMPONENTS RV; Wire Electrode - N.L.A. MFR # 231713
