Suburban Nt Series NT32ADE Parts Diagram · Exploded View › Combustion Chamber

Furnace · 4 assemblies · 8 diagram sheets · 75 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT32ADE RV furnace: 4 assemblies (Exploded View › Combustion Chamber, Replacement, Exploded View › Blower Assembly, Exploded View › Burner Assembly) and 75 manufacturer part numbers. 19 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

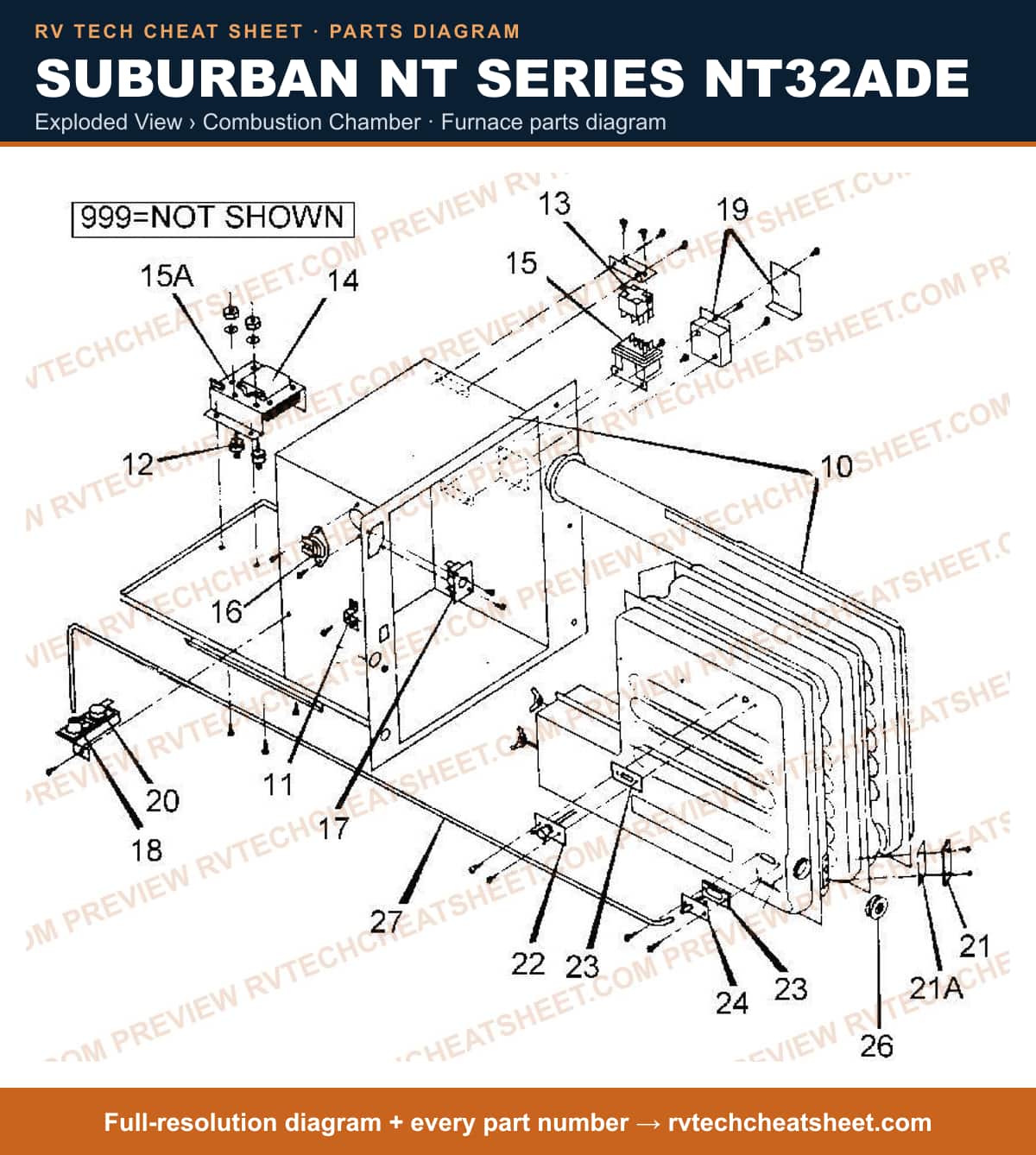

Exploded View › Combustion Chamber

Components

37 items

1. #CHAMBER,HEAT NT22 C MFR # 110249
2. #CHAMBER,COMBUSTION MFR # 110251
3. #SPACER, BRIDE - 14B MFR # 120732
4. #DIODE RECTIFIER MFR # 230297
5. #APPLIANCE COMPONENTS RV; Ac/Dc Switching Relay MFR # 230255
6. #TRANSFORMER BE 8192 OR BE 8912 MFR # 230323
7. #CONVERTER/CHARGER USE DLS15 MFR # PC15 Superseded: see description
8. #CONVERTER,9 AMP USE 6712N W/O CHARGER MFR # 6509X Superseded: see description
9. #Power Converter; DLS Series; Converts 108 To 132 Volt AC To 13.6 Volt DC; 200 Continuous Watts; 15 Amps Continuous Output; 80 Percent Efficiency; With Short Circuit/ Reverse Polarity/ Over Load/ Thermal Protection; 9.7 Inch Length x 6.7 Inch Width x 3.4 Inch Height; With 36 Inch Length Power Cord; Compatible With IOTA IQ4 Charge Controller MFR # DLS15
10. #THERMOSTAT RELAY MFR # 230423
11. #RELAY USE 230423 MFR # 230275 Superseded: see description
12. #DIODE & TRANSFORMER PKG MFR # 230312
13. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
14. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
15. #SWITCH,FAN USE 230575 MFR # 230348 Superseded: see description
16. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
17. #SWITCH,LIMIT USE 1023 MFR # 230344 Superseded: see description
18. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
19. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
20. #SWITCH,LIMIT MFR # 232578
21. #SWITCH,LIMIT USE 230496 210 DEGREE MFR # 230389 Superseded: see description
22. #PIN, ROLL MFR # 230134
23. #BOARD,CIRCUIT MFR # A230168
24. #COVER, JUNCTION BOX MFR # 90157
25. #DELAY LOCKOUT SWITCH MFR # A230469
26. #COVER,HOLE AIR SHUTTER ADJU STMENT MFR # 260061
27. #TS-50: 50 AMP TRANSFER SWITCH MFR # 70278
28. #FLAME SWITCH MFR # A230470
29. #GASKET MFR # A070378
30. #CAP,LIGHTER MFR # 290110
31. #CAP,LIGHTER USE 290110 MFR # 290099 Superseded: see description
32. #WIRE,HIGH VOLTAGE USE 231713 MFR # 318060002 Superseded: see description
33. #WIRE, IGNITION USE 318060002 MFR # 230350 Superseded: see description
34. #APPLIANCE COMPONENTS RV; Wire Electrode - N.L.A. MFR # 231713
35. #APPLIANCE COMPONENTS RV; Igniter Piezo W/ Wire * MFR # 520577
36. #IGNITER, PIEZO USE 520577 MFR # 230521 Superseded: see description
37. #IGNITER,PIEZO USE 230521 MFR # 230325 Superseded: see description

Replacement

Components

1 item

1. #Furnace Core; NT Series; LP Gas; Model Number NT-34SP; 34,000 BTU; Direct Discharge; 7.5 Amp Draw; 12 Inch Width x 12-1/2 Inch Height x 23 Inch Depth; 10.3 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly MFR # NT34SPN

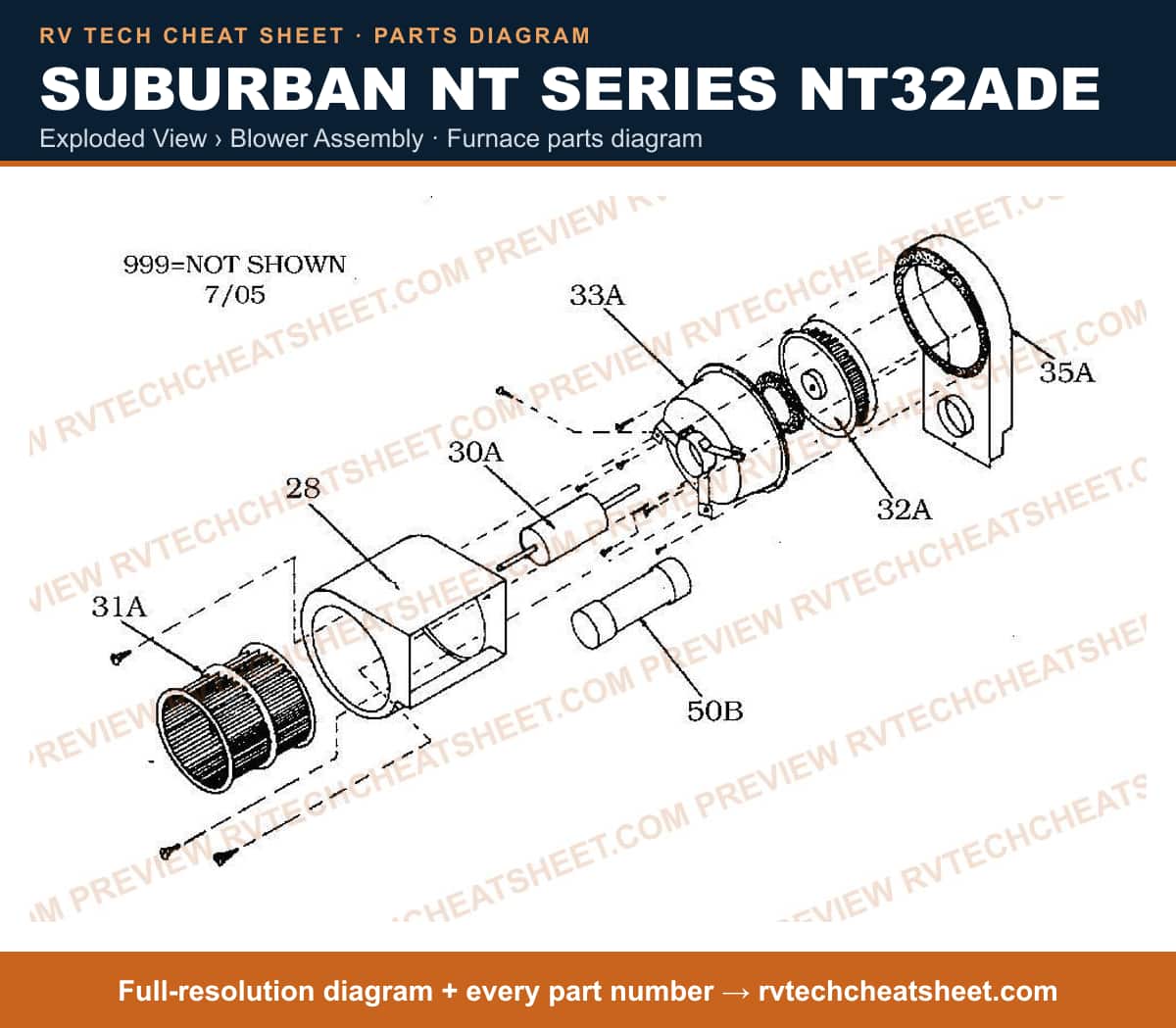

Exploded View › Blower Assembly

Components

11 items

1. #HOUSING,BLOWER MFR # 390054
2. #Furnace Motor; For Suburban Furnace NT-30M/ NT-30S/ NT-30SP MFR # 231207
3. #MOTOR,BOSCH USE 231207 MFR # 230339 Superseded: see description
4. #Furnace Motor; For Suburban Furnace Models NT-30M/ NT-30S/ NT-30SP; Also Use New Number 521137MC MFR # 231207MC Superseded: see description
5. #KIT MOTOR/MTG BRKTS MFR # 521137
6. #WHEEL,BLOWER LARGE MFR # 350068
7. #APPLIANCE COMPONENTS RV; Wheel Blower Small 6-1/4 MFR # 350069
8. #INTAKE, COMBUSTION AIR MFR # 390134
9. #HOUSING, BLOWER MFR # 390101
10. #APPLIANCE COMPONENTS RV; Rubber Connector Tube MFR # 70331
11. #BLOWER ASSEMBLY COMPLETE (NT-32) MFR # 520005

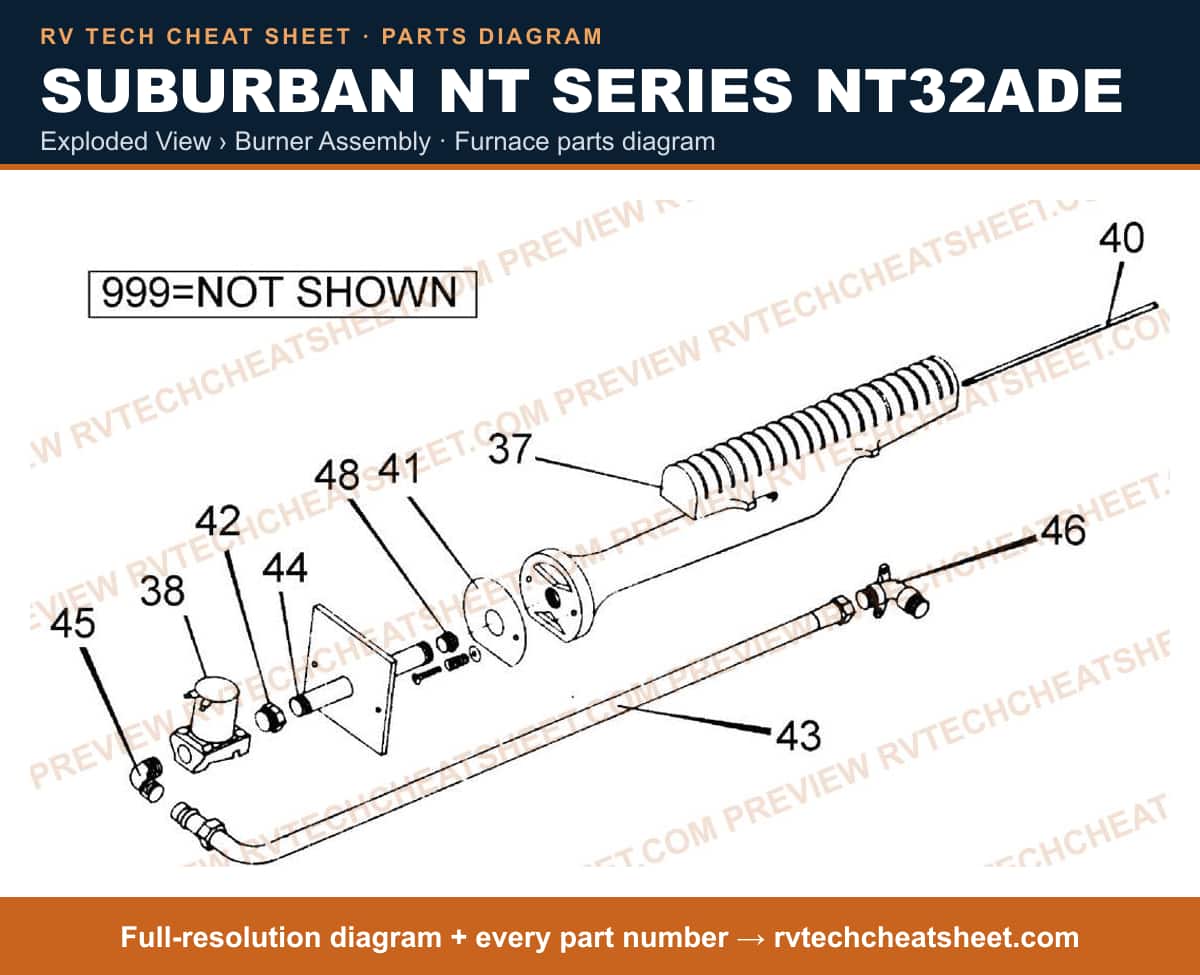

Exploded View › Burner Assembly

Components

26 items

1. #BURNER MFR # 10509
2. #BURNER,MAIN NT20 MFR # 10523
3. #BURNER,MAIN NT32 FCA MFR # 10387
4. #VALVE KIT USE 160911 & 170545 MFR # 520423 Superseded: see description
5. #VALVE USE 520423 MFR # 160734 Superseded: see description
6. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
7. #VALVE,GAS MFR # 160911
8. #BURNER ASM W/AIR SHUTTER ROD MFR # 10519
9. #BURNER ASM MFR # 140091
10. #BURNER MFR # 10366
11. #3/8 Inch x 1/4 Inch HEX BUSHING MFR # 170280
12. #INLET TUBING MFR # B170476
13. #MANIFOLD PIPE ASSEMBLY MFR # B170478
14. #MANIFOLD PIPE 1-1/4" (NT-32) MFR # 17371
15. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
16. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
17. #ELBOW MFR # 170519
18. #ELBOW USE 170519 MFR # 170408 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Suburban Orifice MFR # 180188
20. #APPLIANCE COMPONENTS RV; Orifice Main Burner #53 MFR # 180193
21. #VALVE USE 520428 MFR # 160657 Superseded: see description
22. #VALVE, SHUT OFF MFR # 160712
23. #GASKET KIT *PIECE OUT KIT* MFR # 520232
24. #VALVE KIT NT12C BASO TROL #G92SGD-1 MFR # 520428
25. #PARTS PACKAGE MFR # 210919
26. #BLACK IRON PIPE (NT-32) MFR # 170372
