Suburban Nt Series NT32AE Parts Diagram · Replacement

Furnace · 5 assemblies · 10 diagram sheets · 54 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT32AE RV furnace: 5 assemblies (Replacement, Exploded View › Combustion Chamber, Exploded View › Burner Assembly, Exploded View › Cabinet Assembly, Exploded View › Blower Assembly) and 54 manufacturer part numbers. 11 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Replacement

Components

1 item

1. #Furnace Core; NT Series; LP Gas; Model Number NT-34SP; 34,000 BTU; Direct Discharge; 7.5 Amp Draw; 12 Inch Width x 12-1/2 Inch Height x 23 Inch Depth; 10.3 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly MFR # NT34SPN

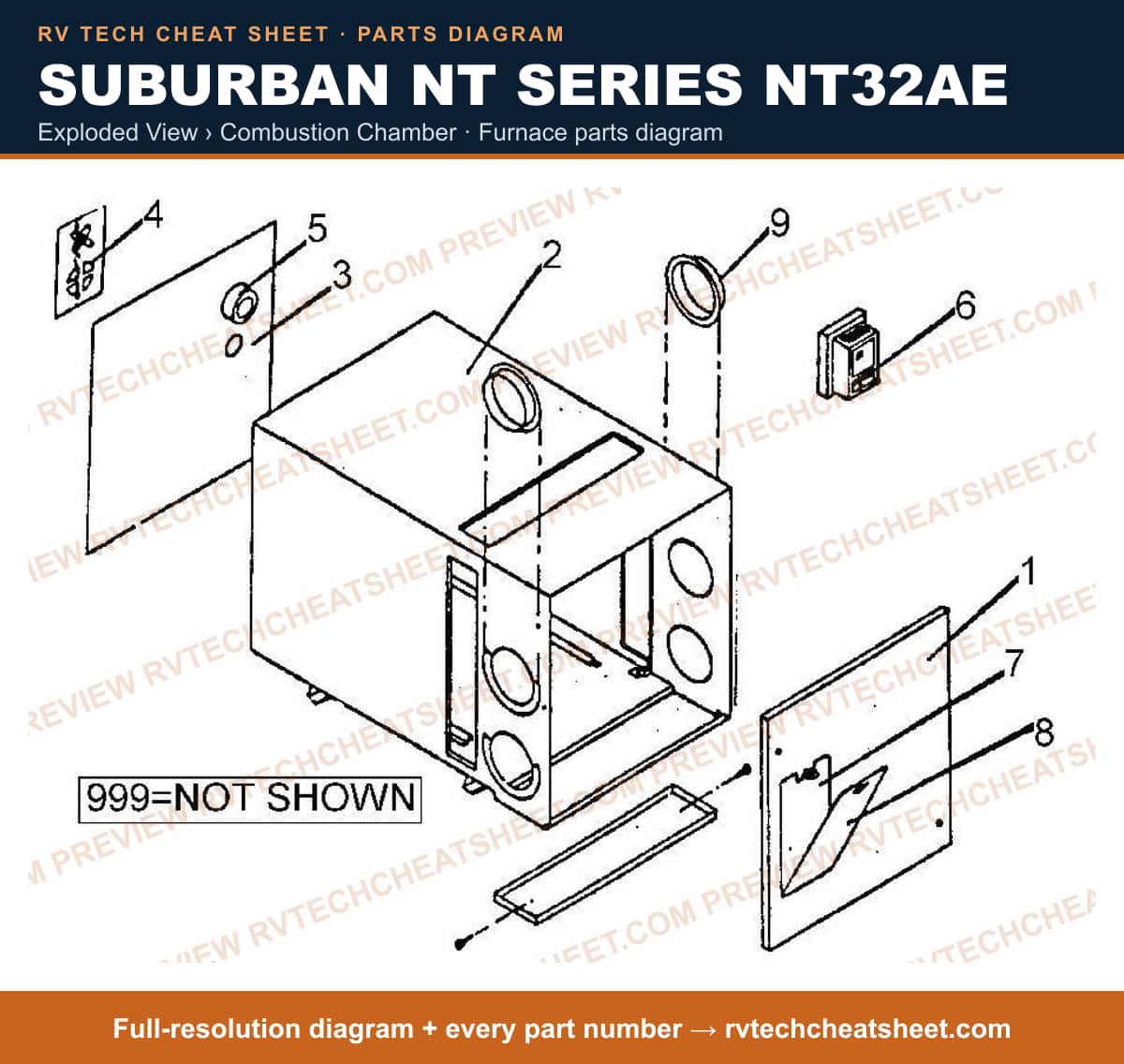

Exploded View › Combustion Chamber

Components

16 items

1. #CABINET ASSEMBLY MFR # 100746
2. #CABINET FRONT MFR # 100742
3. #CABINET, OUTER ASSEMBLY (A MODELS) MFR # 100548
4. #CABINET ASM,OUTER MFR # 100733
5. #CABINET, BACK MFR # 100585
6. #VENT CAP USE 260541 MFR # 260126 Superseded: see description
7. #Furnace Vent; For Suburban Furnace NT-Series MFR # 260541
8. #CAP,VENT USE 260126 MFR # 260090 Superseded: see description
9. #CAP,VENT USE 260126 NT16F MFR # 260097 Superseded: see description
10. #Water Heater Gas Valve; For Uni-Line 110 Series; 1/2 Inch Inlet x 1/2 Inch Outlet; 50 To 90 Degrees MFR # 100502
11. #T-STAT USE 100502 *N* MFR # 160850 Superseded: see description
12. #T-STAT USE 100502 MFR # 66M010000 Superseded: see description
13. #N/A DOOR LATCH (SPRING TYPE) MFR # 150033
14. #DOOR,MAIN CABINET MFR # 30430
15. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
16. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733

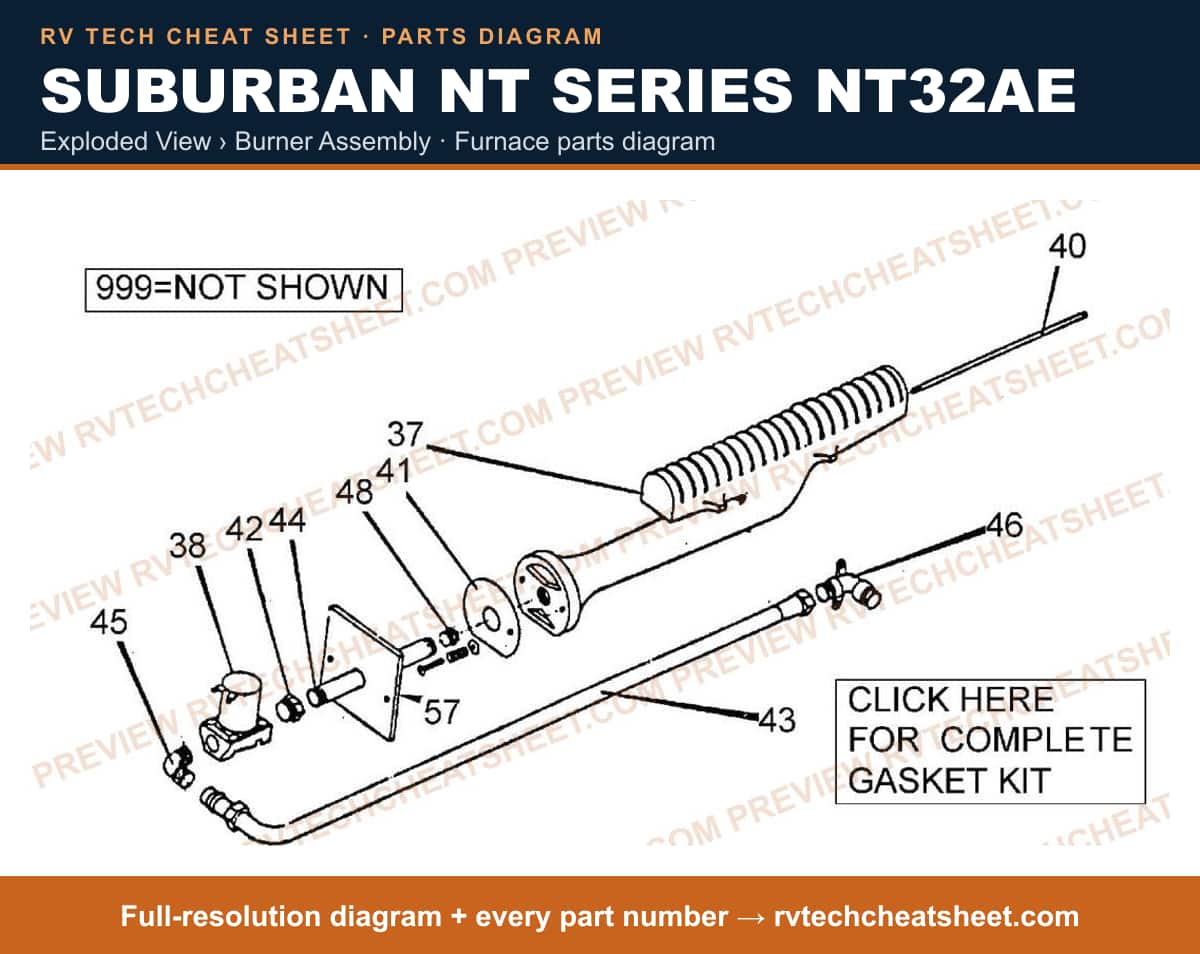

Exploded View › Burner Assembly

Components

22 items

1. #BURNER, MAIN MFR # 10563S
2. #BURNER MFR # 10509
3. #VALVE KIT USE 160911 & 170545 MFR # 520423 Superseded: see description
4. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
5. #VALVE USE 520423 MFR # 160762 Superseded: see description
6. #VALVE,GAS MFR # 160911
7. #BURNER ASM MFR # 140091
8. #BURNER ASM W/AIR SHUTTER ROD MFR # 10519
9. #3/8 Inch x 1/4 Inch HEX BUSHING MFR # 170280
10. #INLET TUBING MFR # 170476
11. #PIPE,MANIFOLD MFR # 170478
12. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
13. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
14. #ELBOW MFR # 170519
15. #ELBOW USE 170519 MFR # 170408 Superseded: see description
16. #APPLIANCE COMPONENTS RV; Orifice Main Burner #53 MFR # 180193
17. #APPLIANCE COMPONENTS RV; Suburban Orifice MFR # 180188
18. #BULL DOG CATCH MFR # 70305
19. #VALVE, SHUT OFF MFR # 160712
20. #PARTS PACK MFR # 210922S
21. #COMPLETE GASKET KIT MFR # X520239
22. #GASKET,MOTOR COVER MFR # 70301

Exploded View › Cabinet Assembly

Components

16 items

1. #CABINET ASSEMBLY MFR # 100746
2. #CABINET FRONT MFR # 100742
3. #CABINET, OUTER ASSEMBLY (A MODELS) MFR # 100548
4. #CABINET ASM,OUTER MFR # 100733
5. #CABINET, BACK MFR # 100585
6. #Furnace Vent; For Suburban Furnace NT-Series MFR # 260541
7. #CAP,VENT USE 260126 MFR # 260090 Superseded: see description
8. #VENT CAP USE 260541 MFR # 260126 Superseded: see description
9. #CAP,VENT USE 260126 NT16F MFR # 260097 Superseded: see description
10. #T-STAT USE 100502 *N* MFR # 160850 Superseded: see description
11. #T-STAT USE 100502 MFR # 66M010000 Superseded: see description
12. #Water Heater Gas Valve; For Uni-Line 110 Series; 1/2 Inch Inlet x 1/2 Inch Outlet; 50 To 90 Degrees MFR # 100502
13. #N/A DOOR LATCH (SPRING TYPE) MFR # 150033
14. #DOOR,MAIN CABINET MFR # 30430
15. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
16. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733

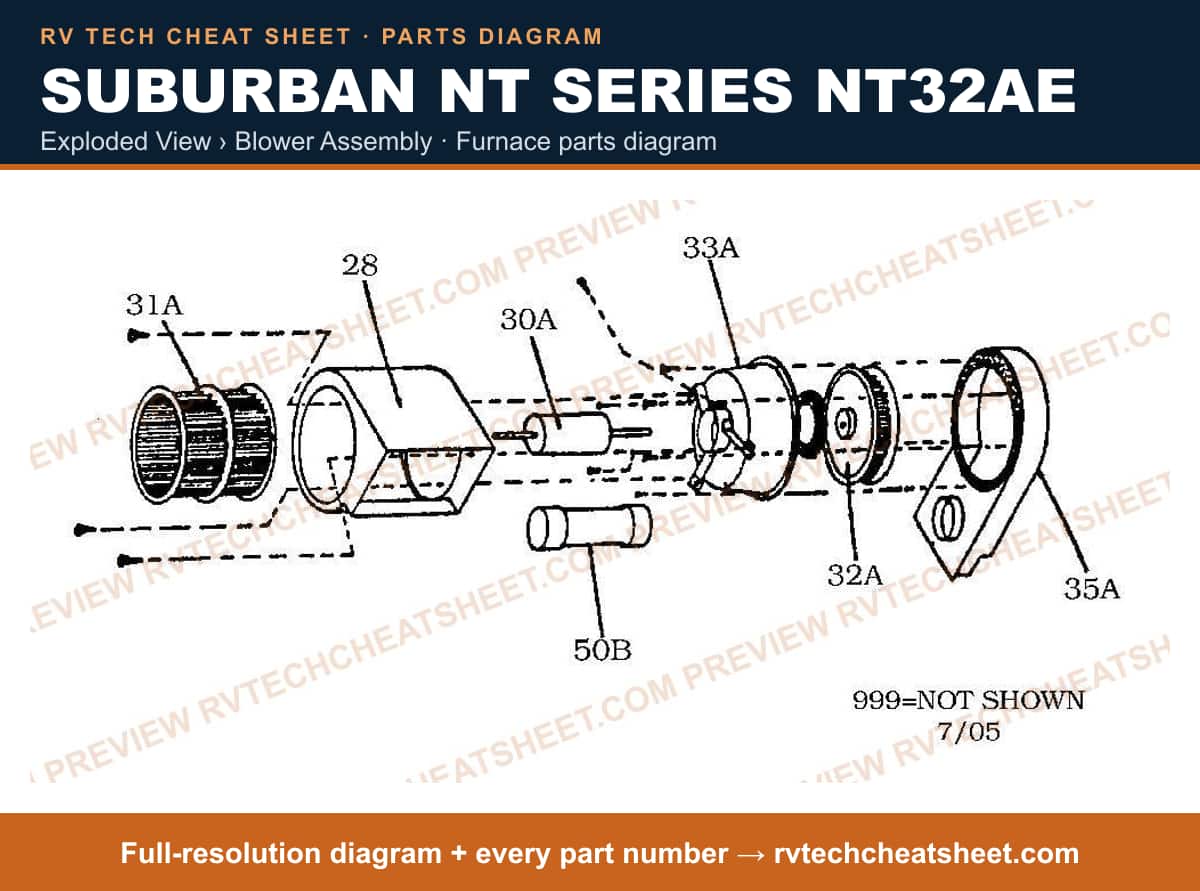

Exploded View › Blower Assembly

Components

15 items

1. #HOUSING, BLOWER MFR # 390099
2. #Furnace Motor; For Suburban Furnace NT-30M/ NT-30S/ NT-30SP MFR # 231207
3. #Furnace Motor; For Suburban Furnace Models NT-30M/ NT-30S/ NT-30SP; Also Use New Number 521137MC MFR # 231207MC Superseded: see description
4. #KIT MOTOR/MTG BRKTS MFR # 521137
5. #MOTOR USE 231207 MFR # 231380 Superseded: see description
6. #MOTOR, BLOWER (507) MFR # PE2707Q
7. #WHEEL,BLOWER LARGE MFR # 350068
8. #APPLIANCE COMPONENTS RV; Wheel Blower Small 6-1/4 MFR # 350069
9. #INTAKE, COMBUSTION AIR MFR # 390134
10. #HOUSING, BLOWER MFR # 390101
11. #APPLIANCE COMPONENTS RV; Rubber Connector Tube MFR # 70331
12. #MICROSWITCH COVER NT32 C MFR # 61659
13. #APPLIANCE COMPONENTS RV; Micro Switch MFR # 230443
14. #BLOWER ASSEMBLY COMPLETE (NT-32) MFR # 520005
15. #Furnace Vacuum Cup; For Suburban NT-Series Furnace; Rubber MFR # 290079
