Suburban Nt Series NT32CD Parts Diagram · Exploded View › Cabinet Assembly

Furnace · 5 assemblies · 10 diagram sheets · 108 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT32CD RV furnace: 5 assemblies (Exploded View › Cabinet Assembly, Exploded View › Combustion Chamber, Exploded View › Blower Assembly, Replacement, Exploded View › Burner Assembly) and 108 manufacturer part numbers. 17 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

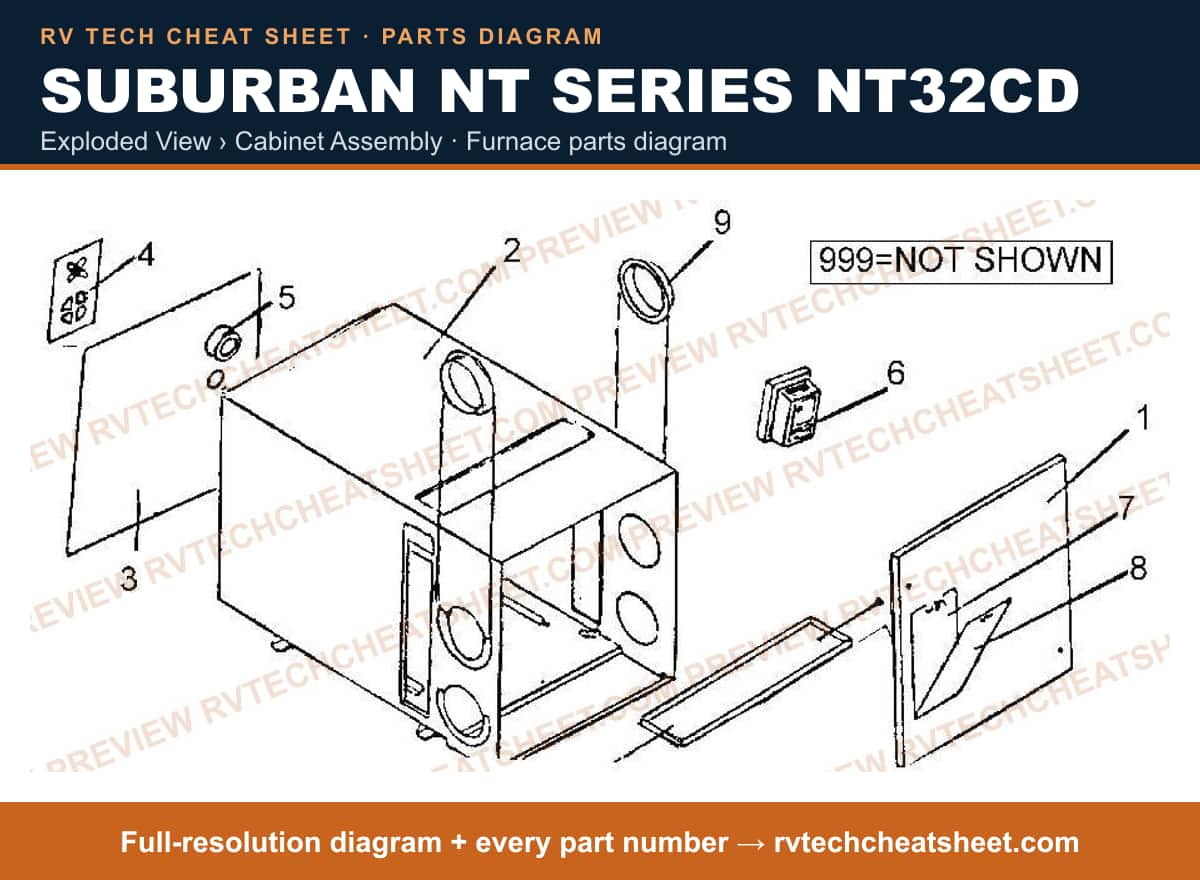

Exploded View › Cabinet Assembly

Components

23 items

1. #FRONT, MAIN CABINET ASSEMBLY (NT-20AE) MFR # 100200
2. #FRONT, MAIN CABINET ASSEMBLY (NT-22A,30A) MFR # 100543
3. #CABINET FRONT MFR # 100742
4. #CABINET ASSEMBLY MFR # 100746
5. #PANEL, FRONT MFR # 100574
6. #CABINET ASM,OUTER MFR # 100733
7. #CABINET, OUTER ASSEMBLY (A MODELS) MFR # 100548
8. #CABINET ASM,OUTER MFR # 100171S
9. #CABINET, OUTER ASSEMBLY (NT-22C,CD) MFR # 100185
10. #BACK, CABINET (NT-20E) MFR # 100583
11. #CABINET, BACK MFR # 100585
12. #CAP,VENT USE 260126 MFR # 260090 Superseded: see description
13. #VENT CAP USE 260541 MFR # 260126 Superseded: see description
14. #Furnace Vent; For Suburban Furnace NT-Series MFR # 260541
15. #ADAPTER FOR VENT CAP MFR # 62123
16. #Water Heater Gas Valve; For Uni-Line 110 Series; 1/2 Inch Inlet x 1/2 Inch Outlet; 50 To 90 Degrees MFR # 100502
17. #T-STAT USE 100502 MFR # 66M010000 Superseded: see description
18. #T-STAT USE 100502 *N* MFR # 160850 Superseded: see description
19. #N/A DOOR LATCH (SPRING TYPE) MFR # 150033
20. #DOOR, MAIN CABINET FRONT (NT-22A,30A) MFR # 30377
21. #DOOR,MAIN CABINET MFR # 30430
22. #APPLIANCE COMPONENTS RV;;Collar Duct MFR # 50296
23. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733

Exploded View › Combustion Chamber

Components

39 items

1. #WASHER - 1IN HOSE FILTER, 3/CARD, LLC MFR # 20183
2. #CHAMBER,COMBUSTION MFR # 20184
3. #13/16'TRI-LUG WINDOW KNOB MFR # 20185
4. #CHAMBER,HEAT NT22 C MFR # 110249
5. #CHAMBER,COMBUSTION MDL# NT22A MFR # 110248
6. #CHAMBER,COMBUSTION MFR # 110251
7. #SPACER, BRIDE - 14B MFR # 120732
8. #DIODE USE 230297 MFR # 230288 Superseded: see description
9. #DIODE RECTIFIER MFR # 230297
10. #APPLIANCE COMPONENTS RV; Ac/Dc Switching Relay MFR # 230255
11. #TRANSFORMER BE 8192 OR BE 8912 MFR # 230323
12. #THERMOSTAT RELAY MFR # 230423
13. #DIODE & TRANSFORMER PKG MFR # 230312
14. #SWITCH,FAN USE 230575 MFR # 230348 Superseded: see description
15. #SWITCH,FAN 11T-13 MFR # 230128
16. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
17. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
18. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
19. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
20. #EXTENSION KNOB MFR # 140137
21. #IGNITER, PIEZO USE 520577 MFR # 230521 Superseded: see description
22. #APPLIANCE COMPONENTS RV; Igniter Piezo W/ Wire * MFR # 520577
23. #IGNITER,PIEZO USE 230521 MFR # 230325 Superseded: see description
24. #N/A JUNCTION BOX MFR # 90158
25. #COVER, JUNCTION BOX MFR # 90157
26. #APPLIANCE COMPONENTS RV; Knob Blk Pilot Reset MFR # 140093
27. #COVER,HOLE AIR SHUTTER ADJU STMENT MFR # 260061
28. #TS-50: 50 AMP TRANSFER SWITCH MFR # 70278
29. #IGNITER,PIEZO MFR # 140103
30. #ROD,RESET MFR # 140131
31. #ELECTRODE MFR # 230349
32. #Furnace Gasket; Furnace Burner Access Door Gasket And Electrode Gasket; Fits Suburban Furnace NT-12/ NT-16/ NT-20/ NT-12S/ NT-16S/ NT-20S/ NT-12SP/ NT-16SP/ NT-20SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40/ P-30/ P-40; Also Use New Number 525011 MFR # 71076 Superseded: see description
33. #BURNER, PILOT MFR # 160535
34. #GASKET, PILOT BURNER USE 71076 MFR # 70163 Superseded: see description
35. #CAP,LIGHTER MFR # 290110
36. #APPLIANCE COMPONENTS RV; Hole Cover MFR # 290117
37. #RETAINER,ELECTRODE MFR # 61697
38. #GASKET,ELECTRODE MFR # 70276
39. #APPLIANCE COMPONENTS RV; Gskt Cov Obs Hole N /L/A MFR # 70367

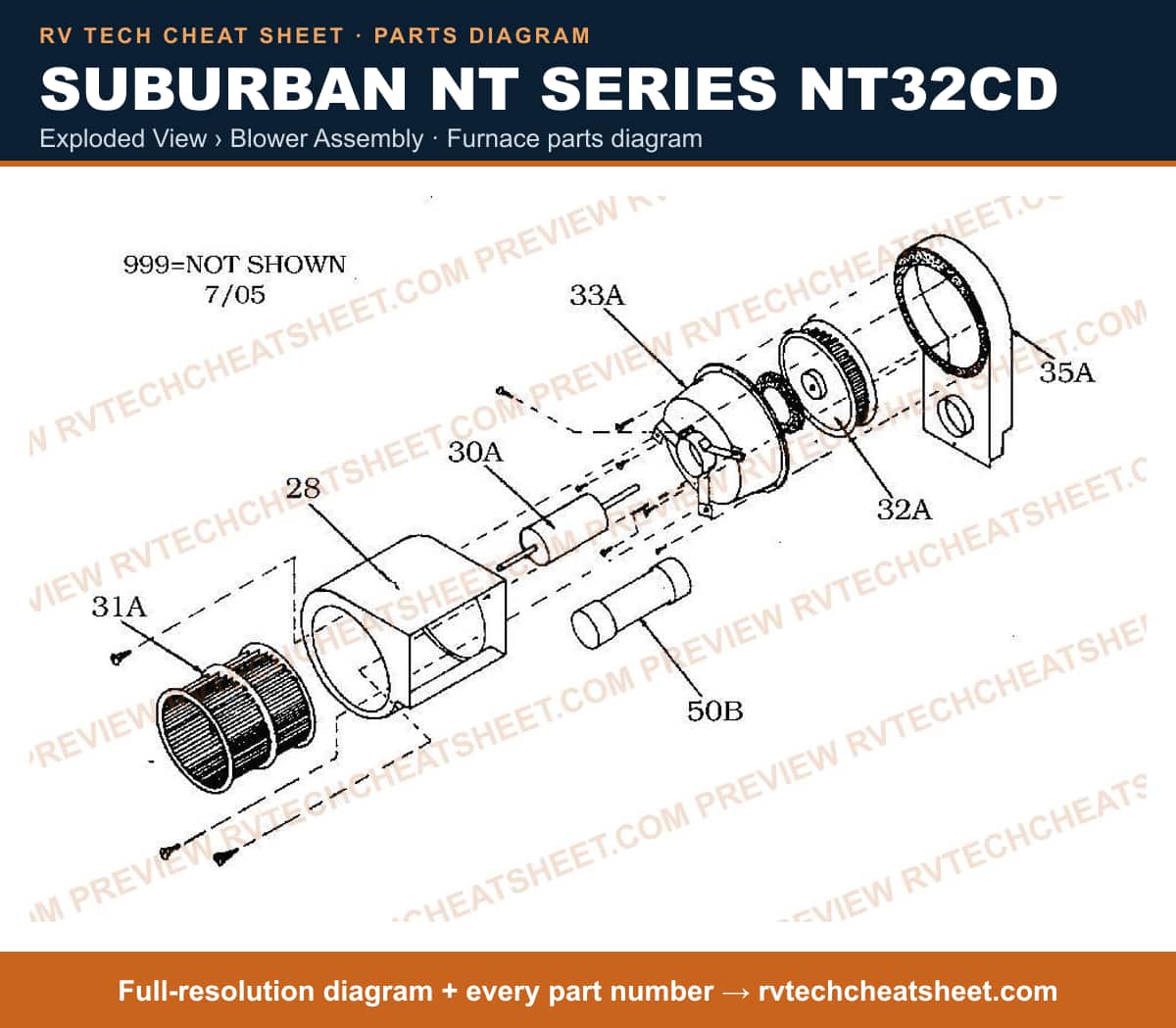

Exploded View › Blower Assembly

Components

8 items

1. #HOUSING,BLOWER MFR # 390054
2. #MOTOR, BLOWER (507) MFR # PE2707Q
3. #MOTOR USE PE2707Q MFR # 230742 Superseded: see description
4. #WHEEL,BLOWER LARGE MFR # 350068
5. #APPLIANCE COMPONENTS RV; Wheel Blower Small 6-1/4 MFR # 350069
6. #INTAKE, COMBUSTION AIR MFR # 390134
7. #HOUSING, BLOWER MFR # 390101
8. #APPLIANCE COMPONENTS RV; Rubber Connector Tube MFR # 70331

Replacement

Components

1 item

1. #Furnace Core; NT Series; LP Gas; Model Number NT-34SP; 34,000 BTU; Direct Discharge; 7.5 Amp Draw; 12 Inch Width x 12-1/2 Inch Height x 23 Inch Depth; 10.3 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly MFR # NT34SPN

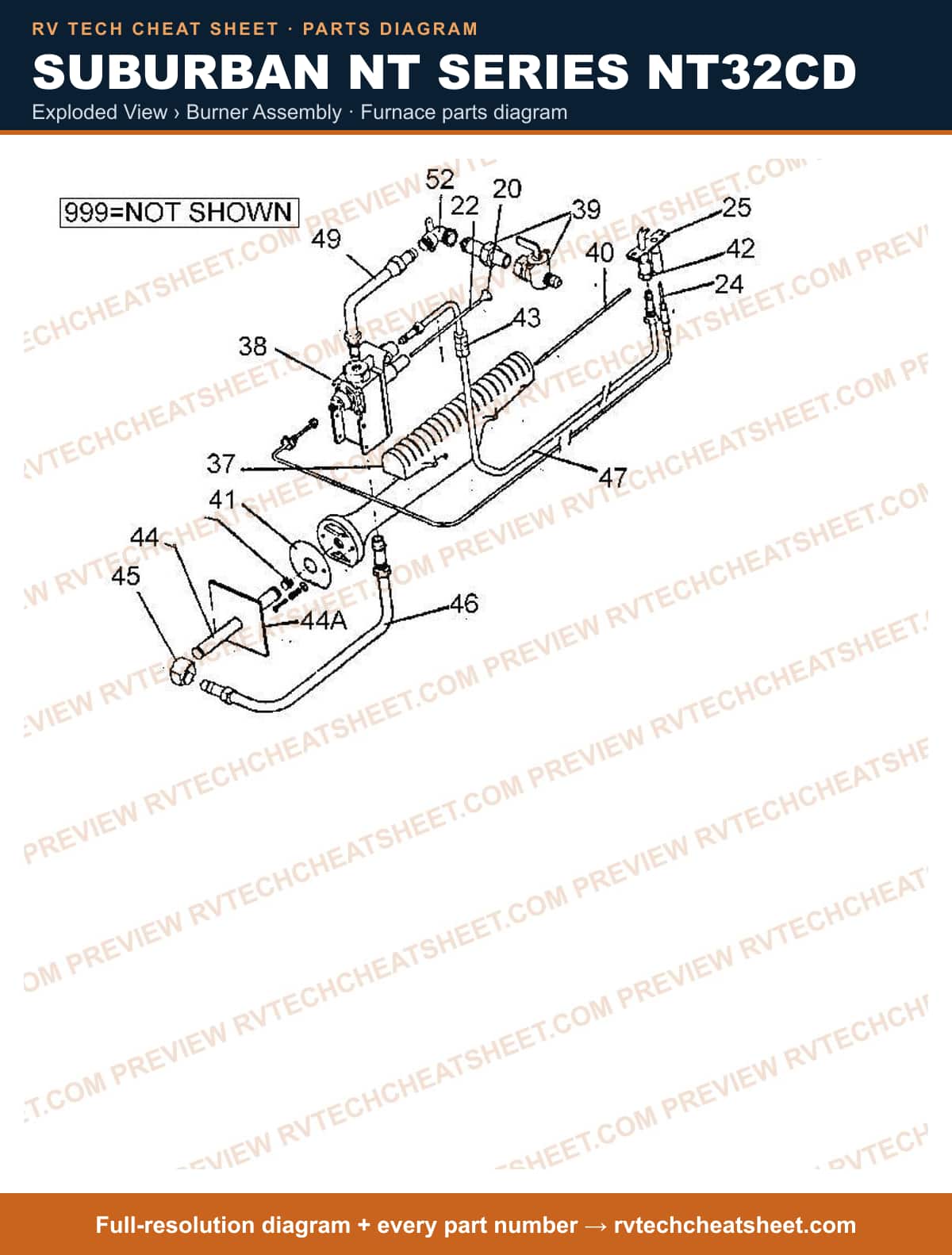

Exploded View › Burner Assembly

Components

40 items

1. #APPLIANCE COMPONENTS RV; Knob Blk Pilot Reset MFR # 140093
2. #ROD,RESET MFR # 140131
3. #T-COUPLE,30" USE 160876 MFR # 160527 Superseded: see description
4. #Thermocouple; Use With Gas Water Heaters And Furnaces; Probe Sensor; 30 Inch Length; Copper MFR # 1153 Superseded: see description
5. #Universal Thermocouple; 30 Inches Long; Includes Thermocouple/ Positioning Adapters; MFR # H06E404
6. #Thermocouple; Use On Water Heater Models GVR65N/ GVR65BN/ GVR50N/ GVR50BN/ GVR35N/ GVR65P/ GVR65BP/ GVR50P/ GVR50BP/ GVR35P/ GVR65-5/ GVR50-5GVR35-5GVR65-5S/ GVR50-5S/ GVR35-5S/ GVC65N/ GVC65P/ GVC50N/ GVC50P/ GVC35N/ GVC35P/ GVC65-5/ GVC50-5/ GVC35-5 MFR # 160876 Superseded: see description
7. #BURNER, PILOT MFR # 160535
8. #BURNER,MAIN NT20 MFR # 10523
9. #BURNER, MAIN MFR # 10563S
10. #BURNER MFR # 10509
11. #VALVE,BASO MFR # 160705
12. #APPLIANCE COMPONENTS RV; Valve Safety Pilot Ts11- MFR # 160540
13. #VALVE USE 520402 MFR # 160650 Superseded: see description
14. #VALVE, SHUT OFF MFR # 160712
15. #BURNER ASM W/AIR SHUTTER ROD MFR # 10519
16. #BURNER ASM MFR # 140091
17. #APPLIANCE COMPONENTS RV; Pilot Orifice MFR # 160659
18. #Furnace Pilot Regulator; For Suburban Furnaces MFR # 160556
19. #NO GENERIC NAME;;Gasket Burner Tunnel (1 MFR # K6P70305
20. #PIPE, MANIFOLD 1/4 X4 1/2 " MFR # 170339
21. #BOATGUARD 21'-23' 102' CUDDY CABIN MFR # 70207
22. #PIPE,MANIFOLD MFR # 170409
23. #ELBOW BRASS 90 DEGREE MFR # 170392
24. #3/8 Inch x 1/4 Inch HEX BUSHING MFR # 170280
25. #APPLIANCE COMPONENTS RV; St Ell MFR # 170012
26. #TUBE GAS INLET MFR # 170419
27. #TUBE,PILOT MFR # 170415
28. #NIPPLE 3/8 X 1 1/2 MFR # 170281
29. #TUBING MFR # 170411
30. #ELBOW, UNION WITH 1 1/2 Inch NIPPLE MFR # 170292
31. #ELBOW MFR # 170519
32. #ELBOW USE 170519 MFR # 170408 Superseded: see description
33. #GASKET,ROPE EXHAUST (200) MFR # 70487
34. #ARRESTOR KIT,STATIC MFR # 520049
35. #Furnace Gasket; Furnace Motor Gasket; Fits Suburban Furnace NT20A/ NT20C/ NT20CD/ NT22C/ NT22CD/ NT30A/ NT30C/ NT30CD/ NT32C/ NT30CD/ NT45S MFR # 70165
36. #PARTS PACKAGE MFR # 210919
37. #GASKET KIT *PIECE OUT KIT* MFR # 520232
38. #GASKET,EXHAUST USE 70487 MFR # 70217 Superseded: see description
39. #GASKET,BLOWER MOTOR HSG. MFR # 70264
40. #APPLIANCE COMPONENTS RV; Gskt Bottom Duct MFR # 70306
