Suburban Nt Series NT32CDE Parts Diagram · Replacement

Furnace · 4 assemblies · 8 diagram sheets · 98 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Nt Series NT32CDE RV furnace: 4 assemblies (Replacement, Exploded View › Burner Assembly, Exploded View › Combustion Chamber, Exploded View › Blower Assembly) and 98 manufacturer part numbers. 25 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Replacement

Components

1 item

1. #Furnace Core; NT Series; LP Gas; Model Number NT-34SP; 34,000 BTU; Direct Discharge; 7.5 Amp Draw; 12 Inch Width x 12-1/2 Inch Height x 23 Inch Depth; 10.3 Pounds; With Energy-Saving Electronic Ignition; With Gasket-Sealed Vent Assembly MFR # NT34SPN

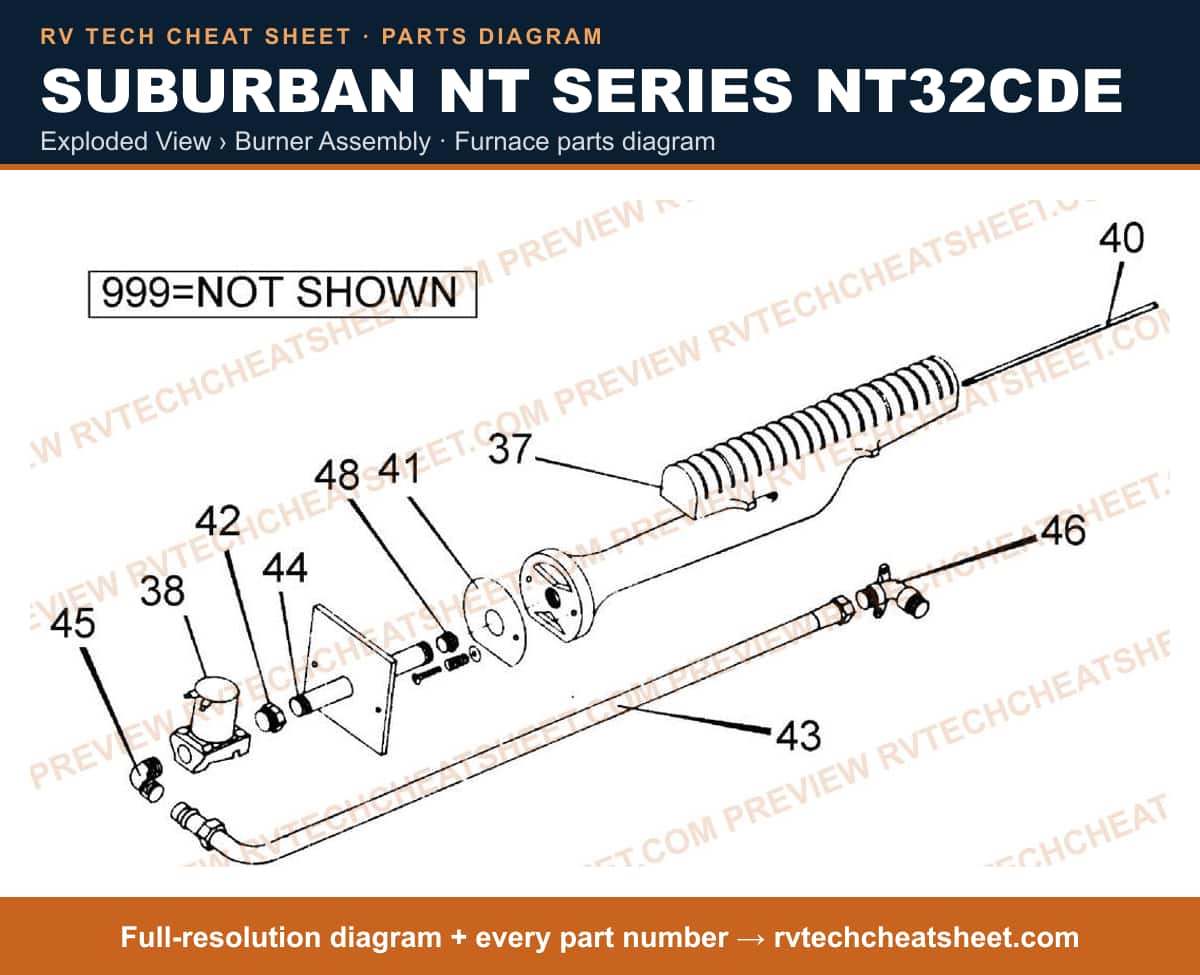

Exploded View › Burner Assembly

Components

26 items

1. #BURNER,MAIN NT32 FCA MFR # 10387
2. #BURNER MFR # 10509
3. #BURNER,MAIN NT20 MFR # 10523
4. #VALVE,GAS MFR # 160911
5. #VALVE USE 520423 MFR # 160734 Superseded: see description
6. #Propane Adapter Fitting; Fits Suburban Part Numbers 171171/ 171172/ 171325/ 171326/ 171334/ 171406/ 171407/ 171443/ 171444/ 171445/ 211497/ 520423 MFR # 170545
7. #VALVE KIT USE 160911 & 170545 MFR # 520423 Superseded: see description
8. #BURNER ASM W/AIR SHUTTER ROD MFR # 10519
9. #BURNER ASM MFR # 140091
10. #BURNER MFR # 10366
11. #3/8 Inch x 1/4 Inch HEX BUSHING MFR # 170280
12. #INLET TUBING MFR # B170476
13. #MANIFOLD PIPE 1-1/4" (NT-32) MFR # 17371
14. #MANIFOLD PIPE ASSEMBLY MFR # B170478
15. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
16. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
17. #ELBOW USE 170519 MFR # 170408 Superseded: see description
18. #ELBOW MFR # 170519
19. #APPLIANCE COMPONENTS RV; Orifice Main Burner #53 MFR # 180193
20. #APPLIANCE COMPONENTS RV; Suburban Orifice MFR # 180188
21. #BLACK IRON PIPE (NT-32) MFR # 170372
22. #VALVE KIT NT12C BASO TROL #G92SGD-1 MFR # 520428
23. #VALVE USE 520428 MFR # 160657 Superseded: see description
24. #GASKET KIT *PIECE OUT KIT* MFR # 520232
25. #VALVE, SHUT OFF MFR # 160712
26. #PARTS PACKAGE MFR # 210919

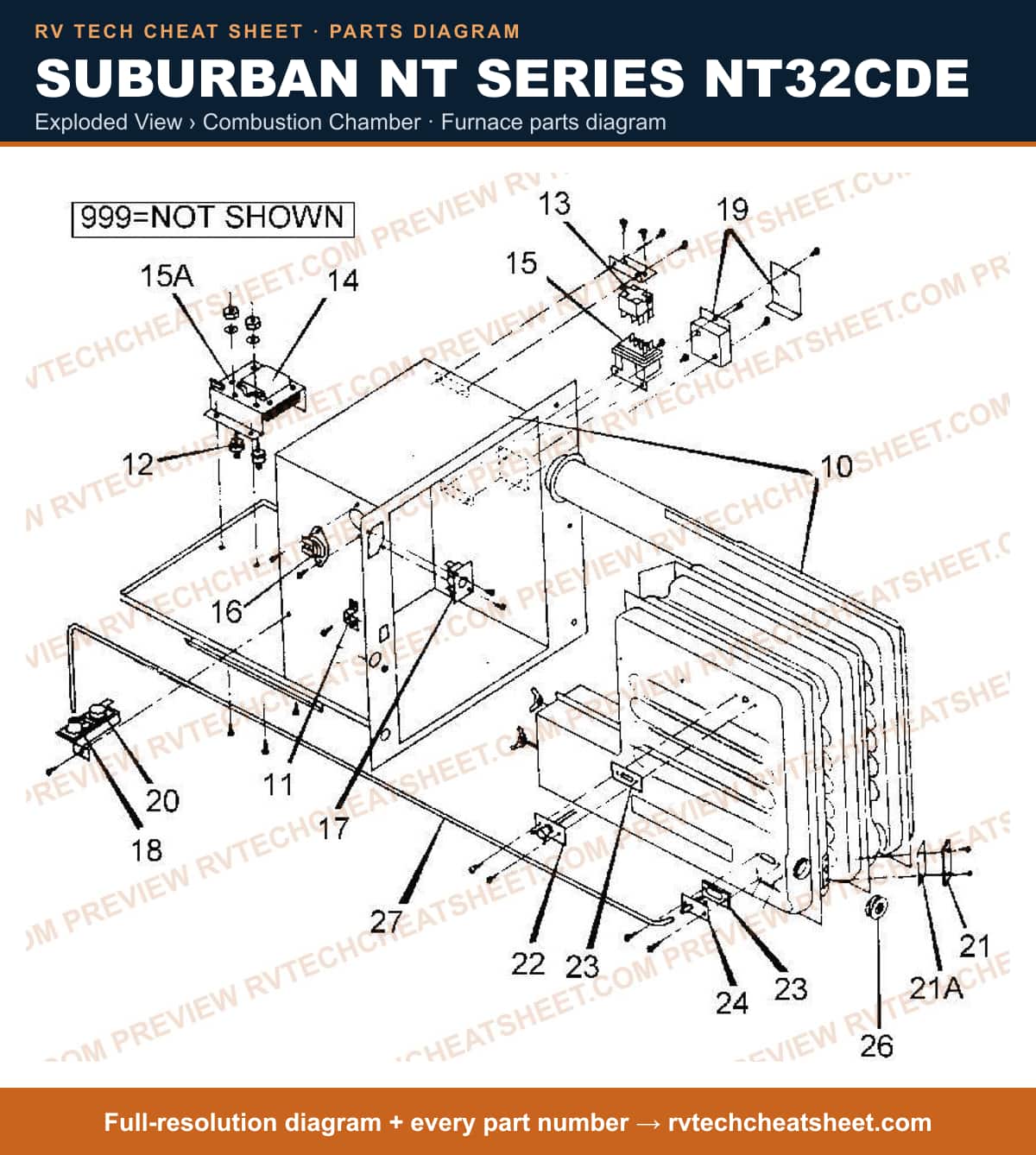

Exploded View › Combustion Chamber

Components

37 items

1. #CHAMBER,HEAT NT22 C MFR # 110249
2. #CHAMBER,COMBUSTION MFR # 110251
3. #SPACER, BRIDE - 14B MFR # 120732
4. #DIODE RECTIFIER MFR # 230297
5. #APPLIANCE COMPONENTS RV; Ac/Dc Switching Relay MFR # 230255
6. #TRANSFORMER BE 8192 OR BE 8912 MFR # 230323
7. #Power Converter; DLS Series; Converts 108 To 132 Volt AC To 13.6 Volt DC; 200 Continuous Watts; 15 Amps Continuous Output; 80 Percent Efficiency; With Short Circuit/ Reverse Polarity/ Over Load/ Thermal Protection; 9.7 Inch Length x 6.7 Inch Width x 3.4 Inch Height; With 36 Inch Length Power Cord; Compatible With IOTA IQ4 Charge Controller MFR # DLS15
8. #CONVERTER,9 AMP USE 6712N W/O CHARGER MFR # 6509X Superseded: see description
9. #CONVERTER/CHARGER USE DLS15 MFR # PC15 Superseded: see description
10. #RELAY USE 230423 MFR # 230275 Superseded: see description
11. #DIODE & TRANSFORMER PKG MFR # 230312
12. #THERMOSTAT RELAY MFR # 230423
13. #Furnace Limit Switch; For Suburban Furnace NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S (Below Serial Number 1600851) MFR # 230575
14. #SWITCH,FAN USE 230575 MFR # 230348 Superseded: see description
15. #Furnace Limit Switch; For Suburban Furnace Models NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230575MC
16. #SWITCH,LIMIT MFR # 232578
17. #PIN, ROLL MFR # 230134
18. #SWITCH,LIMIT USE 1023 MFR # 230344 Superseded: see description
19. #Furnace Limit Switch; For Suburban Furnace NT-30SP/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S/ P-30S; Also Use New Number 525020 MFR # 231244 Superseded: see description
20. #Furnace Limit Switch; For Suburban Furnace Models P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496MC
21. #Furnace Limit Switch; For Suburban Furnace P-30S/ NT-34SP/ NT-24/ NT-30/ NT-34/ NT-24M/ NT-30M/ NT-34M/ NT-24S/ NT-30S/ NT-34S MFR # 230496
22. #SWITCH,LIMIT USE 230496 210 DEGREE MFR # 230389 Superseded: see description
23. #BOARD,CIRCUIT MFR # A230168
24. #COVER, JUNCTION BOX MFR # 90157
25. #DELAY LOCKOUT SWITCH MFR # A230469
26. #TS-50: 50 AMP TRANSFER SWITCH MFR # 70278
27. #COVER,HOLE AIR SHUTTER ADJU STMENT MFR # 260061
28. #FLAME SWITCH MFR # A230470
29. #GASKET MFR # A070378
30. #CAP,LIGHTER MFR # 290110
31. #CAP,LIGHTER USE 290110 MFR # 290099 Superseded: see description
32. #WIRE,HIGH VOLTAGE USE 231713 MFR # 318060002 Superseded: see description
33. #APPLIANCE COMPONENTS RV; Wire Electrode - N.L.A. MFR # 231713
34. #WIRE, IGNITION USE 318060002 MFR # 230350 Superseded: see description
35. #IGNITER,PIEZO USE 230521 MFR # 230325 Superseded: see description
36. #IGNITER, PIEZO USE 520577 MFR # 230521 Superseded: see description
37. #APPLIANCE COMPONENTS RV; Igniter Piezo W/ Wire * MFR # 520577

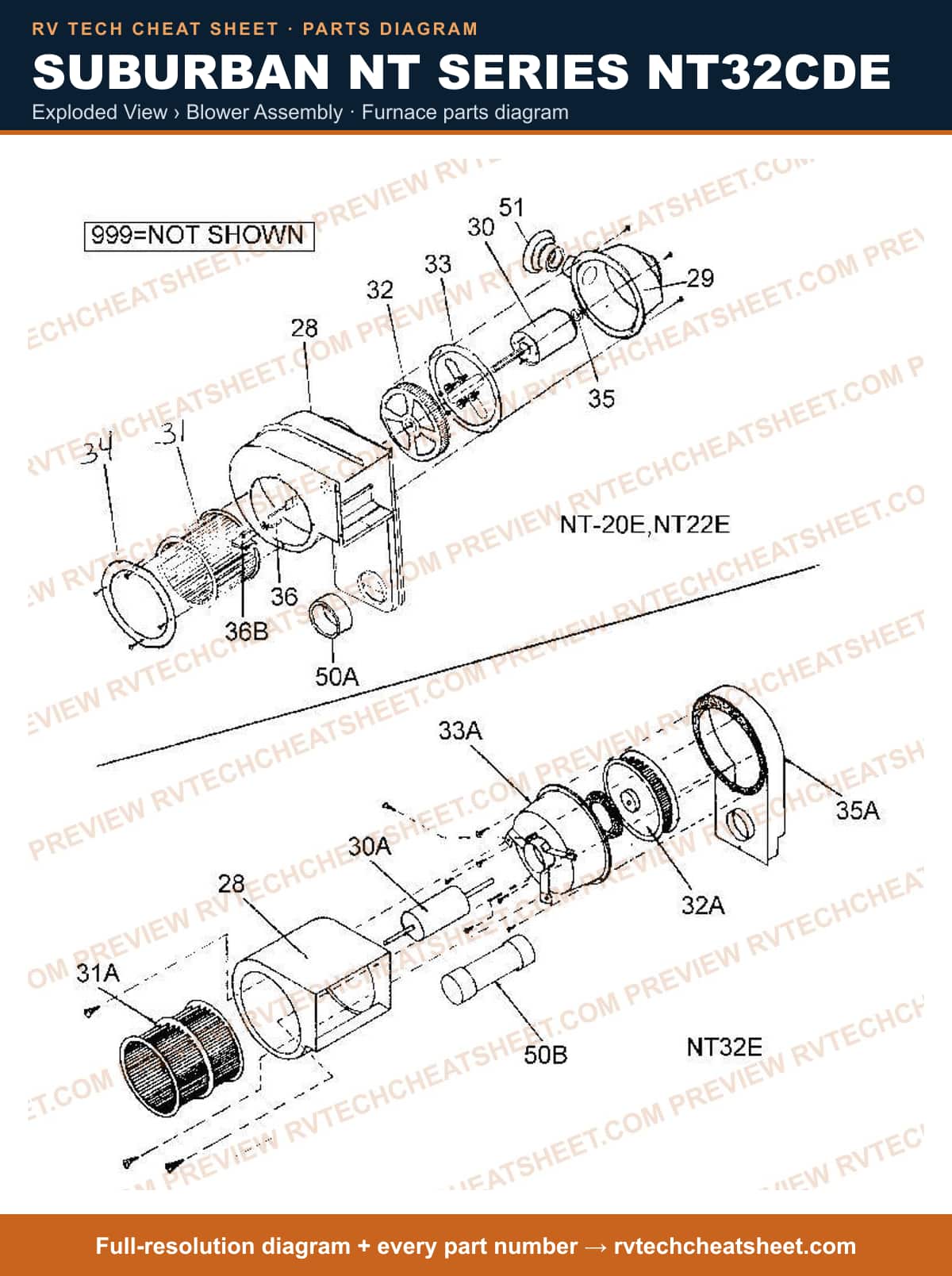

Exploded View › Blower Assembly

Components

34 items

1. #HOUSING,BLOWER MFR # 390054
2. #HOUSING, BLOWER MFR # 390099
3. #COVER, MOTOR AIR INTAKE (NT-22E) MFR # 390047
4. #COVER, MOTOR AIR INTAKE (NT-20 ALL MODELS) MFR # 390058
5. #KIT MOTOR/MTG BRKTS MFR # 521137
6. #Furnace Motor; For Suburban Furnace Models NT-30M/ NT-30S/ NT-30SP; Also Use New Number 521137MC MFR # 231207MC Superseded: see description
7. #MOTOR,BOSCH USE PE2416Q MFR # 230260 Superseded: see description
8. #BLOWER MOTOR FITS SELECT SUBRB NT20/22/32 FURNACES MFR # PE2416Q
9. #Furnace Motor; For Suburban Furnace NT-30M/ NT-30S/ NT-30SP MFR # 231207
10. #MOTOR,BOSCH USE 231207 MFR # 230339 Superseded: see description
11. #MOTOR MFR # 2302601
12. #MOTOR, BLOWER (507) MFR # PE2707Q
13. #WHEEL,BLOWER LARGE MFR # 350068
14. #BLOWER KIT,WHEEL MFR # 520399
15. #WHEEL,BLOWER MFR # 350037
16. #APPLIANCE COMPONENTS RV; Wheel Blower Small 6-1/4 MFR # 350069
17. #WHEEL,BLOWER,SMALL MFR # 350036
18. #INTAKE, COMBUSTION AIR MFR # 390134
19. #PLATE,DIVIDER MFR # 390045
20. #RING,INLET BLOWER MFR # 390027
21. #HOUSING, BLOWER MFR # 390101
22. #BUSHING,BLOWER MOTOR MFR # 70289
23. #SWITCH USE 230449 MICRO & PADDLE MFR # 230006 Superseded: see description
24. #MICROSWITCH COVER NT32 C MFR # 61659
25. #SWITCH,SAIL USE 230443 MFR # 230340 Superseded: see description
26. #SWITCH,SAIL NT12F/NT12C MFR # 230447
27. #SWITCH,SAIL USE 230447 MFR # 230449 Superseded: see description
28. #TUBE,CROSSOVER USE 2400 2.5 X 1.75 MFR # 50A Superseded: see description
29. #4X4 RIDE RITE F250/350 05 MFR # 2400
30. #BOATGUARD 19'-21 102' 'VHULL RUNABO MFR # 70206
31. #APPLIANCE COMPONENTS RV; Rubber Connector Tube MFR # 70331
32. #TUBE,CROSSOVER USE 50A 1 3/4" X 2 1/2" MFR # 50588 Superseded: see description
33. #Furnace Vacuum Cup; For Suburban NT-Series Furnace; Rubber MFR # 290079
34. #BLOWER ASSEMBLY COMPLETE (NT-32) MFR # 520005
