Suburban Sf Series SF30Q Parts Diagram · Exploded View › Combustion Chamber

Furnace · 4 assemblies · 8 diagram sheets · 81 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Sf Series SF30Q RV furnace: 4 assemblies (Exploded View › Combustion Chamber, Exploded View › Cabinet Assembly, Exploded View › Burner Assembly, Replacement) and 81 manufacturer part numbers. 14 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

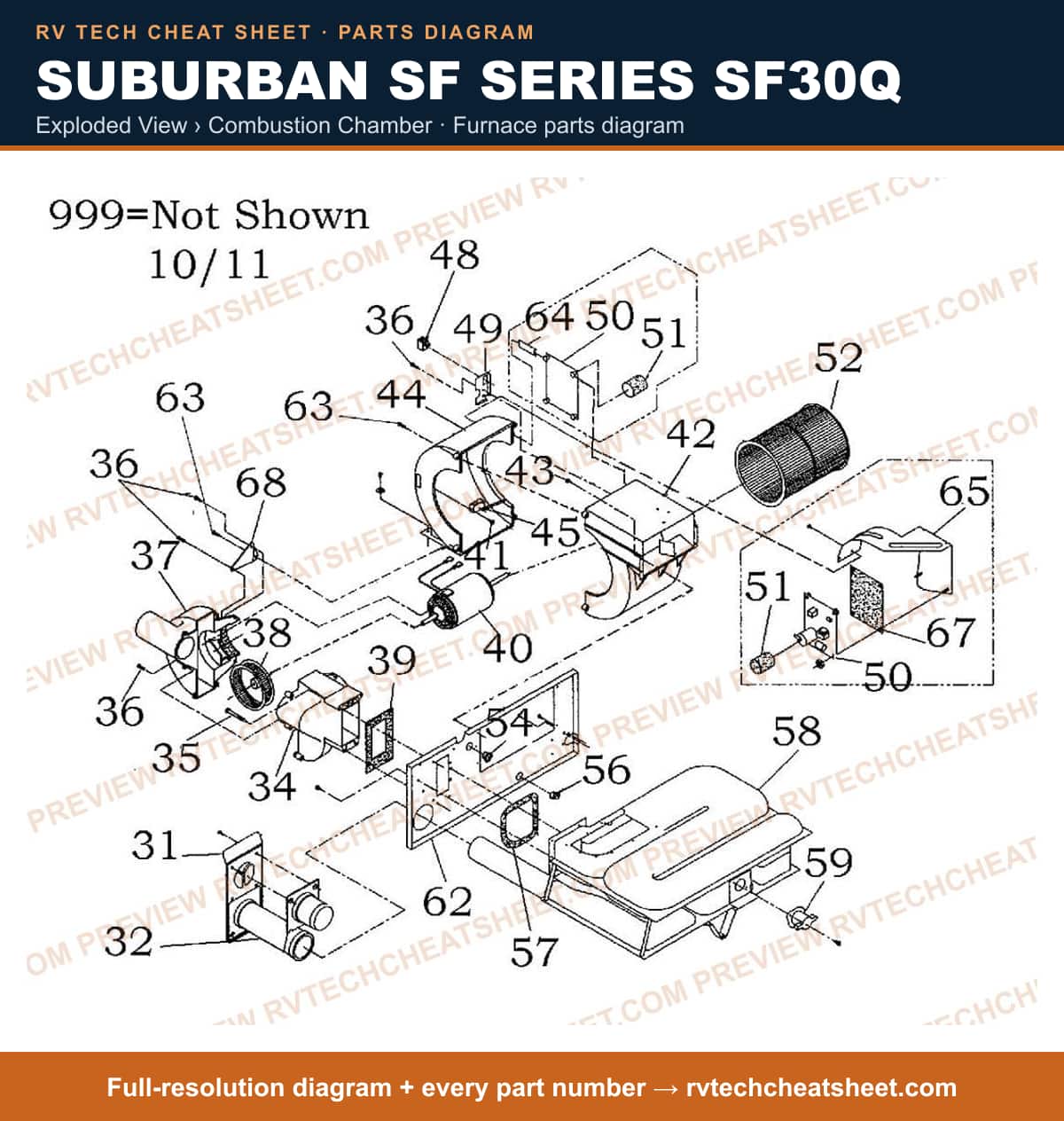

Exploded View › Combustion Chamber

Components

39 items

1. #VENT CAP MFR # 260231
2. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Intake Steel Tube; 2 Inch Length; With Gasket MFR # 51248
3. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Composite; Intake Tube; 2 Inch Length MFR # 051446
4. #SUBURBAN AIR COMB HOUSING MFR # 390852
5. #APPLIANCE COMPONENTS RV; Screw 8-18 X 2-1/4 Ph Ph MFR # 121929
6. #SUBURBAN AIR COMB HOUSING MFR # 390848
7. #SUBURBAN COMBUSTION AIR W MFR # 350184
8. #SUBURBAN GASKET/FARWALL B MFR # 71084
9. #SUBURBAN MOTOR MFR # 233004
10. #APPLIANCE COMPONENTS RV; SCREW #4-24X5/8 PH P H MFR # 121971
11. #HSG ROOM AIR/BAFFLE MFR # 391039
12. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
13. #HSG REAR HALF MFR # 391035
14. #Furnace Low Air Flow Switch; For Suburban SF20/ 25/ 30/ 35/ 42 And SF20F/ 25F/ 30F/ 35F/ 42F Series Furnaces; Also Use New Number 525003 MFR # 233382 Superseded: see description
15. #Furnace Low Air Flow Switch; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232261
16. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
17. #APPLIANCE COMPONENTS RV; BRKT ON/OFF SW MFR # 63446
18. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
19. #Ignition Control Circuit Board - Fits Suburban Water Heaters MFR # 520820MC
20. #Ignition Control Circuit Board;;Replaces Dinosaurs Earlier Small And Large Fan Boards; Can Also Be MFR # DNRFAN50PLUSPINS
21. #ignition Control Circuit Board; Replacement For Suburban Furnace SF-Series (After Serial Number 003805481); 12 Volt DC MFR # 520820
22. #Ignition Control Circuit Board; For Suburban Furnace Models SF-20QT/ SF-25QT/ SF-30QT/ SF-35QT/ SF-42QT/ SF-20FQT/ SF-25FQT/ SF-30FQT/ SF-35FQT/ SF-42FQT/ SFV-20QT/ SFV-25QT/ SFV-30QT/ SFV-35QT/ SFV-42QT/ SFV-20FQT/ SFV-25FQT/ SFV-30FQT/ SFV-35FQT/ SFV-42FQT/ SF-20VHQT/ SF-25VHQT/ SF-30VHQT/ SF-35VHQT/ SF-20VHFQT/ SF-25VHFQT/ SF-30VHFQT/ SF-35VHFQT/ SF-T Replacement Cores; With 521099 Board And Rewiring Instructions MFR # 521314
23. #APPLIANCE COMPONENTS RV; Insul Cap MFR # 70973
24. #WHEEL ROOM AIR MFR # 350206
25. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
26. #APPLIANCE COMPONENTS RV; BUSHING STRAIN RELIEF 1/2 MFR # 71206
27. #GASKET,FIREWALL (CHAMBER SIDE) MFR # 71262S
28. #DISPLAY - RV; CHAMBER MFR # 21225BK
29. #Furnace Limit Switch; For Suburban Furnance SF-20/ SF-30/ SF-35/ SF-25F/ SF-30F/ SF-35F Above Serial Number 921403895; 160 Degree Limit; Also Use New Number 525006 MFR # 233532 Superseded: see description
30. #Furnace Limit Switch; For Suburban Furnance Models SF-20/ SF-30/ SF-35/ SF-25F/ SF-30F/ SF-35F Above Serial Number 921403895; 160 Degree Limit; Also Use New Number 525006MC MFR # 233532MC Superseded: see description
31. #Furnace Limit Switch; For Suburban Furnace Models SF-20/ SF-20F/ SF-25/ SF-25F/ SF-30/ SF-30F/ SF-35/ SF-35F; Also Use New Number 233532MC MFR # 232504MC Superseded: see description
32. #Furnace Limit Switch; For Suburban Furnace SF-20/ SF-20F/ SF-25/ SF-25F/ SF-30/ SF-30F/ SF-35/ SF-35F; Also Use New Number 233532 MFR # 232504 Superseded: see description
33. #FIREWALL MFR # 110792
34. #SCREW,#16 19 X3/4 MFR # 122001S
35. #APPLIANCE COMPONENTS RV; Insul Mod Board MFR # 70807
36. #BRACKET, ROOM AIR HOUSING MFR # 63616S
37. #Ignition Control Circuit Board; For Suburban Furnace Models With A Non-Fan Controlled Module Board: NT-16SQ/ NT-20SQ/ NT-16SEQ/ NT-20SEQ/ NT Replacement Cores/ SF-20Q/ SF-25Q/ SF-30Q/ SF-35Q/ SF-42Q/ SF-20FQ/ SF-25FQ/ SF-30FQ/ SF-35FQ/ SF-42FQ/ SFV-20Q/ SFV-25Q/ SFV-30Q/ SFV-35Q/ SFV-42Q/ SFV-20FQ/ SFV-25FQ/ SFV-30FQ/ SFV-35FQ/ SFV-42FQ/ SF-20VHQ/ SF-25VHQ/ SF-30VHQ/ SF-35VHQ/ SF-20VHFQ/ SF-25VHFQ/ SF-30VHFQ/ SF-35VHFQ/ SF Replacement Cores; Use With Time Delay Relay 521304; Also Use New Number 521313 For NT-T Series Or 521314 For SF-T Series MFR # 521303 Superseded: see description
38. #Furnace Vent; For Suburban Furnace SF-Series And SFV-Series; Rain Shield MFR # 280582
39. #Furnace Time Delay Relay; Use With Non-Fan Controlled Circuit Board 521303; For Suburban Furnace Models SF-20Q/ SF-25Q/ SF-30Q/ SF-35Q/ SF-42Q/ SF-20FQ/ SF-25FQ/ SF-30FQ/ SF-35FQ/ SF-42FQ/ SFV-20Q/ SFV-25Q/ SFV-30Q/ SFV-35Q/ SFV-42Q/ SFV-20FQ/ SFV-25FQ/ SFV-30FQ/ SFV-35FQ/ SFV-42FQ/ SF-20VHQ/ SF-25VHQ/ SF-30VHQ/ SF-35VHQ/ SF-20VHFQ/ SF-25VHFQ/ SF-30VHFQ/ SF-35VHFQ/ SF Replacement Cores; 12 Volt DC; Also Use New Number 521313 For NT-T Series Or 521314 For SF-T Series MFR # 521304 Superseded: see description

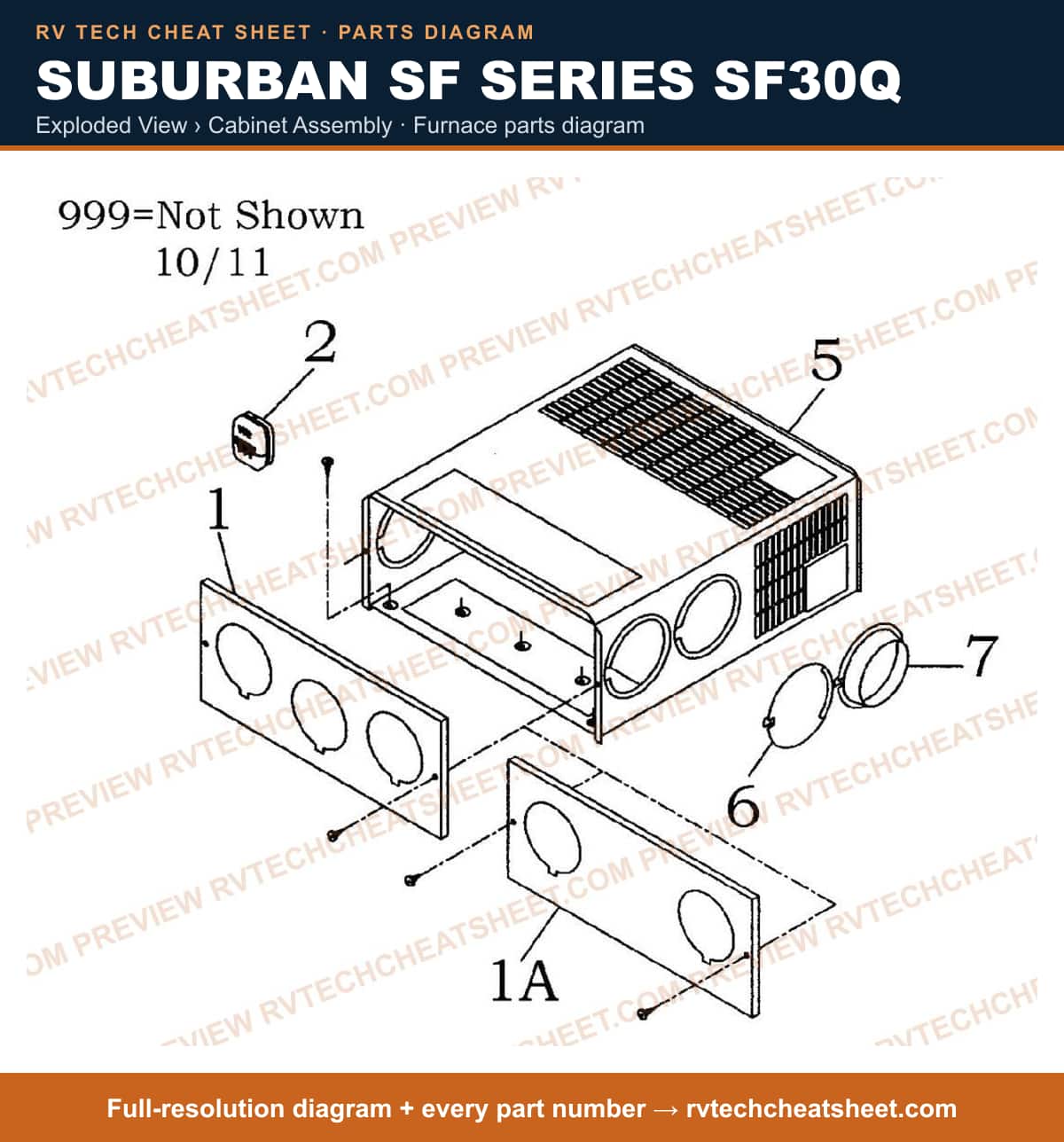

Exploded View › Cabinet Assembly

Components

10 items

1. #APPLIANCE COMPONENTS RV; CAB FRONT 2 DUCT MFR # 102316
2. #Wall Thermostat; Single Stage; For Heat Control; Mechanical Readout; White Case MFR # 161154
3. #Wall Thermostat; Heat; Not Programmable; Mechanical Readout; Black MFR # 161210
4. #Warning Label; Replacement For Suburban SF-20Q/ SF-25Q/ SF-30Q/ SF-20FQ/ SF-25FQ/ SF-30FQ Model Furnaces MFR # 102327
5. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
6. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715
7. #BRACKET, MOUNTING (FRONT) MFR # 63343
8. #OPTIONAL ACCESS DOOR P/W MFR # 6258APW
9. #OPTIONAL ACCESS DOOR C/W MFR # 6258ACW
10. #GLACIER SS 15 OZ CAMP CUP BRUSHED MFR # 63250

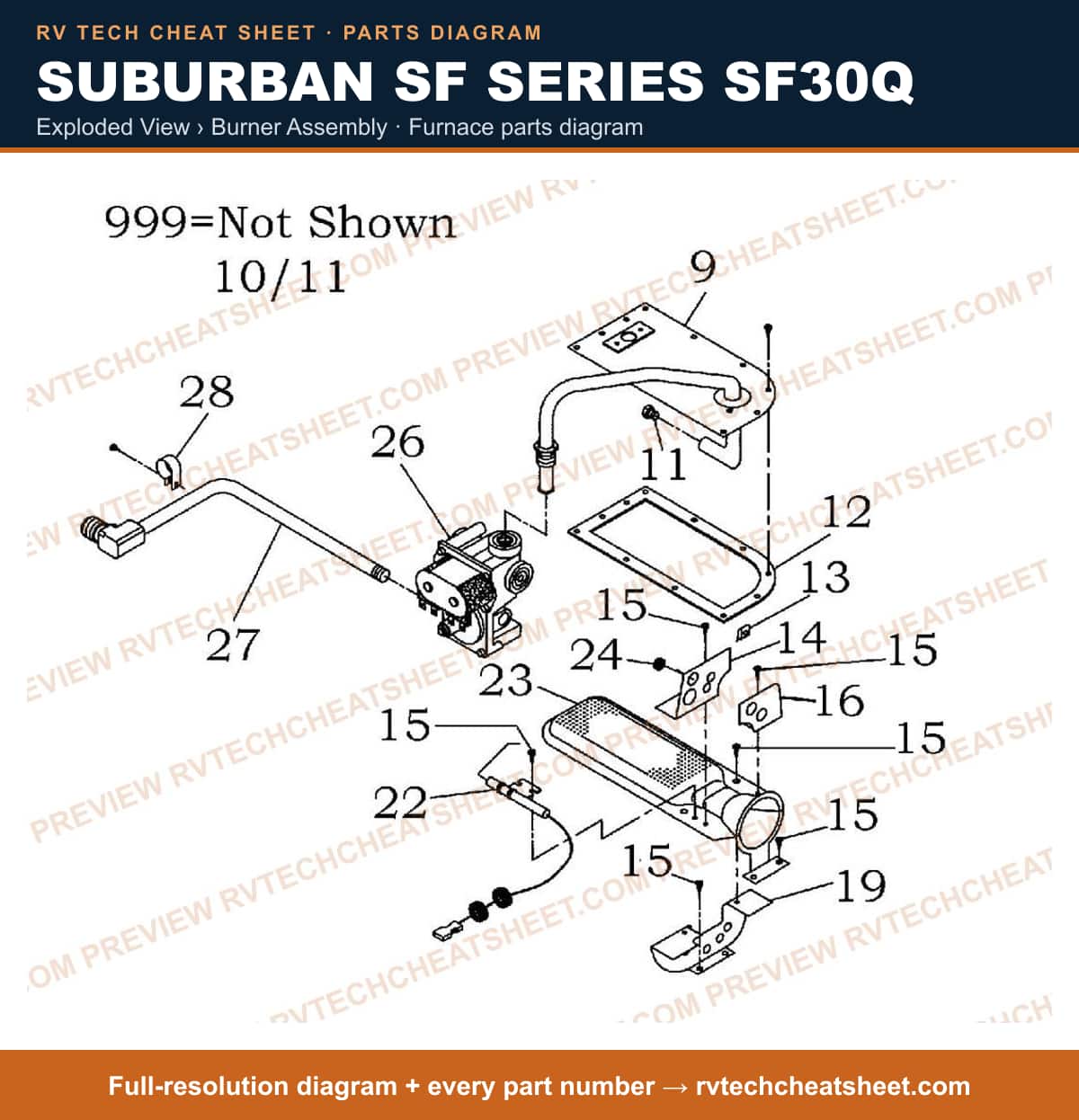

Exploded View › Burner Assembly

Components

20 items

1. #Furnace Manifold; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SFV-20/ SFV-25/ SFV-30/ SFV-35/ SFV-42; With Furnace Manifold Outlet Tube And Orifice Holder MFR # 171743
2. #SUBURBAN BURNER ORIFICE MFR # 180307
3. #Furnace Gasket; Furnace Burner Access Door Gasket; Fits Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SFV-20/ SFV-25/ SFV-30/ SFV-35/ SFV-42; Also Use New Number 525031 MFR # 71263S Superseded: see description
4. #APPLIANCE COMPONENTS RV; Tinnerman U Type MFR # 121704
5. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 63198
6. #APPLIANCE COMPONENTS RV; Screw 8-18 X 1/2 Ph Ph MFR # 121651
7. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 62933
8. #Furnace Duct Cover Plate; Fits Suburban SF-Series Furnace MFR # 62935
9. #Igniter Electrode; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009 MFR # 232286 Superseded: see description
10. #Igniter Electrode; For SF20/ 25/ 30/35Q/ SF20/ 25/ 30/ 35FQ Furnace Models; Single Electrode MFR # 233222
11. #Igniter Electrode; For Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009MC MFR # 232286MC Superseded: see description
12. #HOOD LATCH CHROME MFR # 10865
13. #GROMMET USE 71020 MFR # 70963 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Grommet MFR # 71020
15. #APPLIANCE COMPONENTS RV; Gas Valve MFR # 161070
16. #Gas Valve Solenoid; White Rodgers; Fits To Suburban Furnaces Gas Valve 161109/ 161122; 0.48 Amp/ 12 Volt DC; Maximum 1/2 PSI MFR # 521074
17. #SUBURBAN GAS VALVE MFR # 161133
18. #Furnace Gas Valve; For Use With Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42 With Serial Numbers After 971303163; Also Use New Number 525044 MFR # 161122 Superseded: see description
19. #APPLIANCE COMPONENTS RV; Gas Pipe Inlet MFR # 171574
20. #CLAMP WIRE MFR # 62180

Replacement

Components

12 items

1. #Furnace; SF-Q Series; LP Gas; Model Number SF-30Q; 30000 BTU; 1 Stage; Side/ Top And Bottom Duct Discharge; 7 Amp Draw; 17 Inch Width x 7-1/2 Inch Height x 20 Inch Depth; 29 Pounds; With Energy-Saving Solid State Electronic Ignition; With Vent Kit For 1-1/2 Inch Wall; Single MFR # 2488A
2. #Furnace; SF-Q Series; LP Gas; Model Number SF-30Q; 30000 BTU; 1 Stage; Side/ Top And Bottom Duct Discharge; 7 Amp Draw; 17 Inch Width x 7-1/2 Inch Height x 20 Inch Depth; 29 Pounds; With Energy-Saving Solid State Electronic Ignition; With Vent Kit For 1-1/2 Inch Wall And 3/8 Inch Gas Fitting; Single MFR # 2562A
3. #Furnace; SF-Q Series; LP Gas; Model Number SF-30Q; 30000 BTU; 1 Stage; Side/ Top And Bottom Duct Discharge; 7 Amp Draw; 17 Inch Width x 7-1/2 Inch Height x 20 Inch Depth; 29 Pounds; With Energy-Saving Solid State Electronic Ignition; With Vent Kit For 1-1/2 Inch Wall; Single MFR # 2522A
4. #Furnace; SF-Q Series; LP Gas; Model Number SF-30Q; 30,000 BTU; 1 Stage; Side/ Top And Bottom Duct Discharge; 7 Amp Draw; 17 Inch Width x 7-1/2 Inch Height x 20 Inch Depth; 25.82 Pounds; With Energy-Saving Direct Spark Ignition; With Vent Kit For 1-1/2 Inch Wall; Also Use New Number 2519A MFR # 2388A Superseded: see description
5. #Furnace; SF-Q Series; LP Gas; Model Number SF-30Q; 30,000 BTU; 1 Stage; Side/ Top And Bottom Duct Discharge; 7 Amp Draw; 17 Inch Width x 7-1/2 Inch Height x 20 Inch Depth; 25.82 Pounds; With Energy-Saving Direct Spark Ignition; With Vent Kit For 1-1/2 Inch Wall; Also Use New Number 2519A MFR # 2481A Superseded: see description
6. #Furnace; SF-Q Series; LP Gas; Model Number SF-30Q; 30000 BTU; 1 Stage; Side/ Top And Bottom Duct Discharge; 7 Amp Draw; 17 Inch Width x 7-1/2 Inch Height x 20 Inch Depth; 29 Pounds; With Energy-Saving Solid State Electronic Ignition; With Vent Kit For 1-1/2 Inch Wall; Single MFR # 2521A
7. #Furnace; SF-Q Series; LP Gas; Model Number SF-30Q; 30000 BTU; 1 Stage; Side/ Top And Bottom Duct Discharge; 7 Amp Draw; 17 Inch Width x 7-1/2 Inch Height x 20 Inch Depth; 29 Pounds; With Energy-Saving Solid State Electronic Ignition; With Vent Kit For 1-1/2 Inch Wall; Single MFR # 2520A
8. #Furnace; SF-Q Series; LP Gas; Model Number SF-30Q; 30000 BTU; 1 Stage; Side/ Top And Bottom Duct Discharge; 7 Amp Draw; 17 Inch Width x 7-1/2 Inch Height x 20 Inch Depth; 29 Pounds; With Energy-Saving Solid State Electronic Ignition; With Vent Kit For 1-1/2 Inch Wall And 1/2" Gas Fitting; Single MFR # 2561A
9. #SF-30Q RV FURNACE CLAMSHELL (1PK) MFR # 2559A
10. #RP-30 FURNACE CORE Q MFR # 2607A
11. #Furnace; SF-Q Series; LP Gas; Model Number SF-30Q; 30,000 BTU; 1 Stage; Side/ Top And Bottom Duct Discharge; 7 Amp Draw; 17 Inch Width x 7-1/2 Inch Height x 20 Inch Depth; 25.82 Pounds; With Energy-Saving Direct Spark Ignition; With Vent Kit For 1-1/2 Inch Wall MFR # 2519A
12. #Furnace; SF-Q Series; LP Gas; Model Number SF-30Q; 30000 BTU; 1 Stage; Side/ Top And Bottom Duct Discharge; 7 Amp Draw; 17 Inch Width x 7-1/2 Inch Height x 20 Inch Depth; 29 Pounds; With Electronic Ignition; With Vent Kit For 1-1/2 Inch Wall; Single MFR # 2560A
