Suburban Sf Series SF30QHS Parts Diagram · Exploded View › Burner Assembly

Furnace · 2 assemblies · 4 diagram sheets · 33 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Sf Series SF30QHS RV furnace: 2 assemblies (Exploded View › Burner Assembly, Exploded View › Combustion Chamber) and 33 manufacturer part numbers. 5 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

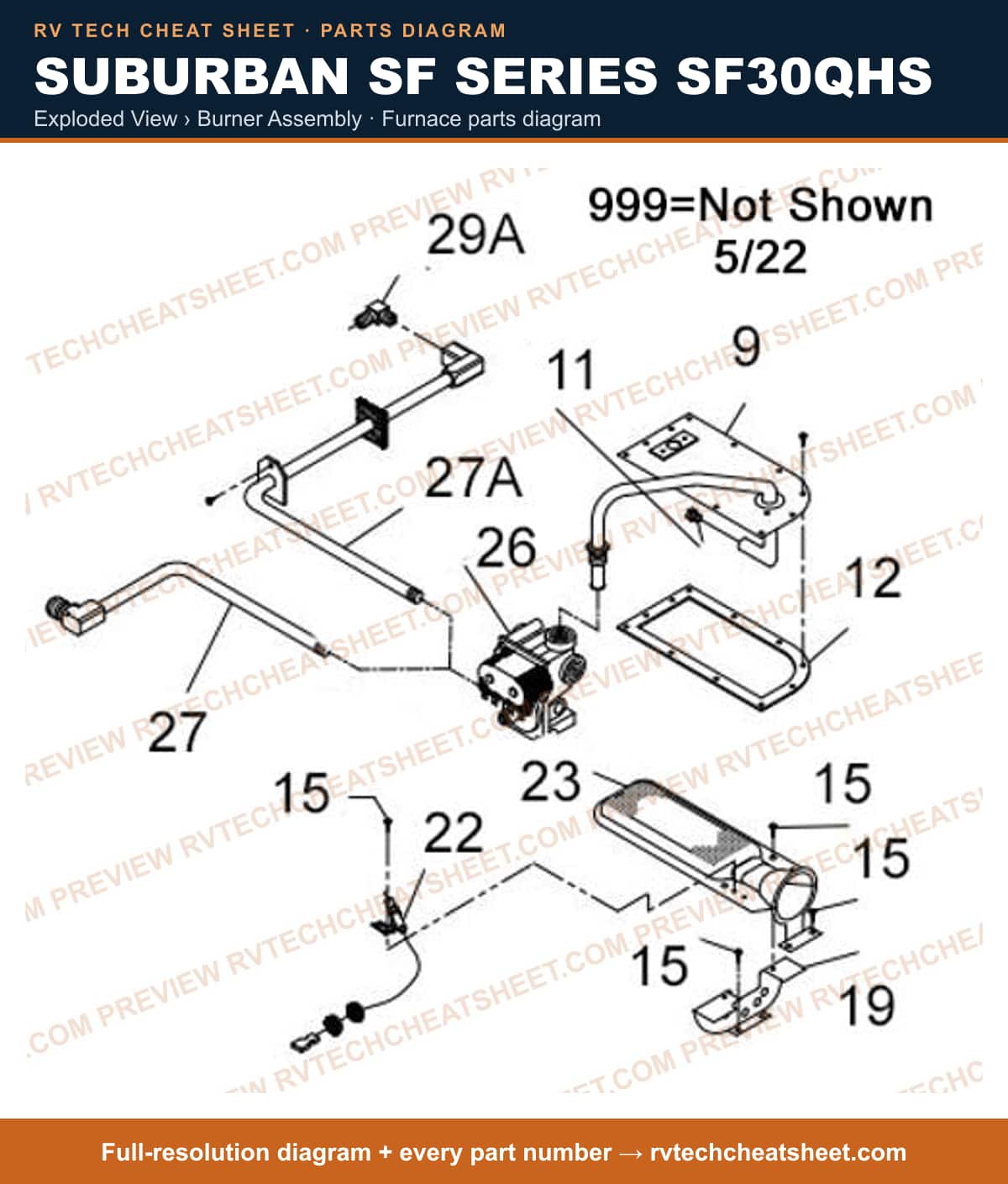

Exploded View › Burner Assembly

Components

13 items

1. #Furnace Manifold; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SFV-20/ SFV-25/ SFV-30/ SFV-35/ SFV-42; With Furnace Manifold Outlet Tube And Orifice Holder MFR # 171743
2. #SUBURBAN BURNER ORIFICE MFR # 180307
3. #Furnace Gasket; Furnace Burner Access Door Gasket; Fits Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SFV-20/ SFV-25/ SFV-30/ SFV-35/ SFV-42; Also Use New Number 525031 MFR # 071263 Superseded: see description
4. #APPLIANCE COMPONENTS RV; Screw 8-18 X 1/2 Ph Ph MFR # 121651
5. #Furnace Duct Cover Plate; Fits Suburban SF-Series Furnace MFR # 062935
6. #ELECTRODE MFR # 233497
7. #SUBURBAN BURNER ASSY MFR # 010799
8. #Furnace Gas Valve; For Use With Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42 With Serial Numbers After 971303163; Also Use New Number 525044 MFR # 161122 Superseded: see description
9. #Furnace Gas Inlet Pipe; For Use With Suburban Furnaces SF35FQ/ SFV20FQ/ SF30F MFR # 171576 Superseded: see description
10. #APPLIANCE COMPONENTS RV; Pipe Gas Inlet MFR # 171575
11. #APPLIANCE COMPONENTS RV; Gas Pipe Inlet MFR # 171574
12. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
13. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description

Exploded View › Combustion Chamber

Components

20 items

1. #SUBURBAN VENT/EXHAUST TUB MFR # 260553
2. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Composite; Intake Tube; 2 Inch Length MFR # 051446
3. #APPLIANCE COMPONENTS RV; SCREW 6-19 X 3/4 PH MFR # 122001
4. #APPLIANCE COMPONENTS RV; KIT CA WHEEL/SCREWS MFR # 521236
5. #GASKET, FIREWALL (COMBUSTION AIR) MFR # 072087
6. #Furnace Motor; Replacement For Suburban SF-42Q/ SF-45FQ/ SFV-42Q/ SFV-42FQ Furnaces MFR # 521232
7. #APPLIANCE COMPONENTS RV; SCREW #4-24X5/8 PH P H MFR # 121971
8. #Furnace Blower Housing; Replacement For Suburban SF-42Q/ SF-42FQ/ SFV-42Q/ SFV-42FQ Model Furnaces; Front Half; 2 Piece Housing MFR # 521238
9. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
10. #BLOWER HOUSING REAR HALF MFR # 521253
11. #Furnace Low Air Flow Switch; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232261
12. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
13. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
14. #BLOWER WHEEL SFV-35/42Q MFR # 521233
15. #APPLIANCE COMPONENTS RV; Bushing MFR # 070362
16. #APPLIANCE COMPONENTS RV; BUSHING STRAIN RELIEF 1/2 MFR # 071206
17. #(BOXED) CHAMBER/FIREWALL ASSY. (RG ONLY) MFR # 021369
18. #CHAMBER/FIREWALL ASM SFV-42FQ MFR # 021368
19. #Furnace Limit Switch; For Suburban Furnace SF-20/ SF-20F/ SF-25/ SF-25F/ SF-30/ SF-30F/ SF-35/ SF-35F; Also Use New Number 233532 MFR # 232504 Superseded: see description
20. #NOT AVAILABLE AS INDIVIDUAL PART. MFR # ******
