Suburban Sf Series SF42 Parts Diagram · Exploded View › 2004 Begin Sn 041206276-CABINET Asm

Furnace · 9 assemblies · 18 diagram sheets · 139 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Sf Series SF42 RV furnace: 9 assemblies (Exploded View › 2004 Begin Sn 041206276-CABINET Asm, Replacement, Exploded View › Models Prior To 2001-CABINET Asm, Exploded View › Models Prior To 2001-COMBUSTION Chamber Asm, Exploded View › 2001 Begin Sn 012305199-COMBUSTION Asm and more) and 139 manufacturer part numbers. 28 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

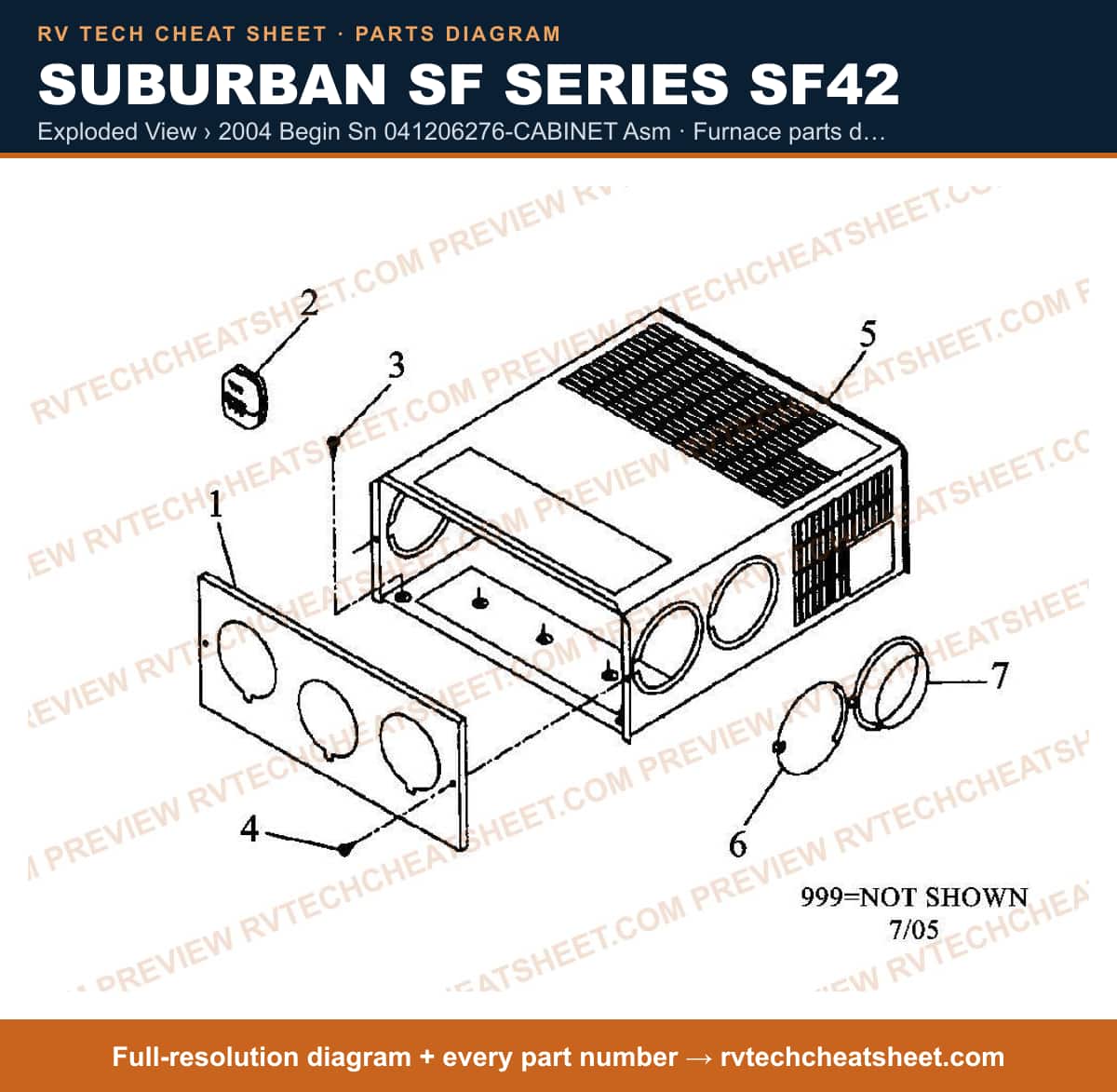

Exploded View › 2004 Begin Sn 041206276-CABINET Asm

Components

13 items

1. #Furnace Adapter Plate; For Suburban Furnace SF20F/ SF25F/ SF30F/ SF35F/ SF42F; With 3 Ducts MFR # 101242
2. #T-STAT, WALL USE 100402 MFR # 160902 Superseded: see description
3. #Wall Thermostat; Heat Only; Mechanical; 1 Stage; White; MFR # 1C20101
4. #Wall Thermostat; Single Stage; Snap-Action; Low Voltage; Heat Only; 24 Volt; White MFR # 01C20102S1
5. #Wall Thermostat; Single Stage; For Heat And Cool Control; Programmable; Digital Display; 24 Volt; Battery Powered MFR # 1F87R875
6. #APPLIANCE COMPONENTS RV; Thermostat 3 Day Program MFR # 1F80R850
7. #Wall Thermostat; Single Stage; For Heat/ Cool Control; Mechanical Readout; 12 Volt; Without Fan Speed Control; Without Fan On Mode MFR # 100402
8. #APPLIANCE COMPONENTS RV; Screw 10 X 3/4 Ph Ph MFR # 121224
9. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
10. #APPLIANCE COMPONENTS RV; Cab/Labels MFR # 101894
11. #APPLIANCE COMPONENTS RV; CAB/LABELS MFR # 101894Z
12. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
13. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715

Replacement

Components

5 items

1. #OPTIONAL ACCESS DOOR C/W MFR # 6258ACW
2. #RP-35 FURNACE CORE Q MFR # 2609A
3. #Furnace; SF-Q Series; LP Gas; Model Number SF-42Q; 42,000 BTU; Side/ Top And Bottom Duct Discharge; 9 Amp Draw; 17 Inch Width x 7-1/2 Inch Height x 20 Inch Depth; 35.6 Pounds; With Energy-Saving Direct Spark Ignition; With Vent Kit For 1-1/2 Inch Wall; Also Use New Number 2527A MFR # 2399A Superseded: see description
4. #HEATERS & FURNACES RV;;Furnace Sf-42 MFR # S6U2328A
5. #OPTIONAL ACCESS DOOR P/W MFR # 6258APW

Exploded View › Models Prior To 2001-CABINET Asm

Components

20 items

1. #Furnace Adapter Plate; For Suburban Furnace SF20F/ SF25F/ SF30F/ SF35F/ SF42F; With 3 Ducts MFR # 101242
2. #FRONT,CABINET USE 101242 MFR # 101888 Superseded: see description
3. #T-STAT, WALL USE 100402 MFR # 160902 Superseded: see description
4. #Wall Thermostat; Single Stage; For Heat And Cool Control; Programmable; Digital Display; 24 Volt; Battery Powered MFR # 1F87R875
5. #Wall Thermostat; Single Stage; Snap-Action; Low Voltage; Heat Only; 24 Volt; White MFR # 01C20102S1
6. #Wall Thermostat; Single Stage; For Heat/ Cool Control; Mechanical Readout; 12 Volt; Without Fan Speed Control; Without Fan On Mode MFR # 100402
7. #APPLIANCE COMPONENTS RV; Thermostat 3 Day Program MFR # 1F80R850
8. #Wall Thermostat; Heat Only; Mechanical; 1 Stage; White; MFR # 1C20101
9. #APPLIANCE COMPONENTS RV; Screw 10 X 3/4 Ph Ph MFR # 121224
10. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
11. #CABINET ASM USE 101889 MFR # 101590 Superseded: see description
12. #APPLIANCE COMPONENTS RV; Cabinet W/Sticke MFR # 101889
13. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
14. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715
15. #OPTIONAL ACCESS DOOR C/W MFR # 6258ACW
16. #APPLIANCE COMPONENTS RV; Kit Duct Bot MFR # 520753
17. #HARNESS,WIRING USE 232626 LIMIT SWITCH MFR # 231717 Superseded: see description
18. #OPTIONAL ACCESS DOOR P/W MFR # 6258APW
19. #Furnace Wiring Harness; For Suburban Furnace Thermostat SW-Series MFR # 232626
20. #Furnace Wiring Harness; For Suburban Furnace Limit/ Sail Switch SF-Series/ SFV-Series/ SH-Series MFR # 231720

Exploded View › Models Prior To 2001-COMBUSTION Chamber Asm

Components

66 items

1. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
2. #SUBURBAN COMBUSTION AIR W MFR # 350183
3. #Furnace Gasket; Furnace Combustion Air Housing Gasket; Fits Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35 MFR # 70810
4. #APPLIANCE COMPONENTS RV; Screw 8 X 1/2 Ph Ph MFR # 120615
5. #Furnace Combustion Air Housing; Air Intake Box; For Suburban SF-Series Furnace; Black MFR # 51032BK
6. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Intake Steel Tube; 2 Inch Length; With Gasket MFR # 51248
7. #1/2BX1/2B STR STOP VALVE MFR # 51249
8. #TUBE INTAKE MFR # 051447
9. #TUBE,INTAKE USE 51248 MFR # 51044 Superseded: see description
10. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Composite; Intake Tube; 2 Inch Length MFR # 051446
11. #VENT CAP MFR # 260231
12. #SUBURBAN VENT/EXHAUST TUB MFR # 260553
13. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
14. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
15. #APPLIANCE COMPONENTS RV; 10-32 Elastic Stop Nut MFR # 121329
16. #HSG COMB AIR **NLA** MFR # 390441
17. #Furnace Gasket; Furnace Motor Gasket; Fits Suburban Furnace SF-20/ SF-20F/ SF-25/ SF-25F/ SF-30/ SF-30F/ SF-35/ SF-35F/ SF-42 MFR # 70812
18. #Furnace Gasket; Furnace Firewall Gasket; Fits Suburban SF-Series Furnace MFR # 70809
19. #SUBURBAN MOTOR MFR # 233103MC
20. #Furnace Motor; Use With Suburban Furnace Models SF-42/ SF-42F MFR # 232212MC Superseded: see description
21. #APPLIANCE COMPONENTS RV; Suburban Motor MFR # 232212
22. #Furnace Motor; For Suburban Furnace SF-42/ SF-42F MFR # 233103
23. #APPLIANCE COMPONENTS RV; Fastener Tinnerman MFR # 121661
24. #APPLIANCE COMPONENTS RV; BRKT BLWR SPACER MFR # 62949
25. #APPLIANCE COMPONENTS RV; Screw 6-20X3/8 Ph Dril Ss MFR # 121652
26. #Screw; Use With Suburban Furnace Part Numbers NT-16SE/ NT-20SE; # 2; 56 Inch x 5/8 Inch; Hex Head MFR # 121247 Superseded: see description
27. #Furnace Low Air Flow Switch; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232261
28. #Furnace Low Air Flow Switch; For Suburban SF20/ 25/ 30/ 35/ 42 And SF20F/ 25F/ 30F/ 35F/ 42F Series Furnaces; Also Use New Number 525003 MFR # 233382 Superseded: see description
29. #SWITCH USE 232261 MFR # 232251 Superseded: see description
30. #SWITCH,SAIL USE 232261 MFR # 232216 Superseded: see description
31. #INSULATOR SAIL SW MFR # 230877
32. #APPLIANCE COMPONENTS RV; Screw 6X3/8 Ph Rh Black MFR # 121502
33. #Furnace Time Delay Relay; For Suburban Furnace NT-12S/ NT-16S/ NT-20S/ NT-12SE/ NT-16SE/ NT-20SE/ NT-25/ NT-30/ NT-35/ SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40 (NT24/30/34 S And SP Only Above Serial Number 1600851); 12 Volt MFR # 521069
34. #APPLIANCE COMPONENTS RV; Relay MFR # 230625
35. #HSG ROOM AIR METAL MFR # 390698
36. #APPLIANCE COMPONENTS RV; Suburban Blower Cover MFR # 390440
37. #APPLIANCE COMPONENTS RV; CLAMP WIRE 3/8" NYLON MFR # 61663
38. #Furnace Combustion Air Housing Cover; For Suburban Furnace SF-20/ SF-20F/ SF-25/SF-25F/ SF-30/ SF-30F/ SF-42/ SF-42F MFR # 390696
39. #SUBURBAN ROOM AIR BLOWER MFR # 350129
40. #PANEL,MODULE BOARD USE 101663 MFR # 101588 Superseded: see description
41. #APPLIANCE COMPONENTS RV; Suburban Module Board Pan MFR # 101663
42. #APPLIANCE COMPONENTS RV; Insul Mod Board MFR # 70807
43. #Ignition Control Circuit Board Cover; Replacement For Dinosaurs Universal Igniter Boards; Large; White; Fire Retardant ABS Plastic MFR # LCVR
44. #UIB L WITH POST TOP MFR # UIBLPOST
45. #BURNER, LARGE W/AIR SHUTTER USE 520564 MFR # 3000003 Superseded: see description
46. #UNIVERSAL IGN BRD LARGE MFR # UIBL
47. #BOARD,MODULE MFR # 231427
48. #Water Heater Burner; Large; For Suburban Water Heater SSRV6/ SSRV6M/ ESSRV6/ SSRV8/ SSRV8M/ ESSRV8/ SSRV10/ SSRV10M/ ESSWRV10/ 10ARVM/ E10ARV; With Target/ Burner Support Bracket/ Shutter/ Screw/ Nut/ Pilot Bracket/ Pilot Burner/ Thermocouple/ Tube/ Tube Fitting MFR # 520564
49. #UNIVERSAL IGN BRD SMALL MFR # UIBS
50. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
51. #ignition Control Circuit Board; For Suburban Furnace SF Series/ NT Series And All Water Heater DSI Series/ SW Series/ VDSI Series; Also Use New Number 521099 For Furnaces Or 520814 For Water Heaters MFR # 520741 Superseded: see description
52. #COVER FOR UIB S MFR # SMALLCOVER
53. #UIB S WITH POST TOP MFR # UIBSPOST
54. #BOARD,MODULE USE 520741 MFR # 231741 Superseded: see description
55. #UIB WITH FAN CONTROL MFR # FAN50PLUS
56. #Nut; For Suburban Furnace NT-45S MFR # 121271
57. #APPLIANCE COMPONENTS RV; Insul Cap MFR # 70973
58. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
59. #APPLIANCE COMPONENTS RV; Gskt Firewall/Chamber MFR # 70808
60. #APPLIANCE COMPONENTS RV; Bushing Heyco#1214 Strain MFR # 231809
61. #CHAMBER,COMBUSTION USE 21150BK MFR # 21138 Superseded: see description
62. #CHAMBER MFR # 21150BK
63. #CHAMBER MFR # 21150
64. #Furnace Limit Switch; For Suburban Furnace SF-42/ SF-42F (Below Serial Numbers 921403896 And Above Serial Number 921403895)/ SDH-2542; Also Use New Number 525035 MFR # 232505 Superseded: see description
65. #SWITCH,LIMIT USE 232505 SF42 215 DEGREE MFR # 232231 Superseded: see description
66. #Furnace Wiring Harness; For Suburban Furnace Limit/ Sail Switch SF-Series/ SFV-Series/ SH-Series MFR # 231720

Exploded View › 2001 Begin Sn 012305199-COMBUSTION Asm

Components

41 items

1. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
2. #VENT CAP MFR # 260231
3. #SUBURBAN VENT/EXHAUST TUB MFR # 260553
4. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
5. #SUBURBAN AIR COMB HOUSING MFR # 390852
6. #APPLIANCE COMPONENTS RV; Screw 8-18 X 2-1/4 Ph Ph MFR # 121929
7. #SUBURBAN COMBUSTION AIR W MFR # 350183
8. #SUBURBAN AIR COMB HOUSING MFR # 390848
9. #SUBURBAN GASKET/FARWALL B MFR # 71084
10. #Furnace Motor; For Suburban Furnace SF-42/ SF-42F (Above Serial Number 012305199) MFR # 232683
11. #NUT HEX 2-56 MFR # 120672
12. #APPLIANCE COMPONENTS RV; Washer Lock #2 MFR # 121364
13. #INSULATOR SAIL SW MFR # 230877
14. #Screw; Use With Suburban Furnace Part Numbers NT-16SE/ NT-20SE; # 2; 56 Inch x 5/8 Inch; Hex Head MFR # 121247 Superseded: see description
15. #Furnace Low Air Flow Switch; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232261
16. #Furnace Low Air Flow Switch; For Suburban SF20/ 25/ 30/ 35/ 42 And SF20F/ 25F/ 30F/ 35F/ 42F Series Furnaces; Also Use New Number 525003 MFR # 233382 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Hsg Blower MFR # 390740BK
18. #SUBURBAN ROOM AIR BLOWER MFR # 350129
19. #Furnace Combustion Air Housing Cover; For Suburban Furnace SF-20/ SF-20F/ SF-25/SF-25F/ SF-30/ SF-30F/ SF-42/ SF-42F MFR # 390696
20. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
21. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
22. #APPLIANCE COMPONENTS RV; Suburban Module Board Pan MFR # 101663
23. #APPLIANCE COMPONENTS RV; Insul Mod Board MFR # 70807
24. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
25. #Ignition Control Circuit Board - Fits Suburban Water Heaters MFR # 520820MC
26. #UIB WITH FAN CONTROL MFR # FAN50PLUS
27. #ignition Control Circuit Board; Replacement For Suburban Furnace SF-Series (After Serial Number 003805481); 12 Volt DC MFR # 520820
28. #APPLIANCE COMPONENTS RV; Insul Cap MFR # 70973
29. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
30. #APPLIANCE COMPONENTS RV; Bushing Heyco#1214 Strain MFR # 231809
31. #APPLIANCE COMPONENTS RV; Gskt Firewall/Chamber MFR # 70808
32. #Nut; For Suburban Furnace NT-45S MFR # 121271
33. #CHAMBER MFR # 21150
34. #CHAMBER MFR # 21150BK
35. #Furnace Limit Switch; For Suburban Furnace SF-42/ SF-42F (Below Serial Numbers 921403896 And Above Serial Number 921403895)/ SDH-2542; Also Use New Number 525035 MFR # 232505 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Firewall MFR # 110747
37. #TUBE,INTAKE USE 51248 MFR # 51044 Superseded: see description
38. #1/2BX1/2B STR STOP VALVE MFR # 51249
39. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Intake Steel Tube; 2 Inch Length; With Gasket MFR # 51248
40. #TUBE INTAKE MFR # 051447
41. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Composite; Intake Tube; 2 Inch Length MFR # 051446

Exploded View › 2001 Begin Sn 012305199-BURNER Asm

Components

25 items

1. #APPLIANCE COMPONENTS RV; Nut #8-32 Keps MFR # 121694
2. #MANIFOLD ASM - NLA SF42 MFR # 171517
3. #APPLIANCE COMPONENTS RV; Screw 8-18 X 1/2 Ph Ph MFR # 121651
4. #Furnace Burner Orifice; For Suburban Furnace NT-34/ NT-34M/ NT-34S/ NT-34SP/ NT-35K/ SF-35/ SF-35F MFR # 180222
5. #ORIFICE #50 USE 180222 MFR # 180242 Superseded: see description
6. #Furnace Gasket; Burner Cover Gasket Kit; Fits Suburban Furnace SF-30F MFR # 520799
7. #Furnace Gasket; Furnace Burner Access Door Gasket; Fits Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ SH35/ SH42/ SH35/ SH42F/ SHD2542; Also Use New Number 525010 MFR # 70811 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Tinnerman U Type MFR # 121704
9. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 63198
10. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 62933
11. #Furnace Duct Cover Plate; Fits Suburban SF-Series Furnace MFR # 62935
12. #Igniter Electrode; Use With Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232166mc Superseded: see description
13. #APPLIANCE COMPONENTS RV; Electrode MFR # 232166
14. #Igniter Electrode; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009 MFR # 232286 Superseded: see description
15. #Igniter Electrode; For Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009MC MFR # 232286MC Superseded: see description
16. #Furnace Burner; For Suburban SF-42/ SF-42F/ SF-42Q/ SF-42FQ/ SH-42/ SH-42F/ SHD-2542 MFR # 10799
17. #APPLIANCE COMPONENTS RV; Grommet MFR # 71020
18. #GROMMET USE 71020 MFR # 70963 Superseded: see description
19. #SUBURBAN GAS VALVE MFR # 161133
20. #APPLIANCE COMPONENTS RV; Gas Valve MFR # 161070
21. #Gas Valve Solenoid; White Rodgers; Fits To Suburban Furnaces Gas Valve 161109/ 161122; 0.48 Amp/ 12 Volt DC; Maximum 1/2 PSI MFR # 521074
22. #Furnace Gas Valve; For Use With Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42 With Serial Numbers After 971303163; Also Use New Number 525044 MFR # 161122 Superseded: see description
23. #APPLIANCE COMPONENTS RV; Gas Pipe Inlet MFR # 171574
24. #CLAMP WIRE MFR # 62180
25. #SCREW 8-18X1/2 SELF DRILL MFR # 121857

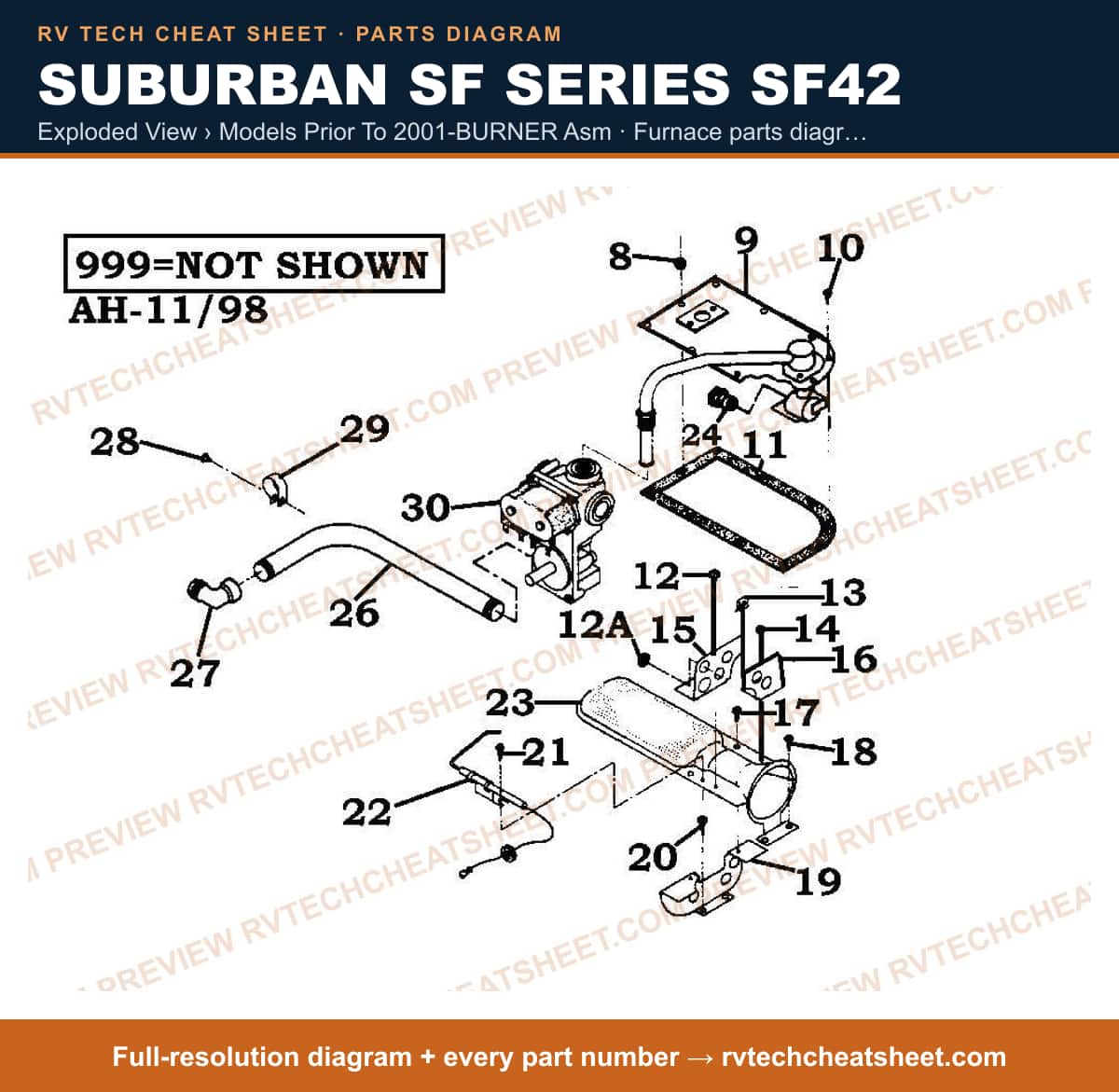

Exploded View › Models Prior To 2001-BURNER Asm

Components

33 items

1. #APPLIANCE COMPONENTS RV; Nut #8-32 Keps MFR # 121694
2. #MANIFOLD ASM - NLA SF42 MFR # 171517
3. #MANIFOLD MFR # 171355
4. #APPLIANCE COMPONENTS RV; Screw 8-18 X 1/2 Ph Ph MFR # 121651
5. #Furnace Gasket; Furnace Burner Access Door Gasket; Fits Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ SH35/ SH42/ SH35/ SH42F/ SHD2542; Also Use New Number 525010 MFR # 70811 Superseded: see description
6. #Furnace Gasket; Burner Cover Gasket Kit; Fits Suburban Furnace SF-30F MFR # 520799
7. #GROMMET USE 71020 MFR # 70963 Superseded: see description
8. #APPLIANCE COMPONENTS RV; Grommet MFR # 071020
9. #APPLIANCE COMPONENTS RV; Tinnerman U Type MFR # 121704
10. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 63198
11. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 62933
12. #Furnace Duct Cover Plate; Fits Suburban SF-Series Furnace MFR # 62935
13. #Igniter Electrode; For Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009MC MFR # 232286MC Superseded: see description
14. #ELECTRODE USE 231898 MFR # 231634 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Electrode MFR # 232166
16. #Igniter Electrode; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009 MFR # 232286 Superseded: see description
17. #ELECTRODE USE 45-7470 NT30SF MFR # 231740 Superseded: see description
18. #Igniter Electrode; Use With Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232166mc Superseded: see description
19. #Igniter Electrode; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F; Without Gasket MFR # 231898
20. #Furnace Burner; For Suburban SF-42/ SF-42F/ SF-42Q/ SF-42FQ/ SH-42/ SH-42F/ SHD-2542 MFR # 10799
21. #ORIFICE #50 USE 180222 MFR # 180242 Superseded: see description
22. #Furnace Burner Orifice; For Suburban Furnace NT-34/ NT-34M/ NT-34S/ NT-34SP/ NT-35K/ SF-35/ SF-35F MFR # 180222
23. #APPLIANCE COMPONENTS RV; Pipe Gas Inlet MFR # 171478
24. #APPLIANCE COMPONENTS RV; Elbow MFR # 171379
25. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
26. #CLAMP WIRE MFR # 62180
27. #APPLIANCE COMPONENTS RV; Gas Valve MFR # 161070
28. #SUBURBAN GAS VALVE MFR # 161133
29. #Gas Valve Solenoid; White Rodgers; Fits To Suburban Furnaces Gas Valve 161109/ 161122; 0.48 Amp/ 12 Volt DC; Maximum 1/2 PSI MFR # 521074
30. #Furnace Gas Valve; For Use With Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42 With Serial Numbers After 971303163; Also Use New Number 525044 MFR # 161122 Superseded: see description
31. #Furnace Wiring Harness; For Suburban Furnace Limit/ Sail Switch SF-Series/ SFV-Series/ SH-Series MFR # 231720
32. #HARNESS,WIRING USE 232626 LIMIT SWITCH MFR # 231717 Superseded: see description
33. #Furnace Wiring Harness; For Suburban Furnace Thermostat SW-Series MFR # 232626

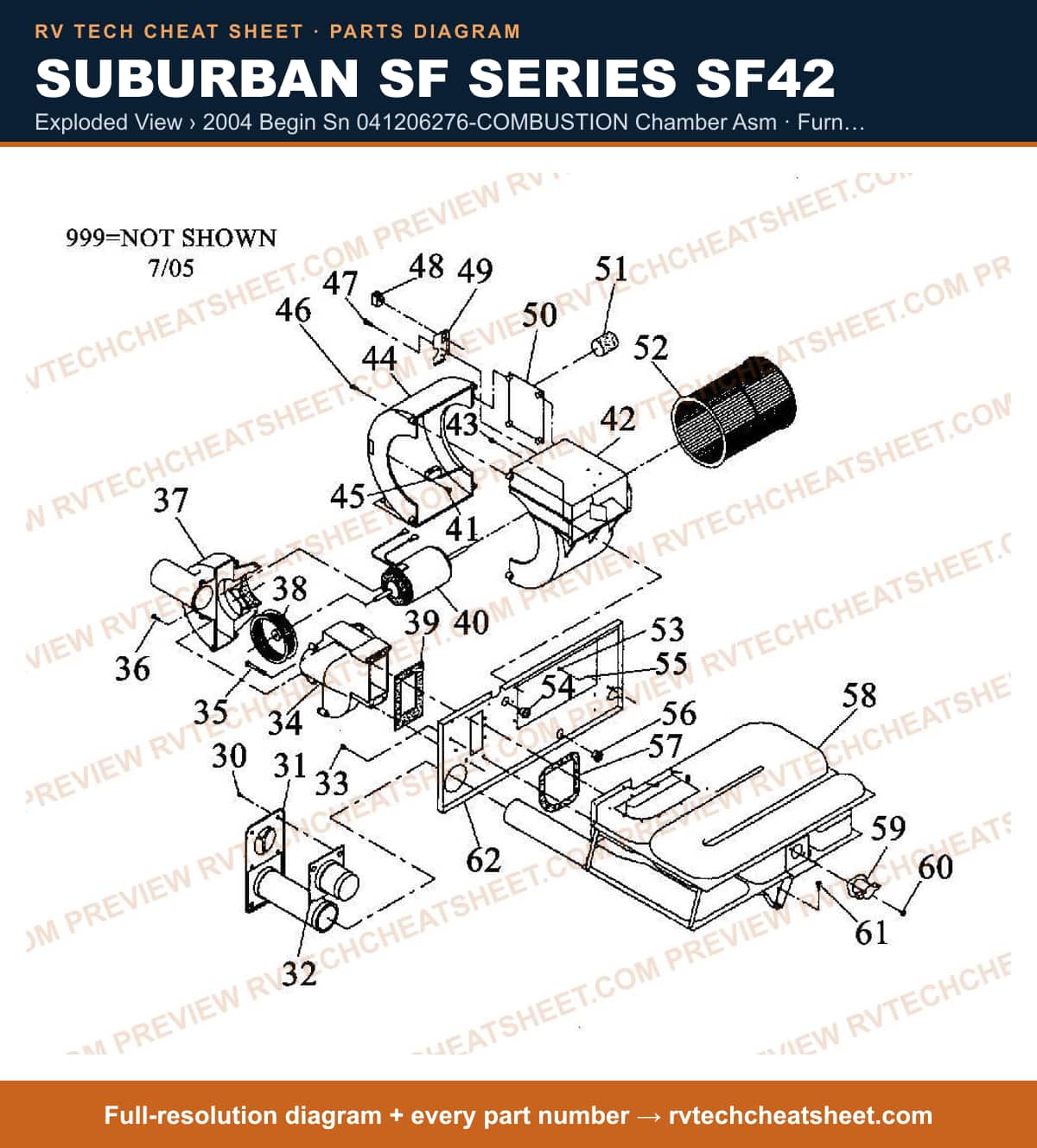

Exploded View › 2004 Begin Sn 041206276-COMBUSTION Chamber Asm

Components

36 items

1. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
2. #VENT CAP MFR # 260231
3. #SUBURBAN VENT/EXHAUST TUB MFR # 260553
4. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Intake Steel Tube; 2 Inch Length; With Gasket MFR # 51248
5. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Composite; Intake Tube; 2 Inch Length MFR # 051446
6. #1/2BX1/2B STR STOP VALVE MFR # 51249
7. #TUBE INTAKE MFR # 051447
8. #TUBE,INTAKE USE 51248 MFR # 51044 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Screw 8 X 1/2 Ph Ph MFR # 120615
10. #SUBURBAN AIR COMB HOUSING MFR # 390852
11. #APPLIANCE COMPONENTS RV; Screw 8-18 X 2-1/4 Ph Ph MFR # 121929
12. #SUBURBAN AIR COMB HOUSING MFR # 390848
13. #SUBURBAN COMBUSTION AIR W MFR # 350183
14. #SUBURBAN GASKET/FARWALL B MFR # 71084
15. #Furnace Motor; For Suburban Furnace SF-42/ SF-42F (Above Serial Number 012305199) MFR # 232683
16. #SCREW #4-20 X 5/8" MFR # 121945
17. #APPLIANCE COMPONENTS RV; Hsg Room Air MFR # 390873
18. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
19. #SUBURBAN AIR COMB HOUSING MFR # 390851
20. #Furnace Low Air Flow Switch; For Suburban SF20/ 25/ 30/ 35/ 42 And SF20F/ 25F/ 30F/ 35F/ 42F Series Furnaces; Also Use New Number 525003 MFR # 233382 Superseded: see description
21. #Furnace Low Air Flow Switch; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232261
22. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
23. #APPLIANCE COMPONENTS RV; BRKT ON/OFF SW MFR # 63446
24. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
25. #UIB WITH FAN CONTROL MFR # FAN50PLUS
26. #Ignition Control Circuit Board - Fits Suburban Water Heaters MFR # 520820MC
27. #ignition Control Circuit Board; Replacement For Suburban Furnace SF-Series (After Serial Number 003805481); 12 Volt DC MFR # 520820
28. #APPLIANCE COMPONENTS RV; Insul Cap MFR # 70973
29. #SUBURBAN ROOM AIR BLOWER MFR # 350129
30. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
31. #APPLIANCE COMPONENTS RV; Bushing Heyco#1214 Strain MFR # 231809
32. #APPLIANCE COMPONENTS RV; Gskt Firewall/Chamber MFR # 70808
33. #CHAMBER MFR # 21150
34. #CHAMBER MFR # 21150BK
35. #Furnace Limit Switch; For Suburban Furnace SF-42/ SF-42F (Below Serial Numbers 921403896 And Above Serial Number 921403895)/ SDH-2542; Also Use New Number 525035 MFR # 232505 Superseded: see description
36. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158

Exploded View › 2001 Begin Sn 012305199-CABINET Asm

Components

15 items

1. #Furnace Adapter Plate; For Suburban Furnace SF20F/ SF25F/ SF30F/ SF35F/ SF42F; With 3 Ducts MFR # 101242
2. #FRONT,CABINET USE 101242 MFR # 101888 Superseded: see description
3. #Wall Thermostat; Single Stage; For Heat/ Cool Control; Mechanical Readout; 12 Volt; Without Fan Speed Control; Without Fan On Mode MFR # 100402
4. #Wall Thermostat; Heat; Not Programmable; Mechanical Readout; Black MFR # 161210
5. #Wall Thermostat; Single Stage; For Heat And Cool Control; Programmable; Digital Display; 24 Volt; Battery Powered MFR # 1F87R875
6. #Wall Thermostat; Heat Only; Mechanical; 1 Stage; White; MFR # 1C20101
7. #Wall Thermostat; Single Stage; For Heat Control; Mechanical Readout; White Case MFR # 161154
8. #APPLIANCE COMPONENTS RV; Thermostat 3 Day Program MFR # 1F80R850
9. #Wall Thermostat; Single Stage; Snap-Action; Low Voltage; Heat Only; 24 Volt; White MFR # 01C20102S1
10. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
11. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
12. #CABINET ASM MFR # 101094
13. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
14. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715
15. #APPLIANCE COMPONENTS RV; Kit Duct Bot MFR # 520753
