Suburban Sf Series SF42F Parts Diagram · Exploded View › 2001 Begin Sn 012305199-COMBUSTION Asm

Furnace · 10 assemblies · 20 diagram sheets · 116 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Sf Series SF42F RV furnace: 10 assemblies (Exploded View › 2001 Begin Sn 012305199-COMBUSTION Asm, Exploded View › 2004 Begin Sn 041206276-COMBUSTION Chamber Asm, Exploded View › Models Prior To 2001-BURNER Asm, Exploded View › 2004 Begin Sn 041206276-CABINET Asm, Exploded View › 2001 Begin Sn 012305199-CABINET Asm and more) and 116 manufacturer part numbers. 21 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Exploded View › 2001 Begin Sn 012305199-COMBUSTION Asm

Components

38 items

1. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
2. #VENT CAP MFR # 260231
3. #SUBURBAN VENT/EXHAUST TUB MFR # 260553
4. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
5. #SUBURBAN AIR COMB HOUSING MFR # 390852
6. #APPLIANCE COMPONENTS RV; Screw 8-18 X 2-1/4 Ph Ph MFR # 121929
7. #SUBURBAN COMBUSTION AIR W MFR # 350183
8. #SUBURBAN AIR COMB HOUSING MFR # 390848
9. #SUBURBAN GASKET/FARWALL B MFR # 71084
10. #Furnace Motor; For Suburban Furnace SF-42/ SF-42F (Above Serial Number 012305199) MFR # 232683
11. #NUT HEX 2-56 MFR # 120672
12. #APPLIANCE COMPONENTS RV; Washer Lock #2 MFR # 121364
13. #INSULATOR SAIL SW MFR # 230877
14. #Screw; Use With Suburban Furnace Part Numbers NT-16SE/ NT-20SE; # 2; 56 Inch x 5/8 Inch; Hex Head MFR # 121247 Superseded: see description
15. #Furnace Low Air Flow Switch; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232261
16. #Furnace Low Air Flow Switch; For Suburban SF20/ 25/ 30/ 35/ 42 And SF20F/ 25F/ 30F/ 35F/ 42F Series Furnaces; Also Use New Number 525003 MFR # 233382 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Hsg Blower MFR # 390740BK
18. #SUBURBAN ROOM AIR BLOWER MFR # 350129
19. #Furnace Combustion Air Housing Cover; For Suburban Furnace SF-20/ SF-20F/ SF-25/SF-25F/ SF-30/ SF-30F/ SF-42/ SF-42F MFR # 390696
20. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
21. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
22. #APPLIANCE COMPONENTS RV; Suburban Module Board Pan MFR # 101663
23. #APPLIANCE COMPONENTS RV; Insul Mod Board MFR # 70807
24. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
25. #ignition Control Circuit Board; Replacement For Suburban Furnace SF-Series (After Serial Number 003805481); 12 Volt DC MFR # 520820
26. #Ignition Control Circuit Board - Fits Suburban Water Heaters MFR # 520820MC
27. #UIB WITH FAN CONTROL MFR # FAN50PLUS
28. #APPLIANCE COMPONENTS RV; Insul Cap MFR # 70973
29. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
30. #APPLIANCE COMPONENTS RV; Bushing Heyco#1214 Strain MFR # 231809
31. #APPLIANCE COMPONENTS RV; Gskt Firewall/Chamber MFR # 70808
32. #Nut; For Suburban Furnace NT-45S MFR # 121271
33. #CHAMBER MFR # 21150BK
34. #CHAMBER MFR # 21150
35. #Furnace Limit Switch; For Suburban Furnace SF-42/ SF-42F (Below Serial Numbers 921403896 And Above Serial Number 921403895)/ SDH-2542; Also Use New Number 525035 MFR # 232505 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Firewall MFR # 110747
37. #1/2BX1/2B STR STOP VALVE MFR # 51249
38. #TUBE INTAKE MFR # 051447

Exploded View › 2004 Begin Sn 041206276-COMBUSTION Chamber Asm

Components

33 items

1. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
2. #SUBURBAN VENT/EXHAUST TUB MFR # 260553
3. #VENT CAP MFR # 260231
4. #TUBE INTAKE MFR # 051447
5. #1/2BX1/2B STR STOP VALVE MFR # 51249
6. #APPLIANCE COMPONENTS RV; Screw 8 X 1/2 Ph Ph MFR # 120615
7. #SUBURBAN AIR COMB HOUSING MFR # 390852
8. #APPLIANCE COMPONENTS RV; Screw 8-18 X 2-1/4 Ph Ph MFR # 121929
9. #SUBURBAN AIR COMB HOUSING MFR # 390848
10. #SUBURBAN COMBUSTION AIR W MFR # 350183
11. #SUBURBAN GASKET/FARWALL B MFR # 71084
12. #Furnace Motor; For Suburban Furnace SF-42/ SF-42F (Above Serial Number 012305199) MFR # 232683
13. #SCREW #4-20 X 5/8" MFR # 121945
14. #APPLIANCE COMPONENTS RV; Hsg Room Air MFR # 390873
15. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
16. #SUBURBAN AIR COMB HOUSING MFR # 390851
17. #Furnace Low Air Flow Switch; For Suburban SF20/ 25/ 30/ 35/ 42 And SF20F/ 25F/ 30F/ 35F/ 42F Series Furnaces; Also Use New Number 525003 MFR # 233382 Superseded: see description
18. #Furnace Low Air Flow Switch; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232261
19. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
20. #APPLIANCE COMPONENTS RV; BRKT ON/OFF SW MFR # 63446
21. #UIB WITH FAN CONTROL MFR # FAN50PLUS
22. #ignition Control Circuit Board; Replacement For Suburban Furnace SF-Series (After Serial Number 003805481); 12 Volt DC MFR # 520820
23. #Ignition Control Circuit Board - Fits Suburban Water Heaters MFR # 520820MC
24. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
25. #APPLIANCE COMPONENTS RV; Insul Cap MFR # 70973
26. #SUBURBAN ROOM AIR BLOWER MFR # 350129
27. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
28. #APPLIANCE COMPONENTS RV; Bushing Heyco#1214 Strain MFR # 231809
29. #APPLIANCE COMPONENTS RV; Gskt Firewall/Chamber MFR # 70808
30. #CHAMBER MFR # 21150BK
31. #CHAMBER MFR # 21150
32. #Furnace Limit Switch; For Suburban Furnace SF-42/ SF-42F (Below Serial Numbers 921403896 And Above Serial Number 921403895)/ SDH-2542; Also Use New Number 525035 MFR # 232505 Superseded: see description
33. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158

Exploded View › Models Prior To 2001-BURNER Asm

Components

37 items

1. #APPLIANCE COMPONENTS RV; Nut #8-32 Keps MFR # 121694
2. #MANIFOLD MFR # 171355
3. #MANIFOLD ASM - NLA SF42 MFR # 171517
4. #APPLIANCE COMPONENTS RV; Screw 8-18 X 1/2 Ph Ph MFR # 121651
5. #Furnace Gasket; Furnace Burner Access Door Gasket; Fits Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ SH35/ SH42/ SH35/ SH42F/ SHD2542; Also Use New Number 525010 MFR # 70811 Superseded: see description
6. #Furnace Gasket; Burner Cover Gasket Kit; Fits Suburban Furnace SF-30F MFR # 520799
7. #APPLIANCE COMPONENTS RV; Grommet MFR # 071020
8. #GROMMET USE 71020 MFR # 70963 Superseded: see description
9. #APPLIANCE COMPONENTS RV; Tinnerman U Type MFR # 121704
10. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 63198
11. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 62933
12. #Furnace Duct Cover Plate; Fits Suburban SF-Series Furnace MFR # 62935
13. #ELECTRODE USE 45-7470 NT30SF MFR # 231740 Superseded: see description
14. #Igniter Electrode; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009 MFR # 232286 Superseded: see description
15. #Igniter Electrode; For Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009MC MFR # 232286MC Superseded: see description
16. #Igniter Electrode; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F; Without Gasket MFR # 231898
17. #Igniter Electrode; Use With Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232166mc Superseded: see description
18. #APPLIANCE COMPONENTS RV; Electrode MFR # 232166
19. #ELECTRODE USE 231898 MFR # 231634 Superseded: see description
20. #Furnace Burner; For Suburban SF-42/ SF-42F/ SF-42Q/ SF-42FQ/ SH-42/ SH-42F/ SHD-2542 MFR # 10799
21. #ORIFICE #50 USE 180222 MFR # 180242 Superseded: see description
22. #Furnace Burner Orifice; For Suburban Furnace NT-34/ NT-34M/ NT-34S/ NT-34SP/ NT-35K/ SF-35/ SF-35F MFR # 180222
23. #Furnace Gas Valve; For Use With Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42 With Serial Numbers After 971303163; Also Use New Number 525044 MFR # 161122 Superseded: see description
24. #APPLIANCE COMPONENTS RV; Gas Valve MFR # 161070
25. #SUBURBAN GAS VALVE MFR # 161133
26. #Gas Valve Solenoid; White Rodgers; Fits To Suburban Furnaces Gas Valve 161109/ 161122; 0.48 Amp/ 12 Volt DC; Maximum 1/2 PSI MFR # 521074
27. #APPLIANCE COMPONENTS RV; Pipe Gas Inlet MFR # 171479
28. #APPLIANCE COMPONENTS RV; Elbow 90 MFR # 171428
29. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
30. #APPLIANCE COMPONENTS RV; Pipe Gas Inlet MFR # 171512
31. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
32. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
33. #Furnace Wiring Harness; For Suburban Furnace Limit/ Sail Switch SF-Series/ SFV-Series/ SH-Series MFR # 231720
34. #Furnace Time Delay Relay; For Suburban Furnace NT-12S/ NT-16S/ NT-20S/ NT-12SE/ NT-16SE/ NT-20SE/ NT-25/ NT-30/ NT-35/ SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40 (NT24/30/34 S And SP Only Above Serial Number 1600851); 12 Volt MFR # 521069
35. #HARNESS,WIRING USE 232626 LIMIT SWITCH MFR # 231717 Superseded: see description
36. #APPLIANCE COMPONENTS RV; Relay MFR # 230625
37. #Furnace Wiring Harness; For Suburban Furnace Thermostat SW-Series MFR # 232626

Exploded View › 2004 Begin Sn 041206276-CABINET Asm

Components

13 items

1. #Furnace Adapter Plate; For Suburban Furnace SF20F/ SF25F/ SF30F/ SF35F/ SF42F; With 3 Ducts MFR # 101242
2. #Wall Thermostat; Heat; Not Programmable; Mechanical Readout; Black MFR # 161210
3. #Wall Thermostat; Single Stage; For Heat Control; Mechanical Readout; White Case MFR # 161154
4. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
5. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
6. #APPLIANCE COMPONENTS RV; CAB/LABELS MFR # 101894Z
7. #APPLIANCE COMPONENTS RV; Cab/Labels MFR # 101894
8. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
9. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715
10. #Furnace Vent; For Suburban Furnace SH42F/ SF20F/ SF35F; 7-1/2 Inch To 9 Inch MFR # 520551
11. #Furnace Intake Tube; For Suburban Furnace SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ SH-35F/ SH-42F; 3-1/2 Inch Length MFR # 520768
12. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520769
13. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520767

Exploded View › 2001 Begin Sn 012305199-CABINET Asm

Components

19 items

1. #FRONT,CABINET USE 101242 MFR # 101888 Superseded: see description
2. #Furnace Adapter Plate; For Suburban Furnace SF20F/ SF25F/ SF30F/ SF35F/ SF42F; With 3 Ducts MFR # 101242
3. #Wall Thermostat; Heat; Not Programmable; Mechanical Readout; Black MFR # 161210
4. #Wall Thermostat; Single Stage; For Heat Control; Mechanical Readout; White Case MFR # 161154
5. #Wall Thermostat; Single Stage; For Heat/ Cool Control; Mechanical Readout; 12 Volt; Without Fan Speed Control; Without Fan On Mode MFR # 100402
6. #Wall Thermostat; Single Stage; Snap-Action; Low Voltage; Heat Only; 24 Volt; White MFR # 01C20102S1
7. #Wall Thermostat; Single Stage; For Heat And Cool Control; Programmable; Digital Display; 24 Volt; Battery Powered MFR # 1F87R875
8. #APPLIANCE COMPONENTS RV; Thermostat 3 Day Program MFR # 1F80R850
9. #Wall Thermostat; Heat Only; Mechanical; 1 Stage; White; MFR # 1C20101
10. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
11. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
12. #CABINET ASM MFR # 101094
13. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
14. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715
15. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520767
16. #Furnace Intake Tube; For Suburban Furnace SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ SH-35F/ SH-42F; 3-1/2 Inch Length MFR # 520768
17. #Furnace Vent; For Suburban Furnace SH42F/ SF20F/ SF35F; 7-1/2 Inch To 9 Inch MFR # 520551
18. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520769
19. #APPLIANCE COMPONENTS RV; Kit Duct Bot MFR # 520753

Replacement

Components

2 items

1. #RP-35 FURNACE CORE FQ MFR # 2610A
2. #Furnace; LP Gas; 40000 BTU; 12 Volt DC Ducted Furnace; 17 Inch Width x 17-1/2 Inch Height x 20 Inch Depth; 35 Pounds; Electronic Ignition MFR # 2333A

Exploded View › 2001 Begin Sn 012305199-BURNER Asm

Components

28 items

1. #APPLIANCE COMPONENTS RV; Nut #8-32 Keps MFR # 121694
2. #MANIFOLD ASM MFR # 171571
3. #APPLIANCE COMPONENTS RV; Screw 8-18 X 1/2 Ph Ph MFR # 121651
4. #Furnace Burner Orifice; For Suburban Furnace NT-34/ NT-34M/ NT-34S/ NT-34SP/ NT-35K/ SF-35/ SF-35F MFR # 180222
5. #ORIFICE #50 USE 180222 MFR # 180242 Superseded: see description
6. #Furnace Gasket; Furnace Burner Access Door Gasket; Fits Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ SH35/ SH42/ SH35/ SH42F/ SHD2542; Also Use New Number 525010 MFR # 70811 Superseded: see description
7. #Furnace Gasket; Burner Cover Gasket Kit; Fits Suburban Furnace SF-30F MFR # 520799
8. #APPLIANCE COMPONENTS RV; Tinnerman U Type MFR # 121704
9. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 63198
10. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 62933
11. #Furnace Duct Cover Plate; Fits Suburban SF-Series Furnace MFR # 62935
12. #APPLIANCE COMPONENTS RV; Electrode MFR # 232166
13. #Igniter Electrode; Use With Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232166mc Superseded: see description
14. #Igniter Electrode; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009 MFR # 232286 Superseded: see description
15. #Igniter Electrode; For Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009MC MFR # 232286MC Superseded: see description
16. #Furnace Burner; For Suburban SF-42/ SF-42F/ SF-42Q/ SF-42FQ/ SH-42/ SH-42F/ SHD-2542 MFR # 10799
17. #GROMMET USE 71020 MFR # 70963 Superseded: see description
18. #APPLIANCE COMPONENTS RV; Grommet MFR # 71020
19. #Furnace Gas Valve; For Use With Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42 With Serial Numbers After 971303163; Also Use New Number 525044 MFR # 161122 Superseded: see description
20. #SUBURBAN GAS VALVE MFR # 161133
21. #Gas Valve Solenoid; White Rodgers; Fits To Suburban Furnaces Gas Valve 161109/ 161122; 0.48 Amp/ 12 Volt DC; Maximum 1/2 PSI MFR # 521074
22. #APPLIANCE COMPONENTS RV; Gas Valve MFR # 161070
23. #Furnace Gas Inlet Pipe; For Use With Suburban Furnaces SF35FQ/ SFV20FQ/ SF30F MFR # 171576 Superseded: see description
24. #SCREW,#8-18 X 1/2 SELF-DRILLING MFR # 121587
25. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
26. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
27. #Furnace Time Delay Relay; For Suburban Furnace NT-12S/ NT-16S/ NT-20S/ NT-12SE/ NT-16SE/ NT-20SE/ NT-25/ NT-30/ NT-35/ SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ NT-24S/ NT-30S/ NT-34S/ NT-24SP/ NT-30SP/ NT-34SP/ NT-40 (NT24/30/34 S And SP Only Above Serial Number 1600851); 12 Volt MFR # 521069
28. #APPLIANCE COMPONENTS RV; Relay MFR # 230625

Exploded View › Models Prior To 2001-COMBUSTION Chamber Asm

Components

41 items

1. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
2. #VENT CAP MFR # 260231
3. #SUBURBAN VENT/EXHAUST TUB MFR # 260553
4. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
5. #SUBURBAN AIR COMB HOUSING MFR # 390852
6. #APPLIANCE COMPONENTS RV; Screw 8-18 X 2-1/4 Ph Ph MFR # 121929
7. #SUBURBAN COMBUSTION AIR W MFR # 350183
8. #SUBURBAN AIR COMB HOUSING MFR # 390848
9. #SUBURBAN GASKET/FARWALL B MFR # 71084
10. #Furnace Motor; For Suburban Furnace SF-42/ SF-42F MFR # 233103
11. #Furnace Motor; Use With Suburban Furnace Models SF-42/ SF-42F MFR # 232212MC Superseded: see description
12. #APPLIANCE COMPONENTS RV; Suburban Motor MFR # 232212
13. #SUBURBAN MOTOR MFR # 233103MC
14. #NUT HEX 2-56 MFR # 120672
15. #APPLIANCE COMPONENTS RV; Washer Lock #2 MFR # 121364
16. #INSULATOR SAIL SW MFR # 230877
17. #Screw; Use With Suburban Furnace Part Numbers NT-16SE/ NT-20SE; # 2; 56 Inch x 5/8 Inch; Hex Head MFR # 121247 Superseded: see description
18. #Furnace Low Air Flow Switch; For Suburban SF20/ 25/ 30/ 35/ 42 And SF20F/ 25F/ 30F/ 35F/ 42F Series Furnaces; Also Use New Number 525003 MFR # 233382 Superseded: see description
19. #Furnace Low Air Flow Switch; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F MFR # 232261
20. #APPLIANCE COMPONENTS RV; Hsg Blower MFR # 390740BK
21. #SUBURBAN ROOM AIR BLOWER MFR # 350129
22. #Furnace Combustion Air Housing Cover; For Suburban Furnace SF-20/ SF-20F/ SF-25/SF-25F/ SF-30/ SF-30F/ SF-42/ SF-42F MFR # 390696
23. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
24. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
25. #APPLIANCE COMPONENTS RV; Suburban Module Board Pan MFR # 101663
26. #APPLIANCE COMPONENTS RV; Insul Mod Board MFR # 70807
27. #UIB WITH FAN CONTROL MFR # FAN50PLUS
28. #Ignition Control Circuit Board - Fits Suburban Water Heaters MFR # 520820MC
29. #ignition Control Circuit Board; Replacement For Suburban Furnace SF-Series (After Serial Number 003805481); 12 Volt DC MFR # 520820
30. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
31. #APPLIANCE COMPONENTS RV; Insul Cap MFR # 70973
32. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
33. #APPLIANCE COMPONENTS RV; Bushing Heyco#1214 Strain MFR # 231809
34. #APPLIANCE COMPONENTS RV; Gskt Firewall/Chamber MFR # 70808
35. #Nut; For Suburban Furnace NT-45S MFR # 121271
36. #CHAMBER MFR # 21150BK
37. #CHAMBER MFR # 21150
38. #Furnace Limit Switch; For Suburban Furnace SF-42/ SF-42F (Below Serial Numbers 921403896 And Above Serial Number 921403895)/ SDH-2542; Also Use New Number 525035 MFR # 232505 Superseded: see description
39. #APPLIANCE COMPONENTS RV; Firewall MFR # 110747
40. #1/2BX1/2B STR STOP VALVE MFR # 51249
41. #TUBE INTAKE MFR # 051447

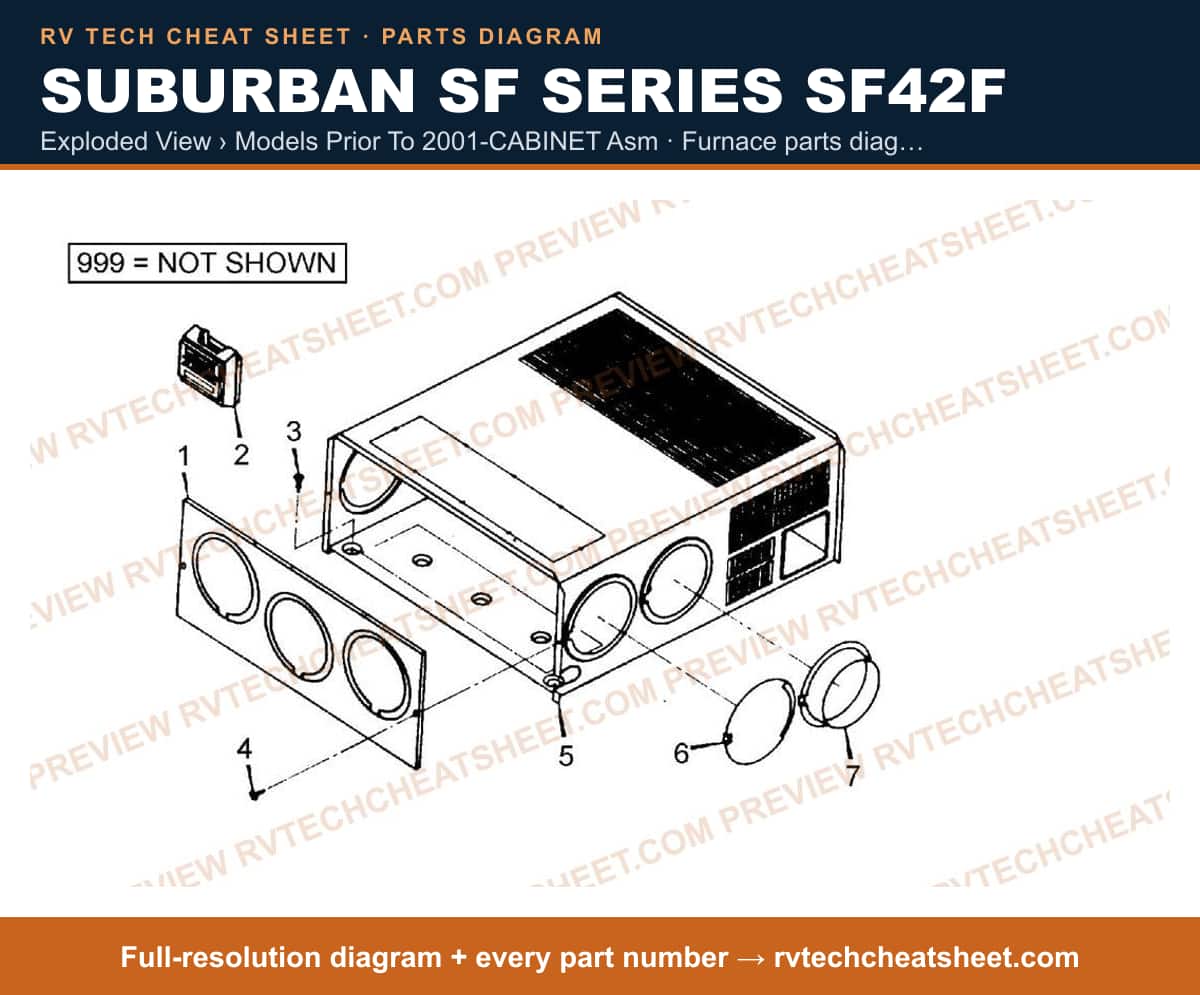

Exploded View › Models Prior To 2001-CABINET Asm

Components

25 items

1. #FRONT,CABINET USE 101242 MFR # 101888 Superseded: see description
2. #Furnace Adapter Plate; For Suburban Furnace SF20F/ SF25F/ SF30F/ SF35F/ SF42F; With 3 Ducts MFR # 101242
3. #Wall Thermostat; Heat Only; Mechanical; 1 Stage; White; MFR # 1C20101
4. #Wall Thermostat; Single Stage; For Heat/ Cool Control; Mechanical Readout; 12 Volt; Without Fan Speed Control; Without Fan On Mode MFR # 100402
5. #Wall Thermostat; Single Stage; For Heat And Cool Control; Programmable; Digital Display; 24 Volt; Battery Powered MFR # 1F87R875
6. #APPLIANCE COMPONENTS RV; Thermostat 3 Day Program MFR # 1F80R850
7. #T-STAT, WALL USE 100402 MFR # 160902 Superseded: see description
8. #Wall Thermostat; Single Stage; Snap-Action; Low Voltage; Heat Only; 24 Volt; White MFR # 01C20102S1
9. #APPLIANCE COMPONENTS RV; Screw 10 X 3/4 Ph Ph MFR # 121224
10. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
11. #APPLIANCE COMPONENTS RV; Cabinet W/Sticke MFR # 101889
12. #CABINET ASM USE 101889 MFR # 101590 Superseded: see description
13. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
14. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715
15. #Furnace Intake Tube; For Suburban Furnace SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ SH-35F/ SH-42F; 3-1/2 Inch Length MFR # 520768
16. #HARNESS,WIRING USE 232626 LIMIT SWITCH MFR # 231717 Superseded: see description
17. #OPTIONAL ACCESS DOOR C/W MFR # 6258ACW
18. #OPTIONAL ACCESS DOOR P/W MFR # 6258APW
19. #Furnace Wiring Harness; For Suburban Furnace Limit/ Sail Switch SF-Series/ SFV-Series/ SH-Series MFR # 231720
20. #Furnace Vent; For Suburban Furnace SH42F/ SF20F/ SF35F; 7-1/2 Inch To 9 Inch MFR # 520551
21. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520767
22. #Furnace Wiring Harness; For Suburban Furnace Thermostat SW-Series MFR # 232626
23. #APPLIANCE COMPONENTS RV; Kit Duct Bot MFR # 520753
24. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520769
25. #DOOR,ACCESS USE 6258ACW MFR # 520732CW Superseded: see description

Exploded View › 2004 Begin S-n 041206276-BURNER Asm

Components

22 items

1. #APPLIANCE COMPONENTS RV; Nut #8-32 Keps MFR # 121694
2. #APPLIANCE COMPONENTS RV; Screw 8-18 X 1/2 Ph Ph MFR # 121651
3. #SUBURBAN #50 ORIFICE MFR # 180309
4. #Furnace Gasket; Furnace Burner Access Door Gasket; Fits Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ SH35/ SH42/ SH35/ SH42F/ SHD2542; Also Use New Number 525010 MFR # 70811 Superseded: see description
5. #Furnace Gasket; Burner Cover Gasket Kit; Fits Suburban Furnace SF-30F MFR # 520799
6. #APPLIANCE COMPONENTS RV; Tinnerman U Type MFR # 121704
7. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 63198
8. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 62933
9. #Furnace Duct Cover Plate; Fits Suburban SF-Series Furnace MFR # 62935
10. #Igniter Electrode; For Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009MC MFR # 232286MC Superseded: see description
11. #Igniter Electrode; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009 MFR # 232286 Superseded: see description
12. #Furnace Burner; For Suburban SF-42/ SF-42F/ SF-42Q/ SF-42FQ/ SH-42/ SH-42F/ SHD-2542 MFR # 10799
13. #GROMMET USE 71020 MFR # 70963 Superseded: see description
14. #APPLIANCE COMPONENTS RV; Grommet MFR # 71020
15. #SUBURBAN GAS VALVE MFR # 161133
16. #APPLIANCE COMPONENTS RV; Gas Valve MFR # 161070
17. #Gas Valve Solenoid; White Rodgers; Fits To Suburban Furnaces Gas Valve 161109/ 161122; 0.48 Amp/ 12 Volt DC; Maximum 1/2 PSI MFR # 521074
18. #Furnace Gas Valve; For Use With Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42 With Serial Numbers After 971303163; Also Use New Number 525044 MFR # 161122 Superseded: see description
19. #Furnace Gas Inlet Pipe; For Use With Suburban Furnaces SF35FQ/ SFV20FQ/ SF30F MFR # 171576 Superseded: see description
20. #SCREW,#8-18 X 1/2 SELF-DRILLING MFR # 121587
21. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
22. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
