Suburban Sh Series SH35F Parts Diagram · Exploded View › Combustion Chamber

Furnace · 3 assemblies · 3 diagram sheets · 74 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Sh Series SH35F RV furnace: 3 assemblies (Exploded View › Combustion Chamber, Exploded View › Cabinet Assembly, Exploded View › Burner Assembly) and 74 manufacturer part numbers. 15 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Exploded View › Combustion Chamber

Components

42 items

1. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
2. #SUBURBAN VENT/EXHAUST TUB MFR # 260553
3. #VENT CAP MFR # 260231
4. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
5. #APPLIANCE COMPONENTS RV; Screw 8 X 1/2 Ph Ph MFR # 120615
6. #APPLIANCE COMPONENTS RV; Box Air Int MFR # 51430BK
7. #APPLIANCE COMPONENTS RV; Gskt Hsg Comb Air MFR # 71108
8. #Furnace Combustion Wheel; For Suburban Furnace SH-35/ SH-42/ SH-35F/ SH-42F MFR # 350199
9. #APPLIANCE COMPONENTS RV; BRKT BLWR SPACER MFR # 62949
10. #APPLIANCE COMPONENTS RV; Hsg Comb Air MFR # 390862BK
11. #Furnace Gasket;;Furnace Motor Gasket; Fits Suburban Furnace NT-12SE/ NT-16SE/ NT-20SE MFR # SBB070448
12. #GASKET,FIREWALL COMBUSTION AIR MFR # 71107
13. #APPLIANCE COMPONENTS RV; 10-32 Elastic Stop Nut MFR # 121329
14. #Furnace Motor; For Suburban Furnace SH-35F/ SH-42F MFR # 232727
15. #APPLIANCE COMPONENTS RV; Washer Lock #2 MFR # 121364
16. #NUT HEX 2-56 MFR # 120672
17. #Screw; Use With Suburban Furnace Part Numbers NT-16SE/ NT-20SE; # 2; 56 Inch x 5/8 Inch; Hex Head MFR # 121247 Superseded: see description
18. #Furnace Low Air Flow Switch; Replacement For Suburban SH-35/ SH-35F/ P-40S Series Furnace; Also Use New Number 233383 MFR # 233242 Superseded: see description
19. #Furnace Low Air Flow Switch; For Suburban Furnace SH-35/ SH-35F/ P-40S; Also Use New Number 233242 MFR # 233070 Superseded: see description
20. #APPLIANCE COMPONENTS RV; Suburban Sail Switch MFR # 232325
21. #Furnace Low Air Flow Switch; Replacement For Suburban SH-35/ SH-35F/ P-40S Series Furnace MFR # 233383
22. #APPLIANCE COMPONENTS RV; Blower Rm Air MFR # 390867BK
23. #Furnace Blower Wheel; For Suburban Furnace SH-35/ SH-42/ SH-35F/ SH-42F MFR # 350198
24. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
25. #APPLIANCE COMPONENTS RV; Suburban Module Board Pan MFR # 101663
26. #APPLIANCE COMPONENTS RV; Insul Mod Board MFR # 70807
27. #UIB WITH FAN CONTROL MFR # FAN50PLUS
28. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
29. #ignition Control Circuit Board; Replacement For Suburban Furnace SF-Series (After Serial Number 003805481); 12 Volt DC MFR # 520820
30. #Ignition Control Circuit Board - Fits Suburban Water Heaters MFR # 520820MC
31. #APPLIANCE COMPONENTS RV; Insul Cap MFR # 70973
32. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
33. #APPLIANCE COMPONENTS RV; Bushing Heyco#1214 Strain MFR # 231809
34. #APPLIANCE COMPONENTS RV; Gskt Firewall/Chamber MFR # 70808
35. #Nut; For Suburban Furnace NT-45S MFR # 121271
36. #CHAMBER ASM MFR # 21171BK
37. #Furnace Limit Switch; For Suburban Furnance SF-20/ SF-30/ SF-35/ SF-25F/ SF-30F/ SF-35F Above Serial Number 921403895; 160 Degree Limit; Also Use New Number 525006 MFR # 233532 Superseded: see description
38. #Furnace Limit Switch; For Suburban Furnance Models SF-20/ SF-30/ SF-35/ SF-25F/ SF-30F/ SF-35F Above Serial Number 921403895; 160 Degree Limit; Also Use New Number 525006MC MFR # 233532MC Superseded: see description
39. #Furnace Limit Switch; For Suburban Furnace SF-20/ SF-20F/ SF-25/ SF-25F/ SF-30/ SF-30F/ SF-35/ SF-35F; Also Use New Number 233532 MFR # 232504 Superseded: see description
40. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
41. #FULL SIZE SHORT BED TENT MFR # 110750
42. #APPLIANCE COMPONENTS RV; Tube Vent MFR # 51478S

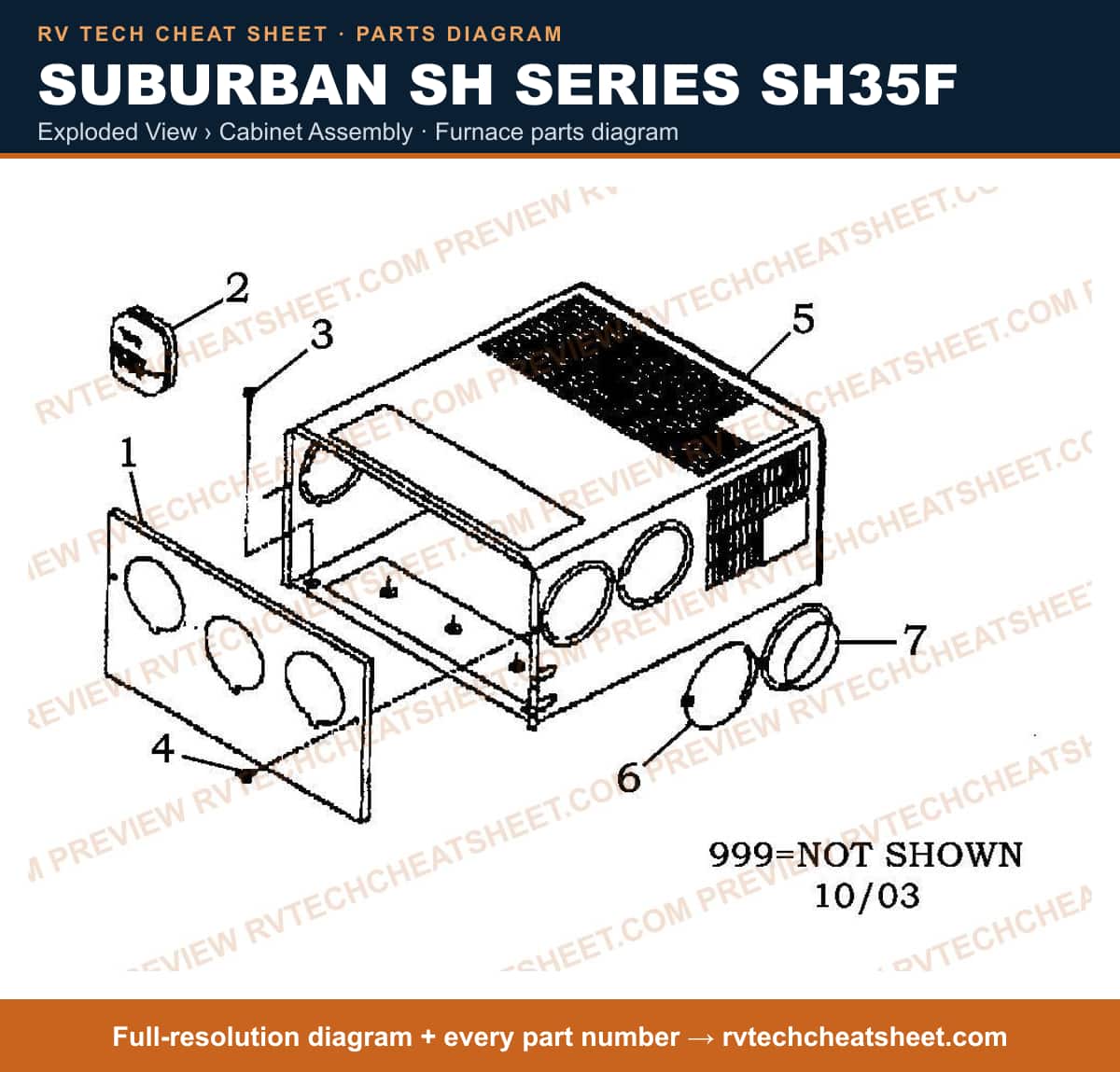

Exploded View › Cabinet Assembly

Components

12 items

1. #APPLIANCE COMPONENTS RV; Cab Front MFR # 101907
2. #FRONT ASM,CABINET USE 101907 MFR # 101914 Superseded: see description
3. #Wall Thermostat; Heat; Not Programmable; Mechanical Readout; Black MFR # 161210
4. #Wall Thermostat; Single Stage; For Heat Control; Mechanical Readout; White Case MFR # 161154
5. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
6. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
7. #APPLIANCE COMPONENTS RV; Cab/Labels MFR # 101921
8. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
9. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715
10. #Furnace Vent; For Suburban Furnace SH42F/ SF20F/ SF35F; 7-1/2 Inch To 9 Inch MFR # 520551
11. #Furnace Intake Tube; For Suburban Furnace SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ SH-35F/ SH-42F; 3-1/2 Inch Length MFR # 520768
12. #APPLIANCE COMPONENTS RV; Kit Vent MFR # 520767

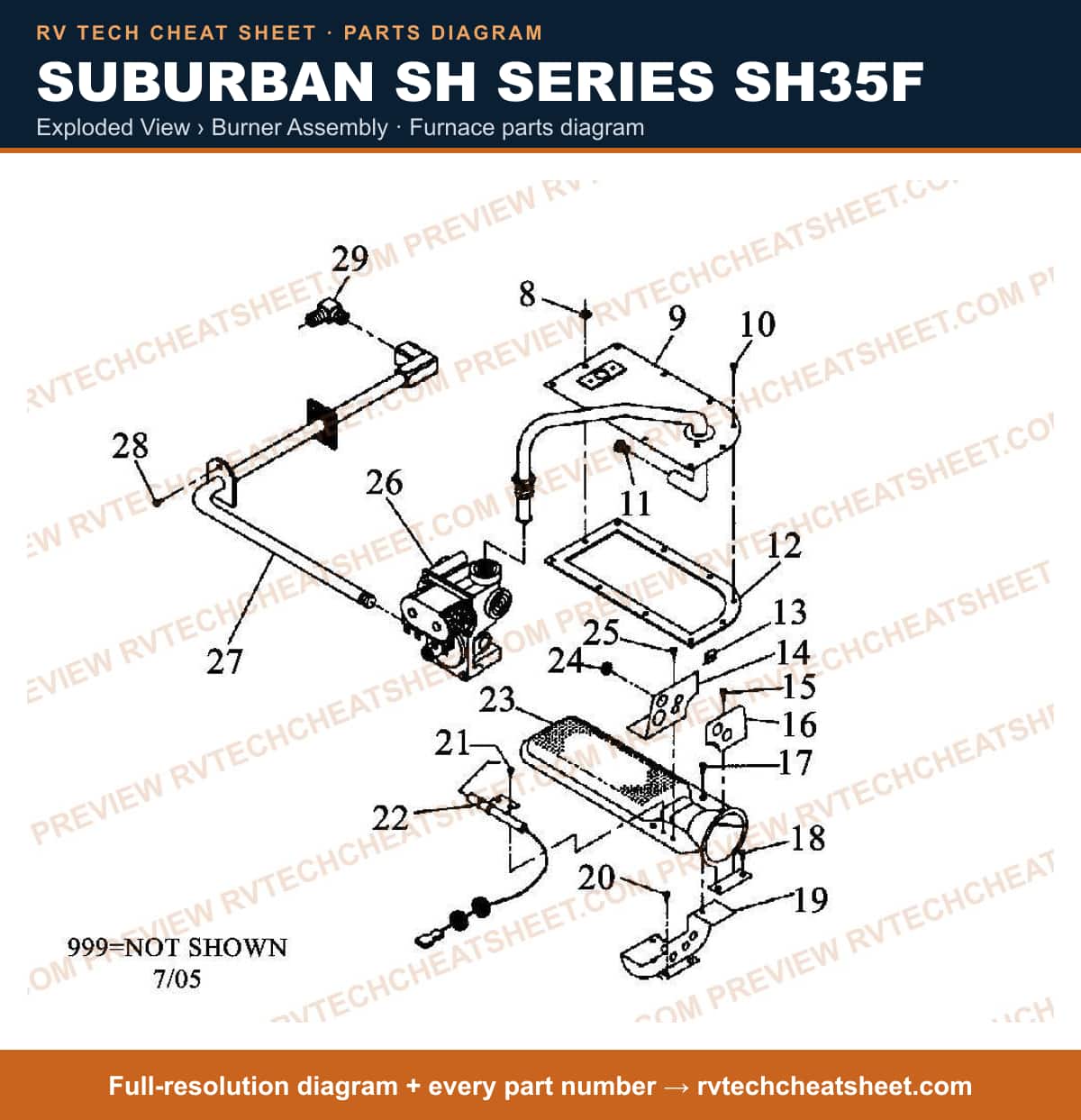

Exploded View › Burner Assembly

Components

23 items

1. #APPLIANCE COMPONENTS RV; Nut #8-32 Keps MFR # 121694
2. #MANIFOLD ASBL, COMPLETE MFR # 171599
3. #APPLIANCE COMPONENTS RV; Screw 8-18 X 1/2 Ph Ph MFR # 121651
4. #ORFUS SF20 FURNACE MFR # 180308
5. #Furnace Gasket; Burner Cover Gasket Kit; Fits Suburban Furnace SF-30F MFR # 520799
6. #Furnace Gasket; Furnace Burner Access Door Gasket; Fits Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ SH35/ SH42/ SH35/ SH42F/ SHD2542; Also Use New Number 525010 MFR # 70811 Superseded: see description
7. #APPLIANCE COMPONENTS RV; Tinnerman U Type MFR # 121704
8. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 63199
9. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 62936
10. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 62938
11. #Igniter Electrode; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009 MFR # 232286 Superseded: see description
12. #Igniter Electrode; For Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009MC MFR # 232286MC Superseded: see description
13. #BURNER MFR # 10745
14. #APPLIANCE COMPONENTS RV; Grommet MFR # 71020
15. #GROMMET USE 71020 MFR # 70963 Superseded: see description
16. #Furnace Gas Valve; For Use With Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42 With Serial Numbers After 971303163; Also Use New Number 525044 MFR # 161122 Superseded: see description
17. #APPLIANCE COMPONENTS RV; Gas Valve MFR # 161070
18. #SUBURBAN GAS VALVE MFR # 161133
19. #Gas Valve Solenoid; White Rodgers; Fits To Suburban Furnaces Gas Valve 161109/ 161122; 0.48 Amp/ 12 Volt DC; Maximum 1/2 PSI MFR # 521074
20. #Furnace Gas Inlet Pipe; For Use With Suburban Furnaces SF35FQ/ SFV20FQ/ SF30F MFR # 171576 Superseded: see description
21. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
22. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; Also Use New Number 525025 MFR # 170374 Superseded: see description
23. #Water Heater Gas Inlet Elbow; For Suburban Water Heater SW4-D; 90 Degree; 3/8 Inch; Single MFR # 525025
