Suburban Shd Series SHD2542 Parts Diagram · Exploded View › Burner Assembley

Furnace · 3 assemblies · 3 diagram sheets · 65 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Shd Series SHD2542 RV furnace: 3 assemblies (Exploded View › Burner Assembley, Exploded View › Cabinet Assembly, Exploded View › Combustion Chamber) and 65 manufacturer part numbers. 7 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

Exploded View › Burner Assembley

Components

19 items

1. #APPLIANCE COMPONENTS RV; Nut #8-32 Keps MFR # 121694
2. #MANIFOLD ASM MFR # 171638
3. #APPLIANCE COMPONENTS RV; Screw 8-18 X 1/2 Ph Ph MFR # 121651
4. #SUBURBAN #50 ORIFICE MFR # 180309
5. #Furnace Gasket; Furnace Burner Access Door Gasket; Fits Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F/ SH35/ SH42/ SH35/ SH42F/ SHD2542; Also Use New Number 525010 MFR # 70811 Superseded: see description
6. #Furnace Gasket; Burner Cover Gasket Kit; Fits Suburban Furnace SF-30F MFR # 520799
7. #APPLIANCE COMPONENTS RV; Tinnerman U Type MFR # 121704
8. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 63198
9. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 62933
10. #Furnace Duct Cover Plate; Fits Suburban SF-Series Furnace MFR # 62935
11. #Igniter Electrode; For Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009MC MFR # 232286MC Superseded: see description
12. #Igniter Electrode; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009 MFR # 232286 Superseded: see description
13. #Furnace Burner; For Suburban SF-42/ SF-42F/ SF-42Q/ SF-42FQ/ SH-42/ SH-42F/ SHD-2542 MFR # 10799
14. #GROMMET USE 71020 MFR # 70963 Superseded: see description
15. #APPLIANCE COMPONENTS RV; Grommet MFR # 71020
16. #APPLIANCE COMPONENTS RV; Valve Gas Two Stage MFR # 161192
17. #PIPE ASM,GAS INLET MFR # 171639
18. #CLAMP WIRE MFR # 62180
19. #SCREW 8-18X1/2 SELF DRILL MFR # 121857

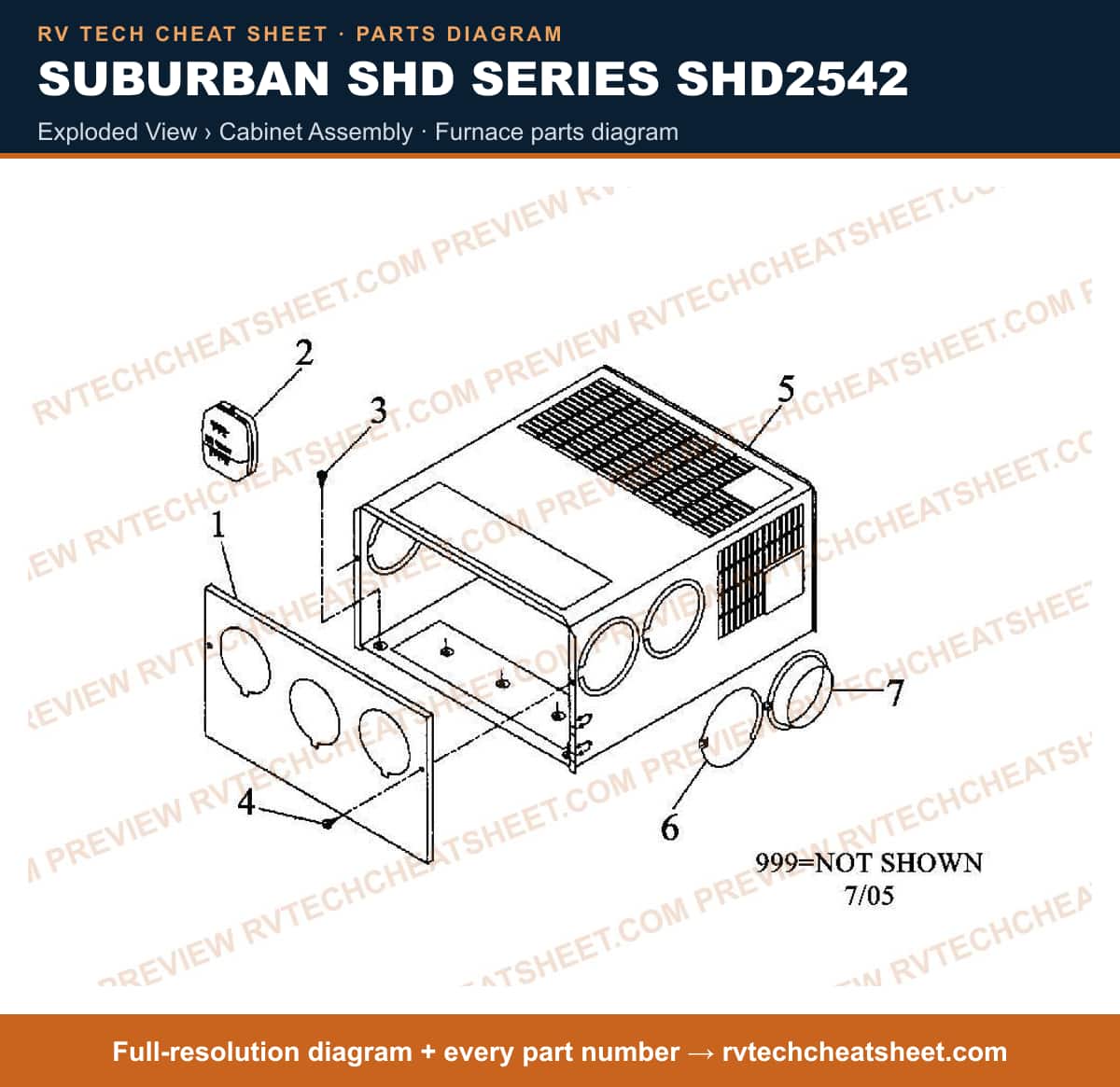

Exploded View › Cabinet Assembly

Components

11 items

1. #APPLIANCE COMPONENTS RV; Cab Front MFR # 101907
2. #Wall Thermostat; Heat; Not Programmable; Mechanical Readout; Black MFR # 161210
3. #Wall Thermostat; Single Stage; For Heat Control; Mechanical Readout; White Case MFR # 161154
4. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
5. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
6. #APPLIANCE COMPONENTS RV; CAB/LABELS MFR # 102102
7. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
8. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715
9. #Furnace Access Door; Replacement For Suburban SH-35/ SH-42 Furnace; Black MFR # 6267AEB
10. #Furnace Access Door; Replacement For Suburban SH-35 Furnace; White MFR # 6267APW
11. #APPLIANCE COMPONENTS RV; Door Sh Rv Furnace 1 Pk MFR # 6267ACW

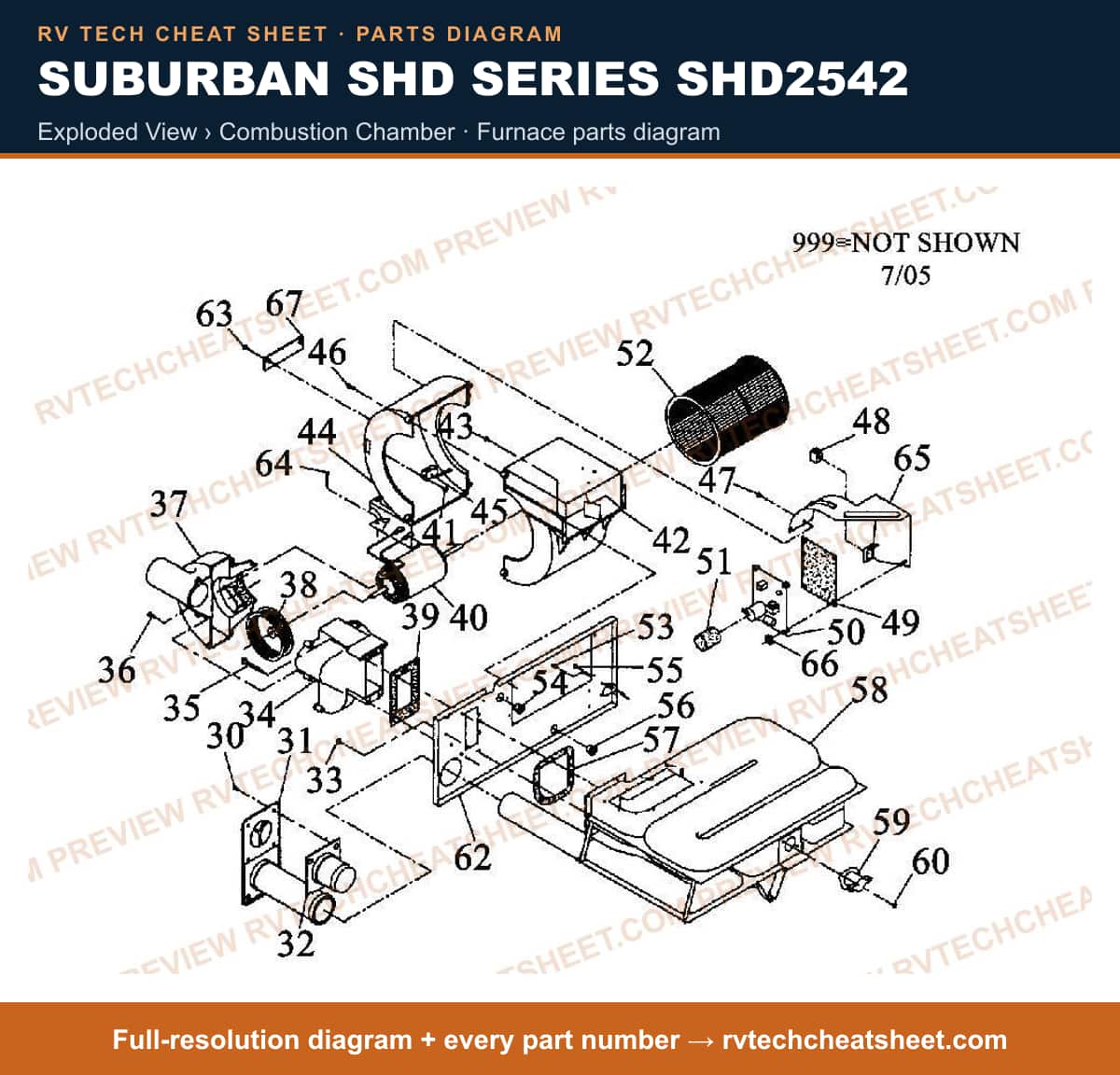

Exploded View › Combustion Chamber

Components

38 items

1. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
2. #SUBURBAN VENT/EXHAUST TUB MFR # 260553
3. #VENT CAP MFR # 260231
4. #TUBE,INTAKE USE 51248 MFR # 51044 Superseded: see description
5. #TUBE INTAKE MFR # 051447
6. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Composite; Intake Tube; 2 Inch Length MFR # 051446
7. #1/2BX1/2B STR STOP VALVE MFR # 51249
8. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Intake Steel Tube; 2 Inch Length; With Gasket MFR # 51248
9. #APPLIANCE COMPONENTS RV; Screw 8 X 1/2 Ph Ph MFR # 120615
10. #SUBURBAN AIR COMB HOUSING MFR # 390852
11. #APPLIANCE COMPONENTS RV; Screw 8-18 X 2-1/4 Ph Ph MFR # 121929
12. #SUBURBAN AIR COMB HOUSING MFR # 390848
13. #SUBURBAN COMBUSTION AIR W MFR # 350183
14. #SUBURBAN GASKET/FARWALL B MFR # 71084
15. #Furnace Motor; Replacement For Suburban Model SHD2542 MFR # 232850
16. #APPLIANCE COMPONENTS RV; SCREW #4-24X5/8 PH P H MFR # 121971
17. #APPLIANCE COMPONENTS RV; Hsg Room Air MFR # 390873
18. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
19. #APPLIANCE COMPONENTS RV; Blower Hsg Rear MFR # 390921
20. #APPLIANCE COMPONENTS RV; Suburban Sail Switch MFR # 232868
21. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
22. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
23. #APPLIANCE COMPONENTS RV; Insul Mod Board MFR # 70807
24. #ignition Control Circuit Board; Replacement For Suburban Furnace SF-Series (After Serial Number 003805481); 12 Volt DC MFR # 520820
25. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
26. #UIB WITH FAN CONTROL MFR # FAN50PLUS
27. #Ignition Control Circuit Board - Fits Suburban Water Heaters MFR # 520820MC
28. #APPLIANCE COMPONENTS RV; Insul Cap MFR # 70973
29. #SUBURBAN ROOM AIR BLOWER MFR # 350129
30. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
31. #APPLIANCE COMPONENTS RV; Gskt Firewall/Chamber MFR # 70808
32. #APPLIANCE COMPONENTS RV; Chamber Asbl - Final MFR # 21172BK
33. #APPLIANCE COMPONENTS RV; CHAMBER MFR # 21172
34. #Furnace Limit Switch; For Suburban Furnace SF-42/ SF-42F (Below Serial Numbers 921403896 And Above Serial Number 921403895)/ SDH-2542; Also Use New Number 525035 MFR # 232505 Superseded: see description
35. #FIREWALL MFR # 110761
36. #APPLIANCE COMPONENTS RV; SCREW 8AX3/4 PH P H MFR # 121648
37. #NUT,HEX 6-32 LOCK MFR # 121919
38. #CIRCUIT BOARD MFR # 232806
