Suburban Shd Series SHD2542Q Parts Diagram · Exploded View › Combustion Chamber

Furnace · 3 assemblies · 3 diagram sheets · 54 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Suburban Shd Series SHD2542Q RV furnace: 3 assemblies (Exploded View › Combustion Chamber, Exploded View › Burner Assembly, Exploded View › Cabinet Assembly) and 54 manufacturer part numbers. 5 parts are marked as superseded — the description gives the replacement number to order instead.

The rating plate is on the furnace chassis — slide the unit's front panel off or look just inside the exterior access door. Suburban models (SF-30F, NT-34SP …) changed burners and boards over the years, so the serial number's date range matters as much as the model.

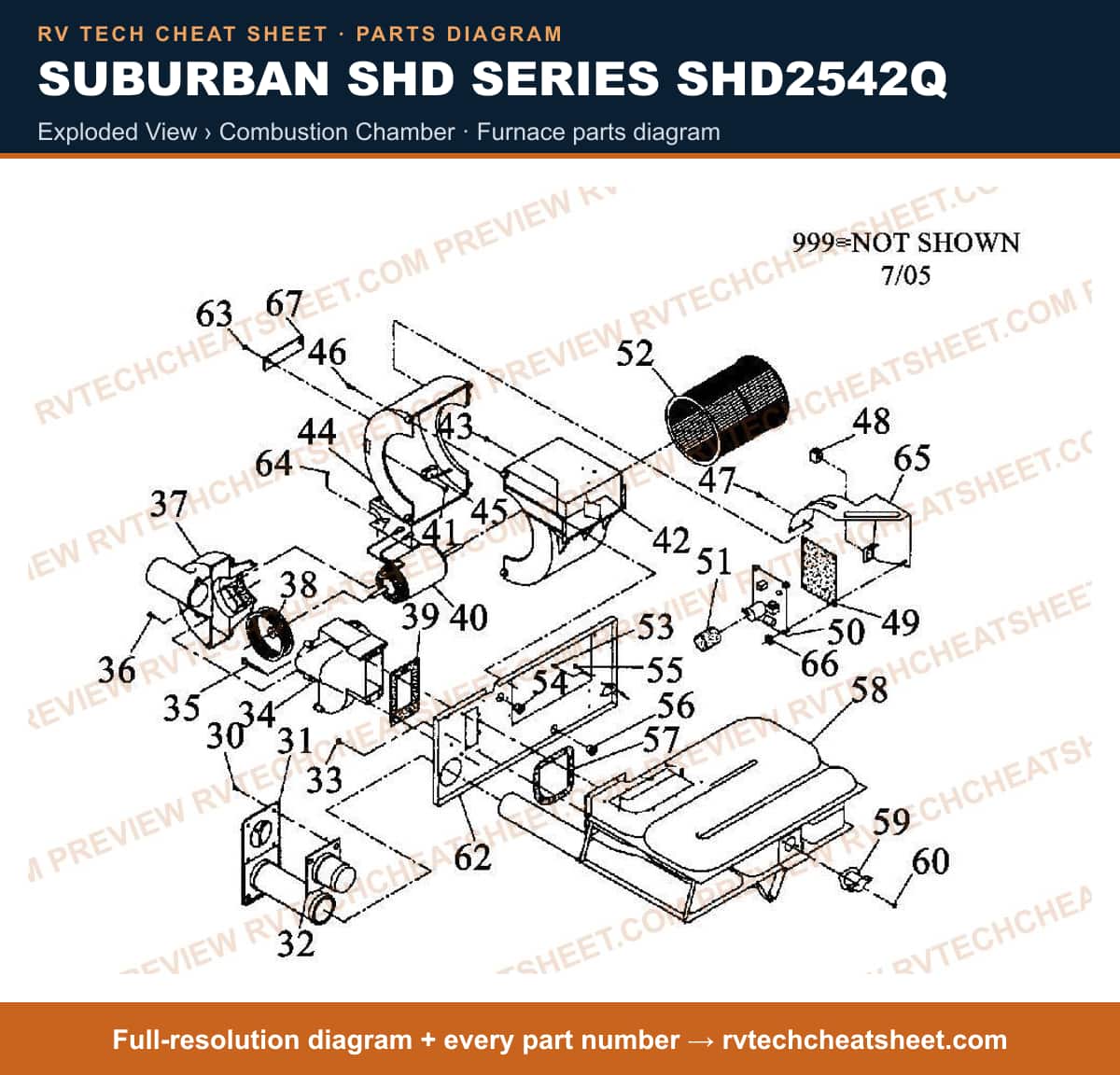

Exploded View › Combustion Chamber

Components

33 items

1. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
2. #SUBURBAN VENT/EXHAUST TUB MFR # 260553
3. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Composite; Intake Tube; 2 Inch Length MFR # 051446
4. #Furnace Intake Tube; For Suburban Furnace SF-Series/ SH-Series; Intake Steel Tube; 2 Inch Length; With Gasket MFR # 51248
5. #APPLIANCE COMPONENTS RV; Screw 8 X 1/2 Ph Ph MFR # 120615
6. #SUBURBAN AIR COMB HOUSING MFR # 390852
7. #APPLIANCE COMPONENTS RV; Screw 8-18 X 2-1/4 Ph Ph MFR # 121929
8. #APPLIANCE COMPONENTS RV; SCREW 6-19 X 3/4 PH MFR # 122001
9. #SUBURBAN AIR COMB HOUSING MFR # 390848
10. #SUBURBAN COMBUSTION AIR W MFR # 350183
11. #SUBURBAN GASKET/FARWALL B MFR # 71084
12. #MOTOR ASM W/GASKET MFR # 233097
13. #APPLIANCE COMPONENTS RV; SCREW #4-24X5/8 PH P H MFR # 121971
14. #APPLIANCE COMPONENTS RV; HSG ROOM AIR MFR # 391055
15. #SCREW 8-18X1/2 SELF DRILL MFR # 121857
16. #APPLIANCE COMPONENTS RV; BLOWER HSG REAR MFR # 391057
17. #APPLIANCE COMPONENTS RV; Suburban Sail Switch MFR # 232868
18. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
19. #Furnace Fan Switch; For All V-Series Suburban Furnaces (After Serial Number 952202951) MFR # 232351
20. #APPLIANCE COMPONENTS RV; Insul Mod Board MFR # 70807
21. #ignition Control Circuit Board; Replacement For Suburban 520741 Or 520820 Boards And Fits All Suburban 12 Volt Furnaces; Will Not Replace 24 Volt AC Boards MFR # 521099
22. #APPLIANCE COMPONENTS RV; Insul Cap MFR # 70973
23. #WHEEL ROOM AIR MFR # 350206
24. #APPLIANCE COMPONENTS RV; Bushing MFR # 70362
25. #APPLIANCE COMPONENTS RV; BUSHING STRAIN RELIEF 1/2 MFR # 71206
26. #GASKET,FIREWALL (CHAMBER SIDE) MFR # 71262S
27. #APPLIANCE COMPONENTS RV; CHAMBER MFR # 21229
28. #Furnace Limit Switch; For Suburban Furnace SF-42/ SF-42F (Below Serial Numbers 921403896 And Above Serial Number 921403895)/ SDH-2542; Also Use New Number 525035 MFR # 232505 Superseded: see description
29. #FIREWALL MFR # 110793
30. #APPLIANCE COMPONENTS RV; SCREW 8AX3/4 PH P H MFR # 121648
31. #NUT,HEX 6-32 LOCK MFR # 121919
32. #CIRCUIT BOARD MFR # 232806
33. #BRACKET, ROOM AIR HOUSING MFR # 63616S

Exploded View › Burner Assembly

Components

17 items

1. #APPLIANCE COMPONENTS RV; Nut #8-32 Keps MFR # 121694
2. #APPLIANCE COMPONENTS RV; MANIFOLD MFR # 171739
3. #APPLIANCE COMPONENTS RV; Screw 8-18 X 1/2 Ph Ph MFR # 121651
4. #SUBURBAN #50 ORIFICE MFR # 180309
5. #Furnace Gasket; Furnace Burner Access Door Gasket; Fits Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SFV-20/ SFV-25/ SFV-30/ SFV-35/ SFV-42; Also Use New Number 525031 MFR # 71263S Superseded: see description
6. #APPLIANCE COMPONENTS RV; Tinnerman U Type MFR # 121704
7. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 63198
8. #APPLIANCE COMPONENTS RV; Plate Sec Air MFR # 62933
9. #Furnace Duct Cover Plate; Fits Suburban SF-Series Furnace MFR # 62935
10. #Igniter Electrode; For Suburban Furnace Models SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009MC MFR # 232286MC Superseded: see description
11. #Igniter Electrode; For Suburban Furnace SF-20/ SF-25/ SF-30/ SF-35/ SF-42/ SF-20F/ SF-25F/ SF-30F/ SF-35F/ SF-42F (Above Serial Number 934701426); Without Gasket; Also Use New Number 525009 MFR # 232286 Superseded: see description
12. #Furnace Burner; For Suburban SF-42/ SF-42F/ SF-42Q/ SF-42FQ/ SH-42/ SH-42F/ SHD-2542 MFR # 10799
13. #APPLIANCE COMPONENTS RV; Grommet MFR # 71020
14. #APPLIANCE COMPONENTS RV; Valve Gas Two Stage MFR # 161192
15. #PIPE ASM,GAS INLET MFR # 171639
16. #CLAMP WIRE MFR # 62180
17. #SCREW 8-18X1/2 SELF DRILL MFR # 121857

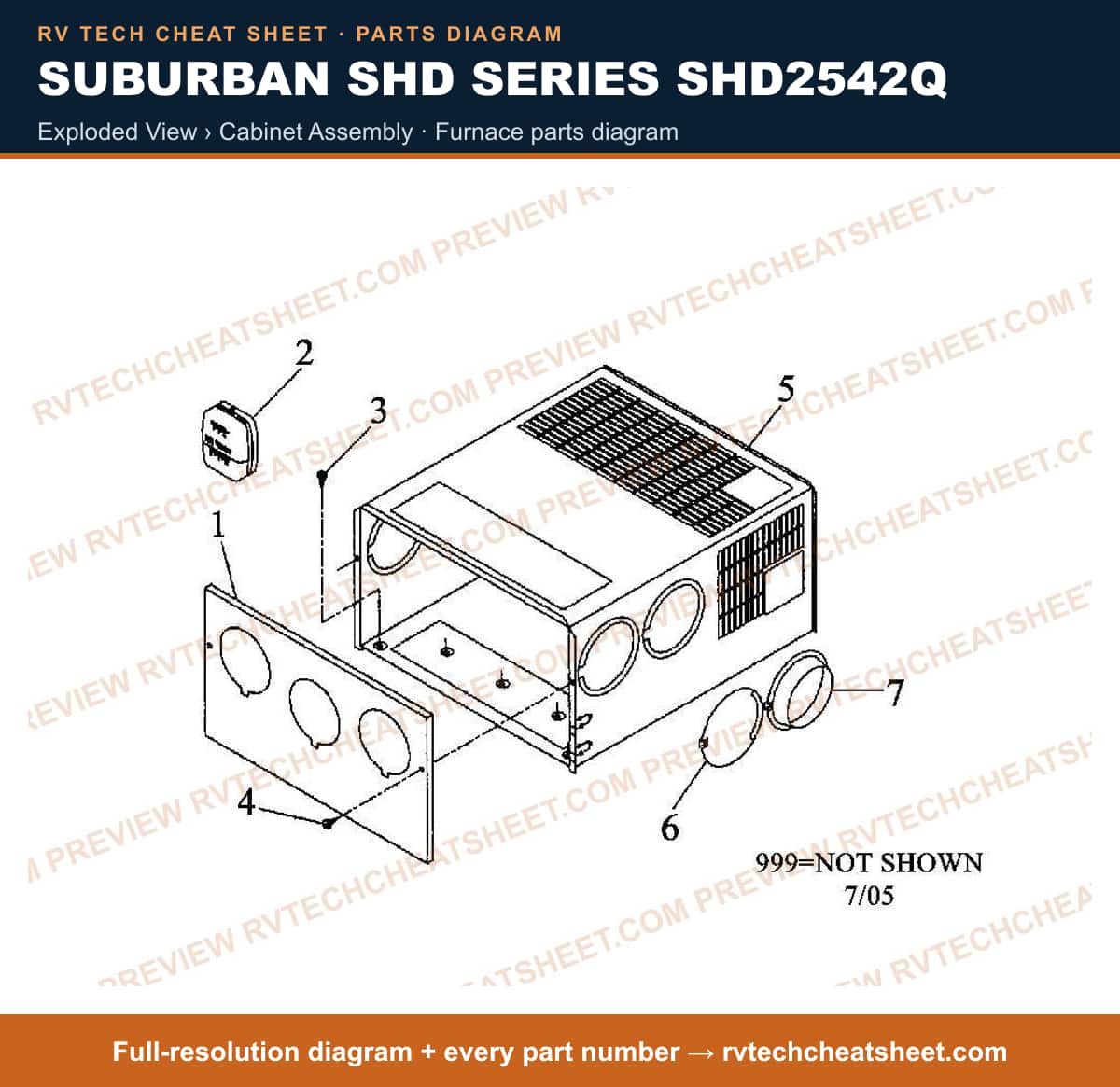

Exploded View › Cabinet Assembly

Components

7 items

1. #APPLIANCE COMPONENTS RV; Cab Front MFR # 101907
2. #APPLIANCE COMPONENTS RV; Tstat Two Stage MFR # 161202
3. #Screw; For Use With Suburban Furnace Vent NT.12SE/ NT-16SE/ NT-20SE; #10 x 3/4 MFR # 121853 Superseded: see description
4. #APPLIANCE COMPONENTS RV; #8 Screw MFR # 120158
5. #APPLIANCE COMPONENTS RV; CAB/LABELS MFR # 102398
6. #Furnace Duct Cover Plate; Fits Suburban 4 Inch Duct MFR # 50733
7. #NR627947 RETAINER-PANEL-12 UPR-BLK MFR # 50715
