Dometic Cff Series CFF-35 Parts Diagram · Exploded View

Refrigerator · 2 assemblies · 2 diagram sheets · 20 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Cff Series CFF-35 RV refrigerator: 2 assemblies (Exploded View, Replacement) and 20 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

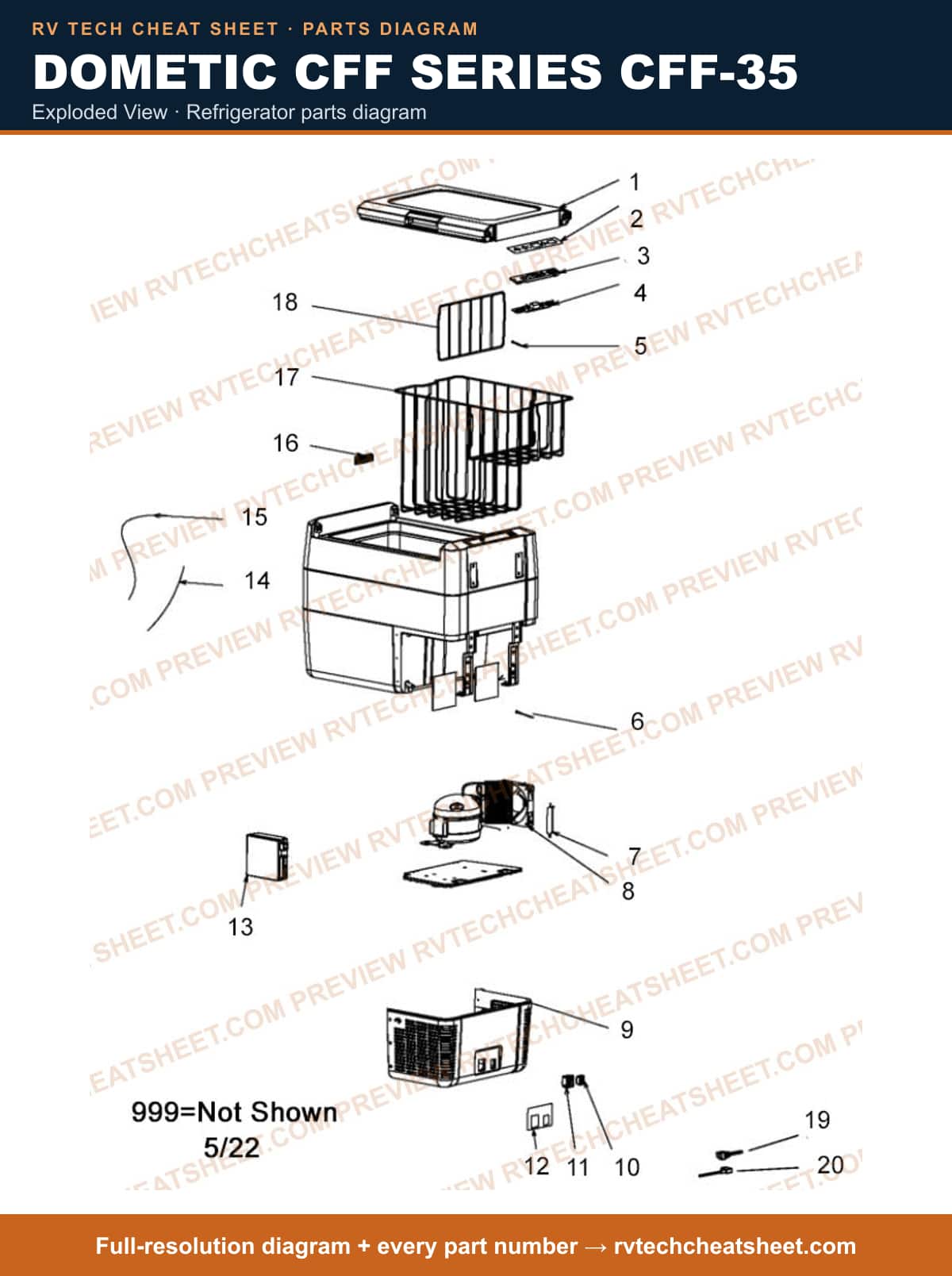

Exploded View

Components

18 items

1. #LID MFR # 4451065536
2. #control panel MFR # 4451063338
3. #COVER MFR # 4451063329
4. #DISPLAY,PCB MFR # 4450024756
5. #temperature probe MFR # 4450021668
6. #GROUNDING CABLE MFR # 4450002022
7. #dryer MFR # 4450001808
8. #ventilator MFR # 4450011095
9. #COVER MFR # 4451065511
10. #DC SOCKET MFR # 4451065786
11. #AC SOCKET MFR # 4451065787
12. #PLATE, CONNECTION MFR # 4451065527
13. #CONTROL UNIT COMPRESSOR MFR # 4450029539
14. #input cable MFR # 4450020880
15. #input cable MFR # 4450020879
16. #cover lamp MFR # 4450020111
17. #BASKET, 45L MFR # 4451061746
18. #DIVIDER, BASKET, 45L MFR # 4451061747

Replacement

Components

2 items

1. #CFF35 compressor cooler MFR # 9600015864
2. #Refrigerator; Single Compartment Adjustable For Refrigerator Or Freezer Function; Portable; 34 Liter Or 13 Can Storage Volume; 15.67 Inch Depth x 28.15 Inch Width x 16.02 Inch Height; 120 Volt AC/ 0.6 Amp And 12/24 Volt DC/ 4.5 Amp 12V DC And 2.3 Amp 24V DC; 2 Way AC/ DC; Single Zone; Digital Temperature Display; Gray; With Foldable Carrying Handles/ LED Interior Light/ Wire Basket/ DC And AC Connection Cables; Also Use New Number 9600015864 MFR # CFF35 Superseded: see description
