Dometic Cfx Series Parts Diagram · CFX-50 › Replacement

Refrigerator · 61 assemblies · 61 diagram sheets · 111 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic Cfx Series RV refrigerator: 61 assemblies (CFX-50 › Replacement, CFX-28 › Insulated Cover, CFX-95 › Replacement, CFX-75 › Insulated Cover, CFX3 25 › Insulated Cover and more) and 111 manufacturer part numbers. 3 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

CFX-50 › Replacement

Components

1 item

1. #REFRIGERATORS & ICE MAKERS RV; PORTABLE REFRIG/FREEZER 120/12-24V MFR # CFX-28

CFX-28 › Insulated Cover

Components

1 item

1. #INSULATED PROTECTIVE COVER F/CFX-28 MFR # CFXCVR28

CFX-95 › Replacement

Components

1 item

1. #REFRIGERATORS & ICE MAKERS RV; PORTABLE REFRIG/FREEZER 120/12-24V MFR # CFX-28

CFX-75 › Insulated Cover

Components

1 item

1. #INSULATED PROTECTIVE COVER F/CFX-28 MFR # CFXCVR28

CFX3 25 › Insulated Cover

Components

1 item

1. #INSULATED PROTECTIVE COVER F/CFX-28 MFR # CFXCVR28

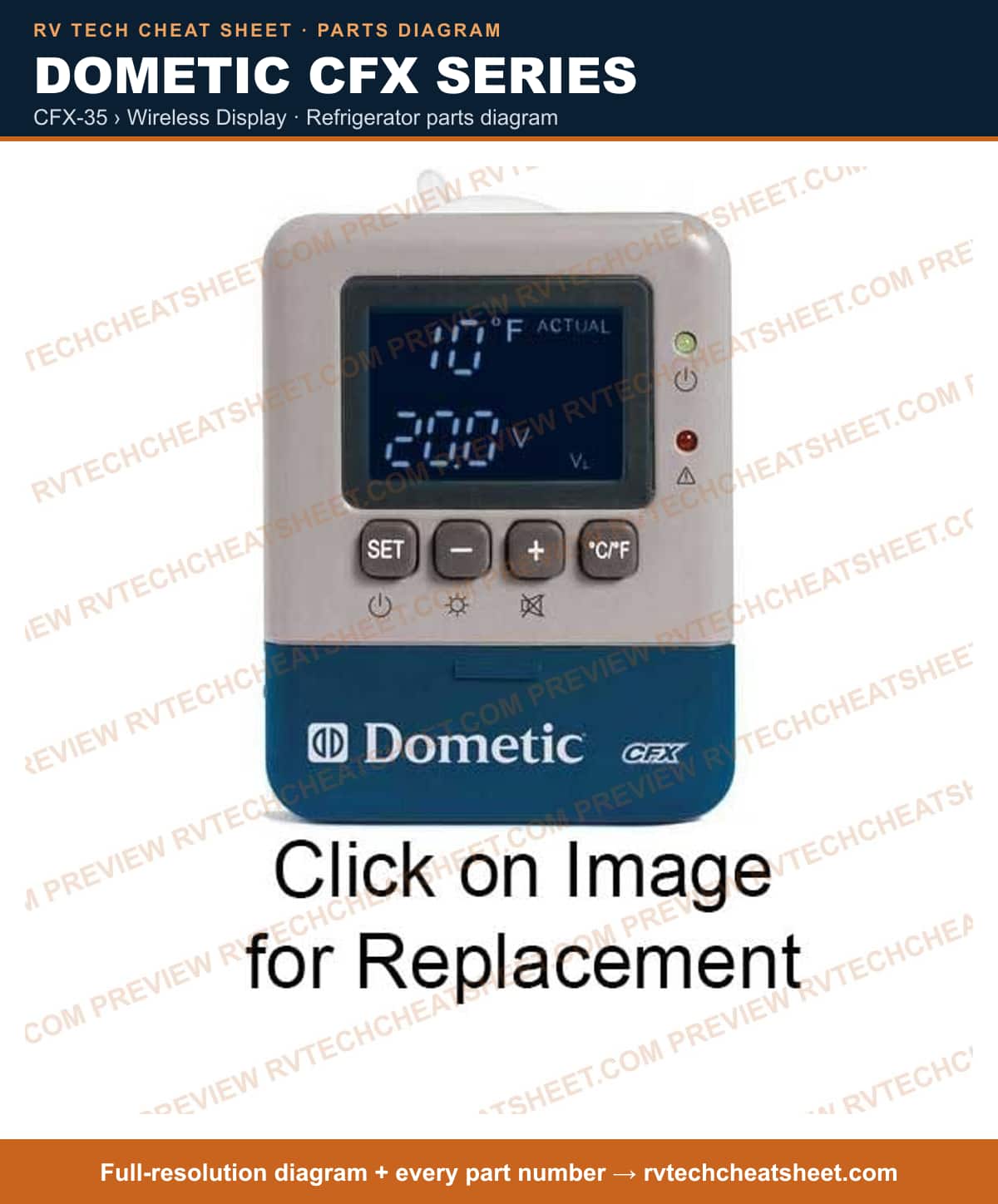

CFX-50 › Wireless Display

Components

1 item

1. #WIRELESS DISPLAY F/CFX PORTABLE COOLERS MFR # CFXWDUS

CFX-95 › Insulated Cover

Components

1 item

1. #INSULATED PROTECTIVE COVER F/CFX-28 MFR # CFXCVR28

CFX3 100 › Accessories

Components

2 items

1. #Refrigerator/ Freezer Slide Tray;CFX Series;Fits CFX3-95DZ/ CFX3-100 And Previous CFX-95/ CFX-100 M MFR # CFXSLD9510
2. #INSULATED PROTECTIVE COVER FOR CFX-95/ 100 MFR # CFX95100

CFX3 95DZ › Accessories

Components

7 items

1. #CFX3-35/45,SLIDE MOUNT,BLK MFR # 9610000651
2. #Battery; Portable Lithium Iron Phosphate; 12 Volt; 40 Amp; 7.76 Inch Depth X 10.02 Inch Height X 7.76 Width; With 40Ah Lithium Ion Phosphate Battery Pack/ 10 Amp ACDC Charger/ DC Cable Extension With Cig Plug And Anderson Connector; Also Use New Number 9600014024 MFR # PLB40 Superseded: see description
3. #TIE-DOWN KIT-US MFR # 9600017007
4. #COOL BOX STAND FOR COOLFREEZE BOXES MFR # CF-CBS
5. #FIXING KIT FOR CI ICEBOXES AND OTHER DOMETIC COOLERS MFR # CI-FK
6. #Protective Cover for CFX3 35 MFR # 9600026462
7. #STRAP KIT-US MFR # 9600017296

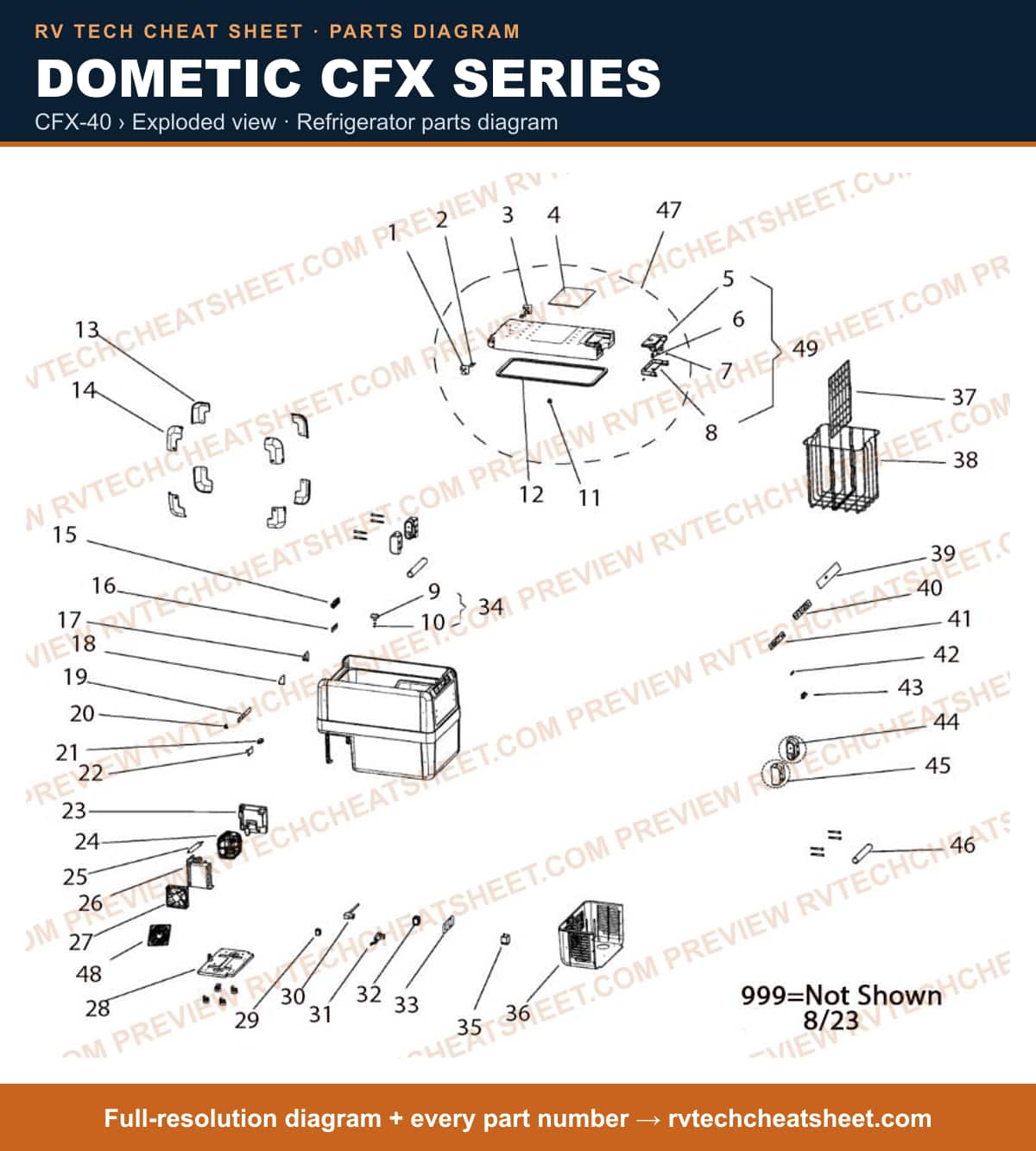

CFX-40 › Exploded view

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX-40 › Replacement

Components

1 item

1. #REFRIGERATORS & ICE MAKERS RV; PORTABLE REFRIG/FREEZER 120/12-24V MFR # CFX-28

CFX3 75DZ › Parts List

Components

5 items

1. #9600024785 MFR # 9600024785
2. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788
3. #DOORS RV; DOOR ASMCFX35WCFX40W MFR # 9600024777
4. #CORD,AC,PWR,CFX,L=2M MFR # 9600024789
5. #9600024786 MFR # 9600024786

CFX-75 › Replacement

Components

1 item

1. #REFRIGERATORS & ICE MAKERS RV; PORTABLE REFRIG/FREEZER 120/12-24V MFR # CFX-28

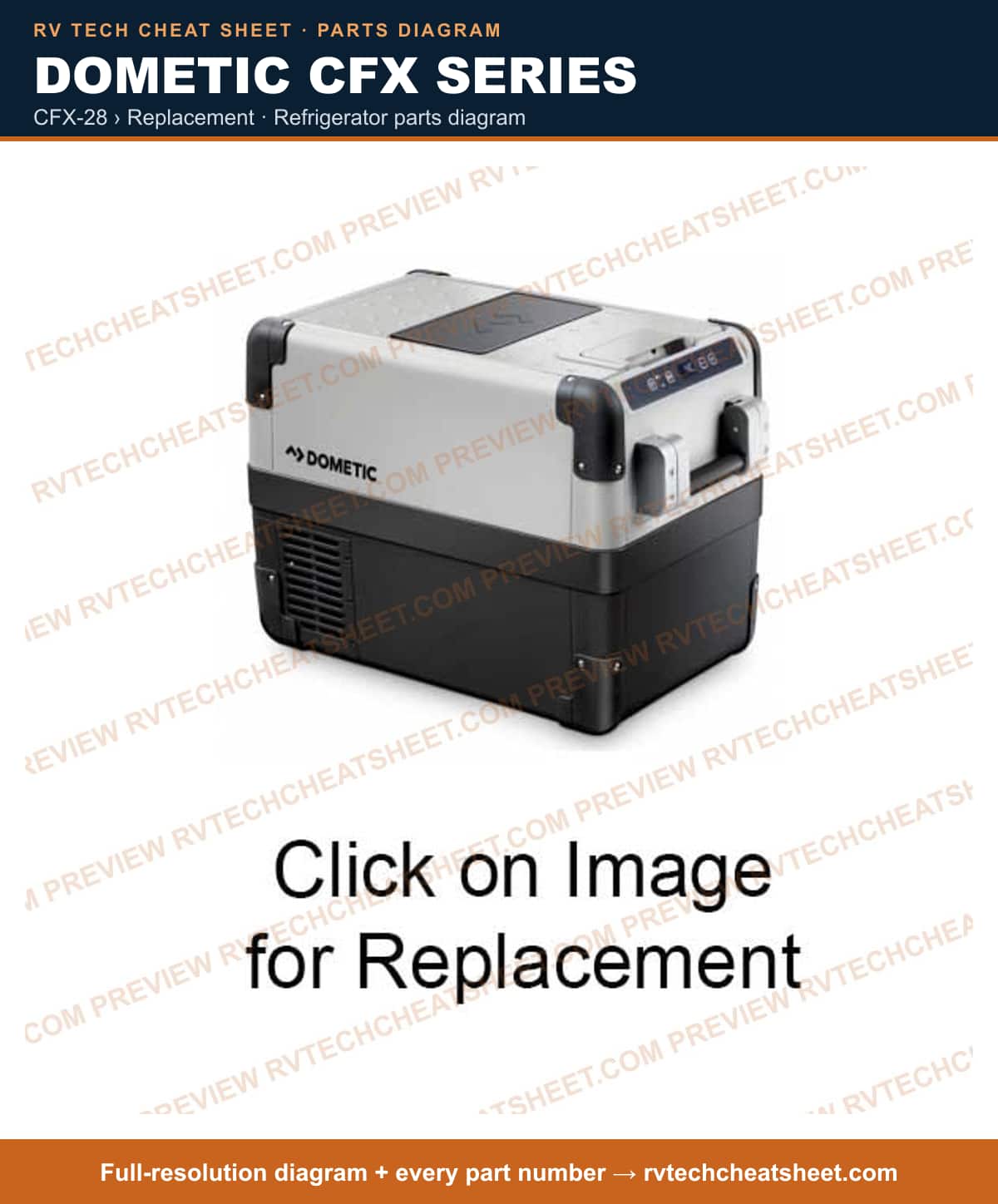

CFX-28 › Replacement

Components

1 item

1. #REFRIGERATORS & ICE MAKERS RV; PORTABLE REFRIG/FREEZER 120/12-24V MFR # CFX-28

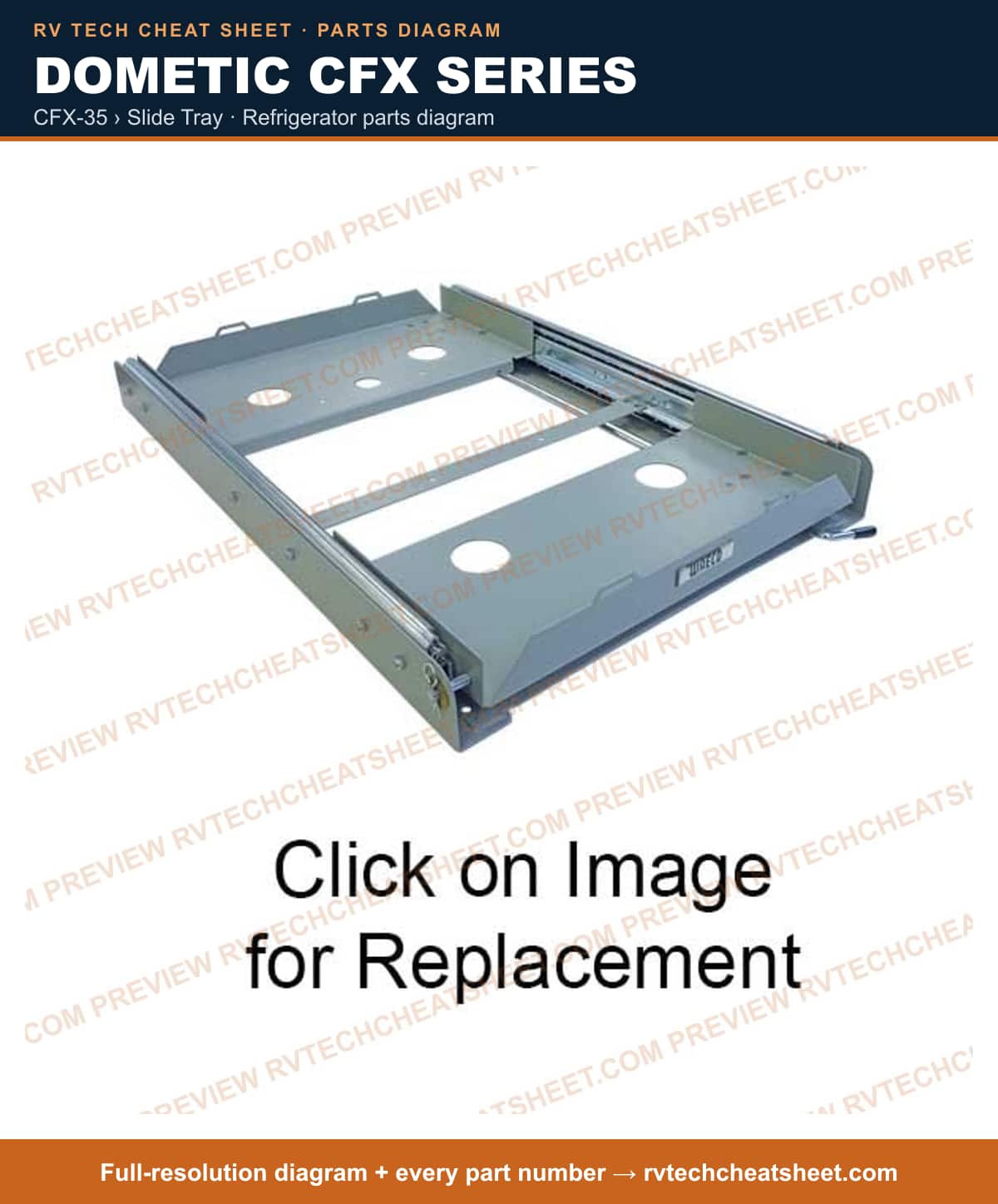

CFX-65 › Slide Tray

Components

1 item

1. #FRIDGE SLIDE F/CFX-35 OR CFX-40 MFR # CFXSLD3540US

CFX3 25 › Replacement

Components

1 item

1. #REFRIGERATORS & ICE MAKERS RV; PORTABLE REFRIG/FREEZER 120/12-24V MFR # CFX-28

CFX3 35 › Accessories

Components

7 items

1. #Battery; Portable Lithium Iron Phosphate; 12 Volt; 40 Amp; 7.76 Inch Depth X 10.02 Inch Height X 7.76 Width; With 40Ah Lithium Ion Phosphate Battery Pack/ 10 Amp ACDC Charger/ DC Cable Extension With Cig Plug And Anderson Connector; Also Use New Number 9600014024 MFR # PLB40 Superseded: see description
2. #STRAP KIT-US MFR # 9600017296
3. #CFX3-35/45,SLIDE MOUNT,BLK MFR # 9610000651
4. #TIE-DOWN KIT-US MFR # 9600017007
5. #FIXING KIT FOR CI ICEBOXES AND OTHER DOMETIC COOLERS MFR # CI-FK
6. #COOL BOX STAND FOR COOLFREEZE BOXES MFR # CF-CBS
7. #Protective Cover for CFX3 35 MFR # 9600026462

CFX-35 › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX-40 › Slide Tray

Components

1 item

1. #FRIDGE SLIDE F/CFX-35 OR CFX-40 MFR # CFXSLD3540US

CFX3 95DZ › Replacement

Components

4 items

1. #SINGLE COMPARTMENT ADJUSTABLE FOR REFRIGERATOR OR FREEZER FUNCTION; PORTABLE MFR # CFX3 35
2. #POWER CORDSETS RV;;POWERCORD DC,CFX28-65DZ,16AWG MFR # D7E9600024788
3. #Refrigerator; CFX Series; Single Compartment Adjustable For Refrigerator Or Freezer Function; Portable; 36 Liter Or 50 Can Storage Volume; 15.67 Inch Width x 27.32 Inch Depth x 16.02 Inch Height; 120 Volt AC/ 0.72 Amp And 12/24 Volt DC/ 7 Amp DC; 2 Way AC/ DC; Single Zone; Digital Temperature Display; Gray; With Foldable Carrying Handles/ USB Port/ LED Interior Light/ WiFi Transmitter/ Wire Basket/ DC And AC Connection Cables; Also Use New Number 9600024617 MFR # CFX335 Superseded: see description
4. #CFX335 compressor cooler MFR # 9600024617

CFX-50 › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX3 35 › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX-100W › Insulated Cover

Components

1 item

1. #INSULATED PROTECTIVE COVER F/CFX-28 MFR # CFXCVR28

CFX-40 › Insulated Cover

Components

1 item

1. #INSULATED PROTECTIVE COVER F/CFX-28 MFR # CFXCVR28

CFX-35 › Slide Tray

Components

1 item

1. #FRIDGE SLIDE F/CFX-35 OR CFX-40 MFR # CFXSLD3540US

CFX3 55IM › Parts List

Components

5 items

1. #9600024786 MFR # 9600024786
2. #DOORS RV; DOOR ASMCFX35WCFX40W MFR # 9600024777
3. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788
4. #CORD,AC,PWR,CFX,L=2M MFR # 9600024789
5. #9600024785 MFR # 9600024785

CFX3 100 › Replacement

Components

2 items

1. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788
2. #Refrigerator; CFX Series; Single Compartment Adjustable For Refrigerator Or Freezer Function; Portable; 3.3 Cubic Foot; 100 Liters; 37.6 Inch Width x 18.6 Inch Height x 20.8 Inch Depth; 0.95 Amp At 120 Volt AC Or 10.5 Amp At 12/24 Volt DC; Without Ice Maker; LED Temperature Panel Control; With LED Cabinet Light; Smokey Gray; With USB Port/ WiFi Capabilities/ Wire Basket/ AC And DC Connection Cables; Also Use New Number 9600024623 MFR # CFX100W Superseded: see description

CFX-75 › Wireless Display

Components

1 item

1. #WIRELESS DISPLAY F/CFX PORTABLE COOLERS MFR # CFXWDUS

CFX-65 › Wireless Display

Components

1 item

1. #WIRELESS DISPLAY F/CFX PORTABLE COOLERS MFR # CFXWDUS

CFX-75 › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX-35 › Insulated Cover

Components

1 item

1. #INSULATED PROTECTIVE COVER F/CFX-28 MFR # CFXCVR28

CFX3 55IM › Replacement

Components

4 items

1. #Refrigerator; CFX Series; Single Compartment Adjustable For Refrigerator Or Freezer Function; Portable; 36 Liter Or 50 Can Storage Volume; 15.67 Inch Width x 27.32 Inch Depth x 16.02 Inch Height; 120 Volt AC/ 0.72 Amp And 12/24 Volt DC/ 7 Amp DC; 2 Way AC/ DC; Single Zone; Digital Temperature Display; Gray; With Foldable Carrying Handles/ USB Port/ LED Interior Light/ WiFi Transmitter/ Wire Basket/ DC And AC Connection Cables; Also Use New Number 9600024617 MFR # CFX335 Superseded: see description
2. #CFX335 compressor cooler MFR # 9600024617
3. #POWER CORDSETS RV;;POWERCORD DC,CFX28-65DZ,16AWG MFR # D7E9600024788
4. #SINGLE COMPARTMENT ADJUSTABLE FOR REFRIGERATOR OR FREEZER FUNCTION; PORTABLE MFR # CFX3 35

CFX-75 › Slide Tray

Components

1 item

1. #FRIDGE SLIDE F/CFX-35 OR CFX-40 MFR # CFXSLD3540US

CFX3 75DZ › Accessories

Components

7 items

1. #COOL BOX STAND FOR COOLFREEZE BOXES MFR # CF-CBS
2. #FIXING KIT FOR CI ICEBOXES AND OTHER DOMETIC COOLERS MFR # CI-FK
3. #STRAP KIT-US MFR # 9600017296
4. #Battery; Portable Lithium Iron Phosphate; 12 Volt; 40 Amp; 7.76 Inch Depth X 10.02 Inch Height X 7.76 Width; With 40Ah Lithium Ion Phosphate Battery Pack/ 10 Amp ACDC Charger/ DC Cable Extension With Cig Plug And Anderson Connector; Also Use New Number 9600014024 MFR # PLB40 Superseded: see description
5. #CFX3-35/45,SLIDE MOUNT,BLK MFR # 9610000651
6. #Protective Cover for CFX3 35 MFR # 9600026462
7. #TIE-DOWN KIT-US MFR # 9600017007

CFX3 75DZ › Replacement

Components

4 items

1. #SINGLE COMPARTMENT ADJUSTABLE FOR REFRIGERATOR OR FREEZER FUNCTION; PORTABLE MFR # CFX3 35
2. #POWER CORDSETS RV;;POWERCORD DC,CFX28-65DZ,16AWG MFR # D7E9600024788
3. #Refrigerator; CFX Series; Single Compartment Adjustable For Refrigerator Or Freezer Function; Portable; 36 Liter Or 50 Can Storage Volume; 15.67 Inch Width x 27.32 Inch Depth x 16.02 Inch Height; 120 Volt AC/ 0.72 Amp And 12/24 Volt DC/ 7 Amp DC; 2 Way AC/ DC; Single Zone; Digital Temperature Display; Gray; With Foldable Carrying Handles/ USB Port/ LED Interior Light/ WiFi Transmitter/ Wire Basket/ DC And AC Connection Cables; Also Use New Number 9600024617 MFR # CFX335 Superseded: see description
4. #CFX335 compressor cooler MFR # 9600024617

CFX3 45 › Accessories

Components

7 items

1. #COOL BOX STAND FOR COOLFREEZE BOXES MFR # CF-CBS
2. #TIE-DOWN KIT-US MFR # 9600017007
3. #CFX3-35/45,SLIDE MOUNT,BLK MFR # 9610000651
4. #FIXING KIT FOR CI ICEBOXES AND OTHER DOMETIC COOLERS MFR # CI-FK
5. #Battery; Portable Lithium Iron Phosphate; 12 Volt; 40 Amp; 7.76 Inch Depth X 10.02 Inch Height X 7.76 Width; With 40Ah Lithium Ion Phosphate Battery Pack/ 10 Amp ACDC Charger/ DC Cable Extension With Cig Plug And Anderson Connector; Also Use New Number 9600014024 MFR # PLB40 Superseded: see description
6. #STRAP KIT-US MFR # 9600017296
7. #Protective Cover for CFX3 35 MFR # 9600026462

CFX-65 › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX3 95DZ › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX-65 › Replacement

Components

1 item

1. #REFRIGERATORS & ICE MAKERS RV; PORTABLE REFRIG/FREEZER 120/12-24V MFR # CFX-28

CFX-65 › Insulated Cover

Components

1 item

1. #INSULATED PROTECTIVE COVER F/CFX-28 MFR # CFXCVR28

CFX3 35 › Parts List

Components

5 items

1. #9600024786 MFR # 9600024786
2. #9600024785 MFR # 9600024785
3. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788
4. #CORD,AC,PWR,CFX,L=2M MFR # 9600024789
5. #DOORS RV; DOOR ASMCFX35WCFX40W MFR # 9600024777

CFX3 55IM › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX-35 › Replacement

Components

1 item

1. #REFRIGERATORS & ICE MAKERS RV; PORTABLE REFRIG/FREEZER 120/12-24V MFR # CFX-28

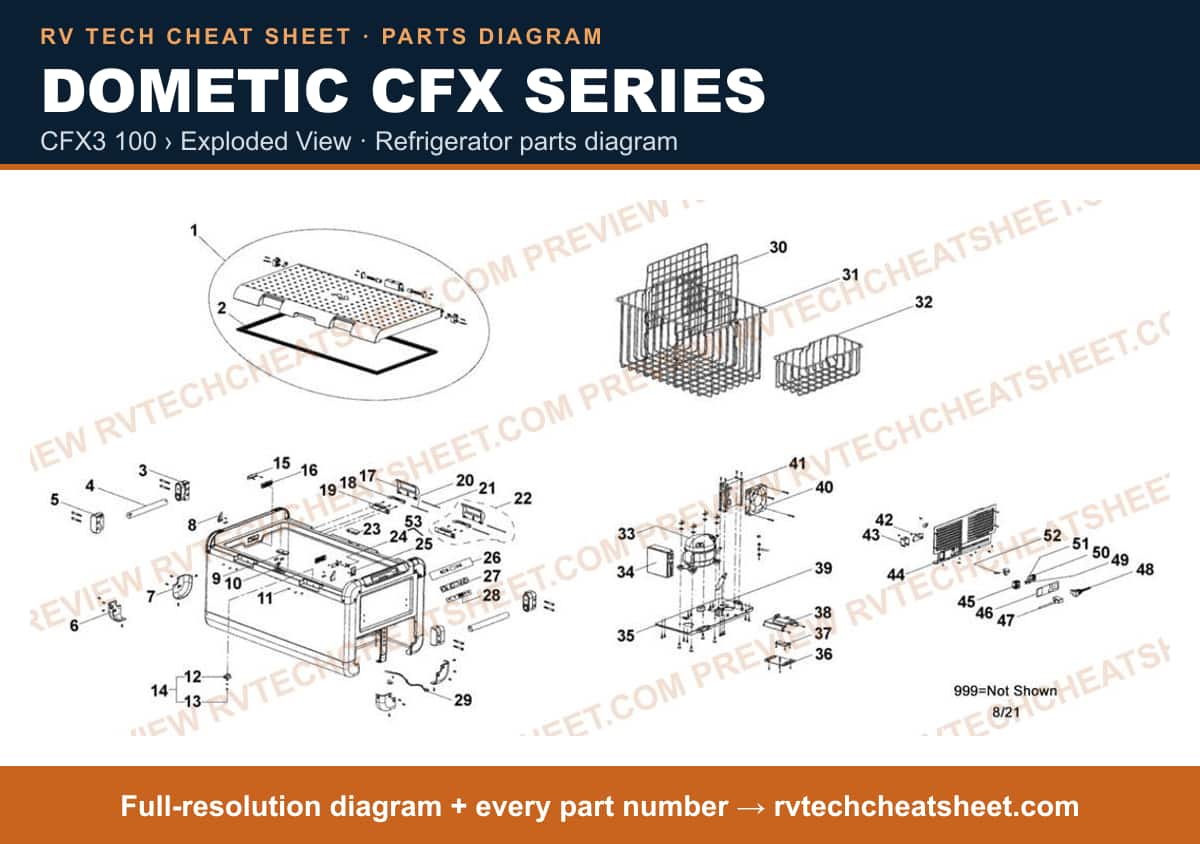

CFX3 100 › Exploded View

Components

52 items

1. #LID COMPLETE MFR # 4450021765
2. #sealant MFR # 4450014107
3. #retainer left Grip MFR # 4450015805
4. #GRIP MFR # 4450012676
5. #retainer right Grip MFR # 4450015801
6. #EDGE PROTECTION VERSION 1 MFR # 4450014398
7. #EDGE PROTECTION VERSION 2 MFR # 4450014399
8. #SHAFT HINGE RIGHT MFR # 4450003455
9. #COVER HINGE MFR # 4450014404
10. #MOUNT HINGE MFR # 4450014112
11. #STOPPER MFR # 4450015797
12. #drain condensation MFR # 4450007825
13. #SEAL MFR # 4450002488
14. #DRAIN CONDENSATION MFR # 4450008418
15. #led MFR # 4450018501
16. #COVER LED MFR # 4450007810
17. #LOCK MFR # 4450014677
18. #FIXING LOCK MFR # 4450014679
19. #FIXING LOCK MFR # 4450014678
20. #SHAFT FOR LOCK MFR # 4450014117
21. #SHAFT FOR LOCK MFR # 4450014116
22. #lock complete MFR # 4450016170
23. #COVER HINGE MFR # 4450014405
24. #SPACER MFR # 4450015790
25. #FIXING SWITCH MFR # 4450011595
26. #CONTROL PANEL MFR # 4450014118
27. #INSTALLATION PLATE MFR # 4450014096
28. #operating panel PCB MFR # 4450014122
29. #temperature probe MFR # 4450012196
30. #DIVIDER WIRE BASKET MFR # 4450011570
31. #BASKET, LARGE MFR # 4450014109
32. #BASKET, SMALL MFR # 4450014110
33. #COMPRESSOR ACV25DC, AC/DC MFR # 4450011745
34. #APPLIANCE COMPONENTS RV; ELECTRONIC BOARD MFR # 4450008254
35. #BASE PLATE COMPRESSOR MFR # 4450011598
36. #electronic PCB MFR # 4450014123
37. #PCB WiFi MFR # 4450015185
38. #COVER ELECTRONIC MFR # 4450013408
39. #dryer MFR # 4450001808
40. #fan assembly MFR # 4450001830
41. #CAPACITOR MFR # 4450015401
42. #ELECTRONIC,USB MFR # 4450015612
43. #PROTECTION SOCKET AC MFR # 4450002466
44. #COVER MFR # 4450012668
45. #socket MFR # 4450002004
46. #COVER SOCKET MFR # 4450015216
47. #AC POWER CORD FOR USA MFR # 4450002200
48. #DC power cord MFR # 4450021334
49. #SWITCH MFR # 4450014336
50. #socket MFR # 4450002003
51. #COVER MFR # 4450014413
52. #fuse MFR # 4450001861

CFX-40 › Wireless Display

Components

1 item

1. #WIRELESS DISPLAY F/CFX PORTABLE COOLERS MFR # CFXWDUS

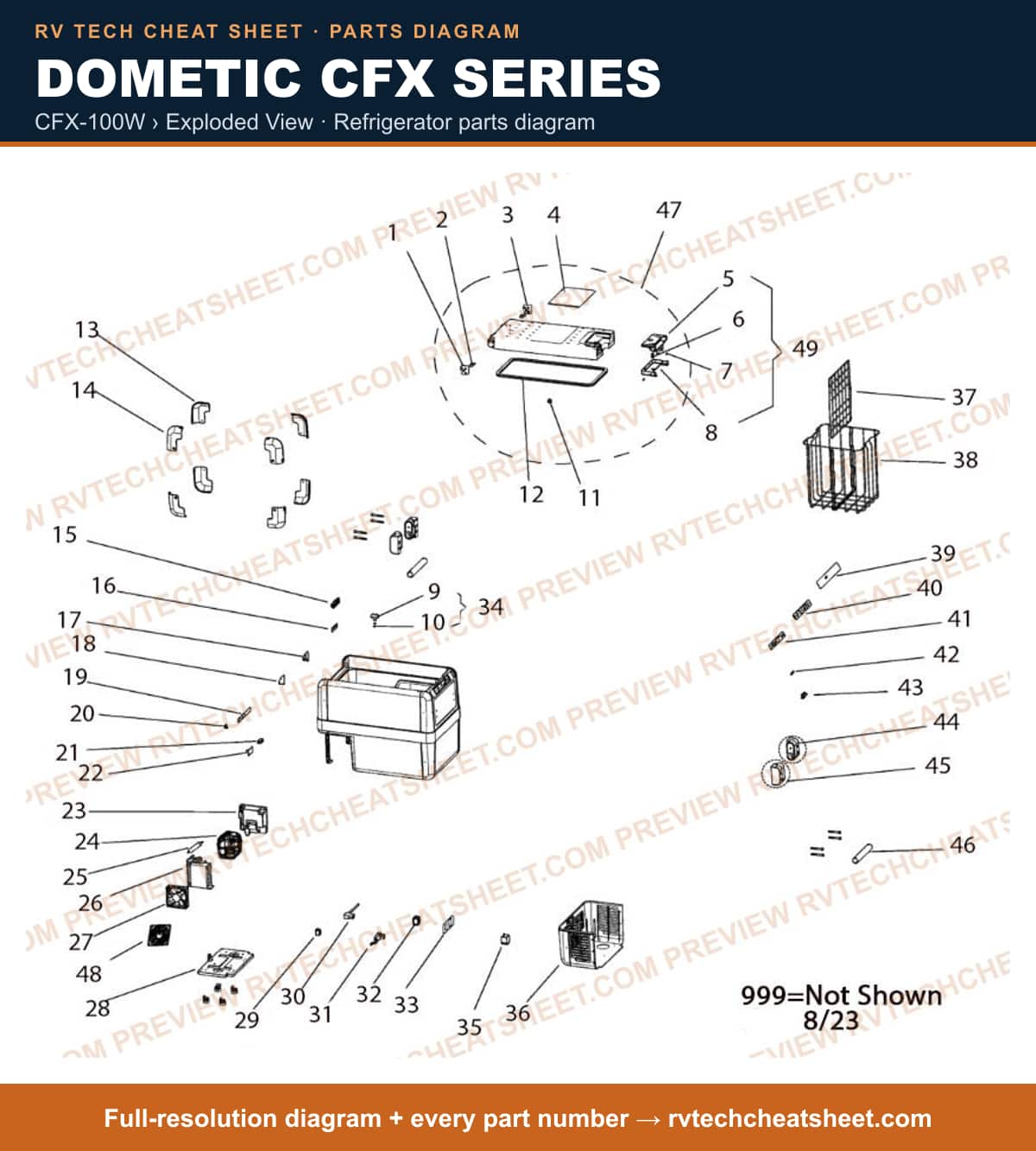

CFX-100W › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX3 45 › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX-28 › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX-100W › Replacement

Components

1 item

1. #REFRIGERATORS & ICE MAKERS RV; PORTABLE REFRIG/FREEZER 120/12-24V MFR # CFX-28

CFX3 75DZ › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX-95 › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX-28 › Wireless Display

Components

1 item

1. #WIRELESS DISPLAY F/CFX PORTABLE COOLERS MFR # CFXWDUS

CFX3 45 › Replacement

Components

4 items

1. #Refrigerator; CFX Series; Single Compartment Adjustable For Refrigerator Or Freezer Function; Portable; 36 Liter Or 50 Can Storage Volume; 15.67 Inch Width x 27.32 Inch Depth x 16.02 Inch Height; 120 Volt AC/ 0.72 Amp And 12/24 Volt DC/ 7 Amp DC; 2 Way AC/ DC; Single Zone; Digital Temperature Display; Gray; With Foldable Carrying Handles/ USB Port/ LED Interior Light/ WiFi Transmitter/ Wire Basket/ DC And AC Connection Cables; Also Use New Number 9600024617 MFR # CFX335 Superseded: see description
2. #SINGLE COMPARTMENT ADJUSTABLE FOR REFRIGERATOR OR FREEZER FUNCTION; PORTABLE MFR # CFX3 35
3. #POWER CORDSETS RV;;POWERCORD DC,CFX28-65DZ,16AWG MFR # D7E9600024788
4. #CFX335 compressor cooler MFR # 9600024617

CFX3 25 › Exploded View

Components

50 items

1. #HINGE LEFT MFR # 4450003437
2. #SPRING PLATE HINGE MFR # 4450003434
3. #HINGE RIGHT MFR # 4450003436
4. #BOSS COVER SILICONE MFR # 4450014407
5. #LOCK COVER MFR # 4450014342
6. #SPRING LOCK COVER MFR # 4450003024
7. #SHAFT LOCK COVER MFR # 4450003433
8. #RETAINER LOCK MFR # 4450014341
9. #drain condensation MFR # 4450007825
10. #SEAL MFR # 4450002488
11. #COVER CAP MFR # 4450014361
12. #sealant MFR # 4450002656
13. #EDGE PROTECTION MFR # 4450014337
14. #EDGE PROTECTION MFR # 4450014339
15. #COVER LED MFR # 4450007810
16. #APPLIANCE COMPONENTS RV; 291 LED LAMP #207.7717.01 MFR # 4450006254
17. #SHAFT HINGE LEFT MFR # 4450003454
18. #SHAFT HINGE RIGHT MFR # 4450003455
19. #RETAINER SWITCH MFR # 4450014429
20. #COVER MFR # 4450014413
21. #SWITCH MFR # 4450014336
22. #ELECTRONIC USB MFR # 4450006258
23. #ELECTRONIC BOARD MFR # 4450015182
24. #COMPRESSOR AMV13JZ, UL MFR # 4450013139
25. #dryer MFR # 4450001808
26. #CAPACITOR MFR # 4450011942
27. #ventilator MFR # 4450011095
28. #BASE PLATE COMPRESSOR MFR # 4450011125
29. #socket MFR # 4450002003
30. #AC POWER CORD MFR # 4450017998
31. #DC CIGARETTE CORD MFR # 4450016808
32. #socket MFR # 4450002004
33. #COVER SOCKET MFR # 4450003287
34. #DRAIN CONDENSATION MFR # 4450008418
35. #PROTECTION SOCKET AC MFR # 4450002466
36. #COVER MFR # 4450014360
37. #DIVIDER WIRE BASKET MFR # 4450011111
38. #BASKET WIRE MFR # 4450011110
39. #CONTROL PANEL MFR # 4450012467
40. #INSTALLATION PLATE MFR # 4450007812
41. #OPERATING PANEL PCB MFR # 4450011122
42. #SPACER MFR # 4450011121
43. #COVER SPACER MFR # 4450007785
44. #retainer right Grip MFR # 4450015801
45. #retainer left Grip MFR # 4450015805
46. #GRIP MFR # 4450014545
47. #COVER COMPLETE MFR # 4450015809
48. #COVER VENTILATOR MFR # 4450013029
49. #door lock assembly MFR # 4450015800
50. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX3 45 › Parts List

Components

5 items

1. #CORD,AC,PWR,CFX,L=2M MFR # 9600024789
2. #9600024786 MFR # 9600024786
3. #9600024785 MFR # 9600024785
4. #DOORS RV; DOOR ASMCFX35WCFX40W MFR # 9600024777
5. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788

CFX3 55IM › Accessories

Components

7 items

1. #Protective Cover for CFX3 35 MFR # 9600026462
2. #FIXING KIT FOR CI ICEBOXES AND OTHER DOMETIC COOLERS MFR # CI-FK
3. #COOL BOX STAND FOR COOLFREEZE BOXES MFR # CF-CBS
4. #Battery; Portable Lithium Iron Phosphate; 12 Volt; 40 Amp; 7.76 Inch Depth X 10.02 Inch Height X 7.76 Width; With 40Ah Lithium Ion Phosphate Battery Pack/ 10 Amp ACDC Charger/ DC Cable Extension With Cig Plug And Anderson Connector; Also Use New Number 9600014024 MFR # PLB40 Superseded: see description
5. #STRAP KIT-US MFR # 9600017296
6. #CFX3-35/45,SLIDE MOUNT,BLK MFR # 9610000651
7. #TIE-DOWN KIT-US MFR # 9600017007

CFX3 35 › Replacement

Components

4 items

1. #Refrigerator; CFX Series; Single Compartment Adjustable For Refrigerator Or Freezer Function; Portable; 36 Liter Or 50 Can Storage Volume; 15.67 Inch Width x 27.32 Inch Depth x 16.02 Inch Height; 120 Volt AC/ 0.72 Amp And 12/24 Volt DC/ 7 Amp DC; 2 Way AC/ DC; Single Zone; Digital Temperature Display; Gray; With Foldable Carrying Handles/ USB Port/ LED Interior Light/ WiFi Transmitter/ Wire Basket/ DC And AC Connection Cables; Also Use New Number 9600024617 MFR # CFX335 Superseded: see description
2. #CFX335 compressor cooler MFR # 9600024617
3. #SINGLE COMPARTMENT ADJUSTABLE FOR REFRIGERATOR OR FREEZER FUNCTION; PORTABLE MFR # CFX3 35
4. #POWER CORDSETS RV;;POWERCORD DC,CFX28-65DZ,16AWG MFR # D7E9600024788

CFX-50 › Insulated Cover

Components

1 item

1. #INSULATED PROTECTIVE COVER F/CFX-28 MFR # CFXCVR28

CFX-28 › Slide Tray

Components

1 item

1. #FRIDGE SLIDE F/CFX-35 OR CFX-40 MFR # CFXSLD3540US

CFX3 95DZ › Parts List

Components

5 items

1. #DOORS RV; DOOR ASMCFX35WCFX40W MFR # 9600024777
2. #9600024786 MFR # 9600024786
3. #CORD,DC,PWR,CFX28-95DZ,16AWG,2M MFR # 9600024788
4. #9600024785 MFR # 9600024785
5. #CORD,AC,PWR,CFX,L=2M MFR # 9600024789

CFX-35 › Wireless Display

Components

1 item

1. #WIRELESS DISPLAY F/CFX PORTABLE COOLERS MFR # CFXWDUS
