Dometic DM2672 Product # 958704457 Parts Diagram · Replacement

Refrigerator · 6 assemblies · 6 diagram sheets · 66 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DM2672 Product # 958704457 RV refrigerator: 6 assemblies (Replacement, Door Assembly, Burner & Controls, Cabinet Exterior, Cabinet Rear View and more) and 66 manufacturer part numbers. 15 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement

Components

7 items

1. #REFRIGERATOR/FREEZER, 6CF, 2 DOOR R HINGED, 2-WAY, DOOR PANELS SOLD SEPERATELY MFR # DM2672RB1
2. #APPLIANCE COMPONENTS RV; BLACK ACRYLIC DOOR PANELS MFR # 106863305C
3. #REFRIGERATORS & ICE MAKERS RV; REFR,6CF,LH,2-WAY/1PK MFR # DM2672LB1
4. #REFR,6CF,L,2-WAY/FAN/1PK MFR # DM2672LBF1
5. #Dometic Capacitor 35/5 MFD 370V Dual Run MFR # 9600015854
6. #APPLIANCE COMPONENTS RV; A,DOOR PNL,SS-DM2672/26822 MFR # 106863305F
7. #REFRIGERATORS & ICE MAKERS RV; REFR,6CF,RH,2-WAY/FAN/1PK MFR # DM2672RBF1

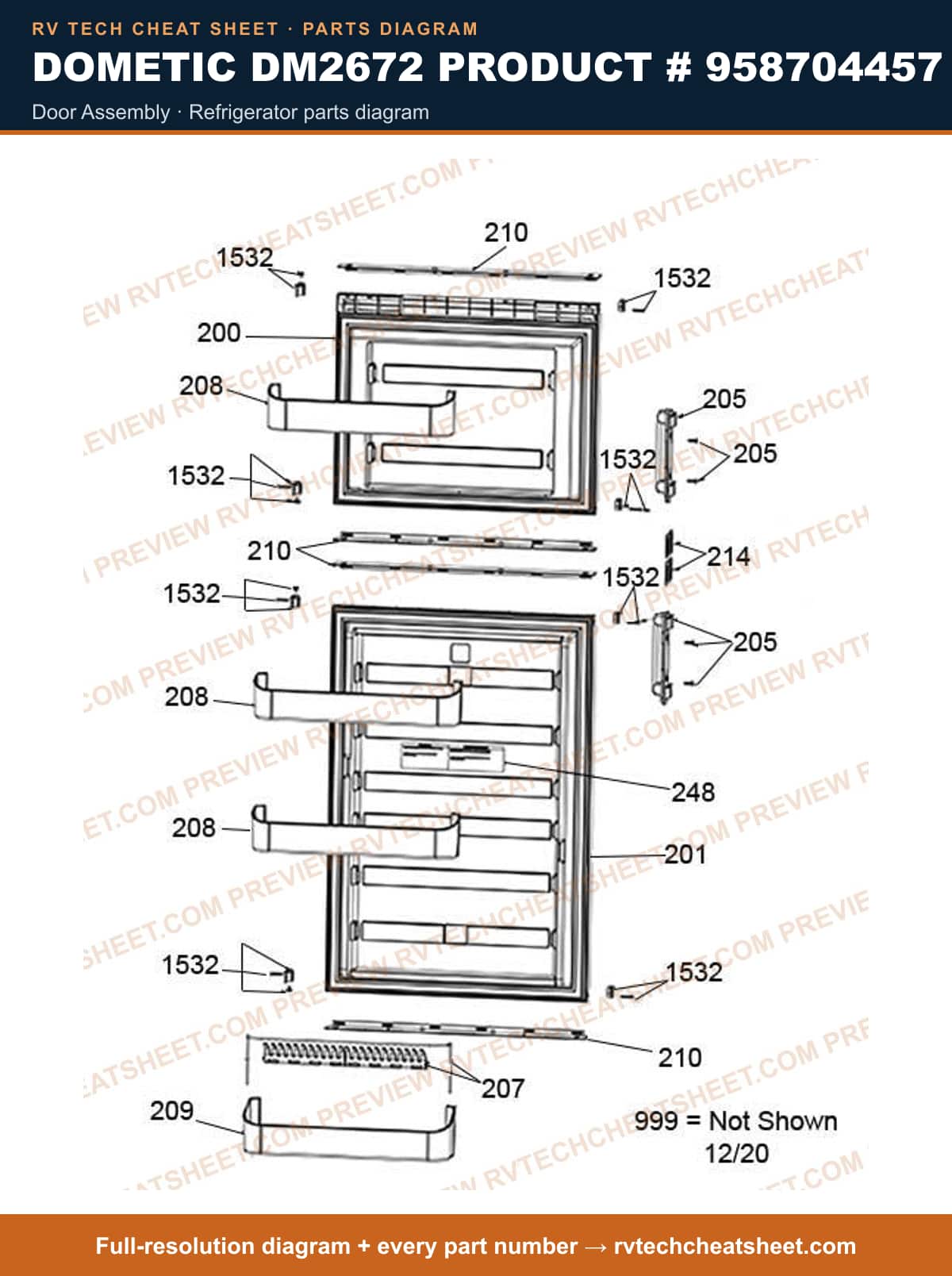

Door Assembly

Components

8 items

1. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 3316890900
2. #Dometic RM2652 RM2662 Refrigerator Main Control Board MFR # 3316889900
3. #S STD DR HANDLE COMBO-6/8 AMII MFR # 3316882900
4. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
5. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
6. #Dometic RM2652 RM2662 Refrigerator Lower Door Bin MFR # 3316883900
7. #Refrigerator Door Chain; Replacement For Dometic 6 Cubic Foot/ 8 Cubic Foot Americana Refrigerators; Door Airing Card MFR # 3850781026
8. #Dometic RM2652 RM2662 Refrigerator Gas Valve Assembly MFR # 3316885900

Burner & Controls

Components

31 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
8. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
9. #NO GENERIC NAME;;REFRIGERATOR - BURNER TUBE ONLY - D MFR # 2007484047
10. #ELECTRODE MFR # 2932781012
11. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
12. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
13. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
14. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 41 Inch Length; Also Use New Number 38510590422 MFR # 3851059034 Superseded: see description
15. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,GAS VALVE,2WAY MFR # 2954539041
16. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
17. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
18. #2954542094 MFR # 2954542094
19. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
20. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
21. #3858022019 MFR # 3858022019
22. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
23. #S,WIRE ASM,FUSED 3A,FAN MFR # 3850085022
24. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,FOR 1/FAN MFR # 2954599011
25. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
26. #2932667039 MFR # 2932667039
27. #2002699094 MFR # 2002699094
28. #Refrigerator Burner Control Module Mounting Bracket; Use With Dometic Refrigerator Model RM3762 MFR # 3851474019 Superseded: see description
29. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
30. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
31. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016

Cabinet Exterior

Components

10 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
2. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
3. #Dometic RM2652 RM2662 Refrigerator Main Control Board MFR # 3316872900
4. #NOT REPLACEABLE MFR # ***
5. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
6. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
7. #Refrigerator Eyebrow Power Control Circuit Board; Replacement For Dometic DM2672/ DM2682/ DM2683/ DM2872/ DM2882 Series Refrigerator MFR # 3316875903
8. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
9. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 41 Inch Length; Also Use New Number 38510590422 MFR # 3851059034 Superseded: see description
10. #S,LABEL,MNTG HOLES,BLK-AMII MFR # 3316893.900

Cabinet Rear View

Components

4 items

1. #KIT SVC C/U ASM-606E/626E MFR # 3313470003
2. #Fuse; Thermal Fuse; Replacement For Dometic Refrigerator Fuse; Also Use New Number 38514090155 MFR # 3851409015 Superseded: see description
3. #Dometic RM2193 RM2652 Refrigerator Door Panel Hook MFR # 3850306063
4. #Refrigerator Cooling Fan Assembly;;Replacement For Dometic Refrigerator Cooling Fan; Square; 3-5/8 MFR # FR# 3851183016

Cabinet Interior

Components

7 items

1. #SEWER HOSES RV; S,DRAIN HOSE ASM,COMBO-7/9CF MFR # 3161029018
2. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
3. #Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description
4. #S WIRE SHELVES COMBO-6/8 AM II MFR # 3316870900
5. #Refrigerator Shelf Support; Replacement For Dometic Refrigerators; Wire Type MFR # 3316450901
6. #APPLIANCE COMPONENTS RV; S,CRISP BIN,WHT,COMBO-6CF AMII MFR # 3316877.900
7. #S LED LIGHT/SWCH ASM-6/8 AM II MFR # 3316878900
