Dometic DM2682 Product # 958704456 Parts Diagram · Replacement

Refrigerator · 2 assemblies · 2 diagram sheets · 6 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DM2682 Product # 958704456 RV refrigerator: 2 assemblies (Replacement, Cabinet Exterior) and 6 manufacturer part numbers. 1 part is marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Replacement

Components

2 items

1. #REFRIGERATORS & ICE MAKERS RV; REFR,6CF,L,2-WAY/1PK MFR # DM2682LB1
2. #DUAL COMPARTMENT 2 DOOR REFRIGERATOR WITH FREEZER; PERMANENT BOLT-IN; RIGHT HAND HINGE; 8 CU-FT MFR # DMTDM2682RBF4

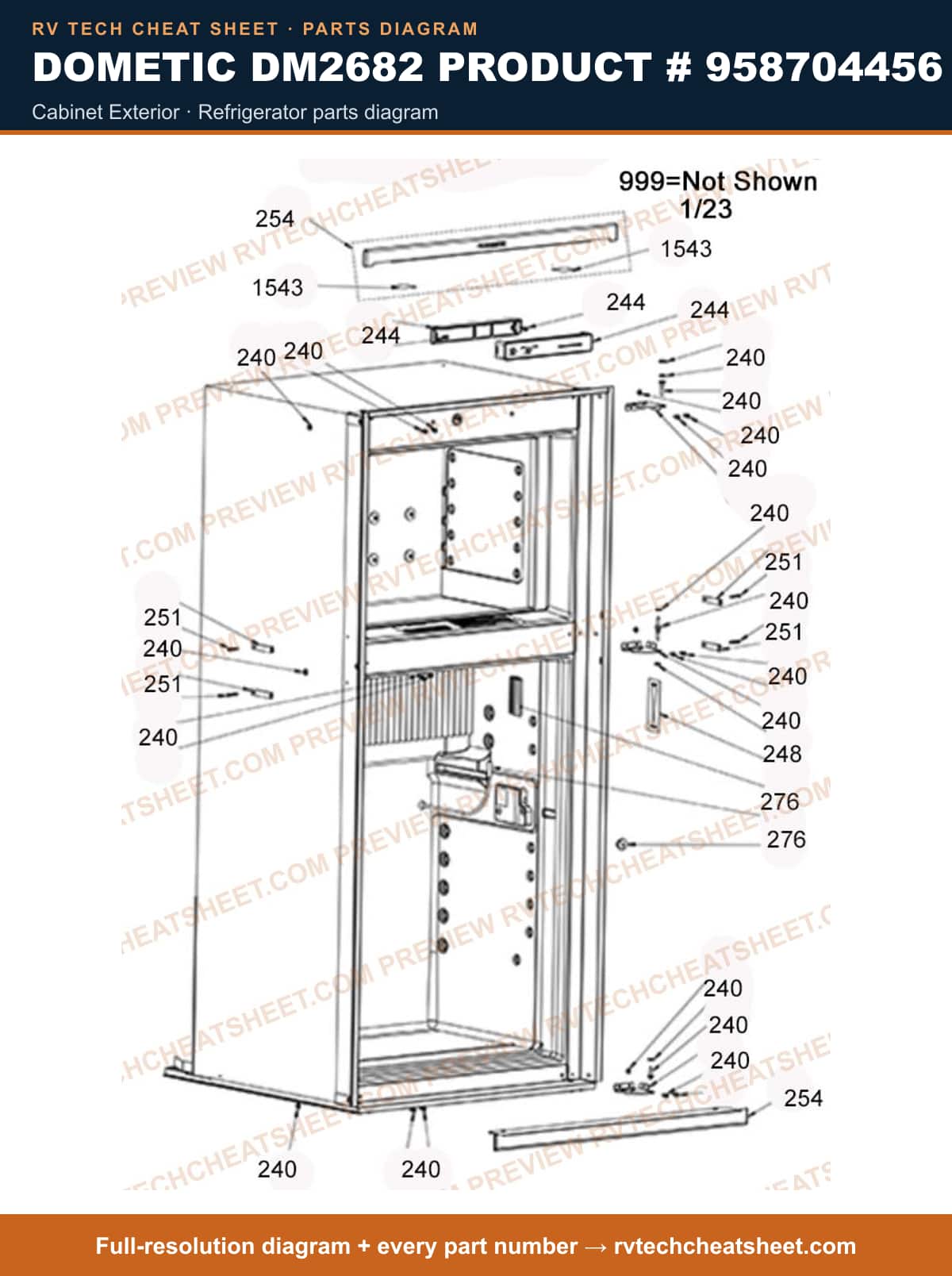

Cabinet Exterior

Components

4 items

1. #Refrigerator Interface Circuit Board; Replacement For Dometic DM2683/ DM2663 Series Refrigerator; 3 Way AC/ DC/ Gas Operation MFR # 3316871900
2. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
3. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 41 Inch Length; Also Use New Number 38510590422 MFR # 3851059034 Superseded: see description
4. #APPLIANCE COMPONENTS RV; S,LABEL,MNTG HOLES,BLK-AMII MFR # 3316893900
