Dometic DM2682 Product # 958704459 Parts Diagram · Cabinet Exterior

Refrigerator · 6 assemblies · 6 diagram sheets · 38 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DM2682 Product # 958704459 RV refrigerator: 6 assemblies (Cabinet Exterior, Cabinet Interior, Gas- Electrical Parts, Cabinet Rear View, Door Assembly and more) and 38 manufacturer part numbers. 8 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Exterior

Components

9 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
2. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
3. #Refrigerator Interface Circuit Board; Replacement For Dometic DM2683/ DM2663 Series Refrigerator; 3 Way AC/ DC/ Gas Operation MFR # 3316871900
4. #Refrigerator Interface Circuit Board; Replacement For Dometic DM2682/ DM2882 Series Refrigerator MFR # 3316874900
5. #Dometic RM2652 RM2662 Refrigerator Main Control Board MFR # 3316872900
6. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
7. #Refrigerator Eyebrow Power Control Circuit Board; Replacement For Dometic DM2672/ DM2682/ DM2683/ DM2872/ DM2882 Series Refrigerator MFR # 3316875903
8. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 41 Inch Length; Also Use New Number 38510590422 MFR # 3851059034 Superseded: see description
9. #S,LABEL,MNTG HOLES,BLK-AMII MFR # 3316893.900

Cabinet Interior

Components

7 items

1. #S,HOSE ASM,DRAIN-6,7,8,9CF MFR # 3316102.901
2. #S WIRE SHELVES COMBO-6/8 AM II MFR # 3316870900
3. #Refrigerator Shelf Support; Replacement For Dometic Refrigerators; Wire Type MFR # 3316450901
4. #3316877.901 MFR # 3316877.901
5. #APPLIANCE COMPONENTS RV; S,CRISP BIN,CLR,COMBO-6/8 AMII MFR # 3316877901
6. #S LED LIGHT/SWCH ASM-6/8 AM II MFR # 3316878900
7. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description

Gas- Electrical Parts

Components

5 items

1. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
2. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
3. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
4. #2932667039 MFR # 2932667039
5. #S,FAN,92MM,T=25MM MFR # 3851183016

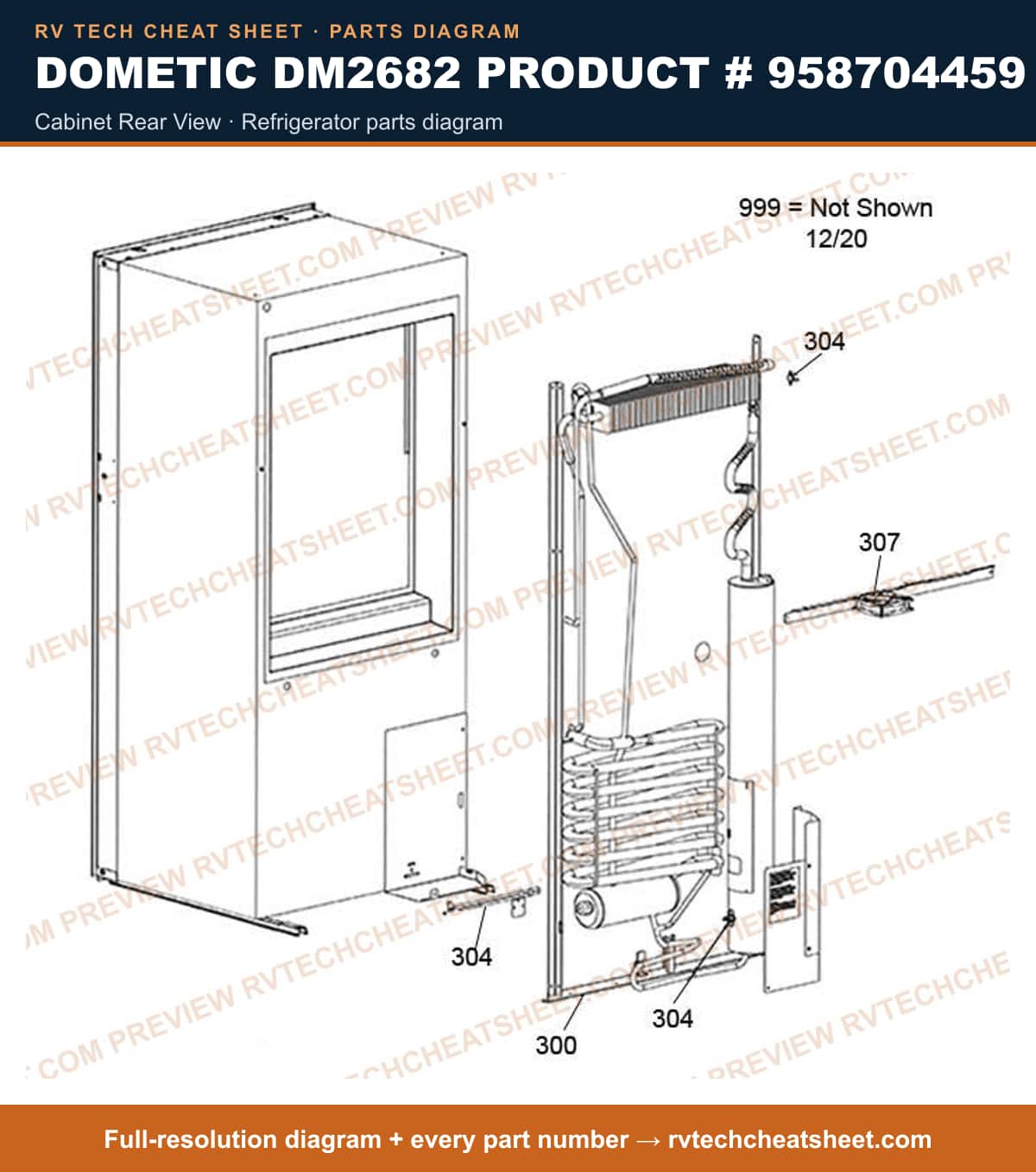

Cabinet Rear View

Components

3 items

1. #Fuse; Thermal Fuse; Replacement For Dometic Refrigerator Fuse; Also Use New Number 38514090155 MFR # 3851409015 Superseded: see description
2. #Dometic RM2193 RM2652 Refrigerator Door Panel Hook MFR # 3850306063
3. #Refrigerator Cooling Fan Assembly;;Replacement For Dometic Refrigerator Cooling Fan; Square; 3-5/8 MFR # DMT3851183016

Door Assembly

Components

11 items

1. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 3316890900
2. #Dometic RM2652 RM2662 Refrigerator Main Control Board MFR # 3316889900
3. #Refrigerator Door Handle; Replacement For Dometic DM2682/ DM2683/ DM2882 Series Refrigerator; Fits Right Hand Or Left Hand Side; Black MFR # 3316882901
4. #S STD DR HANDLE COMBO-6/8 AMII MFR # 3316882900
5. #Refrigerator Door Bin; Replacement For Dometic DM2862/ DM2662 DM2663 Refrigerators; Transparent MFR # 2932576065
6. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
7. #Refrigerator Door Bin; Replacement For Dometic DM2862/ DM2663 Refrigerators; Bottom; Transparent; Also Use New Number 29325760655 MFR # 2932575059 Superseded: see description
8. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
9. #Dometic RM2652 RM2662 Refrigerator Lower Door Bin MFR # 3316883900
10. #Refrigerator Door Chain; Replacement For Dometic 6 Cubic Foot/ 8 Cubic Foot Americana Refrigerators; Door Airing Card MFR # 3850781026
11. #Dometic RM2652 RM2662 Refrigerator Gas Valve Assembly MFR # 3316885900

Replacement

Components

3 items

1. #DUAL COMPARTMENT 2 DOOR REFRIGERATOR WITH FREEZER; PERMANENT BOLT-IN; RIGHT HAND HINGE; 8 CU-FT MFR # DMTDM2682RBF4
2. #REFRIGERATORS & ICE MAKERS RV; REFR,6CF,L,2-WAY/FAN/1PK MFR # DM2682LBF1
3. #Refrigerator; Americana Plus; Dual Compartment 2 Door Refrigerator With Freezer; Permanent Bolt-In; Left Hand Hinge; 8 Cubic Foot; 54-21/32 Inch Height x 24-7/8 Inch Width x 26 Inch Depth Product Dimensions/ 53-3/4 Inch Height x 23.69 Inch Width x 24 Inch Depth Recess Dimensions; 110 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; Eye-Level Electronic Control; Black Frame; With Fan/ 2 Crispers/ 4 Door Bins; Door Panels Must Be Ordered Separately MFR # DM2682LBF4
