Dometic DM2852 Product # 921146383 Parts Diagram · Door Assembly

Refrigerator · 6 assemblies · 6 diagram sheets · 144 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DM2852 Product # 921146383 RV refrigerator: 6 assemblies (Door Assembly, Replacement Refrigerator, Cabinet Rear View, Cabinet Exterior, Cabinet Interior and more) and 144 manufacturer part numbers. 35 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

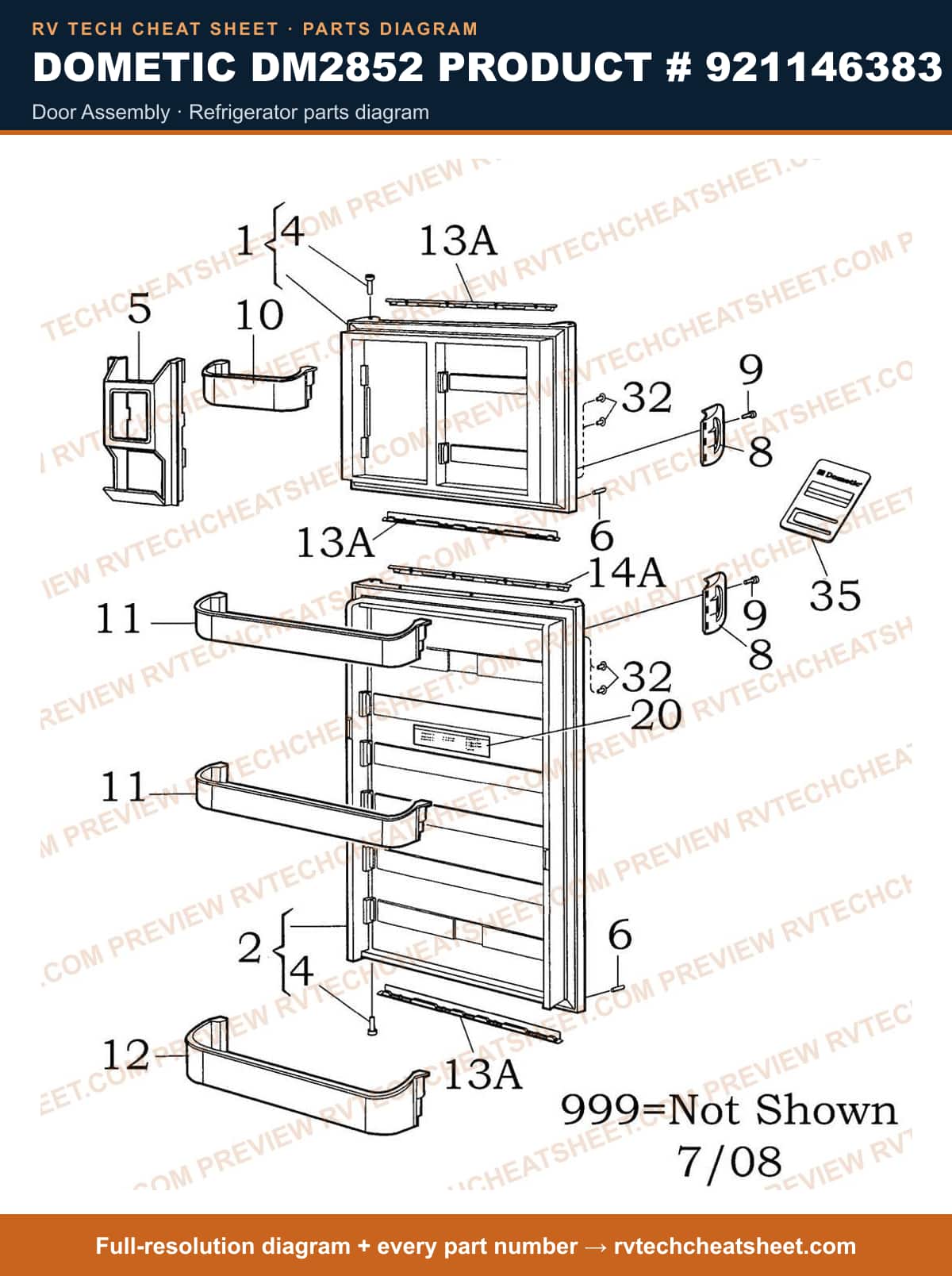

Door Assembly

Components

27 items

1. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ RM2662/ RM2663/ RM2852 Model Refrigerator; Right Hand Side; Upper; Black MFR # 2932561190
2. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G
3. #S,DOOR ASM,FF,R-8CF MFR # 2932562065
4. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA
5. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L
6. #Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D
7. #KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C
8. #Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A
9. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
10. #RACK,JUICE WHITE MFR # 2932578020
11. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
12. #Refrigerator Door Handle; Replacement For Dometic DM2862/ DM2663/ DM2652/ RM2663/ RM2852/ RM2662/ RM3662/ RM3863/ RM3663/ RM3862 Model Refrigerator; Fits Upper/ Lower Door; Black; Also Use New Number 38511740311 MFR # 3851174023 Superseded: see description
13. #Refrigerator Door Handle; Replacement For Dometic DM2862/ DM2663/ DM2652/ RM2663/ RM2852/ RM2662/ RM3662/ RM3863/ RM3663/ RM3862 Model Refrigerator; Fits Upper/ Lower Door; Black MFR # 3851174031
14. #S,SCREW,PT,5.26MM,BLK-6/8/10CF MFR # 3858000049
15. #Refrigerator Door Bin; Replacement For Dometic DM2852/ RM2652 Refrigerators; Upper; Also Use New Number 29326270255 MFR # 2932577014 Superseded: see description
16. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
17. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
18. #Refrigerator Trim; Replacement For Dometic Refrigerator Door Liner; Black MFR # 3850919022
19. #Refrigerator Trim; Replacement For Dometic Refrigerator Door Liner; Black; Also Use New Number 3850919097 MFR # 3850919063 Superseded: see description
20. #Refrigerator Trim; Replacement For Dometic Refrigerator Door Liner; Black MFR # 3850919097
21. #LABEL MFR # 3851235006
22. #APPLIANCE COMPONENTS RV; REFRIGERATOR - HOLE PLUG - SCREW CO MFR # 3850625025
23. #DOOR SPACER/AIRING CARD MFR # 3850781018
24. #APPLIANCE COMPONENTS RV; A,DR PNL SET,RAISED-BLK,RM2852 MFR # 3311889.030C
25. #Panels, Door Bronze Raised MFR # 3311889020D
26. #Refrigerator Gasket; Replacement For Dometic RM2852/ RM3862/ RM3863/ RM4872/ RM4873 Model Refrigerators; Refrigerator And Freezer Door Gasket Kit; White; With Double Sided Tape MFR # 3108704382
27. #Door Panels, Raised, Aluminum F/DM2652/2662; Use 3311889.020A MFR # 3311889020A Superseded: see description

Replacement Refrigerator

Components

11 items

1. #Refrigerator; Americana; Dual Compartment 2 Door Refrigerator With Freezer; Permanent Bolt-In; Right Hand Hinge; 8 Cubic Foot; 60-5/8 Inch Height x 24-11/16 Inch Width x 24-7/8 Inch Depth; 110 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; Eye-Level Electronic Control/ Automatic Temperature Control; Black Frame; With 2 Crispers/ 4 Door Bins; Door Panels Must Be Ordered Separately MFR # DM2852RB
2. #Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A
3. #DOOR PANEL SET, RAISED, BLACK F/DM2852/2862; USE 3311889.030C MFR # 3311889030C Superseded: see description
4. #NO GENERIC NAME; REFR8CFLH2-WAY MFR # DM2852LB
5. #NO GENERIC NAME; REFR8CFLH2-WAY/FAN MFR # DM2852LBF
6. #APPLIANCE COMPONENTS RV; A,DR PNL SET,RAISED-BLK,RM2852 MFR # 3311889.030C
7. #APPLIANCE COMPONENTS RV; DR PNL BLACK RM2852/3862 MFR # 3106863081C
8. #NO GENERIC NAME; REFR,8CF,RH,2-WAY/FAN MFR # DM2852RBF
9. #Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889030D
10. #PANELS,DOOR WOODGRAIN F/DM2852 MFR # 3106863081B
11. #KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C

Cabinet Rear View

Components

12 items

1. #KIT SVC C/U 806/826E THERM MFR # 3313470008
2. #NEW FITS DOMETIC SELECT MODELS MFR # 6582
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #SCREW 4.8 X 16 MFR # 3858068012
6. #Fuse; Thermal Fuse; Replacement For Dometic Refrigerator Fuse; Also Use New Number 38514090155 MFR # 3851409015 Superseded: see description
7. #COVER, HEATER MFR # 3851397012
8. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
9. #LABEL MFR # 3850583000
10. #COVER PLATE MFR # 3851300016
11. #COVER PLATE,SIDE MFR # 3851301014
12. #NO GENERIC NAME; REFRIGERATOR - COVER PLATE - 385130 MFR # 3851302012

Cabinet Exterior

Components

31 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #AWNING-ACCESSORIES RV; S,BRKT,TOP DECOR,BLK8500-6,8 MFR # 3851466015
4. #Refrigerator Door Hinge; Replacement For Dometic RM2452/ RM3863/ NDM1062 Refrigerators; Right Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643030 Superseded: see description
5. #Refrigerator Door Hinge; Replacement For Dometic NDR1062/ RM2652/ RM2663 Refrigerators; Fits Top Hinge; Black; Also Use New Number 29326430300 MFR # 2932648021 Superseded: see description
6. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
7. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
8. #Refrigerator Eyebrow Power Control Circuit Board;;Replacement For Dometic Refrigerators; 2 Way Cont MFR # 2932771021
9. #EYEBROW DISPLAY BOARD, 2W, BLACK F/DM2X52 & RM2X51 MFR # 2932771039
10. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
11. #Refrigerator Trim; Replacement For Dometic DM2652/ DM2862 Refrigerators MFR # 2932641075
12. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
13. #Decal; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2562/ DM2862/ DM3862 MFR # 2932776004 Superseded: see description
14. #PLUG,BLACK MFR # 3312986106
15. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
16. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
17. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
18. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
19. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
20. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
21. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
22. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
23. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
24. #LABEL MFR # 3850774013
25. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
26. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
27. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
28. #APPLIANCE COMPONENTS RV; REVERSING KIT,DOOR LH-RH MFR # 2932750124
29. #APPLIANCE COMPONENTS RV; K,DR REV,L/R-BLK,DM26XX,28XX MFR # 293275012
30. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 293275011
31. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 2932750116

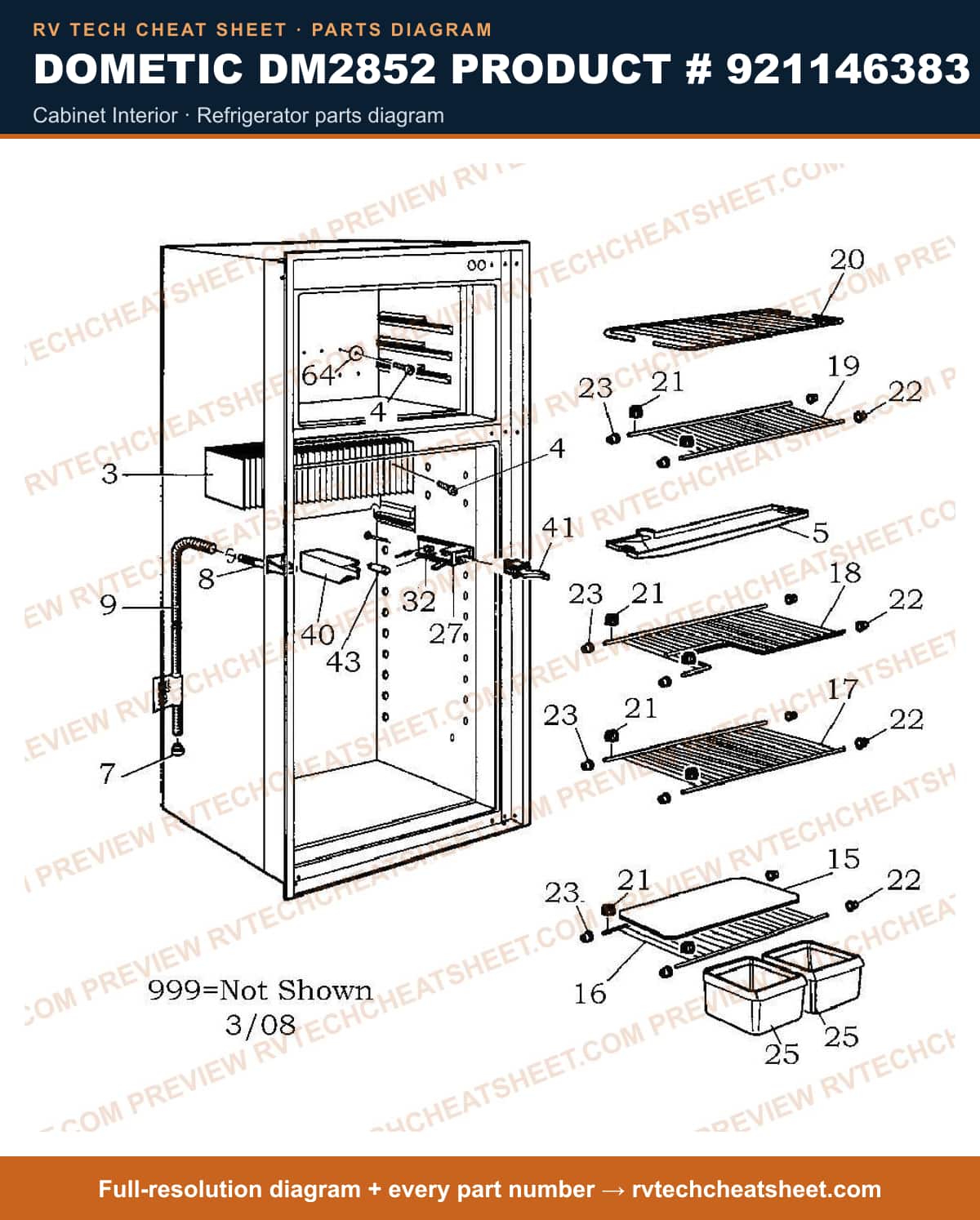

Cabinet Interior

Components

24 items

1. #Refrigerator Cooling Unit; Replacement For Dometic DM2652/ RM2662 Refrigerators; Fins Only MFR # 2932630011
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
6. #Refrigerator Drain Tube; Fits All Dometic RV Refrigerates; 54 Inch Length; Also Use New Number 3316102.9019 MFR # 2932749159 Superseded: see description
7. #APPLIANCE COMPONENTS RV; S,CVR,CRISPER SHELF,WHT-6/8CF MFR # 3851429013
8. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324025
9. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324017
10. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 3850325014
11. #S,SHELF,WIRE,WHT MFR # 3850324033
12. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description
13. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
14. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
16. #Refrigerator Crisper Bin; Replacement For Dometic RM2852/ RM2662 Refrigerators; White; Also Use New Number 29326210100 MFR # 2932621010 Superseded: see description
17. #CRISPER WHITE MFR # 9326210100
18. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
19. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
20. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
21. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
22. #BULB 2/PK MFR # 2007290006
23. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
24. #WASHER MFR # 3858010147

Burner & Controls

Components

43 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW, MRX M4X12 MFR # 3858004025
8. #SCREW,MRX-TT/SW M4X12 MFR # 3858039054
9. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
10. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
11. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
12. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
13. #NO GENERIC NAME;;REFRIGERATOR - BURNER TUBE ONLY - D MFR # 2007484047
14. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
15. #ELECTRODE MFR # 2932781012
16. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
17. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
18. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
19. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # 385071201
20. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
21. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
22. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Power Supply Circuit Board; Also Use New Number 3316996.900 MFR # 3850712013 Superseded: see description
23. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
24. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,GAS VALVE,2WAY MFR # 2954539041
25. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
26. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
27. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
28. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
29. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
30. #3858022019 MFR # 3858022019
31. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
32. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
33. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
34. #2932667047 MFR # 2932667047
35. #2002699094 MFR # 2002699094
36. #Refrigerator Burner Control Module Mounting Bracket; Use With Dometic Refrigerator Model RM3762 MFR # 3851474019 Superseded: see description
37. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
38. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
39. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
40. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
41. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
42. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
43. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024
