Dometic DM2862 Product # 921146389 Parts Diagram · Door Assembly

Refrigerator · 6 assemblies · 6 diagram sheets · 147 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DM2862 Product # 921146389 RV refrigerator: 6 assemblies (Door Assembly, Burner & Controls, Cabinet Rear View, Replacement Refrigerator, Cabinet Interior and more) and 147 manufacturer part numbers. 35 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

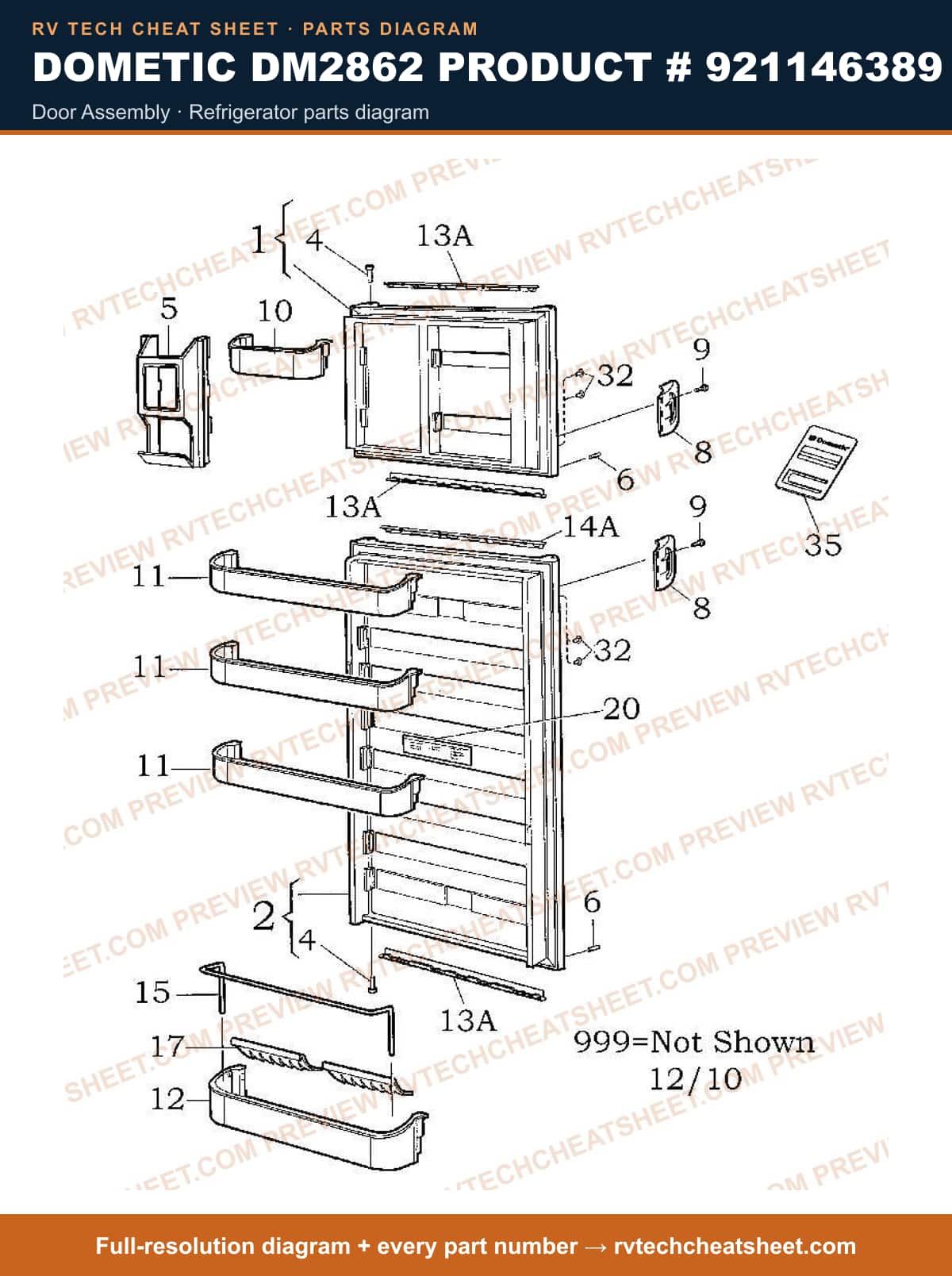

Door Assembly

Components

28 items

1. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ RM2662/ RM2663/ RM2852 Model Refrigerator; Right Hand Side; Upper; Black MFR # 2932561190
2. #Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D
3. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G
4. #S,DOOR ASM,FF,R-8CF MFR # 2932562065
5. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L
6. #Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A
7. #KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C
8. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA
9. #APPLIANCE COMPONENTS RV; BUSHING, HINGE BLACK MFR # 2931171066
10. #Refrigerator Shelf; Replacement For Dometic NDM1062/ DM2862 Refrigerators; Juice Rack; Transparent MFR # 2932578038
11. #Refrigerator Door; Replacement For Dometic DM2652/ DM2662/ DM2852/ NDE1292/ NDM1062/ NDR1062/ NDR1272/ RM1282/ RM2351/ RM2352/ RM4872/ RM7732 Model Refrigerator; Fits Lower Door Right Hand Side MFR # 2932588011
12. #Refrigerator Door Handle; Replacement For Dometic DM2862/ DM2663/ DM2652/ RM2663/ RM2852/ RM2662/ RM3662/ RM3863/ RM3663/ RM3862 Model Refrigerator; Fits Upper/ Lower Door; Black; Also Use New Number 38511740311 MFR # 3851174023 Superseded: see description
13. #Refrigerator Door Handle; Replacement For Dometic DM2862/ DM2663/ DM2652/ RM2663/ RM2852/ RM2662/ RM3662/ RM3863/ RM3663/ RM3862 Model Refrigerator; Fits Upper/ Lower Door; Black MFR # 3851174031
14. #S,SCREW,PT,5.26MM,BLK-6/8/10CF MFR # 3858000049
15. #S,SHELF,FRZ DR,CLR,HALF MFR # 2932577048
16. #Refrigerator Door Bin; Replacement For Dometic DM2862/ DM2662 DM2663 Refrigerators; Transparent MFR # 2932576065
17. #Refrigerator Door Bin; Replacement For Dometic DM2862/ DM2663 Refrigerators; Bottom; Transparent; Also Use New Number 29325760655 MFR # 2932575059 Superseded: see description
18. #Dometic RM2652 Refrigerator Cooling Unit Assembly MFR # 2932576655
19. #Refrigerator Trim; Replacement For Dometic Refrigerator Door Liner; Black MFR # 3850919022
20. #Refrigerator Trim; Replacement For Dometic Refrigerator Door Liner; Black MFR # 3850919097
21. #Refrigerator Trim; Replacement For Dometic Refrigerator Door Liner; Black; Also Use New Number 3850919097 MFR # 3850919063 Superseded: see description
22. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
23. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
24. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
25. #LABEL MFR # 3851235006
26. #APPLIANCE COMPONENTS RV; REFRIGERATOR - HOLE PLUG - SCREW CO MFR # 3850625025
27. #DOOR SPACER/AIRING CARD MFR # 3850781018
28. #APPLIANCE COMPONENTS RV; A,DR PNL SET,RAISED-BLK,RM2852 MFR # 3311889.030C

Burner & Controls

Components

42 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,MRX-TT/SW M4X12 MFR # 3858039054
8. #SCREW, MRX M4X12 MFR # 3858004025
9. #TOILET COMPONENTS RV; Screw Rxs B6X13 MFR # 3858005014
10. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
11. #APPLIANCE COMPONENTS RV; BURNER ASM MFR # 955001672
12. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
13. #NO GENERIC NAME;;REFRIGERATOR - BURNER TUBE ONLY - D MFR # 2007484047
14. #ELECTRODE MFR # 2932781012
15. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
16. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
17. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
18. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Power Supply Circuit Board; Also Use New Number 3316996.900 MFR # 3850712013 Superseded: see description
19. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # 385071201
20. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
21. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
22. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
23. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,GAS VALVE,2WAY MFR # 2954539041
24. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
25. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
26. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
27. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
28. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
29. #3858022019 MFR # 3858022019
30. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
31. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
32. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
33. #2932667047 MFR # 2932667047
34. #2002699094 MFR # 2002699094
35. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
36. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
37. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
38. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
39. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
40. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
41. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
42. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024

Cabinet Rear View

Components

13 items

1. #NEW FITS DOMETIC SELECT MODELS MFR # 6582
2. #KIT SVC C/U 806/826E THERM MFR # 3313470008
3. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
4. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
5. #SCREW 4.8 X 16 MFR # 3858068012
6. #Fuse; Thermal Fuse; Replacement For Dometic Refrigerator Fuse; Also Use New Number 38514090155 MFR # 3851409015 Superseded: see description
7. #Refrigerator Power Cord Fuse; Use With Dometic DM2652/ RM1350/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ RM3762/ RM3962 Refrigerators MFR # 3313711000 Superseded: see description
8. #COVER, HEATER MFR # 3851397012
9. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
10. #LABEL MFR # 3850583000
11. #COVER PLATE MFR # 3851300016
12. #COVER PLATE,SIDE MFR # 3851301014
13. #NO GENERIC NAME; REFRIGERATOR - COVER PLATE - 385130 MFR # 3851302012

Replacement Refrigerator

Components

14 items

1. #REFER,8 CU. FT. BLACK, LH MFR # DM2862LB
2. #Refrigerator; Americana Plus; Dual Compartment 2 Door Refrigerator With Freezer; Permanent Bolt-In; Right Hand Hinge; 8 Cubic Foot; 60-3/4 Inch Height x 24-7/8 Inch Width x 26 Inch Depth; 110 Volt AC; 2-Way Alternating Current/ LP Gas; With Ice Maker And Heat Option For Wiring; Eye-Level Electronic Control; Black Frame; With Fan/ 2 Crispers/ 4 Door Bins; Door Panels Must Be Ordered Separately MFR # 2862RBIMHF
3. #KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C
4. #Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A
5. #REFRIGERATOR,8 CF,LH,BLK,IM W/HTR USE DM2862LBIMHF* MFR # DM2862LBIMH Superseded: see description
6. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L
7. #Refrigerator / Freezer; Americana Plus; Dual Compartment 2 Door Refrigerator With Freezer MFR # DM2862RBIM2F
8. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G
9. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA
10. #Refrigerator; Americana Plus; Dual Compartment 2 Door Refrigerator With Freezer; Permanent Bolt-In; Right Hand Hinge; 8 Cubic Foot; 60-3/4 Inch Height x 24-7/8 Inch Width x 26 Inch Depth; 110 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; Eye-Level Electronic Control; Black Frame; With 2 Crispers/ 4 Door Bins; Door Panels Must Be Ordered Separately MFR # DM2862RB
11. #APPLIANCE COMPONENTS RV; REFR,8CF,LH,2-WAY/IM/H/FAN MFR # DM2862LBIMHF
12. #APPLIANCE COMPONENTS RV; A,DR PNL SET,RAISED-BLK,RM2852 MFR # 3311889.030C
13. #REFRIGERATOR,8 CF,RH,BLK,IM W/HTR USE DM2862RBIMHF* MFR # DM2862RBIMH Superseded: see description
14. #Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D

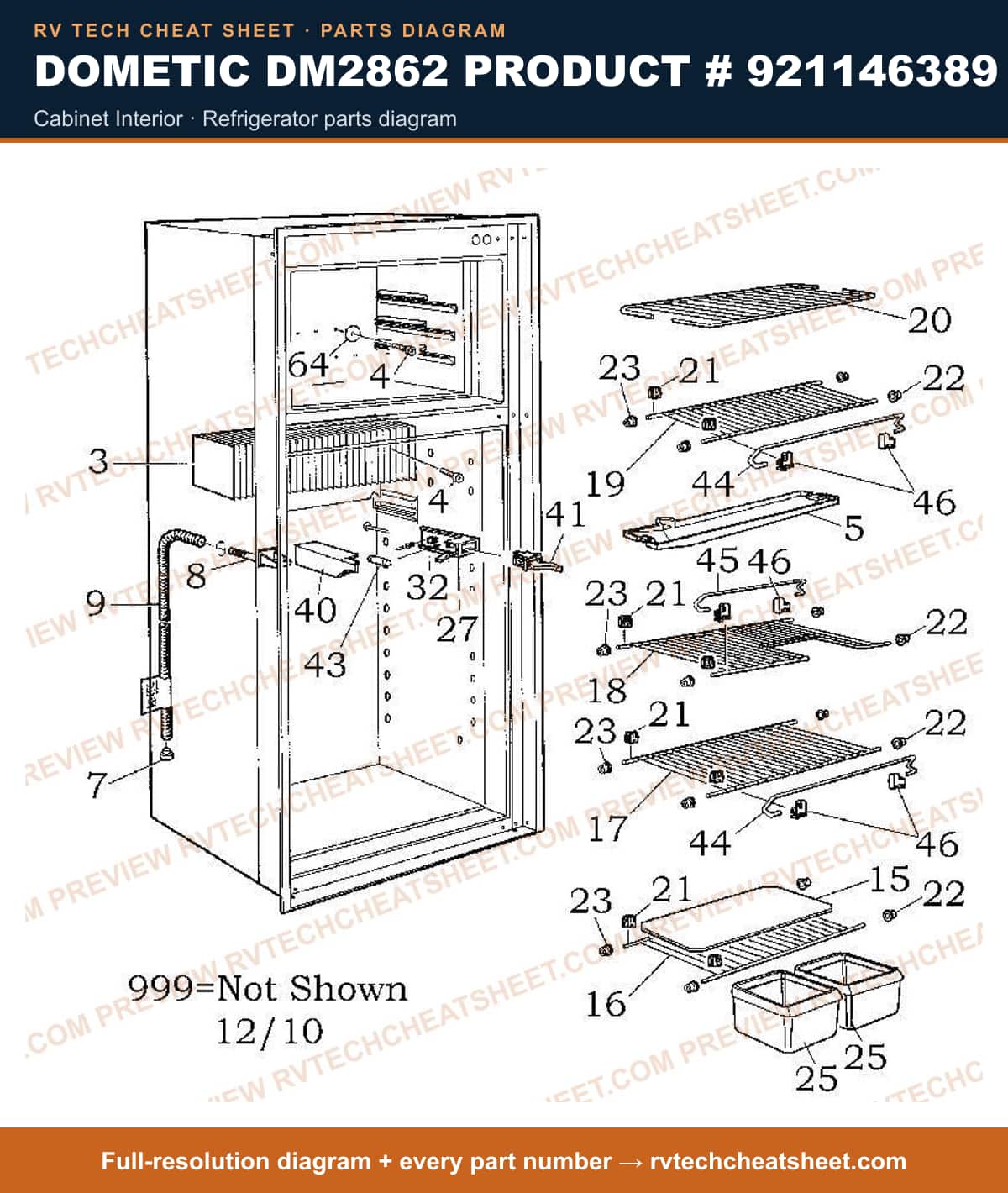

Cabinet Interior

Components

27 items

1. #Refrigerator Cooling Unit; Replacement For Dometic DM2652/ RM2662 Refrigerators; Fins Only MFR # 2932630011
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
6. #Refrigerator Drain Tube; Fits All Dometic RV Refrigerates; 54 Inch Length; Also Use New Number 3316102.9019 MFR # 2932749159 Superseded: see description
7. #Refrigerator Shelf; Replacement For Dometic DM2862/ DM2663 Refrigerators; Clear; Plastic MFR # 2931117176
8. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324025
9. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324017
10. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 3850325014
11. #S,SHELF,WIRE,WHT MFR # 3850324033
12. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description
13. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
14. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
16. #Refrigerator Crisper Bin; Replacement For Dometic DM2862/ DM266/ DM2663 Refrigerators; Transparent MFR # 2932621077
17. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM3663/ RGE400/ RM3863 Refrigerators; Also Use New Number 2932520014 MFR # 2932523018 Superseded: see description
18. #Refrigerator Interior Light Contact Pin; Replacement For Dometic DM2862/ RM1350/ RM3762/ RM3962 Model Refrigerator; Tin Bronze; Single MFR # 2932108018
19. #Refrigerator Interior Light Mounting Bracket; Replacement For Dometic RM2607/ RM2611/ RM2612/ RM2620/ RM2807/ RM2811/ RM2812/ RM2820/ RM3607/ RM3807 Model Refrigerator MFR # 2932106012
20. #Refrigerator Door Light Switch; Replacement For Dometic NDR1292/ DM2852/ RM3862 Refrigerators; Also Use New Number 29326650177 MFR # 2932665017 Superseded: see description
21. #APPLIANCE COMPONENTS RV; BULB PKG, 12V-10W MFR # 200729000P
22. #BULB 2/PK MFR # 2007290006
23. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description
24. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
25. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
26. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
27. #WASHER MFR # 3858010147

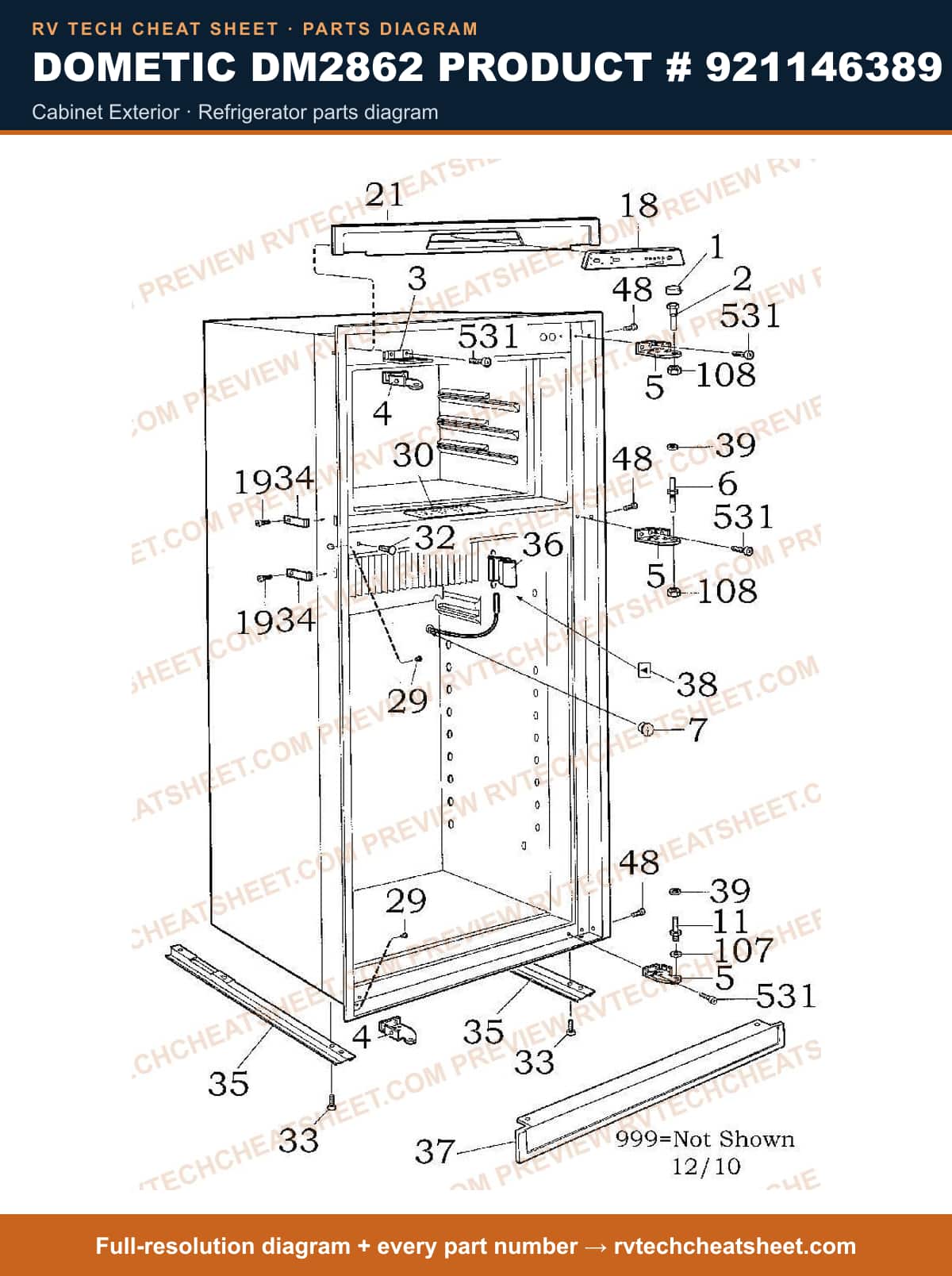

Cabinet Exterior

Components

31 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #AWNING-ACCESSORIES RV; S,BRKT,TOP DECOR,BLK8500-6,8 MFR # 3851466015
4. #Refrigerator Door Hinge; Replacement For Dometic RM2452/ RM3863/ NDM1062 Refrigerators; Right Hand Side; Black; Also Use New Number 29326430300 MFR # 2932643030 Superseded: see description
5. #Refrigerator Door Hinge; Replacement For Dometic NDR1062/ RM2652/ RM2663 Refrigerators; Fits Top Hinge; Black; Also Use New Number 29326430300 MFR # 2932648021 Superseded: see description
6. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
7. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
8. #Refrigerator Eyebrow Power Control Circuit Board; Replacement For Dometic Refrigerator Models DM2662/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2662/ RM2862/ RM3662/ RM3862; 2 Way Alternating Current/ LP Gas; Black;Also Use New Number 2932884097 MFR # 2932884055 Superseded: see description
9. #Dometic Refrigerator Replacement Eyebrow Circuit Board Control Panel MFR # 2932884097
10. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
11. #Refrigerator Trim; Replacement For Dometic DM2652/ DM2862 Refrigerators MFR # 2932641075
12. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
13. #LABEL MFR # 2932435007
14. #PLUG,BLACK MFR # 3312986106
15. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
16. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 2932855030 MFR # 2932855014 Superseded: see description
17. #Door Catch; Use With Dometic Refrigerators; Lever Type; Also Use New Number 29328550300 MFR # 2932855030 Superseded: see description
18. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
19. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
20. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
21. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
22. #LABEL MFR # 2933180016
23. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
24. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
25. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
26. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
27. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
28. #APPLIANCE COMPONENTS RV; REVERSING KIT,DOOR LH-RH MFR # 2932750124
29. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 2932750116
30. #APPLIANCE COMPONENTS RV; Reversing Kit Door Rh-Lh MFR # 293275011
31. #APPLIANCE COMPONENTS RV; K,DR REV,L/R-BLK,DM26XX,28XX MFR # 293275012
