Dometic DM2872 Product # 958704472 Parts Diagram · Door Assembly

Refrigerator · 6 assemblies · 6 diagram sheets · 39 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DM2872 Product # 958704472 RV refrigerator: 6 assemblies (Door Assembly, Replacement, Cabinet Rear View, Cabinet Exterior, Gas & Electric Controls and more) and 39 manufacturer part numbers. 8 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Door Assembly

Components

14 items

1. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 3316890900
2. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
3. #Dometic RM2652 Refrigerator Door Handle Assembly MFR # 3316888900
4. #Dometic RM2652 RM2662 Refrigerator Main Control Board MFR # 3316889900
5. #Refrigerator Door Handle; Replacement For Dometic DM2682/ DM2683/ DM2882 Series Refrigerator; Fits Right Hand Or Left Hand Side; Black MFR # 3316882901
6. #S STD DR HANDLE COMBO-6/8 AMII MFR # 3316882900
7. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
8. #NO GENERIC NAME; REFRIGERATOR 6' FREEZER SHELF ONLY MFR # 3316081902
9. #Refrigerator Door Bin; Replacement For Dometic DM2862/ DM2662 DM2663 Refrigerators; Transparent MFR # 2932576065
10. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
11. #Refrigerator Door Bin; Replacement For Dometic DM2862/ DM2663 Refrigerators; Bottom; Transparent; Also Use New Number 29325760655 MFR # 2932575059 Superseded: see description
12. #Dometic RM2652 RM2662 Refrigerator Lower Door Bin MFR # 3316883900
13. #Refrigerator Door Chain; Replacement For Dometic 6 Cubic Foot/ 8 Cubic Foot Americana Refrigerators; Door Airing Card MFR # 3850781026
14. #Dometic RM2652 RM2662 Refrigerator Gas Valve Assembly MFR # 3316885900

Replacement

Components

1 item

1. #Refrigerator; Americana Plus; Dual Compartment 2 Door Refrigerator With Freezer; Permanent Bolt-In; Right Hand Hinge; 8 Cubic Foot; 60-3/4 Inch Height x 24-7/8 Inch Width x 26 Inch Depth; 110 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; Eye-Level Electronic Control; Black Frame; With Fan/ 2 Crispers/ 4 Door Bins; Door Panels Must Be Ordered Separately MFR # DM2862RBF

Cabinet Rear View

Components

3 items

1. #Fuse; Thermal Fuse; Replacement For Dometic Refrigerator Fuse; Also Use New Number 38514090155 MFR # 3851409015 Superseded: see description
2. #Dometic RM2193 RM2652 Refrigerator Door Panel Hook MFR # 3850306063
3. #S,FAN,92MM,T=25MM MFR # 3851183016

Cabinet Exterior

Components

10 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
2. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
3. #Refrigerator Interface Circuit Board; Replacement For Dometic DM2683/ DM2663 Series Refrigerator; 3 Way AC/ DC/ Gas Operation MFR # 3316871900
4. #Dometic RM2652 RM2662 Refrigerator Main Control Board MFR # 3316872900
5. #Refrigerator Interface Circuit Board; Replacement For Dometic DM2682/ DM2882 Series Refrigerator MFR # 3316874900
6. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
7. #Refrigerator Eyebrow Power Control Circuit Board; Replacement For Dometic DM2672/ DM2682/ DM2683/ DM2872/ DM2882 Series Refrigerator MFR # 3316875903
8. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 41 Inch Length; Also Use New Number 38510590422 MFR # 3851059034 Superseded: see description
9. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
10. #S,LABEL,MNTG HOLES,BLK-AMII MFR # 3316893.900

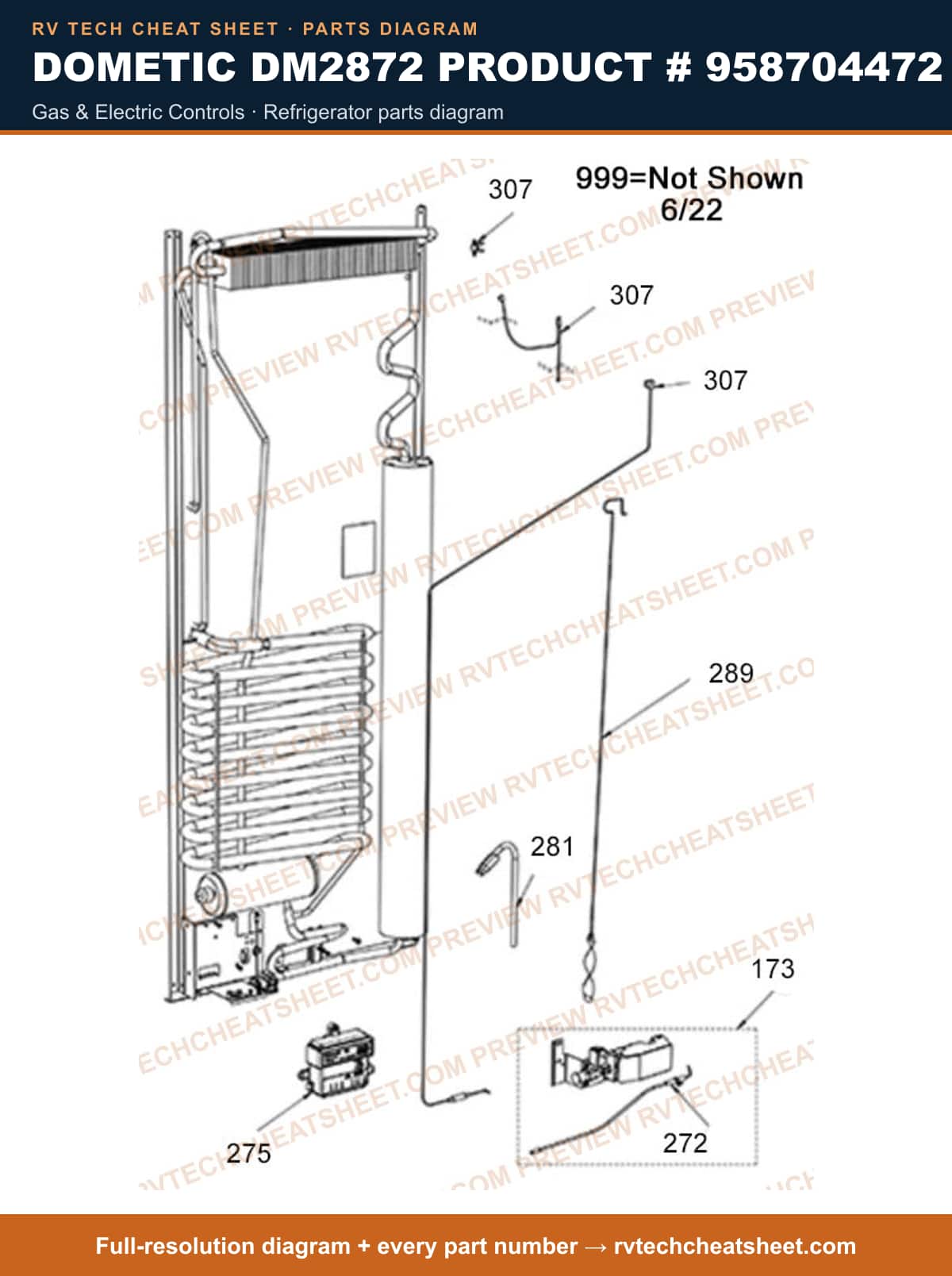

Gas & Electric Controls

Components

4 items

1. #Dometic Americana Refrigerator Power Control Board MFR # 3316348.900
2. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
3. #2932667047 MFR # 2932667047
4. #S,FAN,92MM,T=25MM MFR # 3851183016

Cabinet Interior

Components

8 items

1. #S,HOSE ASM,DRAIN-6,7,8,9CF MFR # 3316102.901
2. #S WIRE SHELVES COMBO-6/8 AM II MFR # 3316870900
3. #Refrigerator Shelf Support; Replacement For Dometic Refrigerators; Wire Type MFR # 3316450901
4. #APPLIANCE COMPONENTS RV; S,CRISP BIN,WHT,COMBO-6CF AMII MFR # 3316877.900
5. #3316877.901 MFR # 3316877.901
6. #APPLIANCE COMPONENTS RV; S,CRISP BIN,CLR,COMBO-6/8 AMII MFR # 3316877901
7. #S LED LIGHT/SWCH ASM-6/8 AM II MFR # 3316878900
8. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description
