Dometic DM2882 Product # 958704470 Parts Diagram · Cabinet Exterior

Refrigerator · 6 assemblies · 6 diagram sheets · 38 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DM2882 Product # 958704470 RV refrigerator: 6 assemblies (Cabinet Exterior, Gas & Electric Controls, Replacement, Cabinet Interior, Cabinet Rear View and more) and 38 manufacturer part numbers. 9 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Exterior

Components

10 items

1. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
2. #Refrigerator Door Hinge Pin; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Fits Lower Hinge; Also Use New Number 29326430300 MFR # 2932649011 Superseded: see description
3. #Dometic RM2652 RM2662 Refrigerator Main Control Board MFR # 3316872900
4. #Refrigerator Interface Circuit Board; Replacement For Dometic DM2682/ DM2882 Series Refrigerator MFR # 3316874900
5. #Refrigerator Interface Circuit Board; Replacement For Dometic DM2683/ DM2663 Series Refrigerator; 3 Way AC/ DC/ Gas Operation MFR # 3316871900
6. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
7. #Refrigerator Eyebrow Power Control Circuit Board; Replacement For Dometic DM2672/ DM2682/ DM2683/ DM2872/ DM2882 Series Refrigerator MFR # 3316875903
8. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
9. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 41 Inch Length; Also Use New Number 38510590422 MFR # 3851059034 Superseded: see description
10. #S,LABEL,MNTG HOLES,BLK-AMII MFR # 3316893.900

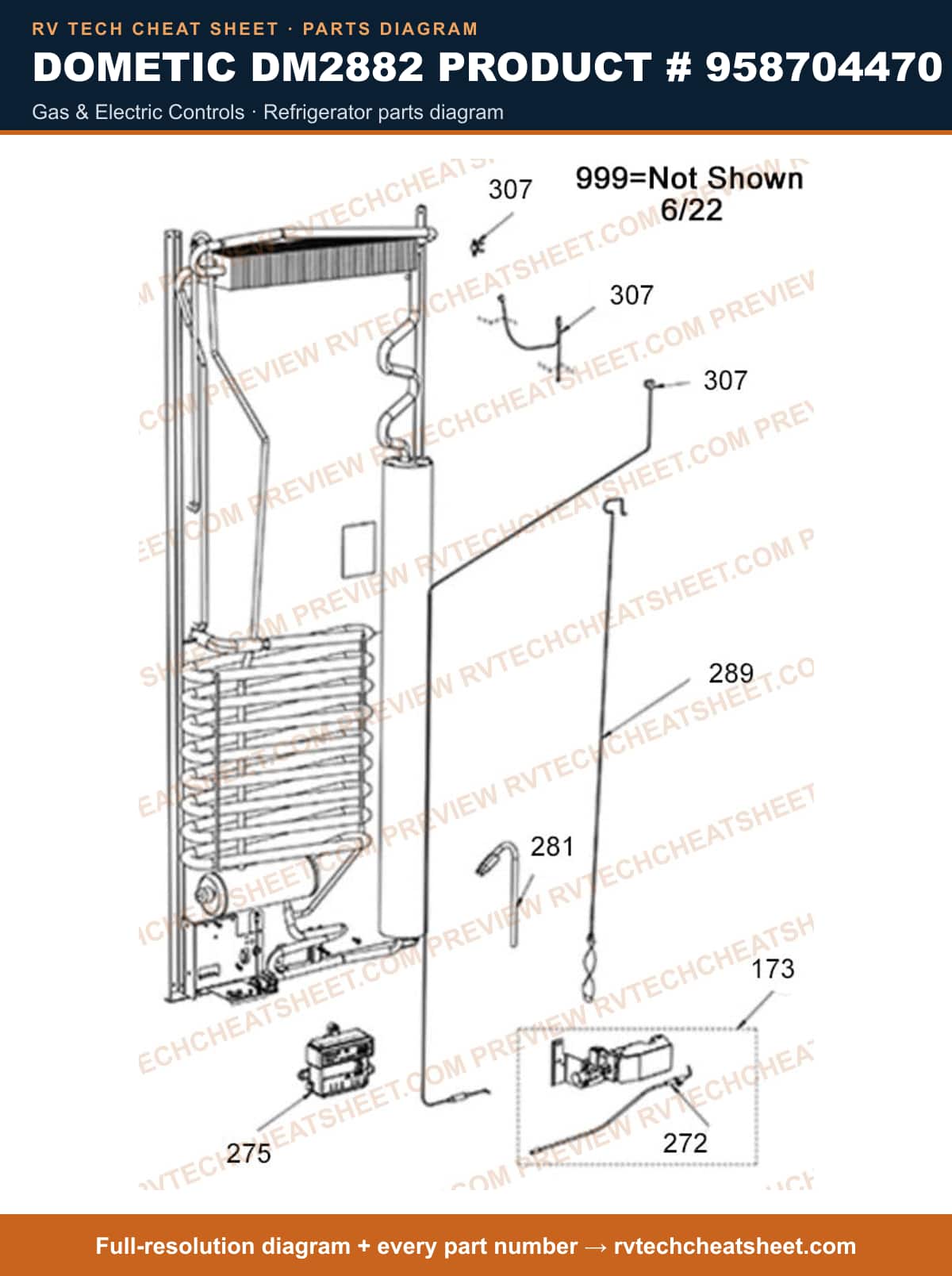

Gas & Electric Controls

Components

3 items

1. #Dometic Americana Refrigerator Power Control Board MFR # 3316348.900
2. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
3. #2932667047 MFR # 2932667047

Replacement

Components

2 items

1. #REFRIGERATORS & ICE MAKERS RV; REFR,8CF,L,2-WAY/1PK MFR # DM2882LB1
2. #Refrigerator; Americana II; Dual Compartment 2 Door Refrigerator With Freezer; Permanent Bolt-In; Left Hand Hinge/ Reversible Hinge For Easy Modification To Right Hand; 8 Cubic Foot; 60-3/4 Inch Height x 24-7/8 Inch Width x 26 Inch Depth; 110 Volt AC; 2-Way Alternating Current/ LP Gas; Without Ice Maker; Eye-Level Electronic Control With Temperature Control; Black Frame; With 2 Crispers/ 3 Door Bins/ LED Light/ Ergonomic Handle With 'Click-Lock' Sound When Locked; Door Panels Must Be Ordered Separately; Also Use New Number DM2882LB1 MFR # DM2882LB4 Superseded: see description

Cabinet Interior

Components

7 items

1. #S,HOSE ASM,DRAIN-6,7,8,9CF MFR # 3316102.901
2. #S WIRE SHELVES COMBO-6/8 AM II MFR # 3316870900
3. #Refrigerator Shelf Support; Replacement For Dometic Refrigerators; Wire Type MFR # 3316450901
4. #APPLIANCE COMPONENTS RV; S,CRISP BIN,CLR,COMBO-6/8 AMII MFR # 3316877901
5. #3316877.901 MFR # 3316877.901
6. #S LED LIGHT/SWCH ASM-6/8 AM II MFR # 3316878900
7. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description

Cabinet Rear View

Components

2 items

1. #Dometic RM2193 RM2652 Refrigerator Door Panel Hook MFR # 3850306063
2. #Fuse; Thermal Fuse; Replacement For Dometic Refrigerator Fuse; Also Use New Number 38514090155 MFR # 3851409015 Superseded: see description

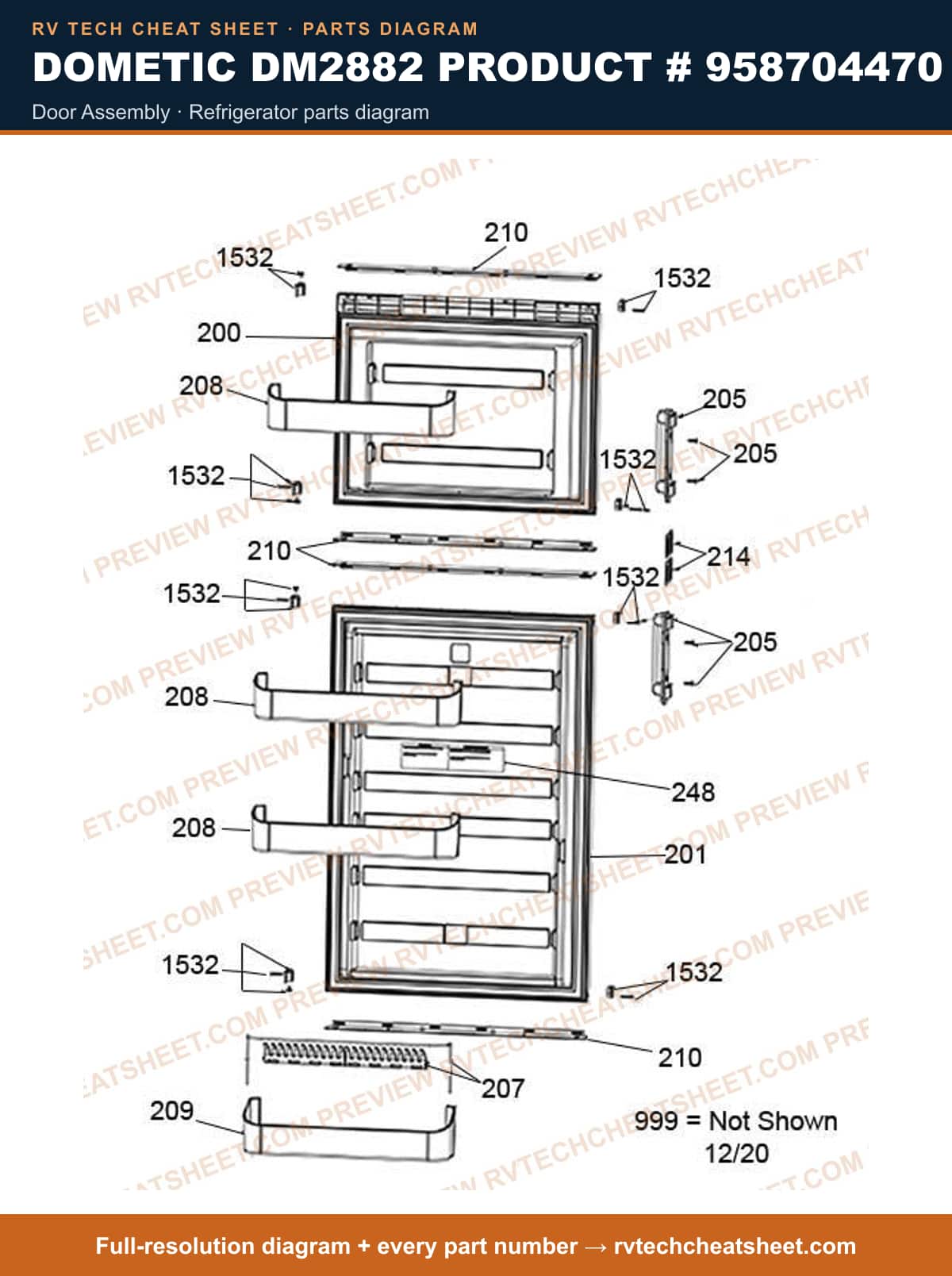

Door Assembly

Components

14 items

1. #Dometic RM2652 Refrigerator Lower Door Bin MFR # 3316890900
2. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
3. #Dometic RM2652 Refrigerator Door Handle Assembly MFR # 3316888900
4. #Dometic RM2652 RM2662 Refrigerator Main Control Board MFR # 3316889900
5. #S STD DR HANDLE COMBO-6/8 AMII MFR # 3316882900
6. #Refrigerator Door Handle; Replacement For Dometic DM2682/ DM2683/ DM2882 Series Refrigerator; Fits Right Hand Or Left Hand Side; Black MFR # 3316882901
7. #Refrigerator Door Bin; Replacement For Dometic DM2862/ DM2662 DM2663 Refrigerators; Transparent MFR # 2932576065
8. #NO GENERIC NAME; REFRIGERATOR 6' FREEZER SHELF ONLY MFR # 3316081902
9. #Refrigerator Door Bin; Replacement For Dometic DM2652/ DM2852 Refrigerators; Top Or Middle MFR # 2932576016
10. #Refrigerator Door Bin; Replacement For Dometic RK400/ RM2652 Refrigerators; White; Also Use New Number 29325760166 MFR # 2932575018 Superseded: see description
11. #Refrigerator Door Bin; Replacement For Dometic DM2862/ DM2663 Refrigerators; Bottom; Transparent; Also Use New Number 29325760655 MFR # 2932575059 Superseded: see description
12. #Dometic RM2652 RM2662 Refrigerator Lower Door Bin MFR # 3316883900
13. #Refrigerator Door Chain; Replacement For Dometic 6 Cubic Foot/ 8 Cubic Foot Americana Refrigerators; Door Airing Card MFR # 3850781026
14. #Dometic RM2652 RM2662 Refrigerator Gas Valve Assembly MFR # 3316885900
