Dometic DM3862 Product # 921146310 Black Parts Diagram · Cabinet Rear View

Refrigerator · 5 assemblies · 5 diagram sheets · 126 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DM3862 Product # 921146310 Black RV refrigerator: 5 assemblies (Cabinet Rear View, Cabinet Interior, Door Assembly, Burner & Control, Cabinet Exterior) and 126 manufacturer part numbers. 24 parts are marked as superseded — the description gives the replacement number to order instead.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

Cabinet Rear View

Components

9 items

1. #COOLING UNIT W/THERMAL FUSE,TYPE 806; REPLACES: IS A USE \# FOR 2934806098 MFR # 2934806106 Superseded: see description
2. #COOLING UNIT FILLING VESSEL COVER KIT, BLK MFR # 1732280084
3. #Refrigerator Cooling Unit Cap; Use With Dometic RM Series 2 Way And 3 Way/ Servel/ Americana/ Americana Plus/ Royale Refrigerators MFR # 2933557007 Superseded: see description
4. #SCREW 4.8 X 16 MFR # 3858068012
5. #Refrigerator Emblem; Replacement For Dometic Refrigerator; Gas MFR # 3850582002
6. #LABEL MFR # 3850583000
7. #COVER PLATE MFR # 3851300016
8. #COVER PLATE,SIDE MFR # 3851301014
9. #NO GENERIC NAME; REFRIGERATOR - COVER PLATE - 385130 MFR # 3851302012

Cabinet Interior

Components

32 items

1. #Refrigerator Cooling Unit; Replacement For Dometic DM2652/ RM2662 Refrigerators; Fins Only MFR # 2932630011
2. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;B10 x 38; Zinc Plated MFR # 3858036019
3. #Refrigerator Drain Hose Plug; Replacement For Dometic DM2652/ RM4873/ RM3862 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932624014 Superseded: see description
4. #Refrigerator Drain Hose Plug; Replacement For Dometic NDR1272/ RM7130/ RM4873 Refrigerators;Also Use New Number 3316102.9019 MFR # 2932115013 Superseded: see description
5. #Refrigerator Drain Hose Plug; Use With Dometic NDR1272/ RM4873/ NDR1062 Refrigerators; Fins Only; With Handle MFR # 2932635010 Superseded: see description
6. #Refrigerator Drain Tube; Replacement For Dometic RM2453/ RM3962/ RM2554 Model Refrigerators MFR # 2932749019
7. #Refrigerator Shelf; Replacement For Dometic DM2862/ DM2663 Refrigerators; Clear; Plastic MFR # 2931117176
8. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324025
9. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2663/ ...;Wire MFR # 3850324017
10. #APPLIANCE COMPONENTS RV; Shelf Wire MFR # 3850325014
11. #S,SHELF,WIRE,WHT MFR # 3850324033
12. #Refrigerator Shelf; Replacement For Dometic DM2652/ DM2662/ DM2852/ ...;Freezer Compartment; Wire; Also Use New Number 2932627017 MFR # 2932627025 Superseded: see description
13. #Refrigerator Shelf Support; Replacement For Dometic NDR1062/ NDR1292 Refrigerators MFR # 2932102011
14. #Refrigerator Shelf Support; Replacement For Dometic RM2663/ RM2652/ RM2662 Refrigerators; Left Side;Also Use New Number 3316450.9019 MFR # 2932101013 Superseded: see description
15. #Refrigerator Shelf Support; Replacement For Dometic RM3862/ RM2352/ RM3762 Refrigerators; Left Side; Also Use New Number 3316450.9019 MFR # 2932103019 Superseded: see description
16. #S,BASE,LIGHT,NDM1062 MFR # 3850454012
17. #CRISPER,TRANSPARENT MFR # 2932621093
18. #Refrigerator Door Latch Plate Screw; Replacement For Dometic DM3862/ ... MFR # 3858006046
19. #APPLIANCE COMPONENTS RV; Housing Lamp MFR # 3850531017
20. #S,BIN,STORAGE,MILK SHELF,WHT MFR # 2932636018
21. #165521030 MFR # 165521030
22. #APPLIANCE COMPONENTS RV; PUSH ROD MFR # 3850534011
23. #S,HOLDER,PUCH ROD,NDM1062 MFR # 3850535018
24. #Reflector; Replacement For Dometic Refrigerator Bulb Reflector MFR # 3850533013
25. #Refrigerator Flame Indicator; Lamp Cover MFR # 3850532015
26. #Refrigerator Door Light Switch; Replacement For Dometic Refrigerator Door Light Switch; Push Button MFR # 3850456017
27. #BULB,HALOGEN 12V 10W MFR # 3850455019
28. #Refrigerator Door Rail; Replacement For Dometic RM3962/ DM2862/ ...;Wire; Also Use New Number 20073372111 MFR # 2007337211 Superseded: see description
29. #S,RAIL,SHELF,218MM,6-10CF MFR # 2007337120
30. #S WIRE SHELF RAILS/HOLDERS MFR # 2007372111
31. #Refrigerator Door Rail; Replacement For Dometic NDR1272/ NDR1282 Refrigerators MFR # 2930693045
32. #WASHER MFR # 3858010147

Door Assembly

Components

22 items

1. #Refrigerator Door; Replacement For Dometic RM3862/ DM3862 Model Refrigerator; Right Hand Side; Upper; Black MFR # 3850539028
2. #APPLIANCE COMPONENTS RV; Door Refer Black MFR # 3850538020
3. #Refrigerator Door Panel; Upper And Lower Door Panels Fit Dometic DM2852 And DM2862 Model Refrigerators; Raised Bronze MFR # 3311889.030D
4. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852L
5. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852BA
6. #Refrigerator Door Panel; Upper And Lower Door Panels For Dometic DM2852 And DM2862 Refrigerators MFR # 3311889.030A
7. #Refrigerator Door Panel;;Fits Dometic DM2852/ RM2852/ DM2862/ RM2862/ DM3862/ RM3862/ RM3863/ RM487 MFR # 2852G
8. #KIT, ACCESS DOOR PANEL BLACK RM2852/2862 MFR # 3106863.081C
9. #Refrigerator Door Hinge Bushing; Use With Dometic Refrigerator Model RM3862 Royale; Fits Top Hinge; Black MFR # 3850386016 Superseded: see description
10. #Refrigerator Shelf; Replacement For Dometic NDM1062/ DM2862 Refrigerators; Juice Rack; Transparent MFR # 2932578038
11. #S,DOOR HANDLE,BLK,NDR1062 MFR # 3850558010
12. #Refrigerator Door Handle; Replacement For Dometic DM3862/ NDM1062/ NDR1062/ RM3862 Model Refrigerator; Fits Lower Door; Black MFR # 3850558028
13. #S,SCREW,EML,5*10,ZP,BLK-6-10/ MFR # 3858089018
14. #S,SHELF,FRZ DR,CLR,HALF MFR # 2932577048
15. #DOORS RV; DOOR SHELF TRANSPARENT MFR # 2932576073
16. #SHELF,DOOR CLEAR MFR # 2932575067
17. #Refrigerator Door Bin; Refrigerator Shelf; Replacement For Dometic RM2662/ NDR1062/ RM3662 Refrigerators; Wire MFR # 2932585033
18. #Refrigerator Shelf; Use With Dometic NDR1272/ RM4872 Refrigerators; Bottle Holder; Fresh Food Compartment; Plastic; Polar White MFR # 2932658012 Superseded: see description
19. #Refrigerator Shelf; Magic Fingers; Use With Dometic Refrigerator Models NDR1272/ RM4872; Bottle Holder; Polar White MFR # 3106753001 Superseded: see description
20. #Ice Bin; Use With Dometic DM2663/ RM3862/ NDM1062 Refrigerators; Clear MFR # 2932579028 Superseded: see description
21. #LABEL MFR # 3851235006
22. #Refrigerator Gasket; Replacement For Dometic RM2852/ RM3862/ RM3863/ RM4872/ RM4873 Model Refrigerators; Refrigerator And Freezer Door Gasket Kit; White; With Double Sided Tape MFR # 3108704382

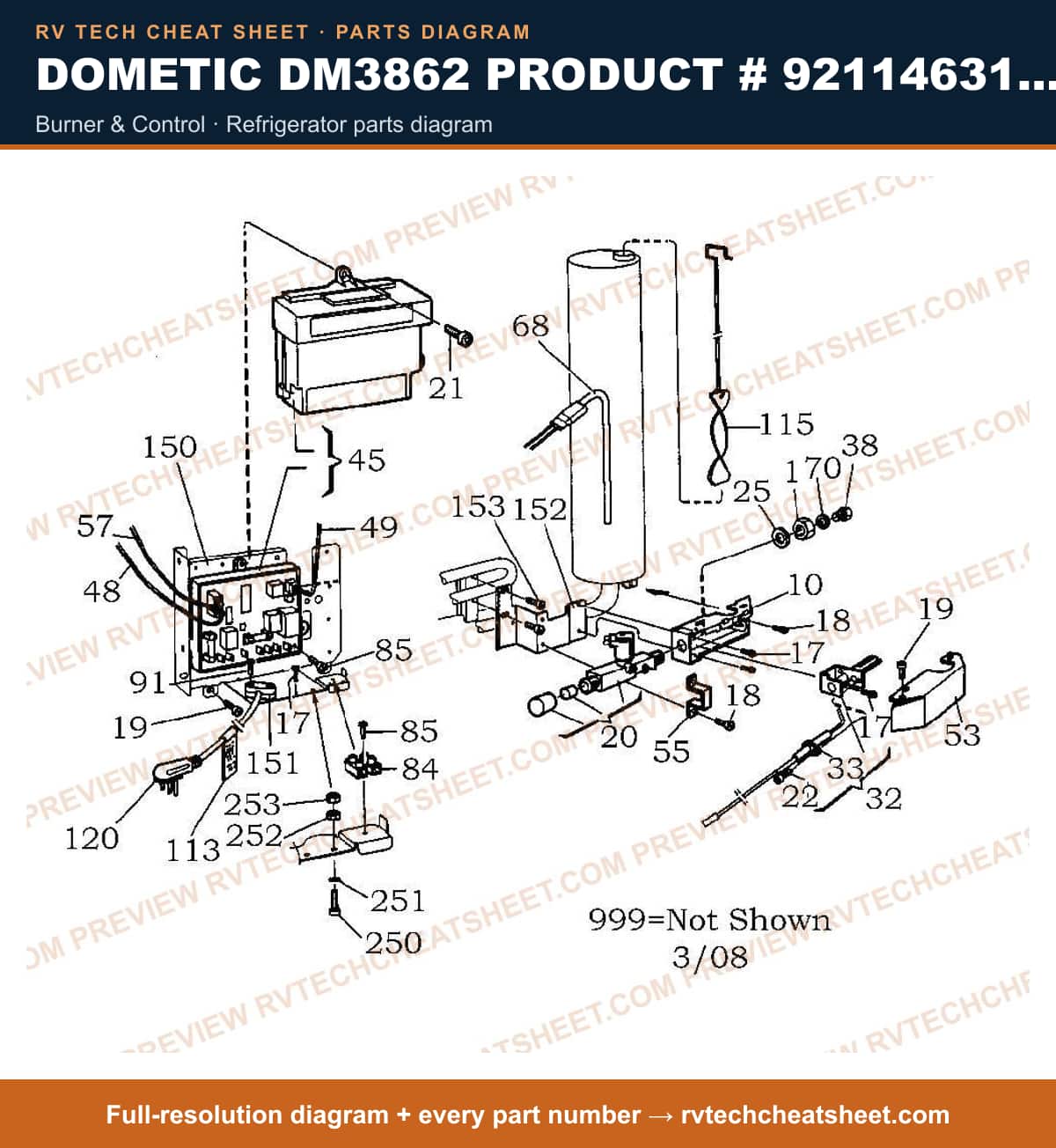

Burner & Control

Components

38 items

1. #APPLIANCE COMPONENTS RV; Nut Orifice MFR # 140207044
2. #Dometic RM2652 Refrigerator Circuit Board Control Module MFR # 2932603018
3. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 8; Zinc Plated MFR # 3858039039 Superseded: see description
4. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
5. #Screw; RXS Screw; Use With Dometic Refrigerators; B6 x 9.5; Zinc Plated MFR # 3858002144 Superseded: see description
6. #Refrigerator Gas Valve; Replacement For Dometic DM2662/ RM3962/ RM2551 Refrigerators; Solenoid Valve MFR # 2932615012
7. #SCREW,RXS B6X13 ZINC MFR # 3858002151
8. #Washer; Use With Dometic Refrigerators; 12.5 x 18.5 x 1 MFR # 3858010071 Superseded: see description
9. #Refrigerator Gas Valve; Refrigerator Burner Tube; Fits Dometic RM2652/ RM2862/ RM2852/ RM2663 Model Refrigerators; With Electrode MFR # 2930697079
10. #ELECTRODE MFR # 2932781012
11. #Igniter Electrode; Use With Dometic Refrigerator Models DM2652/ DM2852/ DM2562/ DM2862/ DM3862/ NDM1062/ NDR1062/ RM2351/ RM2354/ RM2451/ RM2454/ RM2551/ RM2554/ RM2620/ RM2652/ RM2662/ RM2663/ RM2820/ RM2852/ RM2862/ RM3662/ RM3663/ RM3762/ RM3862/ RM3863/ RM3962/ RM4872; With Wire Lead MFR # 2932781012MC Superseded: see description
12. #Refrigerator Gas Valve; Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM1303/ RM2800/ RM2802/ RM2803/ RM2810/ RM23804 Series Refrigerators; \#58 MFR # 2007419217
13. #Dometic RM2652 Refrigerator Main Control Board MFR # 3850730569
14. #Refrigerator Control Board Kit; Replacement For Dometic Refrigerator Power Supply Circuit Board; Also Use New Number 3316996.900 MFR # 3850712013 Superseded: see description
15. #Fuse; Glass Tube; AGC; 3 Amp; 1/4 Inch x 1-1/4 Inch; Pack Of 5; With English/ Spanish/ French Language Blister Packaging MFR # BPAGC3
16. #KIT POWER/CONTROL MODULE-HERC MFR # 3316348900
17. #Refrigerator Ignition Control Module; Replacement For Older Dometic Refrigerator Circuit Board Part Number 3850712-01; With Built-In Re-Ignitor MFR # BPAGC5
18. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor; 51 Inch Length MFR # 3851059042
19. #WIRING & SERVICE ACCESSORYS RV; S,WIRE ASM,GAS VALVE,2WAY MFR # 2954539041
20. #Refrigerator Burner Box Cover; Replacement For Dometic RM2332/ RM4873 Refrigerators MFR # 2932661016
21. #Refrigerator Gas Valve; Refrigerator Thermocouple Bracket; Replacement For Dometic RM4872/ RM4873 Refrigerators MFR # 2932662014
22. #Refrigerator Switch Wiring Kit; Conductor Wire MFR # 2954542037
23. #Refrigerator Cooling Unit Heater Element; Use With Dometic Refrigerator Models DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ NDM1062/ NDR1062/ RM2652/ RM2852/ RM3862/ RM3962; 120 Volt; 325 Watt MFR # 3850644422 Superseded: see description
24. #Refrigerator Burner Orifice; Replacement For Dometic RM1301/ RM2600/ RM2610/ NDR1282 Model Refrigerator MFR # 2007457001
25. #3858022019 MFR # 3858022019
26. #S,SCREW,RXS,3.5*25,ZPBC MFR # 3858002185
27. #SCREW RXS B6 X 19 ZINC MFR # 3858002177
28. #Decal; Replacement For Dometic NDR1272/ RM2410/ NDR1062 Refrigerators; Electrical Ground MFR # 2932733005
29. #2932667047 MFR # 2932667047
30. #2002699094 MFR # 2002699094
31. #APPLIANCE COMPONENTS RV; Plate Module Board MFR # 3850337019
32. #Refrigerator Power Cord Strain Relief Bushing; Replacement For Dometic RGE400 Refrigerators MFR # 561014010
33. #Solenoid Mounting Bracket; Use With Dometic Refrigerator NDR1062/ RM2652 Americana MFR # 3850377015 Superseded: see description
34. #S,SCREW,TAP,M5*25,ZPS-6-13CF/ MFR # 3858018017
35. #SCREW,ZINC-PLATED MRX M4X16 MFR # 3858004033
36. #WASHER,LOCK ZINC-PLATED 4.3 X 8 MFR # 3858011012
37. #NUT,HEX ZINC-PLATED M4 X 3.2 MFR # 3858009016
38. #NUT,LOCK ZINC-PLATED M4 MFR # 3858028024

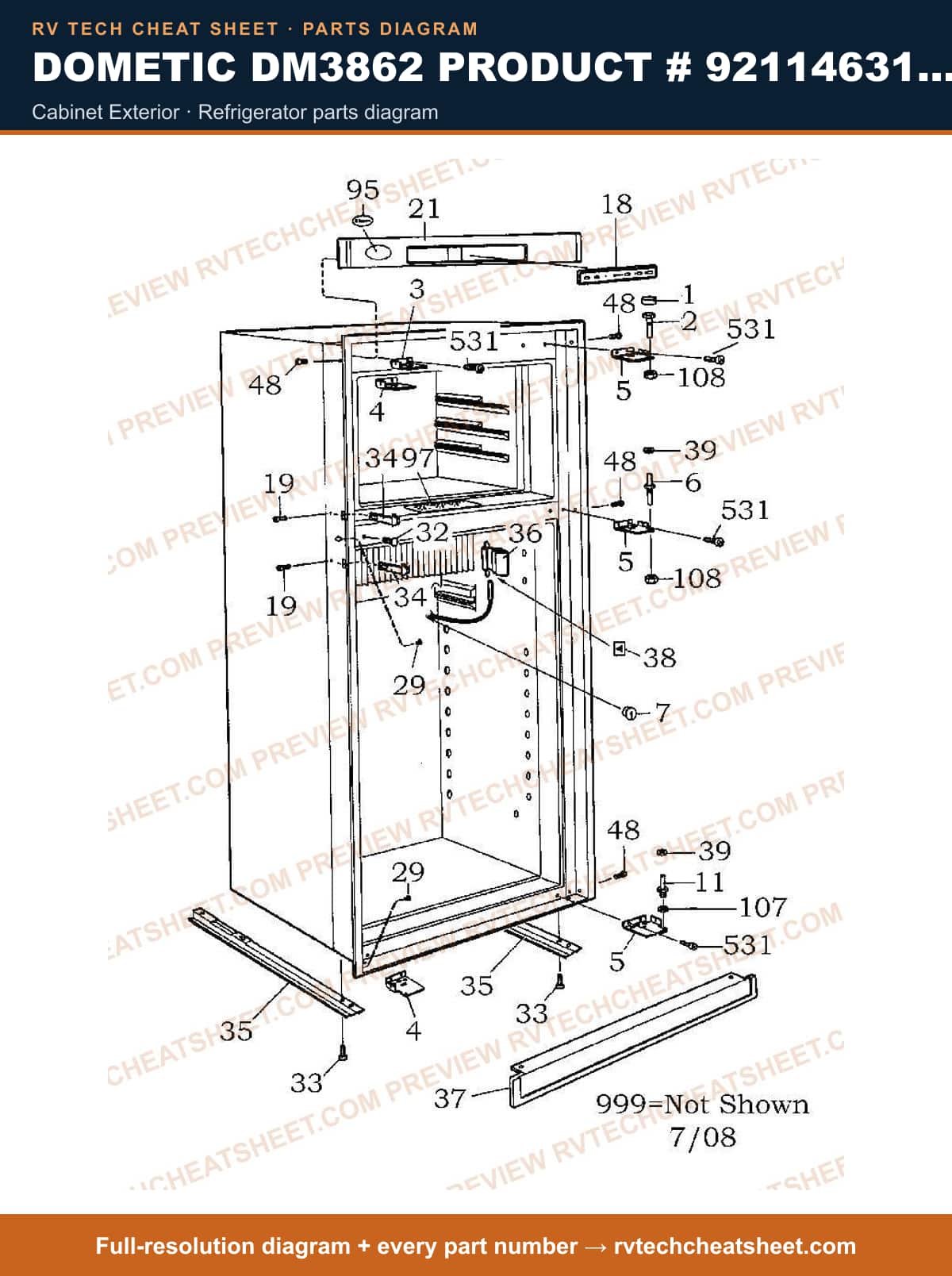

Cabinet Exterior

Components

26 items

1. #S,CAP,HINGE PIN,BLK8500 MFR # 2932736081
2. #Refrigerator Door Hinge Pin; Replacement For Dometic NDR1272/ RM4872/ RM4873 Refrigerators; Fits Top Hinge; Also Use New Number 29326430300 MFR # 2932647015 Superseded: see description
3. #S,BRACKET,LH,BLK MFR # 2932644038
4. #HINGE,BLACK MFR # 3850528047
5. #PIN,HINGE MIDDLE BLACK MFR # 3850529011
6. #Refrigerator Grommet; Replacement For Dometic DM2652/ DM2662/ DM2663/ DM2852/ DM2862/ DM3862; Charging Plug MFR # 2002301006
7. #PIN,HINGE LOWER MFR # 3850399027
8. #Refrigerator Control Board Kit; Replacement For RV Refrigerator; Black MFR # 3850408018
9. #S,SCREW,RXS,3.5*6.5ZPBC-4-14CF MFR # 3858002052
10. #Refrigerator Trim; Use With Dometic Refrigerator Model NDM1062/ RM3862; Top; Black MFR # 3850520010 Superseded: see description
11. #Refrigerator Door Panel Retainer; Replacement For Dometic RM2551/ RM2652/ NDR1062 Model Refrigerator; Fits Lower Door Left Hand Side; Black MFR # 2930740077
12. #PLUG,BLACK MFR # 3850585039
13. #SCREW,ZINC PLATED MR X 5 X 14 MFR # 3858039096
14. #CATCH,TRAVEL MFR # 3850527015
15. #Refrigerator Door Rail; Replacement For Dometic RM4872/ RM4873/ NDR1062 Refrigerators; Lower Door MFR # 2932660018
16. #Refrigerator Thermistor Assembly; Replacement Refrigerator Thermistor Holder Bracket MFR # 3851088017
17. #Refrigerator Trim; Replacement For Dometic NDR1062/ RM2551/ RM265 Refrigerators; Front Lower; Black MFR # 2932690049
18. #Dometic Refrigerator Door Hinge Upper Right MFR # 2932690130
19. #LABEL MFR # 2933180016
20. #S,WASHER,5.5*12MM,ZPBLK-4-14CF MFR # 3858010022
21. #TOOLS & FASTENERS RV; S,SCREW,MRX,M4\*4,ZPBC-4-10CF MFR # 3858004058
22. #S,NAMEPLATE,DOMETIC-VAR 1 MFR # 3850385018
23. #DECAL MFR # 3850411004
24. #Washer; Use With Dometic Refrigerators; Zinc Plated; 6.1 x 12.5; Zinc Plated MFR # 3858010113 Superseded: see description
25. #Nut; Replacement For Dometic NDR1062/ NDR1292/ RM2652 Model Refrigerator; M6 x 4; Black MFR # 3858009057
26. #Screw; MRX Screw; Use With Dometic Refrigerators; M4 x 10; Zinc Plated MFR # 3858039047 Superseded: see description
