Dometic DMC4081 Parts Diagram · Cabinet Exterior

Refrigerator · 4 assemblies · 7 diagram sheets · 6 parts · by Andrew Strick, mobile RV technician

OEM exploded parts diagrams for the Dometic DMC4081 RV refrigerator: 4 assemblies (Cabinet Exterior, Replacement, Cabinet Interior, Compressor - Electric Parts) and 6 manufacturer part numbers.

The model and product number (PR#/product #) label is inside the fresh-food compartment on the side or ceiling wall. On Dometic absorption units the product number decides the cooling unit, control board and door panels, so match parts to it, not just to the RM model.

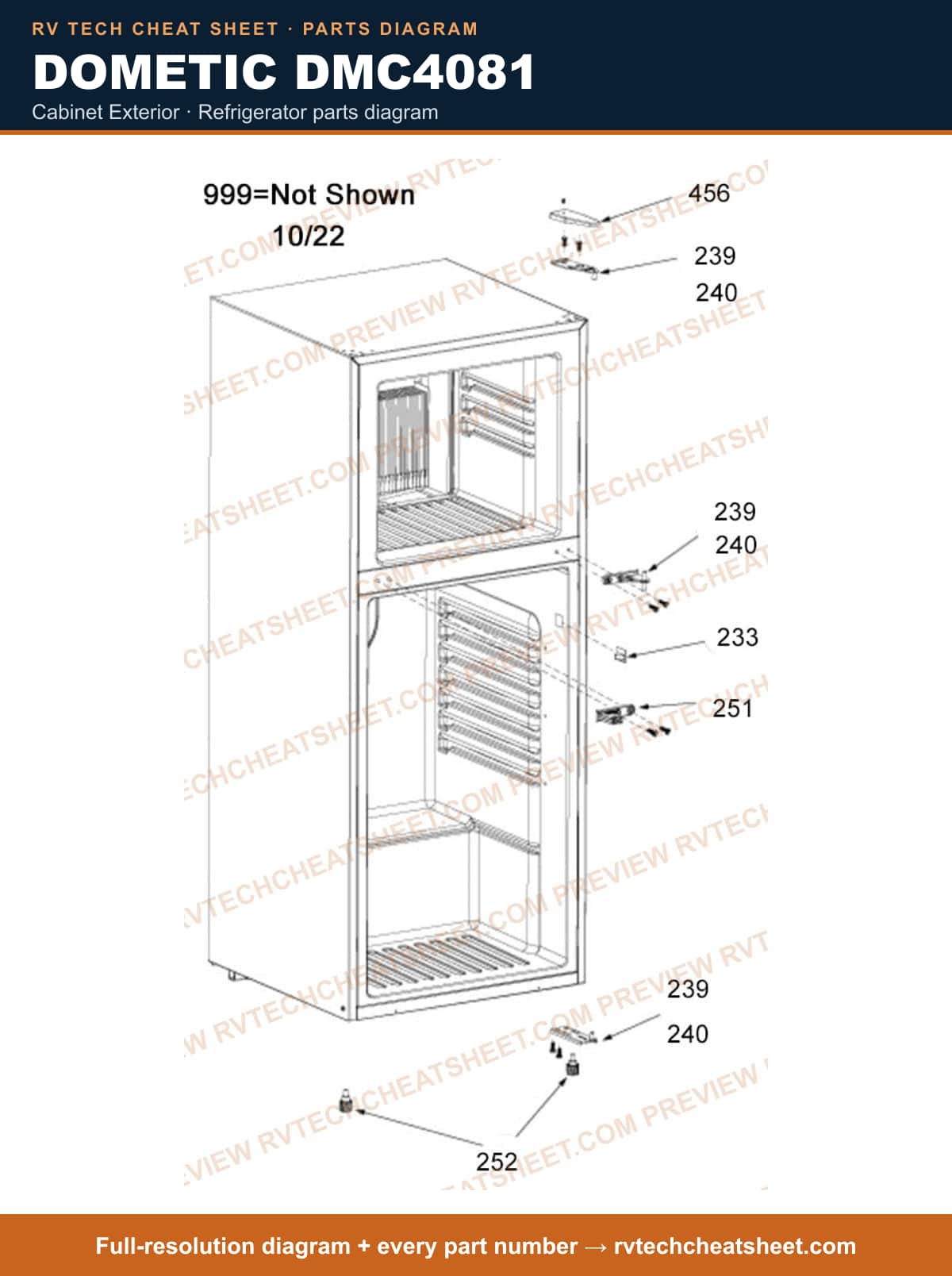

Cabinet Exterior

Components

1 item

1. #Kit, Hinges, Bushings, Airing Lock, Door Stop, Feet MFR # 4453001334

Replacement

Components

1 item

1. #Dometic CFX3 Compressor Cooler AC Power Supply Adapter 100-240V MFR # 9600028281

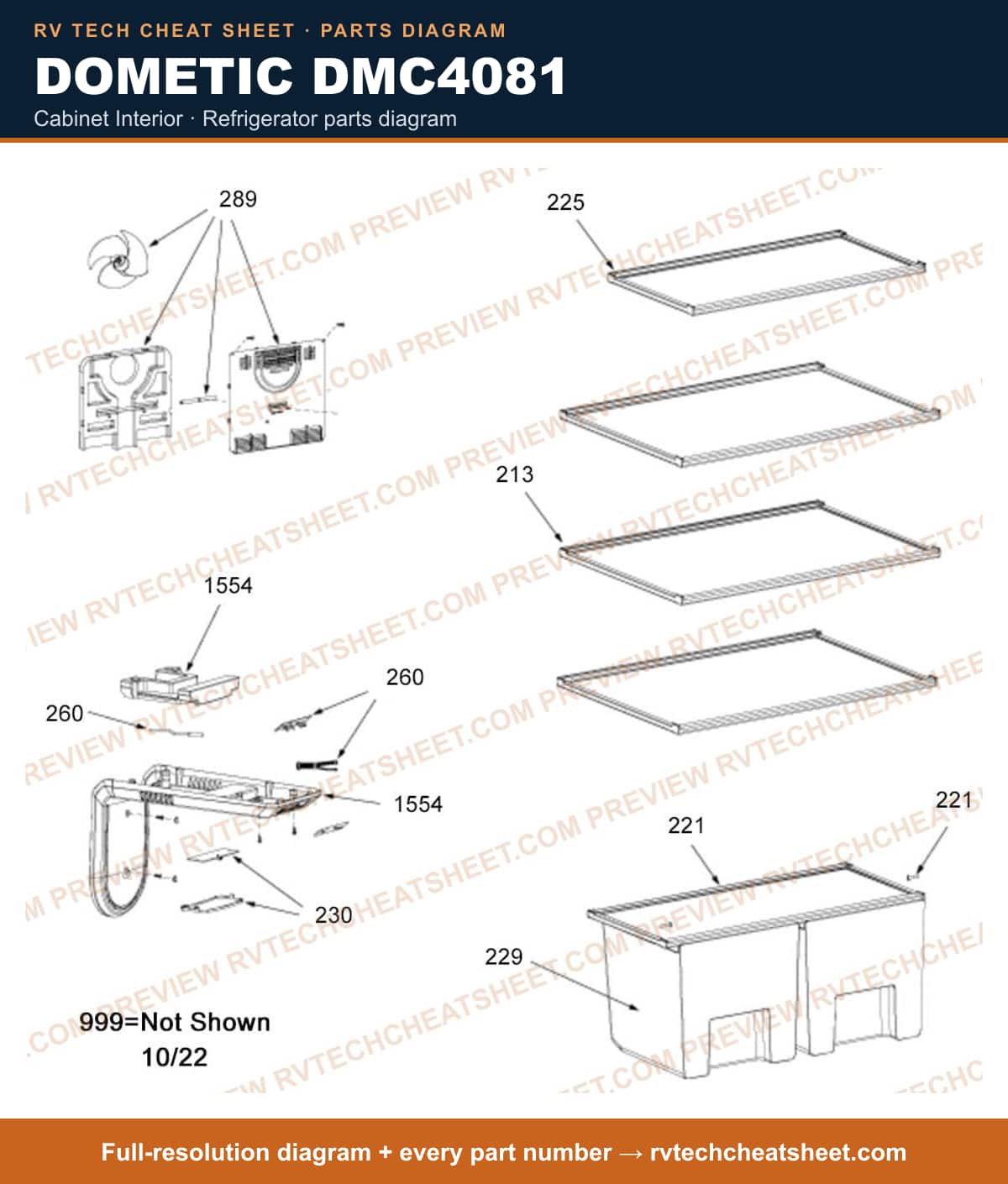

Cabinet Interior

Compressor - Electric Parts

Components

4 items

1. #power module MFR # 4453000609
2. #Terminal Block with Cover MFR # 4453000652
3. #compressor dc fan assembly MFR # 4453000610
4. #Compressor Controller with Wire Assembly MFR # 4453000655
